USER MANUAL HAA52N EtiamPro

To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities.

Thank you for choosing EtiamPro! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

Read and understand this manual and all safety signs before using this appliance.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

• Refer to the Velleman

Service and Quality Warranty on the last pages of this manual.

• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer willHAA52N

V. 03 – 08/06/2020 4 ©Velleman nv

not accept responsibility for any ensuing defects or problems.

• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product.

• Keep this manual for future reference.

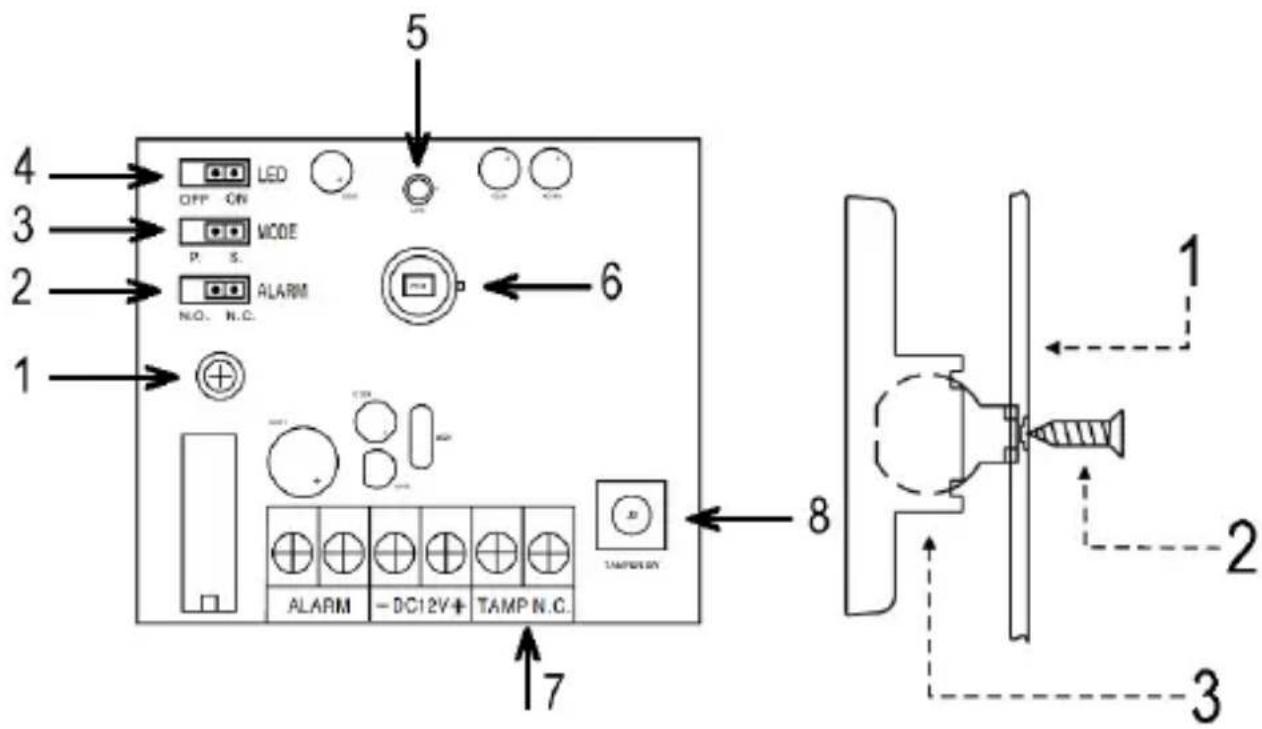

Refer to the illustration on page 2 of this manual.

Refer to the illustrations on page 2 of this manual.

connection terminal block

ALARM This is the alarm relay output contact of the detector. It is selectable as NC or NO via the alarm jumper to match the requirements of the protection zone. DC12V Connect the positive (+) side to an 8V ~ 16V DC power source, usually from the alarm control panel. Connect the negative (-) side to the common grounding point of the control panel. TAMP NC If a tamper switch is required, connect these terminals to a 24- hour NC protection zone in the alarm control panel. The tamper switch contact is closed with the detector’s front cover secured on the box. The opening of the front cover at any time will make the contact open and send an immediate alarm signal to the control panel.HAA52N

Enables the LED ON = alarm activated. FLASH = power-up. OFF Disables the LED. Does not affect detection. MODE

Standard alternate polarity signal processing. For operation within a stable environment.

Double alternate polarity signal processing within 10 seconds. For a harsh environment. ALARM

The alarm relay output contact is NC. The output relay is normally energized.

The alarm relay output contact is NO. The output relay is normally de-energized.

5.1 Mounting Location

• The detector can be surface or corner mounted, or mounted with the supplies swivel bracket. Always mount the unit on a sturdy surface.

• The detector should be mounted indoors, in areas that do not have openings constantly exposed to the outside environment.

• Select the mounting location so that the expected movement of an intruder will cross the detection beam.

• Avoid aiming the detector towards heating or air conditioning vents or ducts, exterior metal walls, exterior windows or curtains covering windows, refrigerator or freezer grills or other surfaces that may change temperature rapidly.

• Avoid putting large objects in front of the detector, which will cause significant changes in the area or volume protected.

• Select the mounting location so that the beam patterns are at a 45° angle to the intruder’s expected path. Installation height should be 2 ~ 3m.HAA52N

5.2 Front Cover Removal

Loosen the screw on the bottom of the box to release the front cover from the rear cover.

It is necessary to remove the PCB before mounting the rear cover. Loosen the PCB fixing screw. Pull out the PCB carefully.

5.4 Rear Cover Mounting

The rear cover is prepared for either surface or corner mounting, or mounting with the supplied swivel bracket.

• Punch the cable hole at the back of the rear cover, together with the fixing holes (knockout holes) according to the mounting (surface or corner mounting, or mounting with the supplied swivel bracket).

• Mount the rear cover or mount the swivel bracket with screws (mount the rear cover on the swivel bracket afterwards).

Refer to the illustrations on page 2 of this manual.

5.5 Wiring and Finishing

• Fix the PCB back onto the rear cover.

• Connect the wiring to the terminal block.

• Place the front cover onto the rear cover and fix with the screw. Make sure you hear the tamper switch clicking. Align the detector.

• Walk test can be performed after the power-up display expired - the alarm LED is flashing during the power-up period - to test the detector over the entire protected area to verify proper operation of the unit.

• Walk into the protected area at a rate of one step per second across the protection beams and observe the LED.HAA52N

• Alarm is triggered when the detector is tripped under standard alternate polarity signal processing at normal condition.

• The harsh condition requires the detector to be tripped twice within ten seconds under double alternate polarity signal processing.

detection method ..... passive IR with alternate polarity processing

pulse counting ............... normal response or 2 pulses within 10 s

tamper switch .................... NC contact with 10 Ω in-line resistor

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.HAA52N
