LQS03 - Motion detector EtiamPro - Free user manual and instructions

Brand	EtiamPro
Model	LQS03
Product type	Recessed motion detector
Usage	On/off control for 12V and 24V LED strips
Nominal input voltage	12-24 VDC
Maximum rated current	3 A
Detection range	4 to 20 cm
Cable length	100 cm
Required drilling diameter	8 mm
Protection rating	IP20
Operating temperature	-20°C to 45°C
Installation	Recessed, mounting in an 8 mm hole
Compatibility	12V and 24V LED strips
Operation	Hand gesture motion detection (On/Off)
Safety instructions	Do not expose to rain, moisture, or splashes. Protect from shocks and extreme heat.
Care and cleaning	Clean with a dry cloth. Do not use liquid products.
Warranty	Service and quality warranty from Velleman Group NV (see manual)

Frequently Asked Questions - LQS03 EtiamPro

What is the detection distance of the LQS03 motion detector?

The detection range is 4 to 20 cm. It is designed to detect hand movement in close proximity, ideal for cabinets or confined spaces.

How to install the recessed motion detector?

Drill an 8 mm hole at the chosen location, insert the sensor and fix it if necessary with mounting glue. Connect the cable to the control module, then connect the module to the LED strip and power supply. Test the operation before final installation.

What power supply voltage is required?

The device operates with an input voltage of 12 to 24 VDC. It is compatible with 12V and 24V LED strips.

Is the detector waterproof?

No, the protection rating is IP20, meaning it is not protected against water. It must be installed indoors, away from moisture and splashes.

How to clean the LQS03 detector?

Use a dry, soft cloth to clean the sensor surface. Never use liquid or abrasive products that could damage the device.

What to do if the detector does not respond to movement?

First check the electrical connections: the power supply, the control module, and the LED strip. Ensure the detection distance is respected (4-20 cm). Test the device in a test setup before final installation. If the problem persists, consult the manual or contact customer service.

What is the recommended operating temperature?

The detector operates in a temperature range of -20°C to 45°C. Avoid exposing it to extreme temperatures.

Can I use this detector with 12V and 24V LED strips?

Yes, it is specifically designed to work with 12V and 24V LED strips. Ensure that the power supply matches the voltage of your LED strip.

What are the dimensions of the detector?

The exact dimensions are not specified, but the sensor is designed to fit into an 8 mm hole. It is very compact for discreet installation in cabinets.

How does the motion detector work?

The detector uses a proximity sensor that detects hand movement within its detection range (4-20 cm). One gesture turns the LED strip on, a second gesture turns it off. The electronic control module can be hidden in a false wall.

USER MANUAL LQS03 EtiamPro

Coiled black cable and electrical connector with terminal connectors (no visible text or symbols)

USER MANUAL 3

GEBRUIKERSHANDLEIDING 8

MODE D'EMPLOI 12

MANUAL DEL USUARIO 16

detection range 5-200um ON/OFF

surface mount

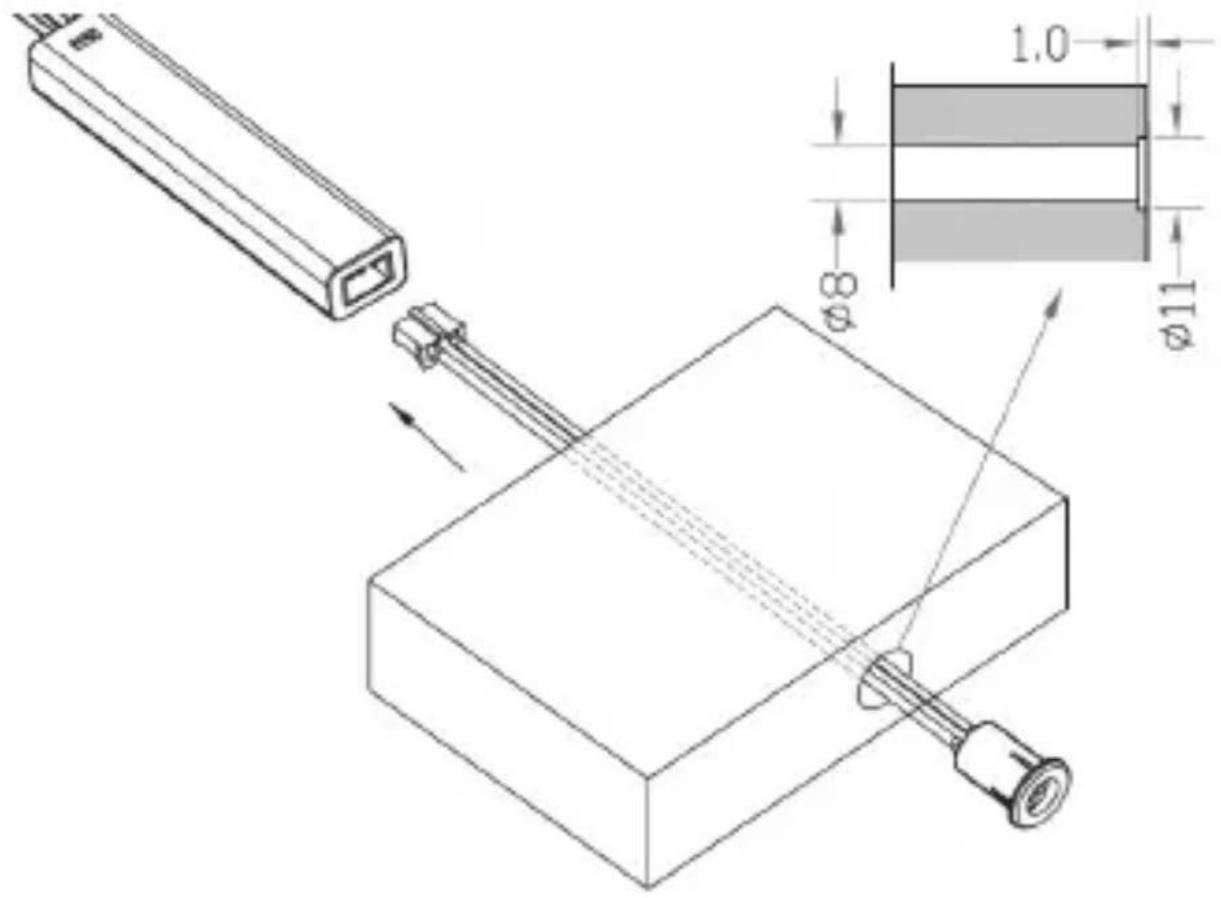

Technical diagram showing a mechanical assembly with labeled dimensions and component features

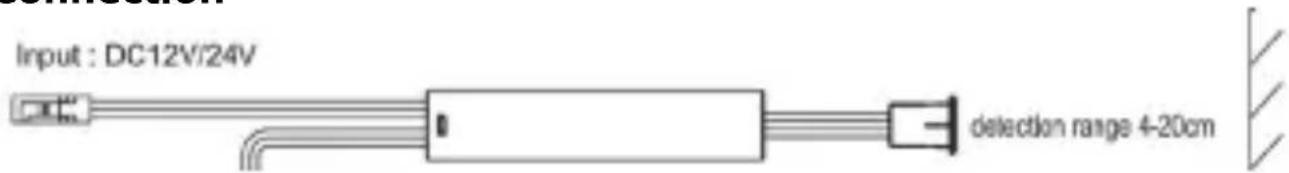

Connection

Input : DC12V/24V delection range 4-20cm

Output: DC12V/24V 3A max.

LQS03

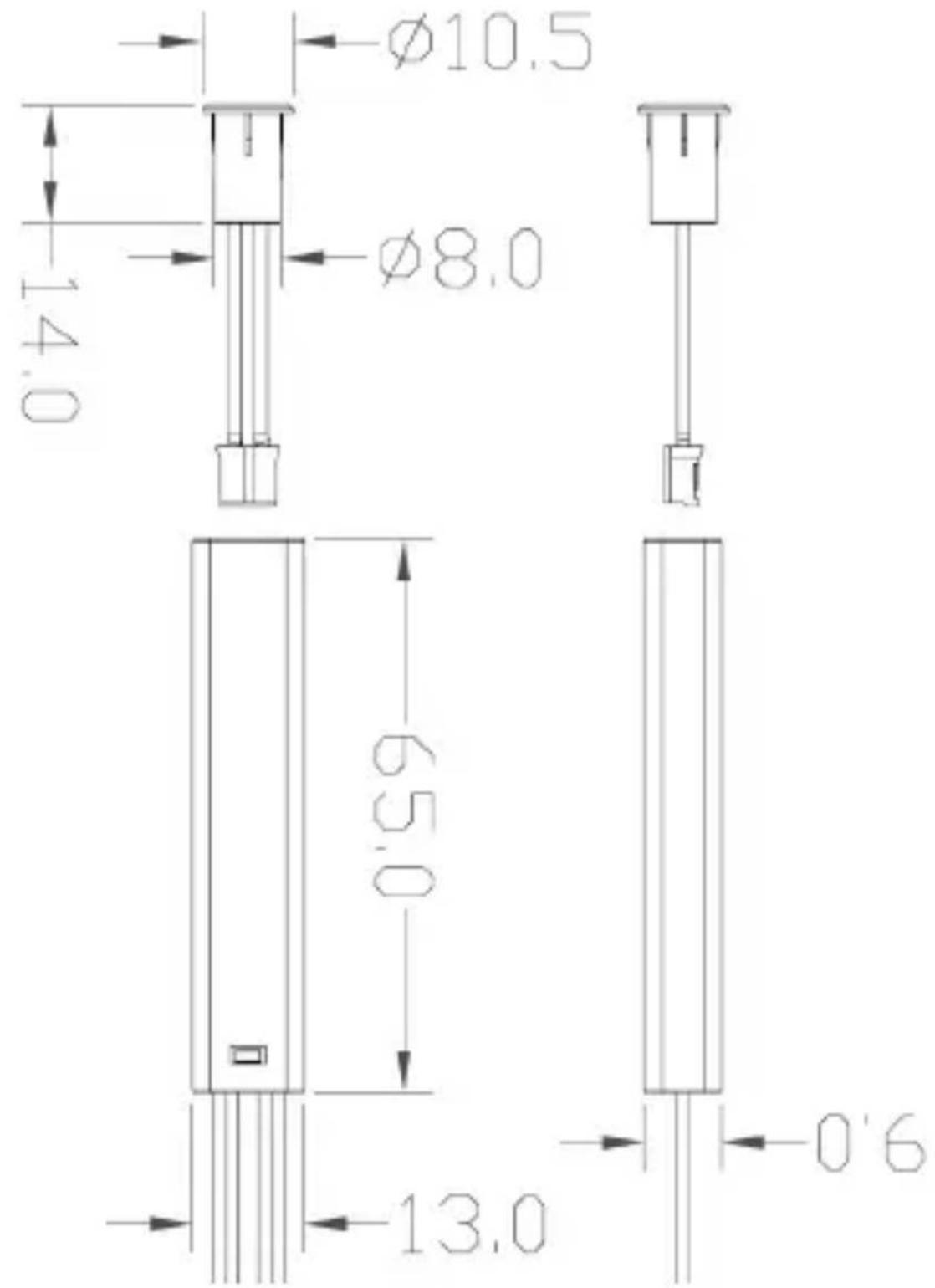

Product dimensions

Ø10.5 Ø8.0 14.0 65.0 0.6 13.0

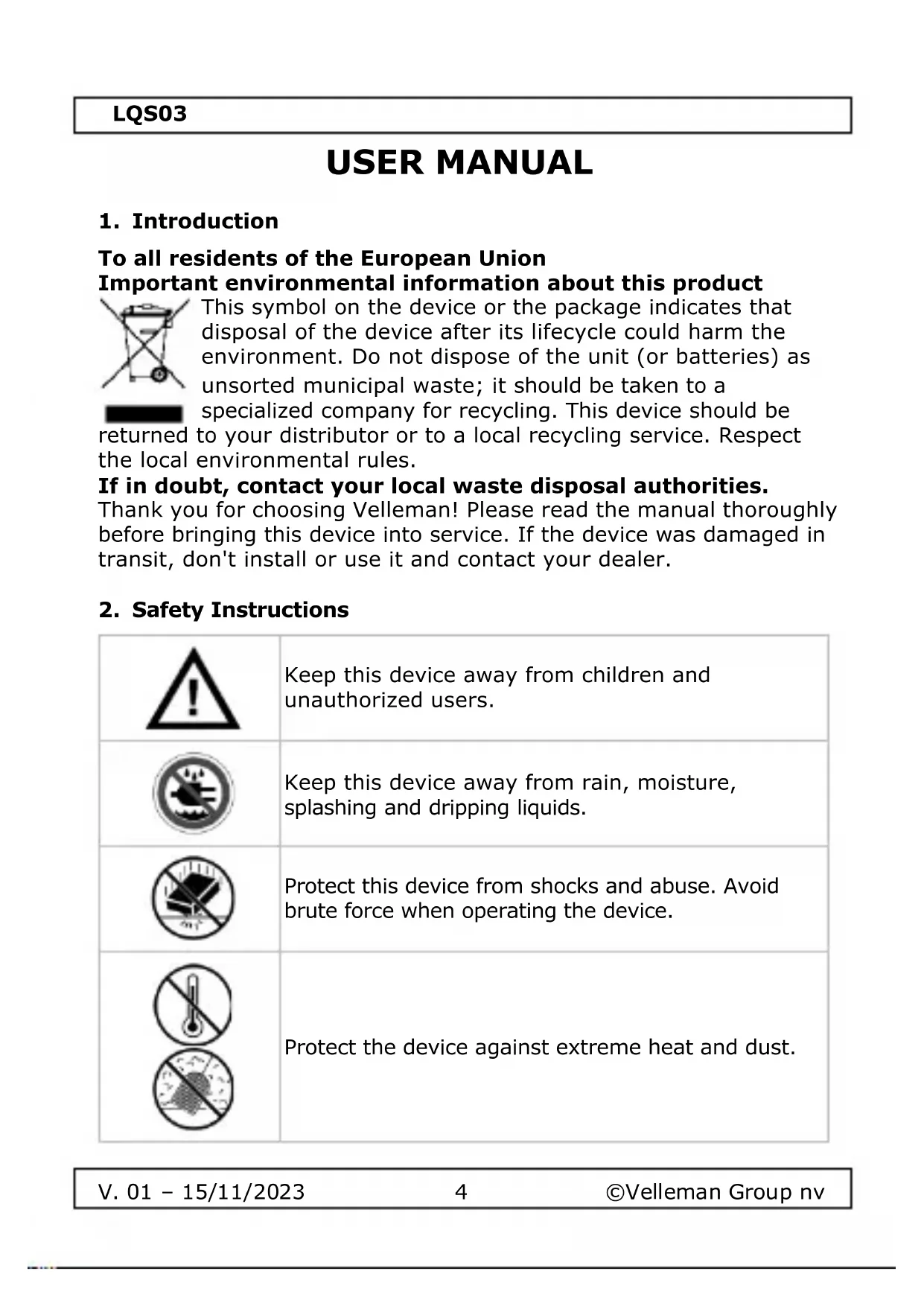

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	Keep this device away from rain, moisture, splashing and dripping liquids.
	Protect this device from shocks and abuse. Avoid brute force when operating the device.
	Protect the device against extreme heat and dust.

LQS03

3. General Guidelines

Refer to the Velleman Group NV® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it.
  • All modifications of the device are forbidden.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

4. Features and specifications

• This compact switch sensor nicely conceals the control of LED lighting. Simply mount this sensor for flush mounting in the cabinet by drilling an 8mm hole. You can easily conceal the electronic control module in a false wall. This will give you a perfectly finished installation.
• With just one wave of your hand, you activate the LED strip. A second wave and the lights go out again. Transform your space with this convenient, smart solution. Choose our recessed switch sensor and bring innovation to your interior. See image on page 2
• suitable for: 12 and 24V LED strips

5. Installation

Determine the Mounting Location:

Determine the location where the switch sensor should be placed. Choose a location for the wave sensor where there is minimal chance of unintended movement. For example, avoid places where many people walk by. A good spot is often on the side of a cabinet or wall.

Important!:

Connect the sensor to the LED driver and LED strip and test the operation in a test setup. If the result is good, you can start the effective assembly.

Drill the Mounting Hole:

Use the drill to drill a hole at the marked location. Make sure the hole is large enough (8mm) to safely mount the sensor.

V. 01 - 15/11/2023

5

©Velleman Group nv

Place the movement sensor:

Insert the sensor into the drilled hole and fix it securely with some mounting glue if necessary). Then connect the connecting cable to the switch module.

Mount the LED Strip:

Mount the LED Strip in an aluminum profile.

Connect the wiring from the switch module of the movement sensor to the LED Strip and connect the input of the switch module to an LED power supply. Connection diagram see page 2.

Test Operation:

Gently wave once in front of the wave sensor and observe if the LED Strip turns on. Wave a second time to verify that the sensor detects motion and turns off the LED Strip.

6. Technical Specifications

Physical properties
Cable length	100 cm
Maximum current rating	3 A
Input voltage rating VDC range	12-24 V
Detection range	4-20 cm
drill diameter	8 mm
IP rating	IP20
Operating temperature range	-20-45 °C

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

LQS03

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Two circular signs with prohibition symbols: one with thermometer and another with sandstone, indicating environmental protection or hazard.

Monteer de LED Strip:

Two circular signs with prohibition symbols: one with thermometer and another with sandstone, indicating environmental protection or hazardous zones.

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a hazardous material.

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sand or dust hazard.

Two circular signs with prohibition symbols: one with thermometer and another with sandstone, indicating environmental protection or hazard.

Proteja o dispositivo contra calor extremo e poeira.

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:
• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent

maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
