LQS04 - Motion detector EtiamPro - Free user manual and instructions

Product Type	PIR motion sensor for LED 12-24V
Brand	EtiamPro
Model	LQS04
Input voltage	12-24 V DC
Max rated current	3 A
Detection range	1 to 3 meters
Detection angle	110°
Time delay	45 seconds
Cable length	100 cm
Drilling diameter (recessed)	13 mm
Protection rating	IP20
Operating temperature	-20 to 45 °C
Installation	Flush or surface mounted
Power supply	LED strip 12-24V via driver
Main function	Automatic on/off of LED lighting
Maintenance	Clean with a dry cloth, avoid moisture
Safety	Do not expose to rain, shocks, extreme heat
Spare parts and repairability	Not available, device not user-serviceable

Frequently Asked Questions - LQS04 EtiamPro

How to install the LQS04 motion sensor?

You can install it in two ways: flush (drill a 13 mm hole) or surface (use the bracket with provided screws). Connect the cable to the switching module, then connect the module to the LED strip and a 12-24V DC power supply.

What is the detection range of the LQS04?

The range is 1 to 3 meters, with a detection angle of 110°.

How long does the light stay on after detection?

The time delay is fixed at 45 seconds after the last detected movement.

What supply voltage is required?

The detector operates in 12-24 V DC. It is designed for 12V or 24V LED strips.

Can I use this detector outdoors?

No, the IP20 rating limits it to indoor use. It must be protected from rain and humidity.

Can the detector be mounted on the ceiling?

Yes, thanks to its compact design, it can be mounted on the ceiling, wall, in a cabinet, etc., flush or surface.

How to test the detector before final installation?

Connect the detector to the switching module, the LED strip, and the power supply. Test by moving in the detection zone. If everything works, proceed with mounting.

What to do if the detector does not turn off?

Check that there is no persistent movement in the area (animals, moving objects). Ensure the 45 s delay is respected. If the problem persists, check the wiring.

What type of LED strip can I use?

Any 12V or 24V LED strip, with a total current not exceeding 3 A (max 36 W at 12V, 72 W at 24V).

Is the detector compatible with a dimmer?

No, the detector operates in on/off mode. It is not designed for dimming.

USER MANUAL LQS04 EtiamPro

PIR motion detector switch - recessed and surface installation - 12V/24V

Coiled black cable and connector with a small terminal block (no text or symbols visible)

USER MANUAL 5

GEBRUIKERSHANDLEIDING 9

MODE D'EMPLOI 13

MANUAL DEL USUARIO 17

Simple line drawing of a person standing under a roof with sound waves, no text or symbols present

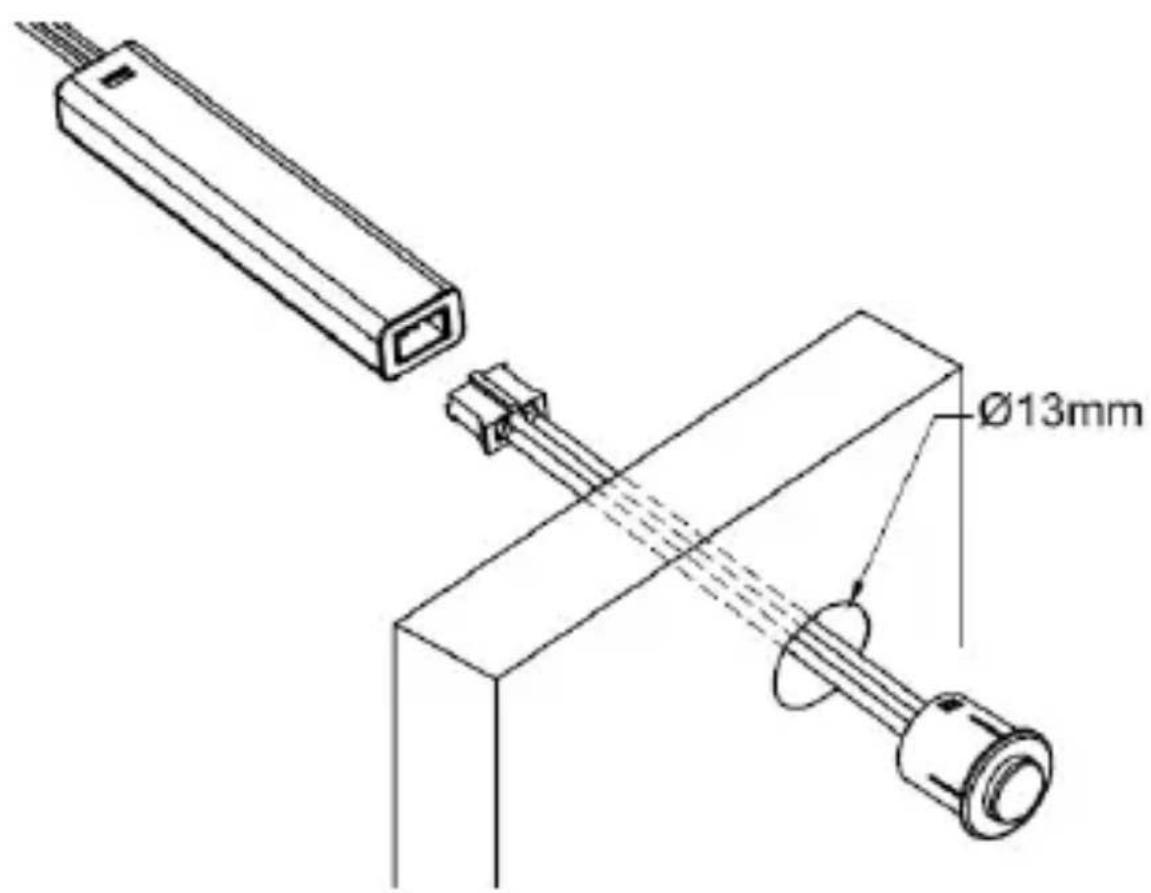

Recess mount

Ø13mm

LQS04

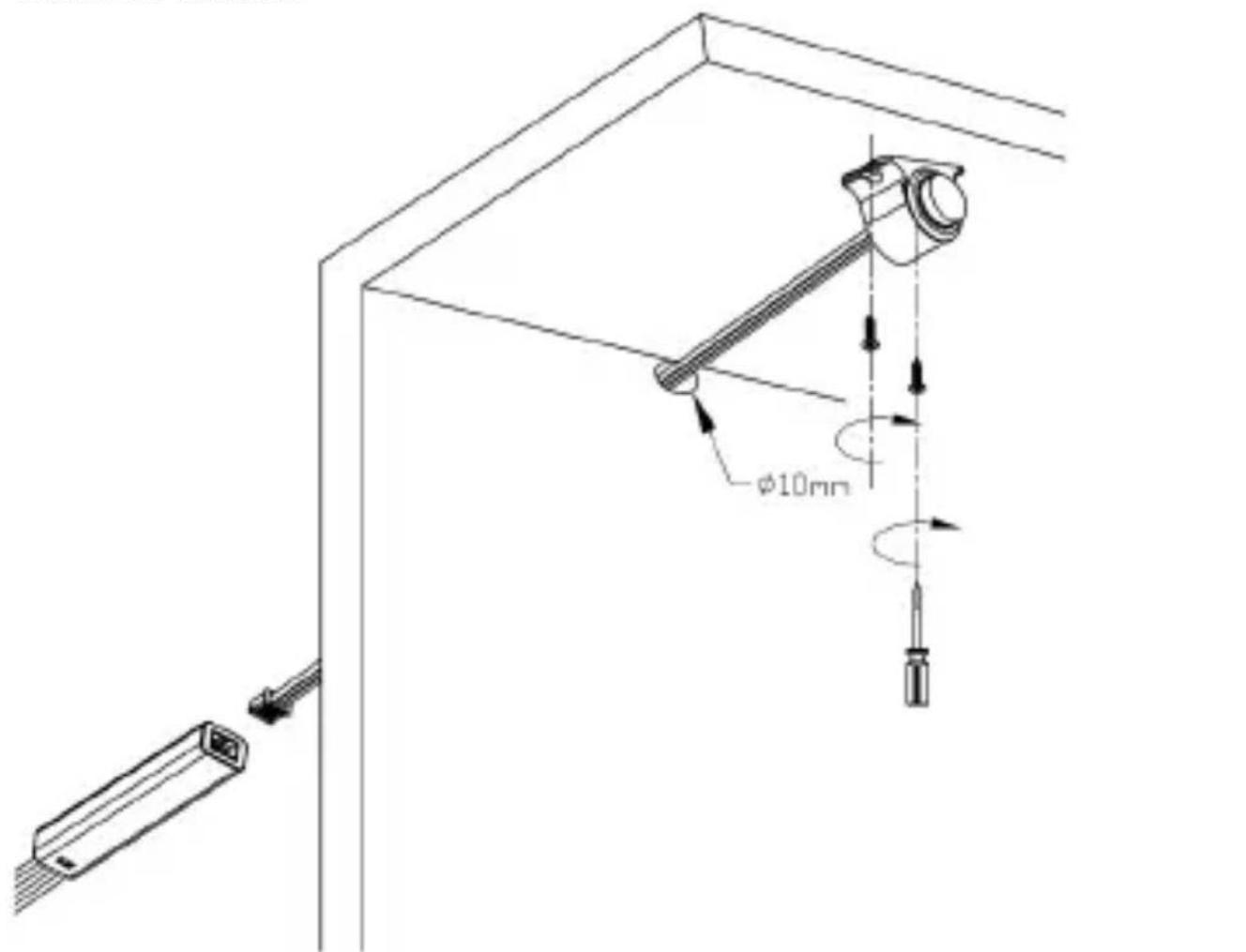

Surface mount

φ10mm

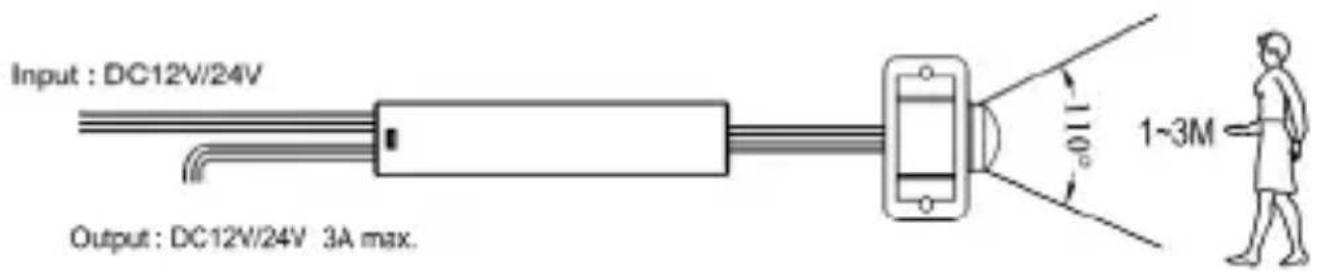

Connection

Input : DC12V/24V Output : DC12V/24V 3A max.

LQS04

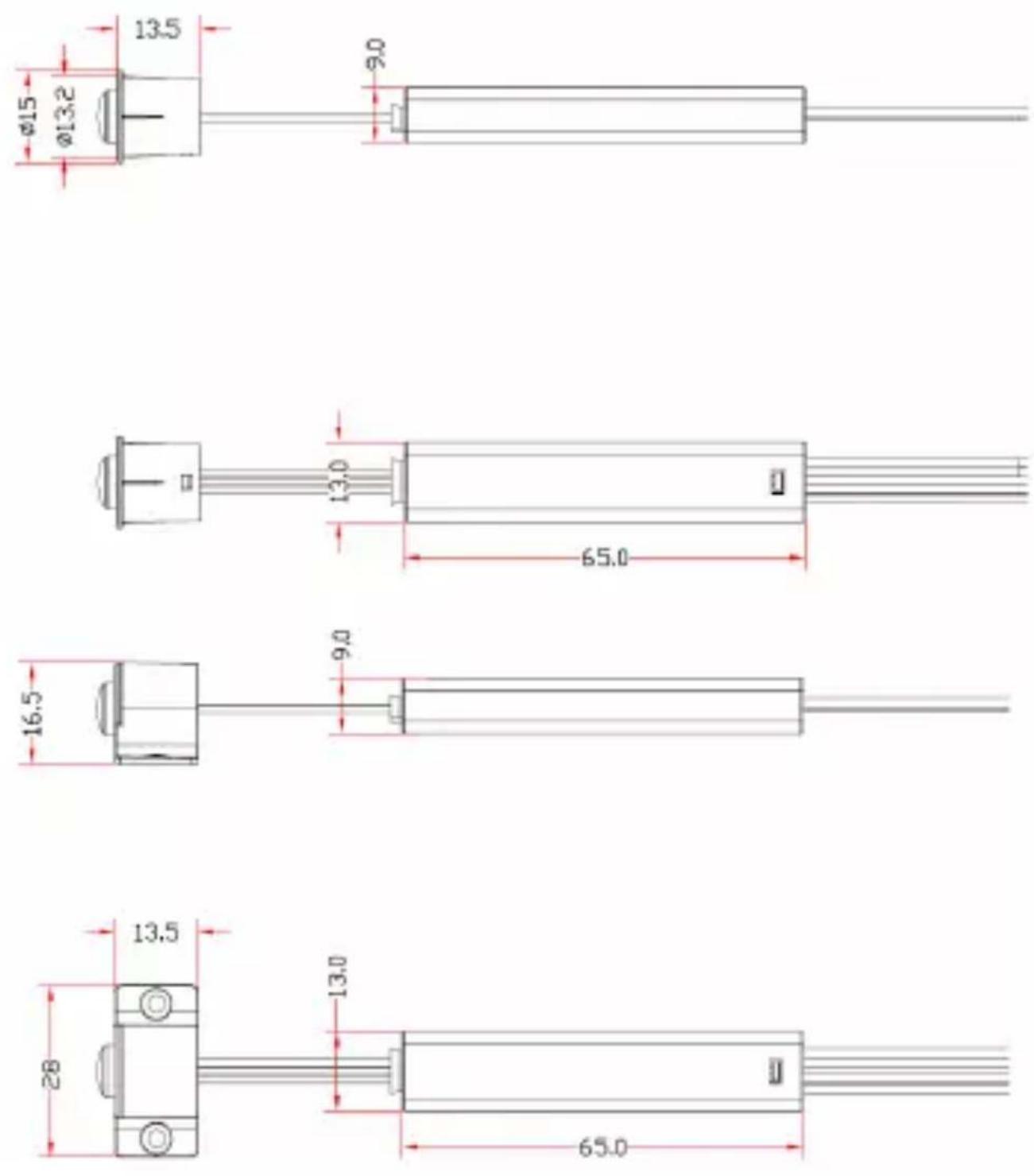

Product dimensions

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	Keep this device away from rain, moisture, splashing and dripping liquids.
	Protect this device from shocks and abuse. Avoid brute force when operating the device.
	Protect the device against extreme heat and dust.

LQS04

3. General Guidelines

Refer to the Velleman Group NV® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it.
  • All modifications of the device are forbidden.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

4. Features and specifications

• PIR motion sensor for recessed and surface mounting. Thanks to its compact design, this sensor can be discreetly mounted in ceilings, walls, cabinets or dressers. You have the choice of building this sensor in by simply drilling a 13mm hole or installing it as surface-mount with the included bracket.
• suitable for: 12 and 24V LED strips

5. Installation

Determine the Mounting Location:

Determine where to place the PIR motion sensor. Choose a location for the motion sensor where the chance of unintended movement is minimal. The detection angle is 110^ and the detection distance is 1 to 3 meters.

When the human body moves within the detection range, the PIR motion sensor turns on the light. When the human body leaves the detection range after a 45-second delay, the PIR motion sensor turns the light off.

Important!:

Connect the motion sensor to the LED driver and LED strip and test the operation in a test setup. If the result is good, you can start the effective assembly.

1. Recessed mount:

Use the drill to drill a hole at the marked location. Make sure the hole is large enough (13mm) to safely mount the sensor.

V. 01 - 15/11/2023

6

©Velleman Group nv

LQS04

Insert the sensor into the drilled hole and fix it securely with some mounting glue if necessary). Then connect the connecting cable to the switch module.

2. Surface mount:

Mount the sensor with the screws provided. Then connect the connection cable to the switch module.

Mount the LED Strip:

Mount the LED Strip in an aluminum profile.

Connect the wiring from the switch module of the PIR motion sensor to the LED Strip and connect the input of the switch module to an LED power supply. Connection diagram see page 3.

1. Technical Specifications

Physical properties
Cable length	100 cm
Maximum current rating	3 A
Input voltage rating VDC range	12-24 V
Detection range	1-3 m
Detection angle	110°
drill diameter	13 mm
Delay after trigger	45 seconds
IP rating	IP20
Operating temperature range	-20-45 °C

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

LQS04

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Two circular signs with prohibition symbols: one with thermometer and another with sandstone, indicating environmental protection or hazard.

Monteer de LED Strip:

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sandbag or dust.

Two circular signs with prohibition symbols: one with thermometer and another with a sandbag, both crossed by a diagonal line.

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sand or dust hazard.

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sand or dust hazard.

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent

maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
  • Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
