Product type Kerosene/diesel forced air heater
Model STN125D (equivalent to ST-125T-KFA-E)
Dimensions (L x W x H) 99 x 61 x 66 cm
Weight 27.5 kg
Power supply 230 V ~ 50 Hz
Nominal heat output 36.6 kW
Maximum heating area 288 m²
Fuel consumption 3.6 L/h
Tank capacity 37.9 L
Maximum runtime 10 hours
Airflow 918 m³/h
Accepted fuels Kerosene (paraffin), diesel no. 1 and 2, jet fuel JP8/Jet A, heating oil no. 1 and 2
Temperature control Adjustable mechanical thermostat (5 to 45 °C)
Digital display Ambient temperature and error codes (E1, E2, E3)
Fuel gauge Electronic LED
Ignition Electronic (spark plug and igniter)
Safety Temperature limit sensor, 5A fuse, flame photoelectric cell
Routine maintenance Clean/replace air filters every 500 h, clean nozzle and spark plug each season, flush tank every 200 h
Intended use Temporary heating of buildings under construction, renovation or repair – not suitable as primary heating

Frequently Asked Questions - STN125D STANLEY

What fuel to use in the STN125D heater?
Use kerosene (paraffin) type 1-K, diesel no. 1 or no. 2, jet fuel JP8/Jet A or heating oil no. 1 and no. 2. Never use gasoline, alcohol or thinners.
How to start the heater?
Fill the tank to 'F', plug in the unit, set the thermostat to the desired temperature (model 125T/175T/215T) and turn the switch to 'ON'. The indicator lights up and the heater starts automatically.
What to do if the display shows 'E1'?
The 'E1' code indicates a combustion problem. Check pump pressure, clean air and fuel filters, nozzle and photoelectric cell. Refer to the troubleshooting section of the manual.
How to stop the heater?
Turn the thermostat fully to the left, set the switch to 'OFF' and unplug the power cord.

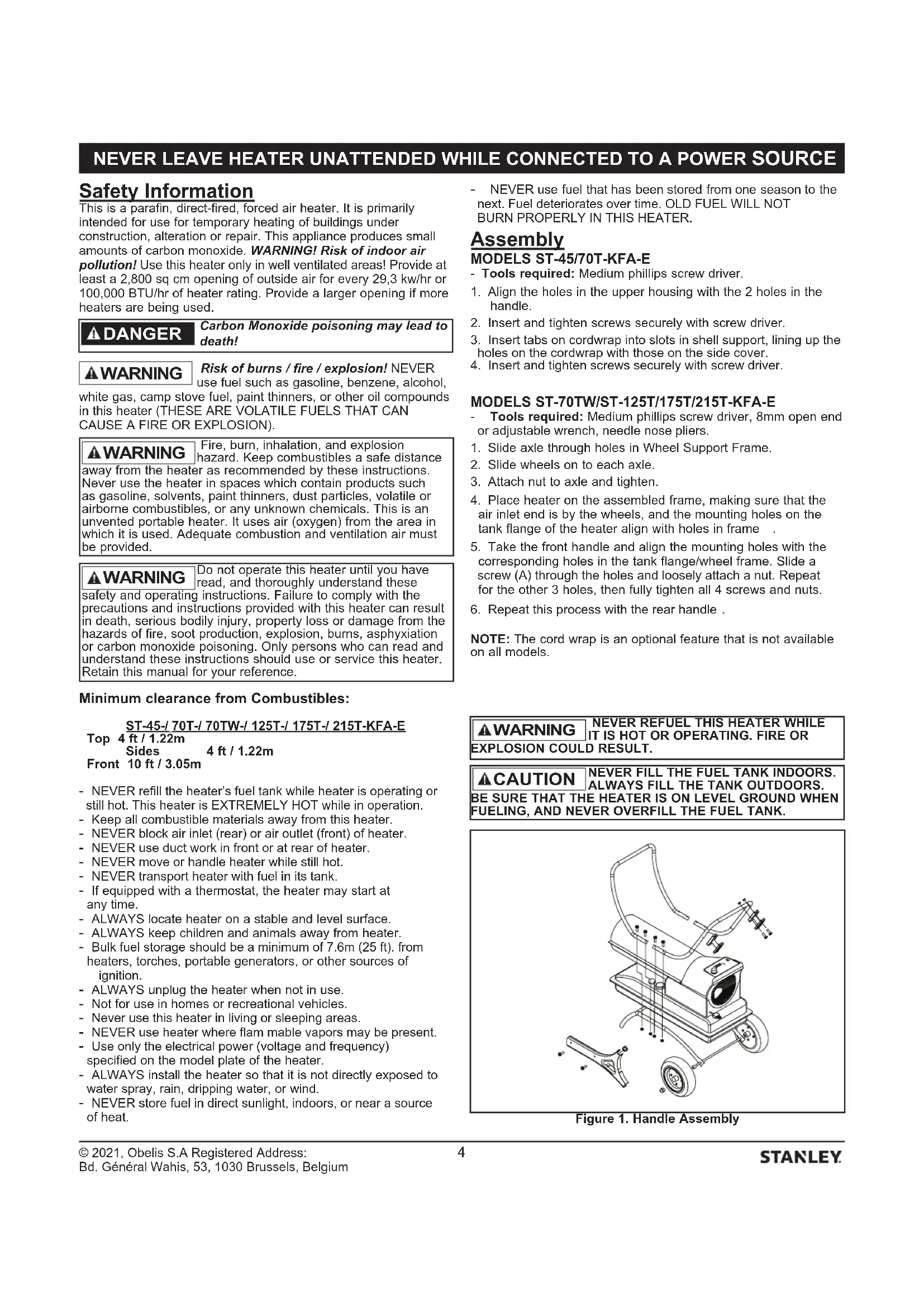

What safety distance must be maintained?
Maintain a clearance of at least 1.20 m on sides and top, and 3.00 m at the front from any combustible material.
Is special ventilation required?
Yes, an opening to the outside of at least 2,800 cm² is required for each 29.3 kW of power. Never use in a room without fresh air supply.
How to maintain the air filters?
Replace intake, outlet and lint filters every 500 hours of operation, or more often if the environment is dusty. Refer to the exploded view diagram in the manual.
Can I store the heater with fuel?
No, drain the tank before prolonged storage. Use the drain plug (models 125/175/215) or a siphon for smaller models. Old fuel can damage the unit.
What to do in case of oil leak?
Contact the manufacturer or a qualified technician. Any repair requiring opening the oil tank must be carried out by a professional. Do not dispose of the unit with household waste.
Can I use this heater in a house?
This heater is designed for temporary use on construction sites (buildings under construction or renovation). Do not use it in living or sleeping areas.
