Product type	Professional high-pressure cleaner
Brand	Kärcher
Model	HD 13184 S S Plus (HD 13/18 S Plus)
Max. service pressure	180 bars (18 MPa)
Max. flow rate	1300 l/h (21.67 l/min)
Power consumption	9.2 kW
Power supply	230 V / 50 Hz / 3~ (three-phase)
Protection type	IPX5
Weight (without accessories)	approx. 84 kg
Dimensions (L × W × H)	560 × 500 × 1090 mm
Detergent tank capacity	6 liters
Max. water inlet temperature	60 °C
Sound pressure level LpA	72 dB(A)
Sound power level LWA	87 dB(A)
Engine oil type	SAE 90
Oil quantity	1.2 liters
Main functions	High-pressure cleaning, low-pressure with detergent, pressure/flow regulation
Safety devices	Relief valve, pressure switch, safety catch on gun
Routine maintenance	Check oil level, clean fine filter, change oil every 500 h
Warranty	According to conditions of the country of distribution

Frequently Asked Questions - HD 13184 S S Plus Kärcher

How to start the device?

Make sure the water supply is open and the power cord is plugged in. Set the main switch to 'I'. The green indicator lights up. Remove the gun safety by pushing the lock backwards, then open the gun to start the spray.

How to adjust the working pressure?

The pressure and flow rate are adjusted by turning the pressure and quantity regulator located on the lance. Turn in the + direction to increase, in the - direction to decrease.

Can I use detergents other than Kärcher?

It is recommended to use only Kärcher-approved detergents to avoid damaging the device and the object being cleaned. Follow the dosage and safety instructions provided with the detergent.

What to do if the device does not build up pressure?

Check that the nozzle is in high-pressure position. Clean or replace the nozzle and the fine filter. Bleed air from the device. Ensure the water supply flow rate is sufficient (min. 1400 l/h). If the problem persists, contact customer service.

How to drain the engine oil?

Turn off the device and unplug it. Remove the cover. Unscrew the drain screw at the front of the motor housing. Collect the used oil in a pan. Screw the cap back on, fill with 1.2 liters of SAE 90 oil, then replace the cover. Dispose of used oil at a collection point.

How to clean the fine filter?

Depressurize the device and disconnect it. Remove the cover, unscrew the filter cover and take out the filter. Clean it with clear water or compressed air, then reassemble in reverse order. Perform this operation every week.

What to do in case of water leakage under the device?

Up to 3 drops per minute are normal. If the leak is larger, have the device checked by the after-sales service. Also check the tightness of the high-pressure hose and fittings.

How to store the device for winter?

Empty the detergent tank and drain remaining water. Pump a glycol-based antifreeze into the device by running the pump for a maximum of 1 minute. Store the device in a frost-free place.

What is the standby duration of the device?

The device stays in standby for 30 minutes after closing the gun. After this time, the green indicator flashes and the device stops. To reset, set the switch to '0', wait a few seconds, then switch back to 'I'.

How to replace the high-pressure nozzle with a low-pressure nozzle?

Shut down the device and operate the gun to release pressure. Push the safety catch forward. Replace the high-pressure nozzle with the supplied low-pressure nozzle (size 250). Then adjust the detergent metering valve to the desired concentration.

USER MANUAL HD 13184 S S Plus Kärcher

Line drawings of two different electric pressure hatchers with hoses and wheels (no text or symbols)

Deutsch 6

English 16

Français 26

Italiano 37

Nederlands 48

Español 58

Português 69

Dansk 80

Norsk 90

Svenska 100

Suomi 109

Ελληνικά 119

Türkçe 130

Русский 140

Magyar 152

Čeština 162

Slovenščina 172

Polski 181

Românește 192

Slovenčina 202

Hrvatski 212

Srpski 222

Български 232

Eesti 243

Latviešu 252

Lietuviškai 262

Українська 272

Indonesia 283

28 29 30 31 32 1 2 3 4 5 6 7 8 9 27 24 23 22 21 20 19 18 17 16 15 OIL MIN

28 29 30 31 32 1 2 3 4 5 6 7 8 9 27 26 25 22 24 20 19 18 17 16 10 11 12 13 15 OIL MIN

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating movement or assembly.

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Technische Daten

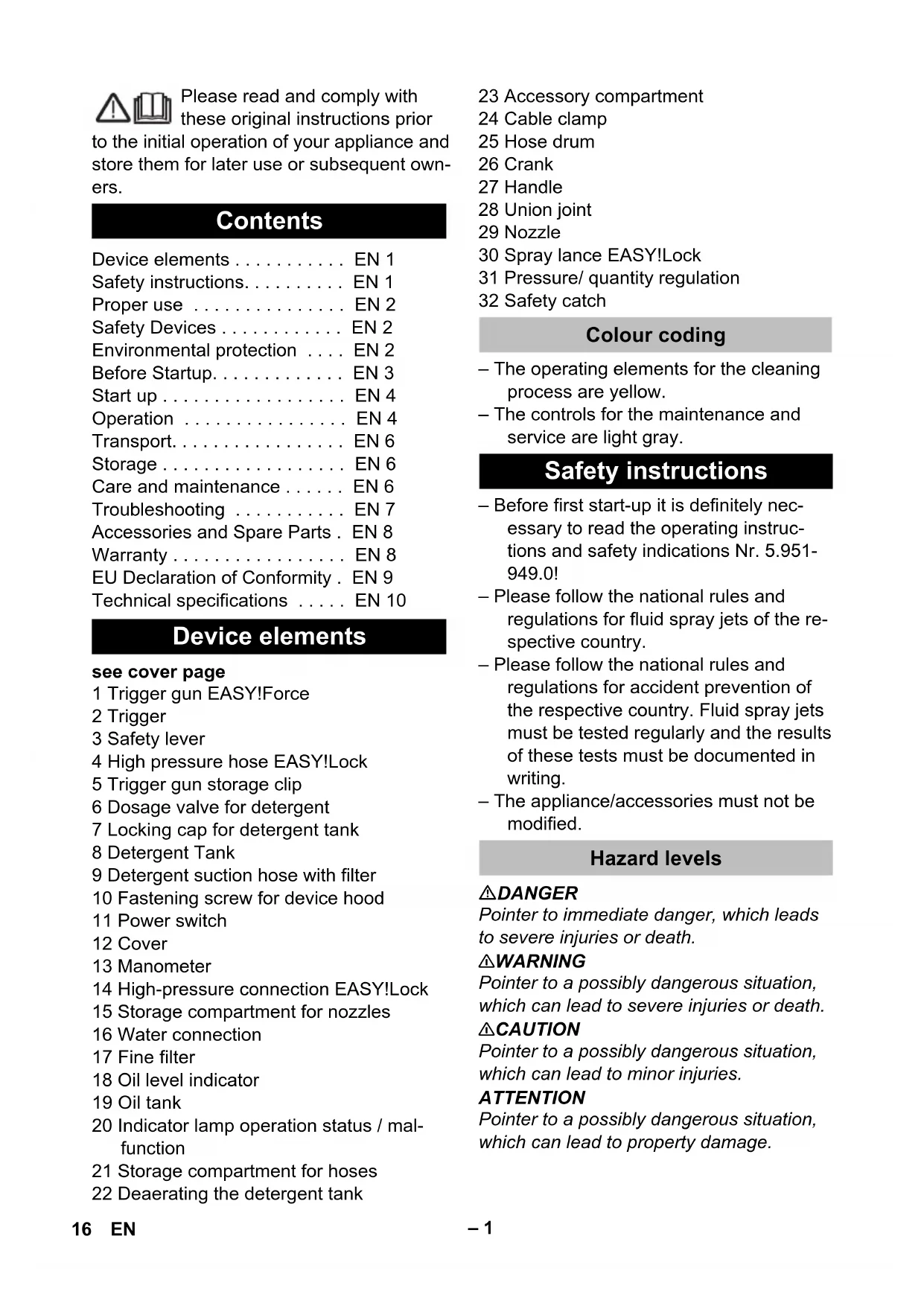

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Contents

Device elements ..... EN 1

Safety instructions..... EN 1

Proper use ...... EN 2

Safety Devices ..... EN 2

Environmental protection .... EN 2

Before Startup..... EN 3

Start up.... EN 4

Operation ...... EN 4

Transport..... EN 6

Storage ..... EN 6

Care and maintenance ..... EN 6

Troubleshooting ..... EN 7

Accessories and Spare Parts. EN 8

Warranty ...... EN 8

EU Declaration of Conformity. EN 9

Technical specifications ..... EN 10

Device elements

see cover page

1 Trigger gun EASY!Force

2 Trigger

3 Safety lever

4 High pressure hose EASY!Lock

5 Trigger gun storage clip

6 Dosage valve for detergent

7 Locking cap for detergent tank

8 Detergent Tank

9 Detergent suction hose with filter

10 Fastening screw for device hood

11 Power switch

12 Cover

13 Manometer

14 High-pressure connection EASY!Lock

15 Storage compartment for nozzles

16 Water connection

17 Fine filter

18 Oil level indicator

19 Oil tank

20 Indicator lamp operation status / malfunction

21 Storage compartment for hoses

22 Deaerating the detergent tank

23 Accessory compartment

24 Cable clamp

25 Hose drum

26 Crank

27 Handle

28 Union joint

29 Nozzle

30 Spray lance EASY!Lock

31 Pressure/ quantity regulation

32 Safety catch

Colour coding

- The operating elements for the cleaning process are yellow.

- The controls for the maintenance and service are light gray.

Safety instructions

- Before first start-up it is definitely necessary to read the operating instructions and safety indications Nr. 5.951-949.0!

- Please follow the national rules and regulations for fluid spray jets of the respective country.

- Please follow the national rules and regulations for accident prevention of the respective country. Fluid spray jets must be tested regularly and the results of these tests must be documented in writing.

- The appliance/accessories must not be modified.

Hazard levels

⚠️DANGER

Pointer to immediate danger, which leads to severe injuries or death.

⚠ WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

⚠CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Symbols on the machine

High-pressure jets can be dangerous if improperly used. The

jet may not be directed at persons, animals, live electrical equipment or at the appliance itself.

According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. A suitable system separator by KÄRCHER or alternatively a system separator according to EN 12729 type BA must be used.

Water that was flowing through a system separator is considered non-drinkable.

△CAUTION

Always connect the system separator to the water supply, never directly to the appliance!

Proper use

Use this high pressure cleaner exclusively for

- Cleaning using low pressure jet and detergent (for e.g. for cleaning machines, cars, buildings, tools),

- For cleaning using high pressure jet without detergent (for e.g. for cleaning facades, terraces, garden appliances).

For stubborn dirt, we recommend the use of the dirt blaster as a special accessory.

Quality requirements for water: ATTENTION

Only clean water may be used as high pressure medium. Impurities will lead to increased wear and tear or formation of deposits in the appliance.

If recycled water is used, the following limit values must not be exceeded.

pH value 6,5...9,5
electrical conductivity * Conductivityfresh water+1200 μS/cm
settleable solids ** < 0,5 mg/l
total suspended solids *** <	50 mg/l
Hydrocarbons < 20 mg/l

Chloride < 300 mg/l
Sulphate < 240 mg/l
Calcium < 200 mg/l
Total hardness < 28 °dH	< 50 °TH< 500 ppm(mg CaCO_3 /l)
Iron < 0,5 mg/l
Manganese < 0,05 mg/l
Copper < 2 mg/l
Active chloride	< 0,3 mg/l
free of bad odours
* Maximum total 2000 μS/cm** Test volume 1 l, settling time 30 min*** no abrasive substances

Safety Devices

Safety devices serve to protect the user and must not be rendered in operational or their functions bypassed.

Overflow valve with pressure switch

While reducing the water supply/quantity regulation at the pump head, the overflow valve opens and part of the water flows back to the pump suck side.

If the pulling lever on the trigger gun is released the pressure switch turns off the pump, the high-pressure jet is stopped. If the pulling lever is pulled the pump is turned on again.

The overflow valve and pressure switch are set and sealed at the factory. Setting only by customer service.

Environmental protection

The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling.

Simple line drawing of a trash bin with a crossed-out circular symbol (no text or labels)

Old appliances contain valuable materials that can be recycled; these should be sent for recycling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems.

Electrical and electronic devices often contain components which could potentially pose a danger to human health and the environment if handled or disposed of incorrectly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular household rubbish.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Before Startup

Unpacking

- Check the contents of the pack before unpacking.

– In case of transport damage inform vendor immediately.

Check oil level

→ Read the oil level display when the device is not running. The oil level must be above the two pointers.

Activate deaeration of oil container

→ Unscrew the fastening screws of the device hood; remove the device hood.
→ Cut off tip of oil container cover
→ Fasten the device hood.

Install hand spray gun, spray lance and nozzle

Note: The EASY!Lock system joins components with a quick-fasten thread solidly and securely with just one turn.

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

→ Insert the high pressure nozzle onto the spray lance.
→ Install union nut and hand-tighten it (EASY!Lock).
→ Join the spray lance with the trigger gun and tighten until hand-tight (EASY!Lock).

Attaching the Accessories

In devices without hose drum:

→ Join the high-pressure hose with trigger gun and high-pressure connection of the appliance and tighten until hand-tight (EASY!Lock).
→ Lock a cable clip in the side-hole on the handle.

In devices with hose drum:

→ Insert the crank in the hose drum shaft and lock it in.
→ Before rolling up, stretch out the high pressure hose.
→ Wind the high pressure hose in uniform layers on the hose drum by rotating the crank. Select the rotation direction in such a way that the high pressure hose does not get bent.
→ Join the high pressure hose with trigger gun and tighten until hand-tight (EASY!Lock).

Start up

⚠ WARNING

Risk of injury! Appliance, accessories, supply lines and connections must be in fault-free condition. If they are not in a perfect state then the appliance must not be used.

Electrical connection

△DANGER

Danger of injury by electric shock.

• It is imperative to connect the appliance to the electric mains by means of a plug. It is forbidden to permanently connect the appliance to the power supply. The plug serves for the disconnection from the mains.
  – The appliance may only be connected to alternating current.
• Minimum fuse strength of the socket (see Technical Data).
• The highest allowed net impedance at the electrical connection point (refer to technical data) is not to be exceeded. In case of confusion regarding the power impedance present on your connection, please contact your utilities provider.
• Use the extension cord that has an adequate cross-section (see "Technical Data") and unwind it fully from the cable drum.

For connection values, see type plate/technical data.

→ Unwind the mains cable and place it on the floor.
→ Insert the mains plug into a socket.

Water connection

Connection to the water supply

⚠ WARNING

Observe regulations of water supplier.

According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. A suitable system separator by KÄRCHER or alternatively a system separator according to EN 12729 type BA must be used.

Water that was flowing through a system separator is considered non-drinkable.

For connection values refer to technical specifications.

→ Connect the supply hose (minimum length 7.5 m, minimum diameter 1") to the water connection point of the appliance (such as the tap).

Note:

The supply hose is not included.

→ Open the water supply.

Drawing in water from open reservoirs

→ Screw the suction hose with filter (order no. 4.440-238.0) to the water connection.
→ Deaerate the appliance:
Unscrew the nozzle.
Switch on the appliance and let it run until the water exiting is bubble-free.
→ Switch off the appliance and fit the nozzle again.

Operation

⚠️DANGER

Risk of injury! Never use the appliance without the spray lance attached. Check and ensure proper fitting of the spray lance prior to each use. The screw connection of the spray lance must be finger-tight.

Risk of explosion!

Do not spray flammable liquids.

If the appliance is used in hazardous areas (e.g. filling stations) the corresponding safety regulations must be observed.

Risk of injury! Hold the hand spray gun and the spray pipe firmly with both hands.

Risk of injury! The trigger and safety lever may not be locked during the operation.

Risk of injury! Contact Customer Service if the safety lever is damaged.

Risk of injury from high-pressure water jet. Slide the safety catch on the trigger gun forward before performing any work with the appliance.

△CAUTION

Clean engines only at places with corresponding oil separators (environmental safety).

Opening/closing the trigger gun

→ To open the trigger gun: Actuate the safety lever and trigger.
→ To close the hand spray gun: Release the safety lever and trigger.

High pressure operation

Note:

The appliance is equipped with a pressure switch. The motor starts up only when the trigger gun is open.

→ Roll off the high pressure hose totally from the hose drum.
→ Set the appliance switch to "I". Control lamp glows green.
→ Release the trigger gun. To do so, push the safety catch towards the back.
→ Open the hand spray gun.

⚠️DANGER

When adjusting the pressure/quantity regulation, make sure that the screw connection of the spray lance does not become loose.
→ Set working pressure and flow rate through turning (runless) at the pressure- and amount regulation (B) (+/-).

Note:

For transporting small quantities, the engine heat ensures that water is heated up to approx. 15 °C.

Operation with detergent

⚠ WARNING

Unsuitable detergents can cause damage to the appliance and to the object to be cleaned. Use only those detergents that have been approved by Kärcher. Observe the dosage and other instructions provided with these detergents. For considerate treatment of the environment use detergent economically.

Follow the safety instructions for using detergents.

Kärcher detergents ensure smooth functioning. Please consult us or ask for our catalogue or our detergent information sheets.

→ Fill detergent tank.

⚠️DANGER

Risk of injury! Switch the appliance off prior to replacing nozzle and activate hand spray gun until device is pressureless.

→ Secure the trigger gun. To do so, push the safety catch towards the front.
→ Replace high pressure nozzle with a low pressure nozzle (size 250, attachment).
→ Set dosing value for detergent to the desired concentration.

Detergent concentration [%] (for max. flow quantity)

Position of the dos-ing valve	1	3	5	7
Detergent concentration [%](for max. flow quantity)	0,5 2,	5 5,0	7,0

Recommended cleaning method

→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high-pressure ray.
→ After operations, dip the filter in clear water. Turn the dosing valve to the highest detergent concentration. Start the appliance and rinse for one minute.

Interrupting operation

→ Close the hand spray gun. The appliance switches off.
→ Secure the trigger gun. To do so, push the safety catch towards the front.

After the interruption:

→ Release the trigger gun. To do so, push the safety catch towards the back.
→ Open the hand spray gun. The appliance will switch on again.

Operational readiness period

On opening the hand-spray gun, the device starts within the readiness period. The indicator lamp glows green.

The readiness period is over if the hand-spray gun remains closed for 30 minutes.

The indicator lamp blinks green.

Reset readiness period

→ Set the appliance switch to "0".
→ Wait for a while.
→ Set the appliance switch to "I".

Customer Service can switch the device to continuous operations.

Turn off the appliance

→ Shut off water supply.
→ Open the hand spray gun.
→ Switch on the pump with the power switch and allow to run for about 5-10 seconds.
→ Close the hand spray gun.
→ Set the appliance switch to "0/OFF".
→ Pull main plug out of socket with dry hands only.
→ Remove water connection.
→ Activate hand spray gun until device is pressure less.
→ Secure the trigger gun. To do so, push the safety catch towards the front.

⚠️DANGER

Danger of scalding on account of hot water. The water remaining in the switched off device can get heated up. When you remove the hose from the water inlet, the heated water can spray out and cause scalding. Do not remove the hose before the device has cooled down.

Storing the Appliance

→ Insert the hand-spray gun in the holder.
→ Wind up the high-pressure hose and hang it over the hose storage. or

Wind up the high-pressure hose on the hose drum. Push in the handle of the crank to block the hose drum.

→ Wind the connection cable around the cable holder.

Frost protection

ATTENTION

Frost will destroy the not completely water drained device.

Store the appliance in a frost free area.

If you cannot store it in a frost-free place:

→ Emptying the detergent tank (see "Care and Maintenance/ as required").
→ Drain water.
→ Pump in conventional frost protection agents through the appliance.

Note:

Use normal glycol-based anti-freezing agents for automobiles.

Observe handling instructions of the anti-freeze agent manufacturer.

→ Operate device for max. 1 minute until the pump and conduits are empty.

Transport

△CAUTION

Risk of personal injury or damage! Mind the weight of the appliance during transport.

ATTENTION

Protect the trigger from damage during transport.

→ Pull the device behind you at the handle for transporting it over longer distances.
→ Empty the detergent tank before transporting in horizontal position.
→ When transporting in vehicles, secure the appliance according to the guidelines from slipping and tipping over.

Storage

△CAUTION

Risk of personal injury or damage! Consider the weight of the appliance when storing it. This appliance must only be stored in interior rooms.

Care and maintenance

⚠️DANGER

Risk of injury by inadvertent startup of appliance and electrical shock.

Prior to all work on the appliance, switch off the appliance and pull the power plug.

Note:

Used oil must only be disposed of by the designated collection points. Please turn in used oil there. Polluting the environment with used oil is prosecutable.

Safety inspection/ maintenance contract

You can sign with your dealer a contract for regular safety inspection or even sign a maintenance contract. Please take advice on this matter.

Before each use

→ Check connection cable for damages (risk of electrical shock); get the damaged connection cable replaced immediately by an authorised customer service person/ electrician.
→ Check the high pressure hose for damages (risk of bursting).

Please arrange for the immediate exchange of a damaged high-pressure hose.

→ Check appliance (pump) for leaks. 3 drops per minute are permitted and can come out from the lower side of the appliance. Call Customer Service if there is heavy leakage.

Weekly

→ Check oil level Please contact Customer Service immediately if the oil is milky (water in oil).
→ Clean the fine filter. Unpressurize the appliance. Unscrew the fastening screws of the device hood; remove the device hood. Unscrew lid with filter. Clean the filter with clean water or compressed air. Reinstall in reverse sequence.
→ Clean filter at the detergent suck hose.

Every 500 operating hours, at least annually

→ Have the maintenance of the device performed by the customer service.
→ Oil change.

Oil change

Note:

See "Specifications" for oil volume and type.
→ Unscrew the fastening screws of the device hood; remove the device hood.

→ Turn out the oil drain screw at the front on the motor casing.
→ Drain the oil in a collection basin.
→ Screw in the oil drain screw.
→ Fill in new oil slowly; air bubbles should go out.
→ Attach the lid of the oil container.
→ Fasten the device hood.

If required

→ Empty and clean the detergent tank. Pull out the locking cap for the detergent tank along with the suction hose. Lay the device on the reverse. Empty and clean the detergent tank.

Troubleshooting

⚠️DANGER

Risk of injury by inadvertent startup of appliance and electrical shock.

– Prior to all work on the appliance, switch off the appliance and pull the power plug.
- Get the electrical components checked and repaired only by authorised customer service persons.
- Contact an authorised customer service person in case of problems not mentioned in this chapter or if you are in doubt or when you have been explicitly asked to do so.

Indicator lamp

The indicator lamps display the operating states (green) and interruptions (red).

Reset:

→ Set the appliance switch to "0".
→ Wait for a while.
→ Set the appliance switch to "I".

Operating status display

- Continuous green:

The appliance is now ready for operation.

- blinks green once:

Operational readiness has expired after 30 minutes.

The appliance has switched off after 30 minutes of continuous operation (safety if the high pressure hose bursts).

Fault indication

- blinks red once:

High-pressure side is leaky.

Check high pressure hose, hose connections and hand spray gun for leaks.

- blinks red twice:

Engine is too hot.

Set the appliance switch to "0".

Allow device to cool down.

Set the appliance switch to "I".

- blinks red thrice:

Fault in the voltage supply.

Check main connections and mains fuse.

- blinks red four times:

Excessive power consumption.

Call Customer Service.

Appliance is not running

→ Operational readiness period has expired. Indicator lamp is blinking green. Switch on/off the device switch again.

→ Check connection cable for damages.

→ Call Customer Service in case of electrical defects.

Pressure does not build up in the appliance

→ Set nozzle to "High pressure".

→ Clean/ replace nozzle.

→ Clean the fine filter; replace it, if necessary.

→ Deaerate the appliance (see "Start-up")

→ Check water supply level (refer to technical data).

→ Check all inlet pipes to the pump.

→ Contact Customer Service if needed.

Pump leaky

3 drops per minute are permitted and can come out from the lower side of the appliance. Call Customer Service if there is heavy leakage.

→ With stronger leak, have device checked by customer service.

Pump is vibrating

→ Check suction pipes for water and detergent and ensure that they are leak-proof.
→ Deaerate the appliance (see "Start-up")
→ Clean the fine filter.
→ Contact Customer Service if needed.

Detergent is not getting sucked in

→ Replace the high-pressure nozzle with the included low-pressure nozzle.
→ Check/ clean detergent suction hose with filter.
→ Clean/ replace backflow valve in the connection of the detergent suction hose.
→ Open or check/clean detergent dosing valve.
→ Clean the deaerating hole of the detergent tank in the casing.
→ Contact Customer Service if needed.

Accessories and Spare Parts

Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device.

For information about accessories and spare parts, please visit www.kaercher.com.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High pressure cleaner

Type: 1.286-xxx

Type: 1.292-xxx

Type: 1.441-xxx

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

Applied harmonized standards

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 61000-3-11:2000

EN 62233: 2008

Applied conformity evaluation method

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 85

Guaranteed: 87

The signatories act on behalf of and with the authority of the company management.

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Technical specifications

		HD 10/25 S HD 10/25 S Plus HD 10/25 SX Plus		HD 13/18 S Plus HD 13/18 SX Plus
Main Supply
Voltage V 400/420 230 400 230
Current type Hz 3~50
Connected load kW 9,2 8,8 9,2
Protection (slow, char. C) A 16 25 16	25
Type of protection		IPX5
Maximum allowed net impedance	Ohm	(0,145+j0,090)
Extension cable 10 m	mm2	2,5
Extension cord 30 m	mm2	4	-	4	-
Water connection
Max. feed temperature	°C	60
Min. feed volume	l/h (l/min)	1200 (20)		1400 (23,3)
Suck height from open container (20 °C)	m	0,5
Max. feed pressure	MPa (bar)	1 (10)
Performance data
Operating pressure of water (using standard nozzle)	MPa (bar)	3...25 (30...250)	3...23 (30...230)	3...18 (30...180)
Size of standard nozzle		047	050 080
Max. operating over-pressure	MPa (bar)	27,5 (275)	25,3 (253)	19,8 (198)
Flow rate	l/h (l/min)	500...1000 (8,3...16,67)		650...1300 (8,3...21,67)
Detergent suck in	l/h (l/min)	0...80 (0...1,3)
Max. recoil force of trigger gun	N	62		68
Values determined as per EN 60335-2-79
Hand-arm vibration value
Hand spray gun	m/s2	<2,5
Spray lance	m/s2	<2,5
Uncertainty K	m/s2	0,3
Sound pressure level LpA	dB(A)	72
Uncertainty KpA	dB(A)	2
Sound power level LWA + Uncertainty KWAA	dB(A)	87
Fuel
Amount of oil	l	1,2
Oil grade		SAE 90
Dimensions and weights
Length	mm 560
Width	mm 500
Height	mm	1090
Weight without accessories (SX)	kg	*	**	84 (84,5)
Content detergent tank	l	6
* 1.286-902.0: 75,5 kg; 1.286-903.0: 75,7 kg; 1.286-913.0: 69,1 kg; 1.286-927: 82,5 kg** 1.286-914.0: 77,5 kg; 1.286-928.0: 86 kg

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Dati tecnici

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

Chairman of the Board of Management

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Technische gegevens

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Datos técnicos

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Dados técnicos

www.kaercher.com/REACH

Inden ibrugtagning

Udpakning

• Kontroller emballagens indhold.
• Ved transportskader skal forhandleren informeres omgående.

Kontroller oliestanden

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/EF (+2009/127/EF)

2014/30/EU

2000/14/EF

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tekniske data

www.kaercher.com/REACH

Før den tas i bruk

Utpakking

• Kontroller ved utpakking at ingen ting mangler.
• Informer straks forhandleren ved transportskader.

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

2006/42/EF (+2009/127/EF)

2014/30/EU

2000/14/EF

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Målt: 85

Garantert: 87

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tekniske data

www.kaercher.com/REACH

Före ibruktagande

Uppackning

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tekniska data

www.kaercher.com/REACH

Ennen käyttöönottoa

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tekniset tiedot

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Teknik Bilgiler

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Технические данные

www.kaercher.com/REACH

Üzembevétel előtt

Kicsomagolás

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Műszaki adatok

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/ES (+2009/127/ES)

2014/30/EU

2000/14/ES

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Technické údaje

www.kaercher.com/REACH

Pred zagonom

Razpakiranje

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

2006/42/ES (+2009/127/ES)

2014/30/EU

2000/14/ES

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tehnični podatki

		HD 10/25 S HD 10/25 S Plus HD 10/25 SX Plus		HD 13/18 S Plus HD 13/18 SX Plus
Omrežni priključek
Napetost V 400/420 230 400 230
Vrsta toka Hz 3~ 50
Priključna moč kW 9,2 8,8 9,2
Zaščita (inertna, kar. C) A 16 25 16	25
Vrsta zaščite		IPX5
Maksimalno dopustna omrežna impedanca	Ohm	(0,145+j0,090)
Podaljševalni kabel 10 m	mm2	2,5
Podaljševalni kabel 30 m	mm2	4	-	4	-
Vodni priključek
Temperatura dotoka (maks.)	°C	60
Količina dotoka (min.)	l/h (l/min)	1200 (20)		1400 (23,3)
Sesalna višina iz odprte posode (20 °C)	m	0,5
Pritisk dotoka (maks.)	MPa (bar)	1 (10)
Podatki o zmogljivosti
Delovni tlak vode (s standardno šobo)	MPa (bar)	3...25 (30...250)	3...23 (30...230)	3...18 (30...180)
Velikost standardne šobe		047	050 080
Max. obratovalni nadtlak	MPa (bar)	27,5 (275)	25,3 (253)	19,8 (198)
Pretok	l/h (l/min)	500...1000 (8,3...16,67)		650...1300 (8,3...21,67)
Sesanje čistila	l/h (l/min)	0...80 (0...1,3)
Povratna udarna sila ročne brizgalne pištole (maks.)	N	62		68
Ugotovljene vrednosti v skladu z EN 60335-2-79
Vrednost vibracij dlan-roka
Ročna brizgalna pištola	m/s2	<2,5
Brizgalna cev	m/s2	<2,5
Negotovost K	m/s2	0,3
Nivo hrupa LpA	dB(A)	72
Negotovost KpA	dB(A)	2
Nivo hrupa ob obremenitviLWA+ negoto-vost KWA	dB(A)	87
Goriva
Količina olja	I	1,2
Vrsta olja		SAE 90
Mere in teža
Dolžina	mm 560
Širina	mm 500
Višina	mm	1090
Teža brez pribora (SX)	kg	*	**	84 (84,5)
Prostornina rezervoarja za čistilno sredstvo	I	6
* 1.286-902.0: 75,5 kg; 1.286-903.0: 75,7 kg; 1.286-913.0: 69,1 kg; 1.286-927: 82,5 kg** 1.286-914.0: 77,5 kg; 1.286-928.0: 86 kg

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/WE (+2009/127/WE)

2014/30/UE

2000/14/WE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Dane techniczne

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

Directive UE respectate:

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

Norme armonizate utilize:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 61000-3-11: 2000

EN 62233: 2008

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Date tehnice

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

→ Vysokotlakovú dýzu nasad'te na pracovný nadstavec.
→ Namontujte a pevne utiahnite prevlečnú maticu (EASY!Lock).
→ Pracovný nadstavec spojte s ručnou striekacou pištol'ou a pevne utiahnite rukou (EASY!Lock).

2006/42/ES (+2009/127/ES)

2014/30/EÚ

2000/14/ES

Uplatňované harmonizované normy:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 61000-3-11: 2000

EN 62233: 2008

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Technické údaje

www.kaercher.com/REACH

Prije prve uporabe

Raspakiravanje

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

→ Nataknite visokotlačnu mlaznicu na cijev za prskanje.
→ Montirajte slijepu maticu i zategnite je rukom (EASY!Lock).
→ Spojite cijev za prskanje s ručnom prskalicom i ručno ih pritegnite (EASY!Lock).

Montaža pribora

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2000/14/EZ

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tehnički podaci

		HD 10/25 S HD 10/25 S Plus HD 10/25 SX Plus		HD 13/18 S Plus HD 13/18 SX Plus
Priključak na električnu mrežu
Napon V 400/420 230 400 230
Vrsta struje Hz 3~ 50
Priključna snaga kW 9,2 8,8 9,2
Osigurač (inertni, karakt. C) A 16 25 16 25
Zaštita		IPX5
Maksimalno dozvoljena impedancija	Ohm	(0,145+j0,090)
Produžni kabel 10 m	mm2	2,5
Produžni kabel 30 m	mm2	4	-	4	-
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/h (l/min)	1200 (20)		1400 (23,3)
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni tlak (maks.)	MPa (bar)	1 (10)
Podaci o snazi
Radni tlak vod (sa standardnom mlaznicom)	MPa (bar)	3...25 (30...250)	3...23 (30...230)	3...18 (30...180)
Veličina mlaznice za standardnu mlaznicu		047	050 080
Maks. radni pretlak	MPa (bar)	27,5 (275)	25,3 (253)	19,8 (198)
Protočna količina	l/h (l/min) 500...1000 (8,3...16,67)			650...1300 (8,3...21,67)
Usisavanje sredstva za pranje	l/h (l/min)	0...80 (0...1,3)
Povratna udarna sila ručne prskalice (maks.)	N	62		68
Utvrdene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci
Ručna prskalica	m/s2	<2,5
Cijev za prskanje	m/s2	<2,5
Nepouzdanost K	m/s2	0,3
Razina zvučnog tlaka LpA	dB(A)	72
Nepouzdanost KpA	dB(A)	2
Razina zvučne snage LWA + nepouzdanost KWA	dB(A)	87
Radni mediji
Količina ulja	I	1,2
Vrsta ulja		SAE 90
Dimenzije i težine
Duljina	mm 560
Širina	mm 500
Visina	mm	1090
Težina bez pribora (SX)	kg	*	**	84 (84,5)
Sadržaj spremnika sredstva za pranje	I	6
* 1.286-902.0: 75,5 kg; 1.286-903.0: 75,7 kg; 1.286-913.0: 69,1 kg; 1.286-927: 82,5 kg ** 1.286-914.0: 77,5 kg; 1.286-928.0: 86 kg

Pre prve upotrebe Vašeg uređaja pročitajte ove originalno

www.kaercher.com/REACH

Pre upotrebe

Raspakovavanje

– Prilikom raspakovavanja proverite sadržaj pakovanja.

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

→ Visokopritisnu mlaznicu postaviti na cev za prskanje.
→ Montirati i rukom pritegnuti slepu navrtku (EASY!Lock).
→ Povezati cev za prskanje sa ručnom prskalicom i pritegnuti rukom (EASY!Lock).

Montaža pribora

Kod uređaja bez doboša za namotavanje creva:

→ Visokopritisno crevo povezati sa ručnom prskalicom i priključkom visokog pritiska uređaja i pritegnuti rukom (EASY!Lock).
Držač kabla uglaviti u bočni otvor na dršci.

Kod uređaja sa dobošem za namotavanje creva:

→ Obrtnu ručku utaknite i uglavite u vratilo doboša za namotavanje creva.
→ Crevo visokog pritiska pre namotavanja postavite ispruženo.
→ Okretanjem ručke ravnomerno namotajte crevo visokog pritiska na doboš. Smer obrtanja izaberite tako da se crevo visokog pritiska ne prelama.
→ Visokopritisno crevo povezati sa ručnom prskalicom i pritegnuti rukom (EASY!Lock).

Stavljanje u pogon

⚠UPOZORENJE

Opasnost od povreda! Uređaj, pribor, dovodi i priključci moraju da budu u besprekornom stanju. Ako stanje nije besprekorno, uređaj ne sme da se koristi.

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2000/14/EZ

Primenjene uskladene norme:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 61000-3-11:2000

EN 62233: 2008

H. Jenner Chairman of the Board of Management

Opunomoćeni za izradu dokumentacije: S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tehnički podaci

		HD 10/25 S HD 10/25 S Plus HD 10/25 SX Plus		HD 13/18 S Plus HD 13/18 SX Plus
Priključak na električnu mrežu
Napon V 400/420 230 400 230
Vrsta struje Hz 3~ 50
Priključna snaga kW 9,2 8,8 9,2
Osigurač (inertni, karakt. C) A 16 25 16	25
Stepen zaštite		IPX5
Maksimalno dozvoljena impedancija	Ohm	(0,145+j0,090)
Produžni kabl 10 m	mm2	2,5
Produžni kabl 30 m	mm2	4	-	4	-
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/h (l/min)	1200 (20)		1400 (23,3)
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni pritisak (maks.)	MPa (bar)	1 (10)
Podaci o snazi
Radni pritisak vode (sa standardnom mlaznicom)	MPa (bar)	3...25 (30...250)	3...23 (30...230)	3...18 (30...180)
Veličina mlaznice kod standardne mlaznice		047	050 080
Maks. radni nadpritisak	MPa (bar)	27,5 (275)	25,3 (253)	19,8 (198)
Protočna količina	l/h (l/min)	500...1000 (8,3...16,67)		650...1300 (8,3...21,67)
Usisavanje deterdženta	l/h (l/min)	0...80 (0...1,3)
Povratna udama sila ručne prskalice (maks.)	N	62		68
Izračunate vrednosti prema EN 60335-2-79
Vrednost vibracije na ruci
Ručna prskalica	m/s2	<2,5
Cev za prskanje	m/s2	<2,5
Nepouzdanost K	m/s2	0,3
Nivo zvučnog pritiska LpA	dB(A)	72
Nepouzdanost KpA	dB(A)	2
Nivo zvučne snage LWA + nepouzdanost KWA	dB(A)	87
Radni mediji
Količina ulja	I	1,2
Vrsta ulja		SAE 90
Dimenzije i težine
Dužina	mm 560
Širina	mm 500
Visina	mm	1090
Težina bez pribora (SX)	kg	*	**	84 (84,5)
Sadržaj rezervoara za deterdžent	I	6
* 1.286-902.0: 75,5 kg; 1.286-903.0: 75,7 kg; 1.286-913.0: 69,1 kg; 1.286-927: 82,5 kg** 1.286-914.0: 77,5 kg; 1.286-928.0: 86 kg

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Технически данни

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

→ Kinnitage körgsurveotsak joatorule.

→ Paigaldage umbmutter ja keerake käsitsi kinni (EASY!Lock).
→ Ühendage pesupüstoliga joatoruga ja keerake käsitsi kinni (EASY!Lock).

Tarvikute paigaldamine

Toode: Körgsurvepesur

Tüüp: 1.286-xxx

Tüüp: 1.292-xxx

Tüüp: 1.441-xxx

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tehnilised andmed

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/03/01

Tehniskie dati

www.kaercher.com/REACH

Prieš pradedant naudoti

Išpakavimas

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Techniniai duomenys

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

H. Jenner Chairman of the Board of Management

Penyusun dokumen yang berwenang: S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Data Teknis

		HD 10/25 S HD 10/25 S Plus HD 10/25 SX Plus		HD 13/18 S Plus HD 13/18 SX Plus
Catu daya
Tegangan V 400/420 230 400 230
Tipe arus listrik Hz 3~50
Daya sambungan kW 9,2 8,8 9,2
Perlindungan (inersia, Char. C) A 16 25 16 25
Jenis pelindung		IPX5
Daya maksimal yang diizinkan	Ohm	(0,145+j0,090)
Kabel ekstensi 10 m	mm2	2,5
Kabel ekstensi 30 m	mm2	4	-	4	-
Sambungan air
Temperatur masuk (maks.)	°C	60
Jumlah masuk (min.)	l/h (l/min)	1200 (20)		1400 (23,3)
Ketinggian penyedotan air dari tangki air yang terbuka (20 °C)	m	0,5
Tekanan masuk (maks.)	MPa (bar)	1 (10)
Data kinerja
Tekanan kerja air (dengan nosel standar)	MPa (bar)	3...25 (30...250)	3...23 (30...230)	3...18 (30...180)
Ukuran nozzle standar		047	050 080
Tekanan lebih pengoperasian maks.	MPa (bar)	27,5 (275)	25,3 (253)	19,8 (198)
Volume pengiriman	l/h (l/min) 500...1000 (8,3...16,67)			650...1300 (8,3...21,67)
Penyedotan bahan pembersih	l/h (l/min)	0...80 (0...1,3)
Kekuatan pantulan balik pistol penyemprot (maks.)	N	62		68
Penentuan nilai menurut EN 60335-2-79
Nilai getaran tangan-lengan
Pistol penyemprot	m/s2	<2,5
Pipa penyemprot	m/s2	<2,5
Ketidakstabilan K	m/s2	0,3
Tingkat tekanan suara LpA	dB(A)	72
Ketidakstabilan KpA	dB(A)	2
Tingkat kekuatan suara LWA+ Ketidakstabilan KWA	dB(A)	87
Cairan pengoperasian
Jumlah oli l	1,2
Tipe oli		SAE 90
Berat dan Ukuran
Panjang	mm 560
Lebar	mm 500
Tinggi	mm	1090
Bobot tanpa aksesori (SX)	kg	*	**	84 (84,5)
Isi tangki bahan pembersih	l	6
* 1.286-902.0: 75,5 kg; 1.286-903.0: 75,7 kg; 1.286-913.0: 69,1 kg; 1.286-927: 82,5 kg** 1.286-914.0: 77,5 kg; 1.286-928.0: 86 kg

Icon showing a gear and wrench inside a square frame (no text or symbols)

http://www.kaercher.com/dealersearch

QR code image with a central logo, likely linking to a digital resource or website.
