Brand	Faber
Model	HighLight 91 W
Product type	Extractor hood
Use	Domestic
Power supply	220-240 V ~ 50 Hz
Minimum safety distance	650 mm between the hob and the hood
Extraction power	3 speeds + Intensive function (6 minutes)
Lighting	LED, on/off via L button or remote control
Filters	Washable metal grease filters (every 2 months); replaceable activated charcoal filter (every 200 hours)
Controls	Touch buttons T1-T4 and remote control (battery LR03-AAA25 not included)
Special functions	Delay (delayed shut-off 30 min), filter saturation alarm (LED S1), alarm reset
Maintenance	Clean grease filters in dishwasher; clean the hood with a damp cloth and neutral liquid detergent
Safety instructions	Do not flambé under the hood; do not leave open flames; mandatory earthing
Reparability	Replace power cord by a professional; contact after-sales service for replacement of lighting and charcoal filter
Compliance	Class I, earthing required; do not connect to combustion flue ducts
Weight	Approximately 15 kg (estimate)

Frequently Asked Questions - HighLight 91 W FABER

What is the minimum safety distance between the hood and the hob?

The minimum safety distance is 650 mm. Some models can be installed at a lower height, see the paragraph on working dimensions and installation.

How to clean the grease filters?

Grease filters should be cleaned every 2 months (or more often in case of heavy use). They can be washed in the dishwasher.

How to reset the grease filter saturation alarm?

To reset the alarm, press the T3 button for about 3 seconds when all loads are off. The S1 LED flashes 3 times to confirm.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer or an authorized after-sales service to avoid any risk.

Can I use the hood with gas appliances?

Yes, but you must ensure sufficient ventilation in the room. The negative pressure must not exceed 0.04 mbar to prevent backflow of fumes.

How to activate the Delay function?

Press the T1 button for about 3 seconds to activate/deactivate the Delay function. The motor and lighting will turn off automatically after 30 minutes.

What does the flashing of the S1 LED mean?

A steady S1 LED indicates a metal grease filter saturation alarm (after 100 hours of operation). Flashing indicates the activated charcoal filter alarm (after 200 hours).

How to replace the activated charcoal filter?

The charcoal filter must be replaced after 200 hours of operation. Contact after-sales service to purchase and replace the filter.

Can the hood be used without the charcoal filter?

The hood can operate in extraction mode without a charcoal filter. In recirculation mode, the charcoal filter is necessary.

How to pair the remote control with the hood?

To validate the remote control, hold the T4 button for 5 seconds; the LED flashes 2 times. To invalidate, repeat the operation (1 flash).

USER MANUAL HighLight 91 W FABER

Technical line drawing of a mechanical assembly with housing and mounting brackets (no text or symbols)

EN USER MANUAL....3

Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a minimum diameter 120 mm. The route of the flue as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The

kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances was supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, has to be taken into account. Regulations concerning the dis-e charge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in cordance with these instructions may result in electrical hazards.

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in

operation.

• Adjust the flame intensity direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• “CAUTION: Accessible parts may become hot when used with cooking appliances.”

Maintenance

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environ-

ment and human health, which toould otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

- The Grease filters must cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dish-washer (Z).

Hand holding a smartphone with a finger pointing at it, enclosed in a circular frame (no text or symbols)

- Clean the hood using a damp cloth and a neutral liquid detergent.

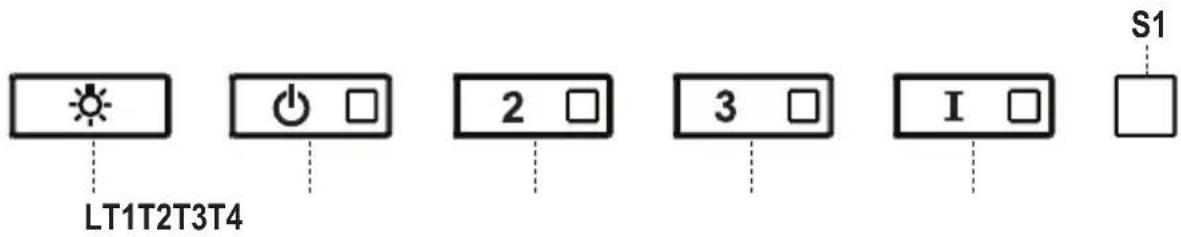

LT1T2T3T4 2 3 I S1

Button Function Led
L Turns the lights ON/OFF at maximum strength. -
T1 Turns the motor on/off at speed one. -
Delay Function:Press and hold the button for approx. 3 seconds to Activate/Deactivate the Delay function (automatic switching off of the Motor, the Fans and the Lighting with a 30' delay).Cannot be enabled when Intensive or 24H are on.		Flashing
T2 Turns the Motor on at speed two. -
Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on.The relevant LED flashes twice to confirm.To turn the alarm off, press the button again and hold for at least 5 seconds.The relevant LED flashes once.		Flashing
T3 Turns the Motor on at speed three. -
Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to reset the Filter saturation alarm. The LED S1 flashes three times.		Flashing
T4 Turns the Motor on at INTENSIVE.This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, the hood will switch to OFF at the end of the time.		-
Press and hold for 5 seconds to enable the remote control, indicated by the LED flashing twice.Press and hold for 5 seconds to disable the remote control, indicated by the LED flashing just once.		Flashing
S1 Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to wash the filters. The alarm is triggered after the Hood has been in operation for 100 working hours.		Fixed
Signals the Activated Charcoal Filter saturation alarm. The filter must be changed after the Hood has been working for 200 hours.		Flashing

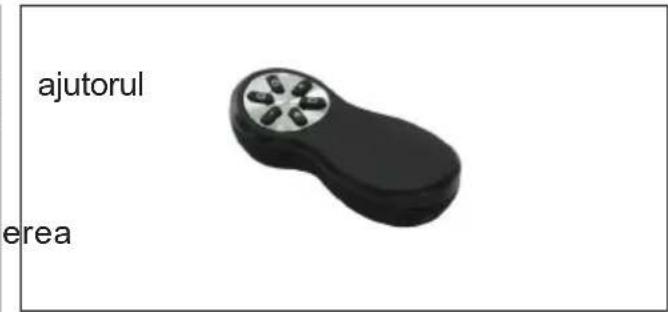

Remote control

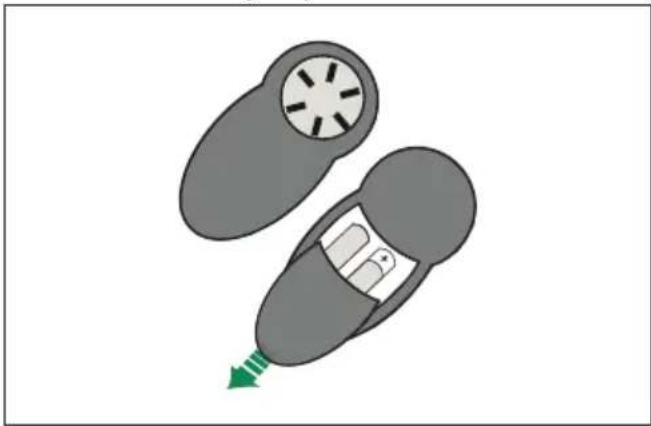

The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.

Diagram of a car interior showing a circular vent and seat, with a green arrow indicating direction (no text or symbols)

Black handheld electronic device with six circular buttons (no visible text or symbols)

	Motor On/Off.
—	Decreases the working speed each time it is pressed.
+	Increases the working speed each time it is pressed.
i	Activates the INTENSIVE functionThis speed is timed to run for 6 minutes.At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, it will switch to OFF at the end of the time. It is disabled by pressing the button again or pressing the “Motor OFF” button.
	- Press this button briefly to activate total shutdown of the hood (lights + motor) after 30 minutes.- Press and hold this button for a few seconds to deactivate Delay mode, or turn the motor off. The relevant LED flashes every 0.5 seconds
	Lights On / Off

Lighting

- For replacement contact technical support ("To purchase contact technical support").

Hand holding a smartphone with a finger pointing at it, enclosed in a circular frame (no text or symbols)

Top-down diagram of a car with a circular vent and internal compartment, showing a green arrow pointing to the bottom (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present.

Diagram of a car interior with a circular vent and directional arrow (no text or symbols)

Black handheld electronic device with a circular knob (no visible text or symbols)

Hand holding a smartphone with a finger pointing at it, no visible text or symbols

Illustration of a hand interacting with a smartphone screen, showing a finger pointing at the screen (no text or symbols present)

Top-down diagram of a car with two wheels and a seat, showing a green arrow indicating motion (no text or symbols)

Black handheld electronic device with four metallic buttons (no visible text or symbols)

Illustration of a hand interacting with a smartphone screen displaying a 'Z' symbol (no text or symbols on the device itself)

Diagram of a car interior showing two seats with a circular vent and a green arrow indicating motion (no text or symbols)

Black handheld electronic device with four metallic buttons (no visible text or symbols)

Illustration of a hand interacting with a smartphone screen, showing a finger pointing at the screen (no text or symbols present)

Diagram of a car interior showing two compartments with a central seat and a green arrow indicating direction (no text or symbols)

Black handheld electronic device with six circular ports (no visible text or symbols)

Diagram of a car with a circular vent and a green arrow indicating motion (no text or symbols)

3D rendered image of a black handheld electronic device with four circular ports (no text or symbols)

Hand holding a smartphone with a finger pointing at it, no text or symbols visible

Top-down diagram of a car with a circular vent and a green arrow indicating motion (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Hand holding a smartphone with a finger pointing at it, enclosed in a circular frame (no text or symbols)

Diagram of a car interior showing a circular vent and side panel, with a green arrow indicating direction (no text or symbols)

Black handheld remote control device with six buttons (no text or symbols visible)

Black handheld electronic device with four circular ports, isolated on white background (no text or symbols)

Hand holding a smartphone with a finger pointing at it, no text or symbols visible

Top-down diagram of a car with a circular vent and a green arrow indicating motion (no text or symbols)

Black handheld electronic device with a circular knob (no visible text or symbols)

Hand holding a smartphone with a finger pointing at it, inside a circular frame (no text or symbols)

Top-down diagram of a car with a circular vent and internal compartment, showing a green arrow pointing to the bottom (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present

Diagram of a car interior showing two car seats with a seatbelt, one open and one closed, with a green arrow indicating direction (no text or symbols)

Black handheld electronic device with four metallic buttons (no visible text or symbols)

Hand holding a smartphone with a finger pointing at it, no visible text or symbols

Diagram of a car interior showing front and side views with a green arrow indicating direction (no text or symbols)

Black handheld electronic device with six circular ports (no visible text or symbols)

Black handheld electronic device with four buttons, isolated on white background (no text or symbols)

Hand holding a tablet with a finger pointing at it, no text or symbols visible

Apkope

Diagram of a car interior showing two compartments with a central seat and a green arrow indicating direction (no text or symbols)

Black handheld electronic device with six circular ports (no visible text or symbols)

Black handheld electronic device with four metallic buttons on a circular top (no text or symbols visible)

Hand holding a tablet with a finger pointing at it, enclosed in a circular frame (no text or symbols)

Diagram of a car interior showing two views with a green arrow indicating direction (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Hand holding a smartphone with a finger pointing at it, no visible text or symbols

Diagram of a car interior showing a circular vent and seat, with a green arrow indicating direction (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

3a

3

3

Hand holding a tablet with a finger pointing at it, enclosed in a circular frame (no text or symbols)

Diagram of a car with a circular vent and a green arrow indicating direction (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Illustration of a hand holding a tablet with a finger pointing at it, no text or symbols present.

Hand holding a tablet with a finger pointing at it, enclosed in a circular frame (no text or symbols)

Top-down diagram of a car with a circular vent and a green arrow indicating motion (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Illustration of a hand interacting with a smartphone screen, showing a finger pointing at the screen (no text or symbols present)

Top-down diagram of a car showing front and rear views with a green arrow indicating direction (no text or symbols)

Hand holding a smartphone with a finger pointing at it, no visible text or symbols

Diagram of a car interior showing two views with a circular vent and a green arrow indicating direction (no text or symbols)

pilotem

Black handheld electronic device with six metallic buttons (no visible text or symbols)

-AAA

należy

Illustration of a hand interacting with a smartphone screen, showing a finger pointing at the screen (no text or symbols present)

- Očistite napu koristeći vlažnu krpu nadzire neutralni tekući deterdžent.

LT1T2T3T4 2 3 I S1

Tipka Funkcija Led
L	Uključuje /isključuje svjetla na maksimalnu osvijetljenost.	-
T1 Uključuje/isključuje motor na prvu brzinu. -
		Funkcija Delay (Odgoda):Držeći pritisnutu tipku oko 3 sek., aktivira/deaktivira funkciju Delay (auto-matsko isključivanje motora, ventilatora i rasvjete odgođeno za 30').Ne može se aktivirati s uključenom funkcijom Intenzivna ili 24h.
T2 Uključuje motor na drugu brzinu. -
		Držeći pritisnutu tipku oko 5 sekundi, kad su sve funkcije isključene (motor + svjetlo), aktivira se alarm filtara s aktivnim ugljenom prikazan dvostrukim bljeskanjem pripadajućeg leda.Za deaktiviranje se ponovno pritisne tipka na 5 sekundi što je prikazano jednim bljeskajem pripadajućeg leda.
T3 Uključuje motor na treću brzinu. -
		Držeći pritisnutu tipku na oko 3 sekunde, kad su sve fubljekajućsključen (motor + svjetla), obavlja resetiranje alarma zasićenosti filtara, vizualizirano trostrukim bljeskanjem leda S1.
T4 Uključuje motor na INTENZIVNU brzinu.Ova brzina je tempirana na 6 minuta. Po isteku tog vremena, sustav se automatski vraća na prethodno izabranu brzinu. Aktivira se motora, a po isteku tog vremena prelazi u način OFF.		- s isključenog
		Držeći pritisnutu 5 sekundi aktivira se daljinski upravljač vizualizirano dvo-strukim bljeskanjem pripadajućeg leda.Držeći pritisnutu 5 sekundi deaktivira se daljinski upravljač, što je vizuali-zirano samo jednim bljeskajem pripadajućeg leda.
S1 Označava alarm zasićenosti metalnih filtara protiv masnoće i ih se opere. Alarm ulazi u funkciju nakon 100 sati efektivnog rada nape.		Potsbjanoda
		Označava alarm zasićenosti filtra protiv mirisa s aktivnim ugljenom, koji se mora zamijeniti nakon 200 sati efektivnog rada nape.

Daljinski Upravljač

Ovim uređajem može se upravljati daljinskog upravljača koji se napaja alkalnim cink-ugljik baterijama od 1,5 V standardnog tipa LR03-AAA (nisu uključene).

• Ne ostavljajte daljinski upravljač u izvora topline.
• Ne odlažite baterije u okoliš, odlažite ih u odgovarajuće kontejnere.

Top-down diagram of a car with a circular vent and internal compartment, showing a green arrow pointing to the bottom (no text or symbols)

pomoću

Black handheld electronic device with six metallic buttons (no visible text or symbols)

blizini

	Uključuje/Isključuje motor.
—	Smanjuje brzinu rada svakim pritiskom.
+	Povećava brzinu rada svakim pritiskom.
i	Aktivira funkciju INTENZIVNA.Ova brzina je tempirana na 6 minuta. Po isteku tog vremena sustav se automatski vraća na prethodno izabranu brzinu. Ako je aktivirana s isključenog motora, po vremena prelazi u način OFF (isključeno).Deaktivira se pritiskom na istu tipku ili tipku isključivanje motora.
	- Kratkim pritiskom na ovu tipku aktivira se način potpunog zaustavljanja nape + svjetla) nakon 30 minuta.- Držeći pritisnutu tipku nekoliko deaktivira se način Delay ili isključuje motor.Pripadajući led bljeska svakih 0,5 sekundi.
	Uključuje/isključuje svjetla.

isteku

(motor

sekundi,

Rasvjeta

- Za zamjenu kontaktirajte tehničku podršku ("Za kupnju se obratite tehničkoj podršci"),

SL

Illustration of a hand interacting with a tablet device, showing a finger pointing at the screen (no text or symbols present)

in pod

Top-down diagram of a car with a circular head and internal compartment, showing a green arrow pointing to the bottom (no text or symbols)

Black handheld electronic device with a circular knob (no visible text or symbols)

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present.

Diagram of a car with two wheels and a seat, showing a green arrow indicating motion (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Hand holding a tablet with a finger pointing at it, enclosed in a circular frame (no text or symbols)

ile

Top-down diagram of a car with a circular vent and a green arrow indicating motion (no text or symbols)

Black handheld electronic device with a circular knob (no visible text or symbols)

Illustration of a hand interacting with a smartphone screen, showing a finger pointing at the screen (no text or symbols present)

Top-down diagram of a car with a circular vent and a green arrow indicating motion (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

ce

Black handheld electronic device with a circular knob (no visible text or symbols)

Diagram of a car interior showing a circular vent and internal compartments, with a green arrow indicating direction (no text or symbols)

Illustration of a car with a circular vent and a green arrow indicating motion (no text or symbols)

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present.

Diagram of a car interior showing two compartments with a central seat and a green arrow indicating direction (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Illustration of a hand holding a smartphone with a finger, pointing at the screen (no text or symbols)

Top-down diagram of a car with a circular vent and internal compartment, showing a green arrow pointing to the bottom (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Illustration of a hand interacting with a smartphone displaying a Z symbol (no text or symbols on the device itself)

Top-down diagram of a car with a circular vent and a green arrow indicating motion (no text or symbols)

Black handheld electronic device with six metallic buttons (no visible text or symbols)

Illustration of a hand interacting with a smartphone screen, showing a finger pointing at the screen (no text or symbols present)

Diagram of a car interior showing a circular vent and seat area with a green arrow indicating direction (no text or symbols)

Black handheld electronic device with five circular buttons (no visible text or symbols)
