Chloé 70 CG - Basket FABER - Free user manual and instructions

Product type	Range hood
Brand	Faber
Model	Chloe 70 CG
Width	70 cm
Minimum distance between cooking surface and hood	650 mm
Exhaust duct diameter	120 mm minimum
Power supply	220-240 V ~ 50/60 Hz
Electrical class	Class I (grounded)
Number of speeds	4 (speeds 1, 2, 3 and timed intensive 6 min)
Special functions	Delay (delayed shut-off 30 min), 24h (extraction 10 min/hour), remote control optional
Lighting	LED, separate switch
Grease filter type	Metal, dishwasher safe
Charcoal filter type	Activated carbon, non-washable, replace every 4 months
Grease filter cleaning frequency	Every 2 months (or more often with heavy use)
Filter saturation alarm	Yes, after 100 hours of operation for grease filters
Remote control	Optional, LR03-AAA 1.5 V batteries not included
Intended use	Domestic, removal of cooking odors
Safety	Do not flambé under the hood, do not leave open flames, supervise deep fryers

Frequently Asked Questions - Chloé 70 CG FABER

What is the minimum safety distance between the cooking surface and the Faber Chloe 70 CG hood?

The minimum safety distance is 650 mm. Check your cooktop's instructions; if they indicate a greater distance, follow that.

How to clean the grease filters of the hood?

The metal grease filters should be cleaned every 2 months (or more often with heavy use). They are dishwasher safe. Before any cleaning, unplug the hood.

When should the activated charcoal filter be replaced?

The activated charcoal filter cannot be washed and should be replaced approximately every 4 months, or more often with intensive use. The flashing saturation alarm reminds you.

How to use the Delay function (delayed shut-off)?

Press the T2 button for about 3 seconds to activate/deactivate the Delay function. The motor and lighting will turn off automatically after 30 minutes. This function is not available if Intensive or 24h modes are active.

How to activate the 24h function?

Press and hold the T1 button for about 2 seconds to start the 24h mode. The hood extracts 10 minutes per hour for a 24h cycle. Deactivate it by pressing and holding again.

Why is the S1 light flashing?

The S1 light flashes to indicate that the activated charcoal odor filter needs to be replaced. Even if this filter is changed, also wash the grease filters. To reset the alarm after replacement, press and hold the T3 button for 3 seconds.

Can I use a remote control with the Chloe 70 CG hood?

Yes, an optional remote control is compatible (LR03-AAA 1.5V batteries not included). To pair it, press and hold the T4 button for 5 seconds (LED flashes twice). To disable it, same operation (1 flash).

What are the essential safety precautions?

Never flambé under the hood, do not leave open flames unattended, supervise deep fryers, and ensure sufficient ventilation of the room if the hood is used with gas appliances. The hood must be installed by a professional.

What to do if the power cord is damaged?

Do not use the hood. Have the cord replaced by the manufacturer or an authorized after-sales service to avoid any risk of electrical accident.

How to maintain the exterior of the hood?

Clean the hood with a damp cloth and neutral liquid detergent. Do not use abrasive products. Before any operation, disconnect the appliance from the mains.

USER MANUAL Chloé 70 CG FABER

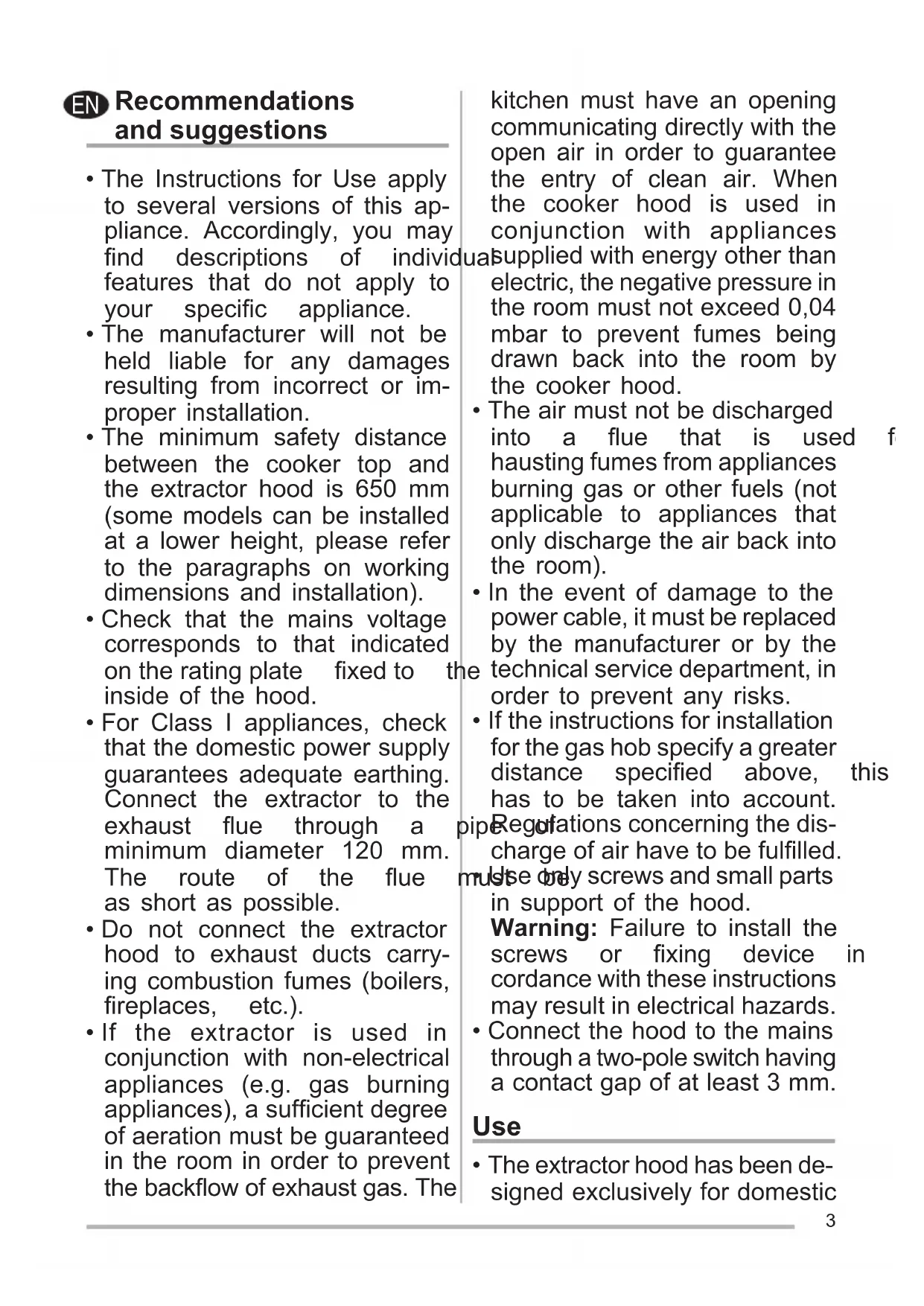

Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of indivie features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a minimum diameter 120 mm. The route of the flue as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The

kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for hausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
  If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. iRegulations concerning the discharge of air have to be fulfilled. nuse only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in cordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

Use

• The extractor hood has been designed exclusively for domestic

use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• "CAUTION: Accessible parts may become hot when used

with cooking appliances."

Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time (Fire hazard).

• "Failure to carry out cleaning as indicated will result in a fire hazard".

• The Activated charcoal is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

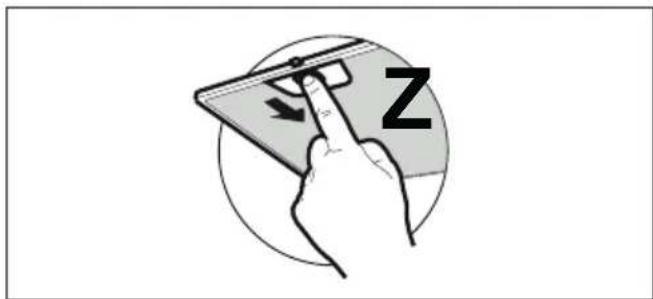

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

S1
Button	Led Function
L - T	Turns the lights ON/OFF at maximum strength.	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. The 4 LEDs on the buttons flash twice to confirm. To turn the alarm off, press the button again and hold for at least 5 seconds. The 4 LEDs on the buttons flash once.
T1 Fixed	Turns the motor on/off at speed one.	Press and hold the button for approx. 2 seconds to Activate/Deactivate the motor in 24h Air Circulation mode, a speed that allows ducting for 10 minutes every hour, for a 24 hour cycle. Cannot be activated if Intensive or Delay modes are active.
T2 Fixed	Turns the motor on at speed two.	Press and hold the button for approx. 3 seconds to Activate/Deactivate the Delay function (automatic switching off of the Motor, the Fans and the Lighting with a 30' delay). Cannot be enabled when Intensive or 24h are on.
T3 Fixed	Turns the motor on at speed three.	Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to reset the Filter saturation alarm. The LED S1 flashes three times.
T4	Flashing	Turns the Motor on at Intensive. Speed.This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, the hood will switch to OFF at the end of the time.
S1	Fixed	Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to wash the filters. The alarm is triggered after the Hood has been in operation for 100 working hours.
	Flashing	When this is activated, it signals the Activated Charcoal Filter saturation alarm, indicating that the filter must be changed; the Metal Grease Filters must also Activated Charcoal Filter saturation alarm comes into operation after the Hood has been working for 200 hours.

be wa

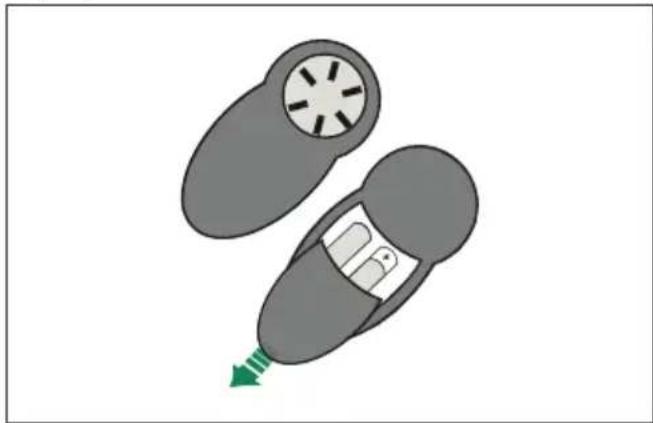

Remote control

The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
  Used batteries must be disposed of in the proper manner.

Motor On/Off.

Decreases the working speed each time it is pressed.

Increases the working speed each time it is pressed.

Activates/Deactivates Intensive operation.

Brief pressure: Activates/Deactivates the Delay function: automatic switch-off with a 30' delay. The display shows the operating speed and the dot at the bottom right flashes once Press for 2 seconds: Activates/Deactivates the 24h function: turns the suction motor on at speed one and effects one 10 minute extraction every hour. The display shows the number 24 and the dot at the bottom right flashes once

Lights On / Off.

Lighting

• For replacement contact technical support ("To purchase contact technical support").

a second.

a second.

FR Consels et suggestions

BHIMAHNE: DOCTYNHbIe YactN BbITJIKMOTCNbHO HArpeBaTbCBy BO Bpempa60tbi Ra3OBbIX np6OpOB.

3KcPnyataza

• BcacbBaIOUaBbITJka npedHa3NaueHa TOnbKO dIpyPImeHnB 6bIty dIy ydaJIeHn I33anaxOB OT rTOBKn.
  HnKOrda He nOJIb3yIITecb BbITJX-KoB INHbIX ZeJIaX, OTJIuHbTex,ДЯ KOTOpbIX OHa np3HaueHa.
• HNKoIa He OCTaBJIaTe BbICOKoe PnAmr PoD BbITJxKoH, HaxO ⅢeIcB pa6ote.
• PeruInpuyIte cnny nIaMeHn TaKIM o6pa30M, yTO6bI OHO OCTaBaJIOcB IOD INOM EMKOCTN IJI RA TOBKN I He BblpBlAIOCb 3a eRO npedeJIbl.
• Пи готовке BO Фриптурнице NOCTОЯнно следиTe 3a ee paбOTой: cnьн Ho Hаретоe MacNo M BOCПамеHTься.
  He roTOBbTe 6JIIOda QIaM6e NOB BbITJXKOJ: ONaCHOCTb BO3Hn BEHn IOxapa.
• Пибором могут NOЛьзOBaTbO Дети CTаршe 8 Лет И ОгранчehнblIMN NCINXчecknIMN, ФиЗИЧЕСКIMN N CEHCOPHыIM

CNOOCHOCTaMn, a TAKKe He NMeHOUJIe DOCTaTOUHOrO ObIta N 3HaHN, HO TOJIbKO IOD PnICMOTPOMOTBETCTBEHHbIX JINU INIpyBUN, YTO OHN OByeHbI 6e3OpaCHOJ3KcIIyatauIN Prn6opa N 3HaIOT OCBraHHbIX Cero HnPaBnIbHbIMNCIOJIb3OBaHHeM ONaCHOCTaX.

Cleinte, yTo6bI DeTn He nIgpaIn c np6opom. Ounchky u np6opom doJxhen oBeceuNbAtb NOlb3OBaTeJIb, TaKne DeiCTBI

yXoKyXHn

CIMBOJ Ha n3dEJIIN IIN HyaKOBKe yKa3bIBAeT, YTO np6OpX HeTb3a Bbl6paCbIBaTb, KaK O6bIy-EdHHBn 6bITOBoMycop. Pnp6op,POJIeKaUH yHNUTOKeHIO,He-0BXODIMO CdaTb BCNEuaHBHbI
Dae6OpHbI NyHK T DnA NOBTOPHORNCNOJB3OBAHN AJIeKTPnueCKNXN 3JIeKTPOHbIX KOMHOHETOB.PoJIb3OBaTeJIb, npabINbHO cdaUO-Usn Pnp6op Ha nepepa6OTky, No-MORAET PpeDTBpATNTb NOTEHUNaHBHbIE HeratNBHbIe NocJeIDCTBnJDN OKpykaIOSei CpeDbI N JKeZIOPOBBJ JIODei, BO3NIKAIOUneB CJIyuae HeNPaBNlbHOrO erO yHNUTOKeHnia. 3a 6oJee nOdp06-O-Ho INΦOPMaUeI O BTOPIHOMNCNoJIb3OBaHn Pnp6opa o6pa
IaTeB B TOpOcKo COBeT, H
MeCHyO Cnyk6y Np Nepepa6OTke OTXODOB INN B MaRa3IN, IDe npiM 6op 6bln npno6peTeH.
-Перед Вынон HeHem JIOбОI Oпетаци ПО OчNTke N yXOD) BbIKJIQUHTe ИЛN OTCoEДИHITe Cлрбор OT АльКтprueckоJ cETN.
OuHuaTe n/uJIu 3aMeHnTe fNbTpbl NO nCTeUeHN yKa3aHNOr IepNoDa BpeMeHN (OnaCHOCTb BO3HnKHOBeHna NoXapa).
- «ОпаCHOCTb BO3HnKHOBEHnЯ NO-KoJkaa, ecIи OunchKa np6opa He BblIOJIHЯETcB COOTBETCTBnC JnHCTpyKUnaMn».

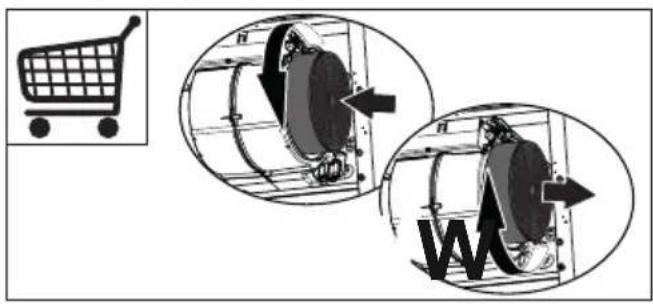

HΦnJIbTp Ha aKTHBnPoBaHHOM

yIe HeJIb3aMbITb N BOCCTaHaB- IINBaTb, eRo CNeI dyET MeHrTb npIMepHO pa3 B 4 Meca pa- BoTbI INn YaSe B Cnyae OyeHb INHTeHCNBHO ICNOJb3OBaHna np6opa (W).

• XInpoBbIe qnIbTpbl Heo6xOdmo

OuHuaTb pa3 B 2 Meca pa6o

TbI INN YaUe B Cnyuae

OueHb

HHTEHCNBHORO MCNOJIb3OBaHHN

OuHauTe BbITJkKBy BnaXHOI

TpIKNo, CMOueHHoB HHeITpaIb-

HOM XNIDKOM MOIOUeM BeIeCTBe.

S1
Φ/24	2/D	3
L	T1	T2
T3	T3	T4
Дугme LED Функциja
L - Yk	Буче	Искльчине освétльные м akимални m INтehнштетом.
	- Пушистп Спес и дожи т М л м м м м м m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M	4 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I 10 M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N	4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 л 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l 4 l

Даьнски Упразьач

Ламма

Ypehaj ce MOKe KOHTpOIncaTn DaJbHcU npaBbayem HanajaHm NOMohy cTaHdapdHnx ankaJIHx 6aTeprJa od 1,5V Ttna LR03-AAA (Hncy npINOxHe).

He cTAbJbajTe daBnHcN ynpabJbau 6n3y n3Bopa TOnlote.
- Nckopnshene 6aTepejce ce Mopajy yKNoHNTHa npOncaH haunH.
