USER MANUAL SSI 600 LED T.I.P.

Black circular device with a central knob and transparent display, set against a patterned background (no text or symbols visible)

A B C D

D

Translation of original operating instructions Floating solar island

F

GB EC declaration of conformity

We, T.I.P. Technische Industrie Produkte GmbH, Siemensstr. 17, D-74915 Waibstadt, declare in our sole responsibility that the products identified below comply with the basic requirements imposed by the EU directives specified below including all subsequent amendments: 2006/25/EG, 2014/30/EU, 2014/53/EU, 2011/65/EU.

Product diagram of a circular device with solar panels and four labeled components (no text or symbols on the device itself)

Technical line drawing of an electric motor showing internal components and housing (no text or labels)

Batterie:

Congratulations for buying your new device from T.I.P.!

Please read through these operating instructions carefully to make sure that you can fully benefit from all features.

We hope you will enjoy your new device!

Table of contents

1. General safety information.... 1
2. Safety instructions....1
3. Range of use....1
4. Technical Data 2
5. Scope of delivery 2
6. Mounting / Dismounting 2
7. Putting into operation 2
8. Maintenance and care....3
9. Error search / Advice.... 4
10. Warranty 4
11. How to order spare parts.... 4
12. Service 5

1. General safety information

Please read through these operating instructions carefully and make yourself conversant with the control elements and the proper use of this product. We shall not be liable in the case of damage caused as a result of the non-observance of instructions and provisions of the present operating instructions. Any damage caused as a result of the non-observance of the instructions and regulations contained in the present operating instructions shall not be covered by the warranty terms. Please keep these operating instructions in a safe place and hand them on together with the device should you ever dispose of it.

Persons not familiar with the contents of these manual may not use this device.

The device must not be used by children.

The device may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they have been supervised or instructed in the safe use of the equipment and have understood the resulting hazards. Children are not allowed to play with the device. Keep the appliance and its cord out of reach of children.

Please inspect the device for damage occurred during transportation. In case of damage, the retailer has to be informed immediately, at the latest within 8 days after the date of purchase.

2. Safety instructions

Attention! Use in garden ponds and their protected area is only permitted if the installation complies with the valid regulations. Please contact a qualified electrician.

Before use:

• Check connecting cables and plugs for damage.
• Important! If the unit or the connecting line of the pump is damaged, the pump(s) is/are unusable and have to be disposed of. A repair is not possible because the connection lines are firmly sealed.
• Do not subject the device to dull blows.

3. Range of use

This product is a floating water light operated with 6 V DC (direct current) with integrated solar collector for energy supply. This device is designed for use in fountains, pools, ponds and water containers. The collector operates the pump and charges the batteries by converting the absorbed sunlight into energy. The solar mode of the pump can be used in almost any weather, no matter if the sun is strong or if it is cloudy. If the absorbed energy is not sufficient to run the pump, the system switches to battery operation. Please note that the battery pack is capable of powering the SSI for a maximum of two hours if there is insufficient sunlight. At nightfall the water jet can be illuminated by the integrated LED lights.

This device was developed for private use and not for industrial or commercial purposes.

The pump is not suited to discharge saltwater, feces, inflammable, etching, explosive or other hazardous liquids. Please observe the max. temperature of the liquids to be discharged stated in the technical data.

4. Technical Data

Model	SSI 600 LED
Operating voltage	6 V DC
Rated power pump	0.8 Watt
Protection class pump / protection class LED spotlight	IPX8 / IPX8
Max. flow rate (Qmax)1)	150 l/h
Max. delivery head (Hmax)1)	0.8 m
Fountain height	~ 30 cm
Max. Temperature of the pumped liquid (Tmax)	40 °C
Battery pack	3.7 V – 2000 mAh Li Ion
Weight (net)	ca. 0.8 kg
Range remote control	max. 10 m
Item number	30335

1) The values were determined with free, unreduced outlet.

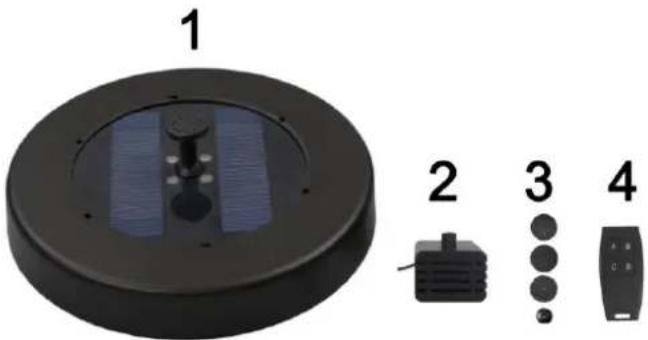

5. Scope of delivery

Floating solar island with solar panel and LED lighting (1), battery operated pump (2), four different fountain attachments (3), remote control (4), operating instructions.

Product diagram of a circular device with labeled parts, including a sensor and control unit (no text or symbols)

6. Mounting / Dismounting

Important! The pump must not run "dry". Otherwise damage to the device cannot be excluded!

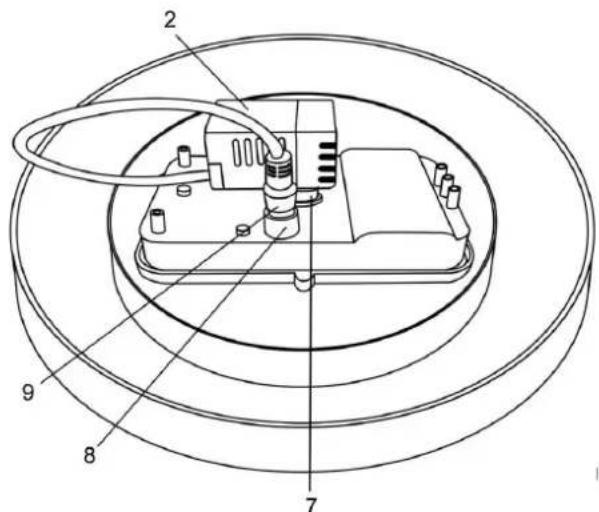

The figures mentioned in the following text refer to Fig. I, Fig. II and Fig. III at the end of the operating instructions.

• Unpack all components carefully.
• Mount the pump on the pump connection (7).
• Then remove the plug from the power connection socket (8) and plug the power cable of the pump into it. Make sure that the plug is absolutely tight.
• Now turn the SSI upside down and select a suitable fountain attachment (3). Now your floating island is ready for use.
• Please make sure that the SSI is not completely submerged in water - it may only float on the water surface. The polystyrene float (5) is used for this purpose.

7. Putting into operation

Observe safety measures!

The connecting cables of the device must not be damaged!

The battery must be fully charged before switching on the device!

GB

For this purpose, the solar-powered device has to be charged for at least 8 hours in direct sunlight before installation. Neither the pump nor the lighting unit may be switched on during the initial charging process. Make sure that no shade falls on the solar panel, otherwise the charging capacity will be reduced. If the unit has not been in operation for a long time, the above procedure has to be repeated.

Remote control:

When you now press a button on the remote control, the green LED light on the remote control comes on. The different operating modes can be reached by pressing the buttons on the remote control several times.

Press the button "A" to select the duration of the operation:

1x press 1 hour, 2x press 2 hours, 3x press 3 hours and 4x press 4 hours of operation (depending on the battery charge level).

By pressing the "B" button, you can switch on the white LED lights at dusk or in the dark.

Press button "C" to set the height of the water fountain and the interval spray. There are three different levels in total.

To switch the pump on and off, press the button "D" on the remote control. By pressing once, a continuous operation mode can be selected. If the power is less than 3.5 V, the pump will automatically switch off / not switch on.

8. Maintenance and care

Attention:

For all maintenance and care work, the plug connection between pump and solar unit or the control housing must be disconnected! For this purpose, the device must be switched off and removed from the water.

Collector surface:

The solar collector should be cleaned at regular intervals with a soft cloth. Regular cleaning is recommended to ensure optimal absorption and conversion of sunlight into energy.

Pump:

If after a certain time the pump loses flow or does not work at all, check if there is sediment, sludge or other dirt in the filter of the pump. Remove the pump and impeller cover. Clean both with lukewarm water and a soft brush.

Technical line drawing of an electric motor showing internal components and housing (no text or labels)

Battery:

The SSI is equipped with a long-lasting and powerful lithium-ion battery 3.7 V - 2000 mAh, which cannot be replaced.

Please pay attention to the instructions under point 7 for regular charging of the device to maintain the battery function.

8.1. Maintenance intervals

The time intervals for the necessary maintenance work (complete cleaning) depend strongly on the pond water contamination. Choose the intervals for cleaning accordingly.

If you find defects or wear and tear during maintenance, replace the corresponding parts.

(See spare parts ordering)

8.2. Winter maintenance

Protect your pump from frost! Remove the pump from your garden pond if there is a risk of frost.

Before taking the device out of operation for a longer period of time (e.g. in winter), it is recommended to charge the battery completely. Here the device should be charged for several hours in direct sunlight without the pump and lighting being switched on. You should repeat this charging process at least every 3 months when the device is taken out of operation.

Clean the pump completely according to the instructions.

Please make sure that the device is switched off during winter and that the connection cable of the pump is disconnected from the control box to avoid discharging the battery. Please store the device during the winter months in heated rooms to reduce the self-discharge of the battery.

9. Error search / Advice

Error	Possible reason	Solution
No output after switching on, although the solar collector is in full sunlight	No connection between pump and solar collector	Insert plug or check plug connection.
	Battery completely discharged and solar radiation not sufficient.	Let it charge in full sunlight.
	Pump calcified, rotor stuck	Disassemble and decalcify pump
	Rotor blocked by sand	Disassemble and clean the pump.
Low delivery rate	Lateral cover and/or sponges added	Clean side cover and/or sponges
	Rotor dirty	Cleaning the rotor
Pump runs, but no water comes out of the fountain head	Verschmutzung im Bereich der Frontabdeckung oder des Rohrs	Clean front cover and/or tube
The remote control does not work	Out of reach	Use remote control within 10 m range
	Batteries are empty	Contact the customer service.

10. Warranty

The present device was manufactured and inspected according to the latest methods. The seller warrants for faultless material and workmanship in accordance with the legal regulations of the country in which the device was purchased. The warranty period begins with the day of the purchase and is subject to the provisions below: Within the period of warranty, all defects which are to be attributable to defective materials or manufacturing will be eliminated free of charge. Any complaints are to be reported immediately upon their detection.

The warranty claim becomes void in the case of interventions undertaken by the purchaser or by third parties. Damage resulting from improper handling or operation, incorrect setting-up or storage, inappropriate connection or installation or Acts of God or other external influences are excluded from warranty.

Parts being subject to wear and tear, such as the pump wheel (impeller), mechanical shaft seals, membranes and pressure switch are excluded from warranty.

All parts were manufactured using maximum care and high-quality materials and are designed for a long lifecycle. It should be understood, however, that the wear and tear depends on the kind of use, the intensity of use and the internals of maintenance. Complying with the installation and maintenance information contained in the present operating instructions will therefore considerably contribute to a long lifecycle of these wearing parts.

In case of complaints, we reserve the option of repairing or replacing the defective parts or replace the entire device. Replaced parts will pass into our property.

Claims for liquidated damages are excluded unless they are caused by wilful acts or negligence on the side of the manufacturer.

The warranty does not provide for any claims beyond those referred to above. The warranty claim has to be evidenced by the purchaser in the form of the submission of the sales receipt. The present warranty commitment is valid in the country in which the device was purchased.

Please note:

1. Should your device fail to function properly, please verify first whether an operating error or another cause is present which cannot be attributed to a defect of the device.

2. In case you have to take or send in your defective device for repair, please be sure to enclose the following documents:

– Sales receipt (sales slip).

A description of the occurring defect (a description as accurate as possible will expedite the repair work).

1. In case you have to take or send in your defective device for repair, please remove any attached parts which do not belong to the original condition of the device. If any attached parts of this kind should be missing upon the return of the device, we shall not be liable for them.

11. How to order spare parts

The fastest, most simple and cheapest way of ordering spare parts is through the internet. On our website www.tip-pumpen.de you will find a convenient spare part shop where you can order spare parts with just a couple of clicks. In addition, this is also the place where we publish comprehensive information and valuable tips on our products and accessories, introduce new devices and present current trends and innovations in the range of pump technology.

12. Service

In the case of warranty claims or malfunction, please contact your point of sale.

A current operating manual is available as required as a PDF file via e-mail:[e-mail].

Disposal and recycling of packaging

The device is in packaging designed to prevent transport damage. This packaging is raw material and can therefore be reused. However, since special transport regulations apply to devices with lithium-ion batteries, the original packaging should be retained throughout the entire service life of the device, for possible transport or shipping. After this, it can be fed back into the raw material cycle.

Disposal of the device

If the device must be disposed of, please ensure that it is completely discharged.

Lithium-ion batteries are hazardous waste and are marked with the crossed-out wheeled bin symbol. The symbol indicates to end users that batteries should not be disposed of with household waste, but should be collected separately. Used batteries can be returned free of charge to the point of sale, the recycling centre or the retailer's disposal system.

To prevent short circuits and the associated heating, lithium-ion batteries must never be stored or transported unprotected in bulk. Appropriate measures must be taken to prevent short circuits.

For EC countries only

Please do not dispose of electrical appliances in the regular domestic waste!

According to the European Directive 2012/19/EU regarding waste electrical and electronic equipment and the implementation of that directive into national law, electrical devices have to be collected separately and disposed off in an environmental-suitable manner after the end of their life cycle. Should you have any questions, please contact your local waste disposal company.

Chère cliente, cher client,

Product diagram of a circular device with solar panels and four labeled components (no text or symbols on the device itself)

Technical line drawing of an electric motor showing internal components and housing (no text or labels)

Batterie :

Product diagram of a circular device with labeled parts and four numbered components (no text or symbols on the device itself)

Technical line drawing of an electric motor showing internal components and housing (no text or labels)

Batteria:

Product diagram of a circular device with labeled parts and four numbered components (no text or symbols on the device itself)

Technical line drawing of an electric motor showing internal components and housing (no text or labels)

Batería:

Black circular device with internal components and four labeled parts (1, 2, 3, 4) shown in separate views: a sensor, a battery, and a remote control unit.

6. Fel-/leszerelés

Line drawing of an electric motor showing internal components and housing (no text or labels)

Akkumulátor:

Product diagram of a circular device with solar panel and four labeled components (no text or symbols)

Technical line drawing of an electric motor showing internal components and housing (no text or labels)

Batteria:

Product diagram of a circular device with solar panels and four labeled components (no text or symbols on the main body)

Technical line drawing of an electric motor showing internal components and housing (no text or labels)

Batterie:

Black circular device with solar panels and four labeled components (no text or symbols on main body)

Technical line drawing of an electric motor showing internal components and housing (no text or labels)

Batterie:

Black circular device with solar panels and four labeled components (no text or symbols on main body)

6. Montare / demontare

Technical line drawing of an electric motor showing internal components and housing (no text or labels)

Batterie:

LED lights 3 Solar cell Front

Technical diagram of a mechanical device with numbered components labeled 2 through 9
