USER MANUAL Delta Mini ECOFLOW

EcoFlow DELTA mini User ManualRead all safety tips, warning messages, terms of use, and disclaimers carefully. Refer to the terms of use and disclaimer at https://ecoflow.com/pages/terms-of-use and stickers on the product before use. Users take full responsibility for all usage and operations. Familiarize yourself with the related regulations in your area. You are solely responsible for being aware of all relevant regulations and using EcoFlow products in a way that is compliant. DISCLAIMER EcoFlow DELTA mini (Hereinafter referred to as DELTA mini)1. Specifications

• Whether the product can be charged or discharged depends on the actual temperature of the battery pack.2

1. If conditions permit, make sure that the battery is fully discharged before disposing it in a designated

battery recycling bin. The product contains batteries with potentially dangerous chemicals, so it is strictly prohibited to dispose of it in ordinary trash cans. For more details, please follow the local laws and regulations on battery recycling and disposal.

2. If the battery cannot be fully discharged due to a product failure, please do not dispose of the

battery directly in the battery recycling box. In such case, you should contact a professional battery recycling company for further processing.

3. Please dispose of over-discharged batteries that cannot be recharged.

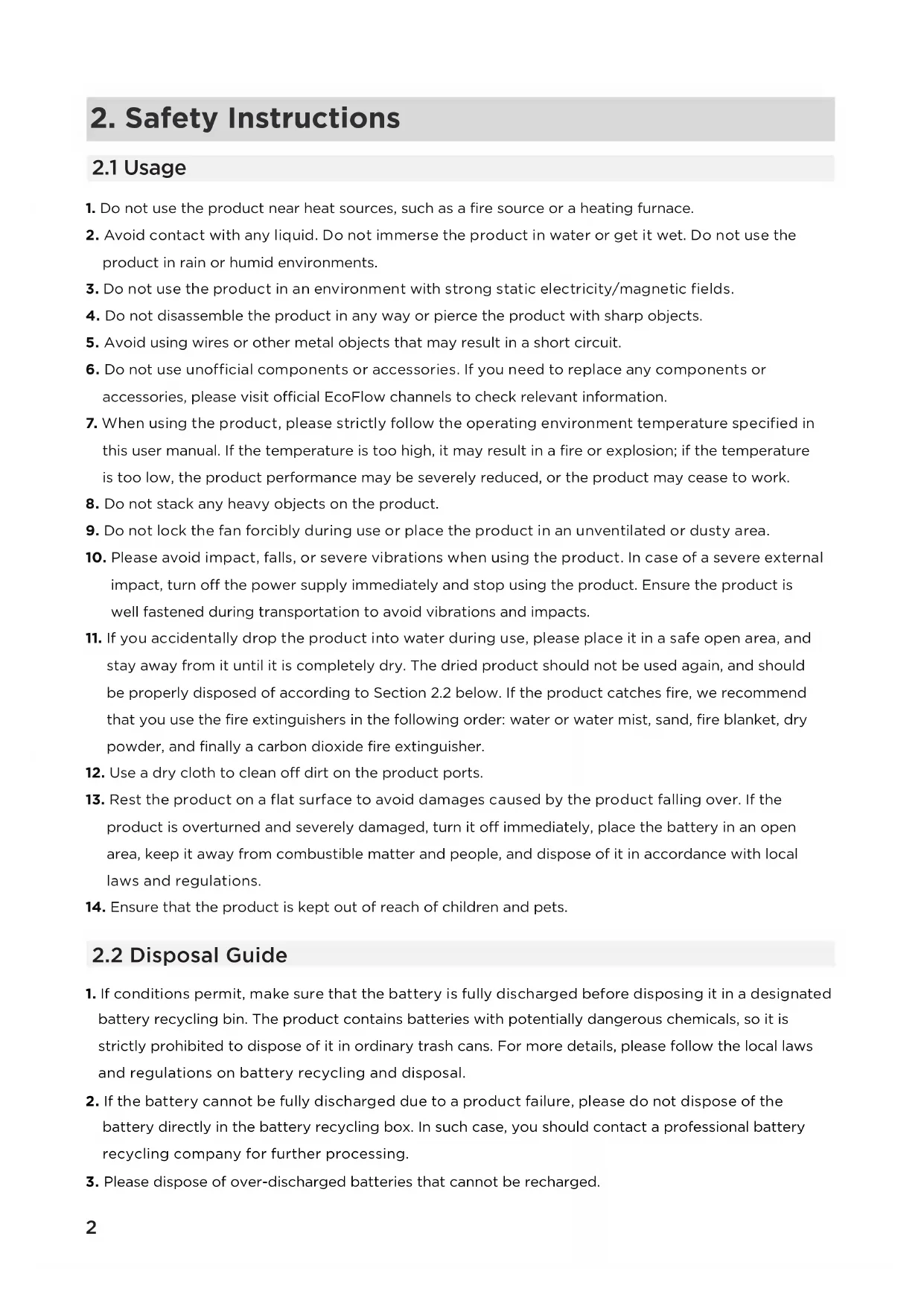

1. Do not use the product near heat sources, such as a fire source or a heating furnace.

2. Avoid contact with any liquid. Do not immerse the product in water or get it wet. Do not use the

product in rain or humid environments.

3. Do not use the product in an environment with strong static electricity/magnetic fields.

4. Do not disassemble the product in any way or pierce the product with sharp objects.

5. Avoid using wires or other metal objects that may result in a short circuit.

6. Do not use unofficial components or accessories. If you need to replace any components or

accessories, please visit official EcoFlow channels to check relevant information.

7. When using the product, please strictly follow the operating environment temperature specified in

this user manual. If the temperature is too high, it may result in a fire or explosion; if the temperature is too low, the product performance may be severely reduced, or the product may cease to work.

8. Do not stack any heavy objects on the product.

9. Do not lock the fan forcibly during use or place the product in an unventilated or dusty area.

10. Please avoid impact, falls, or severe vibrations when using the product. In case of a severe external

impact, turn off the power supply immediately and stop using the product. Ensure the product is well fastened during transportation to avoid vibrations and impacts.

11. If you accidentally drop the product into water during use, please place it in a safe open area, and

stay away from it until it is completely dry. The dried product should not be used again, and should be properly disposed of according to Section 2.2 below. If the product catches fire, we recommend that you use the fire extinguishers in the following order: water or water mist, sand, fire blanket, dry powder, and finally a carbon dioxide fire extinguisher.

12. Use a dry cloth to clean off dirt on the product ports.

13. Rest the product on a flat surface to avoid damages caused by the product falling over. If the

product is overturned and severely damaged, turn it off immediately, place the battery in an open area, keep it away from combustible matter and people, and dispose of it in accordance with local laws and regulations.

14. Ensure that the product is kept out of reach of children and pets.

2. Safety Instructions3

DC5521 Output Port USB-C 100W Output Port LCD Screen Solar/Car Charging Input Port AC Output Socket (British standard) AC Power Button Car Outlet IOT Button USB-A Output Port USB-A Fast Charge Output Port X-Stream AC Charging Input Port Overload Protection Switch 12V DC Power Button Australian standard *AC socket adapts according to local standards. European standard lnternational Main Power Button

Ventilation Fan AC Charge Speed Switch4 Short press the Main Power Button to turn on the product; the LCD Screen will light up and the battery level indicator icon will display. Product On, Product Off, LCD Screen On Remaining Charge/ Discharge Time Output Power Overload Warning Input Power Fan Indicator Low Temperature Warning High Temperature Warning Remaining Battery Percentage Battery Failure Warning Battery Level Indicator AC Output Short Press to Turn On USB-A/USB-C Output Wi-Fi Status 12V DC Output Indicator Battery Level Indicator: The indicator will repeatedly fill while charging. If product is at 0% charge, the indicator will flash to warn you. Wi-Fi Status: After pressing the IOT button for 3 seconds, the Wi-Fi status will flash on the LCD screen which indicates that the product is ready for pairing. There're two ways to connect the product with the App, either directly connect to the product's hotspot or using the Internet. If the App is successfully connected to the product's hotspot, the icon will keep flashing; if it is successfully connected to the Internet, the icon will stay on. State of Charge The product enters sleep mode after 5 minutes of idle operation; the LCD Screen will automatically turn off. When the product senses any load change or operations, the LCD Screen will automatically light up. To turn the LCD Screen on or off, please short press the Main Power Button. To power off the product, press and hold the Main Power Button. The default product standby time is 2 hours. With other Power Buttons turned off and no other load access for 2 hours, the product will automatically shut down. The standby time can be set on the App. Long Press to Turn Off

• See Section 5 for more troubleshooting steps.5 With the Main Power Button turned on, short press the 12V DC Power Button to use the DC Output port. Short press the 12V DC Power Button again to turn it off. With the 12V DC Power Button on, the product will not automatically shut down. 12V DC Output Port With the Main Power Button turned on, short press the AC Power Button to use the AC Output ports. Short press the AC Power Button again to turn it off. The default standby time of the AC Output port is 12 hours. Without any load access for 12 hours, the AC Power will automatically turn off. Please turn off AC power button when not in use to save power consumption. AC Output Port Short Press 12V DC Power Button Short Press AC Power Button6 EcoFlow’s X-Stream fast charge technology is specifically for AC charging, offering 900W of max input power. You can control the charging power through the AC Charge Speed Switch. When set to the top, you will have a charging speed of 900W. When set to the bottom it'll be at your custom speed, which is 200W by default, customizable in the EcoFlow app. In case of unusual situations where the AC input current remains higher than 20A, the X-Stream charging input port will initiate a self-protection function, and the Overload Protection Switch on the product will automatically pop up. After confirming that there is no product failure, you can press the Overload Protection Switch to resume charging. The charging power can be adjusted through the AC Charge Speed Switch on the back of the product. You can set the charging power range in the EcoFlow App. Please use AC charging Cable for fast charging. EcoFlow takes no responsibilities for any consequences caused by failures to follow instructions, including but not limited to charging with AC charging Cable. X-Stream Fast Charging 900W Max input Power EcoFlow APP Customized Charging Power Range: 200-900W (Default : 200W) <2 hrs Full Charge AC Charging Cable

English edition X-Stream Fast Charging 900W Max input Power7 Users can connect solar panels in series as shown in the figure to recharge the product. The product supports 11-75V DC input, 10A max current, and 300W max charging power. MC4 Solar Charging Cable Car Charging Cable When using an EcoFlow solar panel to charge the product, please follow the instructions that come with the solar panel. Before connecting the solar panel, please ensure that the solar panel’s output voltage is within 75V to avoid product damages. Users can recharge the product through the Car Charging Input Port. It supports 12V/24V car chargers and an 8A default charging current. Please charge using the car charger after you’ve started the car to avoid failure to start due to insufficient car battery. In addition, please make sure that Car Charging Input Port and the Car Charging Cable are in good condition. EcoFlow takes no responsibilities for any losses or damages caused by failures to follow instructions.

With EcoFlow X-Boost technology, the product can power a 2200W Max device while the rated output power remains 1400W, avoiding operation failure due to overload protection. Under standard voltage conditions, the total maximum output of all AC output ports is 1400W. With the X-Boost enabled, all AC output ports can power devices that require 2200W Max in total while the rated output power remains 1400W. The X-Boost will be automatically enabled when the total output of all output ports exceeds 1400W. X-Boost Tips:

1. X-Boost is enabled by default; you can enable or disable it in the EcoFlow App.

2. X-Boost is not available when the AC output is turned on in a recharging state (in bypass mode)

and when X-Boost is disabled.

3. X-Boost is not applicable for all electrical appliances; it’s incompatible with appliances with strict

voltage requirements. Appliances with voltage protection (such as precise instruments) are not supported. X-Boost mode is more suitable for heating devices. Please conduct your own tests with your devices with X-Boost enabled.

The EcoFlow App gives users the ability to control and monitor EcoFlow power stations remotely. Read the EcoFlow App user guide and access the download link here: https://ecoflow.com/pages/ecoflow-app. Privacy Policy By using EcoFlow Products, Applications and Services, you consent to the EcoFlow Term of Use and Privacy Policy, which you can access via the "About" section of the "User" page on the EcoFlow App or on the official EcoFlow website at https://ecoflow.com/pages/terms-of-use and https:// ecoflow.com/pages/privacy-policy.9

The product supports EPS. When you connect the grid power to the AC Input Port of the product through an AC Charging cable, you can power electrical devices through the AC Output Sockets (AC power will come from the grid and not the power station in this situation). In case of a sudden blackout, the product can automatically switch to the battery powered supply mode within 30ms. As a basic UPS function, this function does not support 0ms switching. Please do not connect the product to any device that requires 0ms UPS, such as data servers and workstations. Please test and confirm the compatibility before using the product. We recommend that you only charge one device at a time and avoid using multiple ones at the same time to avoid overload protection. EcoFlow takes no responsibilities for any device failures or data losses caused by failures to follow instructions.

1. What battery does the product use?

It uses high-quality lithium-ion battery.

2. What devices can the product’s AC output port power?

With 1400W rated power and 2100W peak power, the product’s AC output port can power most household appliances. Before you use it, we recommend that you confirm the power of the appliances first and ensure the power sum of all loaded appliances is lower than the rated power.

3. How long can the product charge my devices?

The charging time is shown on the product’s LCD Screen, which can be used to estimate the charging time of most appliances with stable power usage.

4. How can I know if the product is charging?

When it’s charging, the remaining charging time will be shown on the LCD Screen. Meanwhile, the charging indicator icon begins to rotate with the remaining battery percentage and the input power shown on the right of the circle.

5. How to clean the product?

Please gently wipe it with a dry, soft, clean cloth or paper towel.

6. How to store the product?

Before storing, please turn off the product first, and then store it in a dry, ventilated place at room temperature. Do not place it near water sources. For long-term storage, please discharge the battery to 30% and recharge it to 60% every three months to extend its battery life.

7. Can I bring the product on a plane?

If an errors (s) is indicated on the LCD screen during use and does not disappear after a restart, please stop using it immediately (do not try to charge or discharge). If you require any other assitance, please contact EcoFlow Customer Service. Indicator Problem USB-A Overload Protection Icons Flash together Icons Flash together Icons Flash together Icons Flash together Icons Flash together Icons Flash together Icons Flash together Icons Flash together Icons Flash together Icons Flash together Icons Flash together Icons Flash together Icon Stays On Resume normal operation by removing the electrical device connected to the USB-A port. Resume normal operation by removing the electrical device connected to the USB-C port. After the product cools down, it will resume normal operation automatically. Charging can be resumed automatically after the battery cools down. The power supply can be resumed automatically after the battery cools down. Charging can be resumed automatically after battery temperature rises above 41°F. The power supply can be resumed automatically after the battery temperature rises above 10°F. Please confirm whether the fan inlet and outlet are blocked, if not, normal operation will be resumed automatically after the product temperature drops. Normal operation will be resumed automatically after the product is used at optimum environmental temperatures. Please check if the fan is blocked by foreign materials. After the product cools down, it will resume normal operation automatically. Contact EcoFlow Customer Service Normal operation will be resumed automatically after you remove the overloaded device and restart the product. Electrical appliances should be used within rated power. (Refer to X-Boost instructions to get more details about power limitations). USB-C Overload Protection Solution USB-C High Temperature Protection High Temperature Charge Protection High Temperature Discharge Protection Low Temperature Charge Protection Low Temperature Discharge Protection AC Output Overload Protection AC High Temperature Protection AC Low Temperature Protection Fan Blockage Car Charger Overload Protection Car Charger High Temperature Protection Battery Failure The product will resume normal operation automatically after you remove the device connected to the car charger. Icon Flashes11

1. Please use or store the product in an environment temperature between 68°F to 86°F, away from

water, heat, and other metal objects.

2. For long-term storage, please discharge the battery to 30% and recharge it to 60% every three

3. For safety, please do not store the product in an environment temperature higher than 113°F or

lower than 14°F for a long time.

4. If the remaining battery is less than 1% after you finish using the product, please recharge it to

60% before storing. If the product is left idle for a long time with severely low battery, irreversible damages may be caused to the battery cell and the product service life will be shortened.

5. If the product has been idle for too long and the battery is severely low, it will enter a deep sleep
