282090 - Food machine Hendi - Free user manual and instructions

Product type	Manual sausage filling machine
Brand	Hendi
Model	282090
Color	Stainless steel
Cylinder capacity	7 L
Product dimensions (L x W x H)	300 x 300 x 790 mm
Cylinder dimensions (Diameter x Height)	Ø140 x 460 mm
Net weight	13.5 kg
Body material	Stainless steel
Funnel material	Stainless steel
Included funnel diameters	16, 22, 32, 38 mm
Feeding type	Manual (crank)
Use	Professional (sausage production)
Number of speeds	2 (fast and slow)
Transmission system	Horizontal and vertical gears
Piston	Removable with seal
Maintenance	Cleaning with mild detergent and food-safe lubricant
Storage	Clean and dry place, frost-free
Safety	Do not open the casing, do not insert objects
Spare parts	Seals, pistons, funnels (replacement recommended every 6 months)
Standards	Compliant with food hygiene standards

Frequently Asked Questions - 282090 Hendi

How to use the Hendi 282090 sausage filling machine?

Attach the crank to the high-speed gear reducer, fill the cylinder with meat, attach the funnels and casings, then turn the crank clockwise to actuate the piston. Use the slow speed to form the sausages.

How to clean the machine after use?

Clean all parts in contact with food (cylinder, piston, funnels) immediately with hot water and an approved detergent for meat processing equipment. Rinse and dry before reassembly.

What to do if meat does not come out of the funnel?

Do not force the piston. Check that the outlet or funnel is not blocked. If the machine is jammed, clean it and ensure the minced meat is suitable for the funnel size.

How to assemble the piston?

Slide on the piston cover, mount the pressure relief valve kit, place the washer and screw, insert the spring and tighten. Then place the assembled piston onto the end of the piston rod.

Which lubricant to use for the machine?

Use an approved lubricant for food contact. Apply it to the inner surface of the cylinder before filling with meat, and lubricate the seals regularly.

How to store the machine?

Store the device in a clean and dry place, protected from rain and moisture. Do not expose it to temperatures below 0°C.

What are the funnel diameters available for model 282090?

The stainless steel model 282090 comes with four funnels with diameters 16, 22, 32, and 38 mm.

Is the machine suitable for domestic use?

No, this machine is designed for professional use (restaurants, sausage producers). Domestic use is not recommended.

How to replace the piston seal?

If the seal becomes stiff (ambient temperature < 15°C), soak it in hot water to soften it. It is recommended to replace the seals every six months, depending on usage intensity.

What to do in case of breakdown or damage?

Do not use the device if it has been dropped or damaged. Contact an authorized repairer. Do not attempt to repair it yourself, as this could pose a risk of accident.

USER MANUAL 282090 Hendi

You should read this user manual carefully before using the appliance.

Thank you for purchasing this Hendi appliance. Before using the appliance for the first time, please read this manual carefully, paying particular attention to the safety regulations outlined below.

Safety regulations

• Improper operation or use may cause serious damage to the appliance or injuries.
  The appliance can be used only as intended.
• The manufacturer and the seller shall not be liable for any damage caused by improper operation or use of the appliance.
• Never open the appliance enclosure on your own.
• Do not insert any objects into the appliance enclosure.
• If the appliance falls down or is damaged in another way, always have the appliance checked and, if necessary, repaired by a specialised repair shop before continued use.

• Never repair the appliance on your own. This may result in a threat to human life.

• Keep monitoring the appliance during operation.
  Children are unaware of hazards created operating equipment. Never allow children to handle equipment.

• Use only the accessories supplied with the appliance.
• Avoid overloading.
• The appliance must not be used by persons (including children) of impaired physical, sensory or mental abilities, or those who lack appropriate knowledge and experience.
• Never store or leave the stuffer at a temperature lower than 32^ (0^) .

Intended use

• The appliance is intended for professional use.

• The appliance is designed only for making sausages. Any other use may lead to damage to the appliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Description of the production process

Our stuffer /filler will help you make delicious sausages. The device, equipped with horizontal and vertical racks, has a new gearing system. It has a two-speed gear reduction drive which releases the

plunger for quick and easy filling. The machine is ideal for sausage makers or restaurants aiming at making delicious sausage stuffings.

Device specification

• The stuffer/filler has two-speed stuffing/filling system which is quick and easy to use.
• The cylinder and plunger can be easily removed for filling and cleaning.

• Stainless steel version and red version come with 4 different S/S funnels and 3 different PP funnels separately.

• The device is equipped with a hardened steel bearing and gearing system which makes it pressure resistant.

• All parts in direct contact with food meet the food hygiene requirements.

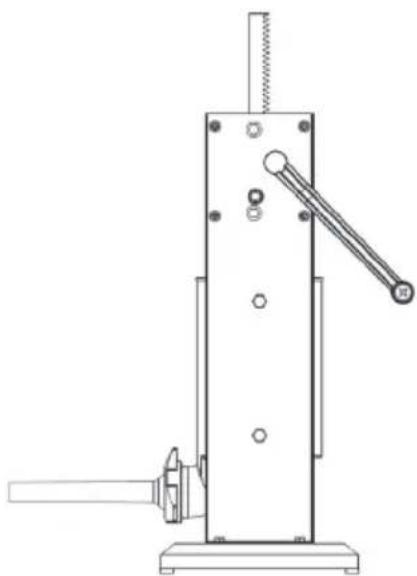

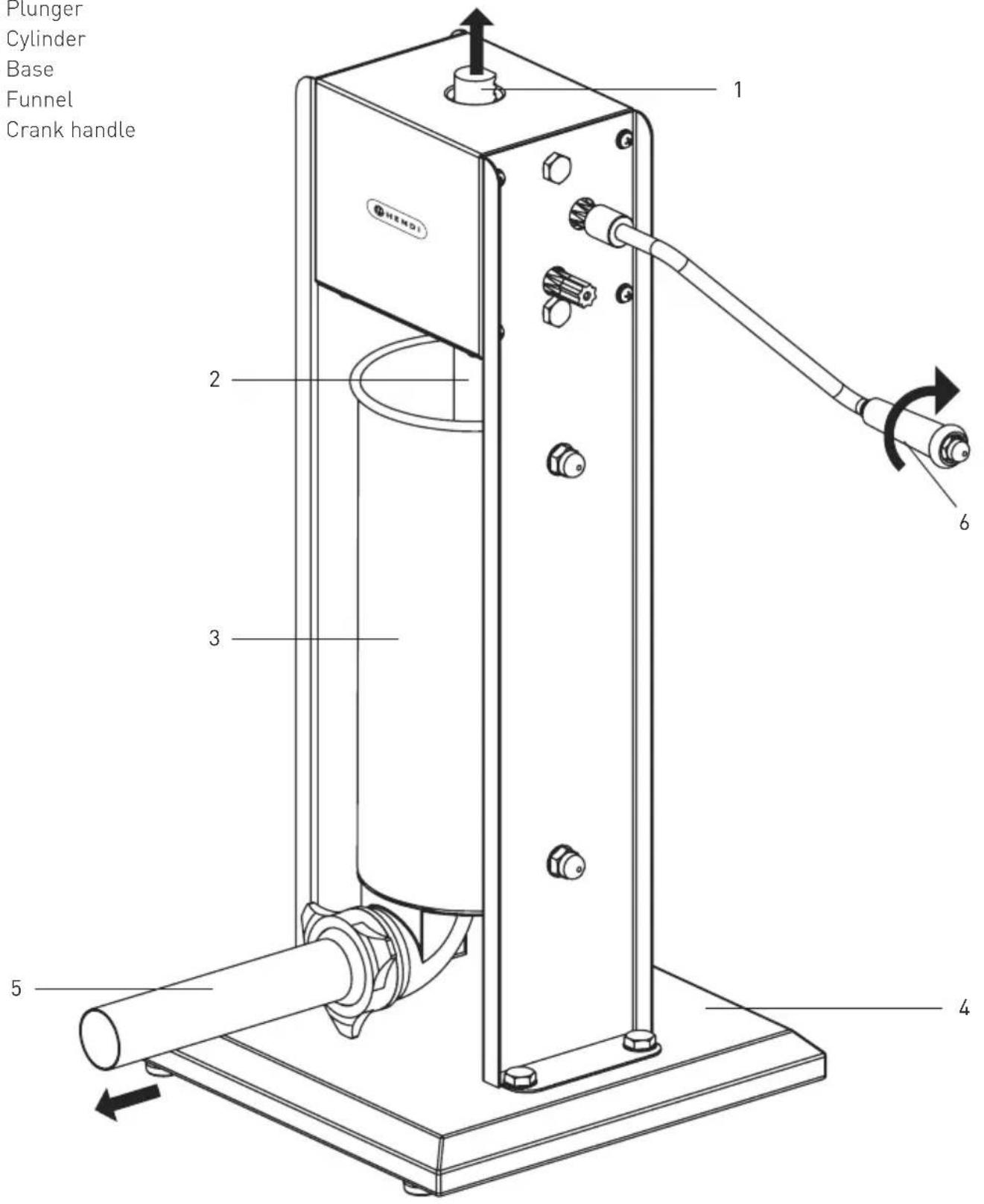

Parts of description

1. Threaded rod
2. Plunger
3. Cylinder
4. Base
5. Funnel
6. Crank handle

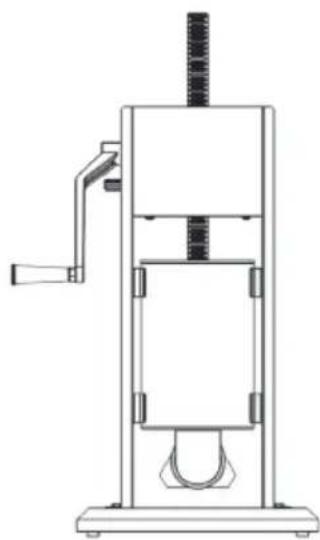

FRONT VIEW

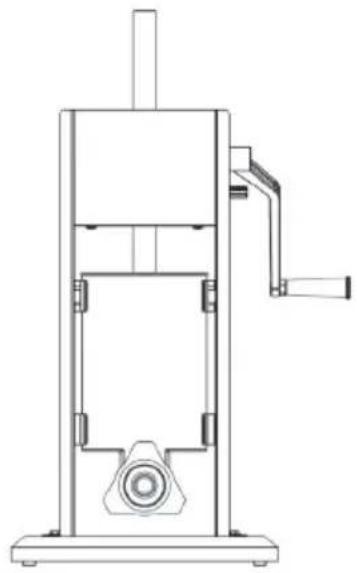

REAR VIEW

SIDE VIEW

EN

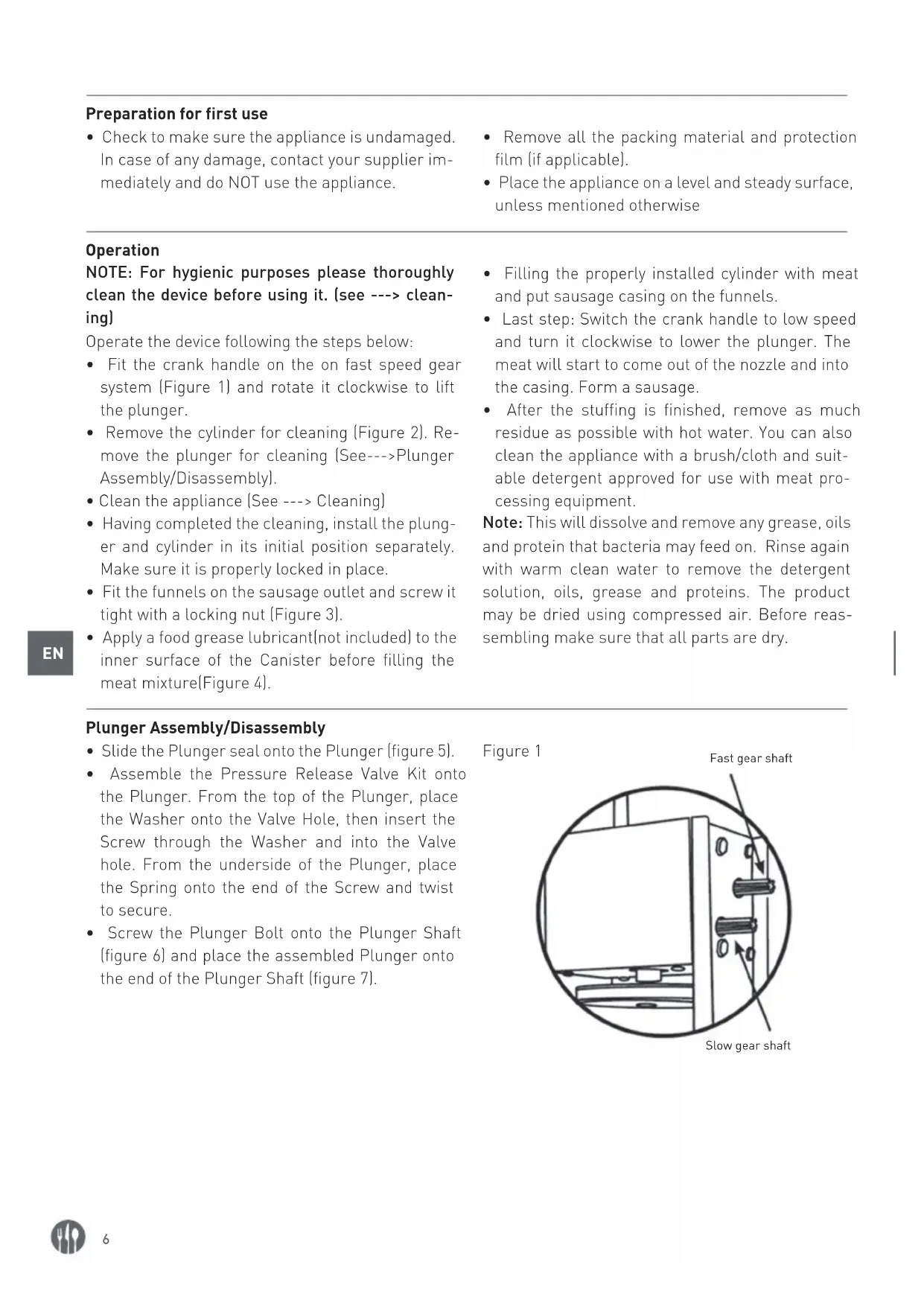

Preparation for first use

• Check to make sure the appliance is undamaged. In case of any damage, contact your supplier immediately and do NOT use the appliance.

• Remove all the packing material and protection film (if applicable).

• Place the appliance on a level and steady surface, unless mentioned otherwise

Operation

NOTE: For hygienic purposes please thoroughly clean the device before using it. (see ---- cleaning)

Operate the device following the steps below:

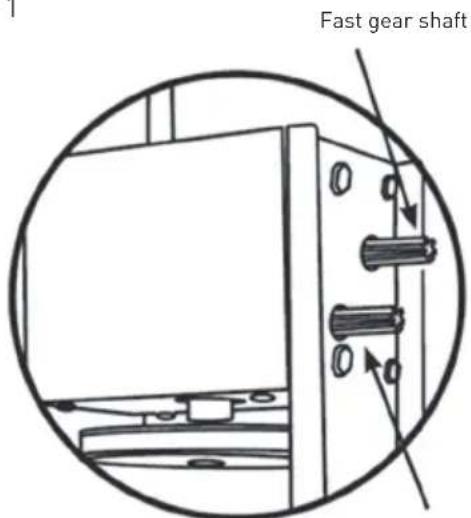

• Fit the crank handle on the on fast speed gear system (Figure 1) and rotate it clockwise to lift the plunger.

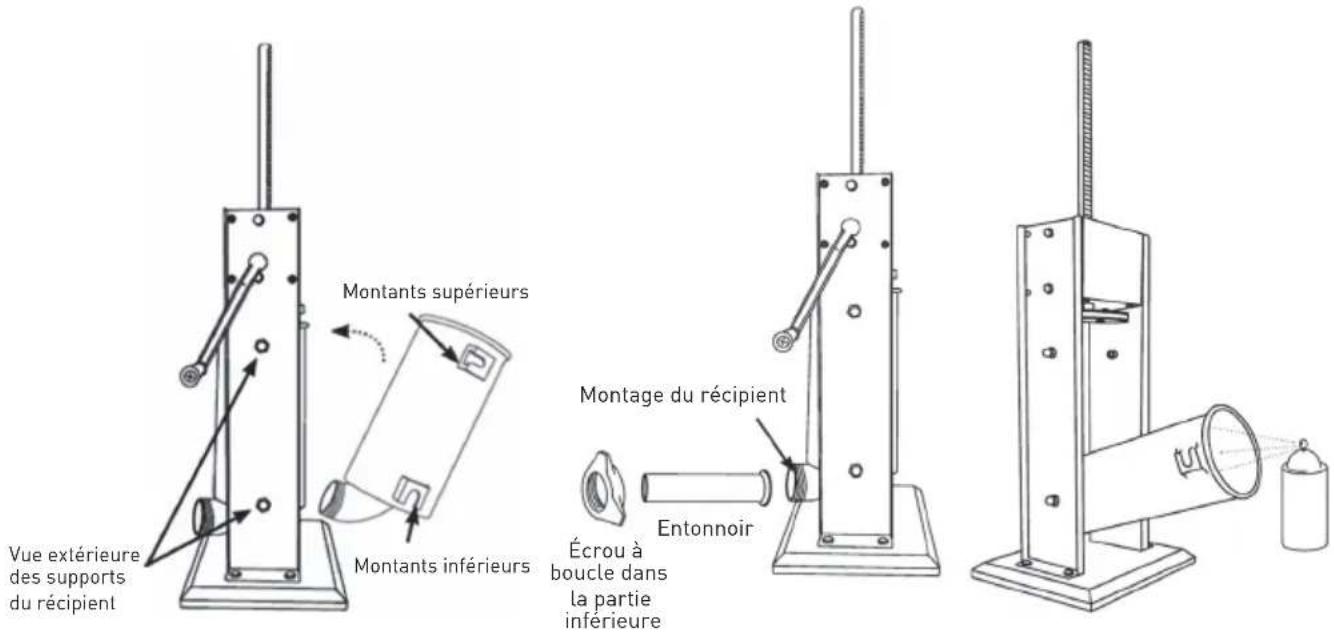

• Remove the cylinder for cleaning (Figure 2). Remove the plunger for cleaning (See--->Plunger Assembly/Disassembly).
• Clean the appliance (See ----> Cleaning)
• Having completed the cleaning, install the plunger and cylinder in its initial position separately. Make sure it is properly locked in place.
• Fit the funnels on the sausage outlet and screw it tight with a locking nut (Figure 3).

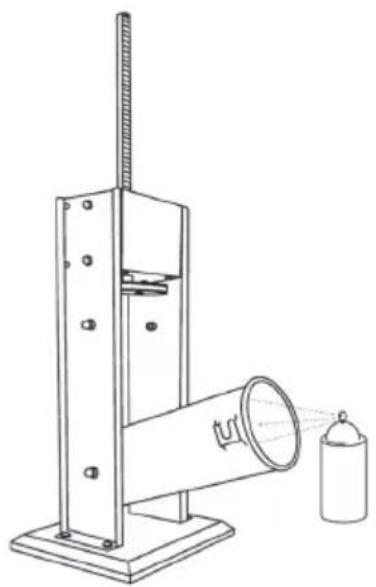

• Apply a food grease lubricant (not included) to the inner surface of the Canister before filling the meat mixture (Figure 4).

• Filling the properly installed cylinder with meat and put sausage casing on the funnels.

• Last step: Switch the crank handle to low speed and turn it clockwise to lower the plunger. The meat will start to come out of the nozzle and into the casing. Form a sausage.
• After the stuffing is finished, remove as much residue as possible with hot water. You can also clean the appliance with a brush/cloth and suitable detergent approved for use with meat processing equipment.

Note: This will dissolve and remove any grease, oils and protein that bacteria may feed on. Rinse again with warm clean water to remove the detergent solution, oils, grease and proteins. The product may be dried using compressed air. Before reassembling make sure that all parts are dry.

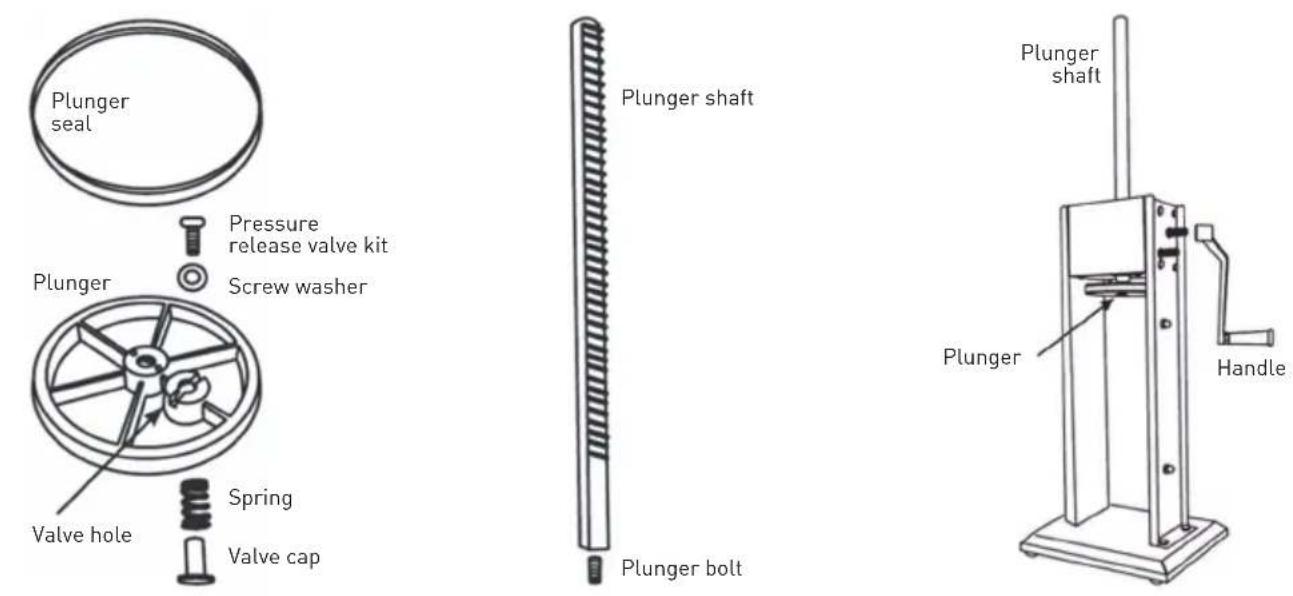

Plunger Assembly/Disassembly

• Slide the Plunger seal onto the Plunger (figure 5).
• Assemble the Pressure Release Valve Kit onto the Plunger. From the top of the Plunger, place the Washer onto the Valve Hole, then insert the Screw through the Washer and into the Valve hole. From the underside of the Plunger, place the Spring onto the end of the Screw and twist to secure.
• Screw the Plunger Bolt onto the Plunger Shaft (figure 6) and place the assembled Plunger onto the end of the Plunger Shaft (figure 7).

Figure 1

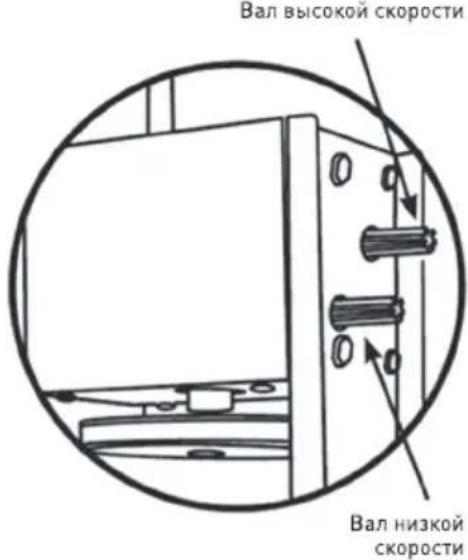

Slow gear shaft

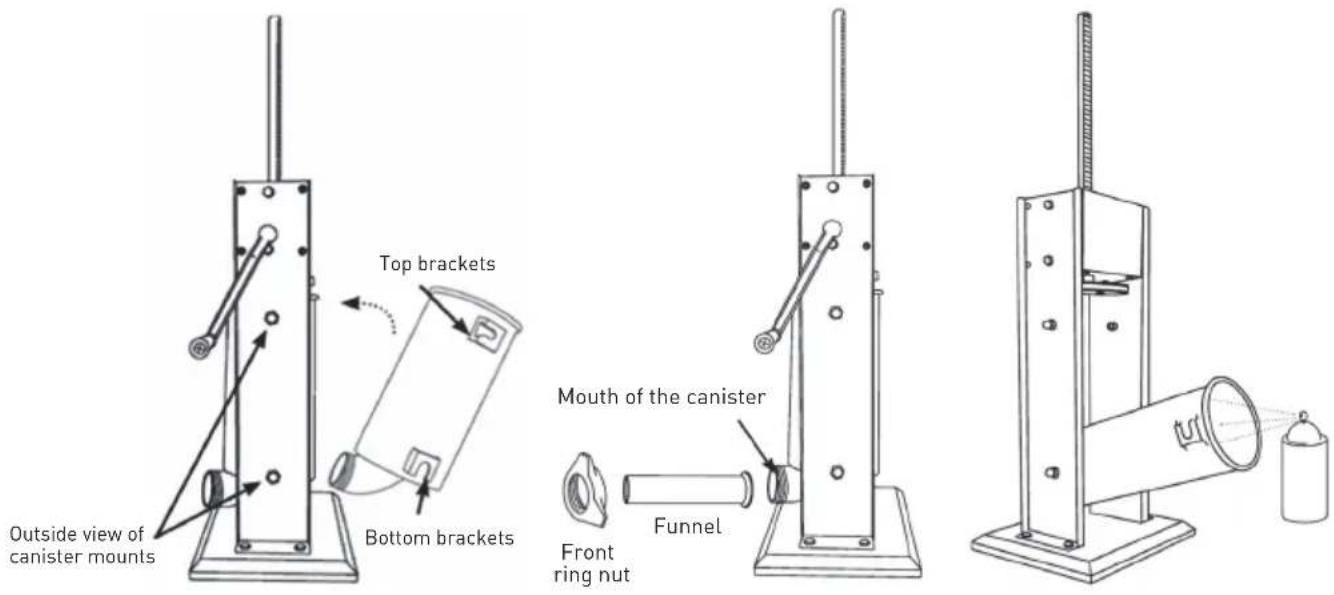

Figure 2 Figure 3 Figure 4

Figure 5 Figure 6 Figure 7

Cleaning

• Clean the outside of the appliance with a damp cloth (water with mild detergent).

• Clean all parts that have direct contact with food, e.g. cylinder, funnels, plunger, and etc. Use a brush/cloth and suitable detergent approved for use with meat processing equipment.

• Never use aggressive cleaning agents or abrasives. Do not use any sharp or pointed objects.

Do not use petrol or solvents! Clean with a damp cloth and detergent if necessary.

NOTE: BE SURE TO CLEAN THE PARTS IMMEDIATELY AFTER USE.

Maintenance and storage

Maintenance

• Please strictly follow the user's manual. It will considerably extend the service life of the device. THE MANUFACTURER SHALL NOT BE LIABLE FOR THE DAMAGE CAUSED BY IMPROPER OPERATION.
• It is recommended to add food grease lubricant to the rack and gear system every six months. In some cases it depends on how much the machine is used.

Troubleshooting

When making sausages, the following problems may occur:

• The gasket may become stiff if the ambient temperature drops below 15^ .

In that case DO NOT use the appliance. Remove the gasket from the plunger, soak it in hot water to soften and then fit on the plunger adding a food grade lubricant. Resume using the device.

It is recommended to replace gaskets every six months, depending on the use.
- Before reassembling make sure that all parts are dry.

Before using the device check if

• the minced meat comes out from the nozzle and into the casing after pressing hard on the plunger. If not, DO NOT press the plunger harder. Check whether or not the outlet or the nozzle is blocked by the meat, if so, remove the meat.

If blockage occurs, check if the degree of mincing is adequate for the selected nozzle.

STORAGE:

THIS DEVICE MUST BE STORED IN A CLEAN AND DRY PLACE.

DO NOT EXPOSE THE DEVICE TO RAIN OR HUMIDITY.

Technical data

Item number 28	2571 282588 282	090 282151 28213	7 282144
Colour Stainless steel Red
Approx. net weight	10.5 kg 12 kg	13.5 kg 20 kg 10	5 kg 12 kg
Capacity	3L	5L	7L	10L	3L	5L
Cylinder dimensions	Ø140x(H)200 mm	Ø140x(H)320 mm	Ø140x(H)460 mm	Ø215x(H)280 mm	Ø140x(H)200 mm	Ø140x(H)320 mm
Product dimensions	300x300x(H)530 mm	300x300x(H)640 mm	300x300x(H)790 mm	420x320x(H)650 mm	300x300x(H)530 mm	300x300x(H)640 mm
Funnels material	Stainless steel				PP
Funnels diameter	Ø16/ 22/ 32/ 38 mm				Ø19/ 25/ 35 mm

Technical data are subject to change without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural re

sources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

EN

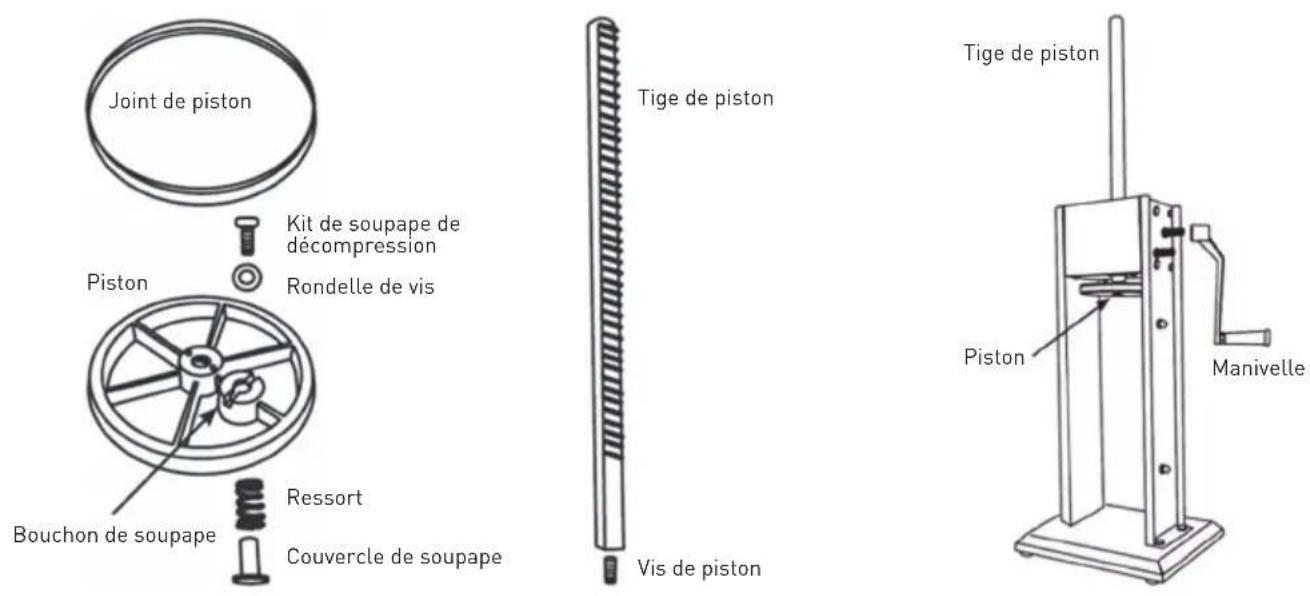

Device specification

Figure 2 Figure 3 Figure 4
Figure 5 Figure 6 Figure 7

Nettoyage

Maintenance and storage

Maintenance

• Please strictly follow the user's manual. It will considerably extend the service life of the device. THE MANUFACTURER SHALL NOT BE LIABLE FOR THE DAMAGE CAUSED BY IMPROPER OPERATION.
• It is recommended to add food grease lubricant to the rack and gear system every six months. In some cases it depends on how much the machine is used.

Troubleshooting

When making sausages, the following problems may occur:

• The gasket may become stiff if the ambient temperature drops below 15^ .

In that case DO NOT use the appliance. Remove the gasket from the plunger, soak it in hot water to soften and then fit on the plunger adding a food grade lubricant. Resume using the device.

• It is recommended to replace gaskets every six months, depending on the use.
• Before reassembling make sure that all parts are dry.

Before using the device check if

• the minced meat comes out from the nozzle and into the casing after pressing hard on the plunger. If not, DO NOT press the plunger harder. Check whether or not the outlet or the nozzle is blocked by the meat, if so, remove the meat.

If blockage occurs, check if the degree of mincing is adequate for the selected nozzle.

STORAGE:

THIS DEVICE MUST BE STORED IN A CLEAN AND DRY PLACE.

DO NOT EXPOSE THE DEVICE TO RAIN OR HUMIDITY.

Informatii tehnice

Articol nr. 282571 282588 282090	282151 282137 282144
Culoare Oțel inoxidabil Rosu
Greutate netăapprox.	10,5 kg 12 kg	13,5 kg 20 kg 10	5 kg 12 kg
Capacitate	3L	5L	7L	10L	3L	5L
DimensiuniCilindru	Ø140x(H)200mm	Ø140x(H)320mm	Ø140x(H)460mm	Ø215x(H)280mm	Ø140x(H)200mm	Ø140x(H)320mm
Dimensiunileproduusului	300x300x(H)530 mm	300x300x(H)640 mm	300x300x(H)790 mm	420x320x(H)650 mm	300x300x(H)530 mm	300x300x(H)640 mm
Materialepålnie	Oțel inoxidabil				PP
Diametrupålnie	Ø16/ 22/ 32/ 38 mm				Ø19/ 25/ 35 mm

Informati tehnice se pot modifica fara notificare.

Eliminarea 山 mediul inconjurator

NcnoB3yIte yCTpoiCTBO B COOTBeTCTBUN C npNBedeHHo HnKe npOeDpyo:

YctahOBHTe pykypbHara Ha cn nepeKIOUeynckopocTe (pucyHOK 1) n NOBepHNTe ee no yacobO CTpeIKe, TTo6bl NOHNrTb PnyHJKeP.
- CHIMITE ΚΙΙΝΗρ ΣΙΑ ΜΟΥΝΤΚ (pις. 2). CHIMITE ΠΙΙγΗχερ ΣΙΑ ΜΟΥΝΤΚ (cM. ---> C60pa n pa360pa ΠΙγΗχερa).
- BbinoJHnTe OunchkTy npu6opa (cm. --->Ounchka)
- Pocne ouncTKn no OTdJIbHOCTn yCTaHOBNTe nnHkep n cIINHp B IcXoDHOe IIOJoxEHe. Y6eINTecb, yTO OH 3aФNKCuPoBAJIncb Ha MeCTe.
- YctaHOBNTe BOpOHKn Ha BbIXoD JIJI KOI6ac IN npOuHNO npuBHTnte INX φNkCnpUoiMn raKamn (pnc.3).
HaheCte nueByo cMa3ky (He BXoJNT KOMnJIeKTI NOCTaBKN) HbHHTpeHHIO NOBepxHOCTb KaHnCTpbI, npexJeHem 3aRpyKaTb MmCHyO CMeCb (pnc.4).

3aNoHnTe npabnlbHo yCTaHOBneHHbI cUJIINHdp MChOH CmecbIO N OmeCTHe 06oOuKn DnK KOJIbAc B BOpOHKn.
- Последнишаг:переклочитуку рычara на НИЗКУTO ckopoсть и NOВернITE ee no yacobov

MycTePke, 706bl onyCTnTb nnyHxep. Mco HauHet BbvOAnTb n3 OTBepCTnB o6oNoKy. CΦopMpyTe KOn6acy.

Iocne 3aBepweHnHa6NBKn ydaJInte KaK MoXHo 60JIbWe OTxOIOB rOpuey BoIO. TaKKe Bbl MoXeTe OunchTb npnbop 5eTKoJ/TKaHbIO N MOUUM CpeCTBOM, Odo6peHHbIM dJa NCNoJIb3OBAHnHa MmConepepaTaIBaIOSeM 60OpYDoBaHN.

BHHMaHHe. 10TO 8BnEeTcpaTbOpHne n yCTpaHHeMaceN, XnpOB, N 6eKOB, KOTopbIe MOryT 6bITb NITaTeNbHO CpeoN DJIa 6aKTePNI. NobTOpHO npOnoNocKaTb YnCTOu TEnNo BDOJ, YTO6bl yCTpaHtB paTbOP qnCTraUero CpeDCTBa, BMacNa, XnpBI N 6eKKn. MoXHo cyuHTb CxTaBIM BO3dyXOM. Ipeed NOBtOpHO yCTaHOBKO yBeiNbCRA, YTO BCE 3JeMeNTbCyXNe.

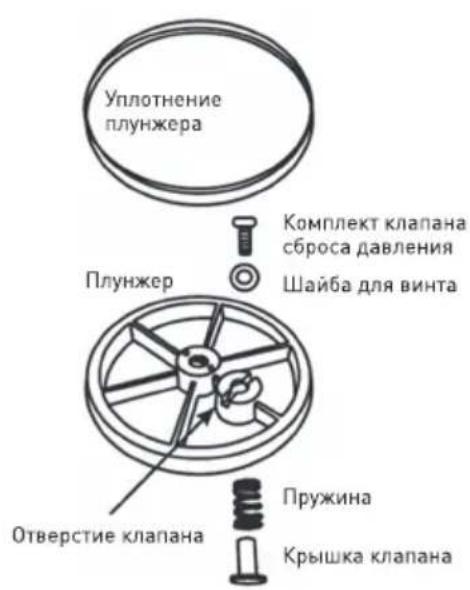

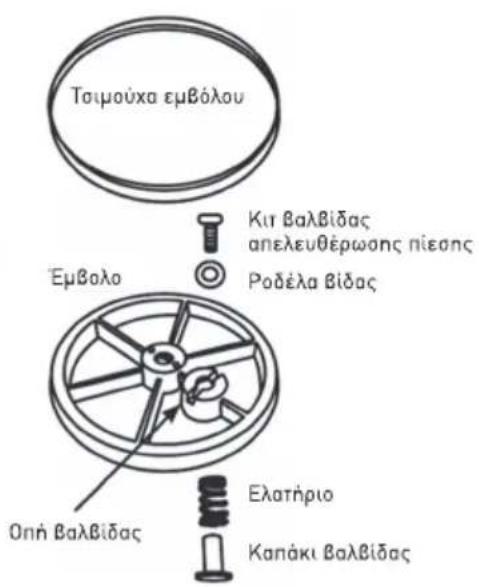

C6opka npa36opka nnyHxepa

HaIeHb yIIOTHHeHne IyHXePa Ha IyHXep (pucyHK 5).

HaedeHbTe Ha npIyHxep KOMnIeKT KlaIaHa c6pOca daBJIeHn. C BepXHeJ qactn PnyHxepa nomeCTte 8aIbY Ha OTBepCTne KlaIaHa, 3aTEM BCTaBBTe BnHT uepe3 8aIbY B OTBepCTne KlaIaHa. HadeHbTe npyKInHy Ha KOHeU BnHTa C HnXHeI CTOpOHbI npIyHxepa N NobepHnTE ee, YTO6bl 3akpeNTb.
3abHNTte 6oT nIyHexepa B BaI nIyHexepa (pncyHok 6) nIomeCTte nIyHexep B c6ope Ha KOHeuBaI nIyHexepa (pncyHok 7).

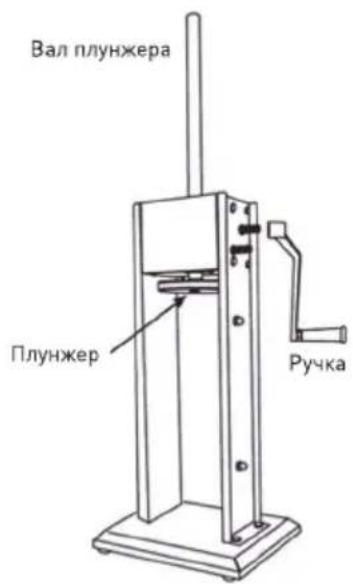

PucyHok1

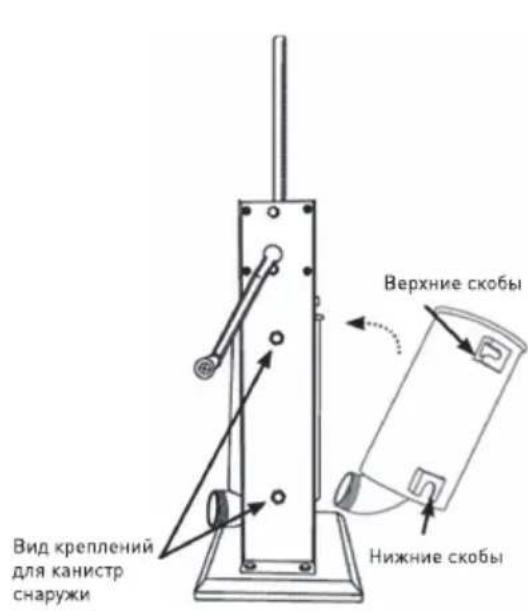

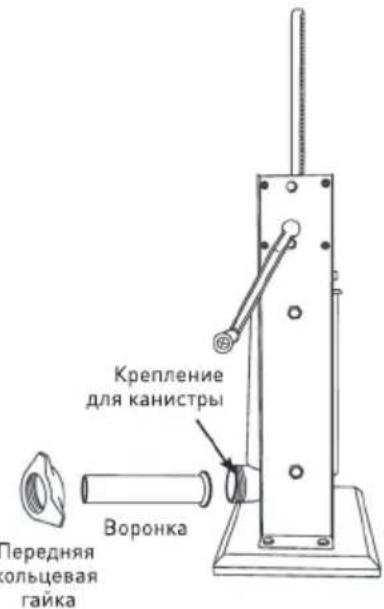

PucyHok 2 PucyHok 3 PucyHok 4

PncyHok 5 PncyHok 6 PncyHok 7

OuInCTka

• Ounchkncn cneNyet npotepeb HapyXHyIO NOBepxHoctb yctpoiCTBa TkaHbIO (cmoeHHoI cnabbIM BOHNbIM pactBOPOM MOIOeero cpeiCTBa).
  Heo6xOIMO ONUCTNBCE DeTALN, IMeBUnne npamKoHTaKT C NnueBbIMn IpOyKTAMN, T. e. cnHdp, BOpOHKn, nnyHxep nT. d. NcNoJIb3yIte 8eTKaHb n MOUe cpeCTBO, oO6peHHoe IJRA NCNOBJ3OBAHNA C MAcOnepepa6aTbIBaHOUM 06opyoBaHnem.

He nCnoJb3yIte arpeccnBhie nn a6pa3nBhie MOUuIe cpeIcTba. He nCnoJb3yIte ocTpblE nn yKa3aHHbIe ppeMTebl. He nCnoJb3yIte 6eH3nn NNpactBopnten! Ounctkn nCnoJb3oBaTb BnaXHyIO TkaHb I MOUooe cpeIcTBO, ecnn Tpe6yeTc.

PIMMEUHNE. DETAJN CLEJYET ONUATb CPA3Y JXE IOCJI E NCI0JIb3OBAHnA.

Yxoid xpaHneHne

yxo

Heo6xOJMo cTporOpnHctpyKuIN No 3KcNlyatauIN.3To 3HaunTeIbHO npoJNT cPOK 3KcNlyatauIN yCTpoiCTBa.

ПОИЗВОДNTЕЛБ HE HECET OTBETCTBEHHOCTN 3A NOBPEЖDEHNY YCTPOICTBA BCJIEdCTBNE HENPABINbHOIOnIOJIb30BAHnY.

PekomeHdyetc npimeHenne Cma3Kn 3y6yatoi nepedaun, pa3peweHHoJ dIa

YcTpaHHeH HeNCpBaBHOCTe

B npoecce npnroTOBHeHn Koj6acbl MOryT B03HNKHyTb CneDyUOuIe CNTyaun:

• PpoklakamoxkctaTbXkectKo npntemepaType Hnke 15^ .HE nCnoJb30BaTb ycTpoiCTBaB 3tOM cnyuae. Heo6xoImo cHrTb npoklaKy.

c npshnHaMoHTbB ropueB Boe, yTo6bI ee cMraHtB, 3aTeM HaJeTb npoknaKy Ha npoWeh b C doabneHem Cma3Kn, pa3peweHHo Jn KaTcA TcPiuEYbIMN npOdyKTAMN. Iocne 3TOrO MOxHn npoDolXaTB nCNoJIb3OBaHne yCTpOJCTBa.

MecraeB. B HeKoTOpbIX cIyuaX 3To 3aBcNT OT INHTeHCNBHOCTN IcNoJIb3OBAHn yCTpOJCTBa.

Description of the production process

Eikova 5 Eikova 6 Eikova 7

Kaθαρισμα

Technical data are subject to change without notice.

Anoppyn&PiBaaov

H ouokean, e Ta to nepac tnc diapkeia c zwnc tnc, dev npenei va anoppintetai wc oikako anoppmu. Penei va anoppintetai, e dkioc aec uthetayn, e Ka0opioevo oneio oulloync. H pn tnpnon autou evextal va tiuwpetai ouqwva e touc loxovtec kavovioouc yia tn diaethon tw anoppmuatow. H xwiotn oulloyn ka avakukwon autnc tnc ouokeankata tn atiyn tnc anoppwnc Bonba otn diatnpnon twv quokw npowkai Eaopaalizt ntv

ΣEPBI Σ EΛΑΔΟΣ:
Tnλ.: 213 0 998989 (10 γραμες)
[e-mail]

avakukwon tnC Tpono nou npoataecl nTv av- Owniv uyia kaTnepiBaAov. Ia nepioooTepec nnpoopiec oxetika to nou npopeite va anoppiye tn ouakeun yia avakukwon, enikovwnote Tnv tonik etalpeia oulloync anoppipatwv. Okaokeuaotec kai oI eayweic dev avalaBavouv tvnuavakukwanc, enEepyaiaackaiokoloyiknc diBec, iTe aea eTEe eOdnooiou ouotnmuatoC.

Tisztelt Ugyfelunk,

Hendi Food Service Equipment GmbH

Ehring 15

Hendi Food Service Equipment Romania S.R.L.

Str. 13 decembris 94A, Hala 14

Braşov, 500164, Romania

Tel: [phone]

Email: [e-mail]

PKS Hendi South East Europe SA

5 Metsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi Italia S.R.L.

Via Leonardo da Vinci 4

39100 Bolzano (BZ), Italy

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

FindHendi on internet:

www.hendi.eu

www.facebook.com/HendiToolsforChefs

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

• Changes, printing and typesetting errors reserved.
• Änderungen und Druckfehler vorbehalten.
  Wijzigingen en drukfouten voorbehonden.
• Producent zastrzega sobie prawo do zmian oraz będow drukarskich w instrukci.

• Variations et fautes d'impression réservés.

• Errori di cambiamenti, di stampa e di impaginazione riservati.

• Drepturi rezervate cu privire la modificari si greselei de imprimare.
  -ImmeHnneatnBepctkn0wn6kn3aunneHbI.
  -Me enupuaEn aaiayw,aaBwEkrunwnc kai roixieoepiaac.
• Változások, nyomtatás és nyomdai hibák fenntartva.
