SmartChill - Air Conditioning Livington - Free user manual and instructions

Product type	Evaporative air cooler (air cooler)
Brand	Livington
Model	SmartChill
Reference	GS19008
Power supply	12 V == 1 A (via mains adapter)
Mains adapter	Model HCX1208-1201000E, input 100-240 V~50/60 Hz, 0.5 A, output 12 V == 1 A
Power consumption	12 W
Protection class	II
Usage	Indoor only, domestic use
Water tank capacity	2 litres (approx.)
Number of speeds	3 (low, medium, high)
Oscillation	Horizontal (Swing)
Night light	Yes, 2 brightness levels + off
Filter type	Water filter (humidifier)
Filter replacement	Every 3 to 6 months
Filter cleaning	Dishwasher safe (top rack) or hand wash with warm soapy water
Tank cleaning	Weekly with a soft cloth and mild detergent
Child safety	Use by children aged 8 and above under supervision
Automatic shut-off	Yes, when the filter flaps are open
Country of origin	China
Package contents	Unit, power supply, filter, user manual
Warranty	Not specified in the manual

Frequently Asked Questions - SmartChill Livington

How to fill the water tank of the Livington SmartChill?

Place the unit on a flat surface. Open the water tank cover and fill it with clean water up to the MAX line using a jug or measuring cup. Close the cover. Do not carry the unit when filled.

How to activate the oscillation function (Swing)?

Press the airflow regulator button once to activate horizontal oscillation of the louvers. Press again to lock the louvers in a position.

How to clean the water filter?

Remove the filter from the unit. You can wash it in the dishwasher on the top rack (normal cycle) or by hand with warm soapy water. Let it air dry completely before reinstalling.

When should the filter be replaced?

The filter should be replaced every 3 to 6 months or when the unit no longer cools as effectively. A flashing blue light on the tank indicates it is time to change the filter.

Why is the water tank flashing blue?

The blue flashing occurs in two cases: either the filter flaps are open (the fan stops for safety), or the filter needs to be replaced. Check that the flaps are closed or replace the filter.

Can I use ice water or ice cubes for better cooling?

Yes, using ice water or ice cubes in the tank improves the cooling effect. You can also place the wet filter in the freezer before use.

What to do if the filter has mold or a musty smell?

Clean the filter by soaking it in a mixture of equal parts water and white vinegar for 45 to 60 minutes. Rinse with hot water, squeeze out, and let air dry.

Can the unit be used by children?

Yes, from 8 years under supervision. Children under 8 years must be kept away. Cleaning should not be done by children without supervision.

How to turn off the night light?

Press the light button: the first press switches to low brightness, the second press turns off the light. By default, the light is at high brightness.

What to do if water enters the unit?

Unplug the unit from the power supply immediately and let it dry for 24 hours before reuse. Do not expose to direct sunlight.

USER MANUAL SmartChill Livington

White cylindrical device with a gray vent and black ventilation grille, no visible text or symbols.

Instructions for use 8

Mode d'emploi....11

Close-up of a pipette dispensing liquid into a microplate (no visible text or symbols)

Close-up of a white appliance with a glass lid and water being poured into it (no visible text or symbols)

Illustration of a portable air conditioner unit with a close-up inset showing its internal components (no text or symbols)

Close-up of a mechanical component with grid-like structure and mesh pattern (no visible text or symbols)

DE

Hold the filter under running cold water until it is wet. TIP: For even greater cooling, place the wet filter in the freezer until it is frozen.

2. FILLING WITH A JUG

Place the unit on a flat surface and fill the tank with a water jug.

3. ADJUSTING THE AIR FLOW

Press the airflow control button once to activate the swing function. The blades on the appliance will now swivel. To fix the blades in place, press the button again. Tip: For best results, direct the airflow directly at yourself.

4. CLEANING THE FILTER

We recommend regular cleaning of the filter. Refer to the product handbook or maintenance and cleaning labelling on the filter itself for instructions.

Please Note: You may notice some condensation forming on the front grille. This is normal.

FR

1. MOUILLER LE FILTRE AU PRÉALABLE

A B C E D F H I G

DE

Delivery contents and description of parts:

A. Water tank cover
B. Light switch
C. Airflow control button
D. ON/OFF speed control
E. Speed indicator lights
F. Power connection
G. Power adapter
H. Filter
I. Air outlet

FR

Close-up of a car window with red arrows pointing to the side panel (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a feature, no visible text or symbols

Close-up of a cylindrical container with a lid and a grid-patterned side panel, no visible text or symbols.

Close-up of a mechanical component with a red arrow pointing to a grid-like structure (no visible text or symbols)

Close-up of a mechanical component with a red arrow pointing to a grid-like structure (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a force or movement, no visible text or symbols.

Close-up of a pipette dispensing liquid into a microplate (no visible text or symbols)

Close-up of a mechanical component with multiple cylindrical pins arranged in a grid pattern (no visible text or symbols)

Close-up of a curved surface with circular elements and a red arrow pointing upward (no text or symbols)

10 11 12

Close-up of a dome-shaped object with circular elements and a red arrow pointing to its top edge (no text or symbols visible)

Close-up of a hand cleaning a textured surface with a mechanical device in the background (no visible text or symbols)

DE

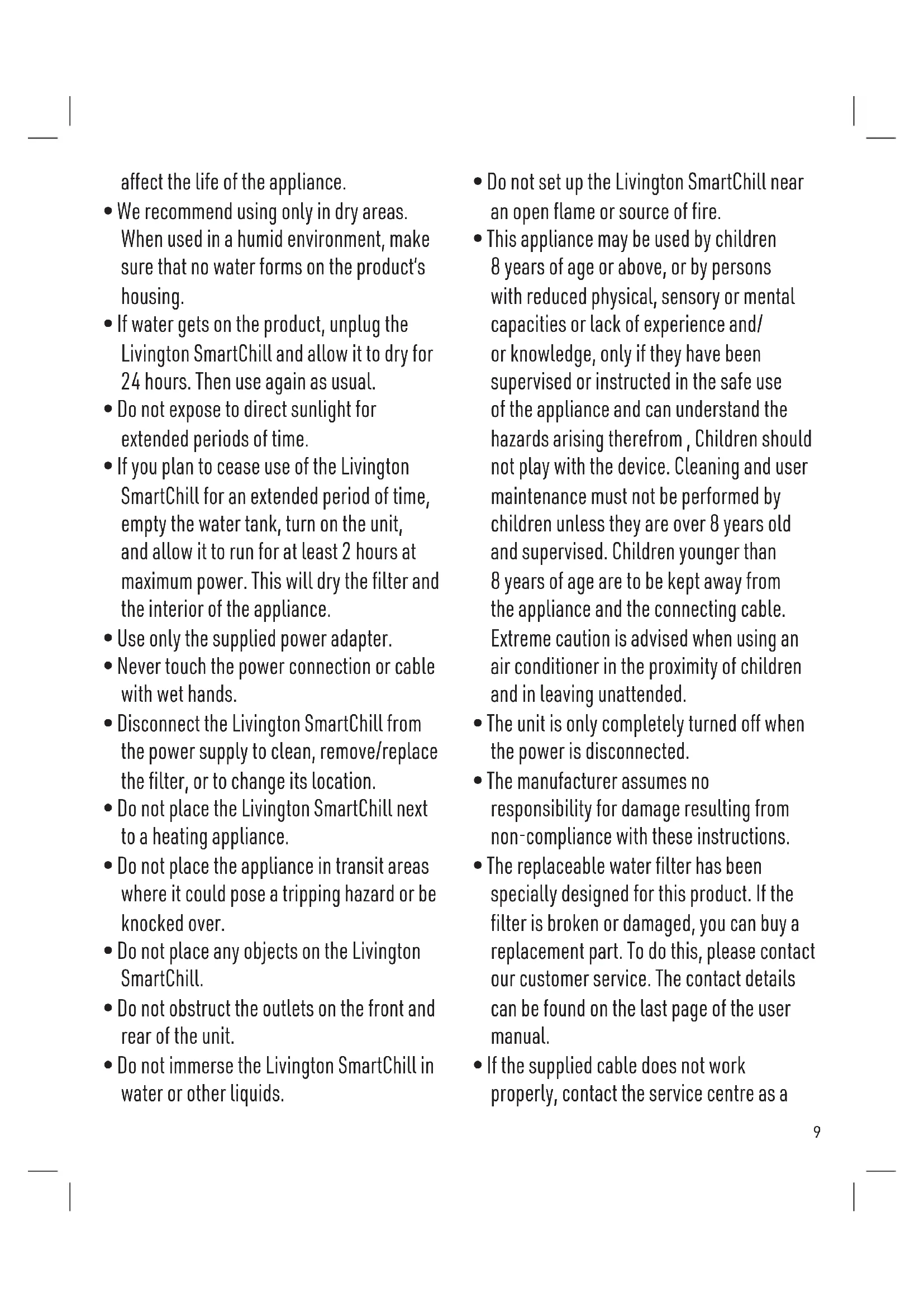

• Never carry the Livingston SmartChill around when it is filled with water. There may still be some water in the unit even though the tank is empty.
• Use only clean water. In areas with hard water, use distilled water.
• Please read and follow the recommendations in the „Cleaning“ section of this manual.
• The Livingston SmartChill works best in clean spaces. Large dust/dirt particles can

affect the life of the appliance.

• We recommend using only in dry areas. When used in a humid environment, make sure that no water forms on the product's housing.
• If water gets on the product, unplug the Livingston SmartChill and allow it to dry for 24 hours. Then use again as usual.
• Do not expose to direct sunlight for extended periods of time.
• If you plan to cease use of the Livingston SmartChill for an extended period of time, empty the water tank, turn on the unit, and allow it to run for at least 2 hours at maximum power. This will dry the filter and the interior of the appliance.
• Use only the supplied power adapter.
• Never touch the power connection or cable with wet hands.
• Disconnect the Livingston SmartChill from the power supply to clean, remove/replace the filter, or to change its location.
• Do not place the Livingston SmartChill next to a heating appliance.
• Do not place the appliance in transit areas where it could pose a tripping hazard or be knocked over.
• Do not place any objects on the Livingston SmartChill.
• Do not obstruct the outlets on the front and rear of the unit.

• Do not immerse the Livingston SmartChill in water or other liquids.

• Do not set up the Livingston SmartChill near an open flame or source of fire.

• This appliance may be used by children 8 years of age or above, or by persons with reduced physical, sensory or mental capacities or lack of experience and/or knowledge, only if they have been supervised or instructed in the safe use of the appliance and can understand the hazards arising therefrom, Children should not play with the device. Cleaning and user maintenance must not be performed by children unless they are over 8 years old and supervised. Children younger than 8 years of age are to be kept away from the appliance and the connecting cable. Extreme caution is advised when using an air conditioner in the proximity of children and in leaving unattended.
• The unit is only completely turned off when the power is disconnected.
• The manufacturer assumes no responsibility for damage resulting from non-compliance with these instructions.
• The replaceable water filter has been specially designed for this product. If the filter is broken or damaged, you can buy a replacement part. To do this, please contact our customer service. The contact details can be found on the last page of the user manual.
• If the supplied cable does not work properly, contact the service centre as a

precaution.

- If you open the door to change the filter, the fan will switch off and the water tank will start to flash blue until the door is closed again. This is a safety precaution.

TIPS:

• Place the Livingston SmartChill on a raised surface, such as a table, desk, or sideboard.
• You will feel the effect greatest when sitting directly in front of the Livingston SmartChill.
• Even if the water tank is empty, the filter remains wet and the Livingston SmartChill continues to cool.
• The colder the water used, the cooler the effect. You can therefore also consider using ice water or water with ice cubes.
• For best results, moisten the filter under cold running water, or place it in the freezer. Note: If you buy a second filter along with the product, you can always keep one pre-cooled in the freezer.

SETUP:

1. Place the Livingston SmartChill on a level surface. NOTE: Use the built-in cable guides on the rear panel to keep the cable away from the fan (see Fig. 1).
2. Open and fill the water tank (see Fig. 2): We recommend using a jug or measuring cup. Do not carry the appliance to fill it. Water could leak or spill from it. Open the water tank door and fill the tank to the MAX mark. Close the water tank cover when finished.
3. Removing and moistening the filter: Open the rear door on the appliance (see Fig. 3). Now fold the black safety bar upwards (see Fig. 4) and pull out the compartment that contains the filter (Fig. 5). Now remove the filter (see Fig. 6). You can now dampen the filter. Note: For best results, moisten slightly under running water (see Fig. 7). For even greater cooling, place the wet filter in the freezer until it is frozen. Then place it back in the compartment (ensuring that the black filter cover points upwards), fold down the safety bar and close the appliance door (see Fig. 8).

Note: The appliance will not work if the door is open. This is a safety precaution.

1. Plug the narrower end of the cable into the connector on the back of the Livingston SmartChill and plug the power adapter into an electrical outlet (see Fig. 1). NOTE: Use the built-in cable guides along the back to keep the cable away from the fan.

USE:

1. To turn on the Livingston SmartChill, press the on/off switch (see Fig. 9).
2. Set the speed of the fan by pressing the switch. You can choose between low, medium and high modes. The indicator lights next to the switch show you the speed at which the Livingston SmartChill is currently running (see Fig. 9).

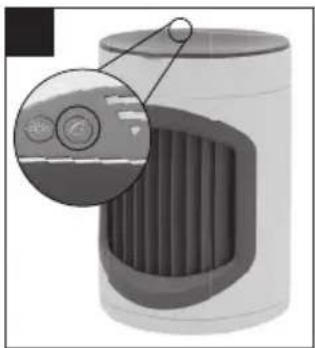

3. Air flow adjustment: Press the air flow control button once to activate the swing function. The blades on the appliance will now swivel. To fix the blades in place, press the button again (see Fig. 10).
4. Pressing the backlight button turns on night lighting - the default setting is high brightness.
5. Standard: Light on, high brightness
6. Press once: Low brightness

7. Press twice: Light off (see Fig. 11)

8. To turn off the Livingston SmartChill, press the button until the fan is switched off (one press of the button after the lowest speed) and the mode indicator lights are no longer illuminated (see Fig. 9).

CLEANING (see Fig. 12)

Disconnect the appliance from the power supply before cleaning. We recommend cleaning the water tank and the inside of the unit once a week. Use a non-abrasive cloth and, if necessary, a mild detergent. For best results, we recommend changing the filter (depending on its condition) every 3-6 months.

UNIT CLEANING

To prepare for cleaning, run Livingston SmartChill until all water has emptied from the water tank, or hold the Livingston SmartChill over a sink and carefully drain to avoid splashing or spilling. If you notice that the water tank is dirty, use a small flexible brush (i.e. toothbrush, bottle brush, etc.)

and gently brush the inside of the tank until it is clean. Rinse with warm water.

CLEANING THE FILTER

Remove the filter insert from the Livingston SmartChill. Using warm soapy water, wipe the filter cartridge and tray, then rinse until clean.

!!Allow to air-dry completely!! (see Fig. 7)

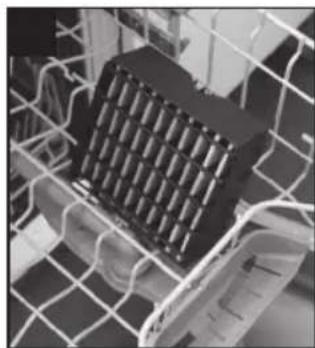

1. DISHWASHER: Place the filter in the upper rack of a dishwasher and wash using a normal run.

!!Remove and allow to air-dry completely!!

1. HAND-WASHING: Wash by hand with warm water and soap. Shake out excess water and allow to air dry.

IMPORTANT: If you notice mould on the filter or a musty odour, cease use and lean the filter before continuing use. Soak the filter in a saucepan or bowl with equal amounts of clean water and white vinegar for 45-60 minutes. Rinse with warm water, wring and allow to air-dry.

FILTER REPLACEMENT:

The water filter should be replaced every 3-6 months, or when you feel that your Livingston SmartChill is not performing as it should be. The water tank will flash blue until another filter is inserted.

To order replacement filters, please contact our customer service. The contact details can be found on the last page of the user manual.

1. Unplug the Livingston SmartChill from the mains supply.
2. Open the rear door on the appliance (see Fig. 3). Pull the black safety bar upwards, pull out the compartment and remove the filter (see Fig. 4-6).

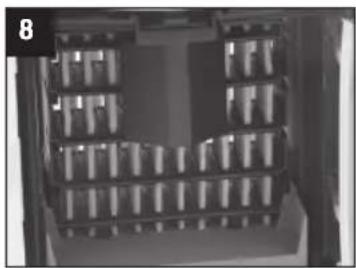

3. Insert the new filter as marked on the compartment and push the safety bar back down (Fig. 8).
4. Close the door. Note: As a safety precaution, the appliance will not start if the door is not locked.

ONLY FOR DOMESTIC USE

SPECIFICATIONS:

Model-number: GS19008

Product performance: 12V = 1A 12W

Only use the adapter with model number HCX1208-1201000E.

Power adapter: HCX1208-1201000E

Input: 100-240V\~50/60Hz 0.5A

Output: 12V = 1A

Protection class II

This product complies with European regulations.

ENVIRONMENTAL INSTRUCTIONS

This symbol means that such electrical equipment or batteries must not be disposed of with normal household waste. You are legally obliged to hand in such items - free of charge - to a public collection point or distributor-created collection point for the recycling of electrical devices and expired bulbs and batteries within the scope of the Electrical and Electronic Equipment Act that are not encapsulated by or fixed into the appliance, and can be removed or separated from the appliance non-destructively, for disposal at the end of their service life. Use rechargeable batteries instead of single-use batteries wherever possible. The recovery and recycling of old appliances makes an important contribution to protecting our environment. Improper disposal can result in toxic substances being released into the environment, which can have harmful effects upon people, animals and plants. Batteries with an increased pollutant content are also marked with the following symbols: Cd = cadmium, Hg = mercury, Pb = lead. Consumers are themselves responsible for deleting any personal data from appliances.

Only for indoor use.

Please read these instructions.

Made in China

FR

LIRE LE MODE D'EMPLOI AVANT UTILISATION. NOTICE À CONSERVER.

MISES EN GARDE

EN: Clean the water tank every three days.
