USER MANUAL Easy Fruit ZE610 TEFAL

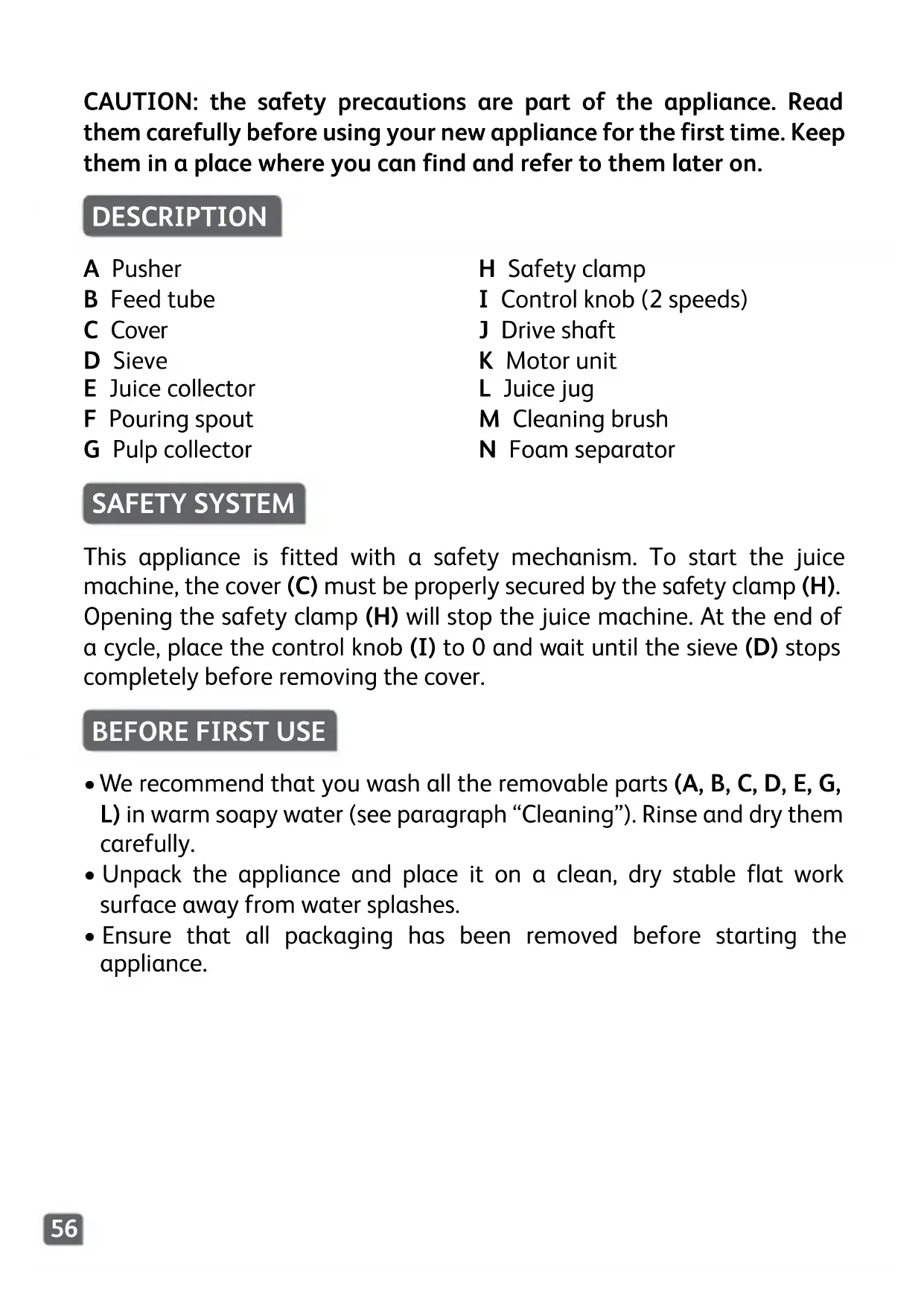

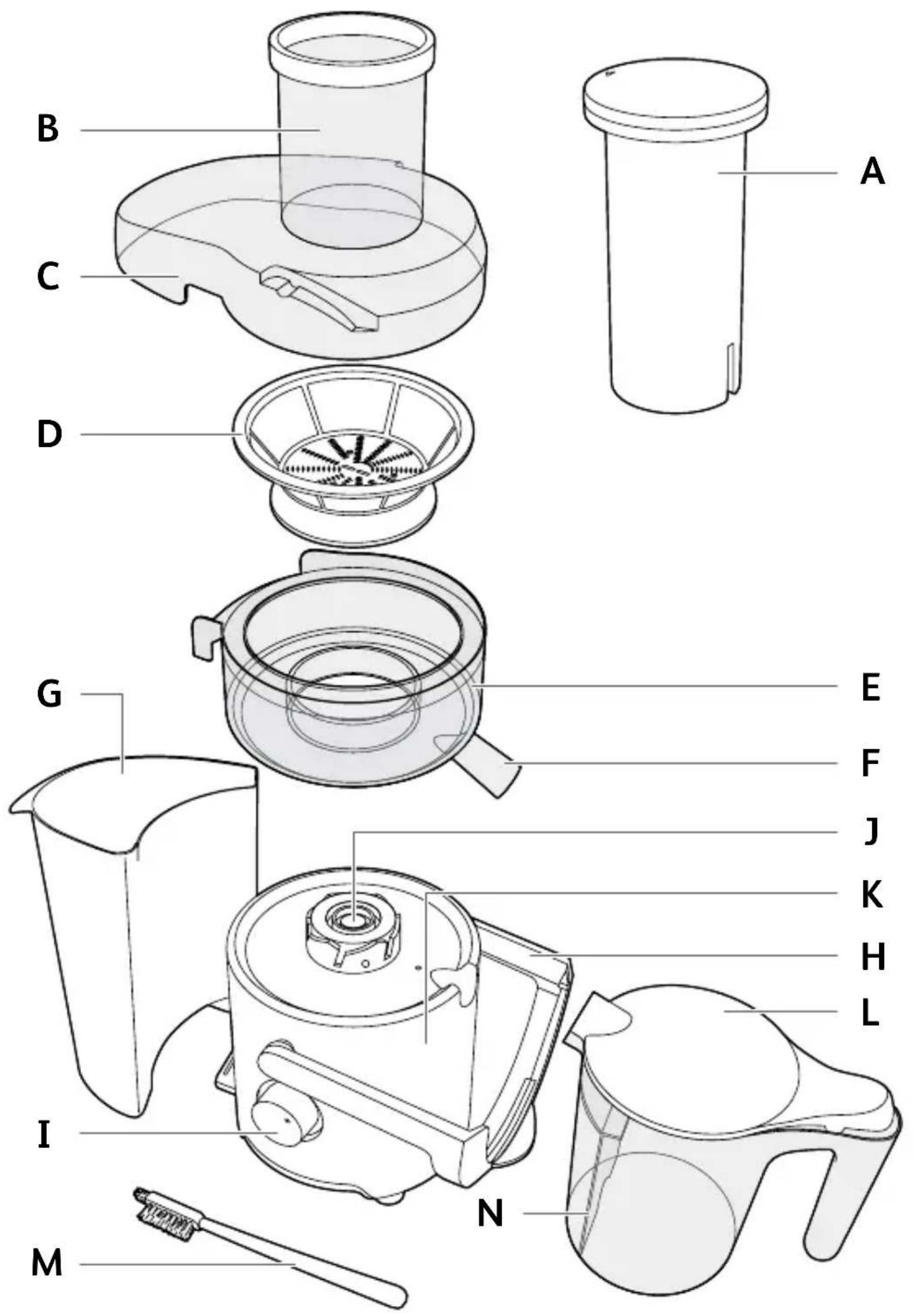

A Pusher B Feed tube C Cover D Sieve E Juice collector F Pouring spout G Pulp collector H Safety clamp I Control knob (2 speeds) J Drive shaft K Motor unit L Juice jug M Cleaning brush N Foam separator This appliance is fitted with a safety mechanism. To start the juice machine, the cover (C) must be properly secured by the safety clamp (H). Opening the safety clamp (H) will stop the juice machine. At the end of a cycle, place the control knob (I) to 0 and wait until the sieve (D) stops completely before removing the cover. CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.

• We recommend that you wash all the removable parts (A, B, C, D, E, G, L) in warm soapy water (see paragraph “Cleaning”). Rinse and dry them carefully.

• Unpack the appliance and place it on a clean, dry stable flat work surface away from water splashes.

• Ensure that all packaging has been removed before starting the appliance.57

• Place the juice collector (E) on the body of the appliance (see Fig. 1).

• Place the sieve (D) in the juice collector (E). Ensure that the sieve is properly clipped onto the drive shaft (J) (see Fig. 2).

• Fit the pulp collector (G) on the rear of the appliance (see Fig. 3).

• Fit the cover (C) on the appliance, spout to the rear (see Fig. 4).

• Push the safety clamp (H) to the rear until it locks into place. You will hear an audible “click” (see Fig. 5).

• Slide the pusher (A) into the feed tube (B) aligning the groove on the pusher with the small ridge in the feed tube (see Fig. 5).

• The juice jug (L) has a foam separator (N) that keeps the foam in the jug when you pour the juice into a glass. If you do not want to separate the foam, remove the foam separator (N).

• Place the juice jug (L) under the pouring spout in front of the appliance (see Fig. 6).

• Plug in the appliance.

• To start the appliance, use the control knob (I).

• Insert the fruits or vegetables through the feed tube (B).

• The fruits and vegetables must be inserted only while the motor is running.

• Do not press too hard on the pusher (A). Do not use any other utensil. NEVER push with your fingers.

• When you have finished, stop the appliance by turning the control knob (I) to 0 and wait until the sieve (D) stops completely.

• When the pulp collector (G) is full, or the juice flow slows down, empty the pulp collector and clean the sieve and the cover.

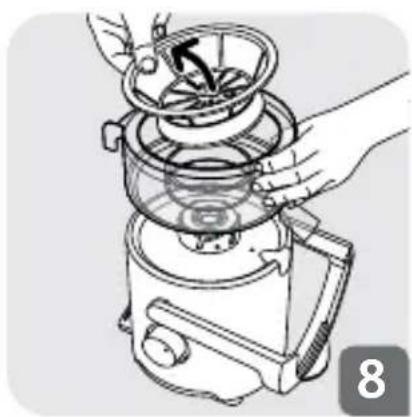

• Remove the “juice collector + sieve” assembly by pulling vertically using both hands (see Fig. 7 and 8).58 PRACTICAL TIPS

• Wash the fruit carefully before stoning.

• In general, you do not need to remove the skin or peel. You only need to peel fruit with thick and bitter skin, like lemon, orange, grapefruit.

• It is difficult to extract juice from bananas, avocados, blackberries, figs, aubergines and strawberries.

• Choose fresh, ripe fruit and vegetables, they will yield more juice. This appliance is suitable for such fruits as apples, pears, oranges, grapes, pomegranates and such vegetables as carrots, cucumbers, tomatoes, beetroot and celery.

• If you use overripe fruits, the sieve will get clogged more quickly and less juice will be extracted.

• Important: All juice must be consumed immediately. On contact with air, it is very quickly oxidised, which can change its taste, colour and nutritional value. Apple and pear juices quickly turn brown. Add a few drops of lemon juice to slow this discoloration. It is recommended that you use the appliance for no more than 2 minutes continuously.

• The quality and quantity of juice varies greatly according to the freshness when harvested and the particular variety of fruit or vegetable. The quantities of juice indicated above are therefore approximate. WHICH SPEED TO USE? Ingredients Speed Approx. weight (in kg) Quantity of juice obtained in ml (*) Apples 2 1 650 Pears 2 1 600 Carrots 2 1 600 Cucumbers 1 1 (about 2 cucumbers) 600 Grapes 1 1 450 Tomatoes 1 1.5 900 Celery 2 1.5 350 Orange 2 1 650 Choosing the wrong speed may cause the appliance to vibrate abnormally.59

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK?

PROBLEMS CAUSES SOLUTIONS

The appliance does not work. The plug is not inserted correctly; the control knob (I) is neither on “1” nor on “2”. Plug the appliance into a socket with the correct voltage. Turn the control knob to speed “1” or “2”. The cover (C) is not properly secured. Check that the cover (C) is properly secured by the safety clamp (H) and positioned correctly in the grooves. The appliance is giving off a smell or is very hot to touch, is making an abnormal noise or smoking. The sieve (D) is not properly fitted. Check that the sieve (D) is fitted properly onto the drive shaft (J). The quantity of fruit or vegetables being processed is too great. Allow the appliance to cool down and reduce the amount of fruit or vegetables being processed. The flow of juice decreases. The sieve (D) is blocked. Turn off the appliance, clean the feed tube (B) and the sieve (D). For any other problem or fault, please contact your approved Service centre. CLEANING

• All removable parts (A, B, C, D, G and L) may be cleaned in the dishwasher, except for the juice collector (E). The juice collector (E) must be cleaned straight after use in soapy water.

• This appliance is easier to clean immediately after use.

• Do not use abrasive sponge, acetone, alcohol (white spirit), etc. to clean the appliance.

• Use the cleaning brush (M) for the sieve.

• The sieve must be handled with care. Avoid any mishandling that may affect the performance of the appliance. NOTE: You MUST replace your sieve at the first sign of wear or damage.

• Clean the motor unit with a damp cloth. Dry carefully.
