Malaga TG3918 - Barbecue TEFAL - Free user manual and instructions

Brand	Tefal
Model	Malaga TG3918
Product Type	Electric Barbecue
Usage	Indoor Only
Power Supply	Grounded plug, detachable power cord
Thermostat	Adjustable from min to max
Heat Indicator	Thermo-Spot™ turning uniformly red and red flashing indicator
Plate Material	Non-stick Coating
Plate Cleaning	Dishwasher safe (except connector and cord)
Juice Tray	Removable and dishwasher safe grease recovery drawer
Cooking Temperature	Preheat 5-10 minutes on max, then adjust according to cooking
Safety	Do not immerse; use under supervision; children from 8 years old
Spare Parts	Plate and accessories available at approved Tefal service center
Warranty	Refer to Tefal general terms and conditions
Repairability	Call a qualified professional; damaged cord must be replaced by manufacturer

Frequently Asked Questions - Malaga TG3918 TEFAL

Can I use this barbecue outdoors?

No, this appliance is prohibited outdoors. It is intended only for domestic indoor use.

How do I clean the cooking plate?

Let the appliance cool for at least 2 hours. Remove the detachable connector. Clean the plate, plastic base, and juice tray with a sponge, hot water, and dish soap. These parts are dishwasher safe. The detachable connector and cord must not be immersed.

What does the Thermo-Spot mean?

The Thermo-Spot™ is a visual indicator on the plate. When it turns uniformly red, the appliance has reached the optimal cooking temperature. A red light also flashes intermittently during use.

How long does it take to preheat?

Set the thermostat to the max position and preheat the appliance for 5 to 10 minutes. Wait until the Thermo-Spot becomes uniformly red.

Can I use an extension cord?

Yes, but it must have an equivalent or larger cross-section and include a grounded plug. Take all precautions to prevent anyone from tripping over it.

What should I do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any hazard.

Can children use the appliance?

Children from 8 years old can use it under supervision, provided they have received instructions on safe use. Cleaning and maintenance should not be performed by children under 8 without supervision.

How do I empty the grease recovery drawer?

Do not remove the drawer during cooking. If it is full, let the appliance cool first before emptying it. The drawer can be cleaned in the dishwasher.

Can I put the plate in the dishwasher?

Yes, the plate, plastic base, and juice tray are dishwasher safe. The detachable connector and power cord are not.

What should I do in case of a burn?

Immediately run cold water over the burn and call a doctor if necessary. Accessible surfaces may get very hot.

USER MANUAL Malaga TG3918 TEFAL

Black Tefal grater with a handle and lid, no visible text or symbols on the device itself.

Black Tefal grater with a handle and control panel (no visible text or symbols on the device itself)

Black Tefel grater with a side panel and handle, no visible text or symbols on the dish itself.

Black Tefel grater with side panel and handle, no visible text or symbols on the device itself.

PRECAUTIONS IMPORTANTES

Operation, maintenance and product installation: for your safety, please refer to the different sections of this manual or the corresponding icons.

EN

• This appliance must not be used outside.
• This appliance is intended for domestic household use only. It is not intended to be used in the following applications, and the guarantee will not apply for:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children must be supervised to ensure they do not play with the appliance or use it as a toy.

- Accessible surface temperatures can be high when the appliance is operating.

- Remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.

- Fully unwind the power cord.

- Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

- Any connection error may cause irreversible damage and will invalidate your guarantee.

- Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.

- Always plug the appliance into a socket outlet with an earth connection.

- If it is necessary to use an extension lead ensure that it is of suitable construction and power rating, with an earth connection; take all necessary precautions to prevent anyone tripping over an extension cord.

- If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service, or similarly qualified persons in order to avoid any danger.

- The power supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.

• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Never leave the appliance unattended when in use.
• Never immerse the cable or control box in water or any other liquid.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

- The mobile connector plug must be removed before cleaning the device, and the connector must be dried well before the device is used again.

- You must only use the appropriate mobile plug or mobile connector plug.

Thank you for buying this Tefal appliance.

Tefal has an ongoing policy of research and development and may modify these products without prior notice.

DO

• Read the instructions carefully, common to different versions depending on the accessories supplied with your appliance, and keep them within reach.

• If the appliance is used in the centre of the table, keep it out of the reach of children.

• Make sure the device is placed in a stable position before using it.

• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.
• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.
• Always use a wooden or plastic spatula to avoid damaging the cooking plate.
• In order to avoid deterioration of the plate, use it only as it was designed to be used (for example, do not place it in an oven or on a stove, whether it be gas or electric).
• Use only the plate provided with the device or a plate bought at an authorized Service Centre.
• Before first use, wash the plate (see paragraph After Use), pour a small amount of oil on it and dry with a soft cloth.
• Be careful where you place the electric power cord, whether you use an extension or not. Take all the necessary precautions in order not to hinder people from moving around the table, so that nobody gets tangled or trips over the cord.

Do not

• Never leave the appliance unattended when plugged in or in use.
• To prevent the appliance from overheating, do not place it in a corner or against a wall.
• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a tea-towel.
• Never place the appliance on or near hot or slippery surfaces; never leave the cord hanging over a heat source (hotplates, gas stove, etc.).
• Do not place cooking utensils on the cooking surfaces of the appliance.
• Never use a knife directly over the plate.
• Do not place the plate on a fragile surface or under water when it is hot.
• Do not move the appliance when in use.
• Do not use aluminium foil or other objects between the plate and the food being cooked.
• Do not cook food in aluminium foil.
• To avoid spoiling your product, do not use flambé recipes in connection with it at any time.

• Do not use metal scourers or scouring powders to avoid damaging the cooking surface.

• Do not remove the grease collector tray during cooking.

• If the grease collector tray gets filled during cooking, let the contents cool before emptying it.

Advice / information

• For your safety, this appliance conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).
• On first use, there may be a slight odour and a little smoke.
• Do not consume foodstuff that comes into contact with the parts marked with ✗ogo.
• If the mobile connector plug is incorrectly positioned, the safety system will prevent the appliance from working.
• The device will be ready for use once it is preheated.

Using

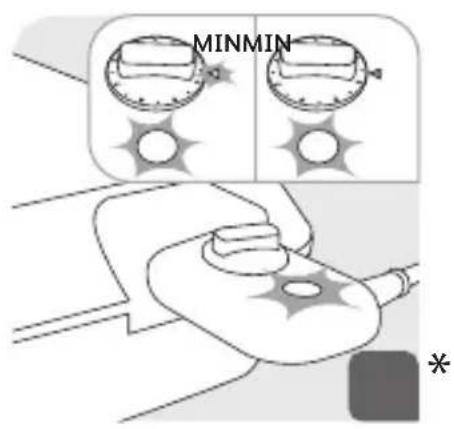

• Set the thermostat of the mobile connector plug to mini.

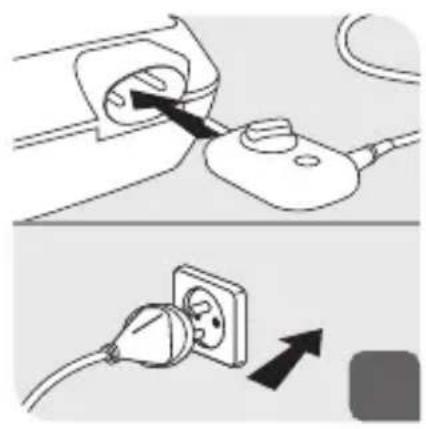

• Connect the mobile connector plug to the pins of the appliance's heating element and then connect the cord to the mains.
• The green or red* LED will light up to indicate that the appliance is on. The green or red* LED will stay on as long as the appliance is plugged in - 3*.

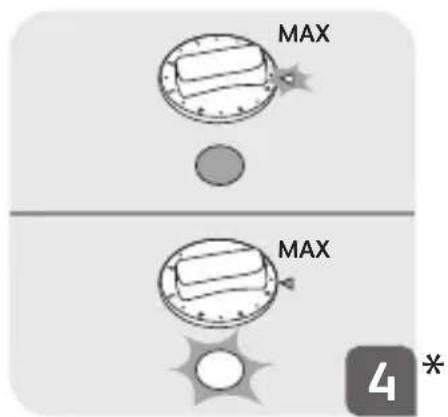

• Set the thermostat of the mobile connector plug to maxi - 4*.

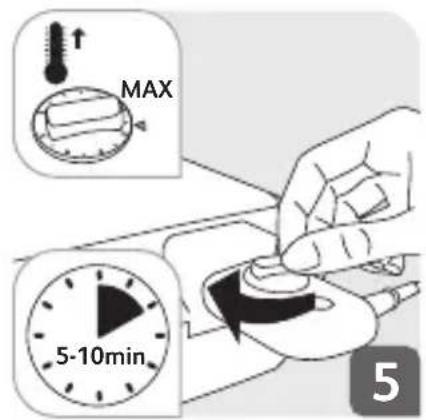

• Pre-heat the appliance for about 5-10 minutes on maxi position - 5.

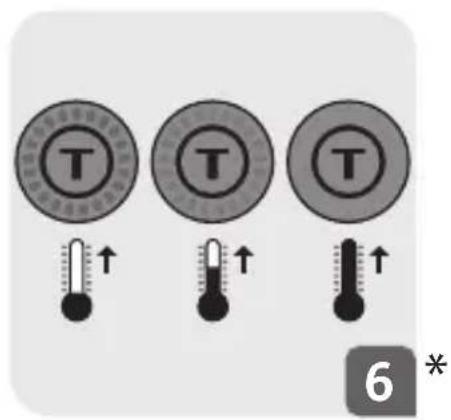

• Thermo-Spot: when hot, the Thermo-Spot™ logo will turn red all over - 6*.

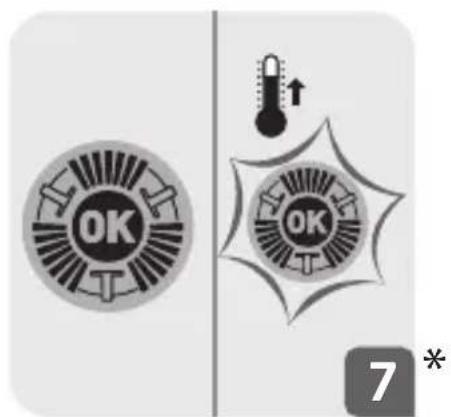

• The thermosignal lights on to indicate visually that the appliance is at the correct cooking temperature.

– the thermosignal lights up through a red indicator light when the cooking temperature is reached;

- the red indicator light will light up intermittently during use 7*.

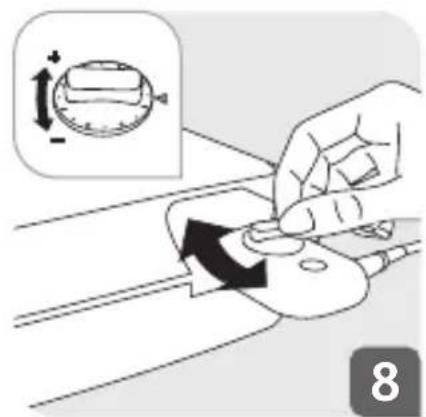

• Fix the thermostat according to the heat level you wish - 8.

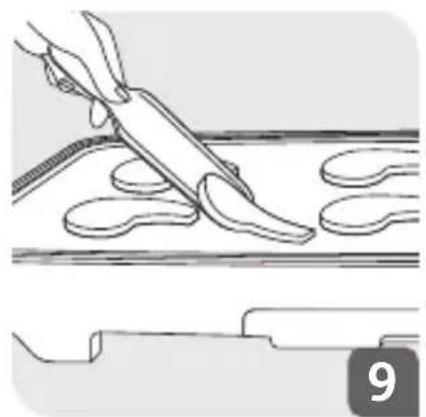

  • Cook according to taste.
• If the grease collector tray gets filled during cooking, flow will be under the product from the back of the collector tray.

After use

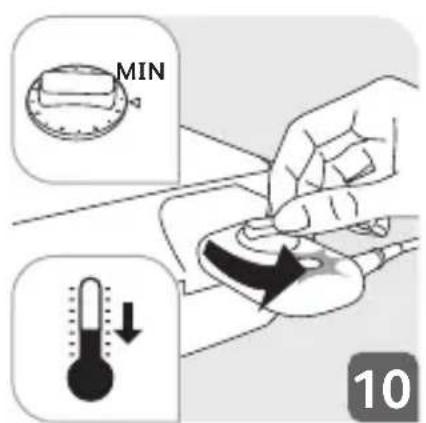

• Place the thermostat in the min. position - 10.
• Unplug the mobile connector plug from the main - 11.

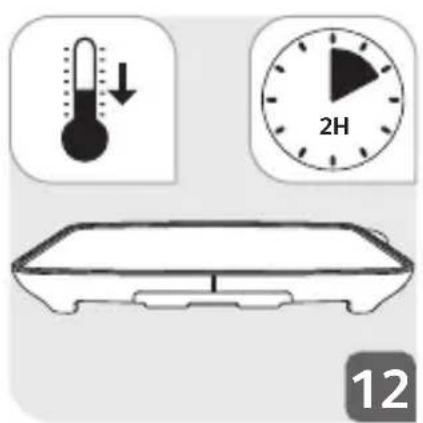

• Leave it to cool down mini 2H before cleaning - 12.

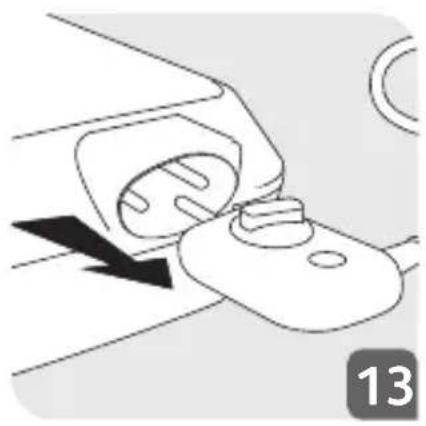

• Unplug the mobile connector from the appliance - 13.

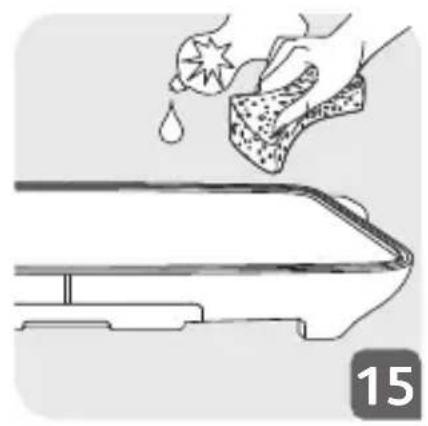

- Clean the plate and the body of the device with a sponge, hot water and a dishwashing agent - 15.

The plate, the plastic base and the collector tray can go in the automatic dishwasher - 14.

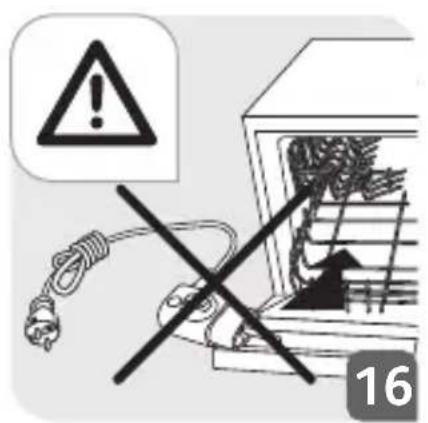

The mobile connector plug and the cord can not go in the dishwasher - 16.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

PRECAUCIONES IMPORTANTES

Illustration of a coiled wire with an inkwell and a mouse, showing upward and downward motion (no text or symbols)

Two-step diagram showing cable installation and power plug installation (no text or symbols)

Illustration of a hand holding a small electronic component with an arrow indicating rotation (no text or symbols)

Illustration of a hand using a knife to cut or cut a surface with multiple curved objects (no text or symbols)

Illustration of a wall socket connected to a plug, with a black arrow indicating downward motion (no text or symbols)

Diagram of a hand holding an electrical plug with a black arrow indicating downward motion (no text or symbols)

Architectural line drawing of a modern building with stairs and a tree (no text or symbols)

Illustration of a hand cleaning a surface with a droplet and cloth (no text or symbols)

Simple line drawing of a tray with an arrow pointing to the base, no text or symbols present.
