CR066 - Slow cooker CROCK POT - Free user manual and instructions

Product type	Programmable slow cooker
Brand	CROCK POT
Model	CR066
Capacity	5.6 liters
Crock material	Ceramic
Lid material	Tempered glass
Cooking technology	TimeSelect: automatic programmed cooking based on food and quantity
Cooking modes	Manual (Low, High, Keep Warm) and programmed (Meat, Poultry, Soup, Vegetables)
Maximum timer (manual mode)	20 hours, in 15-minute increments
Delay start	Up to 12 hours in advance
Automatic keep warm	Yes, after cooking (recommended max 4 hours)
Display	Digital with clock, timer and indicators
Backup battery	CR2025 (replaceable) for the clock
Safety	Automatic shut-off, hot surface, resistant tempered glass lid
Cleaning	Crock and lid are dishwasher safe; wipe base with a damp cloth
Removable parts	Ceramic crock, glass lid
Oven / microwave compatibility	Crock is oven and microwave safe; lid is oven safe
Use	Indoor, household only
Customer support	Contact: [e-mail] or phone (see manual)

Frequently Asked Questions - CR066 CROCK POT

How to use the TimeSelect function?

Select SCHEDULE MEAL on the panel, then use FOOD to choose the type of food (Meat, Poultry, Soup, Vegetables), AMOUNT for the quantity, and set the desired end cooking time with HOUR and MINUTE. Press START. The slow cooker automatically calculates the start time.

How to manually adjust temperature and time?

Press MANUAL, then TEMP to choose between LOW, HIGH or KEEP WARM. Use HOUR and MINUTE to set the duration (max 20h). Press START/STOP to start.

Can I leave the slow cooker on all day?

Yes, it's safe. The slow cooker automatically switches to keep warm after cooking. It is recommended not to exceed 4 hours in KEEP WARM mode to prevent food from drying out.

How to clean the slow cooker?

Unplug and let cool. The ceramic crock and glass lid are dishwasher safe or can be washed in warm soapy water. Do not use abrasive cleaners. Wipe the heating base with a damp cloth. Never immerse the base in water.

What to do in case of power outage during cooking?

If you do not know how long the outage lasted, it is recommended to discard the food as bacteria may have developed. Once power is restored, the display flashes and all settings are lost; you must reprogram.

How to replace the clock battery?

Unplug the appliance. Remove the battery compartment cover under the appliance. Press the silver part to dislodge the old battery. Insert a new CR2025 battery (or equivalent) observing polarity. Replace the cover. Do not dispose of the old battery with household waste.

Can I use the crock in the oven or microwave?

Yes, the ceramic crock can go in the oven and microwave. The glass lid can go in the oven but not in the microwave. Never use the crock on a gas or electric stovetop.

How to adapt a traditional recipe for the slow cooker?

Reduce the amount of liquid by about half because the slow cooker retains moisture. Place vegetables at the bottom and meat on top. Cook on LOW for 8 to 10 hours (equivalent to a traditional cooking time of 30-45 minutes). Add dairy or fish at the end of cooking.

Why is my dish not cooked after the indicated time?

Check that the crock was filled correctly (between half and three-quarters). If you lifted the lid early in cooking, heat escaped. Root vegetables cook slower; use manual HIGH mode. Make sure the meat does not touch the lid.

What does the low battery symbol mean?

The low battery icon appears when the clock backup battery is nearly depleted. Replace it with a CR2025 battery as described in the previous question. The clock and programmed settings may not be retained after unplugging.

USER MANUAL CR066 CROCK POT

CSC066X Specialists in One-pot Cooking - SINCE 1970 -

CROCK·POT®

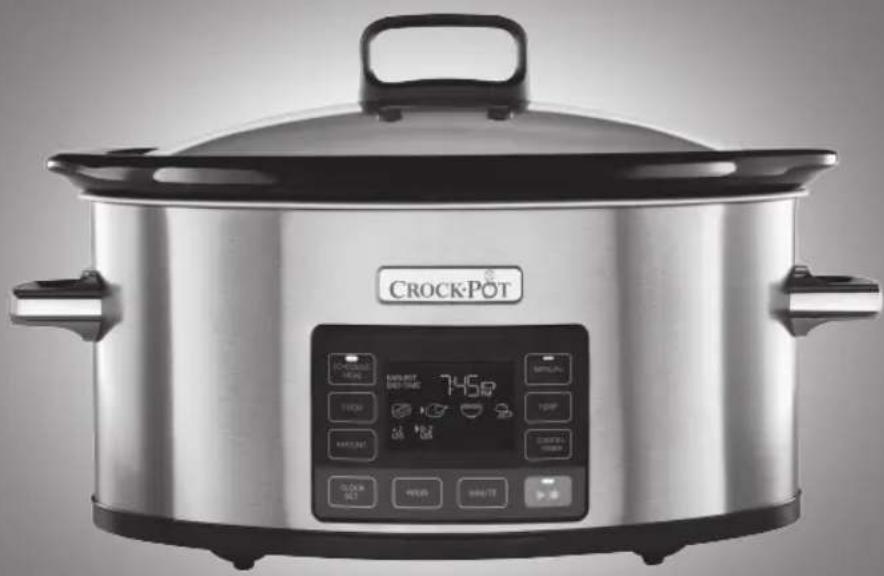

CROCK POT rice cooker with digital display and control buttons (no visible text or symbols on main body)

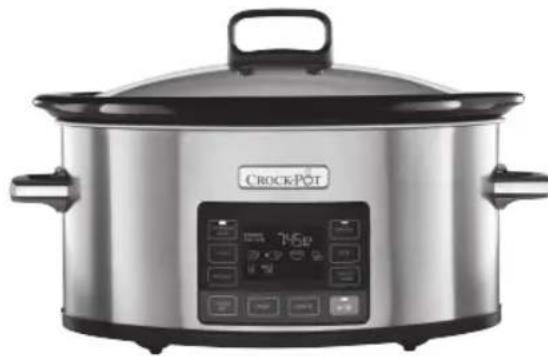

5.6L TimeSelect Digital Slow Cooker

Instruction manual • Notice d'utilisation • Bedienungsanleitung • Manual de instrucciones • Manual de instruções • Manuale di istruzioni • Gebruiksaanwijzing • Bruksanvisning • Ohjeet • Betjeningsvejledning • Instruksjonshåndbok • Instrukcja obsługi • Uživatelská příručka • Návod na použitie • Használati utasítás • Manual de utilizare • Ръководство за употреба • Priručnik za upotrebu • Еγχειρίδιο χρήσης

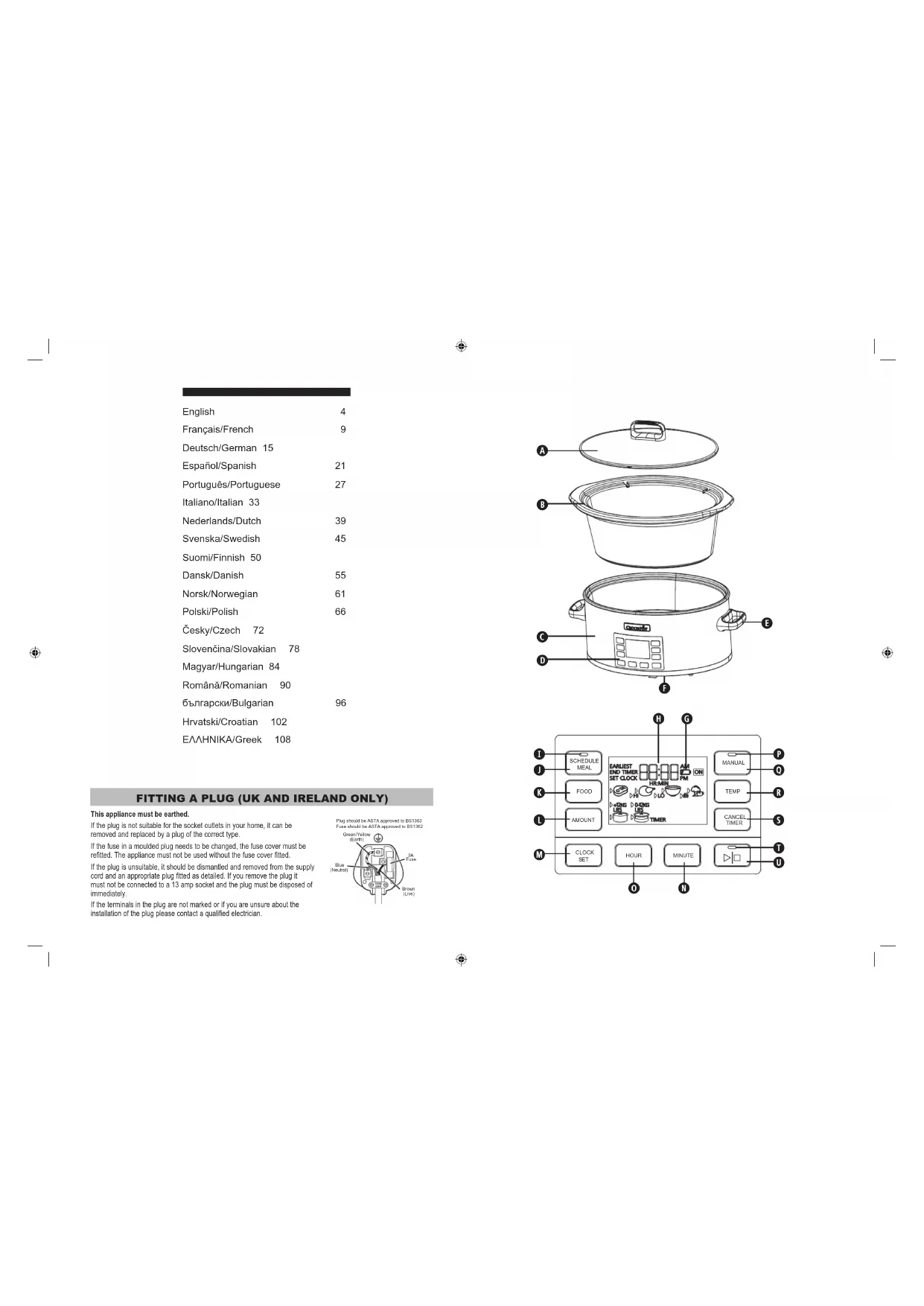

English	4
Français/French	9
Deutsch/German 15
Español/Spanish	21
Português/Portuguese	27
Italiano/Italian 33
Nederlands/Dutch	39
Svenska/Swedish	45
Suomi/Finnish 50
Dansk/Danish	55
Norsk/Norwegian	61
Polski/Polish	66
Česky/Czech 72
Slovenčina/Slovakian 78
Magyar/Hungarian 84
Română/Romanian 90
български/Bulgarian	96
Hrvatski/Croatian 102
ΕΛΛΗΝΙΚΑ/Greek 108

FITTING A PLUG (UK AND IRELAND ONLY)

This appliance must be earthed.

If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type.

If the fuse in a moulded plug needs to be changed, the fuse cover must be refitted. The appliance must not be used without the fuse cover fitted.

If the plug is unsuitable, it should be dismantled and removed from the supply cord and an appropriate plug fitted as detailed. If you remove the plug it must not be connected to a 13 amp socket and the plug must be disposed of immediately.

If the terminals in the plug are not marked or if you are unsure about the installation of the plug please contact a qualified electrician.

Diagram of a cooking pot with labeled parts including a control panel and digital display

ENGLISH

IMPORTANT SAFEGUARDS

READ CAREFULLY AND SAVE FOR FUTURE REFERENCE

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of the reach of children aged less than 8 years.

Parts of the appliance are liable to get hot during use. The heating element surface is subject to residual heat after use.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Never use this appliance for anything other than its intended use. This appliance is for household use only. Do not use this appliance outdoors. Never immerse the heating base, power cord or plug in water or any other liquid.

The lid and the stoneware can be washed in the dishwasher or with hot soapy water (See Cleaning Section).

This product contains a user replaceable battery. See Battery Section for detailed instructions for replacement and disposal instructions.

- This appliance generates heat during use. Adequate precaution must be taken to prevent the risk of bums, scalds, fires or other damage to persons or properly caused whilst in use or during cooling.

- Use oven gloves or a cloth and beware of escaping steam when opening or removing the lid.

• Always ensure that hands are dry before handling the plug or switching on the appliance.

• Always use the appliance on a stable, secure, dry and level surface.

- The heating base of the appliance must not be placed on or near any potentially hot surfaces (such as a gas or electric hob).

- Do not use the appliance if it has been dropped, if there are any visible signs of damage or if it is leaking.

- Ensure the appliance is switched off and unplugged from the supply socket after use and before cleaning.

• Always allow the appliance to cool before cleaning or storing.

- Never let the power cord hang over the edge of a worktop, touch hot surfaces or become knotted, trapped or pinched.

- NEVER attempt to heat any food item directly inside the base unit. Always use the removable stoneware

- Some surfaces are not designed to withstand the prolonged heat generated by certain appliances. Do not set the appliance onto a surface that may be damaged by heat. We recommend placing an insulating pad or trivel under the appliance to prevent possible damage to the surface.

- The slow cooker lid is made of tempered glass. Always inspect the lid for chips, cracks or any other damage. Do not use the glass lid if it is damaged, as it may shatter during use.

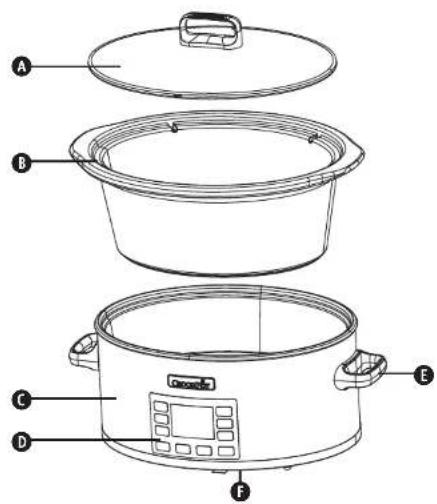

PARTS

A Glass lid

B Stoneware

© Heating base

D Control panel

E Carrying handles

F Battery compartment and Battery protector strip

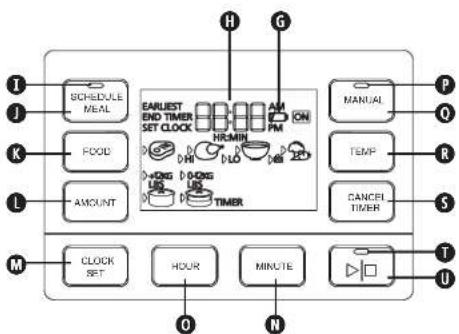

G Low battery symbol

H Time Setting Display Screen

Schedule Meal Indicator Light

Schedule Meal Button

K Food Button

① Amount Button

M Clock Set Button

N Minute Button

0 Hour Button

P Manual Indicator Light

Manual Button

Temp Button

S Cancel Timer Button

T Start/Stop Indicator Light

Start/Stop Button

PREPARING FOR USE

Before you use your Crock-Pot® slow cooker, remove all packaging and wash the lid and stoneware with warm soapy water and dry thoroughly.

IMPORTANT NOTES: Some countertop and table surfaces are not designed to withstand the prolonged heat generated by certain appliances. Do not set the heated unit on a heat sensitive surface. We recommend placing a hot pad or trivet under your slow cooker to prevent possible damage to the surface.

Please use caution when placing your stoneware on a ceramic or smooth glass cook top stove, countertop, table, or other surface. Due to the nature of the stoneware, the rough bottom surface may scratch some surfaces if caution is not used. Always place protective padding under stoneware before placing it on a table or countertop.

During initial use of this appliance, some slight smoke or odour may be detected. This is normal with many heating appliances and will not recur after a few uses.

Remove the orange battery protective strip by fully pulling out. This will control the clock when the unit is not plugged in.

HOW TO USE MANUAL FUNCTION ON SLOW COOKER

1. Place the stoneware into the heating base, add your ingredients into the stoneware and cover with the lid. Plug in your slow cooker and select "MANUAL" on the right side of the controller.
2. Select "TEMP" to choose the temperature setting from HIGH, LOW, or KEEP WARM. NOTE: "KEEP WARM" is ONLY for keeping already cooked food warm. DO NOT cook on the "KEEP WARM" setting. We do not recommend using the "KEEP WARM" setting for more than 4 hours.
3. Use the "HOUR" and "MINUTE" buttons to select cook time in increments of 15 minutes, up to 20 hours. Select the time based on the length of time indicated in the recipe. The time will begin to count down in one minute increments. Use "CANCEL TIMER" to clear the countdown timer. This will allow your slow cooker to remain on its current setting until turned off. To cancel the Manual function select the Start/Stop button.
4. For recipes that require a range of times, select the time closest to the setting on your slow cooker. For example, to cook a recipe calling for a cooking time of 7 to 9 hours on LOW, cook for 8 hours.
5. When the cooking time has completed, the Crock-Pot * slow cooker automatically shifts to the "KEEP WARM" setting.
6. To turn the Crock-Pot ^® slow cooker off, press the "START/STOP" button and unplug the unit from the outlet.
7. When cooking is done, unplug your slow cooker and allow it to cool before cleaning.

HOW TO USE TIMESELECT TECHNOLOGY

1. Place the stoneware into the heating base, add ingredients into the stoneware and cover with the lid.
2. Plug Crock-Pot * 5.6L TimeSelect Slow Cooker into an electrical outlet.
3. Choose "SCHEDULE MEAL" on the left side of the control panel.
4. Select "FOOD" to choose from a list of 4 preset functions: MEAT ⚡, POULTRY ⚡, SOUP ⚡, and VEGGIES ⚡. NOTE: Make "FOOD" selection based on the recipe type being cooked. If the recipe that you are cooking is not on the preset list, please choose the main ingredient that most closely relates, or cook using the "MANUAL" function. NOTE: Stews should be cooked using the "MEAT" food selection. To achieve the best results when cooking large pieces of meat or poultry, please add additional time to the meal's earliest and time.
   NOTE: For those recipes containing a large quantity of root vegetables these will require cooking for a longer period of time at a higher temperature. We recommend these recipes are cooked on Manual HIGH setting instead of VEGGIES, setting.
5. Use the "AMOUNT" button to select weight or capacity of food being cooked. If "MEAT" "POULTRY" is selected, the slow cooker will give a weight option of "+1 KG" or "0-1 KG". If "SOUP" or "VEGGIES" chosen, the slow cooker will give a capacity option of "FULL POT" or "HALF POT".
   NOTE: *FULL POT 📋 is referencing a cooking pot that is filled ¼ of the way full.
6. Next, use the "HOUR" and "MINUTE" buttons to select the time that you would like your meal to be complete (e.g. 8:00pm), then press "START". Initial time displayed on the screen is the meal's earliest end time, based on food and amount being cooked.
   NOTE: "SCHEDULE MEAL" function will not cook food longer than 12 hours from the meal cook-start time. Once the clock is past the scheduled meal time, the slow cooker will automatically turn to "KEEP WARM".
   NOTE: TimeSelect technology automatically determines the correct heat setting based on the above inputs. Food will always be kept at a food safe temperature, unless there is a power outage. See page 9 for more details, in the event of a power outage.

USAGE NOTES

• To change between LBS and KGS, hold "AMOUNT" button for 3 seconds.
• To change the current time, hold "CLOCK SET" for 3 seconds. Adjust the time using "HOUR" and "MINUTE", then press "CLOCK SET" to confirm the selection.
• Should the clock setting stop working or low battery symbol displayed after plugging back in the battery may need replacing. See Battery Section for details.
• If there is a Power outage, the display and lights blink when the Power is restored. All slow cooker settings have been cleared and must be reset. As a result, the food may be unsafe to eat. If you are unaware of how long the power was out, we suggest you discard the food inside.
• To avoid over or under-cooking, always fill the stoneware 12 to 34 full and conform to the recommended cooking times.
• Do not overfill the stoneware. To prevent spillover, do not fill the stoneware higher than 34 full.
  • Always cook with the lid on for the recommended time. Do not remove the lid during the first two hours of cooking to allow the heat to build up efficiently.
  • Always wear oven gloves when handling the lid. Beware of escaping steam when opening the lid.
  • Unplug when cooking has finished and before cleaning
• The removable stoneware is ovenproof. Do not use removable stoneware on a gas burner, electric hob or under grill. Refer to chart below.

Part Dishwasher safe Oven safe Microwave safe Hob safe
Lid Yes Yes	No	No
Stoneware	Yes Yes Yes *	No

* Refer to your Microwave manual for operation with stoneware.

GUIDE TO ADAPTING RECIPES

This guide is designed to help you adapt your own and other recipes for your slow cooker. Many of the normal preparatory steps are unnecessary when using your slow cooker. In most cases all ingredients can go into your slow cooker at once and cook all day. General:

• Allow sufficient cooking time.
  • Always cook with the lid on.
• For best results and to prevent food from drying or burning, always ensure an adequate amount of liquid is used in the recipe.

RECIPE TIME	COOK ON LOW	COOK ON HIGH
15 - 30 minutes	4 - 6 hours	112 - 2 hours
30 - 45 minutes	6 - 10 hours	3 - 4 hours
50 minutes - 3 hours	8 - 10 hours	4 - 6 hours

PASTA AND RICE:

• For best results, use long grain rice unless the recipe states otherwise. If the rice is not cooked completely after the suggested time, add an extra 1 to 1½ cups of liquid per cup of cooked rice and continue cooking for 20 to 30 minutes.
• For best pasta results, add the pasta to the slow cooker during the last 30 to 60 minutes of cook time.

BEANS:

• Dried beans, especially red kidney beans, should be boiled before adding to a recipe.
• Fully cooked canned beans may be used as a substitute for dried beans.

VEGETABLES:

• Many vegetables benefit from slow cooking and are able to develop their full flavour. They tend not to overcook in your slow cooker as they might in your oven or on your hob.
• When cooking recipes with vegetables and meat, place vegetables into the stoneware before meat. Vegetables usually cook more slowly than meat in the slow cooker and benefit from being partially immersed in the cooking liquid.
• Place vegetables near the sides or bottom of the stoneware to help cooking

MILK

• Milk, cream, and sour cream break down during extended cooking. When possible, add during the last 15 to 30 minutes of cooking.

• Condensed soups may be substituted for milk and can cook for extended times.

SOUPS:

• Some recipes call for large amounts of water's stock. Add the soup ingredients to the stoneware first then add water's stock only to cover. If a thinner soup is desired, add more liquid when serving.

MEATS:

• Trim fat, rinse well, and pat meat dry with paper towels.
• Browning meat beforehand allows fat to be drained off before slow cooking and also adds greater depth of flavour.
- Meal should be positioned so that it rests in the stoneware without touching the lid.
• For smaller or larger cuts of meat, alter the amount of vegetables or potatoes so that the stoneware is always 12 to 14 full.
- The size of the meat and the recommended cook times are just estimates and can vary depending upon the specific cut, type, and bone structure. Loan meats such as chicken or pork tenderloin tend to cook faster than meals with more connective tissue and fat such as brisket or pork shoulder. Cooking meat on the bone versus boneless will increase required cook times.
- Cut meat into smaller pieces when cooking with precooked foods such as beans, or light vegetables such as mushrooms, diced onion, aubergine, or finely minced vegetables. This enables all food to cook at the same rate.

FISH:

- Fish cooks quickly and should be added at the end of the cooking cycle during the last fifteen minutes to one hour of cooking.

LIQUID:

It might appear that slow cooker recipes only have a small quantity of liquid in them but the slow cooking process differs from other cooking methods in that the added liquid in the recipe will almost double during the cooking time. If you are adapting a recipe for your slow cooker from a conventional recipe, please reduce the amount of liquid before cooking.

CLEANING

ALWAYS unplug your slow cooker from the electrical outlet, and allow it to cool before cleaning.

CAUTION: Never immerse the heating base, power cord or plug in water or any other liquid.

• The lid and stoneware can be washed in the dishwasher or with hot, soapy water. Do not use abrasive cleaning compounds or scouring pads. A cloth, sponge, or rubber spatula will usually remove residue. To remove water spots and other stains, use a non-abrasive cleaner or vinegar.
• As with any fine ceramic, the stoneware and lid will not withstand sudden temperature changes. Do not wash the stoneware or lid with cold water when they are hot.
• The outside of the appliance may be cleaned with a soft cloth and warm, scapy water. Wipe dry. Do not use abrasive cleaners.
  • No other servicing should be performed.
  • Note: After cleaning allow the stoneware to air dry before storing.
• Do not use wet cloths around the battery compartment

BATTERY

Always unplug the unit from the mains before removing the battery cover. To change the battery, first unplug the unit, then remove cover on the bottom of the unit. Press in on silver tab to dislodge battery, then remove and properly dispose of the old battery to replace with the new one.

Always replace the battery with type CR2025 or equivalent. Do not use rechargeable batteries in this unit.

Ensure battery is correctly orientated as shown:

Keep battery away from children.

Do not swallow. If swallowed, seek immediate medical advice.

Ensure old batteries are disposed of in a safe manner. Refer to local guidelines regarding how to dispose of safely. Do not dispose in normal household waste.

Batteries can explode or leak if heated, disassembled, shorted, recharged or inserted incorrectly. Take care with leaking batteries.

AFTER SALES SERVICE

In the case the appliance still does not operate but is under warranty, return the product to the place it was purchased for a replacement. Please be aware that a valid form of proof of purchase will be required. For additional support, please contact our Consumer Service Department at United Kingdom: 0800 028 7154 | Spain: 0900 81 65 10 | France: 0805 542 055. For all other countries, please call [phone]. International rates may apply. Alternatively, e-mail: [e-mail].

WASTE DISPOSAL

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. E-mail us at [e-mail] for further recycling and WEEE information.

FRANÇAIS

IMPORTANT : CONSIGNES DE SECURITE

LISEZ AVEC ATTENTION ET CONSERVER POUR RÉFÉRENCE

L Taste Amount (Menge)

A Coperchio in vetro

Schedule Meal (Aterian aiastus) - painike

K. Food (Punka), painlike

PODD (RUBKA) -palnike

Amount (Maara) -painike

Clock Set (Kellon asetus) -painike

K Knappen Food (Egdevare)

1. Knappen Amount /Mænad

Knappen Amount (Maengue)

M Knappen Clock Set (Urindstilling)

Symbol for Iavt beltenniva H. Tideinnetilgeckform

L Amount-knapp (menode)

M Clock Set-knapp (klokkeinnstilling)

N Minute-knapp (minuft)

① Hour-knapp (time)

P Manual Indicator-lampe (manuell indikator)

Q Manual-knapp (manuell)

Temp-knapp (temperatur)

Cancel Timer-knapp (avbrvt timer)

1. Stad/stopp-indikatodus

Starr/stopp-indikatorys Stard/stopp-knapp

Star/Stopp-knapp

KLARGJ∅RING FOR BRUK

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

PREČÍTAJTE SI ICH POZORNE A ODLOŽTE SI ICH, AK BY STE ICH V BUDÚCNOSTI POTREBOVALI

POZNÁMKY K POUŽÍVANIU

[e-mail].

ИЗХВЪРЛЯНЕ НА ОТПАДЪЧНИ ПРОДУКТИ

VAŽNE SIGURNOSNE UPUTE

PROČITAJTE PAŽLJIVO I SPREMITI ZA BUDUĆE POTREBE

R Tipka Temp (Temperature)

Tipka Cancel Timer (Olkazivanje brojača)

T Svjellosni pokazivač Start/Stop (Početak/ zaustavljanje)

[e-mail].

Close-up of a dried chili pepper with visible seeds and body (no text or symbols)

Close-up of a textured, irregularly shaped stone or mineral sample with no visible text or symbols

CROCK·POT.

Exterior view of a stainless steel CROCK POT cooking pot with digital display (no visible text or symbols)

For Customer Service details, please see the website.

© 2020 Jarden Consumer Solutions (Europe) Limited.

All rights reserved. Jarden Consumer Solutions (Europe) Limited, 5400 Lakeside, Cheadle Royal Business Park, Cheadle,

Cheshire, SK8 3GQ, United Kingdom.

Newell Poland Services Sp. z o.o., Plac Andersa 7, Poznan, 61-894, Poland.

Jarden Consumer Solutions (Europe) Limited and Newell Poland Services Sp. z o.o. are subsidiaries of Newell Brands Inc.

The product you buy may differ slightly from the one shown on this carton due to continuing product development.

Made In China

GCDS-CRP-SL P.N. 199905 Rev A
