865628 - Rope with hook SILVERLINE - Free user manual and instructions

Product Type	Rope with Hook
Brand	Silverline
Model	865628
Intended Use	Vertical lifting of light loads with manual pulley
Working Load Limit (WLL)	250 kg
Maximum load on scaffolding	50 kg (according to BS 5973)
Rope diameter	18 mm
Rope length	20 m
Rope material	Polypropylene (PP)
Rope breaking strength	2500 kg
Hook material	Steel
Hook capacity	2000 kg
Safety latch	Yes
Net weight	4 kg
Compatibility	Manual pulley 254 mm (not supplied)
Maintenance	Lubrication of moving parts, cleaning with warm soapy water
Storage	In a cool, dry place away from direct sunlight
Warranty	Lifetime warranty (registration within 30 days)
Standards	Compliant with relevant safety regulations and standards

Frequently Asked Questions - 865628 SILVERLINE

What is the maximum load this rope can support?

The Working Load Limit (WLL) is 250 kg. When used on scaffolding, the maximum load is limited to 50 kg according to BS 5973.

How to properly install the rope with a manual pulley?

Make sure the pulley is mounted on a structure capable of supporting at least 3 times the WLL. The rope must be properly attached to the ring and the hook must have a functional safety latch. Refer to the manual for installation details.

What personal protective equipment is required?

Wearing a hard hat, safety glasses, gloves, hearing protection, and a respirator mask is mandatory. Safety shoes are also recommended.

How to check the condition of the rope before use?

Inspect the rope for any signs of fraying, cutting, or wear. Check that the hook is not deformed and that the safety latch closes properly.

What to do if the rope is damaged?

Any rope showing damage must be removed from service immediately. Replace it with an original part from an authorized center.

Can this rope be used to lift people?

No, this equipment is strictly prohibited for lifting people. It is designed only for lifting light loads vertically.

How to clean and maintain the rope?

Clean the rope with warm soapy water and let it dry completely in the air. Lubricate moving parts with grease, avoiding the rope and threads.

Where should the rope be stored after use?

Store the rope in a cool, dry place, away from direct sunlight.

What is the warranty of this product?

Silverline offers a lifetime warranty. You must register the product online within 30 days of purchase at www.silverlinetools.com.

Is the manual pulley supplied with the rope?

No, the manual pulley is not supplied. The rope is compatible with a 254 mm manual pulley (reference not included).

USER MANUAL 865628 SILVERLINE

Gin Wheel Rope with Hook

20m x 18mm

Close-up of a knotted rope being lifted by a metal chain (no text or symbols visible)

1 2 3 4 5 6

7 8 9 10 11 12

|

1 2 3

||

2 x S.W.L. 1 2 3 S.W.L.

English ......06

Français ......10

Deutsch......14

Español......18

Italiano ......22

Nederlands ......26

Polski ......30

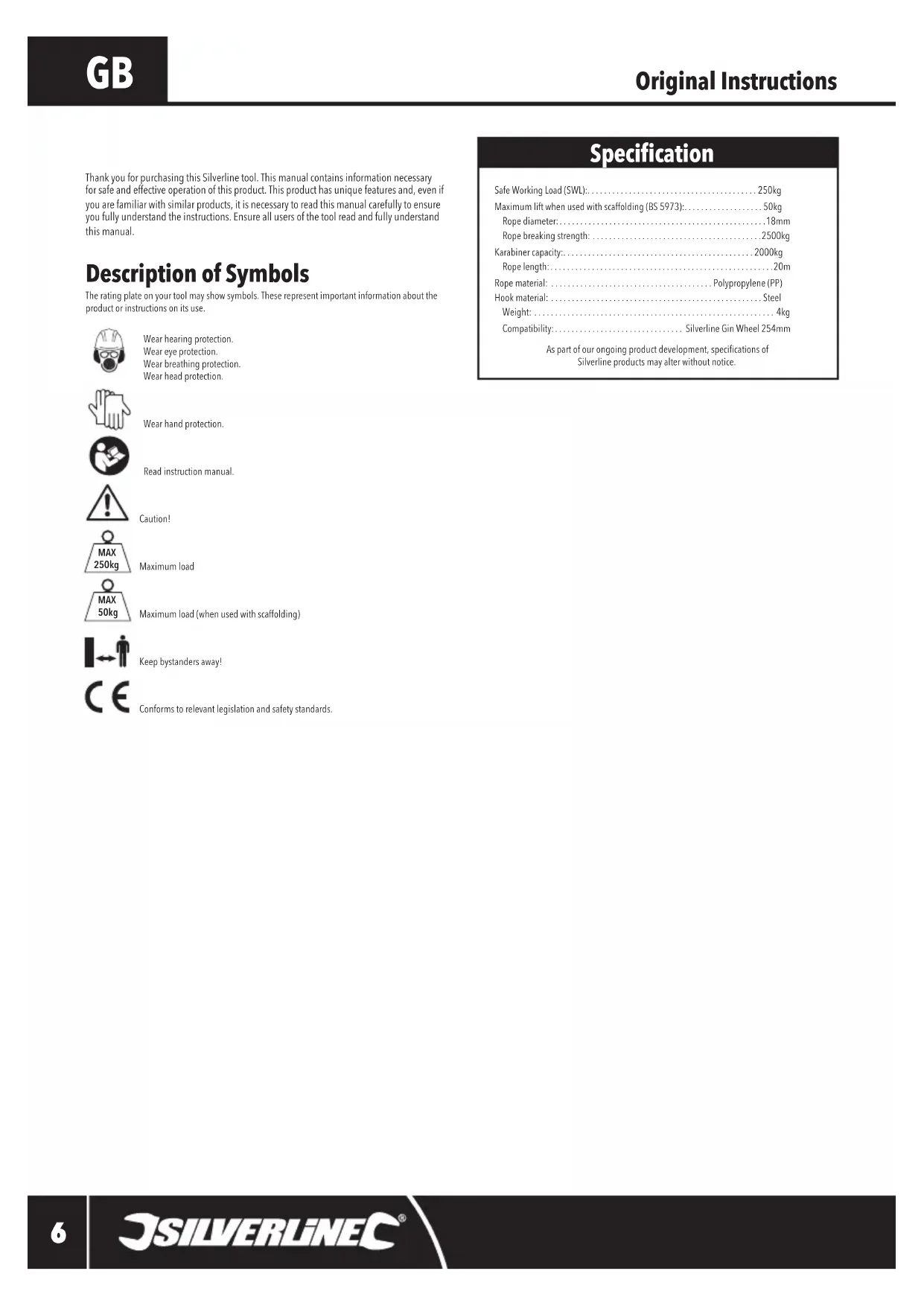

Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection.

Wear eye protection.

Wear breathing protection.

Wear head protection.

Wear hand protection.

Read instruction manual.

Caution!

Maximum load

Maximum load (when used with scaffolding)

Keep bystanders away!

Conforms to relevant legislation and safety standards.

Specification

Safe Working Load (SWL): 250kg

Maximum lift when used with scaffolding (BS 5973):....50kg

Rope diameter: 18mm

Rope breaking strength: 2500kg

Karabiner capacity: 2000kg

Rope length: 20m

Rope material: Polypropylene (PP)

Hook material: Steel

Weight: 4kg

Compatibility: Silverline Gin Wheel 254mm

As part of our ongoing product development, specifications of Silverline products may alter without notice.

Gin Wheel Safety

WARNING: Protective headgear (e.g. hard hat) and protective footwear, MUST be worn by the operator, and any person near to the danger area.

WARNING: Create a generous EXCLUSION ZONE around the lifting mechanism using barriers and warning signs. When an object is being lifted, the areas directly below and around the area should be considered highly dangerous. Do not reach into, or enter this area. Keep children, animals and bystanders away from the lifting area.

IMPORTANT: Lifting equipment should be inspected by a qualified person at least once each year. The results of the inspection recorded in an inspection book for future reference. Examination frequency should be related to the frequency of use.

IMPORTANT: Read these instructions in combination with any instructions provided with additional parts required for lifting including rope, cargo straps and slings.

Danger area

• Lifting equipment must be operated from a position where the operator is not at risk from a falling load. The operator should not be positioned directly below the load
• Never use a lifting tool or any other overhead lifting equipment for lifting persons

Inspect the equipment

• Before use, check the condition of the equipment, paying particular attention to ropes and locking mechanisms. Ropes should be free from kinks and should not show any evidence of fraying or cutting. Locking mechanisms should work freely and should be clean of excessive dirt or grease.
• Any additional supports should be capable of taking the full weight of the object to be lifted, along with some additional capacity as a precautionary measure
• Check that the hooks are sound. If a hook has more than a 10^ twist out of true, or has an excessive throat opening, it should be replaced
• Check all hook safety latches are not damaged or bent and completely seal the hook openings
• If any part of the lifting equipment is found to be damaged or worn, it must be repaired with genuine replacement parts at an authorised service centre before the equipment is used
• Do not modify any lifting equipment. Any attempt to tamper with this equipment will invalidate its guarantee and could result in serious injury to yourself or others around you

Attaching a load

• Any load must only be attached/supported by the proper lifting points
• Only use a gin wheel with a working safety catch on the lifting hook
• The load must be free to lift. If the load is caught or restricted during lifting it may become unbalanced or loose and create a safety issue
• Before attaching a load, ensure that it is stable, and will remain stable throughout the lifting process

During a lift

• The operator should have constant eye contact with the load. If it is impractical for the operator to have constant eye contact, then the danger area should be sealed off, and additional persons with full view of the operating area must be used to relay instructions to the operator
• Lifting equipment must only be operated by persons who are clearly familiar with the operating instructions
• Lifting equipment must never be used for any purpose other than vertical lifts
• Do not lift an object to a greater height than is absolutely necessary
• Workers receiving the load (at heights) must use proper fall protection If you are in any way unsure about the safe method of using this equipment, DO NOT USE!

Product Familiarisation

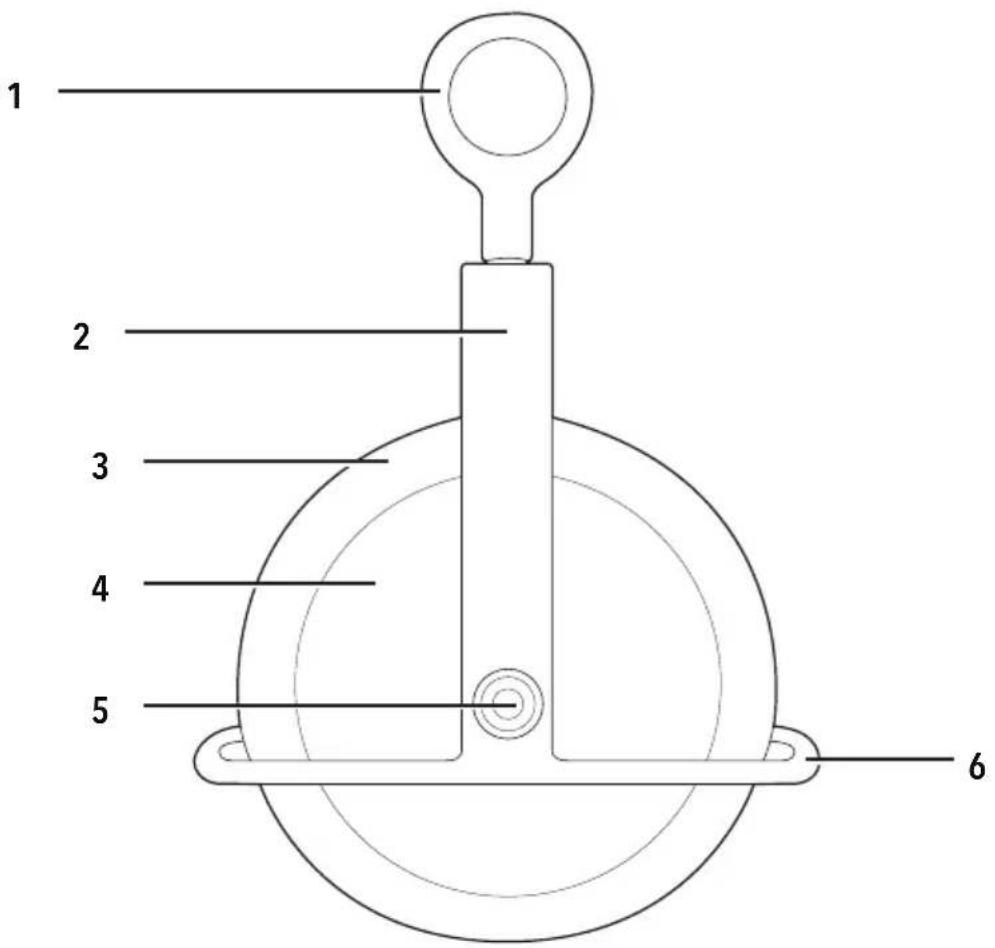

Gin Wheel*

1. Loop

2. Loop Securing Bolt

3. Pulley Rim

4. Pulley

5. Pulley Securing Bolt

6. Pulley Guard

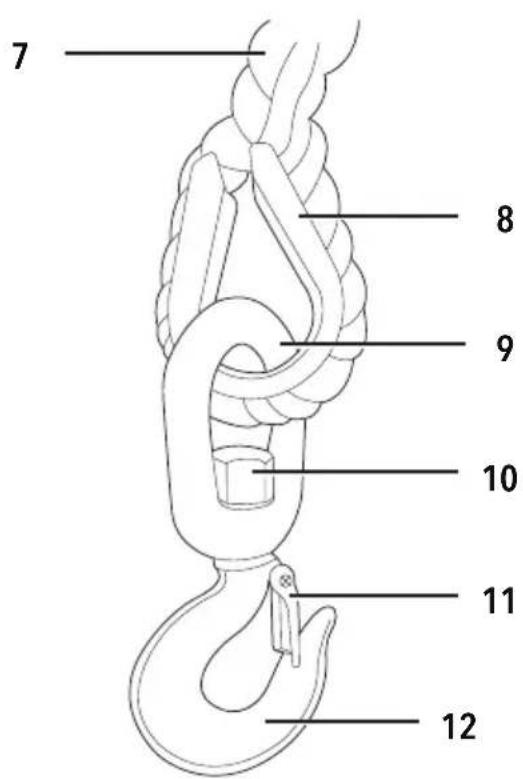

Rope

7. Rope

8. Rope Eyelet

9. Lifting Hook Loop

10. Hook Securing Bolt

11. Safety Latch

12. Lifting Hook

Note: The product familiarisation images and list displays both the rope and a compatible gin wheel (not supplied) for the purpose of comprehensive instructions. Both are required for safe lifting.

*Gin Wheel not included. Suitable for use with Silverline Gin Wheel Rope with Hook 20m x 18mm.

Intended Use

Manual lifting rope for use with a simple lifting mechanism designed to lift and lower light loads vertically with the lifting operator placed at ground level and the load receiver placed at height.

Before Use

Installation

IMPORTANT: A site risk assessment may be required as part of your national regulations. LOLER: Lifting Operations Lifting Equipment Regulations, 1998 in the UK.

Note: If using a third party gin wheel, follow the supplied instructions regarding assembly and installation.

1. Locate the gin wheel in a suitable, well-lit work area
2. Mount the gin wheel on a safe work platform that is above the standing arm's length of the worker who will be receiving the load. The load itself should be received no higher than the worker's shoulder height
3. Ensure the gin wheel is suspended from a structure capable of supporting a load of at least 3x the Safe Working Load (SWL). The supporting structure at the suspension point, Fig. II (1), must be capable of taking the weight of the load, Fig. II (2), and the pulling force of the operator, Fig. II (3), which is equivalent to the SWL. Consult an engineer if necessary
4. Make sure the Rope (7) used is the correct diameter for the size of the gin wheel and suitable for the intended load to be lifted. See 'Specification'

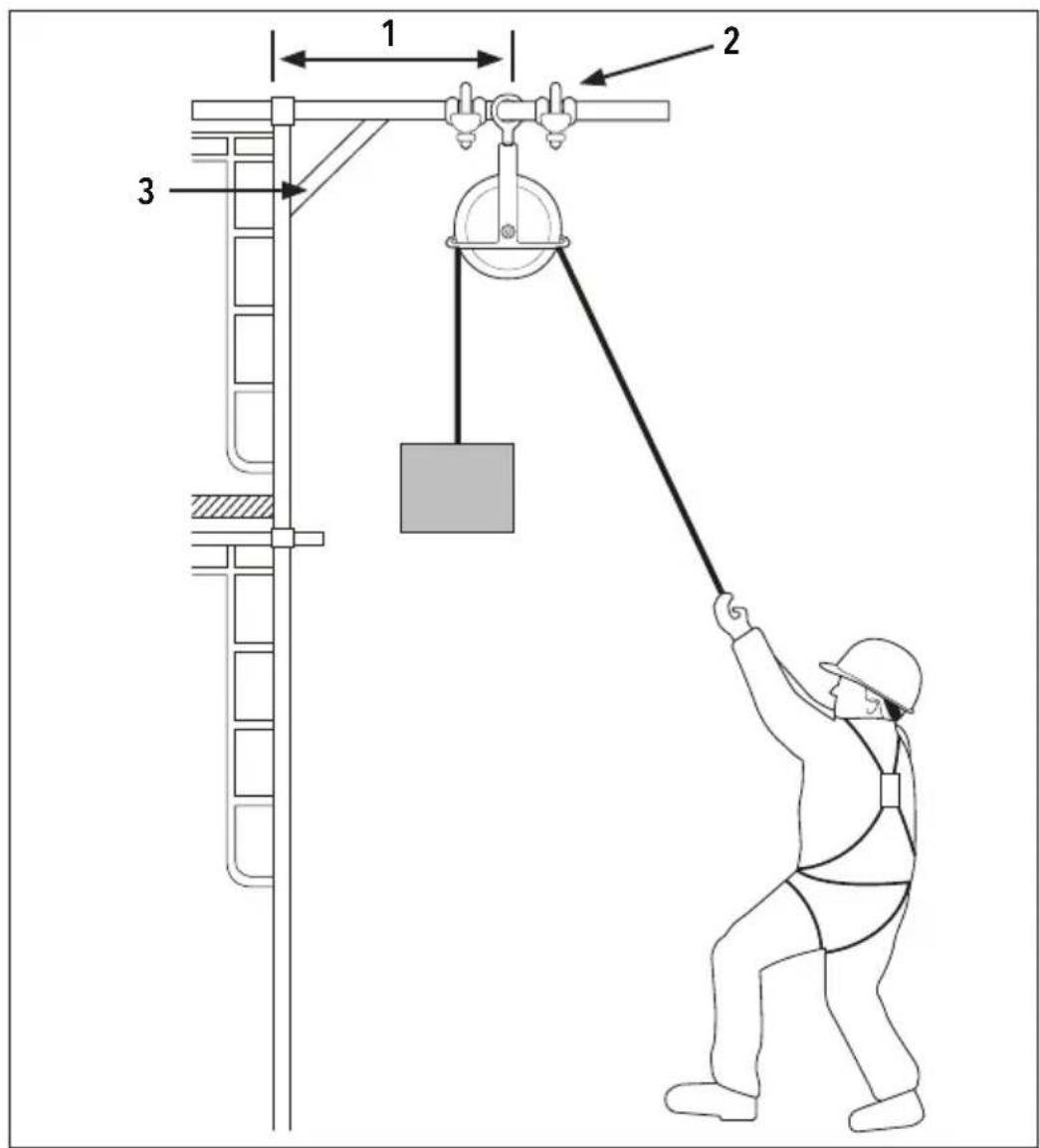

5. Minimise the distance between the gin wheel and the scaffolding, Fig. I (1)
6. Secure the Loop (1) with brackets either side so it will not move, Fig. I (2) and additional support struts, Fig. I (3), for strength and rigidity if necessary

Checks before use

1. Check the Loop Securing Bolt (2), Pulley Securing Bolt (5) and Hook Securing Bolt (10) are tight and in good condition. Check the Rope Eyelet (8) is secure
2. Check the Rope (7) is not worn or frayed. Remove from service if not in flawless condition
3. Check the Pulley (4) wheel rotates freely. Place a label on the Pulley if necessary so it can be seen from a distance that the wheel is rotating. Operating the Pulley without a freely rotating wheel may damage the Rope

Operation

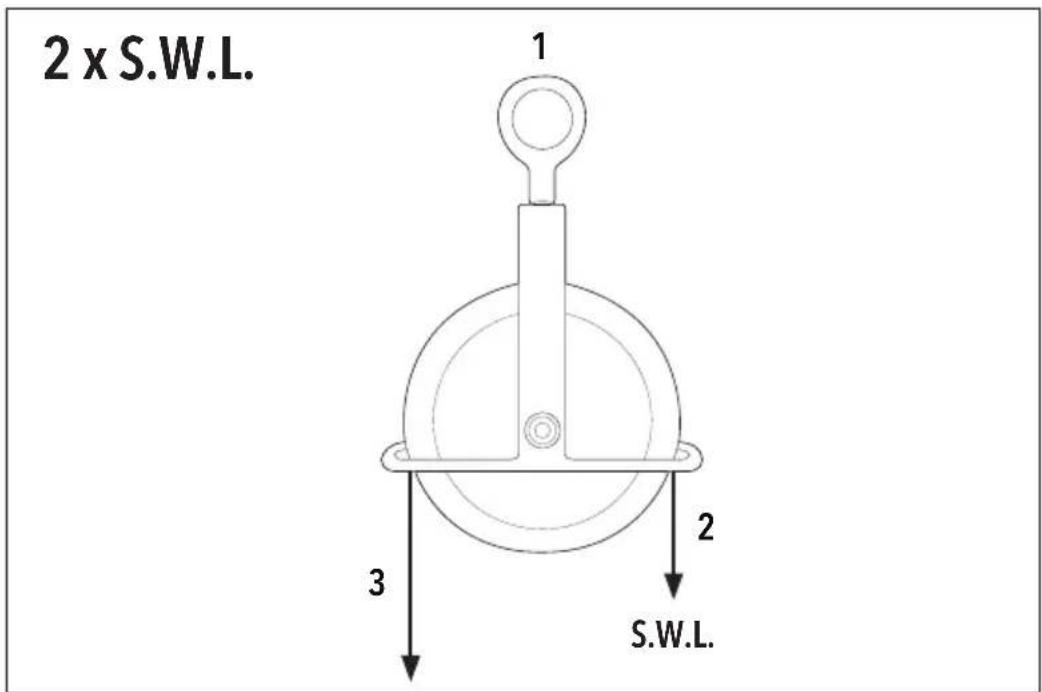

IMPORTANT: Restrict maximum loads to 1/5 of the lifting operators' combined body weight. If two or more workers are lifting the load, only one worker should be giving instructions.

1. To prevent side movement place the load directly below the pulley wheel directly in-line with the vertical rope

2. Avoid snatch or shock loading as the safe working load can be exceeded in such circumstances. Use gradual controlled pulling which maintains stability of the load

3. Always use gloves when working with a gin wheel to prevent rope burn. Check the gloves are designed to grip well and do not have a smooth slippery gripping surface
4. Check the load does not exceed the weight capacity of the components or the ability of workers to lift it
5. Check the load is secured properly. Never load the Lifting Hook (12) in front of the Safety Latch (11) next to the hook tip. Never load the Lifting Hook off the central position and always ensure the Lifting Hook's Safety Latch is closed before lifting
6. Check the bucket or load won't strike the scaffold or building, causing the load to tip and fall
7. When lifting, do not stand close to the area under the load. Instead, use the lifting rope at a diagonal angle
8. When lifting liquid, cover the bucket so the contents don't spill
   IMPORTANT: Once the load is lifted to the required height, the load should be removed and the empty Lifting Hook lowered to ground level immediately.
   Note: It is recommended to do a test lift of a metre or so to check lifting stability to see if the load securing can be improved especially at higher weight levels.

Accessories

- A range of accessories and consumables, including personal protective equipment and Gin Wheels, is available from your Silverline stockist. Spare parts can be obtained from toolsparesonline.com

Maintenance

• Regularly lubricate friction surfaces with grease but do not apply to threads or to the groove of the pulley wheel, or on the rope
• Regularly inspect the rope for damage or wear and remove from service if damaged or worn
• Clean with warm, soapy water, and allow to air dry before use. Never use any corrosive cleaning agents

Storage

- Store completely dry in a cool dry place out of direct sunlight

Silverline Tools Guarantee

This Silverline product comes with a forever guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the forever guarantee. Guarantee period begins according to the date on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

- Your personal details

• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.
