300 ICW4 - Home Theater System FOCAL - Free user manual and instructions

Product type	2-way in-wall/in-ceiling speaker
Brand	Focal
Model	300 ICW4
Sensitivity (2,83 V/1 m)	88 dB
Frequency response (+/-3 dB)	80 Hz - 28 kHz
Low frequency cutoff (-6 dB)	72 Hz
Nominal impedance	8 Ohms
Minimum impedance	4.5 Ohms
Recommended amplifier power	25 - 100 W
Dimensions (diameter x depth)	192 x 100 mm
Cut-out diameter	165 mm
Cut-out depth	95 mm
Net weight (with grille)	1.3 kg
Cone material	Flax (linen) sandwich
Tweeter type	TNV2 inverted dome aluminum/magnesium alloy
Protective grille	Magnetic, circular and square shapes supplied
Crossover	Optimized phase OPC
Use in humid environment	Yes (humidity resistant, e.g., bathrooms, kitchens)
Supplied accessories	Mounting frame, circular and square grilles, cutting template, protective paint mask, user manual
Care	Dust with dry cloth; stains: damp cloth; no solvents or abrasives
Painting the grille	Possible using a spray gun (recommended wall paint)
Warranty	2 years (France), non-transferable; conditions vary by country

Frequently Asked Questions - 300 ICW4 FOCAL

What is the recommended amplifier power for the Focal 300 ICW4?

The recommended amplifier power is between 25 and 100 W. A lower power amplifier can damage the speaker by clipping.

How to install the 300 ICW4 speaker in an existing wall?

Use the supplied cutting template to mark a 165 mm diameter circle, cut the opening, insert the mounting frame, lock the clamping dogs, connect the cable (respect polarity), then attach the speaker to the frame.

Can the speaker grille be painted?

Yes, remove the grille and spray paint it with standard wall paint. Use the supplied protective mask to paint the wall without removing the speaker.

How to clean the 300 ICW4 speaker?

Dust with a dry cloth. For stains, use a slightly damp cloth. Never use solvents, detergents, alcohol, or abrasive products.

What is the break-in period of the speaker?

The speakers require a break-in period of a few weeks. To accelerate it, run the speaker for approximately twenty consecutive hours.

Can I use the 300 ICW4 speaker in a bathroom?

Yes, it is humidity resistant and suitable for wet rooms such as bathrooms or kitchens.

What type of cable should I use for connection?

Use a quality cable with polarity markings, of a gauge appropriate for the length. Leave about 50 cm of cable to facilitate connection.

Where to place surround speakers in a home theater system?

Place them on the side walls, above ear level, slightly behind the listening area for an enveloping effect. Avoid placing them too far back.

How to adjust the tweeter level on the 300ICW6 and 300ICW8 models?

The tweeter level is adjusted via a switch located at the back of the speaker. This adjustment is not available on the 300 ICW4 model.

What to do in case of a problem with the speaker?

Contact your Focal dealer. In France, the warranty is 2 years from the date of purchase. In case of a defect, return the speaker in its original packaging to the dealer.

USER MANUAL 300 ICW4 FOCAL

Technical line drawings of three circular mechanical components with mounting holes and central hub (no text or symbols)

Français : page 8

Anglais : page 12

Deutsch : seite 16

Italiano : pagina 20

Español : página 24

OUT-OUT TEMPLATS FOCAL® OUT-OUT TEMPLATS FOCAL®

click

Technical diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

Mechanical robotic arm performing a manual press operation, with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with motion arrow (no text or symbols)

300 SERIES

FOCA FOCA

Technical line drawing of a mechanical assembly with two circular components and internal components (no text or symbols)

Technical diagram of a mechanical component with circular housing and mounting holes, showing internal structure and detail view (no text or symbols)

Technical diagram of a mechanical component with three views: top view, side view, and close-up (no text or symbols)

Technical line drawing showing a circular component mounted on two square plates, with no visible text or symbols.

Technical line drawing showing two views of a mechanical component with concentric rings and central hub (no text or symbols)

300 SERIES

"-" Position "0"	Position "+" Position
-3 dB 0 dB +3 dB

Technical line drawing of a circular mechanical component with concentric rings and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with flanges and central hub (no text or symbols)

Technical line drawing of a circular mechanical component with flanges and central hub (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

300 SERIES

1 = 2 ≥ 3 D

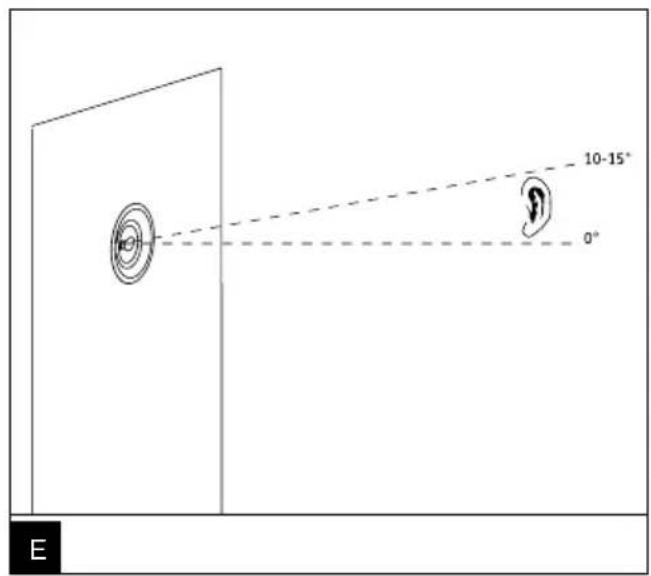

10-15° 0° E

Technical line drawing showing two views of a spray gun mounted on circular components, no text or symbols present

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and clamps (no text or symbols)

Simple oval shape drawn with concentric lines, no text or symbols present

Simple geometric diagram showing an oval inside a rectangle (no text or symbols)

Technical drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

300 SERIES 2014/120 CHI. 2015 TPOGAS

Please validate your Focal-JMIab warranty, it is now possible to register your product online: www.focal.com/warranty

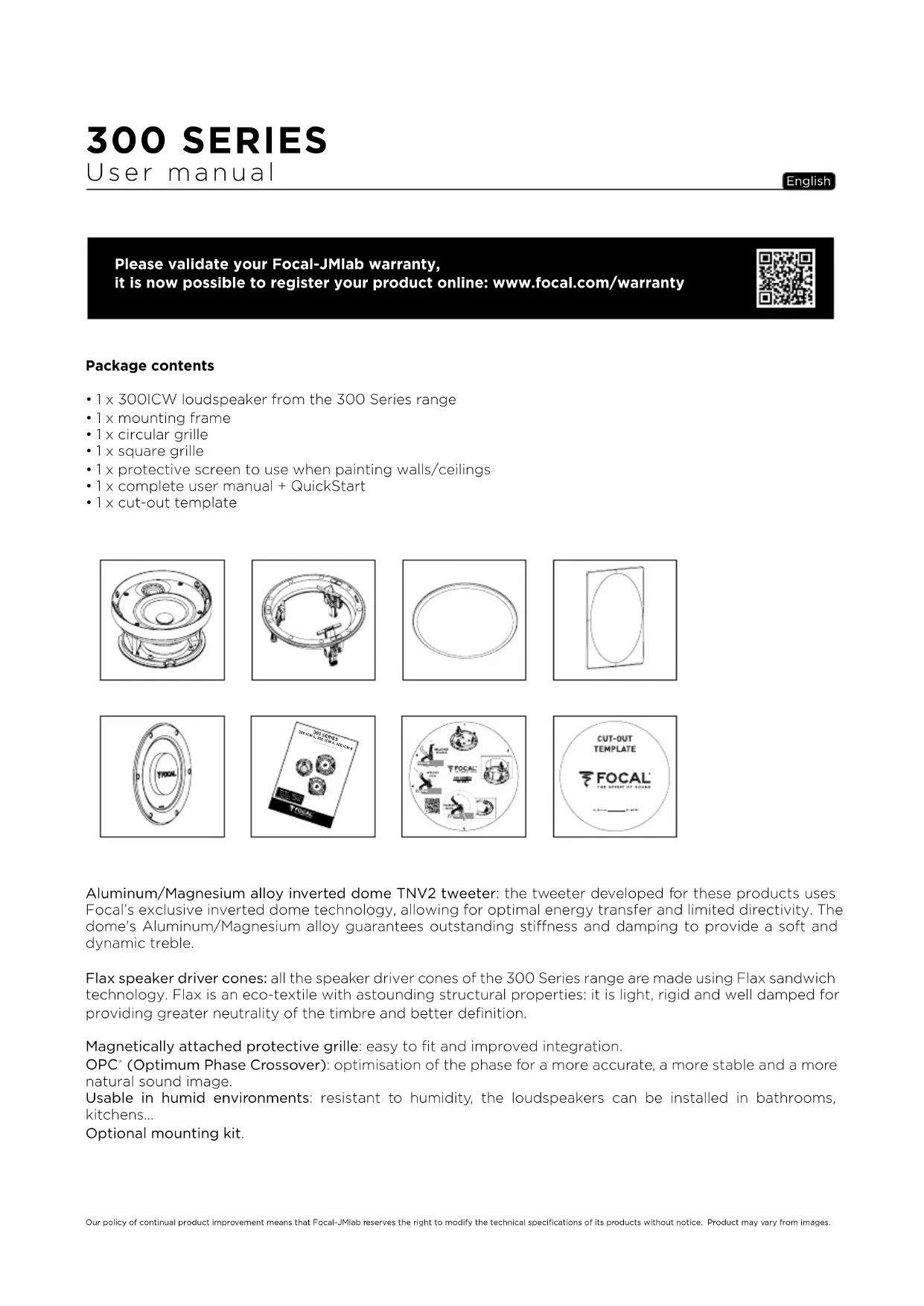

Package contents

• 1 x 300ICW loudspeaker from the 300 Series range
• 1 x mounting frame
• 1 x circular grille
• 1 x square grille
• 1 x protective screen to use when painting walls/ceilings
• 1x complete user manual + QuickStart
• 1 x cut-out template

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and clamps (no text or symbols)

Simple oval shape with no text, numbers, or symbols

Simple line drawing of a rectangle with an oval inside, no text or symbols present.

Technical drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

300 SERIES 2016/12/2017 TPOGALS

FOCAL 1

CUT-OUT TEMPLATE FOCAL THE SPOT OF ROUND

Aluminum/Magnesium alloy inverted dome TNV2 tweeter: the tweeter developed for these products uses Focal's exclusive inverted dome technology, allowing for optimal energy transfer and limited directivity. The dome's Aluminum/Magnesium alloy guarantees outstanding stiffness and damping to provide a soft and dynamic treble.

Flax speaker driver cones: all the speaker driver cones of the 300 Series range are made using Flax sandwich technology. Flax is an eco-textile with astounding structural properties: it is light, rigid and well damped for providing greater neutrality of the timbre and better definition.

Magnetically attached protective grille: easy to fit and improved integration.

OPC* (Optimum Phase Crossover): optimisation of the phase for a more accurate, a more stable and a more natural sound image.

Usable in humid environments: resistant to humidity, the loudspeakers can be installed in bathrooms, kitchens...

Optional mounting kit.

Breaking-in your loudspeakers

The speaker drivers used in the Integration 300 Series loudspeakers are complex mechanical assemblies which need a break-in period to operate at their best and to become acclimatised to the temperature and humidity of your environment. This break-in period varies depending on the conditions in question and may take several weeks. To reduce this time, we recommend operating your loudspeakers for about 20 consecutive hours. Once the loudspeakers' characteristics have totally stabilised you will be able to enjoy your Integration 300 Series loudspeakers' performance to the full.

Pre-installation wiring

You can only install your loudspeakers once you have wired them up. Make sure you leave enough room to allow you to wire up your loudspeakers with ease (approximately 20"/50cm). We recommend using a cable with a marker in order to ensure the polarities of the speaker drivers are respected (+/-). Choose good quality cables with a cross-section appropriate to their length: your retailer will be able to advise you.

Choosing an amplifier

It is not an excess of amplifier power that can damage your loudspeakers and drivers but a lack of power. Moreover, if the volume is turned too high, the amplifier saturates and generates parasite signals that may destroy the tweeter. The dynamic capacity and definition of Integration 300 Series loudspeakers are high enough to reveal the strengths and weaknesses of whatever amplifier is connected. Your retailer will be able to guide your choice to suit your tastes and budget.

Installation

Existing installation

• Before installing your loudspeakers, make sure that there is nothing obstructing the ceiling/wall, such as air vents, and make sure that no cables will interfere with the installation. Use the appropriate tools to help you determine the correct location.
• Make sure there is enough space to install your product in the ceiling/wall.
• Trace the supplied cut-out template on the ceiling/wall. Cut along the trace using an appropriate tool to make a circular hole in the ceiling/wall (fig. A).

New installation

• Use the specific optional mounting kit
• Wire the loudspeakers before carrying out the installation

Conditions of guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Mounting the loudspeaker

300ICW products of the 300 Series include a mounting frame, a 300ICW loudspeaker and both circular and square magnetic grilles. No tools are required to mount the 300ICW loudspeakers of the 300 Series range.

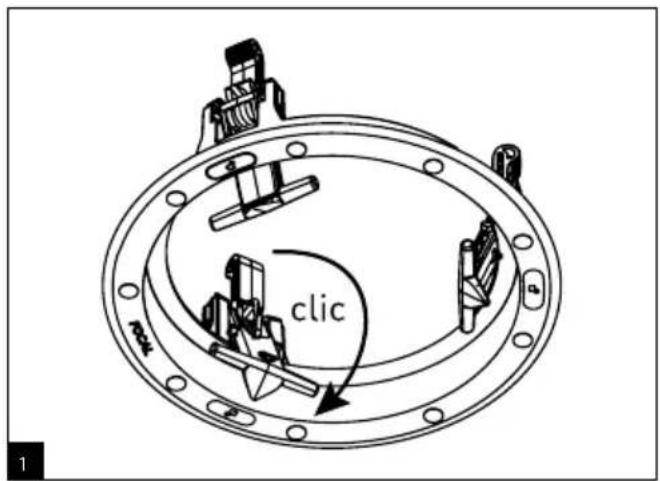

1. Pivot the mounting bracket until it clips onto the mounting frame so that the mounting frame can be pushed through the opening (fig. 1).

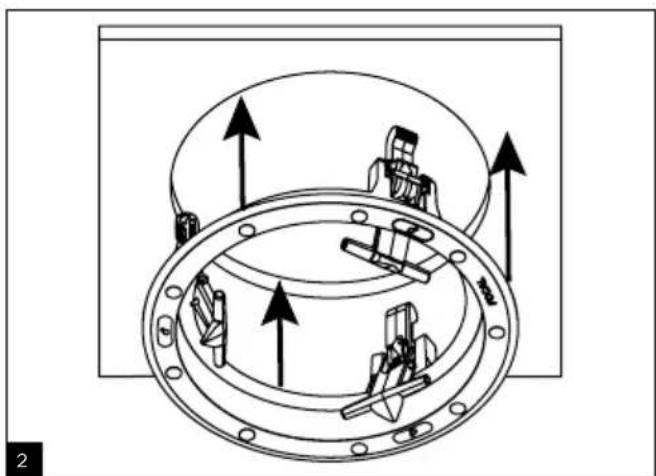

2. With one hand, insert the mounting frame into the opening in the ceiling/wall, making sure it rests flush against the ceiling/wall (fig. 2).

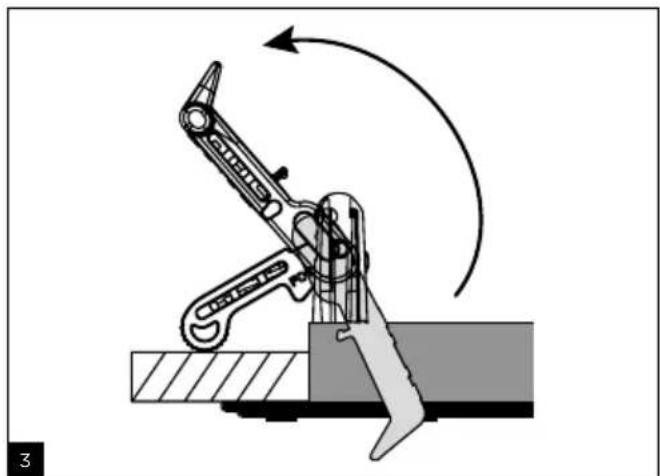

3. To fasten the mounting frame to the ceiling/wall, insert your other hand into the opening, and use two fingers to pivot the mounting bracket to the opposite side to its initial position (fig. 3)

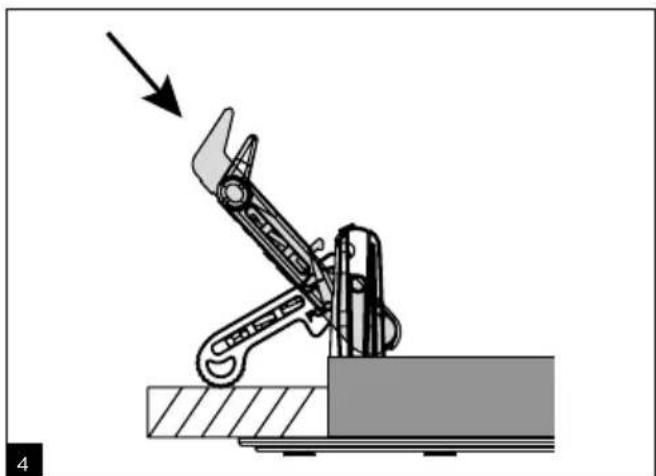

4. Push the mounting bracket down until it reaches the stop (fig. 4).

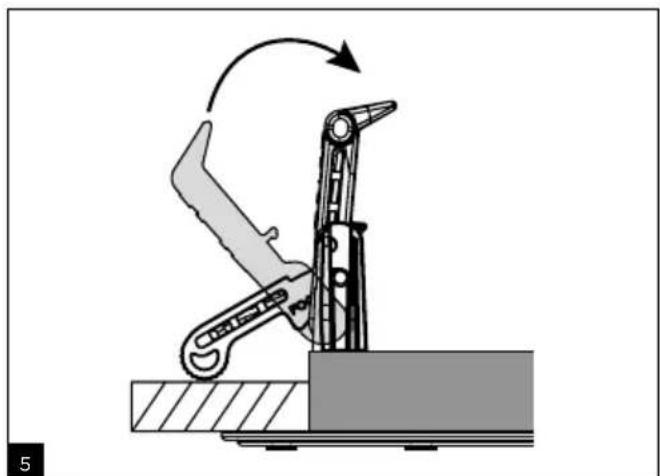

5. Finally, release the mounting bracket making sure it is securely in place. Also make sure the mounting bracket isn't resting on the loudspeaker cable (fig. 5).

Note 1: repeat the operation for the other mounting brackets.

Note 2: to unlock the mounting bracket: use two fingers to pivot the mounting bracket towards the outside, pull upwards and release.

1. Connect the previously stripped loudspeaker wires to the spring loaded terminals on the loudspeaker. It is essential to connect the loudspeakers respecting the correct polarity: the cable connected to the "+" terminal on the amplifier must be connected to the red terminal on the loudspeaker. Likewise, the cable connected to the "-" terminal on the amplifier must be connected to the black terminal on the loudspeaker. Stereo image and bass perception would be seriously compromised if these conditions were not respected (fig. 6).

2. The loudspeakers are now ready to be assembled to the mounting frame. In order to do this, position the red arrows on the loudspeaker in line with the open padlocks on the mounting frame (fig. 8).

Note: if you plan to use your product as in-ceiling loudspeakers, the loudspeaker can be securely fastened to the ceiling using a safety sling (not supplied) which fastens to the hook on the rear of the product (fig. 6).

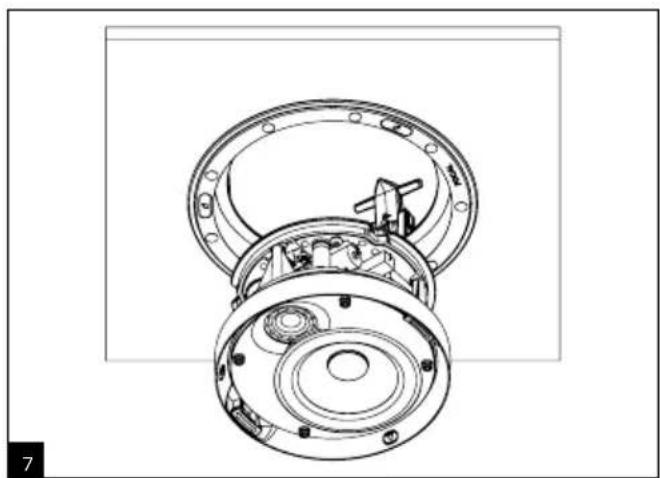

1. Insert the loudspeaker into the mounting frame (fig. 7) until the stop, then pivot the loudspeaker using the red handles so that the markers are positioned between two open padlocks (fig. 9).

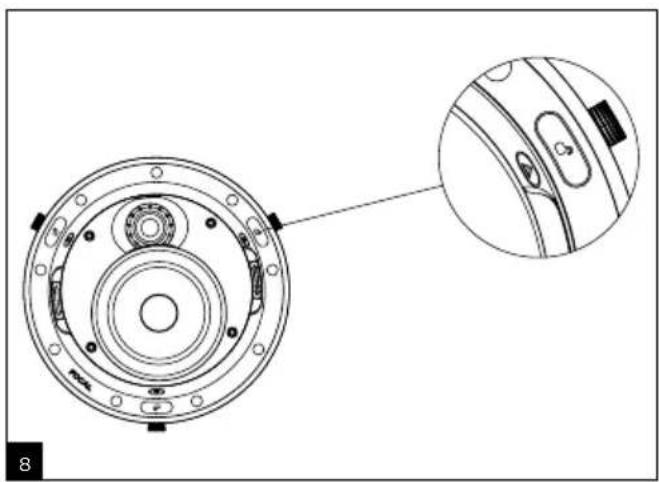

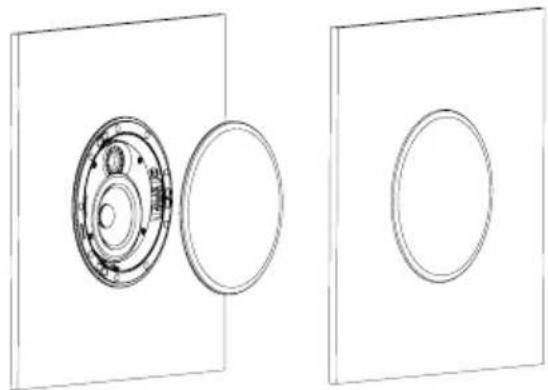

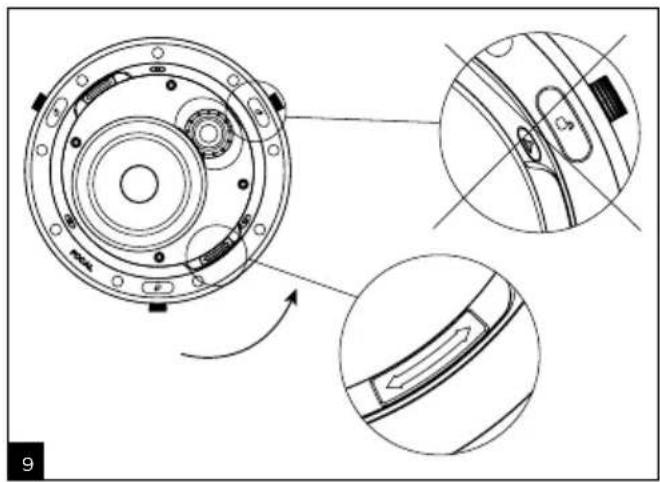

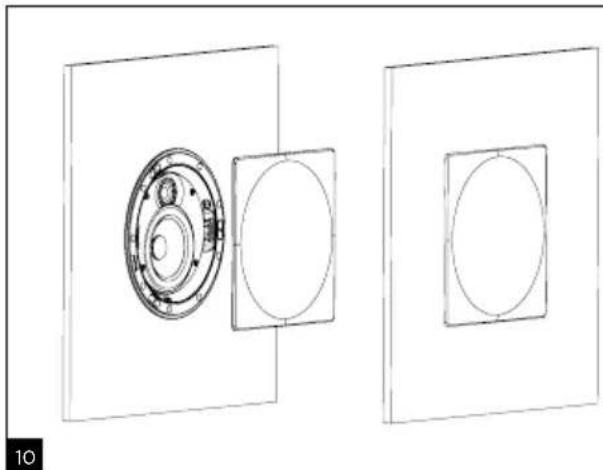

2. The circular or square grilles can now be mounted to the loudspeaker. The grille is held to the mounting frame magnetically, all you need to do is simply line them up (fig. 10).

Setting the tweeter (300ICW6 and 300ICW8)

The tweeter can be set using the switch at the rear of the loudspeaker as shown in the diagram (fig. B).

Orienting the tweeter (300ICW6 and 300ICW8)

The tweeter can be tilted +/- 20° and can be pivoted 360°: direct the tweeter towards the listening area for maximum precision of the treble and of the stereo image (fig. C).

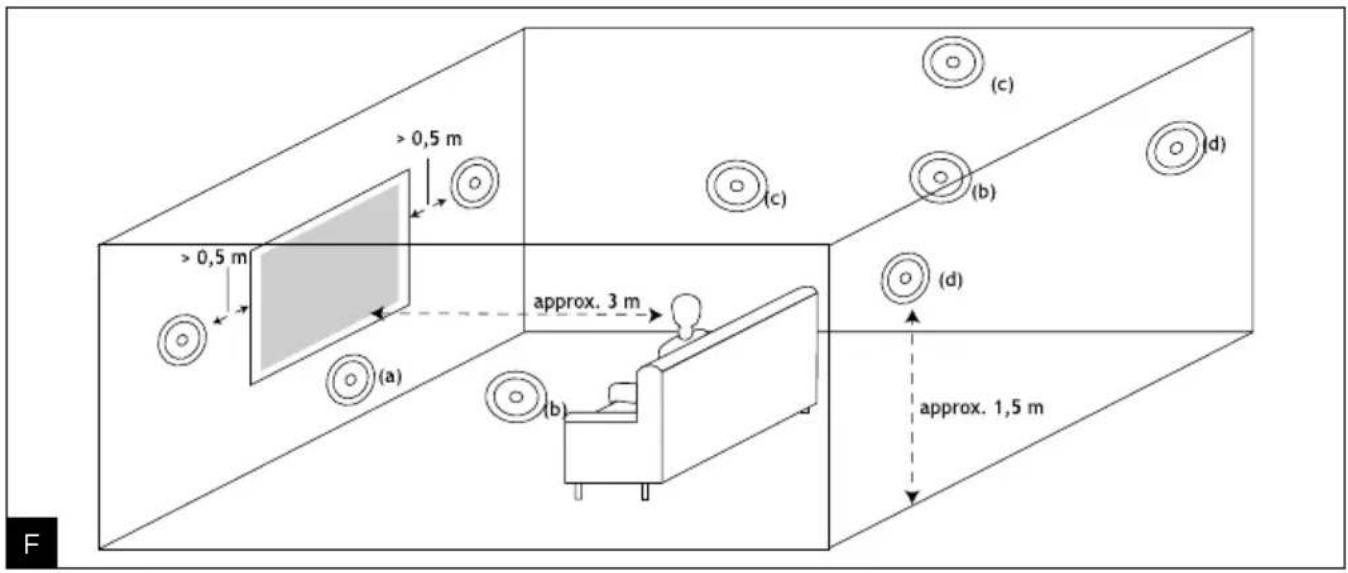

In-wall position of the main loudspeakers.

Your Integration 300 Series loudspeakers have been designed to deliver the most faithful sound reproduction, whether they are used for stereo music or home cinema. Nonetheless, some simple rules should be followed to optimise their performance and to guarantee good tonal balance and a realistic sound image. The loudspeakers should be positioned symmetrically, facing the listening area, ideally forming an equilateral triangle with it.

However, it is possible to vary these distances to find an ideal compromise according to the particular disposition of the room (fig. D).

The loudspeakers should be positioned at the same height, in the same horizontal plane. Ideally, the tweeter should be positioned at the same height as the listener's ears when in the normal listening area (fig. E).

Position of surround and central loudspeakers

The sophistication of film soundtracks means that a very broad range of surround-sound effects can be achieved nowadays. The choice of positioning for surround-sound loudspeakers is crucial for achieving a realistic 3D sound-space. The aim is to apply some basic rules to achieve sounds that are sufficiently diffused and difficult to locate (fig. F).

The centre loudspeaker must be positioned near the screen for realistic reproduction of dialogue (fig. Fa). If you're using a micro-perforated projection screen (acoustically transparent), you can consider placing a centre loudspeaker behind it.

If you plan to use the 300ICW products from the 300 Series range as in-wall loudspeakers, place the surround loudspeakers high enough up, above the listeners' ears. Do not place surround-sound loudspeakers too far behind the listening area, as this degrades sound perception. Aim for a placement along the side walls, on either side of the listening area or ever so slightly behind the listening area to achieve more enveloping sound effects (fig. Fb, Fd).

If you plan to use the 300ICW products from the 300 Series range as in-ceiling loudspeakers, place them far enough apart on each side of the listening area, or ever so slightly behind the listening area (fig. Fc).

For 6.1 or 7.1 surround-sound systems, you can use a combination of loudspeakers from the 300 Series as both in-wall or in-ceiling loudspeakers.

Special precautions

The only maintenance required for the Integration 300 Series loudspeakers is dusting with a dry cloth. If the loudspeaker is dirty, we recommend simply cleaning it with a damp cloth.

Never use solvents, detergents, alcohol-based or corrosive products, scrapers or scourers to clean the loudspeaker surface. Keep the loudspeakers away from sources of heat.

Painting

If you wish to do so, you can paint the grilles of your 300ICW products so they blend in with your interior. We recommend first removing the grille from the product and then painting it using a paint spraying device. You can use the same type of paint as the wall paint (fig. G).

If you want to paint the ceiling/wall without removing your 300ICW product, we have supplied a protective screen.

The screen fastens to the mounting frame magnetically (fig. G).
