Hurricane 1200 - Effect machine Chauvet - Free user manual and instructions

Product Type	Fog Machine
Brand	Chauvet
Model	Hurricane 1200
Power Supply	120 VAC, 60 Hz or 230 VAC, 50 Hz depending on model
Power	Not specified (estimated: 1200 W)
Tank Capacity	Not specified (large tank)
Fluid Consumption	Varies by setting; increases in continuous mode
Max Ambient Temperature	40 °C (104 °F)
Safe Distance from Surfaces	At least 50 cm (20 inches)
Main Features	Fog generation, manual trigger, wired remote with timer (FC-T), wireless remote included
LED Indicators	Red: heating; Blue: ready; Flashing: low fluid
Recommended Fluid	Chauvet® water-based fog fluid only
Maintenance	Clean with FCQ solution every 90 days; empty tank before transport
Fuse Replacement	Same type and rating fuse
Mounting	Mounting bracket, compatible mounting clamp, safety cable
Safety	Do not use in permanent installation; connect to protected and grounded circuit; do not touch during operation; do not block ventilation slots
Reparability	No user-serviceable parts (except fuse)
Included Accessories	FC-T wired remote, wireless remote, reference manual, warranty card
Weight	Not specified (estimated 10-15 kg)
Dimensions	Not specified (compact)

Frequently Asked Questions - Hurricane 1200 Chauvet

How to install the Hurricane 1200 fog machine?

Install the machine on a flat and stable surface. Mount it using the mounting bracket and a compatible clamp (e.g., Chauvet CLP-15). Use a safety cable to prevent falls. Ensure that the ventilation slots are not blocked and maintain a distance of at least 50 cm from adjacent surfaces. Plug into a protected and grounded outlet.

What type of fluid should I use with the Hurricane 1200?

Use only water-based fog fluid from Chauvet®. Using other fluids may damage the pump and heater.

How to clean the Hurricane 1200 machine?

Regularly clean the machine with Chauvet's FCQ (Fog Cleaner Quart) solution. Perform this cleaning at least every 90 days to extend the lifespan of the device. Empty the tank before cleaning or transport.

What to do if the machine is not producing fog?

First, check that the tank has enough fluid. If the LED flashes red or blue, refill the tank. Ensure the machine is in preheat mode (solid red LED). Wait until the LED turns solid blue to indicate it is ready. If the problem persists, check the fuse and replace it if necessary.

Can I use the Hurricane 1200 with a dimmer?

No, never connect this device to a dimmer or rheostat. This could damage the device and void the warranty.

How to use the FC-T wired remote?

The FC-T remote allows you to program fog generation intervals. Use the rotary knobs to adjust output, duration, and interval. Manual mode triggers continuous fog as long as the button is held. Continuous mode produces continuous fog (recommended max setting: 11). The LEDs indicate the device status.

Is the Hurricane 1200 suitable for permanent installation?

No, this device is not designed for permanent installation. It is intended for temporary use and should be placed on a flat and stable surface.

What is the maximum operating temperature?

The maximum ambient temperature is 40 °C (104 °F). Do not operate the device at higher temperatures to avoid overheating.

How to replace the fuse on the Hurricane 1200?

Unplug the device. Turn the fuse holder cap counterclockwise to remove it. Replace the blown fuse with a fuse of the same type and rating. Replace the fuse holder and plug back in.

What to do if the machine triggers smoke detectors?

If multiple fog machines are operating simultaneously, they may trigger smoke detectors. Reduce the number of machines in operation or decrease fog output. Ensure the room is well-ventilated.

USER MANUAL Hurricane 1200 Chauvet

CHUF Quick Re

HURRICANE™

1200

Quick Reference Guide

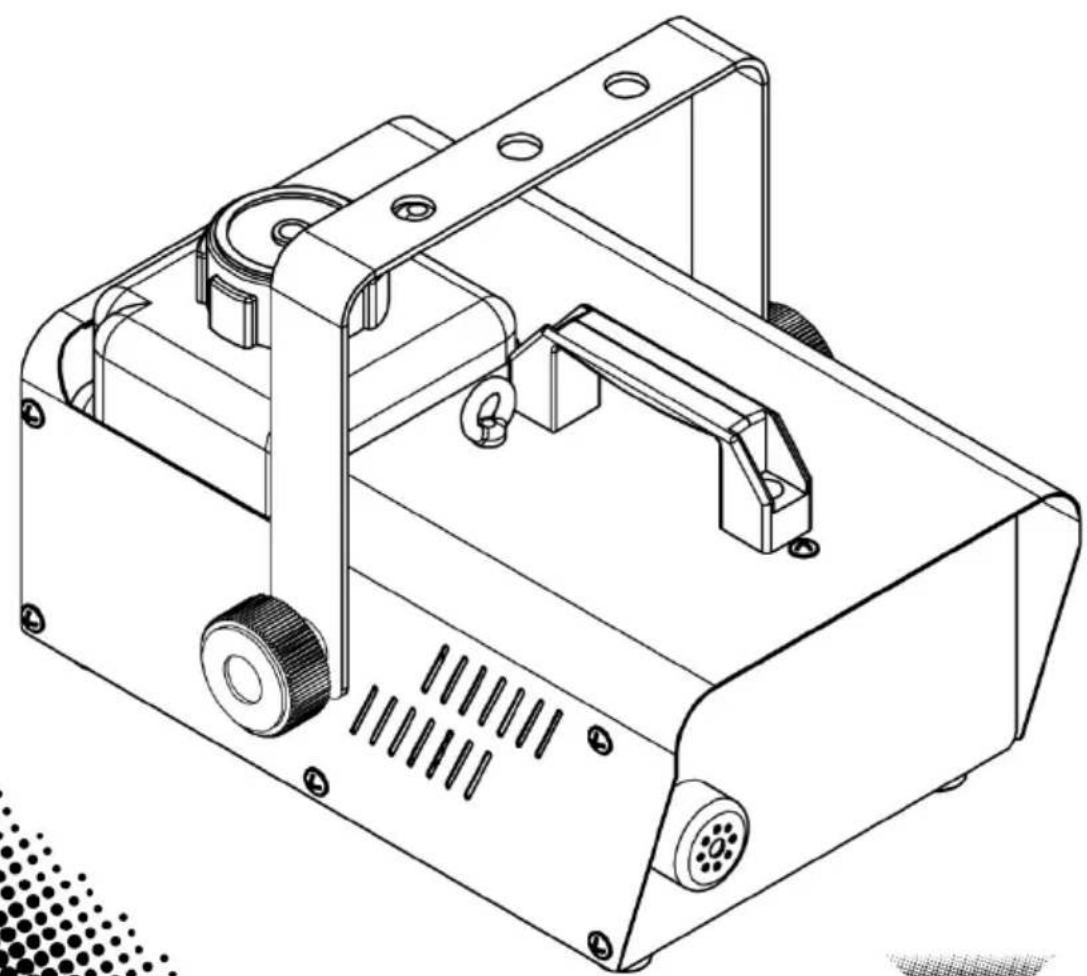

Technical line drawing of a mechanical device with mounting brackets and internal components (no text or symbols)

CHAVET ^®

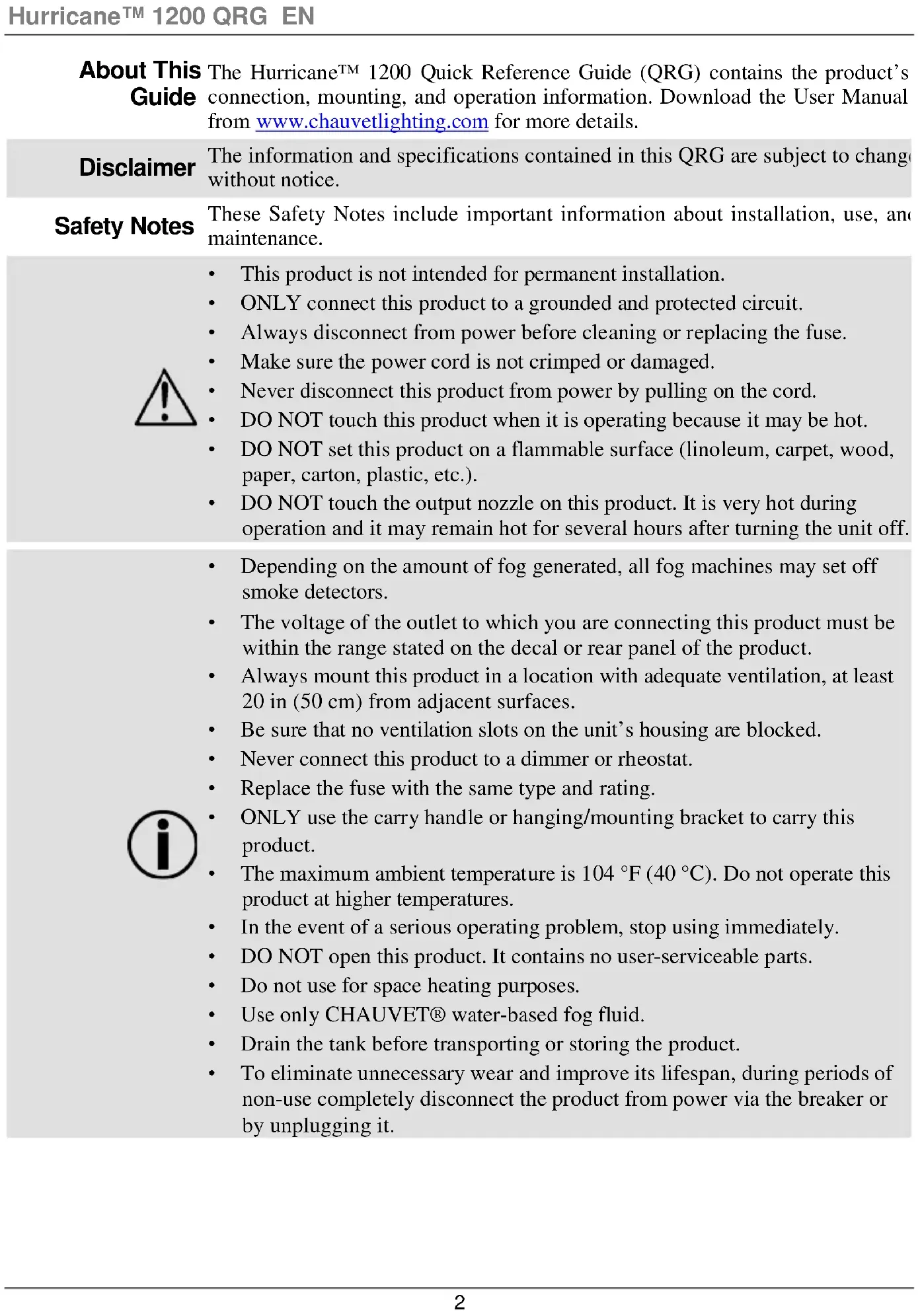

About This Guide

The Hurricane™ 1200 Quick Reference Guide (QRG) contains the product's connection, mounting, and operation information. Download the User Manual from www.chauvetlighting.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• Always disconnect from power before cleaning or replacing the fuse.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• DO NOT touch this product when it is operating because it may be hot.
- DO NOT set this product on a flammable surface (linoleum, carpet, wood, paper, carton, plastic, etc.).
- DO NOT touch the output nozzle on this product. It is very hot during operation and it may remain hot for several hours after turning the unit off.

• Depending on the amount of fog generated, all fog machines may set off smoke detectors.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
  • Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• ONLY use the carry handle or hanging/mounting bracket to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
  • In the event of a serious operating problem, stop using immediately.
  • DO NOT open this product. It contains no user-serviceable parts.
  • Do not use for space heating purposes.
  • Use only CHAUVET® water-based fog fluid.
• Drain the tank before transporting or storing the product.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via the breaker or by unplugging it.

Contact Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. Visit www.chauvetlighting.com for contact information.

What is • Hurricane™ 1200

- Warranty Card

Included • FC-T Timed Remote Control

- Quick Reference Guide

To Begin Unpack your Hurricane™ 1200 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

Remote or Manual Operation The Hurricane™ 1200 can be operated manually by pressing the manual fog button located at the rear of the machine, or with the included timer remote control (FC-T). Two other remote controls are also available as options a manual wired remote (FC-M) and a wireless remote (FC-W). Details can be found in the User Manual, available at www.chauvetighting.com.

Description The Hurricane™ 1200 is a lightweight, compact fog machine that creates a smoky atmosphere to enhance any light show.

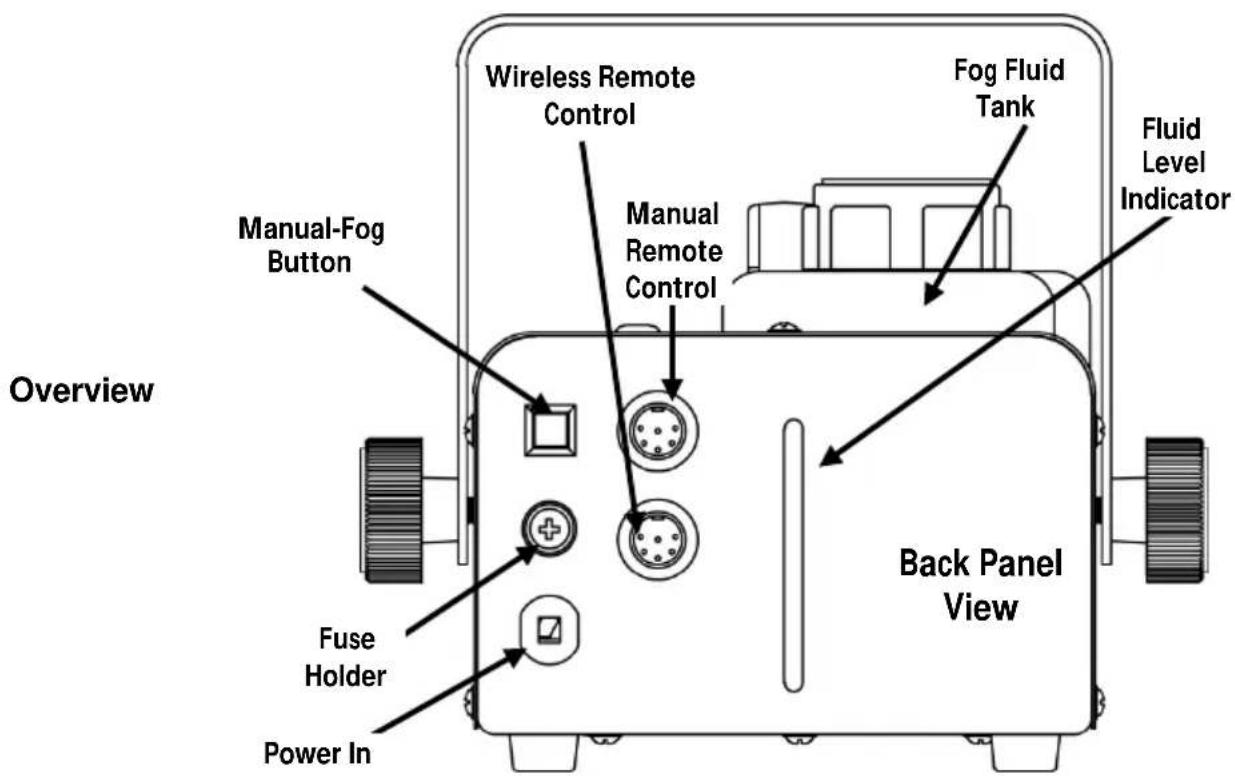

Overview Manual-Fog Button Power In Fuse Holder Manual Remote Control Wireless Remote Control Fog Fluid Tank Fluid Level Indicator Back Panel View

AC Power

This product has a fixed voltage power supply and it can work with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Fuse

1. Disconnect the product from power.
2. Twist the fuse holder cap counterclockwise to loosen the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

Replacement

Fluid Tank Indicator Lights

Indicator LEDs show the status of the fill tank, as follows:

• Red - the heater is currently warming up
- Flashing Red - the heater is currently warming up and requires refilling
• Blue - the hazer is ready
- Flashing Blue - the heater is warmed but the fluid tank requires refilling

FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Hurricane™ 1200. Make sure you use FCQ regularly, no longer than 90 days between cleanings, to increase the life of your product.

Mounting Before mounting this product, read the Safety Notes.

Safety Cable (works with CH-05 from Chauvet) Mounting Bracket Mounting Clamp (such as CLP-15 or CLP-15N clamp from Chauvet) Product Mounting Bracket Nozzle Bracket Adjustment Knob

While operating the Hurricane ^TM 1200, make sure there is adequate fog fluid in the machine to prevent pump and heater damage. When t he fog fluid level becomes low, simply add more fog fluid to continue using the Hurricane ^TM 1200.

This product may NOT be tilted. This product should be level when on a surface or when mounted.

FC-T Remote

The FC-T wired timer controller allows you to automatically trigger fog output by setting interval, continuous, or duration time. LED indicator lights display the machine and controller's current state. Rotary knobs set interval output, and duration times, while manual and continuous buttons allow overriding control. For more information, download the user manual from the Chauvet website www.chauvetlighting.com.

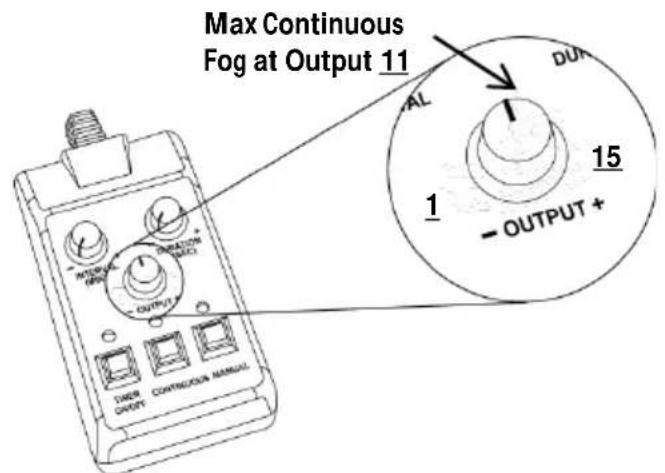

FC-T Remote Overview

Max Continuous Fog at Output 11 15 OUTPUT +

• The duration of Continuous fog output is based on the capacity of the fluid tank and the position of the OUTPUT knob.
• The duration of Manual fog (the default MAX output) is based on the capability of the fog machine. (See the product's User Manual for specifications)
• Fluid consumption will be significantly increased during Continuous Output mode.
  • MAXIMUM Continuous Output setting recommended is 11. All levels above 11, the fogger will cycle itself with intermittent bursts of fog during the reheat program.
