USER MANUAL EVE TF20X Chauvet

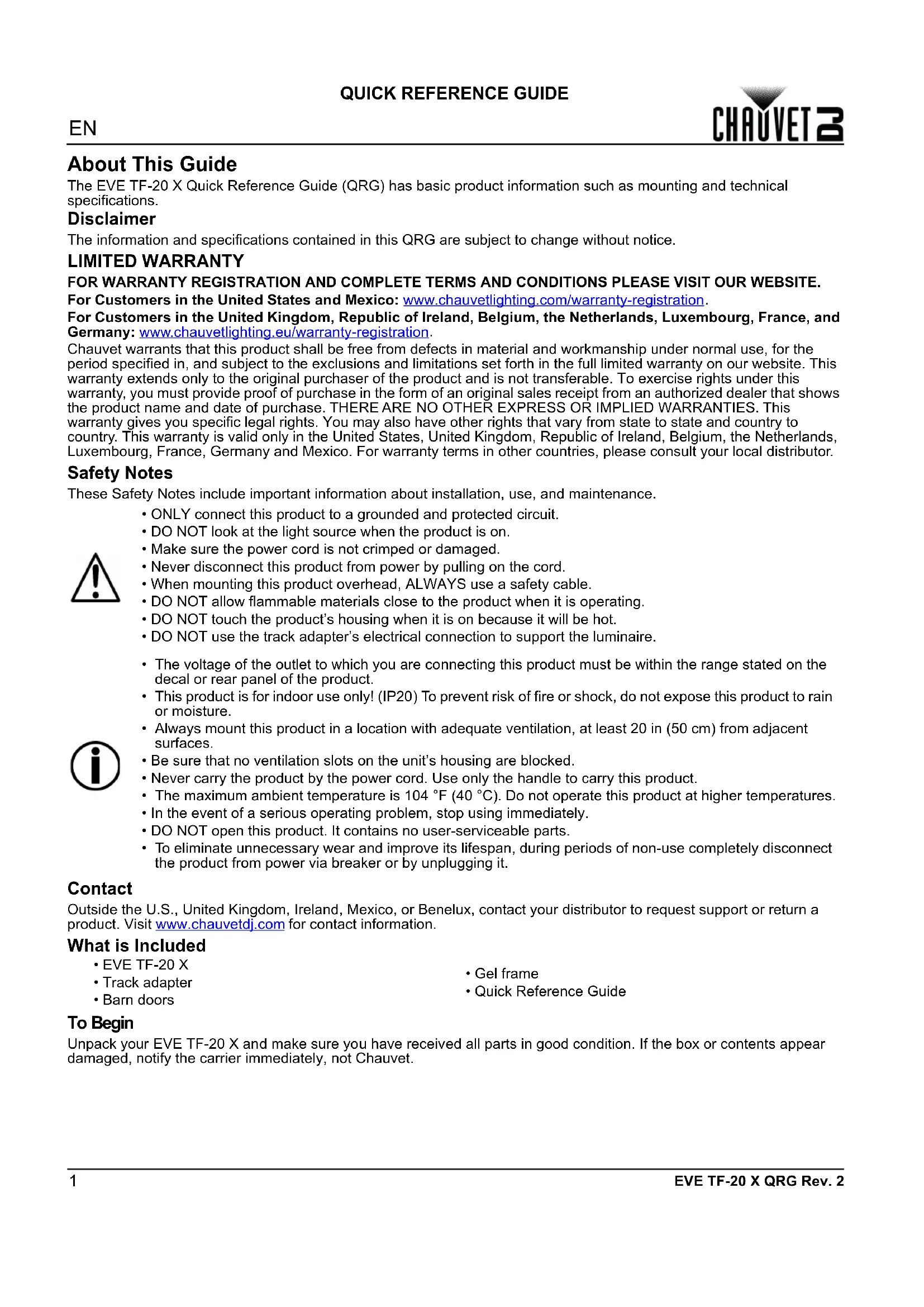

EVE TF-20 X QRG Rev. 2 About This Guide The EVE TF-20 X Quick Reference Guide (QRG) has basic product information such as mounting and technical specifications. Disclaimer The information and specifications contained in this QRG are subject to change without notice. LIMITED WARRANTY FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor. Safety Notes These Safety Notes include important information about installation, use, and maintenance. Contact Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. Visit www.chauvetdj.com for contact information. What is Included To Begin Unpack your EVE TF-20 X and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

• ONLY connect this product to a grounded and protected circuit.

• DO NOT look at the light source when the product is on.

• Make sure the power cord is not crimped or damaged.

• Never disconnect this product from power by pulling on the cord.

• When mounting this product overhead, ALWAYS use a safety cable.

• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product’s housing when it is on because it will be hot.

• DO NOT use the track adapter’s electrical connection to support the luminaire.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.

• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• Be sure that no ventilation slots on the unit’s housing are blocked.

• Never carry the product by the power cord. Use only the handle to carry this product.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

• In the event of a serious operating problem, stop using immediately.

• DO NOT open this product. It contains no user-serviceable parts.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

EVE TF-20 X QRG Rev. 2

QUICK REFERENCE GUIDE

Product Description The EVE TF-20 X is a high-powered, compact, and track-adaptable fresnel luminaire capable of running on a dimmer or rheostat. Overview Dimensions AC Power This product has a fixed voltage power supply, and it can work with an input voltage of either 120 VAC, 60 Hz or 220 VAC, 50 Hz, depending on the specific model. AC Plug This product can be connected to a dimmer or rheostat, by plugging in to a standard outlet controlled by a dimmer or rheostat, or by splicing the power cable and connecting to the included track adapter. To eliminate wear and improve its lifespan, during periods of disuse completely disconnect the product from power via breaker or by unplugging it. Connection Wire (U.S.) Wire (Europe) Screw Color AC Live Black Brown Yellow/Brass AC Neutral White Blue Silver AC Ground Green/Yellow Green/Yellow Green/Silver Splicing to a commercial track lighting or dimmer setup should be completed by a licensed professional. Mounting hole Barn doors Barn door attachment clip Power cable

EVE TF-20 X QRG Rev. 2 Track Adapter Before mounting this product, read the Safety Notes. To splice the included Track Adapter onto the EVE TF-20 X:

1. Cut the power cable, leaving 1.5 feet for maneuverability.

2. Strip enough of the cable and wires to allow for splicing.

3. Dismantle the Track Adapter:

4. Pass the cable through each piece and the mounting bracket, as shown in the diagram below.

EVE TF-20 X QRG Rev. 2

QUICK REFERENCE GUIDE

5. Splice to the Track Adapter as shown in the diagram below.

6. Secure the Track Adapter to the mounting bracket using the hollow bolt and nut(s), and reassemble it.

Clamp Mounting Before mounting this product, read the Safety Notes. Clamp Mounting Diagram Splice Wires (with included crimp connectors) Neutral Ground Live Splice Wires (with screws) Neutral Ground Live 120 VAC 220 VAC Safety Cable (such as CH-05 from Chauvet) Mounting Clamp (such as CLP-15N from Chauvet) Mounting Bracket5

EVE TF-20 X QRG Rev. 2 Technical Specifications Dimensions and Weight Note: Dimensions in inches are rounded. Power Light Source Photometrics Thermal Ordering Length Width Height Weight

7.9 in (201.5 mm) 4.8 in (123 mm) 3.4 in (87.8 mm) 2 lb (0.9 kg)
