Product type	Portable LED follow spotlight
Brand	Chauvet
Model	LED Followspot 120ST
Category	Light
Power supply	100-240 VAC, 50/60 Hz (universal power supply)
Lamp type	Multi-colored LED (cool white, warm white, yellow, violet, green, red, light blue, orange)
Control	DMX (3 channels) and manual (panel buttons)
Functions	Smooth dimming, electronic strobe, color selection, master/slave mode
DMX connectivity	DMX input/output
DMX address	Configurable from 001 to 512
Included	Spotlight, tripod, power cable, reference manual, warranty card
Safety	Indoor use (IP20), mounting with safety cable, do not look at the light source, minimum distance 50 cm from surfaces, do not use with dimmer/rheostat
Max. ambient temperature	40 °C (104 °F)
Maintenance	Unplug before cleaning; replace fuse with one of same type and rating
Fuse	Replace with equivalent fuse (refer to label)
Usage	Shows, events, temporary installations

Frequently Asked Questions - LED Followspot 120ST Chauvet

How to set the DMX address on the LED Followspot 120ST?

Press the Menu button until 'DMX Address' is displayed. Use the + and - buttons to select an address between 001 and 512. Confirm with the Enter button.

How to replace the fuse?

Unplug the device. Using a flathead screwdriver, pry out the fuse holder, remove the old fuse and replace it with a fuse of the same type and rating. Reinsert the fuse holder.

Can I use the spotlight outdoors?

No, the device is designed for indoor use only (IP20). Do not expose it to rain or moisture.

How to clean the device?

Always unplug the device before cleaning. Use a soft, dry cloth. Do not use liquid or abrasive products.

What is the maximum projection distance?

The projection distance depends on the beam angle and desired intensity. Consult the user manual for detailed specifications.

How to switch to manual mode?

Press the Menu button and navigate to the 'Manual Mode' option (displayed as 'NAn'). Confirm with Enter to switch to manual mode.

What to do if the spotlight does not turn on?

Check the power connection and the fuse. Ensure the power switch is in the 'ON' position. If the problem persists, contact technical support.

How to use master/slave mode?

Connect multiple spotlights in series via DMX. Configure the first as master in manual mode, and the following ones as slave (DMX address set to a specific channel). Refer to the manual.

What colors are available?

The device offers eight colors: cool white, warm white, yellow, violet, green, red, light blue, and orange, selectable via remote control or DMX.

How to attach the spotlight to a truss?

Use the provided hanging yoke and a clamp (such as Chauvet's CLP-15). Always attach a safety cable. For permanent installations, regularly check the attachment points.

USER MANUAL LED Followspot 120ST Chauvet

LED FOLLOWSPOT 120ST

Quick Reference Guide

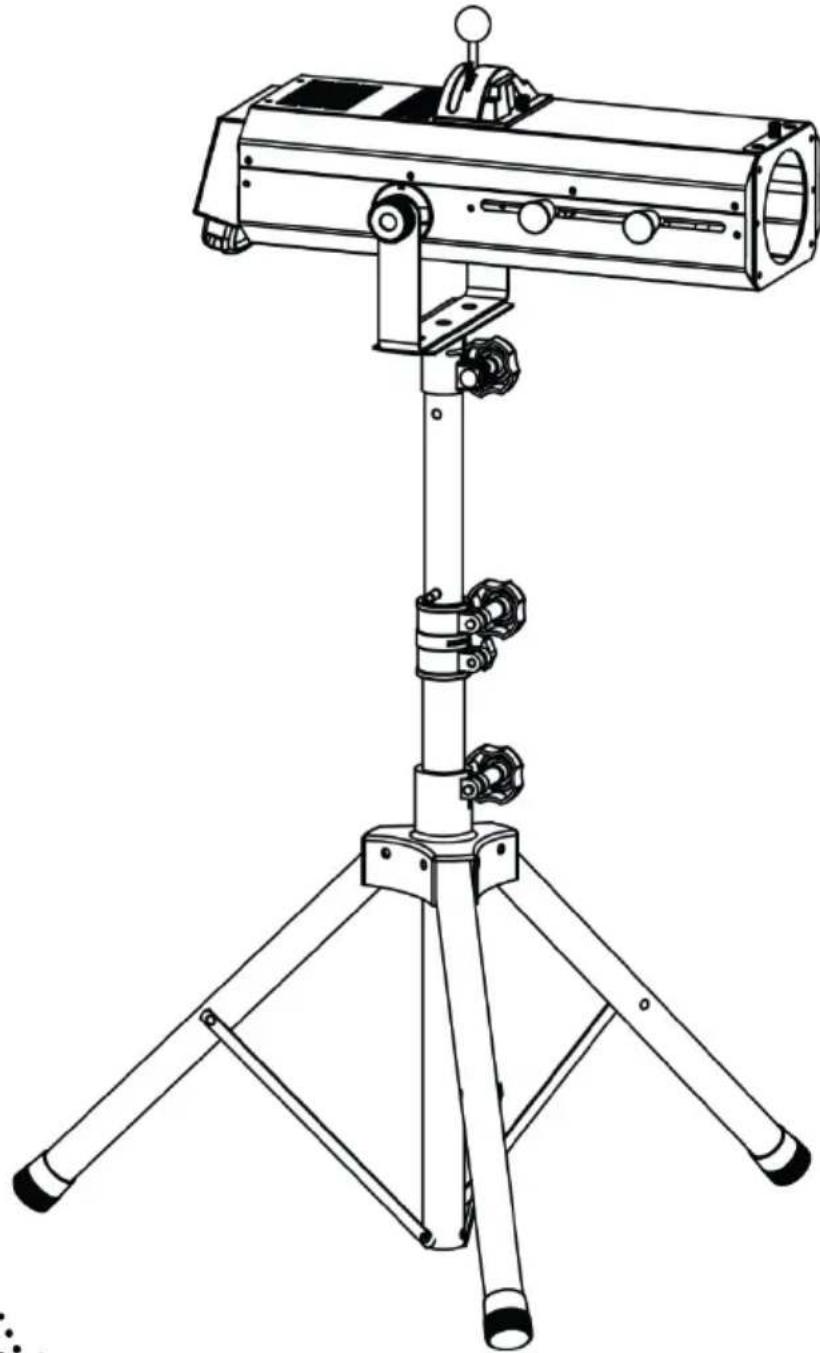

Line drawing of a tripod-mounted optical instrument with adjustable arms and mounting feet (no text or symbols)

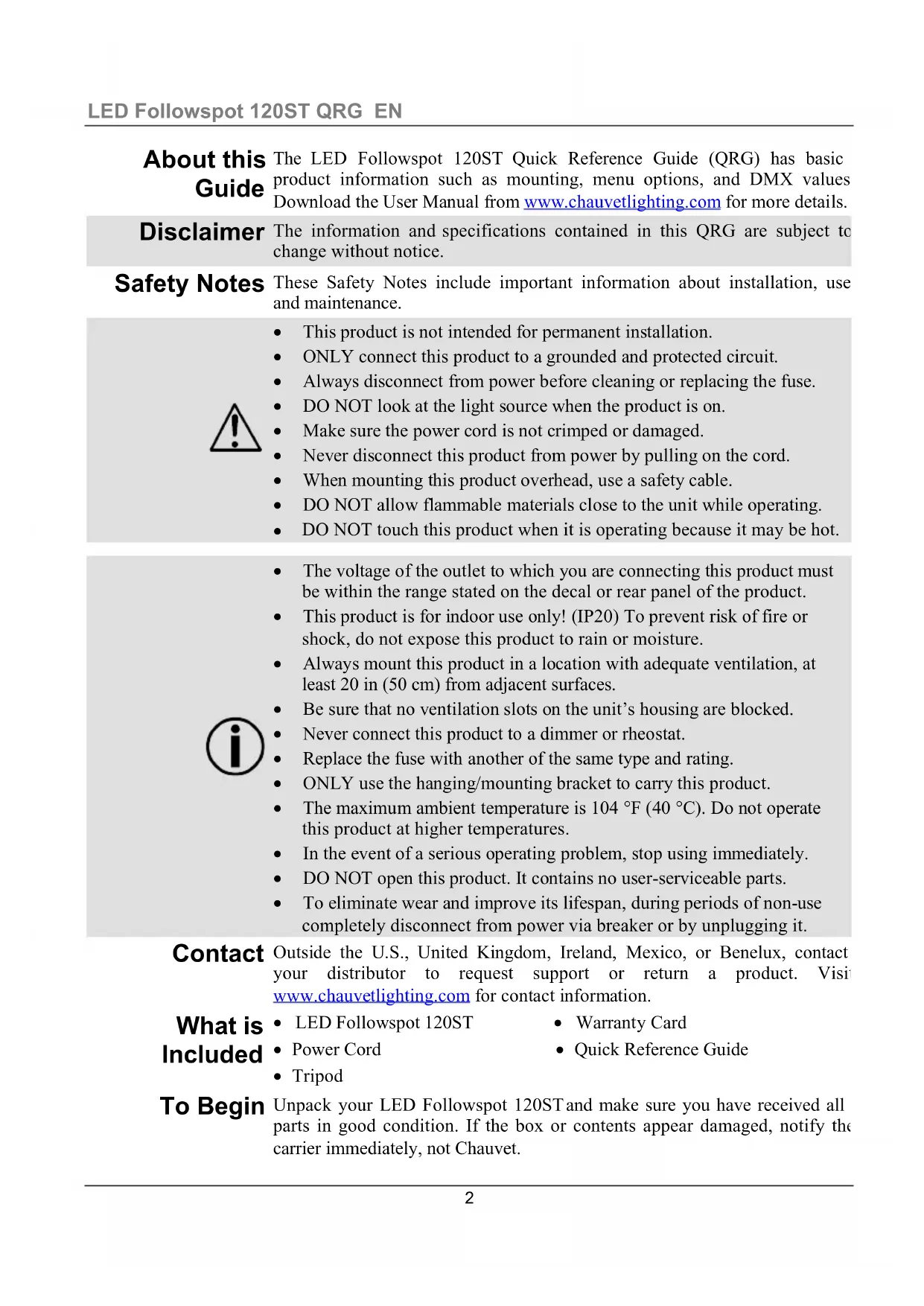

About this Guide

The LED Followspot 120ST Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values Download the User Manual from www.chauvetlighting.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

These Safety Notes include important information about installation, use and maintenance.

• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• Always disconnect from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
- Never disconnect this product from power by pulling on the cord.
- When mounting this product overhead, use a safety cable.
• DO NOT allow flammable materials close to the unit while operating.
• DO NOT touch this product when it is operating because it may be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
  • Never connect this product to a dimmer or rheostat.
• Replace the fuse with another of the same type and rating.
  • ONLY use the hanging/mounting bracket to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
  • In the event of a serious operating problem, stop using immediately.
  • DO NOT open this product. It contains no user-serviceable parts.
• To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. Visi www.chauvetlighting.com for contact information.

What is Included

• LED Followspot 120ST
- Warranty Card
- Power Cord
- Quick Reference Guide
- Tripod

To Begin

Unpack your LED Followspot 120ST and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

Description

The LED Followspot 120ST is a portable, LED-powered fixture that offers DMX or manual controls to suit a variety of needs. Super smooth LED dimming and an extremely fast electronic strobe makes it a fantastic beam for any performance.

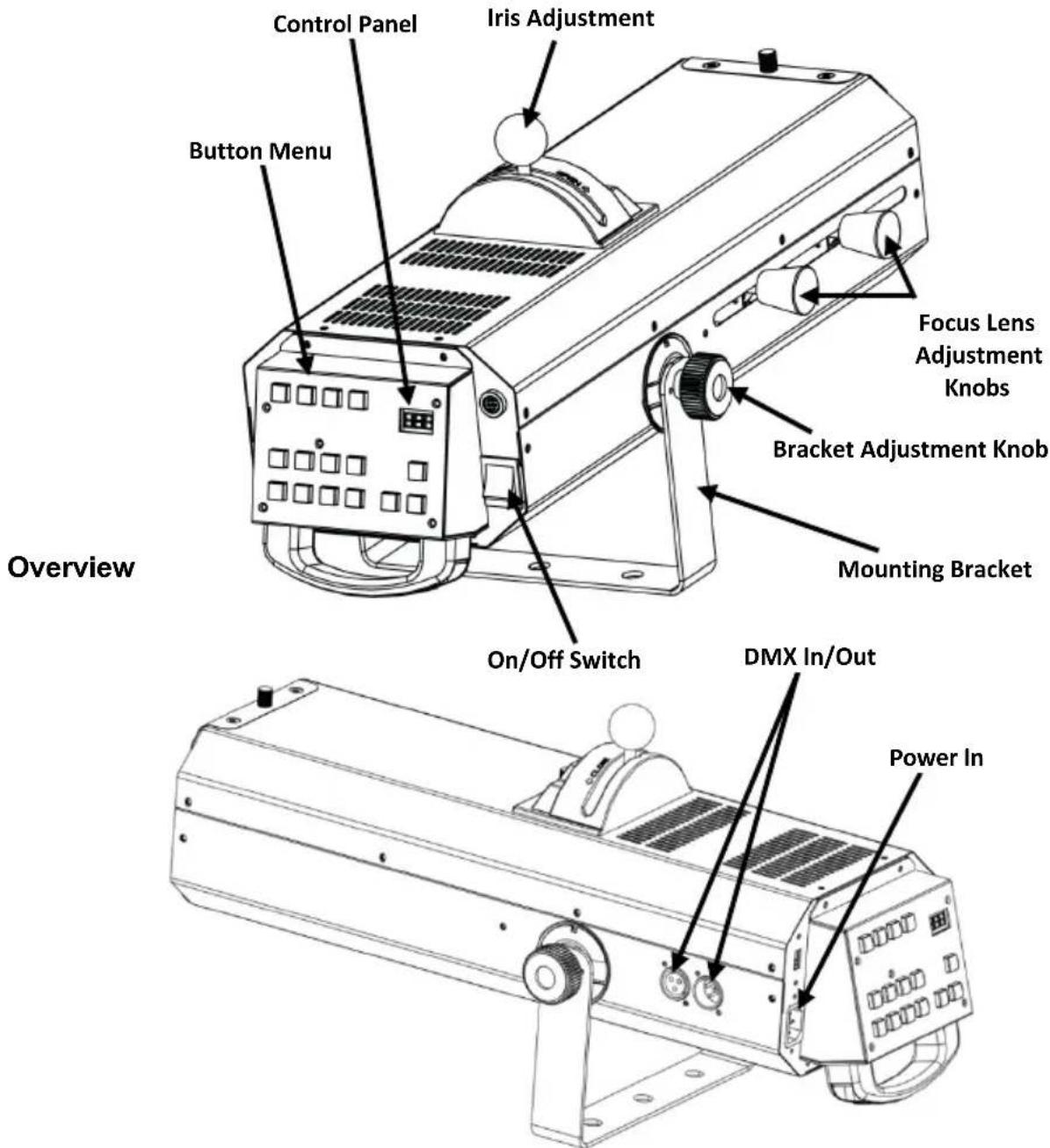

Control Panel Iris Adjustment Button Menu Focus Lens Adjustment Knobs Bracket Adjustment Knob Mounting Bracket Overview On/Off Switch DMX In/Out Power In

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Replacement

1. Disconnect the product from power.
2. Using a flat-head screwdriver, loosen the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

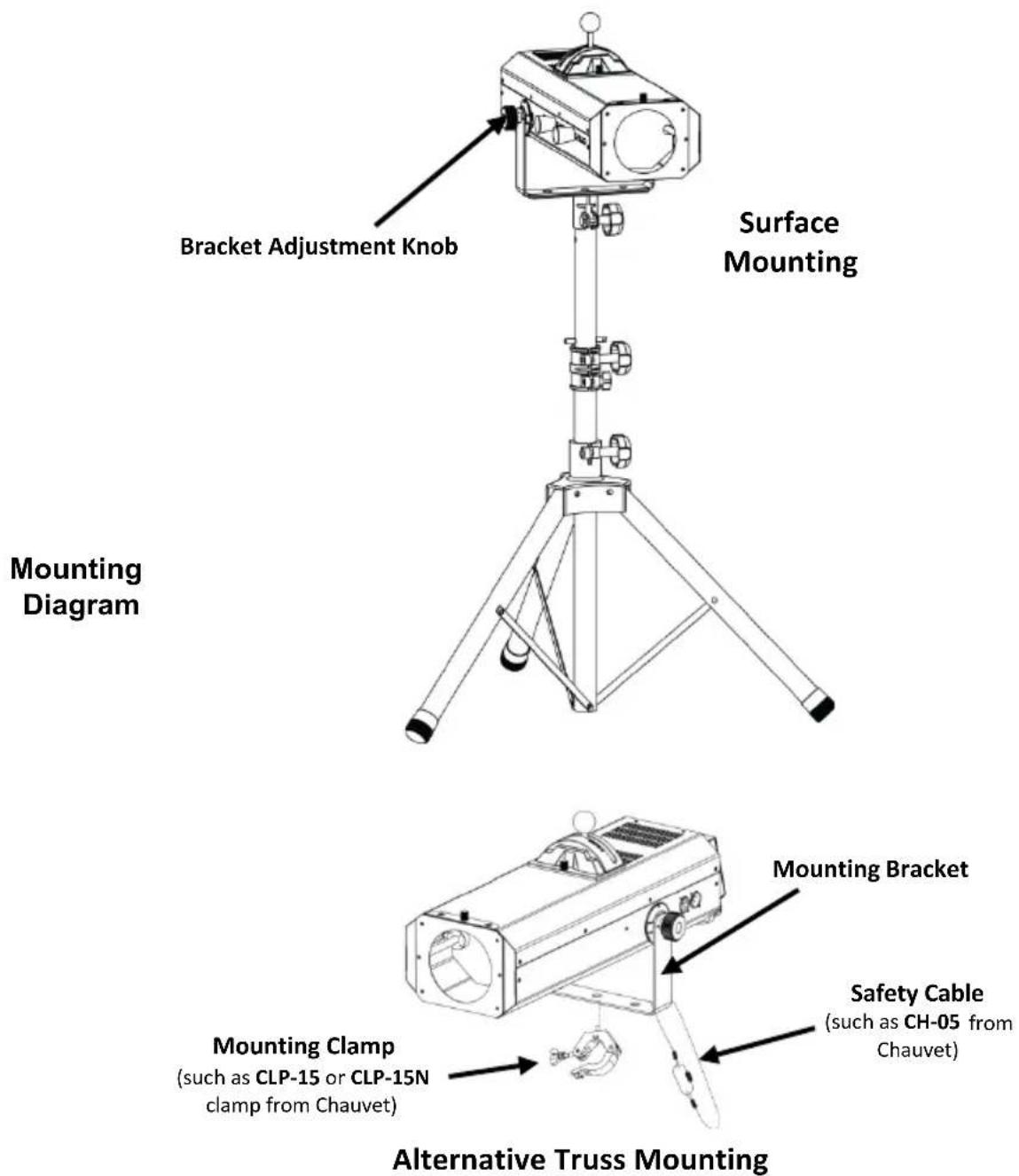

Mounting Before mounting this product, read the Safety Notes and refer to the user manual.

Bracket Adjustment Knob Surface Mounting Mounting Diagram Mounting Bracket Mounting Clamp (such as CLP-15 or CLP-15N clamp from Chauvet) Safety Cable (such as CH-05 from Chauvet) Alternative Truss Mounting

The alternative truss mounting is recommended for static installation only. While using the truss mounting, be sure to continuously check and secure the rigging points, especially if repositioning the LED Followspot 120ST.

Programming For details on how to program this product, please refer to the product's User Manual.

Control Panel Description	Button Function
		Turns power on and off
		Opens dimmer to a maximum of 100% (hold to raise percentage)
		Closes dimmer to a minimum of 0 (hold to lower percentage)
		Turns LED on (default setting)
		Turns LED off
		Projects orange color
		Projects cyan color
		Projects red color
		Projects green color
		Projects magenta color
		Projects yellow color
		Projects warm white color
		Projects cool white light
		Selects manual or DMX mode
		In DMX mode, moves channel number up
		In DMX mode, moves channel number down

Menu Options

Main Level	Programming Levels		Description
Manual Mode	NAn		Selects Manual mode
DMX Address	001	001–512	Sets the DMX starting address

DMX Linking

The LED Followspot 120ST can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetlighting.com.

Starting To ensure full access to all channels in each DMX mode, the highest Address recommended DMX address is 510.

Master/Slave Connection The LED Followspot 120ST uses the DMX data connection for its Master/Slave mode. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.

DMX Values

3-CH	Channel	Function	Value	Percent/Setting
	1	Dimmer	000 ⇔ 255	0–100%
	2 Color		000 ⇔ 031	Cool White
			032 ⇔ 063	Warm white
			064 ⇔ 095	Yellow
			096 ⇔ 127	Purple
			128 ⇔ 159	Green
			160 ⇔ 191	Red
			192 ⇔ 223	Light blue
			224 ⇔ 255	Orange
	3 Strobe		000 ⇔ 003	No function
			004 ⇔ 007	Open
			008 ⇔ 215	Strobe, slow to fast
			216 ⇔ 255	Open
