USER MANUAL Cast Panel Pack Chauvet

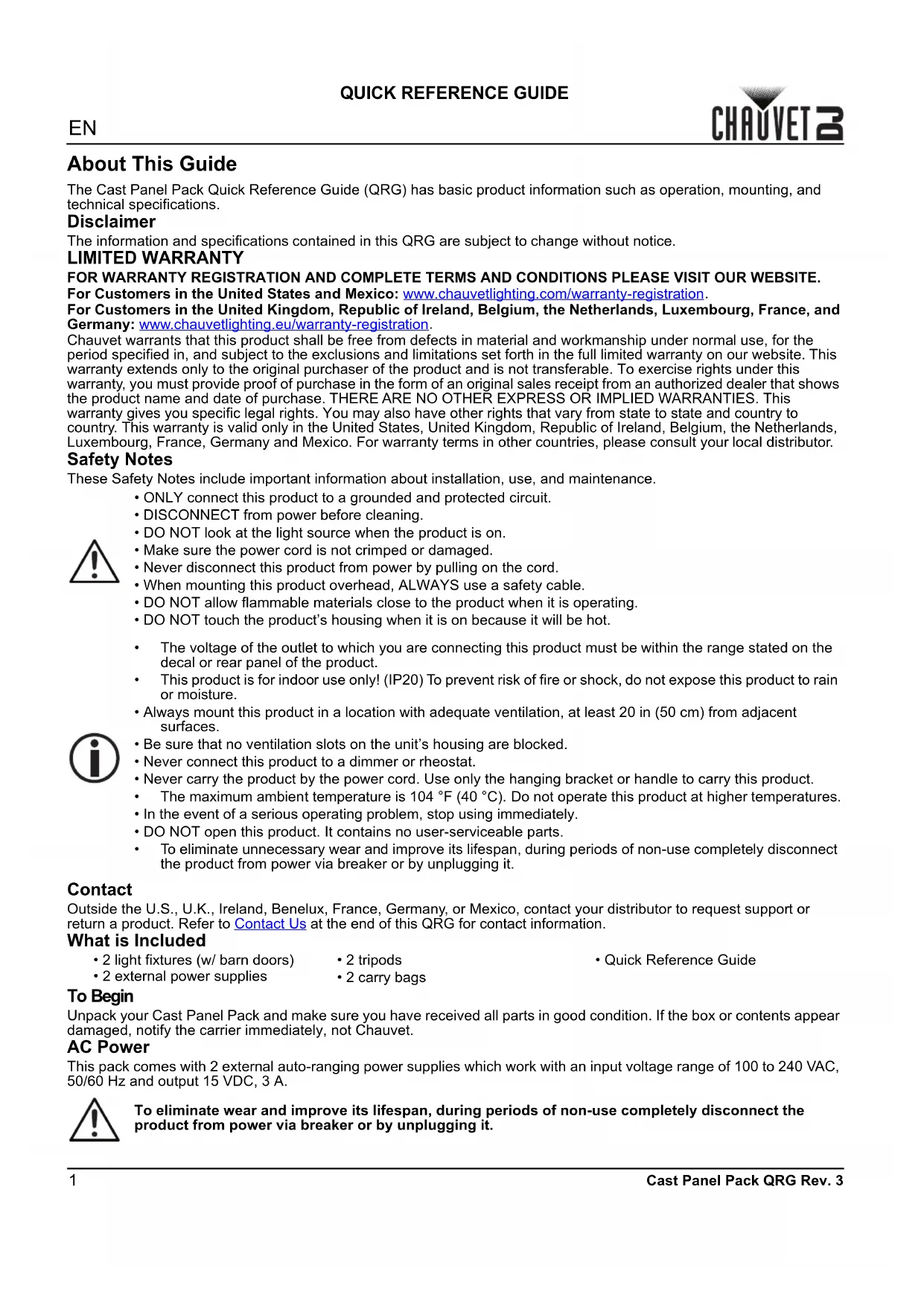

Cast Panel Pack QRG Rev. 3 About This Guide The Cast Panel Pack Quick Reference Guide (QRG) has basic product information such as operation, mounting, and technical specifications. Disclaimer The information and specifications contained in this QRG are subject to change without notice. LIMITED WARRANTY FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor. Safety Notes These Safety Notes include important information about installation, use, and maintenance. Contact Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information. What is Included To Begin Unpack your Cast Panel Pack and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet. AC Power This pack comes with 2 external auto-ranging power supplies which work with an input voltage range of 100 to 240 VAC, 50/60 Hz and output 15 VDC, 3 A.

• ONLY connect this product to a grounded and protected circuit.

• DISCONNECT from power before cleaning.

• DO NOT look at the light source when the product is on.

• Make sure the power cord is not crimped or damaged.

• Never disconnect this product from power by pulling on the cord.

• When mounting this product overhead, ALWAYS use a safety cable.

• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product’s housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.

• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• Be sure that no ventilation slots on the unit’s housing are blocked.

• Never connect this product to a dimmer or rheostat.

• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

• In the event of a serious operating problem, stop using immediately.

• DO NOT open this product. It contains no user-serviceable parts.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

• 2 light fixtures (w/ barn doors)

• 2 external power supplies

• Quick Reference Guide To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.EN

Cast Panel Pack QRG Rev. 3

QUICK REFERENCE GUIDE

DC Power This product is compatible with Sony NP-F series batteries. Product Overview Control Panel Description IRC-6 Control The Cast Panel is compatible with the IRC-6 remote from Chauvet: Switch/Knob Function Mode switch Left: custom mix mode (use knobs 1 and 2), Right: preset color temperature mode (use knob 3) Knob 1 Warm white (custom mix mode only) Knob 2 Cool white (custom mix mode only) Knob 3 Preset color temperature, low to high (preset color temperature mode only) Power switch Left: power supplied by battery, Middle: off, Right: power supplied by mains Turns LEDs off/on Decreases strobe rate, dimmer, or color value Disables IRC function, enables control knobs on product 2700K white Activates/deactivates strobe (Use <+> and <-> to set speed) 3200K white Selects dimmer control (Use <+> and <-> to set value) 4000K white Enables manual color control (<A> and <W>) 5600K white Selects warm white LED control (Use <+> and <-> to set value) 6000K white Selects cool white LED control (Use <+> and <-> to set value) 7000K white Increases strobe rate, dimmer, or color value 8000K white : No function with the Cast Panel Battery slot (x2) Barn door LED indicator Mode switch Knob 1 Knob 2 Knob 3 Power switch DC power in BLACK OUT AUTO SOUNDSENSI-TIVITYSPEEDSTROBE MANUAL FADE RGB WUVA + 0

Cast Panel Pack QRG Rev. 3 Mounting Before mounting with this product, read the Safety Notes. Mounting Diagram Tripod mounting knob Height adjustment knobs Leg adjustment knobEN

Cast Panel Pack QRG Rev. 3

QUICK REFERENCE GUIDE

Technical Specifications Dimensions and Weight Note: Dimensions in inches are rounded. Power Light Source Photometrics Thermal Ordering Length Width Height Cast Panel Weight

9.4 in (238 mm) 8.6 in (218 mm) 1.9 in (48 mm) 3.4 lb (1.6 kg)
