USER MANUAL CH03 Chauvet

QUICK REFERENCE GUIDE

About This Guide The CH-03 Quick Reference Guide (QRG) has basic product information on how to use your new stand. Disclaimer The information and specifications contained in this QRG are subject to change without notice. Safety Notes These Safety Notes include important information about installation, use, and maintenance. Contact Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. Visit www.chauvetdj.com for contact information. What is Included

• CH-03 (w/ T-Bar)• Warranty Card• Quick Reference Guide• ONLY connect this product to a grounded and protected circuit.• This product is not intended for permanent installation.• This product should be assembled only by trained professionals.• Be sure to assemble this product using all the parts included.
• Do not use this stand for a load that exceeds the maximum weight capacity in this document, or on the label on the product.• Do not use the product if any of the following conditions exist: welded joints are cracked or compromised horizontal rungs, T-bar, or diagonals are dented or damaged tripod, junctions, connectors, or quick release pins are bent the product has been dropped• Do not drag the product over the floor or other objects.• Place sand bags over the lower cross bars for increased stability of the product. The maximum, evenly distributed, load capacity for the CH-03 is 110 lb (50 kg). Be sure to follow all instructions and cautionary statements that may accompany any additional items you obtain.

CH-03 QRG Rev. 1 To Begin Carefully unpack the product and check that all the parts are in the package, and are in good condition. If the box, or any of the contents, appear damaged from shipping, or show signs of mishandling, save all packaging and file a claim with the carrier immediately. Do not notify Chauvet. Failure to report damage to the carrier immediately, or failure to have all packaging available for inspection, could invalidate your claim. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet. Assembly Instructions Step 1 Step 2 02loading-circle-1loading-circle-1EN

CH-03 QRG Rev. 1 Step 7ES

CH-03 GRR Rev. 1 Step 3 Step 4ES

CH-03 GRR Rev. 1 Step 6ES

CH-03 MdR Rev. 1 Step 5FR

CH-03 MdR Rev. 1 Step 7DE

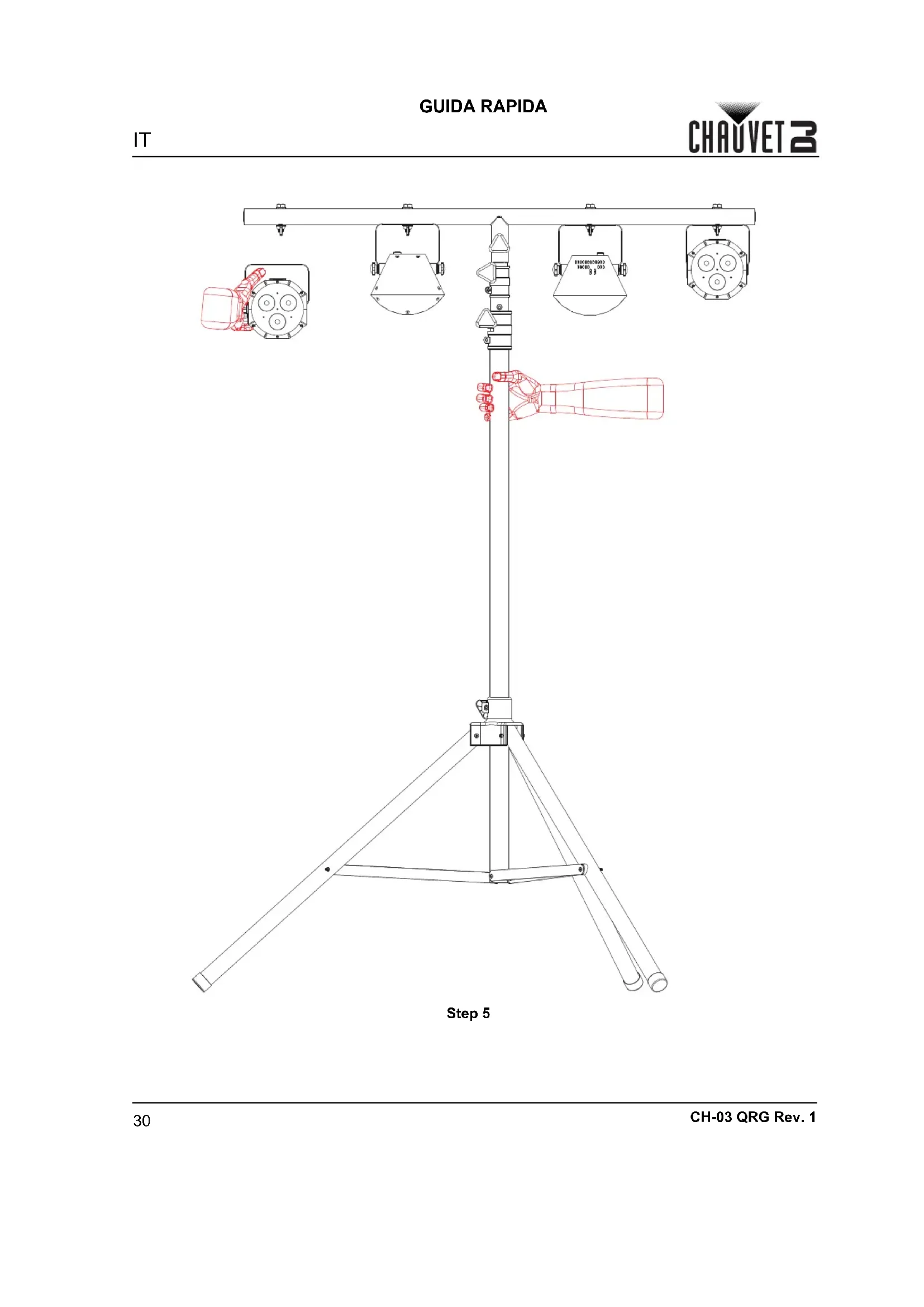

GUIDA RAPIDA CH-03 QRG Rev. 1 Step 5IT

CH-03 QRG Rev. 1 GUIDA RAPIDA Step 632

GUIDA RAPIDA CH-03 QRG Rev. 1 Step 7NL

CH-03 QRG Rev. 1 BEKNOPTE HANDLEIDING Step 3 Step 436

BEKNOPTE HANDLEIDING CH-03 QRG Rev. 1 Step 5NL

CH-03 QRG Rev. 1 BEKNOPTE HANDLEIDING Step 638

BEKNOPTE HANDLEIDING CH-03 QRG Rev. 1 Step 7EN
