EZBar - Lamp Chauvet - Free user manual and instructions

Product Type	Portable LED Lamp
Brand	Chauvet
Model	EZBar
Dimensions	358 x 127 x 106 mm (14 x 5 x 4 in)
Weight	1.9 kg (4.2 lb)
Power Supply	External power supply 100-240 VAC, 50/60 Hz, output 15 VDC, 1.6 A
Battery Power	Built-in rechargeable lithium-ion battery, up to 8 hours battery life, 7.5 hours charging time
Light Source	3 warm white LEDs, 5 W each, 50,000 hours lifespan
Beam Angle	5°
Field Angle	10°
Illuminance at 2 m	3,900 lux
Remote Control	Compatible with IRC-6 (infrared)
Functions	Built-in dimmer, on/off switch, battery life indicator
Mounting	Magnetic base, microphone stand thread (3/8"-16 and 5/8"-27 tpi), safety loop
Included Accessories	External power supply, IRC-6 remote control, 10° and 25° diffusers
Protection Rating	IP20 (indoor use only)
Max Ambient Temperature	40 °C (104 °F)
Cooling System	Natural convection
Warranty	Limited warranty (see Chauvet website for full terms)
Power Consumption	19 W (120 V) / 18 W (230 V)
Operating Current	0.3 A (120 V) / 0.2 A (230 V)
UPC Code	781462218089

Frequently Asked Questions - EZBar Chauvet

What is the battery life of the EZBar?

The maximum battery life is 8 hours after a full charge. Charging time is about 7.5 hours.

How to charge the battery of the EZBar?

Use the provided external power supply (15 VDC, 1.6 A) and plug it into the DC input of the device. The charging indicators are red during charging and green once the battery is full. Avoid charging in a closed container and do not exceed 24 hours of charging.

Can I use the EZBar while it is plugged into mains?

Yes, the EZBar can operate on mains while charging the battery. Make sure the input voltage is between 100 and 240 VAC.

How to mount the EZBar on a microphone stand?

The device has a microphone stand thread with 3/8"-16 tpi (European) and 5/8"-27 tpi (USA) standards. Simply screw the stand into the microphone bracket provided. Do not insert anything other than a microphone stand to avoid damaging the product.

Can I use the IRC-6 remote control with the EZBar?

Yes, the EZBar is compatible with the IRC-6 remote control from Chauvet. The usable buttons are: <%> for the dimmer, ON/OFF to turn the LEDs on/off, and the battery button to display the battery life indicator.

How to clean the EZBar?

Always unplug the device before cleaning. Use a soft, dry cloth. Do not use abrasive products or solvents. Make sure no ventilation slots are blocked.

What are the important safety precautions?

Never expose eyes directly to the light source. Always use a safety cable when mounting overhead. Do not use outdoors (IP20). Ambient temperature must not exceed 40 °C. Do not open the device (no user-serviceable parts).

How to install a diffuser on the EZBar?

Place the diffuser (10° or 25°) on the front of the device, then screw the retaining ring to hold it in place. Remove it by unscrewing the ring.

What to do if the battery does not charge?

If the battery is completely discharged, the device may not turn on immediately after plugging in. Let it charge for a few minutes. If the problem persists, check that the power supply is properly connected and that the ambient temperature is between 0 °C and 35 °C.

Where to find the complete user manual?

The reference manual is available for free download on notice-facile.com in PDF format. You can also visit the Chauvet website for more information.

USER MANUAL EZBar Chauvet

Technical line drawing of three cylindrical mechanical components with mounting brackets (no text or symbols)

Abstract geometric pattern with black and white dots forming a triangular shape (no text or symbols)

CHAUVET3

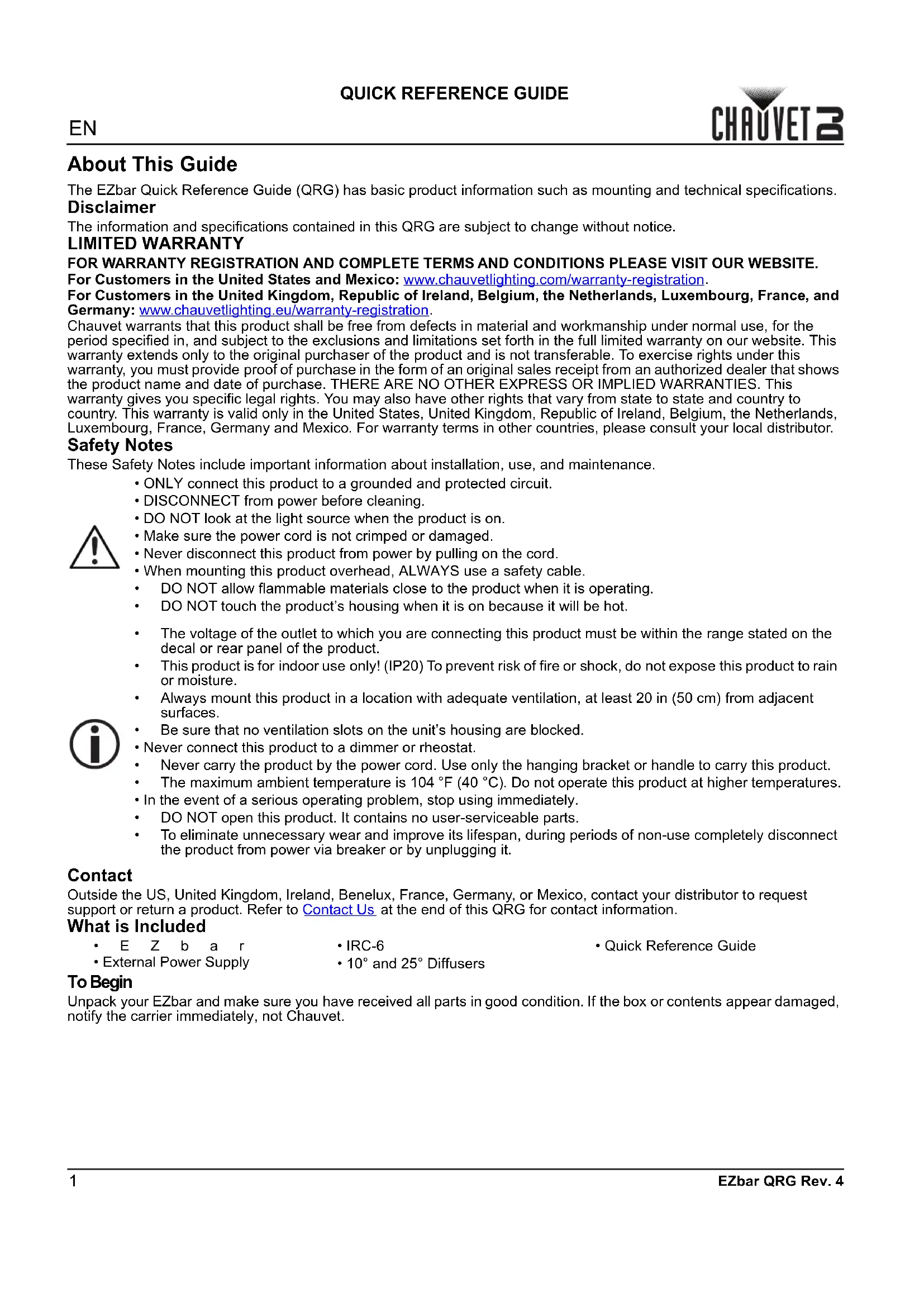

About This Guide

The EZbar Quick Reference Guide (QRG) has basic product information such as mounting and technical specifications.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.

• DO NOT allow flammable materials close to the product when it is operating.

- DO NOT touch the product's housing when it is on because it will be hot.

- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.

• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- Be sure that no ventilation slots on the unit's housing are blocked.

- Never connect this product to a dimmer or rheostat.

• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using immediately.

• DO NOT open this product. It contains no user-serviceable parts.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the US, United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• E Z b a r

• External Power Supply

- IRC-6

- 10^ and 25^ Diffusers

- Quick Reference Guide

To Begin

Unpack your EZbar and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

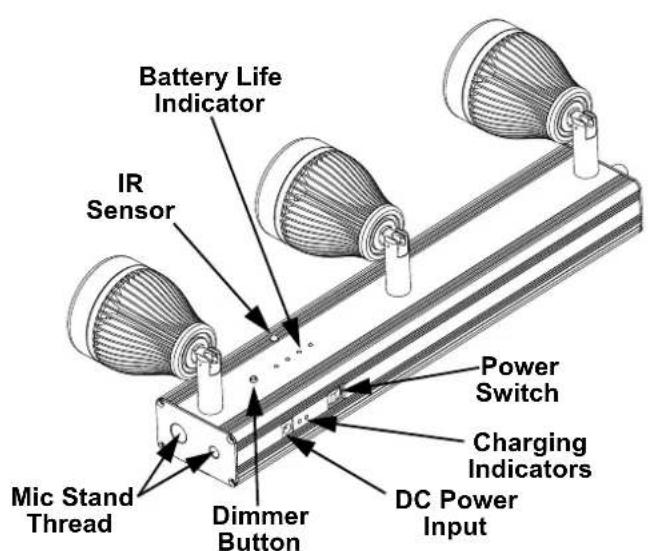

Product Overview

Battery Life Indicator IR Sensor Power Switch Charging Indicators Mic Stand Thread Dimmer Button DC Power Input

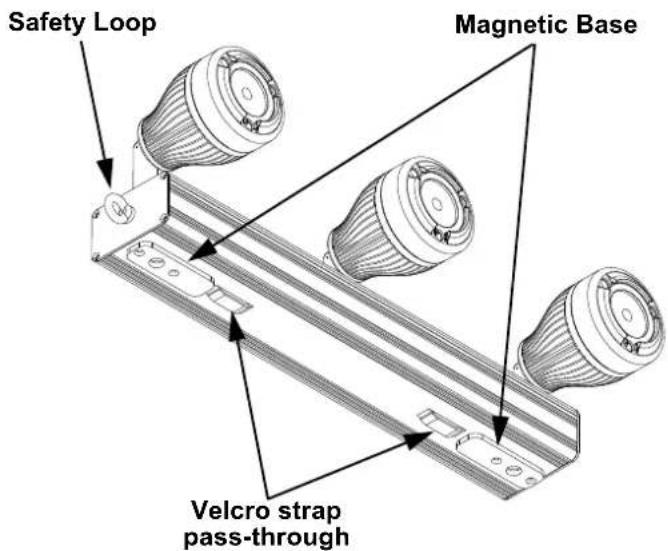

Safety Loop Magnetic Base Velcro strap pass-through

AC Power

This product has an external auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. The output voltage is 15 VDC, 1.6 A.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Battery Power

Each EZbar comes with a rechargeable lithium-ion battery for cable-free operation.

The charging indicators on the EZbar show red when the battery is charging, and green when it is fully charged.

Do not charge the battery in a closed container.

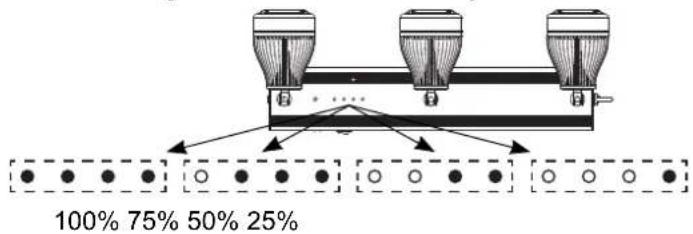

Battery Life Indicator

The battery life indicator shows the remaining amount of internal battery life.

100% 75% 50% 25%

Battery Charge Notes

• Avoid depleting the battery below 10% .
  • For best results, charge the battery in a temperature between 32 °F (0 °C), and 95 °F (35 °C).
• When charging the battery, keep the product at least 1 m from any open flame or hot plate.
• If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.
• While charging, the device may heat up. This is normal and should not affect the device's lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.
• Do not charge the battery in a closed container.
• Do not charge the battery for more than 24 hours.

Battery Run Time

Maximum Run Time Recharge Time

Up to 8 hours 7.5 hours

Mounting

Before mounting this product, read the Safety Notes.

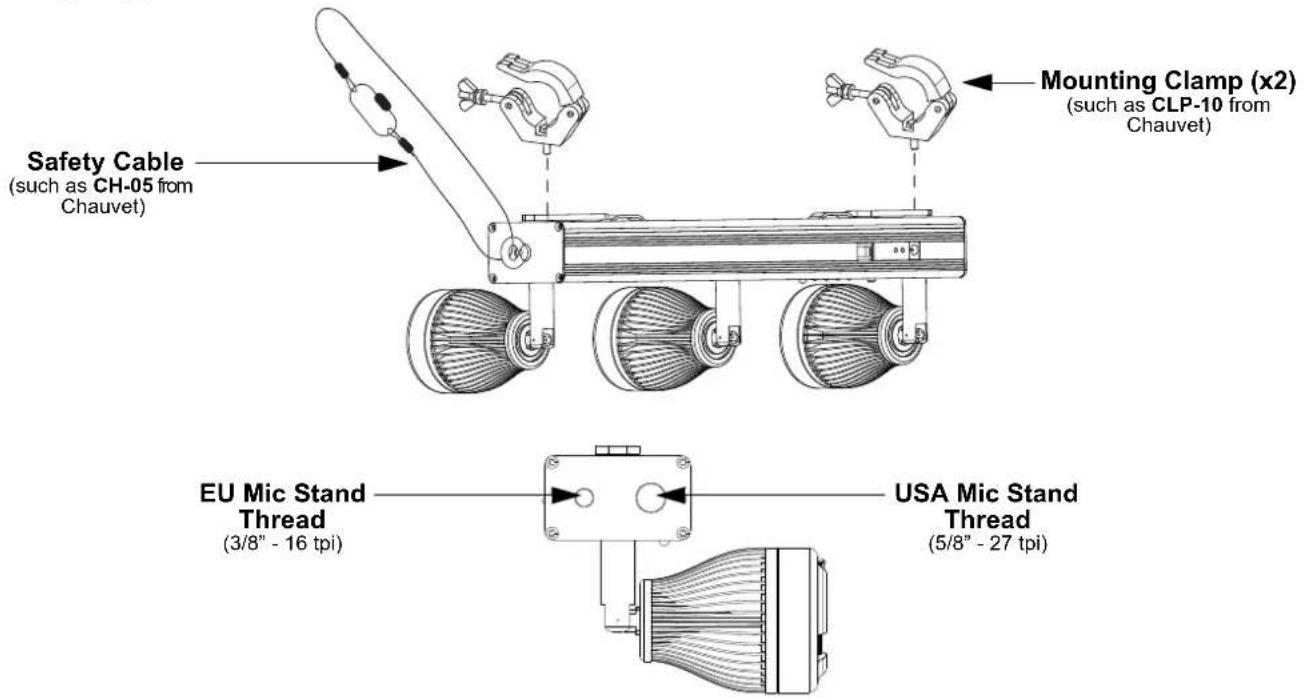

Mounting Diagram

Mounting Clamp (x2) (such as CLP-10 from Chauvet) Safety Cable (such as CH-05 from Chauvet) EU Mic Stand Thread (3/8" - 16 tpi) USA Mic Stand Thread (5/8" - 27 tpi)

DO NOT insert anything other than a microphone stand into the Mic Stand Thread. Doing so may cause damage to the product.

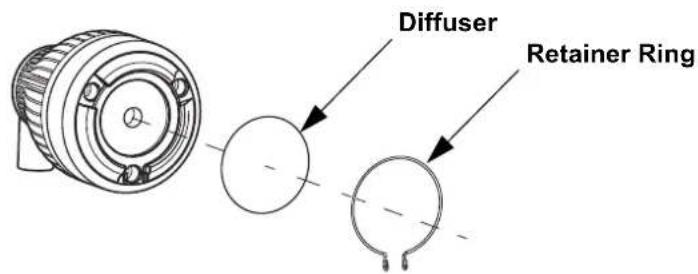

Diffuser Installation

Diffuser Retainer Ring

Manual Dimmer Button

The dimmer value of the EZbar can be controlled with the dimmer button (see the Product Overview). Press it repeatedly to cycle through the preset dimmer values.

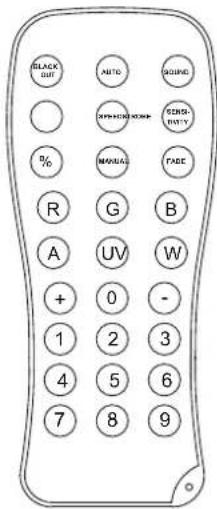

IRC-6 Remote (Infrared Remote Control)

The EZbar can be operated with the CHAUVET IRC-6.

The following IRC-6 buttons are used with the EZbar:

BLACK OUT AUTO SCRING OFF/BACK/WORK GERS/ BUTY % MANUAL FACE R G B A UV W + 0 - 1 2 3 4 5 6 7 8 9

- Turns LED on/off

<%> - Enables dimmer control. Use <+> or <-> to increase or decrease the brightness.

- Turns battery life indicator on/off

Technical Specifications

Dimensions and Weight

Length Width Height Weight

14 in (358 mm) 5 in (127 mm) 4 in (106 mm) 4.2 lb (1.9 kg)

Note: Dimensions in inches are rounded.

Power

Parameter EZpin External Power Supply
Input Voltage Fixed Switching (internal)Range 15 VDC, 1.6 A 100 to 240 VAC, 50/60 Hz
Voltage Selection	Fixed	Auto-ranging
Parameter	120 V, 60 Hz	230 V, 50 Hz
Consumption 19 W	18 W
Operating current	0.3 A	0.2 A

Light Source

Type	Color	Quantity	Power	Current	Lifespan
LED	Warm white	3	5 W	1.3 A	50,000 hours

Photometrics

Beam Angle	Field Angle	Illuminance @ 2 m
5°	10°	3,900

Thermal

Maximum External Temp.	Cooling
104 °F (40 °C)	Convection

Ordering

Product Name	Item Code	UPC Number
EZbar	10061460	781462218089

Acerca de esta guía

Diagram of a mechanical or electrical component with three upright flanges and three open circles below, showing directional arrows (no text or symbols)

100% 75% 50% 25%

Diagram of a mechanical or optical setup with three identical components mounted on a beam, showing directional arrows and dot patterns below (no text or symbols)

100% 75% 50% 25%

100% 75% 50% 25%

Diagram of a mechanical or optical setup with three cylindrical components connected by rods, showing directional arrows and dot patterns (no text or symbols)

100% 75% 50% 25%

Diagram of a mechanical or optical setup with three cylindrical components connected by rods, showing directional arrows and dot patterns (no text or symbols)

100% 75% 50% 25%
