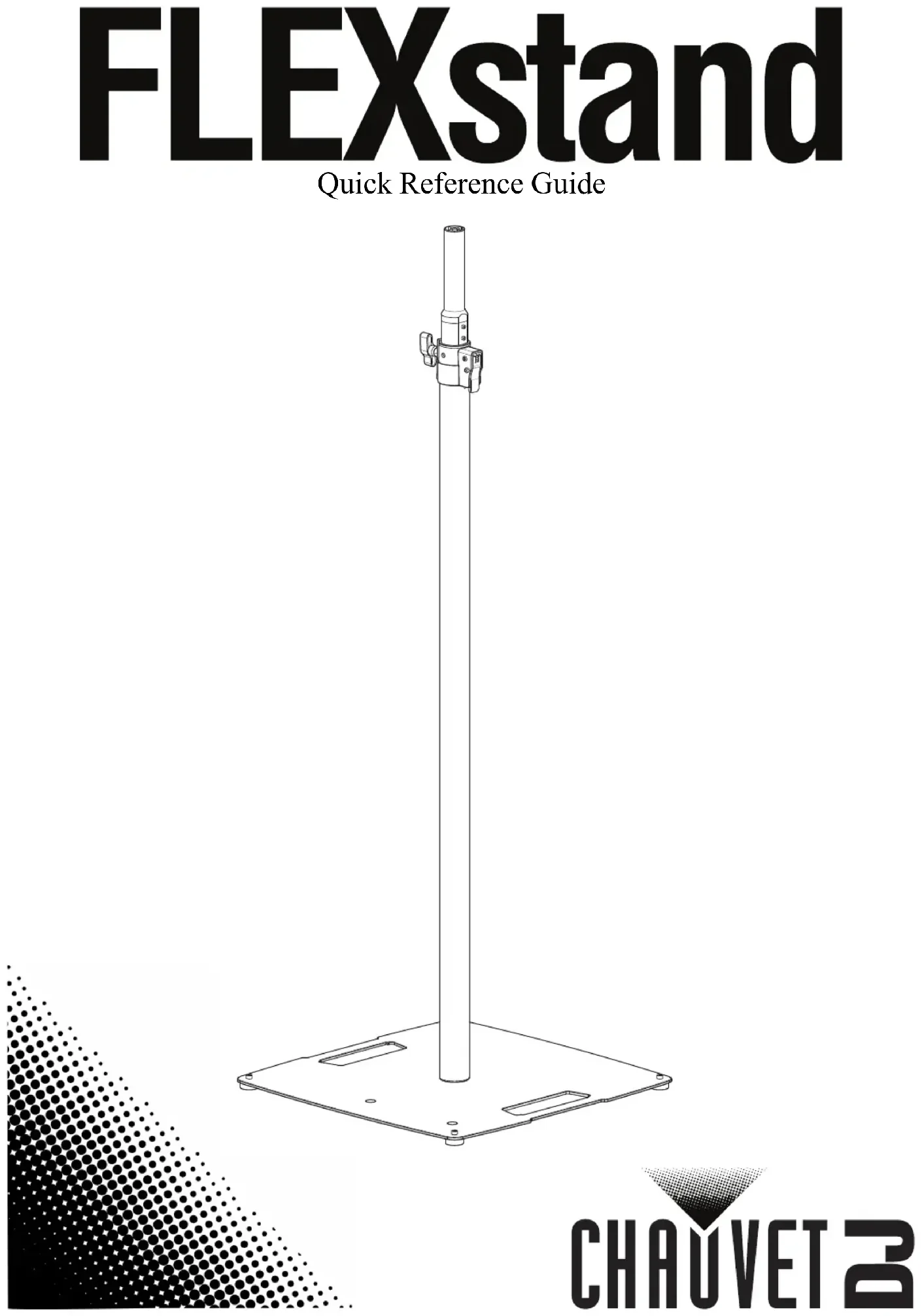

USER MANUAL FLEXstand Chauvet

FLEXstand QRG Rev. 3 About This Guide The FLEXstand Quick Reference Guide (QRG) has basic product information such as mounting and technical specifications. Disclaimer The information and specifications contained in this QRG are subject to change without notice. LIMITED WARRANTY FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor. Safety Notes These Safety Notes include important information about installation, use, and maintenance. Contact Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information. What is Included To Begin Unpack your FLEXstand and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

• Carefully inspect all parts before use.

• WARNING: This product should only be used by competent and qualified persons. Pinch Point! Keep hands and fingers clear of mounted products while adjusting.

• DO NOT use for loads that exceed the maximums provided in the Technical Specifications in this Quick Reference Guide.

• DO NOT use if any components are cracked or appear compromised.

FLEXstand QRG Rev. 3

QUICK REFERENCE GUIDE

Mounting Before mounting with this product, read the Safety Notes. Mounting Diagram 10 mm threaded mounting hole 20 mm threaded mounting holes Cast iron base Rubber feet (x4) Telescoping pole Install top adapter with 4 hex screws3

FLEXstand QRG Rev. 3 Product Dimensions

FLEXstand QRG Rev. 3

2. Adjust until the safety release clicks into place at the desired height.

3. Tighten the height adjustment knob.

2. Press in and hold the safety release.

3. Adjust to the desired height and let go of the safety release.

4. Adjust until the safety release clicks into place.

5. Tighten the height adjustment knob.

Technical Specifications Dimensions and Weight Capacity and Compatibility Ordering Pole Height Pole Diameter (Bottom) Pole Diameter (Top) Total Weight

4.8 to 8 ft (1.5 to 2.4 m) 2 in (50 mm) 1.4 in (35 mm) 44 lb (20 kg)

Base Length Base Width Base Height Base Weight

21.5 in (547 mm) 21.6 in (549 mm) 0.6 in (16 mm) 36 lb (16 kg)
