JV83 - Vacuum Cleaner JIMMY - Free user manual and instructions

Product Type	Cordless Stick Vacuum
Model	JV83
Brand	JIMMY
Rated Voltage	25.2 V
Rated Power	450 W
Electric Brush Power	30 W
Battery Type	Lithium-ion
Battery Capacity	2500 mAh
Charging Time	5 hours
Adapter Input Voltage	100-240 V ~ 50/60 Hz 0.8 A
Adapter Output Voltage	30 V 600 mA
Filter Type	Washable HEPA
Dustbin Capacity	0.5 L (approx.)
Included Accessories	Main electric brush, anti-dust mite electric brush, 2-in-1 upholstery tool, 2-in-1 crevice tool, soft brush, extension hose, charging base, power adapter
Key Features	Two speeds, powerful suction, electric brush with safety (auto shut-off if obstructed), handheld and floor use
Maintenance & Cleaning	Washable dustbin and HEPA filter; removable brush roll for cleaning
Weight	Approximately 2.5 kg (approx.)
Safety	Automatic brush shut-off if obstructed or upon contact, overload protection
Spare Parts & Repairability	Replaceable HEPA filter and battery; brush and accessories available
Warranty	2 years
Recycling	Compliant with EU directives: do not dispose of with household waste, recycle battery and device separately

Frequently Asked Questions - JV83 JIMMY

How to assemble the JIMMY JV83 vacuum?

Start by inserting the metal tube into the electric brush, aligning the conductive pin until it clicks. Then, attach the tube to the handheld vacuum in the same way. For the battery pack, slide it onto the vacuum until it clicks. Finally, mount the charging base to the wall using the provided screws.

How to charge the vacuum for the first time?

Place the vacuum on the plugged-in charging base or plug the adapter directly into the battery pack. The indicator becomes red during charging and turns green when the battery is full. Charging time is approximately 5 hours. To extend battery life, perform a full charge and then a full discharge during the first uses.

How to clean the dustbin and HEPA filter?

Press the dustbin release button, remove it, and empty it. To clean the filter, take out the HEPA by pulling it upward, then clean it with warm water and let it dry completely before reinserting. It is recommended to clean the dustbin after each use.

What to do if the vacuum does not start?

Check that the battery is charged. Ensure the metal tube, brush, and vacuum are properly assembled (audible click). If the problem persists, refer to the troubleshooting section of the manual.

How to use the included accessories?

The accessories (soft brush, crevice tool, upholstery tool, anti-dust mite brush) connect directly to the handheld vacuum or via the extension hose. Align the attachment and push until it clicks. Use the soft brush for delicate surfaces, the crevice tool for gaps, and the anti-dust mite brush for mattresses and sofas.

How to clean the electric brush roller?

Press the roller release button, remove the side cover, then take out the roller. Remove any tangled hair and fibers, clean it with water if necessary, and reassemble in reverse order. This operation should be performed regularly to maintain performance.

Can I use the vacuum on carpet?

Yes, the electric brush is suitable for short-pile carpets and hard floors. Avoid long-pile carpets that may block the roller. If the brush stops, check if it is obstructed or tangled.

How to store the vacuum for a long time?

Remove the battery pack and store it in a dry place, away from direct sunlight. Keep the vacuum in a dry location between 5 and 40 °C. Fully charge the battery before long-term storage and recharge it every three months.

What to do if suction is weak?

Empty the dustbin if it is full. Clean or replace the HEPA filter. Check that the hose or brush roller is not clogged with debris. If the problem persists, the battery may be low – recharge it.

How to dispose of the vacuum at end of life?

Do not throw the appliance with household waste. Remove the battery by pressing the release button and recycle it separately at a suitable collection point. The vacuum must be taken to a waste disposal center or recycling facility in accordance with directive 2012/19/EU.

USER MANUAL JV83 JIMMY

Line drawing of a vertical mechanical device with a base mount (no text or symbols)

JV83

Instruction Manual Vacuum Cleaner
Gebrauchsanweisung Staubsauger
Manual de instrucciones Aspiradora
Manuale di istruzione Aspirapolvere
Mode d’emploi Aspirateur
Инструкция по эксплуатации Пылесос

Contents

English 1

Deutsch 13

Español 24

Italiano 35

Français 46

русский язык 57

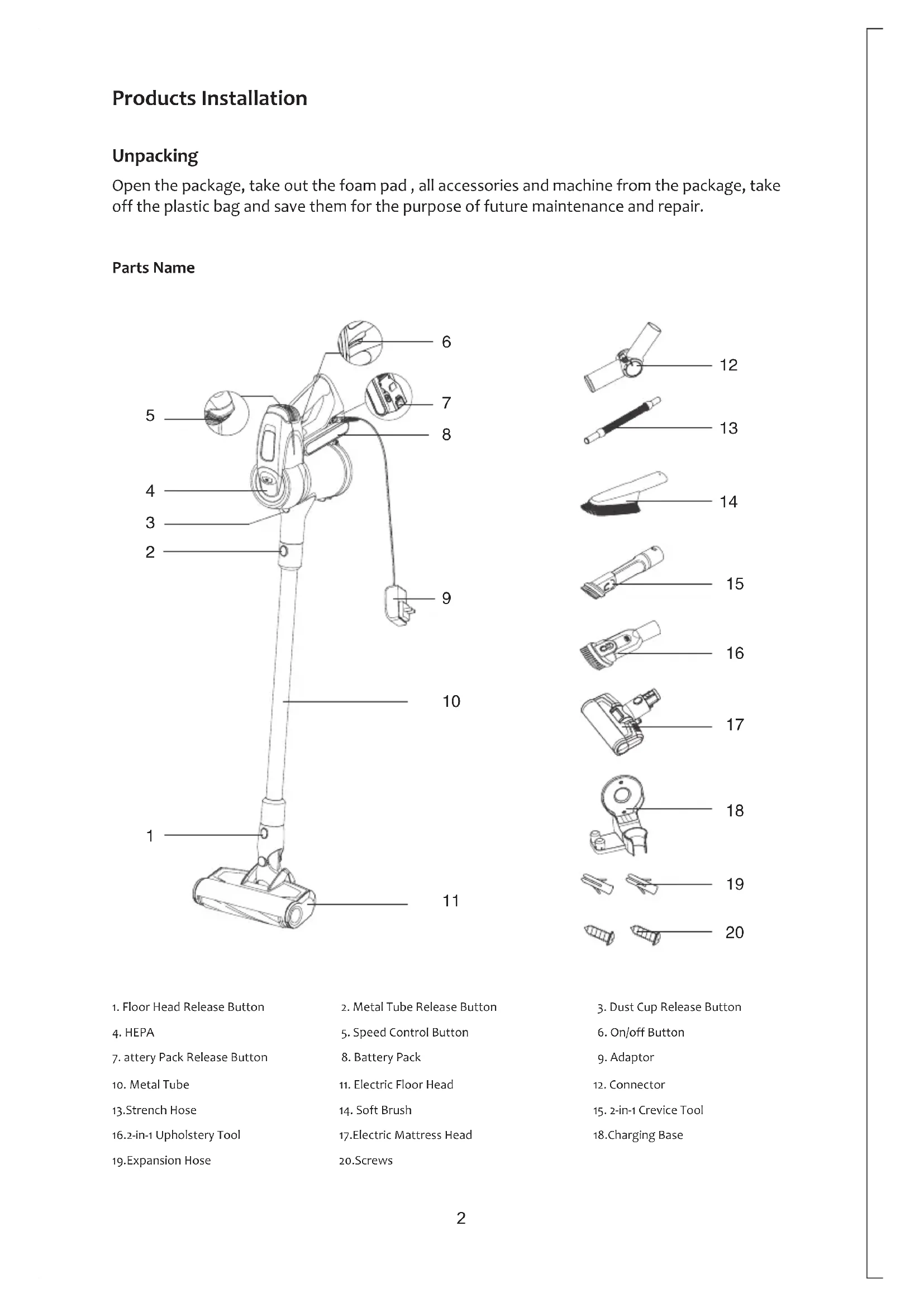

Products Installation

Unpacking

Open the package, take out the foam pad, all accessories and machine from the package, take off the plastic bag and save them for the purpose of future maintenance and repair.

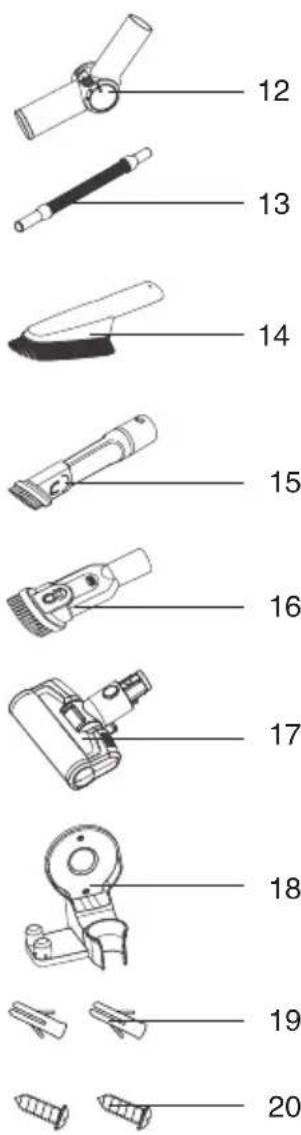

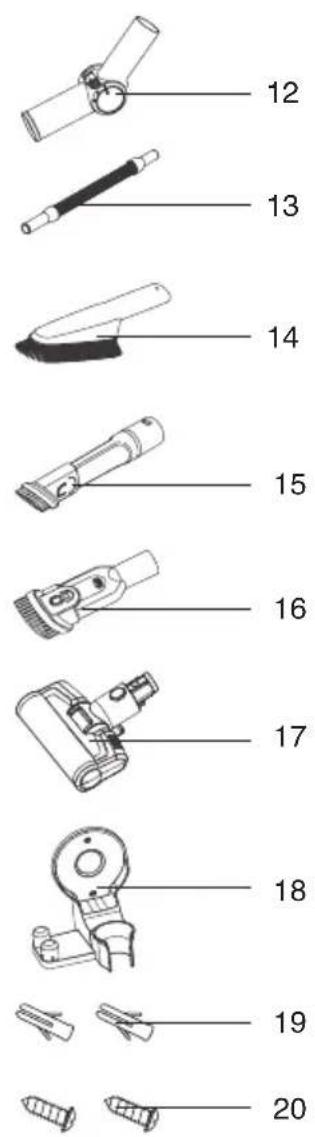

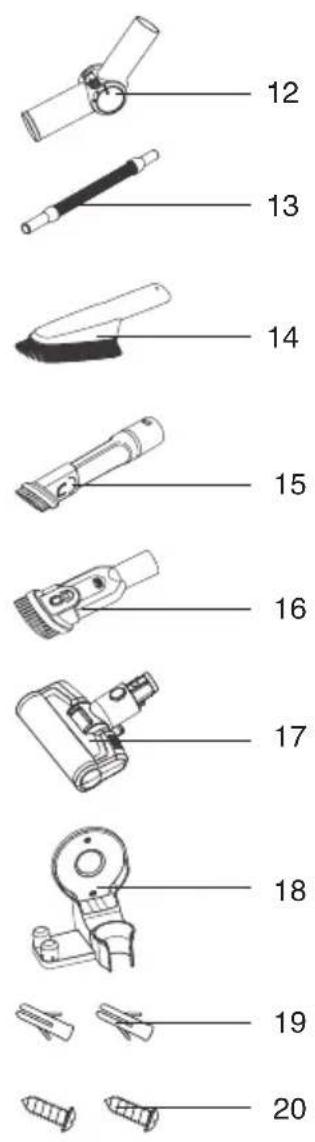

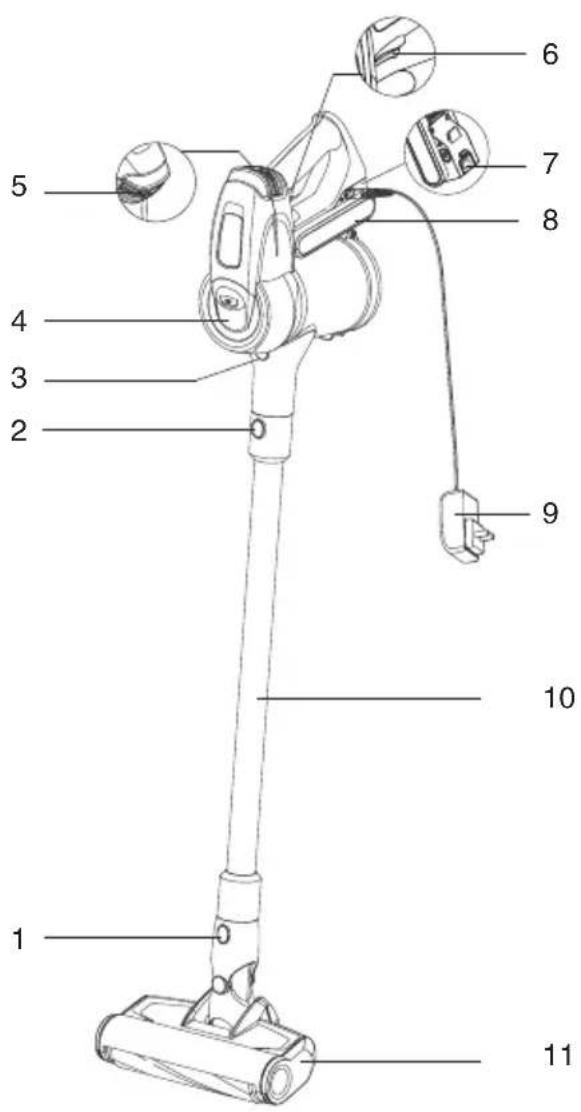

Parts Name

Labeled diagram of a vacuum cleaner with numbered parts for identification

12 13 14 15 16 17 18 19 20

1. Floor Head Release Button
2. HEPA
3. artery Pack Release Button
4. Metal Tube

5. Strench Hose
   16.2-in-1 Upholstery Tool
   19.Expansion Hose

6. Metal Tube Release Button

7. Speed Control Button
8. Battery Pack
9. Electric Floor Head
10. Soft Brush

11. Electric Mattress Head
    20.Screws

12. Dust Cup Release Button

13. On/off Button
14. Adaptor
15. Connector
16. 2-in-1 Crevice Tool
    18.Charging Base

Packing List

Part Name	Handheld Vacuum Cleaner	Electric Floor Head	Electric Mattress Head	2-in-1 Upholstery Tool	2-in-1 crevice tool
Quantity 11 11
Part Name Metal Tube Adaptor Battery Pack Soft Brush Connectorl
Quantity 11 11
Part Name Strench Hose	Charging Base	Instruction Manual	Screws	Expansion Hos
Quantity 11 1	2	2

Main-body Assembly

Connect the electric floor head with metal tube

Hold the floor head with left hand, use right hand to insert the metal tube vertically into floor head, align with the conductive needle, press the handle until a “click” sound is heard.(Picture 1)

⚠️ Note: Keep the handle and floor head in the same direction, conductive needle shall align with the socket.

1. Metal Tube Electric Floor Head Conductive Needle

Charging base assembly

Fix the charging base on wall through screw holes, so that the handheld vacuum cleaner can be placed.(Picture 2)

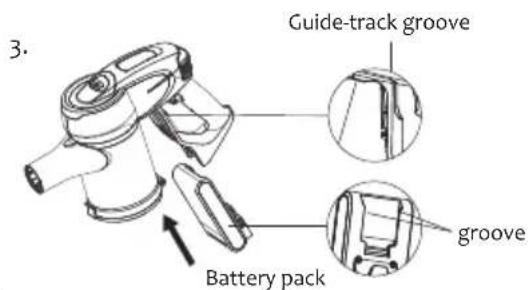

Assemble battery pack and handheld vacuum Cleaner

Battery pack assembly: use one hand to hold handheld vacuum cleaner, one hand to hold battery pack, align with the guide-track groove, then install the battery pack until the “click” sound is heard. Pull hard the battery pack downwards, if the batter pack remain tight, which means battery pack assembly complete.(Picture3)

2. Screw Hole Charging base

3. Guide-track groove groove Battery pack

⚠️ Note: Please disassemble the battery pack from the machine when the vacuum cleaner is not used for a long time. Pack the machine and store in dry place, avoiding direct sunlight or humid environment.

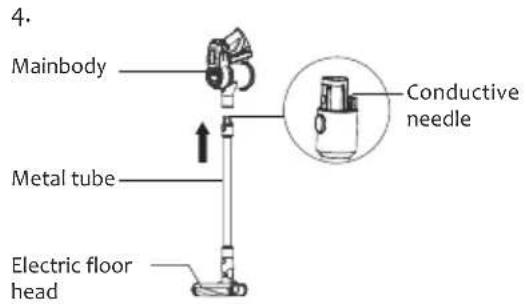

Assemble the electric head floor, metal tube and handheld vacuum cleaner

First, assemble the floor head and conductive metal tube based on the assembling method of electric floor head and conductive metal tube. Secondly, align the conductive needle of the conductive metal tube with the suction mouth conductive pipe, push upwards until a “click” sound is heard.(Picture4)

4. Mainbody Conductive needle Metal tube Electric floor head

Accessories Assembly

For ease of use, this product is specially equipped with accessories for the hand-held vacuum cleaner. The handheld can connect to different tools for different cleaning purpose.

Model NAME	JV83
Electric Mattress Head
2-in-1 Upholstery Tool
2-in-1 Crevice Tool
Brush Soft
Stretch Hose
Connector

Connect handheld vacuum cleaner with 2-in-1 upholstery tool

Insert 2-in-1 upholstery tool connector into the handheld air inlet until it is tightly fitted. (Picture5)

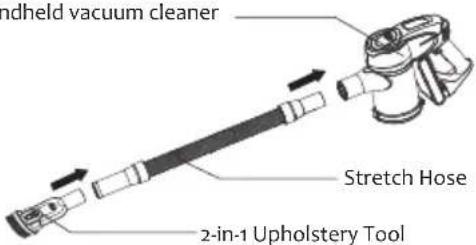

Connect handheld vacuum cleaner with accessories through stretch hose

Align the vacuum cleaner with stretch hose, insert until it is fully tightened.(Picture6)

Align the vacuum cleaner with stretch hose, insert until it is fully tightened.(Picture6)

5.

2-in-1 upholstery tool

holstery

handheld vacuum cleaner

6.

handheld vacuum cleaner

ndheld vacuum cleaner Stretch Hose 2-in-1 Upholstery Tool

⚠️ Note: The stretch hose can also connect other accessories:2-in-1 crevice tool and soft brush, the connecting method is the same as 2-in-1 upholstery tool

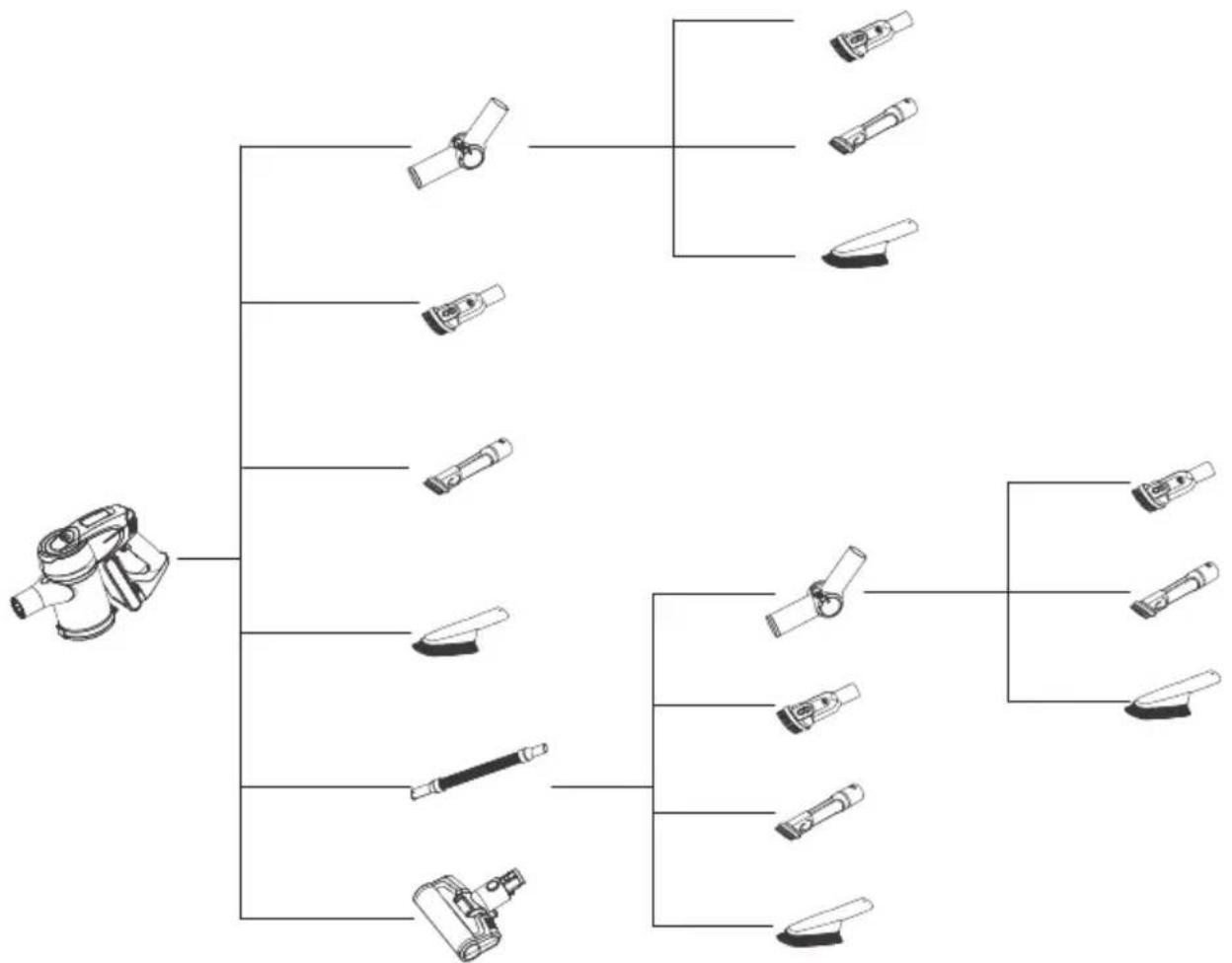

Accessories Connection List


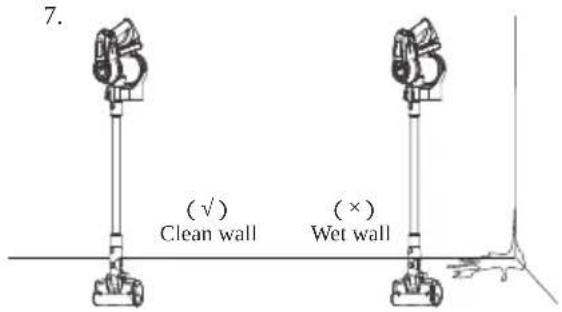

Connecting accessories with charging base

Please fix the charging base on a clean wall, do not fix on the wet wall like in the kitchen. After the task has been competed, place them on the charging base.(Picture7&8)

Use of Vacuum Cleaner

7. (√) Clean wall (×) Wet wall

Charging

⚠️ Note: When using the machine for the first time, The battery capacity is not full, need to put the machine on the charging base or take out the battery to charge. The machine is able to be used after the battery is charged fully.(Picture9)

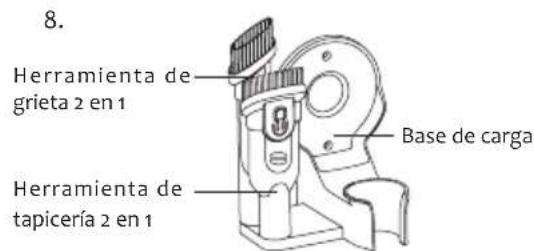

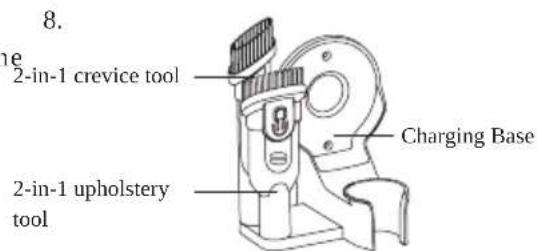

8. 2-in-1 crevice tool Charging Base 2-in-1 upholstery tool

Charge the vacuum cleaner in time when battery power is insufficient; When the voltage is too low, to protect the battery, the vacuum will automatically turn off. At this time, the vacuum must be charged. During charging, the battery pack can be taken off, charge it through adaptor, or place the machine onto the charging base, and the charging indicator turns red. The vacuum cleaner is charging.

⚠️ Note: When using the vacuum cleaner for the first time, fully charge the battery and fully discharge the battery before second charge to increase the battery life.

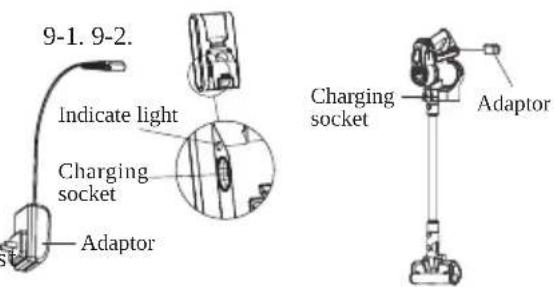

9-1. 9-2. Indicate light Charging socket Adaptor Charging socket Adaptor

JV83 Charging time is about 5 hours. When the charging indicator on the hand-held vacuum turns from red to green, it means the vacuum cleaner is fully charged. We recommend continue charging for half an hour to one hour, so that the charging effect is better. After charging, unplug the charger to stop charging.(Picture10)

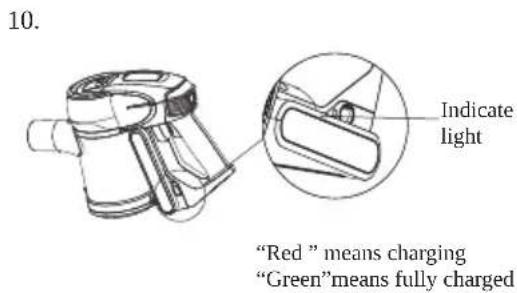

10. Indicate light "Red" means charging "Green" means fully charged

Use of Handheld Vacuum Cleaner

Take the handheld vacuum from the charging base, press the on/off button to turn on and turn off the vacuum. Green indicator lights up, it is normal mode, press the speed control button to strong mode, the speed control button can switch between strong mode and normal mode easily. (Picture11)

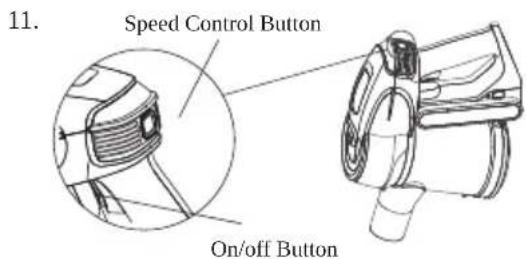

11. Speed Control Button On/off Button

Use of Electric Floor Head

Electric floorhead can clean short hair carpet, hardfloor or tile floor.(Picture12)

12-1.

Diagram of a hand using a tool to lift a cylindrical object over a brick wall (no text or symbols)

12-2.

Diagram of a mechanical clamp or bracket inserted into a wavy surface, no text or symbols present

Note: When the electric floorhead is running, if brushroll stopped running due to big foreign object blockage or excessive fiber entangle, or the child accidentally putting hand into brushroll, the floorhead will stop working to protect personal safety and avoid damage to floorhead motor.

13.

Simple line drawing of a car climbing a slope with vertical stripes (no text or symbols)

14.

Line drawing of a mechanical tool or device with a lever and base, no text or symbols present

Use of Accessories

2-in-1 upholstery tool: Suitable to clean dust on closet, sofa, windowsill and table surface. (Picture13)

15.

Illustration of a hand using a power tool to clean or store floor (no text or symbols)

16.

Line drawing of a robotic arm operating a vehicle on a curved surface (no text or symbols)

2-in-1 crevice tool: Suitable to clean crevices, corners and other narrow areas.(Picture14)

Soft brush:Suitable to clean easily scratched furniture,such as book shelf, artworks.(Picture15)

17.

Simple line drawing of a paintbrush applying paint to a wooden shelf (no text or symbols)

Electric Mattress Head: Beat up and clean dust, dust mite and dust mite allergen from sofa and bed. (Picture16)

Stretch hose: to connect handheld vacuum cleaner and Accessories to clean hard to reach areas. (Picture17)

Cleaning and Replacing Parts

Note:

1. HEPA filter is available for sale from local vacuum cleaner distributors.
2. It is recommended to clean the dust cup after each use; When the dust cup is full or the HEPA filter is clogged, it needs to be cleaned and replaced if necessary. Floorhead brushroll might be entangled with hair after long time use, it needs to be cleaned in time to keep the vacuum working more efficiently.

Cleaning Dust Cup and Filtration System

Clean dust cup

Pull out downwards the dust cup On/ off button to dump dust in dust cup.(Picture 18)

Press hard the dust cup release button, hold steady the main body with right hand, rotate the dust cup in the direction shown on the picture, remove the dust cup from main body to further clean the dust cup.(Picture19)

Clean filter system

Hold the mainbody, take the HEPA upwards as shown on the picture, take out the HEPA, then take out Grade 2 cyclone system, clean them. (Picture20)

Fix inlet HEPA, rotate the HEPA cover in the same direction shown on the picture, separate the HEPA cover from inlet HEPA, which will be easily cleaned. After cleaning and drying, assemble again. (Picture20&21)

Cleaning Electric Brushroll

1. Use your finger to release the brushroll button, take out the side cover of the brushroll.
2. Take out one side of the brushroll in the same direction as shown on the picture, then brushroll can be taken out to clean.
3. After cleaning and replacing, reassemble it.(Picture22&23)

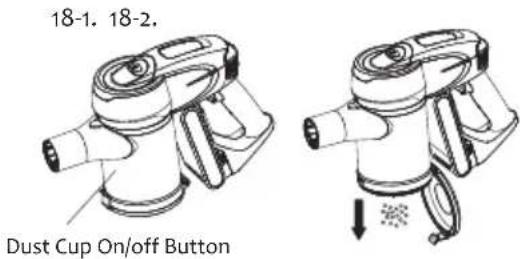

18-1. 18-2. Dust Cup On/off Button

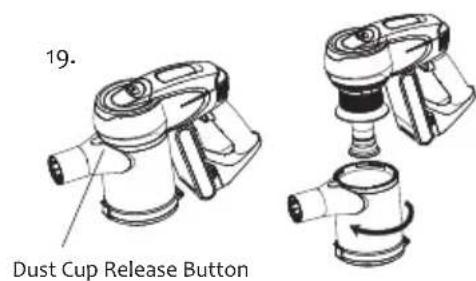

19. Dust Cup Release Button

20. HEPA Grade 2 cyclone

21. HEPA cover Inlet HEPA

Illustration of a faucet with water tap, battery, and sun symbol (no text or labels)

23-1. ① Brushroll release button ② Brushroll cover 23-

Storage of Vacuum Cleaner

Disassemble electric floor head and metal tube

When store or clean the vacuum cleaner, if you need to disassemble the electric floor head, press the electric floor head release button, pull upwards the metal tube. (Picture24)

Unpack the Battery Pack

Press the battery release button, take out the battery pack. Put the battery pack into a plastic bag, then place in a dry place.(Picture25)

Disassemble the Handheld Vacuum Cleaner and Metal Tube

Fix the handheld first, press the release button of metal tube, pull out it.(Picture26)

Machine Storage

Take out the battery pack if the machine is not used for a long time. Store the machine in cool and dry place, avoiding direct sunlight or humid environment.

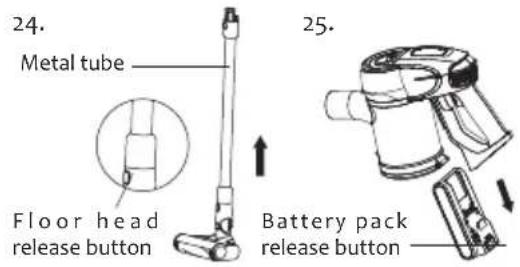

24. Metal tube Floor head release button 25. Battery pack release button

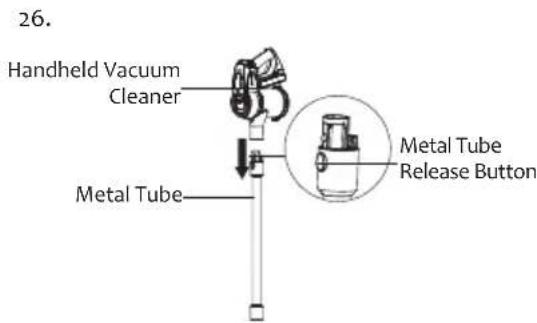

26. Handheld Vacuum Cleaner Metal Tube Metal Tube Release Button

Safety Notes

This vacuum cleaner is designed for home use. Do not use it for commercial or other purposes. Please read this instruction manual carefully before use, properly save and store it for future use. Do not put the vacuum close to fire or other high temperature facility.

Do not use or store the machine under extreme bad conditions, for example, extreme temperature. It is recommended to use it indoors between the temperature of 5^ C to 40^ C. Store the machine in dry place and avoid direct sunlight.

Fully charge the battery before first use or after long storage.

Before using the vacuum, make sure brushroll is assembled, otherwise, it may lead to motor fan blockage, causing motor burn out.

Please do not use the vacuum to pick up detergent, oil, glass slag, needle, cigarette ash, wet dust, water, matches, etc.

Please do not use the vacuum to pick up tiny particles such as cement, gypsum powder, wall powder, or large objects such as paper balls, otherwise it will cause malfunctions such as blockage and motor burnout.

Avoid blockage to air inlet or brushroll, it may cause motor failure.

Do not pour or splash water or other liquids into the machine to avoid short circuit to burn out the machine.

If the brushroll is not working, please check whether the brushroll is entangled with hair or other long fiber, clean it in time.

When storing the machine for a long time, ensure that the battery is fully charged before storage and charge the machine at least every three months.

Unplug the charger to clean or repair the machine. Hold the charger when plugging or unplugging it, and do not pull the charging cord.

Use a dry cloth to clean the machine. Liquids like gasoline, alcohol, lacquer thinner will cause crack or colour fading and cannot be used.

If the machine is not working after fully charged, it must be checked and repaired in our designated office, please do not dismantle the machine on your own.

When discard the machine, please press the button to release the battery pack, take out the battery pack, make sure the machine is disconnected with power and handled properly. Do not throw into fire, water or soil.

If the battery liquid leakage touches your skin or clothes, wash it with water, if there is any discomfort, please go to hospital immediately.

Do not use non-original battery pack, avoiding machine damage and safety problems.

Avoid to use the vacuum cleaner to pick up easily blockable things such as: plastic bags, candy paper, big scrap of paper, which might affect the function, even cause failure of working. Please clean the foreign matter on the floor head in time, then it will work normally. The discarded battery pack shall be recycled safely, do not throw away casually.

Failure Removal

Please check the following issues before sending to designated repair offices.

Symptoms Possible	Causes Solutions
Motor is not working	Battery has no power Charge the vacuum cleaner
	Metal tube, electric floor had, battery pack is not assembled correctly to the mainbody	Check the accessories are assembled correctly to the mainbody
Low suction	Dust cup is full Empty dust cup
	Filter is blocked by dust Clean or replace HEPA
	Floor head hose or brushroll blocked	Clean the floorhead
Short run time after charging	Battery not fully charged	Follow instruction manual to fully charge the battery
	Battery old aging Replace new battery

Note: If any other failures occurred, which need professional tools, in order to avoid danger, the machine must be repaired or replaced by manufacturer, other maintenance offices or professionals from similar offices.

Product Specification

Technical Parameter

Model No JV83
Rated Voltage 25.2V	---
Rated Power 450W
Adaptor Input Voltage 100-240V	~ 50/60Hz 0.8A
Adaptor Output Voltage	30V---600mA
Model No of Electric Floor Head T-EB110A
Rated Power of Electric Floor Head	30W
Battery pack capacity	2500mAh
Charging time	5h

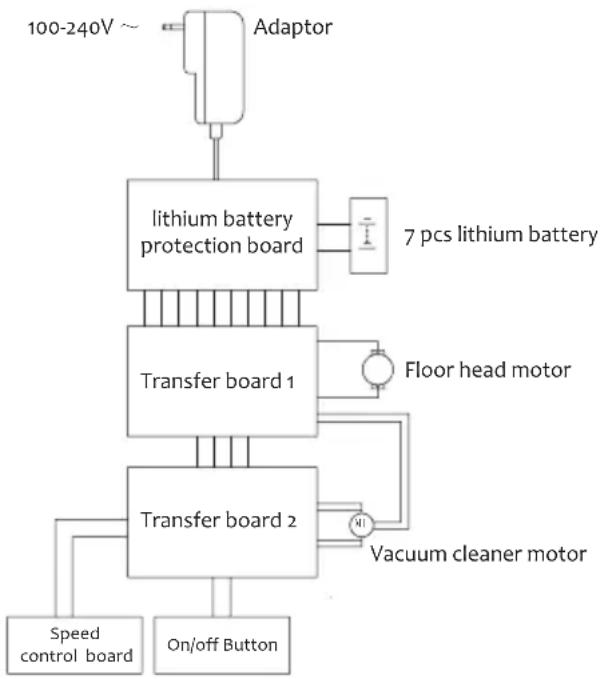

Circuit Diagram

Manufacturer Information

Manufacturer Kingclean Electric Co., Ltd
Address	No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste!

Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Integrated batteries may only be removed for disposal by qualified personnel.

Opening the housing shell can damage or destroy the machine.

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should, if possible, be discharged, collected, recycled or disposed of in an environmental-friendly manner.

Subject to change without notice

Warranty Information

This product enjoys two year warranty for the machine and 12 months warranty for the battery service starting from the date of purchase.

Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances or caused by the batteries.

Labeled diagram of a vacuum cleaner with numbered parts for identification

12 13 14 15 16 17 18 19 20

Diagram of a hand using a tool to lift a cylindrical object over a brick wall (no text or symbols)

12-2.

Diagram of a hand holding a tool over a woven fabric background (no text or symbols)

13.

1.

Technical line drawing of a mechanical component or tool (no text or symbols visible)

2.

Line drawing of a hand using a power tool to clean or store items on a wooden shelf (no text or symbols)

Line drawing of a robotic arm interacting with a surface (no text or symbols)

1.

Line drawing of a paintbrush applying paint to a wooden shelf (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

12 13 14 15 16 17 18 19 20

7. ( √ ) ( × ) Pared limpia Pared mojada

Diagram of a hand using a tool to lift a cylindrical object over a brick wall (no text or symbols)

12-2.

Diagram of a mechanical clamp securing a cylindrical component on a woven mat (no text or symbols)

Simple line drawing of a hand holding a device against a wavy background (no text or symbols)

1.

Line drawing of a mechanical tool or device with a lever and handle (no text or symbols)

Uso de accesorios

Line drawing of a hand using a power tool to clean or store items on a wooden shelf (no text or symbols)

1.

Line drawing of a robotic arm gripping a small object on a curved surface (no text or symbols)

Line drawing of a brush applying paint to a wooden box (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

12 13 14 15 16 17 18 19 20

4. Mainbody Conductive needle Metal tube Electric floor head

Diagram of a hand using a tool to lift a cylindrical object against a brick wall (no text or symbols)

12-2.

Diagram of a hand holding a small object over a woven mat, no text or symbols present

13.

1.

Line drawing of a handheld device with a lever and handle (no text or symbols)

2.

Line drawing of a hand using a power tool to clean or store items (no text or symbols)

Line drawing of a robotic arm gripping a sofa (no text or symbols)

1.

Line drawing of a paintbrush applying paint to a wooden cabinet (no text or symbols)

Illustration of a faucet, a cylindrical component, and a wind turbine with sun symbol (no text or labels)

Diagram of a hand using a tool to lift a cylindrical object over a brick wall (no text or symbols)

12-2.

Diagram showing a hand holding a tool above a wicker-patterned object, no text or symbols present

13.

1.

Illustration of a mechanical tool or device with a lever and base (no text or symbols visible)

2.

Illustration of a hand using a power tool to clean or store floor panels (no text or symbols visible)

Line drawing of a robotic arm interacting with a sofa (no text or symbols)

1.

Line drawing of a brush applying paint to a wooden shelf (no text or symbols)

Batteries / batteries

Labeled diagram of a vacuum cleaner with numbered parts for identification

12 13 14 15 16 17 18 19 20

Technical line drawings of mechanical components, no visible text or symbols

Illustration of three different household appliances: a faucet, a cylindrical fan, and a striped cylindrical device with a sun symbol (no text or labels)
