Product type	Thermoelectric cooler
Brand	Dometic
Model	Bordbar TB15
Reference	9600000489
Power supply	12 V (DC) via cigarette lighter socket
Power consumption	40 W
Gross capacity	15 liters
Weight	5.2 kg
Cooling power	Up to 20 °C below ambient temperature
Heating power	Up to 65 °C (interior temperature)
Climate class	N, T
Integrated battery protector	Yes, cutoff voltage 11.7 V, restart voltage 13.1 V
Seat mounting	Yes, with mounting rail and seat belt
Usage	Mobile: car, boat, motorhome
Delivery contents	Cooler, 12 V connection cable
Recommended accessory	CoolPower EPS817 rectifier (220-240 V~)
Care and cleaning	Clean with a damp cloth; do not immerse or use abrasive products
Fuse of 12 V plug	5 A
Corresponding vehicle fuse	15 A (depending on vehicle)
Certifications	CE, E4
Warranty	Legal (according to country)

Frequently Asked Questions - Bordbar TB15 DOMETIC

How to connect the Bordbar TB15 in my car?

Plug the supplied 12 V connection cable into a cigarette lighter socket or a 12 V socket in the vehicle. Ensure the ignition is on if necessary.

What to do if the cooler does not cool?

Check that the 12 V socket is live (ignition on). If the socket is dirty, clean it. Check the plug fuse (5 A) and the vehicle fuse (15 A). If the problem persists, contact an authorized service.

How to use the battery protector?

Set the sliding switch of the battery protector to ON when using the device on a 12 V battery. It prevents excessive discharge. Turn it off if you use a rectifier on mains power.

Can I use the device to heat food?

Yes, set the mode switch to HOT. The interior temperature can reach 65 °C. Do not store food in glass containers when heating.

How to clean the Bordbar TB15?

Clean the inside and outside with a damp cloth. Do not use abrasive products and never immerse the device in water. Ensure the ventilation openings are not obstructed.

What is the capacity of the refrigerator?

The gross volume is 15 liters, suitable for a few drinks or food items while traveling.

Can I mount the device on a seat?

Yes, pull out the mounting rail at the back, place the device on the seat and slide the rail between the seat cushion and backrest. Fasten the seat belt in one of the provided slots.

What does the blinking of the LOW LED mean?

The LOW LED blinks when the battery protector has stopped the device due to low voltage. This prevents a complete battery discharge.

What accessories are available?

The recommended accessory is the CoolPower EPS817 rectifier for using the device on 220-240 V~ mains power. It is sold separately.

How to get the manual in French?

The manual is available as a PDF on notice-facile.com. You can download it for free or request a translation by email.

USER MANUAL Bordbar TB15 DOMETIC

Exterior view of a DOMETIC remote control device (no text or symbols visible on body)

TB15

EN

Thermoelectric cooler

Installation and Operating Manual.....5

DE

Close-up of a white car interior panel with visible seat and side door (no text or symbols)

B

Interior view of a car seatbelt and dashboard compartment (no text or symbols visible)

C

Close-up of a car seatbelt with white and gray panels, no visible text or symbols

D

Interior view of a car seatbelt with visible seatbelt and seatbelt buckle (no text or symbols)

3
A

2. 1.

B

1. 2.

C

C 2. 1.

Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Contents

1 Explanation of symbols....5
2 Safety instructions....6
3 Scope of delivery 8
4 Accessories....8
5 Intended use 9
6 Technical description 9
7 Operation 10
8 Cleaning and maintenance....11
9 Guarantee....12
10 Troubleshooting....12
11 Disposal....13
12 Technical data....13

1 Explanation of symbols

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

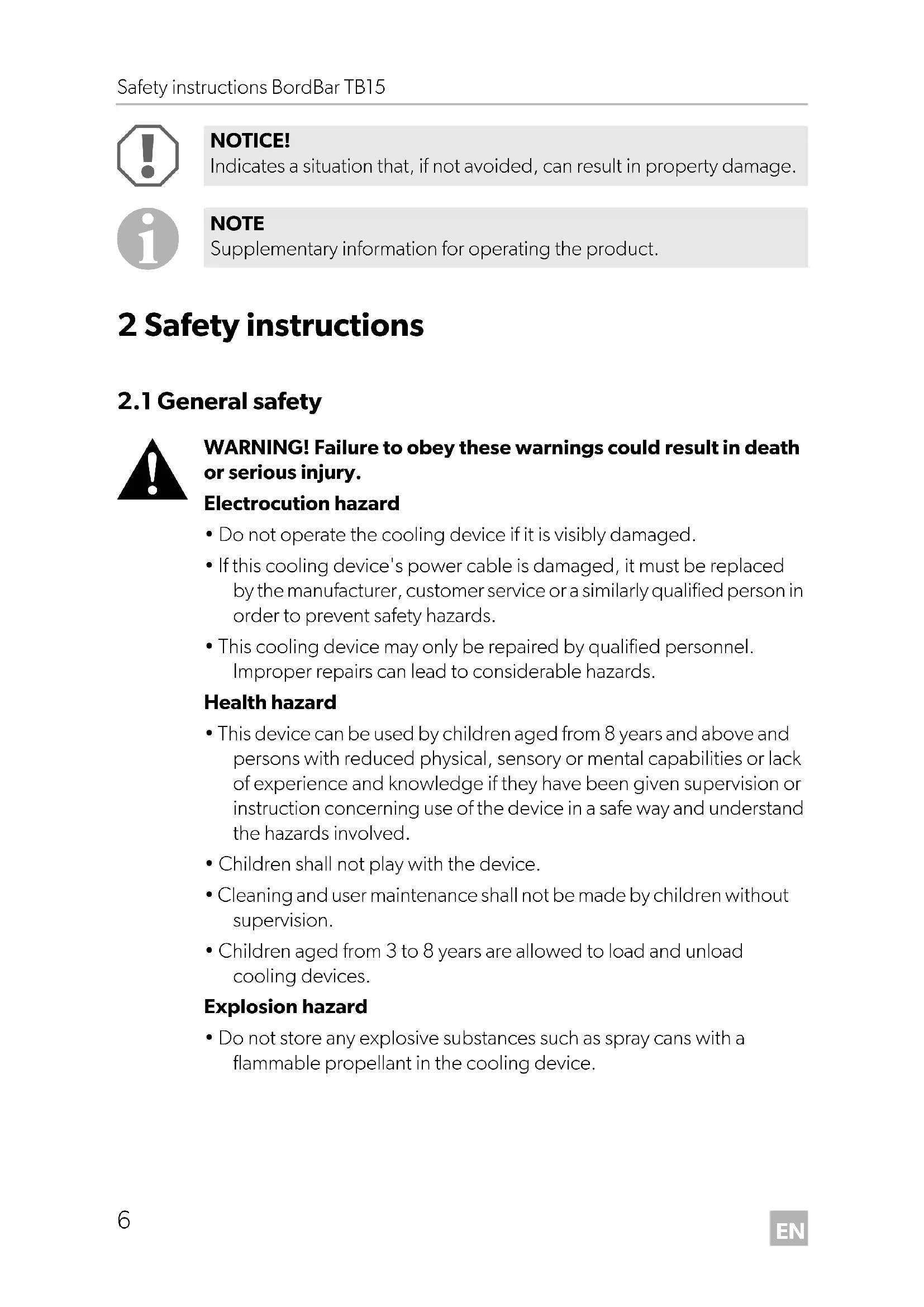

2 Safety instructions

2.1 General safety

WARNING! Failure to obey these warnings could result in death or serious injury.

Electrocution hazard

• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.

Health hazard

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
  • Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload cooling devices.

Explosion hazard

- Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

Electrocution hazard

• Disconnect the cooling device from the power supply
  – before each cleaning and maintenance
• after every use

Health hazard

- Food may only be stored in its original packaging or in suitable containers.

NOTICE! Damage hazard

• Check that the voltage specification on the type plate corresponds to that of the energy supply.
• Only connect the cooling device to a DC power supply in the vehicle with the DC cable.
• Never pull the plug out of the socket by the cable.
• Disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device.
• Disconnect the cooling device or switch it off when you turn off the engine. Otherwise you may discharge the battery.
• The cooling device is not suitable for transporting caustic materials or materials containing solvents.

2.2 Operating the cooling device safely

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

Electrocution hazard

- Before starting the cooling device, ensure that the power supply line and the plug are dry.

Health hazard

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is not in contact with or drip onto other food.

- If the device is left empty for long periods:

• Switch off the device.
• Defrost the device.
  – Clean and dry the device.
• Leave the door open to prevent mould developing within the device.

NOTICE! Damage hazard

• Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
• Risk of overheating!

Ensure at all times that there is a minimum of 50 mm ventilation on all four sides of the cooling device. Keep the ventilation area free of any objects that could restrict the air flow to the cooling components.

Do not place the cooling device in closed compartments or areas with none or minimal air flow.

• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.

3 S c o p e o f d

• B o r d B a r T B 1 5 c o o l e r
• Cable for 12V --- connection

4 A c c e s s o r i

To operate the device using an AC power supply, we recommend using the following mains rectifier.

Available as accessories (not included in the scope of delivery)

• 220 – 240 V\~ : CoolPower EPS817

5 Intended use

The cooler is portable. It can chill products as well as keep them cool or warm.

The device is designed for use with a 12 V---on-board supply of a car (cigarette lighter), boat or caravan.

The cooling device is suitable for camping use.

The device shall not to be exposed to rain.

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.

6 Technical description

The cooler can chill products to a maximum of 20 °C below the ambient temperature as well as cool or keep them warm up to a maximum of 65 °C .

An integrated battery monitor can be switched on to protect your vehicle battery against excessive discharging.

Control elements

No. in fig. 1, page 3 Description

1 Ventilation grilles
2	L	E	D	L	O W
	flashes when the battery monitor has switched off the device due to low voltage
	lights up when the battery monitor is switched on and the device is operating
3 Slide switch for the battery monitor
	ON: Battery monitor is switched on
	OFF: Battery monitor is switched off
4	L	E	D	C	O L
	lights up green when the device is cooling

No. in fig. 1, page 3

Description

5

L

E

D

H

O

T

lights up red when the device is warming

6 Slide switch for the operating mode

COLD: The device is cooling

OFF: The device is switched off

HOT: The device is warming

7 O p e r a t i o n

WARNING! Fire hazard!

• When positioning the device, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device.

NOTICE!

• Ensure that the objects placed in the cooler are suitable for cooling to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers

NOTE

Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 11).

Fastening the device on the seat

▶ Pull out the fastening rail on the rear of the device until it clicks (fig. 2 A, page 3).

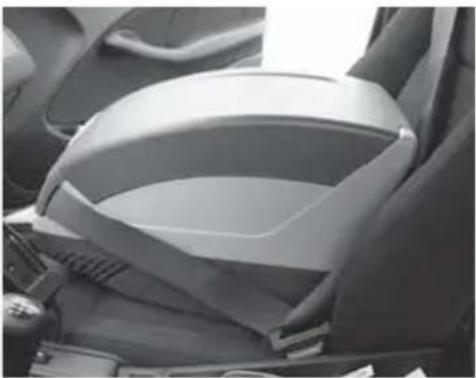

▶ Place the device on a seat (passenger seat or the middle seat in the back).
▶ Push the device back against the backrest so that the fastening rail is inserted between the seat surface and backrest.

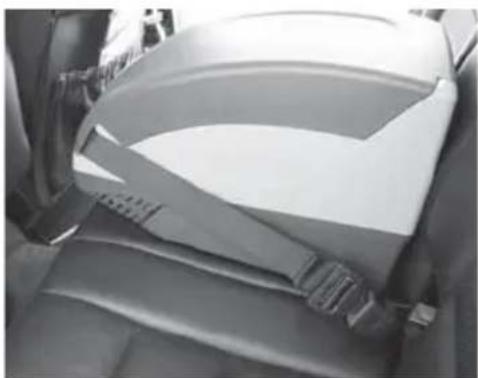

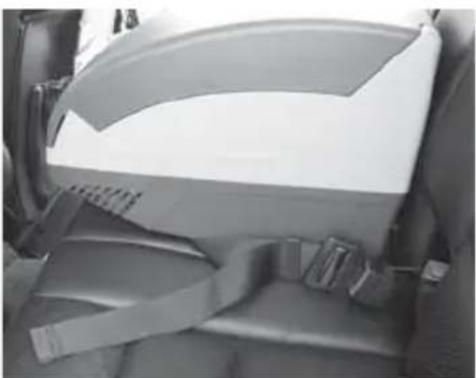

Thread the seat belt into one of the belt holders and fasten the device:

• front belt holder (fig. 2 B or C, page 3)
• bottom belt holder (fig. 2 D, page 3)

NOTE

Press the release button on the bottom of the device to insert the fastening rail.

Switching the device on and off

▶ Plug the 12 V connection cable into the cigarette lighter socket or a 12 V socket in the vehicle.
▶Push the slide switch into the required position.
√The cooler is switched on and starts cooling or heating the interior.
√The respective LED lights up.
▶ When you want to switch off the cooler, disconnect the plug.

Using the battery monitor

▶ Switch on the battery monitor if you are operating the device with a 12 V onboard supply.
▶ Switch off the battery monitor if you are operating the device with a mains rectifier (accessory) using an AC power supply.

8 Cleaning and maintenance

WARNING! Electrocution hazard

Always disconnect the device from the power supply before you clean and service it.

NOTICE! Risk of damage

• Never clean the cooler under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

▶ Occasionally clean the device interior and exterior with a damp cloth.
▶ Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

9 G u a r a n t e

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

10 Troubleshooting

Fault Possible cause Suggested remedy
Your cooler does not work (plug is inserted).	There is no voltage flowing from the 12 V socket in your vehicle.	The ignition must be switched on in most vehicles for voltage to flow at the cigarette lighter.
The cooler does not cool (plug is inserted).	The inner fan or the cooling element is defective.	This can only be repaired by an authorised customer services unit.
Operation with a 12 V socket:The ignition is on and the cooler is not working.	The cigarette lighter socket is dirty. This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the cigarette lighter socket, either the socket must be cleaned or the plug has not been assembled correctly.

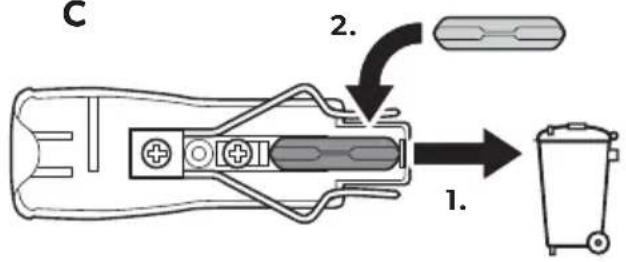

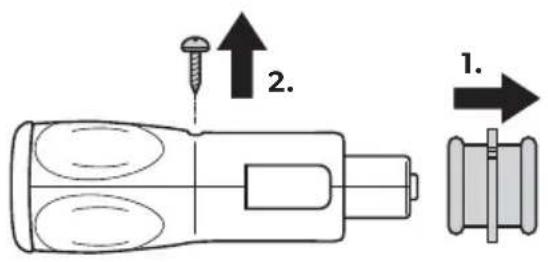

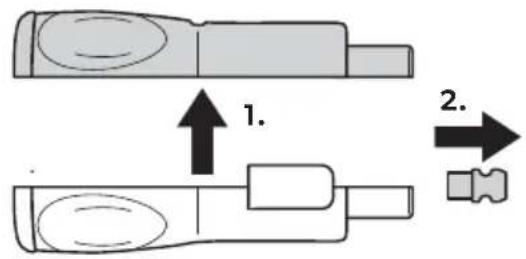

	The fuse of the 12 V plug has blown.	Replace the fuse (5 A) in the 12 V plug (fig. 3, page 4).
	The vehicle fuse has blown.	Replace the vehicle's 12 V socket fuse (usually 15 A). (Please refer to the operating manual of your vehicle.)

11 Disposal

▶ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Technical data

	BordBar TB15
Ref. no.: 9600000489
Connection voltage: 12 V---
Power consumption: 40 W
Battery monitor
Cut-off voltage:	11.7 V
Cut-in voltage:	13.1 V
Cooling capacity: max. 20 °C below ambient temperature
Heating capacity: 65 °C (interior temperature)
Gross capacity: 15 l
Climate class: N, T
Weight: 5.2 kg
Testing/certification:
