USER MANUAL Sirene 2151 Burg Wächter

SIRENE 2151 1x Power Supply; 5,5 mm Input: ~230V AC / Output: =12V DC 1A 3x D (LR20)-Batteries 1x Set of installation accessories The wireless alarm siren is an accessory of BURGprotect

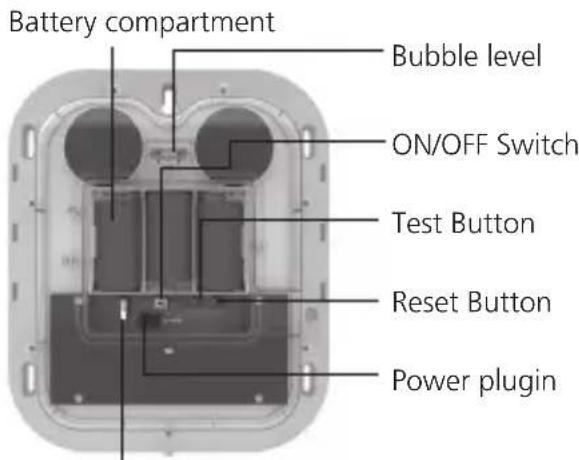

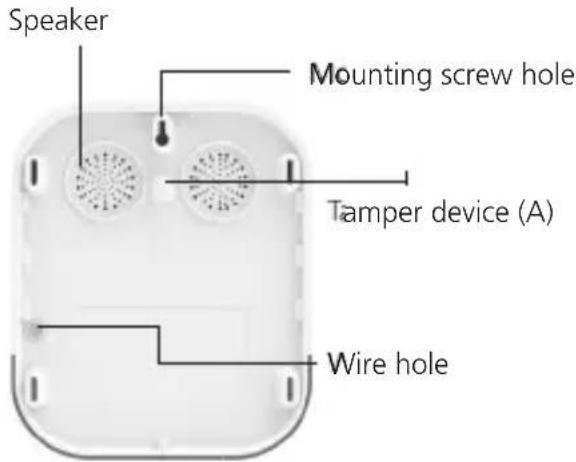

smart alarm system. It will sound with strobe light ashing to stop crime when working. It’s easy to setup and works with an internal microprocessor, anti-tamper function, 120dB siren and up to 36 month standby with 3x LR20 batteries. Items included in delivery Features LED Indication All settings can be operated in App after pairing. Users can determine to beeps or be silent when system alarm mode ([Arm] / [Disarm] /[Home Arm]) changes. Users can also set up the LED indicator to stay lighting, keep blinking, or just a ash when system alarm mode changes. Other settings like siren time, indicating volume and alarm volume can be set up in App too Status LED- Advice LED-Signal [Arm] Left Off / On / Flash [Disarm] Left / Right Off / On / Flash [Home Arm] Right Off / On / Flash [SOS] Left / Right Rapid fl ash LED Indicator Mounting screw hole Speaker Wire hole Tamper device (A) Mounting screw hole Wire hole Tamper device (A) Tamper device (B) Battery compartment Power plugin Test Button Reset Button ON/OFF Switch Bubble level BA BURGprotect_SIRENE2151_03-2019.indd 9 09.04.2019 11:36:5910 | English SIRENE 2151 Technical data Features

• The real transmission distance can be different, pending on local scenario. Power supply DC 12V 1A Backup battery 3x D (LR20) Max. Working current (Alarm) 350 mA Max. standby current 20 μA Transmission Distance Without obstacle 200 m* Indoor max 50 m* Tranmission Frequency 433.05 – 434.79 MHz Siren volume 120 dB @ 30 cm LED indicator Red (left) / Red (right) IP class IP54 Working temperature -10 °C bis 40 C° Humidity ≤90%rh (non- condensing) Weight 951 g (without Batteries)

1.370 g (incl. Batterien)

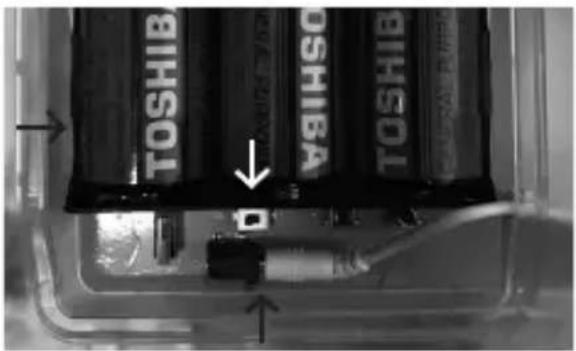

Dimensions (L x W x H) 240 x 220 x 70 mm Pairing Supports scanning QR code on App Low Battery Warning Advice on App Tamper Alarm Supported Reset Supported Preparation before use Remove the splash guard (left). Note: It is recommended to install the power plug, in order to provide a permanent power supply. Therefore, pass the cable through the two holes provided (right). Enter the batteries and connect device the power plug to injector. Move ON/OFF switch to ON position Pair device with BURGprotect

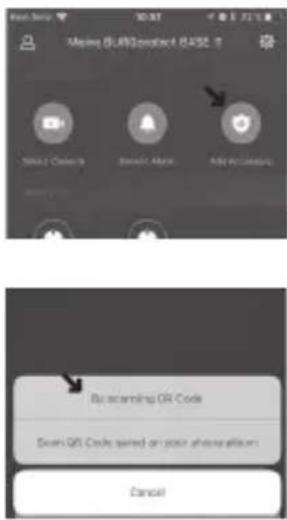

BASE before mount to mounting location. Remove the xing screw on the downside of the device. BA BURGprotect_SIRENE2151_03-2019.indd 10 09.04.2019 11:36:59English | 11SIRENE 2151 Device will show note in App when battery power is low. e.g. Device list (left side of device entry) e.g. Device state Pairing sensor with Base

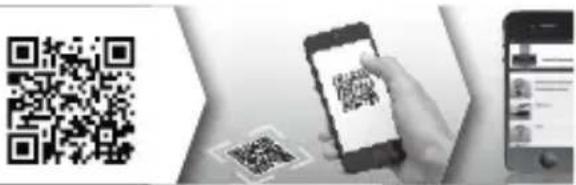

3. Scan the QR code, printed on this

4. The APP will auto recognize this accessory

and add it to your list. Rename it with a perspicuous name, which says you the exact location of the sensor in case of alarm, e.g. “Bathroom“.

1. When Pairing was succeed, test funcion

at desired location before mouting, e.g. by triggering an SOS alarm.

2. Use the mounting material to mount

the device at desired location.

3. Avoid installing the device in area with

a large amount of metal or electric wire. This will considerably affect the radio range of the device.

4. Use the mounting hole and the bubble

level to align the position of the alarm. Mark the 5 drill points through the bracket.

for screw anchors and x the bracket with screws and anchors to the wall. Correct location for installation The radio signal of the sensor is highly dependent on environmental conditions. Metal objects, concrete surfaces, walls, and metal cables all reduce its range, etc. Other radio devices and environmental conditions can also interfere with its operation. IMPORTANT NOTE: The alarm can only work as well as permitted by its installation and environment. The alarm can indicate dangerous situations but it cannot prevent them. The device must not be painted, varnished or altered in any way. General safety precautions and safety instructions Attention Any changes or modi cations to this appliance which have not been explicity approved of by the respective regulatory authority, may lead to a prohibition of usage of this appliance. This device complies with the technical standards in force at the time of production. We constantly strive to ensure that our products are technologically cutting edge and that our handbooks are kept up to date. We therefore reserve the right to undertake technical changes and modi cations or adjustments to the instructions without providing advance notice. The instructions must be carefully followed. We accept no liability for damage, as a result of e.g. incorrect use or installation, improper handling, insuf cient or poor maintenance, disregard of safety guidelines or general conditions of use. When installed and used correctly and under the conditions speci ed, this device performs the functions described in the handbook. As the alarm is dependent upon the speci c arrangement put in place by the customer, there is no guarantee that it will be triggered. Limitation of liability BA BURGprotect_SIRENE2151_03-2019.indd 12 09.04.2019 11:37:00English | 13 SIRENE 2151 Please read the instructions carefully. No liability can be assumed for any damage which may result from failure to follow instructions. The device must be used only for the purpose specied in the instructions. The device should work effectively as an alarm in an emergency! Please check regularly that the device is in working order and that the batteries are charged. This will ensure that it functions correctly in the event of a (hopefully unlikely) emergency. The device may malfunction when exposed to unexpectedly high electromagnetic radiation, manipulation or other inuences. The device must not be installed in damp areas or near electrical devices which emit radiation. Battery-operated devices must not be used in high temperatures, near sources of heat or exposed to direct sunlight. Ensure that packaging and contents are kept well away from children to avoid any risk of suffocation. Please keep instructions in a safe place. IMPORTANT NOTE: The device may not function correctly if installed in an inappropriate location. If you require an EC Declaration on Conformity for this device for this device, please send a request to: [e-mail] Safety guidelines Use only a damp cloth for cleaning. Ensure that no water enters the device. Do not use any readily inammable, chemical, corrosive, abrasive or sharp cleaning materials. BURG-WÄCHTER products comply with the technical standards in force at the time of production and adhere to our own quality standards. The guarantee only covers defects which can be proved to have resulted from production or material defects at the time of purchase. The guarantee expires after two years; further claims are excluded. A short description of any defects identied must be made in writing and the device returned to the place it was bought, together with the original packaging. After the device has been tested, and within an appropriate period of time, the guarantor will decide whether or not to repair or exchange the item. Any defects or damage which may have resulted from transport, inappropriate or improper use, wear and tear etc. are not included in the guarantee. The battery is not included in the guarantee. Cleaning Guarantee BA BURGprotect_SIRENE2151_03-2019.indd 13 09.04.2019 11:37:0014 | English SIRENE 2151 Disposal Please be aware that electrical and electronic equipment and batteries shall not be disposed of as household waste, but rather collected separately. Please obtain information on the collecting points for electrical waste from the responsible authority of you municipality. BURG-WÄCHTER KG hereby declares that this device complies with Directive 2014/53/EU, (RED)

2014/30/EU, (EMC), 2011/65/EU

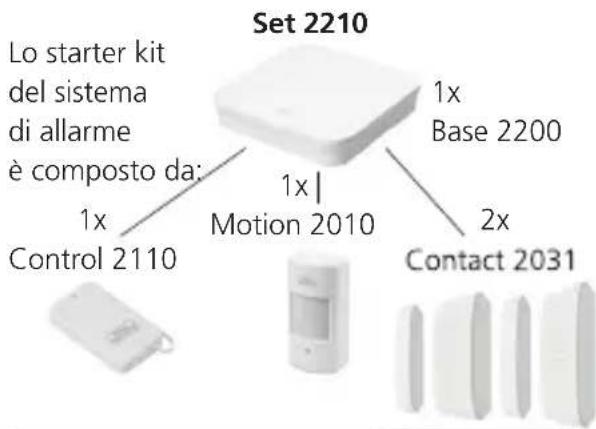

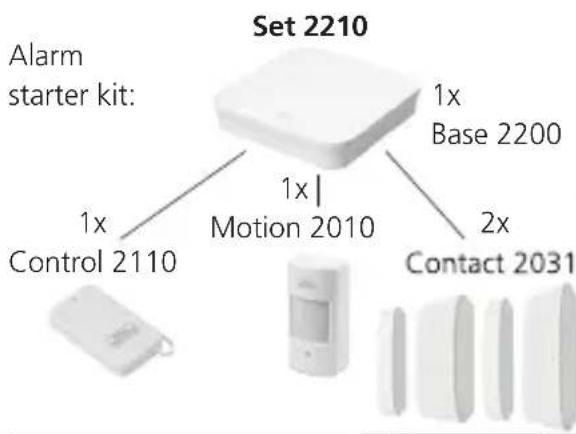

(RoHS), and (2014/35/EU). The full text of the EU Declaration of Conformity can be found on www.burg.biz. If you have technical questions about this device, please read the detailed user manual and the FAQ sheet which you will nd on the following website: www.burg.biz. If, however, you still have questions, please send an e-mail to: [e-mail] You can nd more Accessories on our homepage www.burg.biz or by App: Vibrancy 2020 Contact 2031 Sirene 2151 Smoke 2050 Motion 2010 Outdoor Siren Smoke detector PIR-sensor Water 2060 Water detector Control 2110 Remote control Vibrancy sensor Door- and window contact Keypad 2100 RFID-Keypad Plug 2141 Plug socket Alarm starter kit: Additional accessory (e.g.) Noice 2160 Indoor Siren Set 2210
