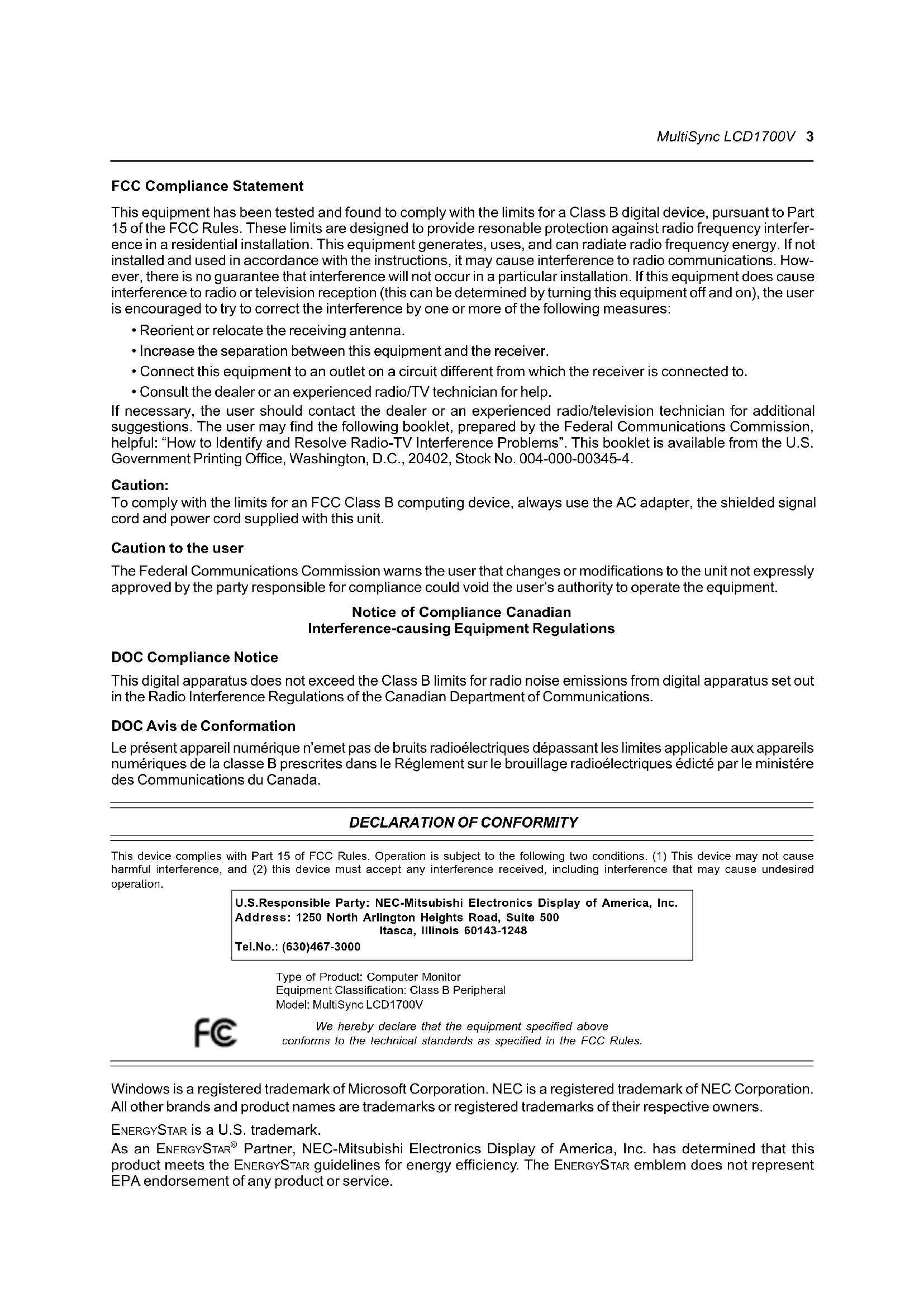

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio frequency interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception (this can be determined by turning this equipment off and on), the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between this equipment and the receiver.
• Connect this equipment to an outlet on a circuit different from which the receiver is connected to.
• Consult the dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems". This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Caution:

To comply with the limits for an FCC Class B computing device, always use the AC adapter, the shielded signal cord and power cord supplied with this unit.

Caution to the user

The Federal Communications Commission warns the user that changes or modifications to the unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice of Compliance Canadian Interference-causing Equipment Regulations

DOC Compliance Notice

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

DOC Avis de Conformation

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S.Responsible Party: NEC-Mitsubishi Electronics Display of America, Inc. Address: 1250 North Arlington Heights Road, Suite 500 Itasca, Illinois 60143-1248

Tel.No.: [phone]

Type of Product: Computer Monitor

Equipment Classification: Class B Peripheral

Model: MultiSync LCD1700V

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. All other brands and product names are trademarks or registered trademarks of their respective owners.

ENERGYSTAR is a U.S. trademark.

As an ENERGYSTAR® Partner, NEC-Mitsubishi Electronics Display of America, Inc. has determined that this product meets the ENERGYSTAR guidelines for energy efficiency. The ENERGYSTAR emblem does not represent EPA endorsement of any product or service.

MultiSync LCD1700V

Congratulations! You have just purchased a TCO '99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

ECOLOGY ENERGY Tco 99 EMISSIONS ERGONOMICS

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO '99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bioaccumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO '99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. TCO '99 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO '99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system and is toxic in high doses.

TCO '99 requirement states that batteries may not contain any Mercury. It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO '99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging.

* Bio-accumulative is defined as substances which accumulate within living organisms.

** Lead, Cadmium and Mercury are heavy metals which are Bioaccumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: [phone]

E-mail (Internet): [e-mail]

You may also obtain current information on TCO '99 approved and labelled products by visiting their website at: http://www.tco-info.com/

Analog LCD Monitor

MultiSync LCD1700V User's Manual

TABLE OF CONTENTS

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99 4

Front Panel Controls ....en - 5

Standard OSD Operation....en - 5

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of thisunit has been included. Therefore, it should be read carefully in order to avoid any problems.

Warning

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Unpacking

Please check the following items are present when you unpack the box, and save the packing materials in case you will need to ship or transport the monitor in future.

Line drawing of a flat-screen computer monitor with control buttons (no text or symbols)

• LCD Monitor

MultiLyne LCD/PCV CELA PREM Electronic Materials Electronic Materials Electronic Materials Electronic Materials Electronic Materials NEC

• User's Manual

- Installation Disk

Line drawing of a cable with two connectors and terminal blocks (no text or symbols)

• Video Signal Cable

Line drawing of a straight electrical outlet with two connectors (no text or symbols)

• Power Cord

Line drawing of a cable with a connector and terminal block (no text or symbols)

• AC Adapter (LSE9901B1970)

Screen Position Adjustment

In order to optimize the best viewing position, you can adjust the tilt of the monitor by using both of your hands to hold the edges of the monitor as shown in the figure below. The monitor can be adjusted 30 degrees upwards or 5 degrees downwards as shown on this drawing.

30° 5°

Installation

To install the monitor to your host system, please follow the steps as given below:

Steps

1. Open the connector cover first.

2. And then open the cable cover.

3. Connect Video Cable

a. Make sure both the monitor and computer are powered-OFF.
b. Connect the video cable to the computer first, then to the monitor.

1. Connect power cord

Check first to make sure that the power cord you use is the correct type required for your area. Connect the AC Adapter cord to the monitor.

Connect the power cord to the AC Adapter, then to a properly grounded AC outlet.

1. Assemble the cable cover.
2. Cover the connector cover.
3. Power-ON Monitor and Computer

Power-ON the monitor first, then power-ON the computer.

This sequence is very important.

1. If the monitor still does not function properly, please refer to the troubleshooting section to diagnose the problem.

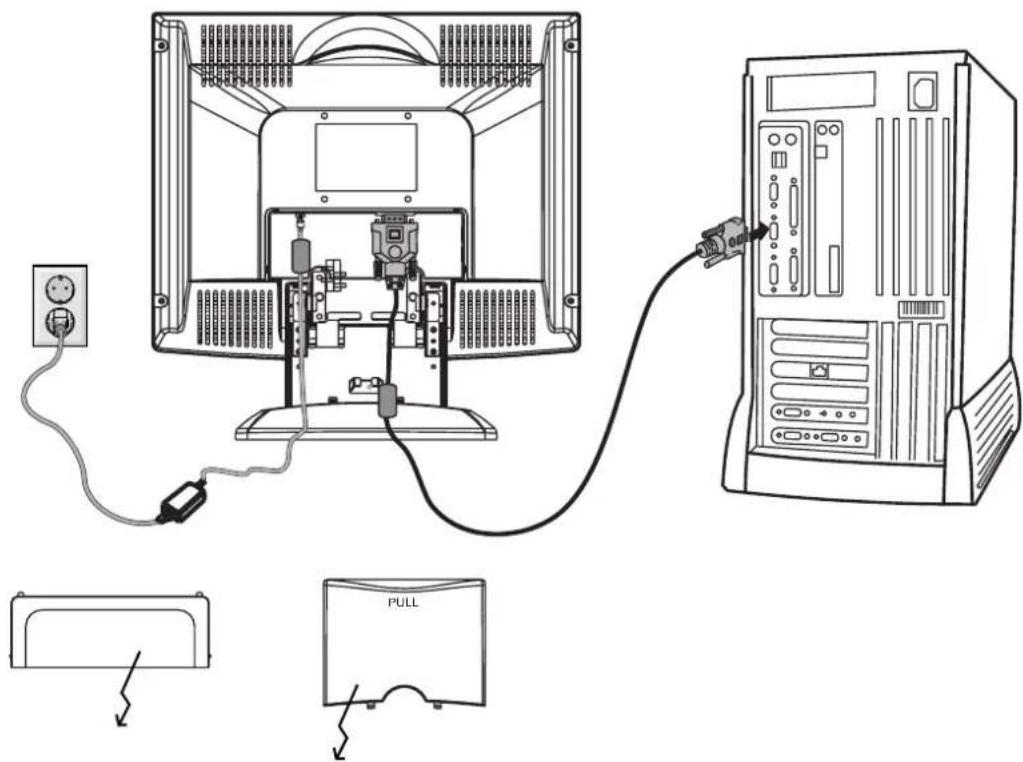

Diagram showing cable connection between a computer monitor and a server tower, with labeled components including power outlet, cable, and pull button.

Connector Cover Cable Cover
(This semi-circle opening is the Cables outlet)

User Controls

AUTO MENU 6 5 4 3 1 2

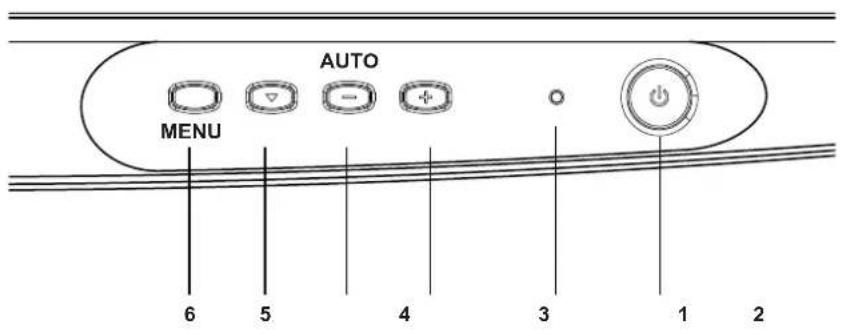

Front Panel Controls

1. Power Switch To turn ON or OFF the power.
2. Power LED Lights up to indicate the power is turned ON.
3. • To increase the value of the parameter in the OSD, which been selected for adjustment.
4. • To decrease the value of the parameter in the OSD, which been selected for adjustment. AUTO AUTO adjustment hot key without OSD display.

5. Select To move downward in the OSD menu.

6. Select MENU To exit and enter OSD menu.

Standard OSD Operation

1. Press any front panel key to activate the OSD menu.
2. Use Select Down key to move down through the menu. The parameter will be highlighted when selected.
3. Then use “+” or “-” to increase or decrease the value of the parameter, or make selection between different options.
4. To quit the OSD screen at any time during the operation, press MENU key. If no keys are pressed for a time period, the OSD automatically disappears.

OSD Screens

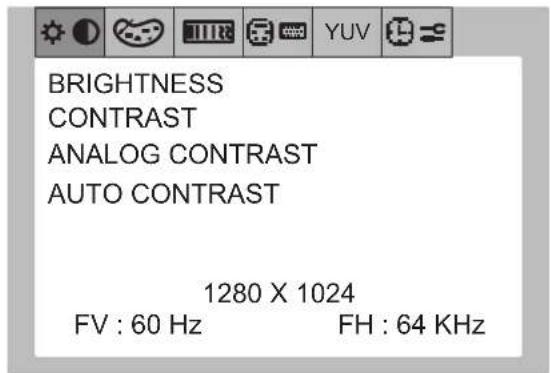

BRIGHTNESS CONTRAST ANALOG CONTRAST AUTO CONTRAST 1280 X 1024 FV : 60 Hz FH : 64 KHz

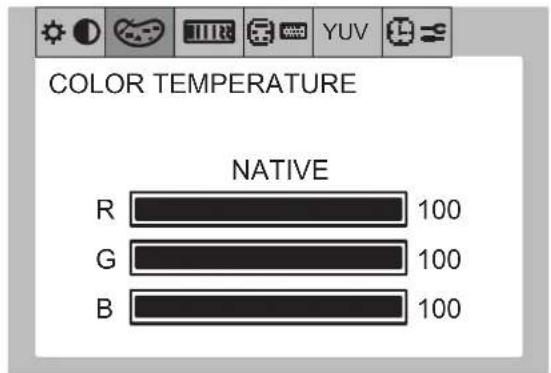

COLOR TEMPERATURE NATIVE R 100 G 100 B 100

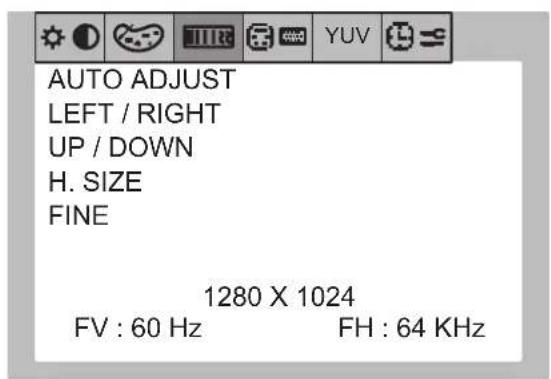

AUTO ADJUST LEFT / RIGHT UP / DOWN H. SIZE FINE 1280 X 1024 FV : 60 Hz FH : 64 KHz

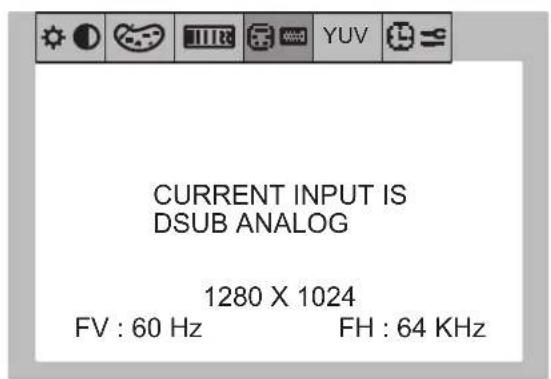

CURRENT INPUT IS DSUB ANALOG 1280 X 1024 FV : 60 Hz FH : 64 KHz

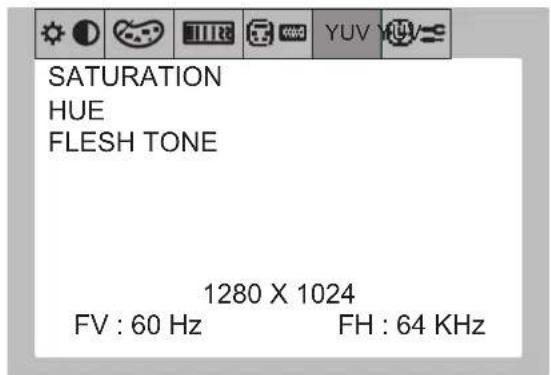

SATURATION HUE FLESH TONE 1280 X 1024 FV : 60 Hz FH : 64 KHz

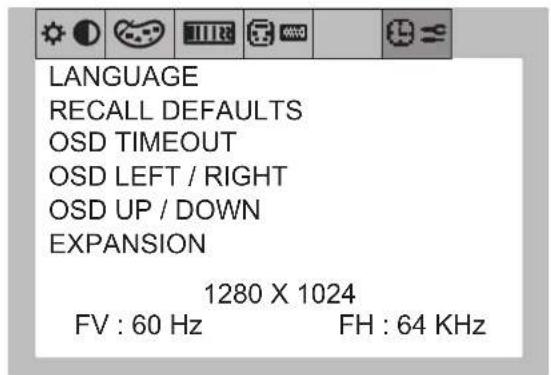

LANGUAGE RECALL DEFAULTS OSD TIMEOUT OSD LEFT / RIGHT OSD UP / DOWN EXPANSION 1280 X 1024 FV : 60 Hz FH : 64 KHz

NO SIGNAL INPUT

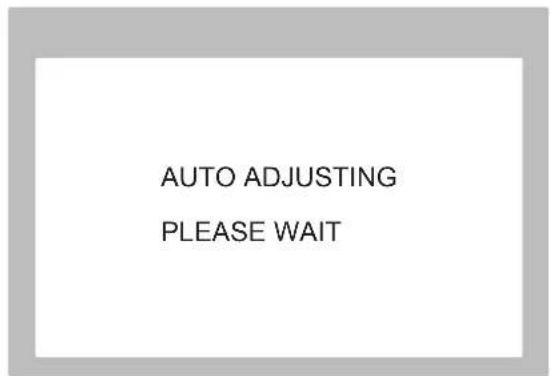

AUTO ADJUSTING PLEASE WAIT

OSD Function Description

metl	n	o
BRIGHTNESS	To increase or decrease the brightness.
CONTRAST	To increase or decrease the contrast; coarse adjustment. Recommended value is 50.
OGANTSARTNO	To increase or decrease the contrast; fine adjustment.We recommend that CONTRAST is first set to 50.
AUTO CONTRAST	Adjusts the image displayed for non-standard video inputs.
ROCO	Pressing “-” or “+” to select 9300, 7500, 5500, NATIVE and USER. Only whenSelecting USER, you can make adjustments to the R/G/B content, otherwise not.Press “+” and “-” simultaneously to restore to factory default setting.
CRUD	Press “+” to turn on this function.The Auto-Adjust will automatically adjust V-Position, H-Position, H. Size, and Fine,the whole process takes about 5 seconds.
LEFT / RIGHT	To move the screen toward left or right.
UP / DOWN	To move the screen upward or downward.
EIS.H	Should the “Auto Adjust function” do not give you asatisfactory picture setting, a further tuning can beperformed using the “H.Size” function (dot clock). For this aMoiré test pattern could be used. This function may alter thewidth of the picture. Use Left/Right Menu to center theimage on the screen. If the H.Size is wrongly calibrated, theresult would look like on this drawing. The image should behomogeneous.
BN	Should the “Auto Adjust function” and the “H.Size” functiondo not give you a satisfactory picture setting, a fine tuningcan be performed using the “Fine” function. It improvesfocus, clarity and image stability by increasing ordecreasing this setting. For this a Moiré test pattern couldbe used. If the Fine value is wrongly calibrated, the resultwould look like on this drawing. The image should behomogeneous.

Note: For above adjustment action, press “+” and “-” simultaneously will return to the factory defaults setting.

OSD Function Description – continued

metl	n o
SATURATION	To increase or decrease the saturation.
HUE	To increase or decrease the hue.
FLESH TONE	To adjust the colors of natural colors.
LANGUAGE	Select among English, French, Italian, German and Spanish.
LLAB STABE	To return the monitor to its default settings.
OSD TIMEOUT	The OSD menu will stay as long as it is in use. In the OSD TIMEOUT menu you can select how long the monitor waits after the last touch of a button to shut off the OSD menu.The preset choices are 10, 20, 45, 60 and 90 seconds.
OSD THGTRFEL	To move the OSD position horizontally on the screen.When the "+" key is pressed, the OSD control menu will move to the right side of the nserLikewise when the "-" key is pressed, the OSD control menu will move to the left side.
OSD /PUNW	To move the OSD position vertically on the screen.When the "+" key is pressed, the OSD control menu will move to the up side of the screen. Likewise when the "-" key is pressed, the OSD control menu will move to the sidew
EXPANSION	The image can be expanded to 1280 x 1024, regardless of the resolution.- selects no+ selects yes
AUTO ADJUSTING	Automatically adjusts the Image Position, the Horizontal Size and Fine Setting. This process takes 5 seconds.

OSD Messages

CURRENT INPUTOGANDS	CURRENT INPUT IS DSUB ANALOG
ONTAIN	Indicates the current resolution. V-Frequency (FV) and H-Frequency (FH).
NO SIGNAL INPUT	This message gives a warning when no signal is present.

Note: For above adjustment action, press “+” and “-” simultaneously will return to the factory defaults setting.

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
• When operating the MultiSync LCD1700V with a 220 - 240 V AC power source in Europe except UK, use the power cord provided with the monitor.
• In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.
• When operating the MultiSync LCD1700V with a 220 - 240 V AC power source in Australia, use the power cord provided with the monitor.
• For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.
• Use supplied AC Adapter. Do not place any objects onto the AC Adapter and do not use the AC Adapter outdoors.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
• Do not bend power cord.
• Do not use monitor in high temperatured, humid, dusty, or oily areas.
• If glass is broken, handle with care.
• Do not cover vent on monitor.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.
• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.

Recommended Use – continued

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR.

• For optimum performance, allow 20 minutes for warm-up.
• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
• Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 50 cm.
• Rest your eyes periodically by focusing on an object at least 6 m away. Blink often.

Silhouette of a person sitting at a desk using a computer, viewed from the side (no text or symbols present)

- Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

- If reflected light makes it hard for you to see your screen, use an anti-glare filter.

- Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

- Adjust the monitor's brightness and contrast controls to enhance readability.

- Use a document holder placed close to the screen.

- Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

- Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).

- Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Use the preset Size and Position controls with standard signals
• Use the preset Color Setting
• Use non-interlaced signals with a vertical refresh rate between 60 - 75 Hz
• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast

Troubleshooting

Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem.

smelborP		s utatStnerruC
NoretP	LED ON	Using OSD, adjust brightness and contrast to maximum or reset to their default settings.
	LED OFF	Check the power switch.
		Check if AC power cord is properly connected to the AC adapter.
	LED displays amber color	Check if video signal cable is properly connected at the back of monitor.
		Check if the power of computer system is ON.
rbalretP	Unstable Picture	Check if the specification of graphics adapter and monitor is in compliance which may be causing the input signal frequency mismatch.
	Display is missing, center shift, or too small or too large in ezipi	Using OSD, adjust EXPANSION, H.SIZE, FINE, LEFT / RIGHT, and UP / DOWN with non-standard signals.
		Using OSD, in case of missing full-screen image, please select other resolution or other vertical refresh timing.
		Wait for a few seconds after adjusting the size of the image before changing or disconnecting the signal cable or powering OFF the monitor.

y

Declaration of the Manufacturer

We hereby certify that the color monitorMultiSync LCD1700V is in compliance withCouncil Directive 73/23/EEC:– EN 60950Council Directive 89/336/EEC:– EN 55022– EN 61000-3-2– EN 61000-3-3– EN 55024and marked withCENEC-Mitsubishi Electric Visual Systems Corporation4-13-23, Shibaura, Minato-KuTokyo 108-0023, JAPAN

Specifications

emaNledoM V0071DCLcnyS	titluM
yalp300
Display Type	17" TFT LCD
Display Area (H x W)	338 x 270 mm / 13.3 inches x 10.6 inches
Contrast Ratio	400:1 (Typ.)
Viewing Angle	140°H 125°V (Typ.)
Operational Features
Display Colors	16.7 M
Resolution	SXGA (1280 x 1024) at 75*Hz maximum.
Brightness	250 cd/m2 (Typ.)
Synchronization Range Horizontal:	31,5 kHz to 80 kHz Automatically
Vertical:	56,3 Hz to 75 Hz Automatically
Interface	Analog RGB, DDC2B
Input Connector	15-pin D-sub
itrssU s
Front Panel Controls	Power On/Off, MENU, Select DOWN (▼), Value (+/-)
OSD Controls	Contrast, Brightness, H-Position, V-Position, Fine, H.Size, Left/Right, Up/Down, Expansion, Factory Defaults, Auto-Adjust, Color Temperature, Saturation, Hue, Flesh Tone, Language, Information
Physical Specification
Dimension (W x H x D)	434 x 437 x 220 (mm) / 17.1 x 17.2 x 8.7 (inches)
Net Weight	6.2 Kg / 13.7 lbs.
eR
Power Saving	VESA DPMS standard
Power Supply	AC 100 - 240 V @ 50 / 60 Hz
Current Rating	1.50 A @ 100 - 120 V, 0.75 A @ 220 - 240 V
fedgeR
Safety EMI & Ergonomics	UL, C-UL, TÜV-GS, TÜV-Ergonomie, FCC-B, CE, TCO '99
Environmental Considerations
Operating Temperature	5 °C to 35 °C / 41 °F to 95 °F
Humidity	30 % to 80 %
Altitude	0 to 12,000 Feet
Storage Temperature	-10 °C to 60 °C / 14 °F to 140 °F
Humidity	10 % to 85 %
Altitude	0 to 40,000 Feet

* NEC-Mitsubishi Electronics Display cites recommended resolution at 60 Hz for optimal display performance.
All specifications are subject to change without notice.

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99 4

Line drawing of a flat-screen computer monitor with control buttons and indicator lights (no text or symbols)

• LCD Monitor

MultiBoxo LCD TV NEC

Line drawing of two connected electronic devices with a coiled cable (no text or symbols)

Line drawing of a straight cord with two plug connectors (no text or symbols)

• Napájecí šňůra

Line drawing of a cable with a rectangular connector and terminal plug (no text or symbols)

Technical diagram showing cable connection between a computer monitor and a server tower, with labeled components including power outlet, switch, and pull button.

Silhouette of a person sitting at a desk using a computer, viewed from the side (no text or symbols visible)

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99 4

Vorsicht de - 2

Warnung de - 2

Line drawing of a flat-screen computer monitor with control buttons and display stand (no text or symbols)

• LCD-Monitor

MultiBoxo LOD1PANV NEC

Line drawing of two connected electrical connectors with wires (no text or symbols)

Line drawing of a straight cord with two connectors (no text or symbols)

Line drawing of a cable with a connector and terminal block (no text or symbols)

(LSE9901B1970)

Diagram showing cable connection between a computer monitor and a server tower, with labeled components including power outlet, cable, and pull button.

Silhouette of a person sitting at a desk using a computer, viewed from the side (no text or symbols present)

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99....4

ΠΡΟΣΟΧΗ...... eλ - 2

Line drawing of a flat-screen computer monitor with control buttons and display stand (no text or symbols)

MultiSensors LCD1/36V NEC Name: NEC LED drive power, the External circuit Battery, battery Electronic components Electronic devices Electronic components Electronic components Electronic components NEC

• Οδηγίες Χρήσης

Line drawing of two connected electrical connectors with wires (no text or symbols)

Line drawing of a straight cord with two connectors (no text or symbols)

• Καλώδιο Ρεύματος

Line drawing of a cable with a connector and terminal block (no text or symbols)

Diagram showing cable connection between a computer monitor and a server tower, with labeled components including power outlet, cable, and pull button.

Silhouette of a person sitting at a desk in an office chair, viewed from the side (no text or symbols visible)

Εργονομία

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99 4

Peligro es - 2

Line drawing of a flat-screen computer monitor with control buttons and display stand (no text or symbols)

Line drawing of two connected electrical connectors with wires (no text or symbols)

Line drawing of a straight cord with two connectors (no text or symbols)

Line drawing of a cable with a connector and terminal block (no text or symbols)

• Adaptador de CA (LSE9901B1970)

Diagram showing cable connection between a computer monitor and a server tower, with labeled components and cable termination.

Silhouette of a person sitting at a desk using a computer, viewed from the side (no text or symbols present)

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99 4

Attention fr - 2

Avertissement ...... fr - 2

Déballage ...... fr - 3

Line drawing of a flat-screen computer monitor with control buttons and stand (no text or symbols)

• Moniteur LCD

Mollicleryna LCD1700V Car's license Laserless 250x 100% Extraventric Dens Vdc Menside Metal Molecule Steel Motor Induction coating Polyurethane Polyurethane Nec

Line drawing of two connected electrical connectors with a coiled cable (no text or symbols)

• Câble vidéo

Line drawing of a straight cord with two plug connectors (no text or symbols)

Line drawing of a cable with a connector and plug, no text or symbols present

Diagram showing cable connection between a computer monitor and a server tower, with labeled components including power outlet, cable, and pull button.

Silhouette of a person sitting at a desk using a computer, viewed from the side (no text or symbols present)

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99 4

Line drawing of a flat-screen computer monitor with control buttons and display stand (no text or symbols)

• Monitor LCD

MultiBayer, LCD1700V NEC

• Manuale utente

Line drawing of a cable with two connectors and connectors tied at the end (no text or symbols)

Line drawing of a straight cord with two plug connectors (no text or symbols)

Line drawing of a cable with a connector and plug (no text or symbols)

• Adattatore CA (LSE9901B1970)

Diagram showing cable connection between a computer monitor and a server tower, with labeled components including power outlet, cable, and pull button.

Silhouette of a person sitting at a desk using a computer, viewed from the side (no text or symbols visible)

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99 4

Let op .... nl - 2

Line drawing of a flat-screen computer monitor with control buttons (no text or symbols)

• LCD-monitor

MultiBayer LCD1700V NEC

Line drawing of a cable with two connectors and connectors tied at the end (no text or symbols)

Line drawing of a straight cord with two plug connectors (no text or symbols)

Line drawing of a cable with a connector and terminal block (no text or symbols)

• Wisselstroomadapter (LSE9901B1970)

Diagram showing computer setup with cable, drive, and monitor components, including a pull button and labeled 'PULL' component.

Silhouette of a person sitting at a desk using a computer, viewed from the side (no text or symbols visible)

Ergonomie

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99 4

Line drawing of a flat-screen computer monitor with control buttons (no text or symbols)

• LCD Monitor

MultiBoxys LCD17004 CELA 2016 Nanon, Inc. Nanon, Inc. Nanon, Inc. Nanon, Inc. Nanon, Inc. NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NEC NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE NAE

Line drawing of a cable with two connectors and connectors tied at the end (no text or symbols)

• Kabel sygnałowy

Line drawing of a straight cord with two plug connectors (no text or symbols)

• Przewód zasilający

Line drawing of a cable with a connector and terminal block (no text or symbols)

Diagram showing cable connection between a computer tower and an open monitor, with labeled components and cable termination.

Silhouette of a person sitting at a desk with computer, viewed from the side (no text or symbols)

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99 4

Осторожно! py - 2

Внимание! py - 2

Распаковка ...... py - 3

Line drawing of a flat-screen computer monitor with control buttons (no text or symbols)

• ЖК-монитор

MultiType LCD/NAV Lear Material Electronic component Dialysis device Electronic component Power supply Electrical components Electronic components NEC

Line drawing of a cable with two connectors and connectors tied at the end (no text or symbols)

Line drawing of a straight electrical outlet with two plug connectors (no text or symbols)

• Сетевой шнур

Line drawing of a cable with a connector and plug, no text or symbols present

Silhouette of a person sitting at a desk using a computer, viewed from behind (no text or symbols present)

Эргономика

4-13-23, Shibaura, Minato-Ku

Tokyo 108-0023, JAPAN

Уточнение

FCC Compliance Statement 3

Caution to the user 3

DOC Compliance Notice 3

DOC Avis de Conformation 3

DECLARATION OF CONFORMITY 3

TCO '99 4

Uyarı tr - 2

Dikkat tr - 2

Line drawing of a flat-screen computer monitor with control buttons (no text or symbols)

• LCD Monitör

Multiyear LCD/TVW NEC

Line drawing of a cable with two connectors and connectors tied at the end (no text or symbols)

• Video Sinyal Kablosu • Güç Kablosu • AC Adaptör

Line drawing of a straight cord with two connectors and a power plug (no text or symbols)

Line drawing of a cable with two connectors and a rectangular connector (no text or symbols)

(LSE9901B1970)

Diagram showing cable connection between a computer monitor and a server tower, with labeled components including power outlet, cable, and pull button.

Silhouette of a person sitting at a desk using a computer, viewed from the side (no text or symbols present)

Ergonomi
