| Product Type | LED Wall and Table Clock |
| Brand | Auriol |
| Model | IAN 386311 (Art. 4-LD6052) |
| Category | Digital Clock |
| Power Supply | 2 x CR2025 3V button cell batteries (included) or USB 5V cable |
| Display | LED (Time, date, temperature) |
| Main Functions | Time, date, temperature display, alarm, LED lighting |
| Dimensions (approx.) | 300 x 200 x 50 mm (estimated) |
| Weight (approx.) | 400 g (estimated) |
| Case Material | Plastic |
| Operating Temperature | Indoor dry, 0 °C to 40 °C |
| Alarm | Yes, with snooze function |
| Backlight | LED, activation via ON/OFF button |
| Controls | SET, UP, DOWN, ON/OFF, RESET, DP1/DP2 selector |
| Battery Type | 2 x CR2025 (lithium button cell) |
| Maintenance | Clean with a dry cloth; do not immerse |
| Safety | Indoor use only; keep out of reach of children; do not open the case |
| Reparability | No user-serviceable parts; contact customer service |
| Included Accessories | 2 CR2025 batteries, USB cable, quick start guide |
| Certifications | CE, RoHS |
| Warranty | Standard manufacturer's warranty (see full manual) |
| After-Sales Service | Inter-Quartz GmbH, support@inter-quartz.de, +49 (0)6198 571825 |
Frequently Asked Questions - IAN 386311 AURIOL
User questions about IAN 386311 AURIOL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Digital clock in PDF format for free! Find your manual IAN 386311 - AURIOL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 386311 by AURIOL.
USER MANUAL IAN 386311 AURIOL
LED-WAND- UND TISCHUHR •
HORLOGE MURALE ET DE TABLE À LED
Art.-Nr.: 4-LD6052
GB IE NI CY MT
LED WALL & DESK CLOCK
DE AT CH LED-WAND- UND TISCHUHR
FR BE CH
HORLOGE MURALE ET DE TABLE À LED
NL LED-WAND-EN TAFELKLOK
©CZ LED NÁSTĚNNÉ A STOLNÍ HODINY
PL ZEGAR ŚCIENNY I STOŁOWY LED
SK LED NÁSTENNÉ A STOLOVÉ HODINY
ES
RELOJ DE PARED Y DE SOBREMESA DE LEDES
DK LED UR TIL VÄGGEN OG BORDET
IT MT CH
OROLOGIO DA PARETE E DA TAVOLO LED
HU LED FALI ÉS ASZTALI ÓRA
SI STENSKA IN NAMIZNA LED-URA
IAN 386311_2110
os


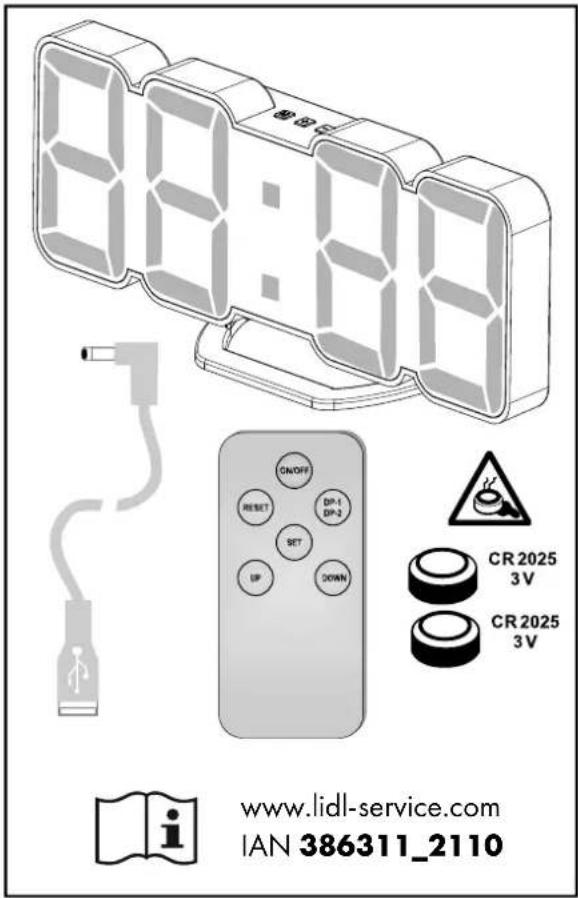

8:86 CN/DIFF RESET DP-1 DP-2 SET UP DOWN CR 2025 3 V CR 2025 3 V www.lidl-service.com IAN 386311_2110


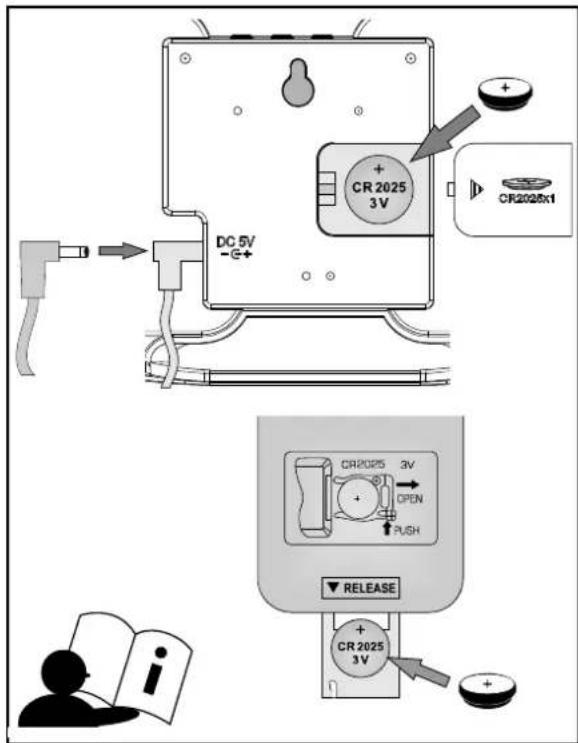

DC 5V + - CR 2025 3V + CR2025x1 CR2025 3V OPEN PUSH ▼ RELEASE + - CR 2025 3V + + - iBEEP ->


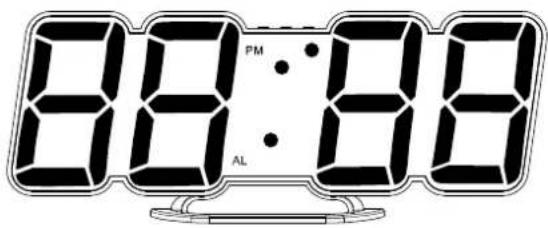

8:00:00 PM AL3 sec.


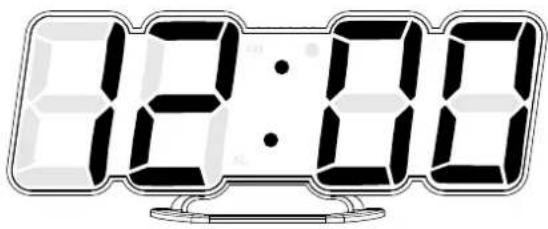

12:00
Zeit -> Datum -> Temperatur -> ...,
DP-1, time -> date -> temperature -> ...
Zeit -> Datum -> Temperatur -> ...,
DP-2, time/Zeit/temps
SET – Basic settings, Grundeinstellung, Régale de base
Usage and safety instructions .... - 1 -
DE AT CH
GB IE Usage and safety instructions
Table of contents
Table of contents - 1 -
Introduction - 2 -
Intended use - 2 -
Explanation of symbols - 3 -
Important safety information Important safety information
Safety information for users .... - 4 -
Safety information for the batteries ..... - 4 -
Safety instructions for the USB cable .... - 5 -
Simplified EU declaration of conformity .... - 7 -
Disposal -7-
Disposal of the electronic device ....- 7 -
Battery disposal - 8 -
Recycling - 10 -
Waste disposal - 10 -
Service - 10 -
Supplier - 11 -

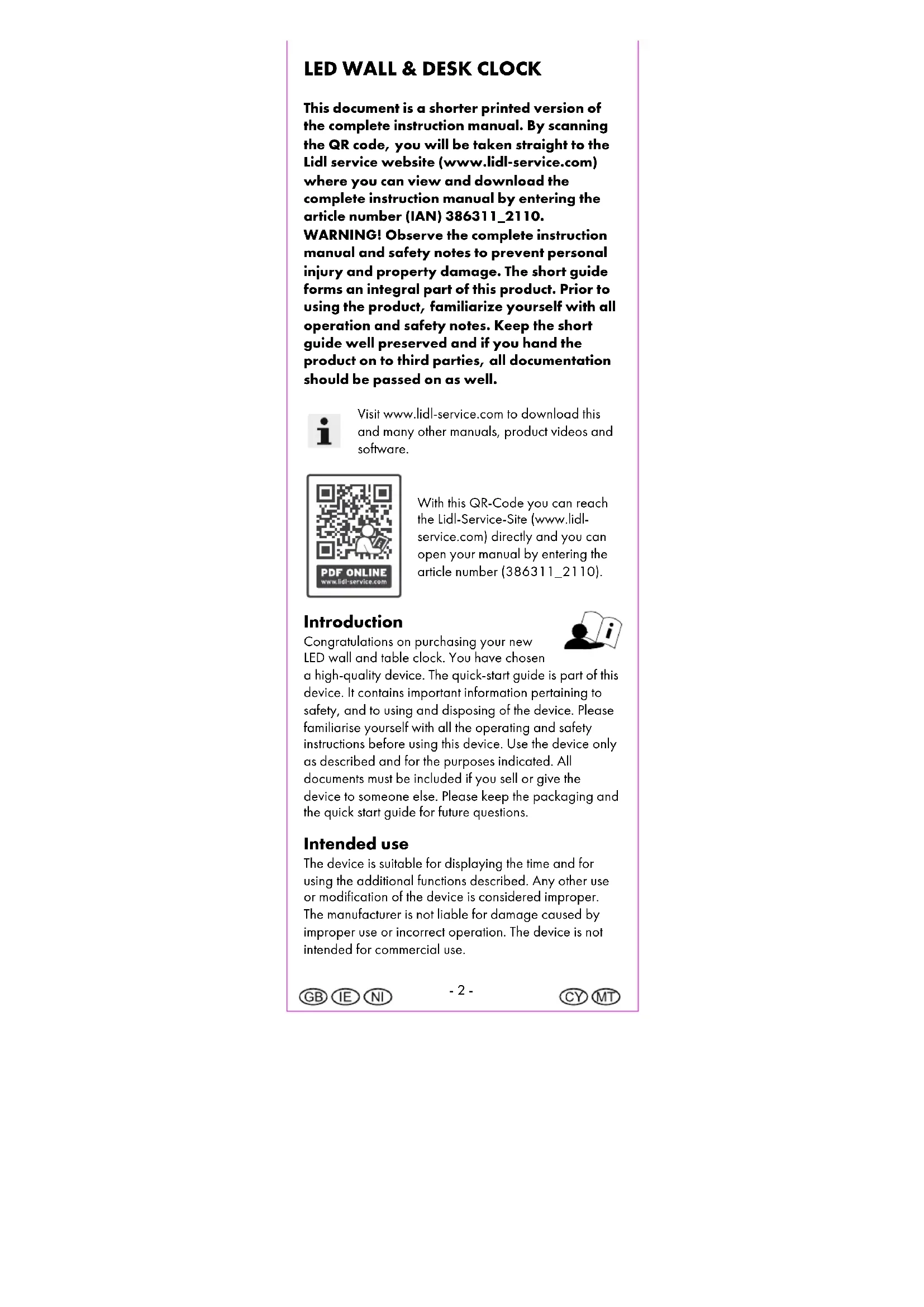

LED WALL & DESK CLOCK
This document is a shorter printed version of the complete instruction manual. By scanning the QR code, you will be taken straight to the Lidl service website (www.lidl-service.com) where you can view and download the complete instruction manual by entering the article number (IAN) 386311_2110.
WARNING! Observe the complete instruction manual and safety notes to prevent personal injury and property damage. The short guide forms an integral part of this product. Prior to using the product, familiarize yourself with all operation and safety notes. Keep the short guide well preserved and if you hand the product on to third parties, all documentation should be passed on as well.
Visit www.lidl-service.com to download this and many other manuals, product videos and software.
With this QR-Code you can reach the Lidl-Service-Site (www.lidl-service.com) directly and you can open your manual by entering the article number (386311_2110).
Introduction
Congratulations on purchasing your new LED wall and table clock. You have chosen
a high-quality device. The quick-start guide is part of this device. It contains important information pertaining to safety, and to using and disposing of the device. Please familiarise yourself with all the operating and safety instructions before using this device. Use the device only as described and for the purposes indicated. All documents must be included if you sell or give the device to someone else. Please keep the packaging and the quick start guide for future questions.
Intended use
The device is suitable for displaying the time and for using the additional functions described. Any other use or modification of the device is considered improper. The manufacturer is not liable for damage caused by improper use or incorrect operation. The device is not intended for commercial use.
Explanation of symbols
 DANGER! | This symbol indicates a hazard with a high degree of risk which could result in death or serious injury. |
 WARNING! | This symbol indicates a hazard with a medium level of risk, which may result in death or serious injury. |
  | This symbol indicates a risk of electric shock. |
| Note: | This signal word indicates additional information. |
 | Improper use of disposable/rechargeable batteries may cause an explosion and/or leakage of battery fluid. |
 | Button cell batteries included |
  | Batteries: 2 x CR2025, 3 V |
 | Symbol for DC voltage (5 volts) |
 | Instruction manual |
 | Please read the operating instructions! |
 | Digi-tech GmbH demonstrates conformity with the applicable EU directives by means of the CE marking. |
 | Use only in dry indoor areas! |
 | Time |
 | Alarm |
GB IE NI
-3-
CY MT
| Temperature | |
| - ⊙ +⊖ ⊙ ⊕ | USB cable connection:5 V -1 A |
Important safety information
Safety information for users
WARNING!
RISK OF INJURY!
This device can be used by persons (including children aged 8 and over) with reduced physical, sensory and mental abilities, as well as by persons with a lack of experience and knowledge, if they have been given supervision or instruction concerning use of the device with respect to safety and any hazards involved.
Children must not play with the device. Cleaning and user maintenance must not be carried out by children unless they are supervised. Keep the packaging film out of reach of children. There is a risk of suffocation.
Safety information for the batteries
WARNING!
HEALTH HAZARD! RISK OF EXPLOSION!
Keep old and new disposable batteries/rechargeable batteries out of reach of small children. If a disposable battery/rechargeable battery is swallowed, seek medical attention immediately.
The disposable batteries/rechargeable batteries must always be inserted with the correct polarity. Clean the battery and device contacts beforehand if necessary.
GB IE NI
-4-
CY MT
Do not attempt to recharge, short-circuit, or open the batteries. Never heat the disposable batteries/rechargeable batteries to recharge them. Do not expose the disposable batteries/rechargeable batteries to excessive heat such as sunshine, fire or the like. There is an increased risk of leakage! Never throw disposable batteries/rechargeable batteries onto the fire, as they may explode.
Improper use of batteries/rechargeable batteries
may result in a risk of explosion and of the battery fluid leaking. If the disposable batteries/rechargeable batteries do leak, avoid contact with skin, eyes and mucous membranes. Use protective gloves. In case of contact with battery fluid, rinse the affected areas with plenty of clean water straight away and seek medical attention immediately. Remove exhausted/rechargeable batteries from the device immediately, there is an increased risk of leakage.
Note:
- Non-rechargeable batteries must not be charged!
- Do not short-circuit the connecting terminals.
Safety instructions for the USB cable
DANGER!
ELECTRIC
Improper use, incorrect electrical installation or excessively high mains voltage can lead to electric shocks.
GB IE NI
-5-
CY MT
- Check whether the information on the nameplate corresponds to the mains voltage of the socket.
- Only use a SELVpower supply. Safety Extra Low Voltage describes voltate that is selected to be so low that there is no danger of excessive body currents when touching it directly, both during normal operation and in the event of a single fault.
- Only connect the USB cable of the device to a suitable power supply unit that corresponds to the specifications (volts and amperes) on the nameplate.
WARNING!
RISK OF DAMAGE!
- Only connect the USB cable to an easily accessible power source so that you can quickly disconnect the device from the power supply in the event of a fault.
- Do not operate the device if it or the accessories show visible signs of damage or defects.
- Do not open the housing or make any changes to the device. Leave the repairs to specialists. To do this, contact the specified service address. Liability and warranty claims are excluded if repairs are carried out independently or by improper connection or incorrect operation.
- Do not immerse the device or the USB cable in water or other liquids.
- Never touch the USB cable with wet hands.
-
When disconnecting the USB cable from the USB socket, always pull at the plug.
-
Never use the USB cable as a carrying handle.
- Keep the device and the USB cable away from open flames and hot surfaces.
- Do not bend the USB cable and do not place it over sharp edges.
Simplified EU declaration of conformity
Digi-tech gmbh hereby declares that the LED wall and table clock 4-LD6052 complies with directives RoHS 2011/65/EU and EMC 2014/30/EU.
You can download operating instructions and the declaration of conformity here:
www.digi-tech-gmbh.com/downloads
Then click on the magnifying glass and enter the article number 386311_2110.
Disposal
This device and all the packaging materials are recyclable. Please dispose of them separately for better waste handling. You can find out about disposal options for your product by contacting your municipality.
Please take note of the marking of packaging material when separating waste materials. They are marked with abbreviations (a) and numbers (b) with the following meanings:
1-7: plastics
20-22: paper and cardboard
80-98: composite materials.
Disposal of the electronic device
The symbol with the crossed-out waste bin signifies that electrical and electronic equipment must not be disposed of with household waste. Consumers are legally obliged to collect electrical and electronic equipment separately from unsorted municipal waste at the end of their service life. In this way, an environmentally friendly and resource-saving usage is ensured.
Batteries and rechargeable batteries that are not firmly enclosed by the electrical or electronic device and that can be removed non-destructively must be separated from the device before it is handed over to a collection point and disposed of as intended.
The same applies to light sources that can be removed from the device non-destructively.
Owners of electrical and electronic equipment from private households can hand them in at the collection points of the public waste disposal authorities or at the collection points set up by the manufacturers or distributors within the jurisdiction of the ElektroG/WEEE. The surrender of old devices is free of charge.
Please dispose of the device by returning it to your lidl store.
Dealers with a sales area of at least 400 m ^2 for electrical and electronic equipment are obliged to take them back. The same applies to food retailers with a total sales area of at least 800 m ^2 , provided that they offer electrical and electronic equipment continuously or at least several times a year.
Distance sellers with a storage area of at least 400 m^2 for electrical and electronic equipment or a total storage area of at least 800 m^2 are also obligated. In general, distributors are obliged to ensure that old devices can be returned free of charge by means of suitable return options at a reasonable distance.
Consumers have the option of handing over an old device free of charge to a distributor who is obliged to take them back if they purchase an equivalent new device with essentially the same function. This possibility also exists for deliveries to a private household. In distance selling, the option of free pick-up when purchasing a new device is limited to heat exchangers, display screen devices and large devices that have at least one outer edge with a length of more than 50 cm. When concluding the purchase contract, the distributor must question the consumer about their return intention. Apart from that, consumers can hand in up to three old devices of one type at a collection point of a distributor free of charge, without this being tied to the purchase of a new device. However, the edge lengths of the respective devices must not exceed 25 cm.
Consumers are encouraged to take measures to avoid waste. With regard to electrical and electronic devices, this means extending their lifespan by repairing defective devices and selling used devices that are in good working order instead of disposing of them.
Remove the battery before disposal without causing damage and dispose of it separately (see "Disposing of the batteries").
Battery disposal
The accompanying symbol indicates that batteries and rechargeable batteries must not be disposed of with normal household waste.
Defective or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Consumers are legally obliged to dispose of all batteries and rechargeable batteries, regardless of whether they contain harmful substances such as: Cd = cadmium, Hg = mercury, Pb = lead, Li = lithium or not, at a collection point in their municipality / district or at a retail outlet, for environmentally friendly disposal and for the recovery of valuable raw materials such as cobalt, nickel or copper.
The return of batteries and accumulators is free of charge.
WARNING!
Environmental damage through incorrect disposal of batteries/rechargeable batteries!
Some of the possible materials such as mercury, cadmium and lead are poisonous and, if not disposed of properly, endanger the environment. For example, heavy metals can have harmful effects on the health of humans, animals and plants and accumulate in the environment and in the food chain, and can then enter the body indirectly via food.
WARNING!
Danger of explosion!
With used batteries containing lithium (Li = lithium) there is a high risk of fire. Therefore, special attention must be paid to the proper disposal of used batteries and rechargeable batteries containing lithium. Incorrect disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and
have serious consequences for humans and the environment. For this reason, tape off the poles of lithium-based batteries and rechargeable batteries prior to disposal in order to avoid an external short circuit. Batteries and rechargeable batteries that are not permanently installed in the device must be removed and disposed of separately before disposal of the device. Please return batteries and rechargeable batteries only when they have been discharged!
Use rechargeable batteries instead of disposable batteries whenever possible.
Recycling
The product packaging consists of recyclable materials.
Please dispose of them properly at the available collection sites.
Waste disposal
Dispose of the packaging in an environmentally responsible fashion.
Please note the marking of the different packaging materials and separate them if applicable.
Service
Inter-Quartz GmbH
Valterweg 27A
65817 Eppstein
GERMANY
Email: support@inter-quartz.de
Telephone: +49 (0)6198 571825
AT BE DE ES FI FR GB IE IT
NI NL PT SE
00800 5515 6616
BG 00800 1114916
CH 0800 563862
CY 8009 4403
CZ 800 142 315
DK 800 5515 6616
GB IE NI
-10-
CY MT
EE 80000 49116
GR 00800 44140855
HR 0800 222943
HU 0680 981220
LT 8800 33139
LV 8000 5884
MT 800 62851
PL 00800 44 11 493
RO 0800 896640
RS 0800 191026
SI 0800 80847
SK 0800 004449
IAN 386311_2110
Art.-Nr.: 4-LD6052
Year of manufacture: 2022
Supplier
Please note that the following address is not a service address.
Please first contact the service address (see above).
digi-tech gmbh
Valterweg 27A
65817 Eppstein
GERMANY
GB IE NI
-11-
CY MT
