SMKA 2000 A2 - Massage device SILVERCREST - Free user manual and instructions
Find the device manual for free SMKA 2000 A2 SILVERCREST in PDF.
| Product type | Wireless neck massage cushion |
| Intended use | Neck massage for domestic use, dry rooms |
| Integrated battery | Lithium-ion 3.7 V / 2000 mAh (user non-replaceable) |
| Input voltage (cushion) | 5.0 V ⎓, 1.0 A |
| Power supply | Input: 100-240 V ~, 0.5 A, 50/60 Hz; Output: 5.0 V ⎓, 1.0 A, 5.0 W |
| Operating time | Max. 15 minutes (auto shut-off) |
| Charging time | Approximately 120 minutes |
| Charging LED indicator | Flashing red (charging), solid red (charged) |
| Battery LED indicator | Green (high level), yellow (medium), flashing red (low) |
| Massage speeds | 2 levels (low / high) |
| Rotation direction | Clockwise / counterclockwise (adjustable) |
| Auto shut-off | After approx. 15 minutes to prevent overheating |
| Ingress protection | IP20 (solid bodies > 12.5 mm) |
| Protection class | II (power supply) |
| Cushion material | Textile (according to description, not specified) – clean with damp cloth |
| Cleaning | Damp cloth with mild detergent; do not immerse |
| Warranty | 3 years from date of purchase |
| Article number (IAN) | 375146_2104 |
| Package contents | Massage cushion, power supply, USB cable, instruction manual |
| Country of origin | Manufacturer: Xiamen Keli Electronics Co., Ltd (China) |
Frequently Asked Questions - SMKA 2000 A2 SILVERCREST
User questions about SMKA 2000 A2 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Massage device in PDF format for free! Find your manual SMKA 2000 A2 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SMKA 2000 A2 by SILVERCREST.
USER MANUAL SMKA 2000 A2 SILVERCREST
CORDLESS NECK MASSAGER
Operation and safety notes
NL BE
ACCU-NEKMASSAGEKUSSEN
GB/IEOperation and safety notesPage 14
No.19, XingLin North 3rd
Road, Jimei District, Xiamen,
Fujian, China
List of pictograms used
Introduction
Intended use. Page 15
Description of parts.. Page 15
Technical data.. Page 16
Scope of delivery.. Page 16
Safety advice
Safety instructions for batteries/rechargeable batteries Page 18
Before use.. Page 19
Charging the rechargeable battery.. Page 19
Operation
Switch off the product.. Page 20
Cleaning and care
Storage
Troubleshooting
Disposal
Warranty
Warranty claim procedure.. Page 22
Service Page 22

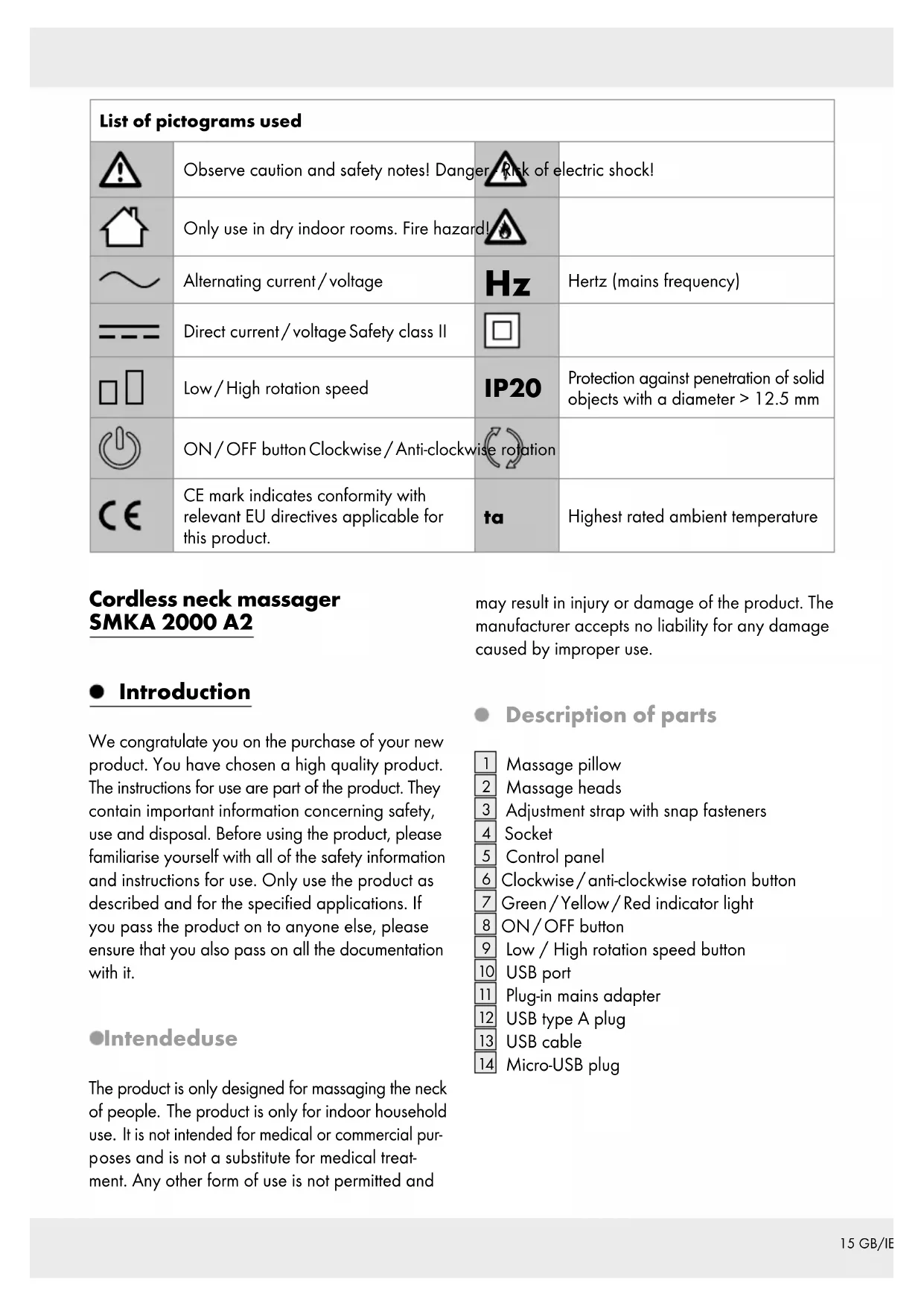

| List of pictograms used | |||
| Observe caution and safety notes! Danger: Risk of electric shock! | |||
| Only use in dry indoor rooms. Fire hazard! | |||
| ~ | Alternating current/voltage | Hz | Hertz (mains frequency) |
| --- | Direct current/voltage Safety class II | ||
| □□ | Low/High rotation speed | IP20 | Protection against penetration of solid objects with a diameter > 12.5 mm |
| ON/OFF button Clockwise/Anti-clockwise rotation | |||
| CE | CE mark indicates conformity with relevant EU directives applicable for this product. | ta | Highest rated ambient temperature |
Cordless neck massager SMKA 2000 A2
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intendeduse
The product is only designed for massaging the neck of people. The product is only for indoor household use. It is not intended for medical or commercial purposes and is not a substitute for medical treatment. Any other form of use is not permitted and
may result in injury or damage of the product. The manufacturer accepts no liability for any damage caused by improper use.
Description of parts
Massage pillow
2 Massage heads
3 Adjustment strap with snap fasteners
4 Socket
5 Control panel
6Clockwise/anti-clockwise rotation button
7 Green/ Yellow/ Red indicator light
8ON/OFF button
9 Low / High rotation speed button
10 USB port
11 Plug-in mains adapter
12 USB type A plug
13 USB cable
14 Micro-USB plug
-Technicaldata
Plug-in mains adapter 11:
Manufacturer's name
or trade mark, commercial
registration number
and address: Xiamen Keli Electronics
Co.,Ltd
91350211737865674J
No.19, XingLin North 3rd
Road, Jimei District, Xia-
men, Fujian, China.
Model identifier: SW-050100
Input voltage: 100-240 V~
Input AC frequency: 50 / 60Hz
Output voltage: 5.0V
Output current: 1.0A
Output power: 5.0W
Average active
efficiency: 73.7%
No-load power
consumption: 0.10W
Input current: 0.5 A
Highest rated ambient
temperature (ta): 45^ C
Protection class: II/
TÜV Rheinland/GS certified
Massage pillow 1:
Input voltage: 5.0V = -
Input current: 1.0A
Rechargeable
battery: 3.7V/2000mAh Lithium-
ion battery (non-replaceable)
Duration of use: max. 15 min (automatic shut-off)
- Scope of delivery
Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.
Remove all packaging materials before use.
1 Cordless neck massager (with rechargeable battery)
1 Plug-in mains adapter
1 USB cable
1 Instruction manual
Safety advice
Read all safety advices and instructions. Non-observation of the safety advices and instructions may cause electric shock, fire and/or bad injuries. No action is needed from users to shift the product between 50Hz and 60Hz . The product adapts itself for both 50Hz and 60Hz .
KEEP ALL SAFETY NOTICES AND INSTRUCTIONS FOR FUTURE REFERENCE!
WARNING!
DANGER TO LIFE
AND RISK OF ACCIDENT
FOR INFANTS AND CHIL
DREN! Never leave children
unsupervised with the packaging materials. The packaging material poses a suffocation hazard.
Children frequently underestimate the dangers. Please always keep the product out of the reach of children.
CAUTION! This product is not a toy for children! Children are not aware of the dangers associated with handling electrical products.
This product can be used by children aged from 14 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children unless they are older than 14 and supervised.
WARNING! Strangulation hazard. The product contains adjustment strap with snap fasteners 3 that is placed around the neck. Make sure that the adjustment strap with snap fasteners cannot be trapped when moving. Otherwise there is a risk of strangulation and injury.
The output cord cannot be replaced. If the cord is damaged the product should be scrapped.
WARNING! Avoid the hazard of life by electric shock!
WARNING! For the purposes of recharging the battery, only use the detachable supply unit provided with this product.
- Do not insert needles or pointed objects into the massage pillow 1.
- Never immerse the product into water or any liquid.
- Never touch the product, or the plug-in mains adapter with wet hands or use it in very humid environments.
Only use the provided plug-in mains adapter 11.
Make sure that the details on the rating label are in conformity with your mains voltage.
In the event of malfunctions, remove the plug-in mains adapter from the mains socket.
- Do not open the product or attempt to repair it yourself. Defective products should only be repaired by qualified personal.
Always remove the plug-in mains adapter 11 from the mains socket after each use and before clean the product.
- Keep the USB cable away from hot surfaces, sharp edges and mechanical forces.
- Allow the product to cool down before moving it to a different location.
WARNING! HAZARD OF FIRE!
Do not operate the product close to or below curtains, wall cupboards or other inflammable materials.
- Do not use the product on swollen, burnt, inflamed, diseased or injured regions of the skin and body areas. If in doubt, obtain medical advice before using the product.
Never use the product if you have injuries on neck or neck pain.
Safetyinstructions for batteries/ rechargeable batteries
DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION! Never recharge
non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and/or
open them. Overheating, fire or bursting can be the result.
Neverthrow batteries/rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.
Risk of leakage of batteries/rechargeable batteries
Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
NEAR PROTECTIVE
GLOVES! Leaked or
damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
This product has a built-in rechargeable battery which cannot be replaced by the user. The removal or replacement of the rechargeable battery may only be carried out by the
manufacturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery.
Before use
Note: Remove all packaging material from the product.
Note: The product must be powered using the built-in rechargeable battery.
- Charging the rechargeable battery
Note: Before first use, the rechargeable battery in the product should be charged for approximate 120 minutes. A charging time of approximate 120 minutes is also required subsequently.
Note: The product can be charged by using the plug-in mains adapter 11 and the USB cable 13 only.
Note: During charging, the indicator light 7 lights red and turns off when the product is fully charged.
Note: During charging, the product cannot be operated.
Note: When the rechargeable battery is almost empty, the massager heads 2 do not rotate and the indicator light 7 lights red and flashes for around 15 seconds.
To avoid injuries and damage to the product, always switch the product off before charging the battery. Press the ON/OFF button once and then the green indicator light turns off (see Fig.B).
Insert the micro-USB plug of the USB cable 13 into the socket 4 of the product (see Fig. B and D).
Insert the USB type A plug of the USB cable into the USB port of the plug-in mains adapter (see Fig. C and D).
Insert the plug-in mains adapter (see Fig. C) into a properly installed socket which meets the product requirements (see "Technical data").
The indicator light shows the status of the rechargeable battery as follows:
| Battery status | Indicator light 7 |
| Charging Red light | flashes. |
| Fully charged Red light keeps on. | |
| High battery Green light keeps on | |
| Medium battery Yellow light keeps on | |
| Low battery Red light flashes for around 15 seconds |
Operation
Never use the product for more than 15 minutes. A longer massage may lead to tension caused by overstimulation of the muscles.
The product switches off automatically after approximate 15 minutes. Cool it down for at least 15 minutes before switching on again to avoid overheating.
Never use the product while sleeping or laying down. Extra mechanical load on the neck against the massage heads 2 may cause injuries or pain in the neck.
Place the massage pillow around your neck and fasten it using the adjustment strap with snap fasteners 3 (see Fig. A).
Switch on the massage pill by pressing the ON/OFF button 8 on the control panel 5 for approximate 1 second (see Fig. B). The indicator light 7 turns on and lights green constantly. The massage heads 2 rotates in a clockwise direction.
Press the clockwise / anti-clockwise rotation button 6 on the control panel 5 to reverse
the direction of rotation of the massage heads 2 (see Fig. B). The massage heads 2 now turn anti-clockwise.
Press the low / high rotation speed button on the control panel 5 to increase the rotation speed of the massage heads 2 (see Fig. B). The speed of rotation of the massage heads 2 can be adjusted in two levels.
- Switch off the product
Press the ON/OFF button on the control panel 5 to switch off the product (see Fig. B). The green indicator light 7 turns off and the massage heads 2 stop rotating. The product switches off automatically after approximate 15 minutes.
Cool it down for at least 15 minutes before switching on again to avoid overheating.
The indicator light shows the operating status of the product as follows:
| Status | Indicator light |
| The product is switched on. | Green light turns on and lights constantly. |
| The product is switched off. | Green light turns off. |
- Cleaning and care
DAI R/ONING! LIFE BY ELECTRIC SHOCK!
Disconnect the plug-in mains adapter 11 from the mains socket and unplug the micro-USB plug 14 from the socket 4 before cleaning.
A W e a r n i n g 1 use the product, or plug-in mains adapter 11 into water.
Ensure the massage pillow 1 is completely dry before connecting the plug-in mains adapter 11.
- Do not use abrasive, aggressive or chemical cleaning agents to clean the massage pillow.
1. It could damage the product.
Never allow any liquid to enter the massage pillow 1.
Use a damp lint-free cloth to clean the product. Use a little mild detergent on the cloth if necessary.
Storage
Let the massage pill completely cool down before storage.
Do not place other objects on top of the massage pillow 1.
If the product is not used for a certain period of time, store the product in a clean and dry location.
Troubleshooting
| Error Cause Solution | ||
| The product does not work. | The battery may not be charged. | Charge the battery (see chapter "Charging the rechargeable battery"). |
| The product switches off during use. | The product switches off automat-ically after approximate 15 min-utes to avoid overheating. | Let the product cool down for at least 15 minutes before switching it on again. |
| The massage heads 2 rotates slowly. | The mechanical load on the massage heads 2 is too high. | Do not press the neck against the massage heads 2 too hard. |
| The product cannot be switched on by pressing the ON/OFF button 8. | The ON/OFF button 8 is not pressed long enough. | Press the ON / OFF button 8 for approximate 1 second. |
| The product cannot be charged. | The battery level is sufficient and thus no charging is required. | Charge the product only when the battery level is medium or low. |
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and/or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries/ rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
This disposal is free of charge to you.
Protect the environment and dispose of properly.
The product is recyclable, subject to extended manufacturer responsibility, and collected separately.
The built-in rechargeable battery cannot be removed for disposal. Return the product completely to a collection site for used electronics.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.
Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN 375146_2104) available as proof of purchase.
You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
GB Service Great Britain
Tel.: 08000569216
E-Mail: owim@lidl.co.uk
IE Service Ireland
Tel.:1800200736
E-Mail: owim@lidl.ie
C
Legendede sptogrammesutiliseds.. Page 24
Introduction
No.19, XingLin North 3rd
Road, Jimei District,
Xiamen, Fujian, Chine
Identificateur
du modele:SW-050100
Stekker-netadapter 11:
Naam of handelsmerk
van de fabrikant,
handelsregisternummer
en adres:
Xiamen Keli Electronics
Co.,Ltd
91350211737865674J
No.19, XingLin North 3rd
Road, Jimei District, Xiamen,
Fujian, China
Modelaanduiding: SW-050100
Ingangsspanning:100-240V
Ingangswissel
stroomfrequentie: 50 / 60Hz
No.19, XingLin North 3rd
Road, Jimei District, Xiamen,
Fujian, China
No.19, XingLin North 3rd
Road, Jimei District,
NOSTE OCHRANNÉ RUKAVICE! Vyteklé i
poskozené baterie nebo akumuláry mohou pri kontaktu spokožkou zpúsobit jej poleptání. Noste proto vchodné rukavice.
No.19, XingLin North
3rd Road, Jimei District,
NOSTE OCHRANNÉ RUKAVICE! Vytečené
Xiamen Keli Electronics Co.,Ltd 91350211737865674J
No.19, XingLin North 3rd
Road, Jimei District, Xiamen,
Fujian, Kina
Modelidentification: SW-050100
Indgangsspaending: 100-240V ~
AC-indgangsfrekvens: 50 / 60Hz
Udgangsspaending:5,0V
Udgangsstrøm: 1,0A
Udgangseffekt: 5,0W
Gennemsnitlig
