VS5100/VS5110 Acknowledgements Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it. Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiar with the instructions. Technical specifications Voltage 220-240 V~ 50 Hz Input 45 W Sound level 62 dB IMPORTANT Before connecting to the mains, make a visual check to ensure that the unit is intact and that no damage occurred during transport.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.

• Remove all the packaging and marketing materials before first use.

• Make sure the mains voltage corresponds to the values on the rating plate of the product.

• Place the appliance on a stable, flat surface away from other heat sources.

• Do not leave the appliance unattended when it is switched on or connected to the mains.

• When connecting and disconnecting the appliance from the mains, the on/off button must be turned off (positioned at 0).

• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.

• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.

• Pay extra attention if the appliance is used near children.

• Do not use the appliance as a toy.

• Never put your fingers, pencils or other objects into the openings of the appliance.

• Never use the appliance without cover grids.

• Do not let small children and sick persons to be exposed to a direct air flow.

• Do not cover the appliance.

• Do not put anything on the appliance or place anything in front of it.

• The appliance must only be used in the upright position.

• Do not use the appliance near shower, bathtub, sink or pool.

• Do not use the appliance in a damp or dusty environment.

• Do not use the appliance in an environment where there are explosive gases and flammable substances (solvents, varnishes, adhesives, etc.).

• Before assembly and disassembly, disconnect the power cord from the wall outlet.

• Before cleaning and after use of the appliance, switch the appliance off and disconnect it from the mains.

• Keep the appliance clean, do not allow foreign objects to into the grid openings. It could cause serious injury, short circuit, damage to the appliance or cause fire.

• Do not use coarse and chemically aggressive substances to clean the appliance.

• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service34 VS5100/VS5110

• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.

• Do not use the appliance outdoors.

• The appliance is only suitable for home use and is not intended for commercial use.

• Do not touch the appliance with wet hands.

• Do not immerse the power cord or the charger in water or any other liquid.

• Do not repair the appliance yourself. Contact an authorized service centre.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children under the age of 8 must be kept away from the appliance and its power supply. Do not let children play with the appliance.

• Once the fan has been assembled, the rotor blade guard shall no longer be removed.

• The rotor guard must not be opened or dismantled for cleaning the rotor blades. Failure to follow the manufacturer's instructions may result in a warranty service to be declined.35 VS5100/VS5110 VS5100/VS5110

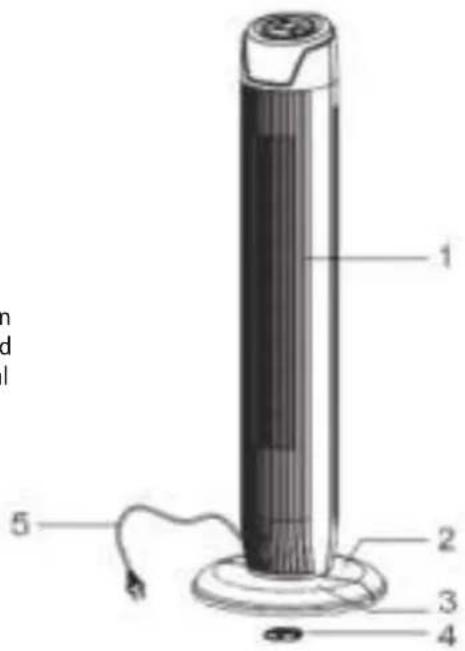

2. Rear support base

3. Front support base

Note: All pictures used in this manual are for illustration only. In case of any differences between the images used and the actual product, it is necessary to follow the actual product. INSTLLATION INSTRUCTIONS

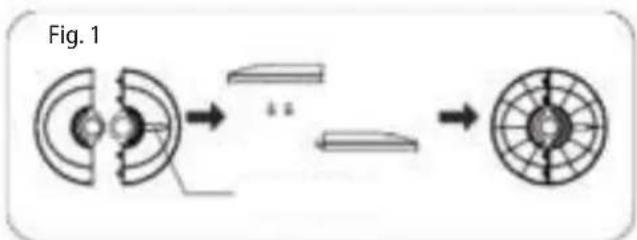

1. Remove the fan body and individual parts from the packaging. Connect the front and rear support base (see Fig. 1).

2. Unscrew the plastic nut from the fan body.

3. Feed the power cord through opening of the fan body in the support base (see Fig. 3).

Once the fan has started, press this button repeatedly and the fan will switch the circulation mode in the order of 1-2-3.

MODE BUTTON Press this button to select the desired mode. When pressing the button repeatedly or pressing for some time the mode will change in the following order: normal, natural, sleep. The light indicator indicated the status of the mode.

TIMER BUTTON: Press the timer button repeatedly to set the fan operating time. You can increase the operating time in one hour interval from 1 to 7 hours. Batteries (not supplied)

1. Remove the battery cover.

2. Install batteries as shown in Fig. 5.

3. Close the battery cover.

Note: Use AAA manganese or alkaline batteries. Do not use rechargeable batteries.

Do not dispose of batteries in fire. Batteries may explode or leak. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. Fig. 5 Remote control Battery Battery cover Fig. 437 VS5100/VS5110 VS5100/VS5110

Using the remote control Point the remote control on the receiver on the fan body and press the desired button. The remote control operates at a distance of up to 5 metres at an angle of +/- 30°. Before discharging the remote control, remove the batteries and safely dispose of them. Engine overheat protection The motor winding has a thermal fuse which, if overheated, burns and the fan stops operating. The engine temperature stops to rise, preventing deformation of the plastic parts of the appliance if, for any reason, the engine overheats. Buttons in the appliance body / control panel (Fig. 6) The buttons such as ON/OFF, SPEED, MODE, TIMER, ROTATION on the appliance body perform the function as the corresponding buttons on the remote control.

CLEANING AND MAINTENANCE

Before each cleaning of the appliance, unplug the power cord from the electrical outlet! To clean the surface of the appliance, use only a damp cloth, no detergents or hard objects, as they can damage the surface of the appliance! Clean and inspect the input and output grids of the appliance frequently to ensure good operation of the appliance. Never clean the appliance under running water, do not rinse it or immerse it in water! If the fan is dismantled, proceed in the reverse order of installation. Fig. 638 VS5100/VS5110

SERVICE CENTRE Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by aqualified specialist or the service centre. ENVIRONMENTAL CONCERNS
