USER MANUAL B53 JIMMY

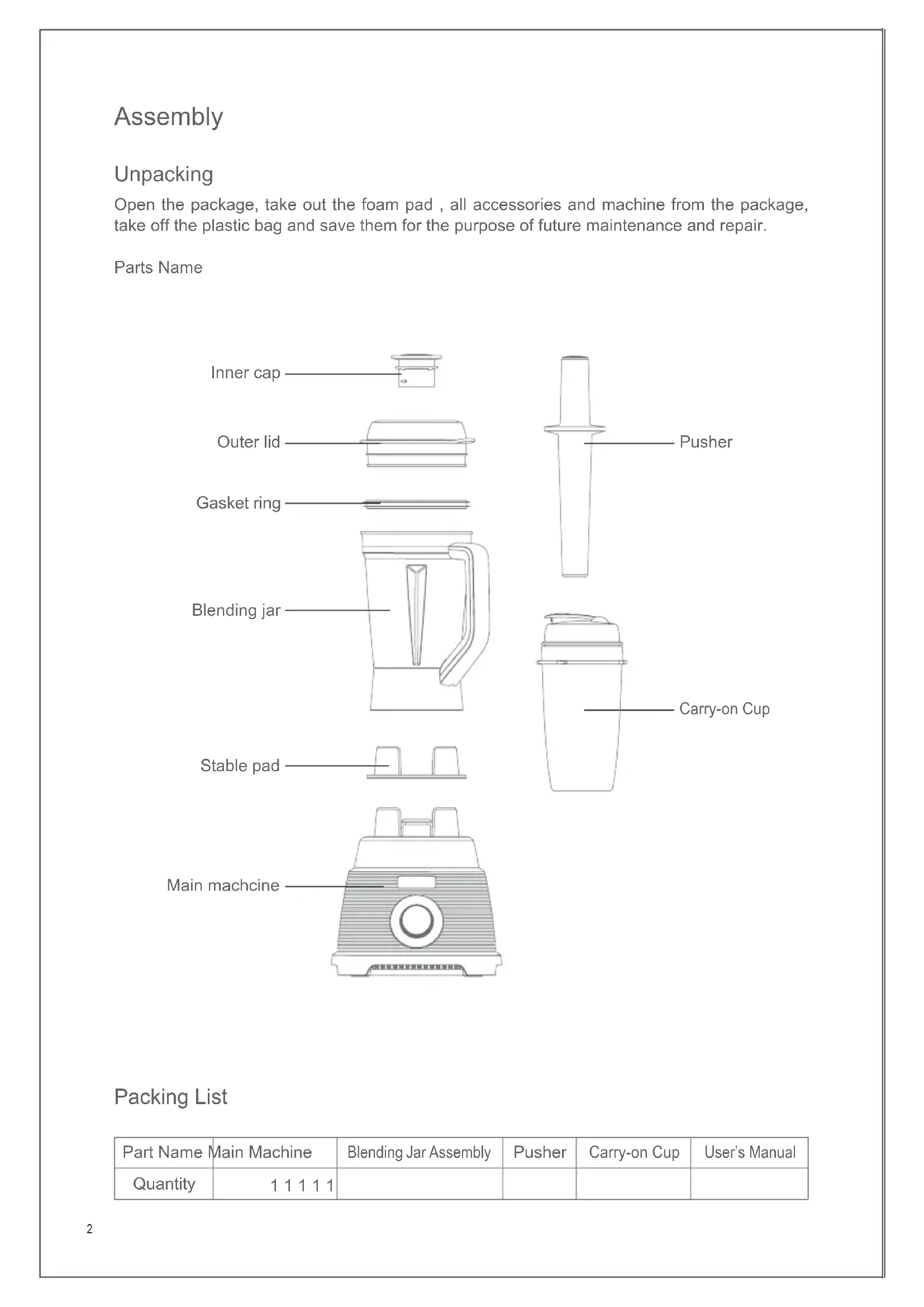

Contents English 2 Deutsch 13 Español 25 Italiano 38 Français 50 русский язык 612 Assembly Unpacking Open the package, take out the foam pad , all accessories and machine from the package, take off the plastic bag and save them for the purpose of future maintenance and repair. Parts Name Packing List Part Name Main Machine Blending Jar Assembly Pusher Carry-on Cup User’s Manual Quantity

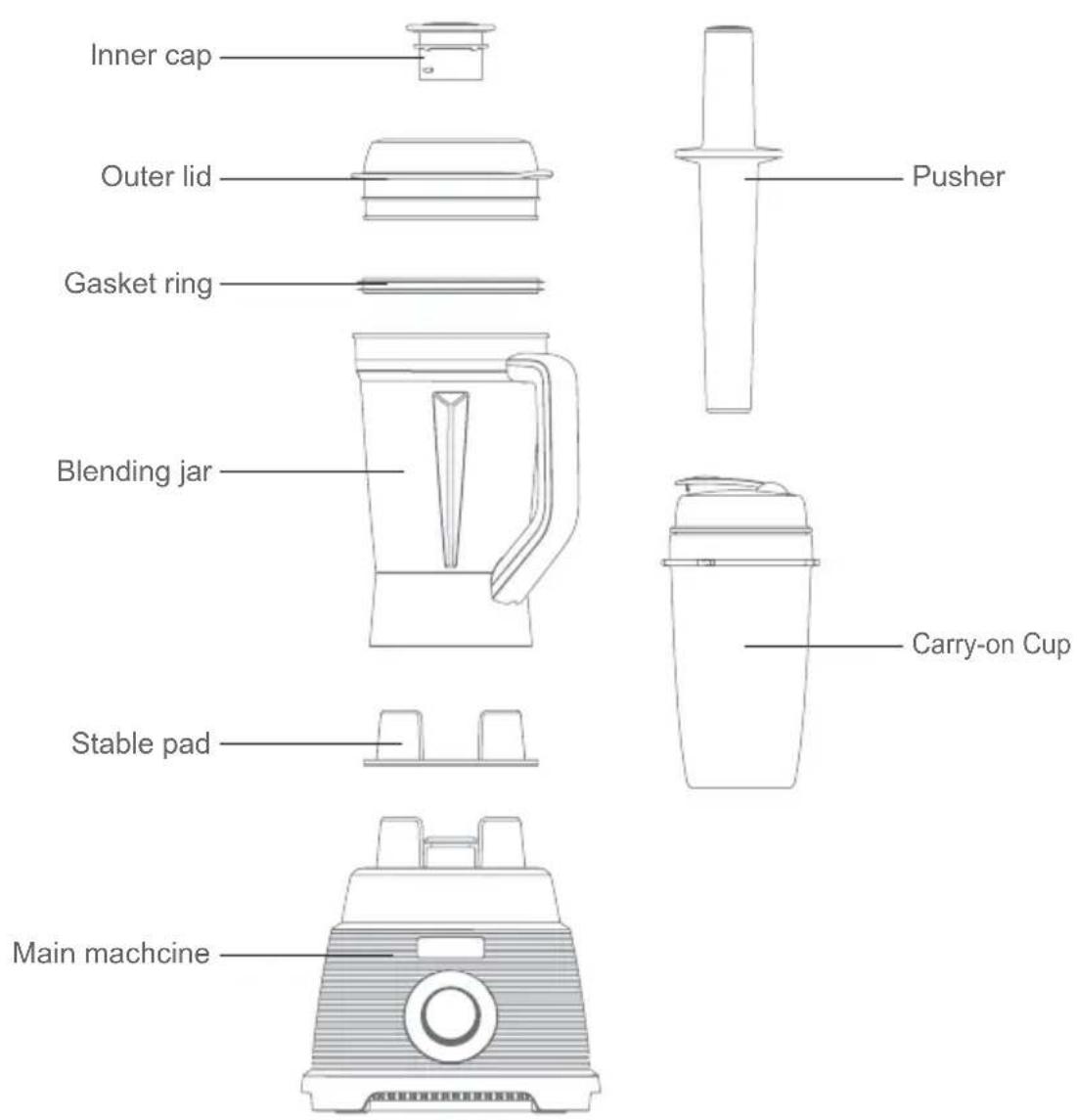

Inner cap Outer lid Gasket ring Blending jar Stable pad Main machcine Pusher Carry-on Cup3 Use of Product Control Panel Display Panel: Displaying time, speed and function status. (Figure 1) Function Selection Knob Button: Selecting functions ( , , , , , ), and press the button to run the program shown in the current "function". Choose a level (1,2,3,4,5,6) you need by rotating the knob button and press it, the machine will start the program shown in the current “level”. (Figure 2) Select the function or level by rotating the knob button, start the machine by pressing the knob button, turn off the machine by pressing the knob button again. (Figure 2) Operation Steps Only when all parts of this product are installed correctly can they be used normally.

1. Put the food to be stirred into the jar, and

cover the jar with the outer lid and inner cap. (Figure 3)

2. Rotate the inner cap according to the label

until a “click” sound is heard. (Figure 4)

3. Place the blending jar on the main machine.

4. Rotate the knob to select the needed

function, press the function knob button, and the blender starts to work. (Figure 6)

5. After processing, the machine will stop

running automatically. Notes:1. The ingredients should not exceed the maximum scale of the jar.2. Please unplug the machine after use. Operation Instruction Six function programs are displayed on the left side of the function panel ( , , , , , ). When selecting one of the functions, the screen will display the corresponding program time countdown. 7 levels from 0 to 6 are displayed on the right side of the function panel. When selecting one of the levels, press the knob button, and the display starts timing.

1. Be sure to cover the blending jar tightly during stirring (except by inserting the pusher through the

opening of the lid or by adding ingredients).

2. Do not put anything into the jar while the machine is running.

3. Do not remove the jar before the machine stops moving completely. Remove the jar or lid from the

machine after the blade stops rotating completely.

4. Please unplug the machine after use.

Accessories Using Instructions Pusher: When auxiliary crushing is needed, remove the inner cap and extend the pusher through the hole in the center of the lid for auxiliary crushing. Notes:

1. Do not open the lid directly to use the pusher when machine is running.

2. Do not use a pusher that does not match this product.

3. The pusher cannot touch the blade in any case.

Cleaning and Maintenance Cleaning of Blending Jar For your safety and health, please follow the following steps when using the machine for the rst time Fill the jar with half the water and add a few drops of detergent. Lock the outer lid and the inner cap tightly. Rotate the knob and select function, start the machine. Turn off the machine until it stops spinning and pour the liquid out of the jar, ush the jar under owing tap. Notes: When cleaning, do not touch the blade directly with your hands, in case the blade cuts your ngers. You can also use tools to assist in cleaning. Cleaning of Inner Cap, Outer Lid, Pusher and Gasket Ring Separate the inner cap, outer lid, blade assembly and gasket ring. Wash them and the pusher with detergent in warm water, and then rinse them with owing water and dry them. Please reinstall before using. Cleaning of Main Machine Unplug before cleaning. Soak a piece of soft cloth or sponge with the mixture of detergent and warm water, then clean the outer surface of the main machine with the soft cloth or sponge. Do not put the main machine directly in water to wash or rinse directly with water. Thoroughly clean the panel, speed control knob to ensure its exible operation. If any liquid or sticky substance sticks to the surface of the main machine during operation, please remove it immediately. Use soft cloth to wipe, so as not to scratch the appearance of the host. Do not use corrosive detergent or liquid to clean, and wait for the main machine to dry thoroughly before storage.5 Function Selection Suitable Ingredients for Processing in Corresponding Intelligent Modes Function Corresponding suitable ingredients Apple, pineapple, watermelon, orange, tomato, spinach, green vegetables, broccoli, ect. Fruit with yogurt Ice cubes or frozen fruit, such as apple, pineapple, peach, banana, etc. Cooked egg yolk, sh, lean meat, tofu, whole grains, noodles, bread, etc. Fried soybeans, peanuts, sesame, etc. Pulse blending or clean the blending jar. Suitable Ingredients for Processing in Corresponding Manual Modes Level Corresponding suitable ingredients 1-2 Super soft ingredients, used for mixing some liquid ingredients, viscous liquid sauce stirring 3-4 Used for stirring some soft fruits, such as tomatoes, watermelon, oranges, etc. Crushing of cooked grains and beans.Crushing hard fruits, such as carrots. 5-6 Used for crushing cooked meat with soup, grinding nuts, dried grains, dried beans. Smoothie making. Crushing hard crystals, such as rock candies.6 Notes: Please read this manual carefully before use and keep it for future reference. This product is only for general household use. Before connecting the product to the power supply, please conrm whether the voltage marked at the bottom of the main machine is consistent with the local power supply voltage. Please stop using the product when the power cord, plug or other parts are damaged. Do not allow children or people without independent capacity or relevant experience to use this product alone. If the power cord is damaged, it must be replaced and repaired by a professional from the manufacturer's maintenance department or similar department to avoid danger. Do not use this product on the surface with water or uneven surface. Do not allow the jar body, host or power cord to touch the hot surface. Do not exceed the maximum volume marked on the jar body when using. Please operate when the outer lid and inner cap are in place. Only remove the cap when adding the ingredients. Turn off the machine until the blade stops running completely, then remove the jar from the main machine. Do not touch moving parts. Do not leave foreign objects (such as spoons, chopsticks, forks, etc.) in the blending jar. If there is any foreign objects in the jar when starting the machine, it will damage the machine and may cause personal injury. Do not use accessories or components from other manufacturers or from non-recommended manufacturers. Before each use of the machine, check the jar body and the blade. If you nd any cracks in the jar body, loose blade or damage, please do not use this product again and contact the nearest service center. Take extra care of the blade when emptying or cleaning the jar to avoid injury. Do not put your hands or other objects into the jar during stirring to avoid personal danger or machine damage. Before removing the jar body for cleaning, the jar body can only be removed from the machine until the blade stops rotating completely. Be sure to unplug the product after use. Do not immerse the main machine in water or other liquids, and do not ush the body to prevent electric shock. When preparing oily foods or grinding dry ingredients, the mixture should be continuously stirred in the jar for no more than 60 seconds. Stirring too long may damage the jar or cause the motor to overheat.7 Trouble Shooting Please check the following issues before sending to designated repair ofces. Symptoms Possible Causes Solutions Machine doesn’t work and display panel is off Not connected to the power supply Connect to the power supply Blending jar is not installed correctly Remove the blending jar and install it onto the main machine again Blade doesn’t rotate Knob button has not been pressed after the function was selected Press the function selection knob button Smells weird when working It’s normal when machine is used for the rst time It will eliminate after several times of use. If not, please contact the after- sale department for help Machine overload Please check the processing quantity of ingredients and processing time according to the manual Check whether the voltage is the allowable voltage of the machine(220V-240V) Abnormal noise occurs during working Blending jar or stable pad is not installed in position Turn off the machine and check whether the jar and stable pad is in position Foreign objects in blending jar Turn off the machine, check if there’s foreign objects in blending jar Notes: If any other failures occurred, which need professional tools, in order to avoid danger, the machine must be repaired or replaced by manufacturer, other maintenance ofces or professionals from similar ofces.8 Product Specication Technical Parameter Model No. B53 Rated Voltage 220V-240V~ Rated Frequency 50Hz Rated Power 1000W Capacity 1.5L Noise Level 88dB(A) Power Cord Length 1.2m Circuit Diagram Power PCB Power cord Main Motor Control PCB Display PCB9 Recipe Recipe Food material Operation steps Super energy soup Lettuce 20g, pea shoots 10g, pineapple 80g, apple 100g, rice 1/2 cup, mixed nuts 1 tablespoon, axseed 1 tablespoon, kelp bud 1 teaspoon, soy peptide 1 tablespoon, warm water 700ml Put ingredients into blending jar and add water. Close the lid, select function and press the button. Press the button again to turn off the machine after the processing is done. Tomato energy soup Two and a half tomatoes (about 300g), yam 40g, burdock 40g, 1 tablespoon mixed nuts, 400ml cold water Put ingredients into blending jar and add water. Close the lid, select function and press the button. Press the button again to turn off the machine after the processing is done. Blueberry and apple energy soup Purple cabbage 15g, blueberry 60g, 1 apple, (about 170g), grapes 150g(about 15-18 pieces), 1 tablespoon of mixed nuts, 400ml of cold water Put ingredients into blending jar and add water. Close the lid, select function and press the button. Press the button again to turn off the machine after the processing is done. Celery energy soup Pea seedling 10g, celery 60g, apple 1 (about 170g), pineapple 100g, mixed nuts 1 tablespoon, cold water 500mL Put ingredients into blending jar and add water. Close the lid, select function and press the button. Press the button again to turn off the machine after the processing is done. Carrot energy soup Pea seedling 10g, carrot 50g, 1 apple (about 170g), pineapple 150g, mixed nuts 1 tablespoon, cold water 700ml Put ingredients into blending jar and add water. Close the lid, select function and press the button. Press the button again to turn off the machine after the processing is done. Papaya milk Papaya 250g, fresh milk 360mL, 5-6 ice cubes Put ingredients into blending jar and add ice cubes, close the lid, select function and press the button. Press the button again to turn off the machine after the processing is done.10 Carrot Cranberry Juice Carrot 110g, pineapple 250g, cranberry 1 tablespoon (about 10g), 5-6 ice cubes, cold water 180mL Put ingredients into blending jar and add ice cubes. Close the lid, select function and press the button. Press the button again to turn off the machine after the processing is done. Apple juice 2 apples, cold water 400mL, lemon juice 30mL Peel the apples and remove the seeds. Put ingredients into blending jar, add cold boiled water and orange juice. Close the lid, select function and press the button. Press the button again to turn off the machine after the processing is done. Tomato juice Tomato 1 and a half (about 225g), 4-5 ice cubes, small particles (under 1cm3) rock sugar or yellow granulated sugar 2 teaspoons, cold water 270ml Put ingredients into blending jar and add ice cubes. Close the lid, select function and press the button. Press the button again to turn off the machine after the processing is done. Orange Juice Orange 330g, honey 2 tablespoons, 5-6 ice cubes, cold water 180mL Peel the orange and divide it into four halves. (If the orangeis organic, some of the peel can be reserved, but it tastes a little bitter.) Put ingredients into blending jar and add ice cubes. Close the lid, select function and press the button. Press the button again to turn off the machine after the processing is done. Orange smoothie Orange 330g, apple 85g, honey 1 tablespoon, little water, 8-9 ice cubes Put ingredients into blending jar and add ice cubes. Close the lid, select function and press the button. The pusher can be used to assist the processing. Press the button again to turn off the machine after the processing is done. Red bean milk smoothie Honey red bean about 200g, 90mL of milk, 8-10 ice cubes Put ingredients into blending jar and add ice cubes. Close the lid, select function and press the button. The pusher can be used to assist the processing. Press the button again to turn off the machine after the processing is done.11 Peanut Butter Fried peanuts 200g, small particles (less than 1cm3) rock sugar or yellow granulated sugar 1 and a half tablespoons, olive oil 100mL Put ingredients into blending jar. Close the lid, select function and press the button, then switch level “4” to continue the proceing for 10s, and level “2” for 50s. Press the button again to turn off the machine after the processing is done. Sesame Paste Fried sesame seeds 300g, small particles (less than 1cm3) rock sugar or yellow granulated sugar 2 tablespoons, olive oil 200mL Put ingredients into blending jar. Close the lid, select function and press the button, then switch level “4” to continue the processing for 10s, and level “2” for 50s. Press the button again to turn off the machine after the processing is done.12 Manufacturer Information Manufacturer Kingclean Electric Co., Ltd Address No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China Disposal The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste! Subject to change without notice. Warranty Information This product enjoys two-year warranty for the main machine and one-year warranty for the accessories. Service starts from the date of purchase. Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances.13 Baugruppe Auspacken die Packung öffnen, Schaum Blindholz holen, die Maschine greifen, alle Zubehörteile and Material holen , Plastiktüte herunterholen. äußere Packung halten, um den künftigen Transport zu breiten. Teile Name Packing Liste Teile Name Hauptmaschine Mischung Rührer Begleite- Becher Bedienungsanleit Zahl
