500393 - Slicer BARTSCHER - Free user manual and instructions

Product type	Mandoline / vegetable cutter
Brand	Bartscher
Model	500393
Frame material	18/10 stainless steel
Insert and pusher material	Plastic
Dimensions (L x D x H)	400 x 130 x 145 mm
Weight	0.95 kg
Number of inserts	5 interchangeable
Insert types	3 for slicing (1.5 mm, 2.5 mm, 3.5 mm), 2 for grating/julienne (3.5 mm, 7 mm)
Pusher included	Yes
Non-slip base	Yes
Dishwasher safe	Yes, inserts and pusher
Hand washing recommended	Warm water and mild detergent, brush
Storage	Inserts stored in the frame, dry and clean place
Safety	Use the pusher for small vegetables; handle blades by the parallel edges
Power supply	Manual (none)
Spare parts	Additional inserts available
Repairability	Easily replaceable removable parts

Frequently Asked Questions - 500393 BARTSCHER

What are the types of inserts supplied with the Bartscher 500393 mandoline?

The mandoline comes with 5 inserts: 3 for slicing (thicknesses 1.5 mm, 2.5 mm, and 3.5 mm) and 2 for grating or making juliennes (3.5 mm and 7 mm).

How to change an insert on the mandoline?

Press the red button on the frame, then remove the insert to the rear. Place the new insert on the guide of the frame and slide it forward until you hear a locking click.

How to clean the inserts and the frame?

All removable parts (inserts, pusher) can be washed in the dishwasher or in warm water with a mild detergent and a brush. Rinse with clean water and let dry vertically. Never use abrasive products.

How to use the mandoline safely?

To avoid cuts, always use the pusher for small vegetables or leftovers. When changing or cleaning the inserts, handle them by their parallel edges (non-sharp).

Are the inserts dishwasher safe?

Yes, the inserts and pusher are dishwasher safe. However, hand washing with a brush is also recommended.

What are the dimensions and weight of the mandoline?

The mandoline measures 400 x 130 x 145 mm (L x D x H) and weighs 0.95 kg.

How to store the mandoline after use?

Clean it completely, store the 4 inserts in their frame and mount one insert on the main frame. Store it in a dry, clean place, away from sunlight and out of reach of children.

Does the mandoline have a non-slip base?

Yes, the mandoline is equipped with a non-slip base to ensure good stability during use.

Can I grate hard vegetables with this mandoline?

Yes, the grating/julienne inserts can handle hard vegetables like carrots or beets. Use the pusher for added safety.

Where can I find spare parts for the Bartscher 500393 mandoline?

Replacement inserts are available from authorized Bartscher retailers. The model is designed to be easily repairable thanks to its removable parts.

USER MANUAL 500393 BARTSCHER

Exterior view of a metal stand with a black lid and handle, labeled 500393 (no other text or symbols)

Bedienungsanleitung

Mandolin / vegetable slicer

Mode d'emploi

Diagram of a flip-flop device with numbered parts labeled ① to ⑥

3D rendered object resembling a dome-shaped object with a curved base, labeled with number 7 (no text or symbols on the object itself)

Technical diagram of a mechanical component with numbered parts and an inset showing a labeled close-up view.

Pile of sliced citrus fruits (no text or symbols visible)

Pile of dark, irregularly shaped objects resembling small organic or mineral fragments (no text or symbols visible)

Pile of smooth, rounded stones or pebbles (no text or symbols visible)

Pile of dried plant material, possibly tea leaves or rootstock, with no visible text or symbols.

Pile of dried tea leaves (no text or symbols visible)

Close-up of dried tea leaves (no text or symbols visible)

Pile of cylindrical objects resembling food items or pellets (no text or symbols visible)

Metallic portable phone holder with black tray and silver casing (no visible text or symbols)

- Mandolin / vegetable slicer with five cutting cartridges

• 500393

- stand: CNS 18/10, cutting cartridges, product rest holder, knife compartment: synthetic material

- 5 interchangeable cutting cartridges, dishwasher safe: 3 for slices with thicknesses of 1.5 ~mm , 2.5 ~mm and 3.5 ~mm ; 2 for grates/strips with thicknesses of 3.5 ~mm and 7 ~mm ; 1 cutting cartridge compartment, one product rest holder

Dimensions:

Weight:

• W 400 x D 130 x H 145 mm

- 0.95 kg

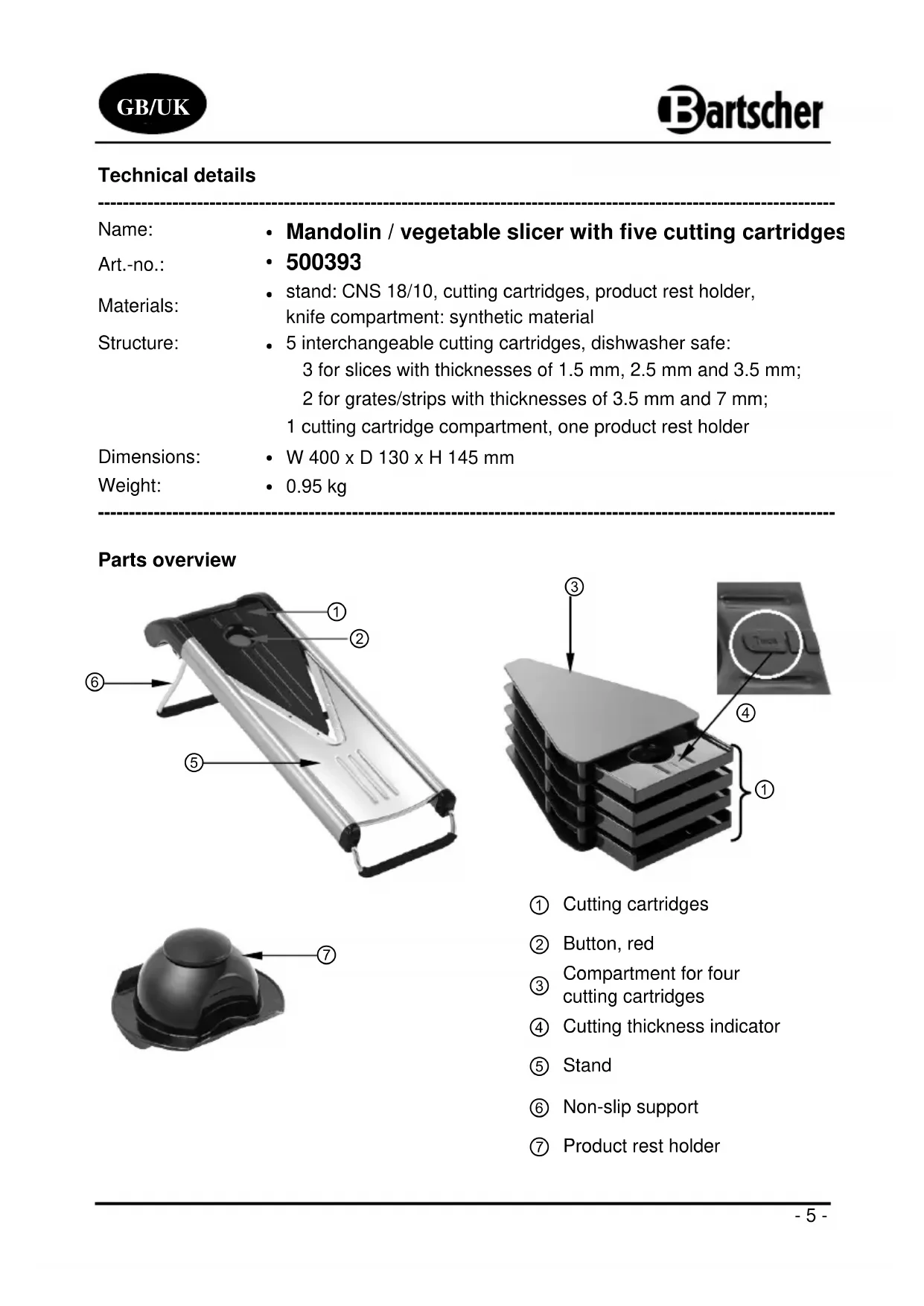

Parts overview

Labeled diagram of a device showing six numbered parts with annotations

3D rendered object resembling a dome-shaped object with a labeled arrow pointing to it, no text or symbols present.

Diagram of a mechanical component with numbered parts and an inset showing a labeled circular feature.

① Cutting cartridges
② Button, red

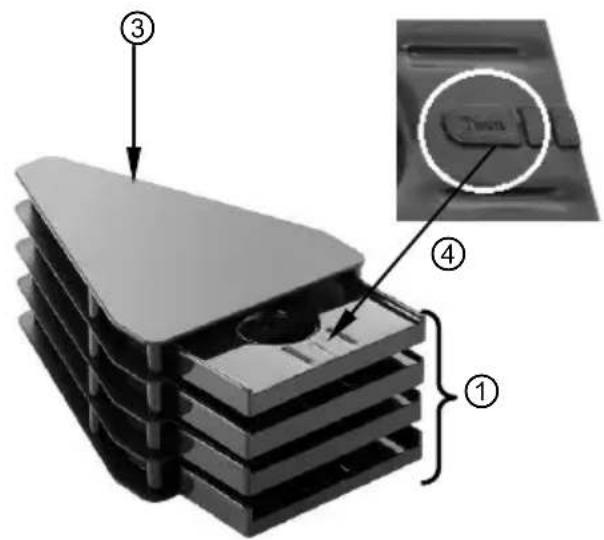

③ Compartment for four cutting cartridges
④ Cutting thickness indicator
⑤ Stand
⑥ Non-slip support
⑦ Product rest holder

Cutting cartridges

Pile of sliced citrus fruits (no text or symbols visible)

Slice cutting cartridge up to 1.5 mm

Pile of dark, irregularly shaped objects resembling small organic or mineral fragments (no text or symbols visible)

Slice cutting cartridge up to 2.5 mm

Pile of smooth, rounded stones or pebbles (no text or symbols visible)

Slice cutting cartridge up to 3.5 mm

Pile of dried plant material, possibly tea leaves or rootstock, with no visible text or symbols.

Pile of dried plant material, possibly tea leaves or fiber, with no visible text or symbols.

Grate/strip cutting cartridge up to 3.5 mm

Close-up of dried tea leaves (no text or symbols visible)

Pile of cylindrical food items, possibly corn kernels or similar root vegetables (no text or symbols visible)

Grate/strip cutting cartridge up to 7 mm

Safety notes

WARNING! Injury risk!

When replacing or cleaning cutting cartridges, always hold them by the straight edges, not the diagonal edges, as the cutting cartridges are very sharp.
Make sure the cutting cartridges are kept out of reach of children.
In order to protect the hands and fingers, always use the product rest holder to hold small fruit and vegetables or product end pieces.

Cleaning

• The slicer stand and all removable parts (cutting cartridges, product rest holder) may be washed with warm water with the addition of a gentle cleaning agent before every use and after conclusion of work. When washing, use a brush. Rinse with pure water and leave to dry in a vertical position.
• Never use abrasive cleansers that might damage the slicer's outer surface.

Notes on use

Metallic portable phone holder with black tray and silver casing (no visible text or symbols)

• Fold away the support and place the slicer on an even, non-slip surface.
• Boil the vegetables.
• Select desired cutting cartridge. Data on thickness of slices or grates/strips may be found on the cutting cartridges.
• If the vegetables are to be cut into slices, select one of the slice cutting cartridges with an appropriate thickness (1.5 mm, 2.5 mm or 3.5 mm).

- If the vegetables are to be cut into grates or strips, select one of the cutting cartridges for grates/strips (depending on the required thickness, either 3.5 mm or 7 mm) and mount it in the slicer support structure (see item „Cutting cartridge replacement“).

- Move the vegetables over the cutting cartridge. They shall be cut to the desired shape, and they shall fall under the slicer onto the prepared surface.

Cutting cartridge replacement

• Press the red button at the stand and carefully retract the cutting cartridge backwards.
• Insert selected cutting cartridge into stand guides and move towards the front until an audible click is heard.

Storage

- In case of longer pauses in use, clean vegetable slicer as described earlier. Place four cutting cartridges in the storage compartment foreseen for them, and mount one of the cutting cartridges in the slicer stand. Store the vegetable slicer in a place that is dry, clean, protected from sunlight and out of reach of children.
