Product Type	Non-contact Voltage Detector
Brand	Laserliner
Model	ActiveFinder Plus
Voltage Range	24 VAC to 1000 VAC, 50-60 Hz
Overvoltage Category	CAT III - 1000 V
Pollution Degree	2
Power Supply	2 AAA 1.5 V batteries (LR03)
Dimensions (H x W x D)	21 x 158 x 25 mm
Weight (with batteries)	48 g
Voltage Indicator	LED light and audible signal
Zoom Function	Increases sensitivity for remote detection
Integrated Flashlight	Yes, two modes (on/off)
Operating Temperature	0 °C to 50 °C
Storage Temperature	-10 °C to 60 °C
Relative Humidity (operation)	Max. 80 % RH, non-condensing
Maximum Operating Altitude	2000 m
Protection Class	II (double insulation)
Maintenance and Cleaning	Slightly damp cloth; do not use solvents
Safety	Do not use under voltage if damp; observe electrical safety rules
Repairability	No user-serviceable parts; do not modify the device

Frequently Asked Questions - ActiveFinder Plus Laserliner

How to detect voltage with the ActiveFinder Plus?

Place the detector tip on the area to be checked (cable, outlet, etc.). If voltage is present, the tip lights up and an audible signal sounds. For multi-phase cables, check each wire (L1, L2, L3).

What is the detectable voltage range?

The device detects alternating voltages from 24 VAC to 1000 VAC with a frequency of 50-60 Hz.

How to change the batteries?

Open the battery compartment on the back of the device and insert two AAA (LR03) 1.5 V batteries, observing polarity.

What is the Zoom function used for?

Hold down the Zoom button to increase the device's sensitivity. This allows locating electric fields at a greater distance by moving the device over the area to be checked.

What safety precautions should be observed?

Do not work under voltage if the device is damp. Always check for absence of voltage on both poles before intervening. The device does not replace a bipolar verification. Observe electrical safety rules (disconnect power, protection against restart, etc.).

How to check the device's proper functioning?

Before each use, test the device on a known voltage source (e.g., 230 V outlet). Also turn on the flashlight to check the battery status.

Does the ActiveFinder Plus detect direct current?

No, the device only detects alternating voltages (AC) from 24 V to 1000 V. It cannot detect direct current (DC).

What does overvoltage category CAT III mean?

CAT III (1000 V) means the device is designed for use on fixed installations, such as electrical panels or industrial outlets, with high reliability and availability.

How to clean and maintain the device?

Clean the components with a slightly damp cloth. Do not use cleaning agents, solvents, or abrasive products. Remove the batteries for prolonged storage and keep the device in a dry, clean place.

Is the device waterproof or water-resistant?

No, moisture can affect safety. Do not use the device if it is covered with moisture or conductive residues. It must be dry before any use under voltage.

USER MANUAL ActiveFinder Plus Laserliner

m = 311 ;
A

CAT III

E

F

G

H

K

Laserliner

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function/Application

Contactless test device for localising electrical voltage (230 V AC) in cables, sockets, lampholders and fuses. Visual and acoustic signals indicate whether a voltage is present.

Safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• If you are working with voltages higher than 24 V/AC / 60 V/DC, exercise extreme caution. Touching the electrical conductors at such voltages poses a risk of life-threatening electric shocks.
• If the device comes into contact with moisture or other conductive-residue, work must not be carried out under voltage. At and above voltages of 24V / AC / 60V / DC , the presence of moisture creates the risk of life-threatening electric shocks.
• Clean and dry the device before use.
• When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.
• In overvoltage category III (CAT III - 1000 V), the voltage between the test device and earth must not exceed 1000V .
  Before taking any measurements, make sure that both the area to be tested (e.g. a line), the test device and the accessories used (e.g. connection cable) are in proper working order. Test the device by connecting it to known voltage sources (e.g. a 230 V socket in the case of AC testing).
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• Observe the safety precautions of local and national authorities relating to the correct use of the device and any prescribed safety equipment (e.g. electrician's safety gloves).
• Do not work alone in the vicinity of hazardous electrical installations and only under the guidance of a qualified electrician.
• The measuring device must not be used as a substitute for a two-pole zero potential test.
• The device measures the presence of electrostatic fields of sufficient strength. If the field strength is too low voltage may still be applied although no warning signal is given. The following list of factors that influence the field strength does not claim to be complete: shielding, cable insulation (type, thickness), measurement distance, insulation between user and earth, special socket designs, condition of tester and of batteries.

Additional information on use

Observe the technical safety regulations for working on electrical systems, especially: 1. Safely isolating from power supply, 2. Securing to prevent system being switched on again, 3. Checking zero potential, two-pole, 4. Earthing and short-circuiting, 5. Securing and covering adjacent live components.

Laserliner

Safety instructions

Using artificial, optical emission (OStrV)

LED outlet (see Fig. A)

• The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).
• Radiation power: Peak wavelength equals 456nm . Mean radiance is below the limit values of risk group RG 0.
• When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.

Safety instructions

Dealing with electromagnetic radiation and electromagnetic disruptions

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• The measuring device complies with safety and electromagnetic compatibility regulations and limit values in accordance with Directive 2014/35/EU (Low Voltage Directive / LVD) and 2014/30/EU (Electromagnetic Compatibility Directive / EMC).
• Umarex GmbH & Co. KG hereby declares that the ActiveFinder complies with the essential requirements and other provisions of the European Low Voltage Directive 2014/35/EU (LVD) and the Electromagnetic Compatibility Directive 2014/30/EU. The EU Declaration of Conformity can be found in its entirety at the following address: http://laserliner.com/info?an=AAB
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Symbols

Fig. B: Warning about hazardous electrical voltage: Unprotected live components inside the device housing are capable of posing a risk of electric shock.

Fig. C: Protection class II: The test device has reinforced or double insulation.

Fig. D: Overvoltage category III: Equipment in fixed installations and for applications where specific requirements with regard to the reliability and availability of equipment have to be met, e.g. circuit-breakers in fixed installations and devices used in industrial applications which are permanently connected to the fixed installation.

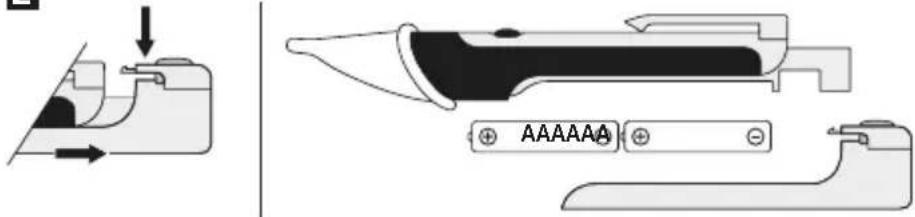

Insertion of batteries (see Fig. E)

Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

The device is ready for use immediately once the batteries have been inserted. It does not have a separate ON/OFF switch and is therefore always active.

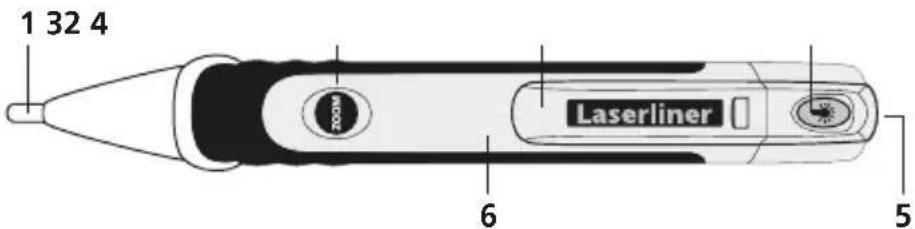

Device description (see Fig. F)

1 Detector tip

3 Pocket clip

5 Battery lamp

2 ZOOM function ON/OFF

4 Battery lamp ON/OFF

6 Battery compartment on the rear of the device

Before using the device, you should always test it on a main circuit you know to be operational within the specified voltage range. To avoid inaccurate measurements, check the device batteries prior to use by switching on the built-in battery lamp. (see Fig. A)

2 Localising electrical voltages

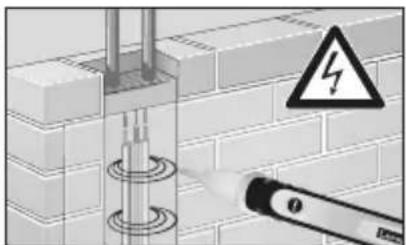

Fig. G: Position the detector tip in the area to be tested (e.g. cable, socket, etc.). Fig. H: If voltage is present, the detector tip lights up and a signal sounds.

For safety, check all three phase conductors (L1, L2, L3) for the presence of voltage!
If the acoustic signal is weak or the battery lamp is not as bright as it should be, replace the batteries.

ZOOM function

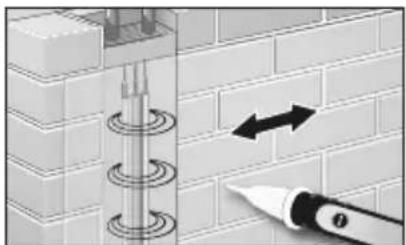

Fig. I: Press the ZOOM button to increase the sensitivity of the device (24 V AC to 1000 V AC). This enables voltage fields to be located at significant distance by moving the device over the area to be tested. Fig. J: If voltage is present, the detector tip lights up and a signal sounds.

Please be aware that even if a visual signal is not displayed, voltage may still be present. Differences in the design of the connection socket or the nature of the insulation (thickness and type) can affect functionality. Voltage cannot be detected behind panels and metal covers.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical data Subject to technical alterations. 19W36

Indicator LED
Voltage range	24 V AC ~ 1000 V AC Frequency 50 ... 60 Hz
Overvoltage category	CAT III - 1000 V (non-condensing) Pollution degree 2
Power supply 2 x 1,5V LR03 (AA)
Operating conditions	0°C ... 50°C, Max. humidity 80% rH, no condensation, max. altitude 2000 m
Storage conditions	-10°C ... 60°C, Max. humidity 80% rH
Dimensions (W x H x D) 21 x 158 x 25 mm
Weight 48 g (incl. batteries)

EU directives and disposal (see Fig. K)

This device complies with all necessary standards for the free movement of goods within the EU. This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment. Further safety and supplementary notices at: http://laserliner.com/info?an=AAB
