| Product type | LED light chain |
| Brand | Livarno Lux |
| Model | HG05412A |
| Number of LEDs | 200 (non-replaceable) |
| Light color | Warm white |
| Total length | Approx. 30 m (10 m cable + 10 strips of 2.2 m) |
| Power supply | Mains 220-240 V~, 50/60 Hz; output 30 V ⎓, 6 W |
| Protection rating | IP44 (splash-proof) |
| Protection class | II |
| Power consumption | Approx. 4.5 W |
| Maximum ambient temperature | Ta |
| Lighting functions | Combination, Waves, Sequential, Slo-Glo, Twinkle, Slow fade, Sparkle, Continuous light, Off |
| Integrated timer | 6 hours on / 18 hours off, daily automatic repeat |
| Usage | Indoor and outdoor (household use) |
| Package contents | Light chain, power supply unit, instruction manual |
| Approximate weight | 0.5 kg |
| Repairability | LEDs non-replaceable; power supply unit replaceable only by a specialist |
| Warranty | 3 years |
| Cleaning | Dry, lint-free cloth; do not immerse |
Frequently Asked Questions - HG05412A Livarno Lux
User questions about HG05412A Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your String lights in PDF format for free! Find your manual HG05412A - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HG05412A by Livarno Lux.
USER MANUAL HG05412A Livarno Lux
DE AT CH
LED CHRISTMAS LIGHTS/ LED GALAXY FAIRY LIGHTS
Operation and safety notes
NL BE
LED-VERLICHTINGSKETTING/ LED-LAMPJESSLEEP
Technical data......Page 12
Included items Page 13
Safety information......Page 13
Use Page 14
Timer function......Page 15
Cleaning and care....Page 15
Disposal Page 15
Warranty Page 15
Warranty claim procedure....Page 16
Service Page 16

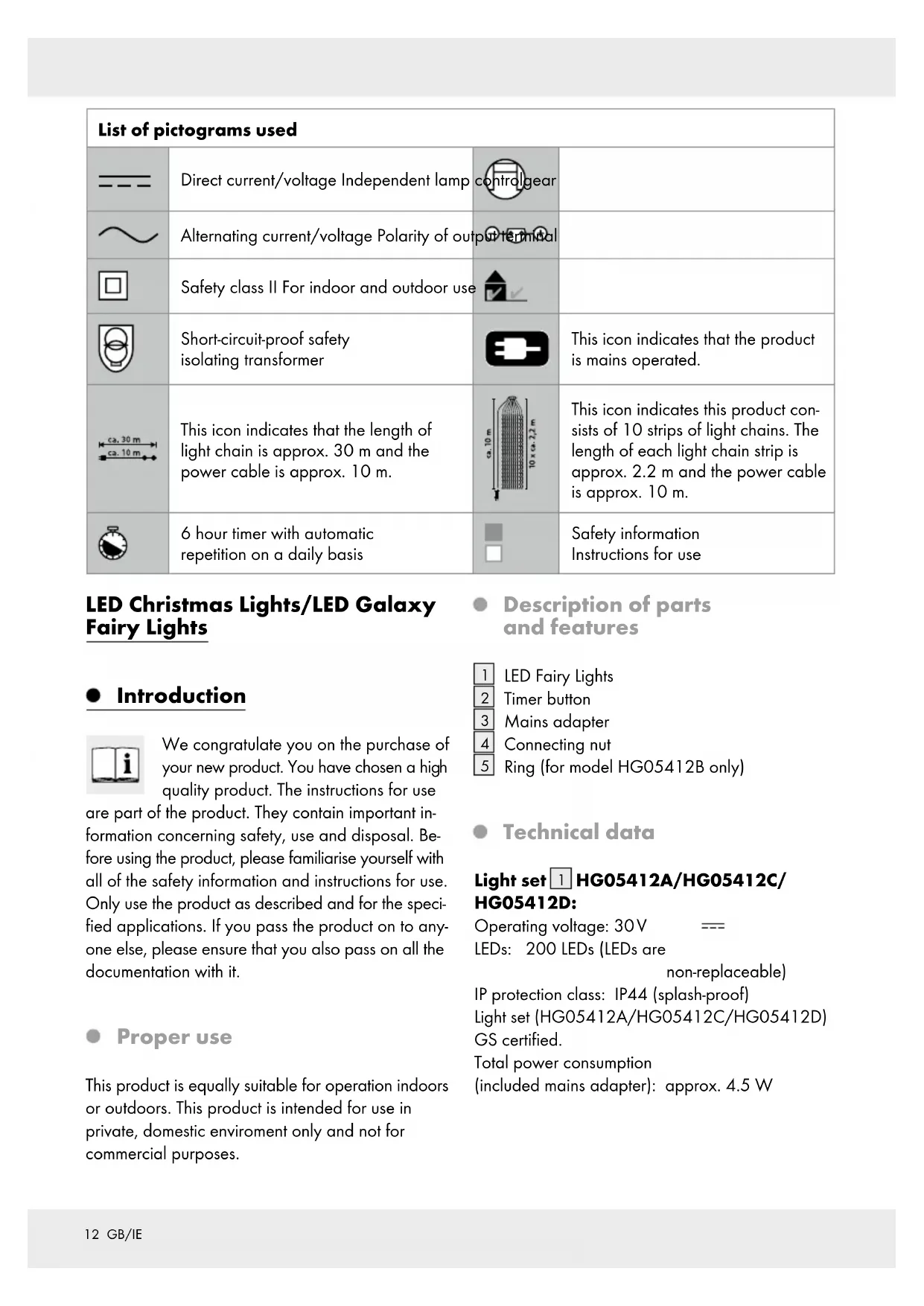

| List of pictograms used | |||
 | Direct current/voltage Independent lamp |  gear | |
 | Alternating current/voltage Polarity of outp |  total | |
 | Safety class II For indoor and outdoor use |  | |
 | Short-circuit-proof safety isolating transformer |  | This icon indicates that the product is mains operated. |
 | This icon indicates that the length of light chain is approx. 30 m and the power cable is approx. 10 m. |  | This icon indicates this product consists of 10 strips of light chains. The length of each light chain strip is approx. 2.2 m and the power cable is approx. 10 m. |
 | 6 hour timer with automatic repetition on a daily basis |  | Safety information Instructions for use |
LED Christmas Lights/LED Galaxy Fairy Lights
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use
are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
- Proper use
This product is equally suitable for operation indoors or outdoors. This product is intended for use in private, domestic environment only and not for commercial purposes.

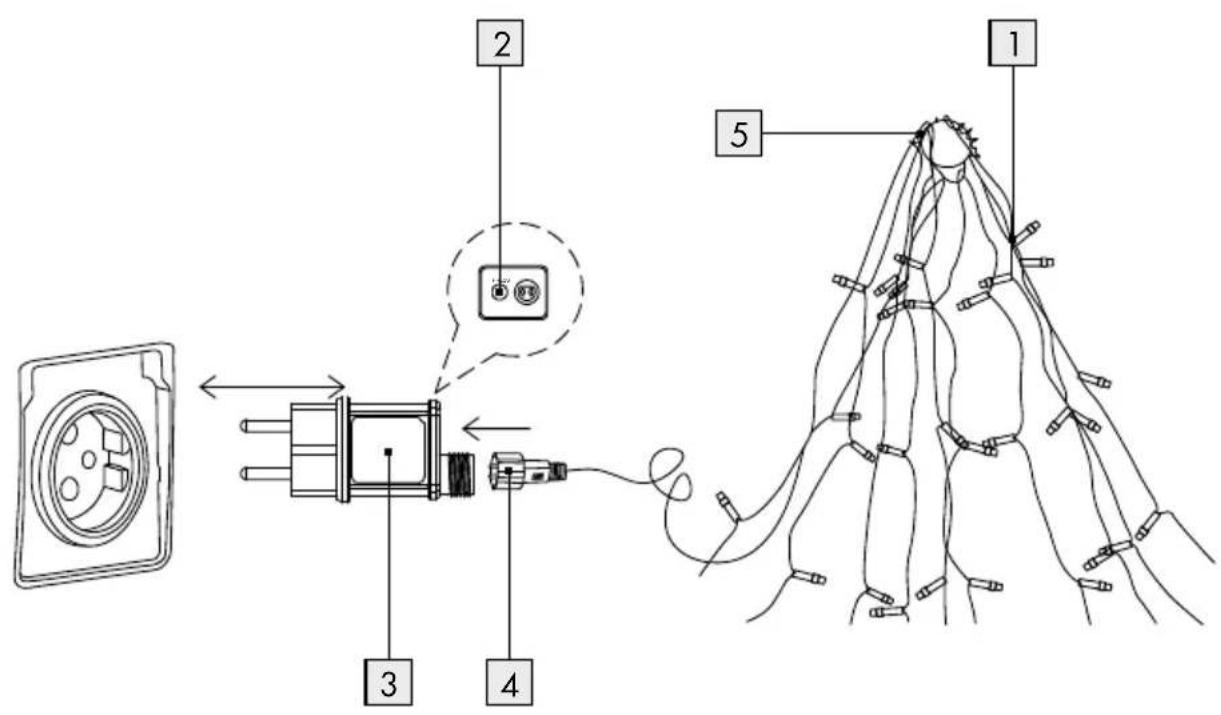

• Description of parts and features
1 LED Fairy Lights
2 Timer button
3 Mains adapter
4 Connecting nut
5 Ring (for model HG05412B only)
- Technical data
Light set 1 HG05412A/HG05412C/ HG05412D:
Operating voltage: 30V ---
LEDs: 200 LEDs (LEDs are
non-replaceable)
IP protection class: IP44 (splash-proof)
Light set (HG05412A/HG05412C/HG05412D)
GS certified.
Total power consumption
(included mains adapter): approx. 4.5 W
HG05412B:
Operating voltage: 30V ---
LEDs: 180 LEDs (LEDs are non-replaceable)
IP protection class: IP44 (splash-proof)
Light set (Model No. HG05412B)
GS certified.
Total power consumption
(included mains adapter): approx. 4.5 W
Mains adapter 3 HG05412A/ HG05412C/HG05412D:
Nom.voltage, primary:220-240V\~, 50/60Hz
Nom. voltage, secondary: 30 V=, 6 W
Protection class:
IP class: IP44 (splash-proof)
Mains adapter (Model no. 22S0600G300W8D)
GS certified.
HG05412B:
Nom. voltage, primary: 220-240 V\~, 50/60 Hz
Nom. voltage, secondary: 30 V---, 3.6 W
Protection class:
IP class: IP44 (splash-proof)
Mains adapter (Model no. 22S0360G300W8D)
GS certified.
SELV: Safety extra low
voltage
Ta: Maximum rated
ambient temperature
Tc: Rated maximum operating temperature of the case of a controlgear
HG05412A: warm white
HG05412B: warm white
HG05412C: multi-colour
HG05412D: cool white
Included items
1 LED Fairy Lights
1 Mains adapter
1 Operating instructions
Safety information
BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!
WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!
Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.
This product is not a toy. It does not belong in the hands of children. Children are not able to appreciate the dangers associated with using the product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
- Ensure that the product is installed by suitably experienced or qualified persons only.
CAUTION! RISK OF OVERHEATING! Do not operate the product inside the packaging.
Do not pull the product cable and make sure it is laid down properly so that no one walks or trips over it.
The product can be used on all surfaces officially classified as being of "normal flammability".
- Do not attach any other objects to the product.
Avoid the danger of death from electric shock!
Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (220-240 V\~).
Before connecting the product to the mains you should always check the product and the mains adapter for any damage.
■ Never use the product if you discover that it is damaged in any way.
This products external flexible tube is non-replaceable. Hence if it becomes damaged you must dispose of the entire product.
This product does not contain any parts which can be serviced by the user. The LEDs cannot be replaced.
Only use the product with the supplied mains adapter for the type (Model No. 22S0600G300W8D for HG05412A/ HG05412C/HG05412D, 22S0360G300W8D for HG05412B); all warranty claims will otherwise expire.
■ Never open any of the electrical parts or insert any kind of object into them.
- Protect the mains cable from sharp edges, mechanical loads and hot surfaces.
Do not install with sharp fasteners or nails.
Always unplug the mains adapter from the socket before installation, dismantling or cleaning.
Never touch the product's plug or the product itself with wet hands.
The product must not be electrically connected to another set of lights.
If the product is not in use for any length of time (e.g. holidays), disconnect them from the power supply.
If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.
The product is only suited for use with the included mains adapter (Model No. 22S0600G300W8D for HG05412A/ HG05412C/HG05412D, 22S0360G300W8D for HG05412B).
Please note that the mains adapter continues to draw a small amount of power even if the product is turned off as long as the mains adapter is plugged into a power outlet. To switch the product off completely, unplug the mains adapter from the socket.
■ The LEDs are not replaceable.
If the LEDs fail at the end of their lifes, the entire product must be replaced.
The LED driver can only be replaced by a professional.
Use
Note: Remove all packaging materials from the product.
Note: The LEDs are connected in series. If one LED is defective, up to ten LEDs may not light up.
For HG05412B:
Put the ring 5 over the top of the tree.
☐ Insert the plug on end of the product into the socket of the mains adapter 3. Please screw down the connecting nut 4 clockwise.
☐ insert the mains adapter 3 into the mains socket.
☐ Press the timer button 2 to turn on.
☐ Press the timer button 2 again to switch to the next lighting mode.
The light mode is listed as below:
- combination (combination of all lighting mode)
- in wave (LED lighting flashing in changing frequency)
- sequential (LED light up alternating)
- Slo-Glo (LED slowly light up alternating)
- chasing/flash (LED flash alternating)
- slow fade (LED light up and fade out slowly)
- twinkle/flash (LED light up alternating like twinkle)
- steady on (all LED on)
- Off
- Timerfunction
☐ To switch on the timer function, press and hold 2 seconds the timer button 2 after the product is connected to the socket of power cable. The timer button 2 will light up green when the timer function is activated.
☐ The product glows permanently for 6 hours and will be followed by a subsequent pause of 18 hours. Afterwards, the product will light up again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours.
☐ To switch off the timer function, press and hold 2 seconds the timer button 2 again and the light of the timer button 2 will be turned off.
- Cleaning and care
CAUTION! DANGER OF ELECTRIC SHOCK!
First pull the mains adapter 3 out of the mains socket.
⚠️ CAUTION! DANGER OF ELECTRIC SHOCK!
For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.
Do not use any solvents, petrol or similar items. This would damage the product.
☐ Only a dry, lint-free cloth should be used for cleaning.
☐ Easy to clean for heavy soiling, with a slightly damp cloth.
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibre-board/80–98: composite materials.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
The product and packaging materials are recyclable, subject to extended manufacturer responsibility. Dispose it separately, following the illustrated packaging symbols, for better waste treatment. The Triman logo is valid in France only.
- Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.
Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to
fragile parts, e.g. switches, rechargeable batteries or glass parts.
● Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN 391339_2201) available as proof of purchase.
You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
GB Service Great Britain
Tel.: 08000569216
E-Mail: owim@lidl.co.uk
IE Service Ireland
Tel.:1800200736
E-Mail: owim@lidl.ie
