RB33B610ESA - Freezer SAMSUNG - Free user manual and instructions

Product Type	Freezer
Brand	Samsung
Model	RB33B610ESA
Power Supply	Electric (standard mains plug)
Compartments	Refrigerator and freezer (two doors)
Available spare parts	Handles, door gaskets, drawers, hinges
Required repair tools	Phillips screwdriver, flat-head screwdriver, 8 mm, 10 mm, 11 mm wrenches, socket wrenches
Door reversal function	Possible (procedure described in the manual requires two people)
Safety - Disconnection	Disconnect the appliance before any repair or door reversal
Safety - Handling	Tilting and installation require at least two people
Maintenance - Gaskets	User-replaceable, attach without gaps to prevent cold air leaks
Maintenance - Drawers	Removable by lifting the front; reassemble in reverse order
Warranty - Repairs	Non-compliant repairs or repairs by an unauthorized service void the warranty
Manual available	Downloadable PDF at notice-facile.com, multilingual

Frequently Asked Questions - RB33B610ESA SAMSUNG

How to replace the freezer handle?

First remove the screw covers with a flat-head screwdriver, then unscrew the screws with a Phillips screwdriver. To reassemble, follow the reverse procedure. Make sure there is no gap between the handle and the door.

How to change the door gasket?

Open the door and remove the old gasket. Attach the new gasket, ensuring no gap between the gasket and the door to prevent cold air leaks.

How to remove a drawer from the freezer?

Gently lift the front of the drawer and slide it out. To reinstall, follow the reverse procedure.

How to reverse the door opening?

Disconnect the appliance. Remove the top cover, disconnect the connectors, then unscrew the top, middle, and bottom hinges. Reassemble in reverse order. This operation requires two people.

What tools are needed for repairs?

You will need a Phillips screwdriver, a flat-head screwdriver, an 8 mm, 10 mm, 11 mm wrench, and socket wrenches.

Can I replace the hinges myself?

Yes, but be careful as the doors are heavy. It is recommended to have two people and place cardboard on the floor to avoid scratches. Follow the procedure in the manual carefully.

What to do if the door gasket is damaged?

Order a replacement gasket that matches your model. Remove the old gasket and attach the new one, ensuring it is perfectly fitted to maintain a seal.

Why is my door closing poorly?

Check the gasket: it may be deformed or poorly positioned. Make sure the hinge is securely attached and the drawer is not misaligned. Consult the manual for adjustments.

Which spare parts are user-replaceable?

User-replaceable parts are limited to handles (depending on models), gaskets, drawers, and hinges. For any other parts, contact an authorized service.

How to download the manual for my Samsung freezer?

Go to notice-facile.com, search for model RB33B610ESA, and download the PDF for free. The manual is available in multiple languages.

USER MANUAL RB33B610ESA SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.
3. You can check the model code and version on the barcode label at the bottom left of the product.
4. For replacement parts, make sure the part name matches that of the illustration in this manual.
5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

Diagram of a refrigerator interior with numbered labels pointing to different compartments

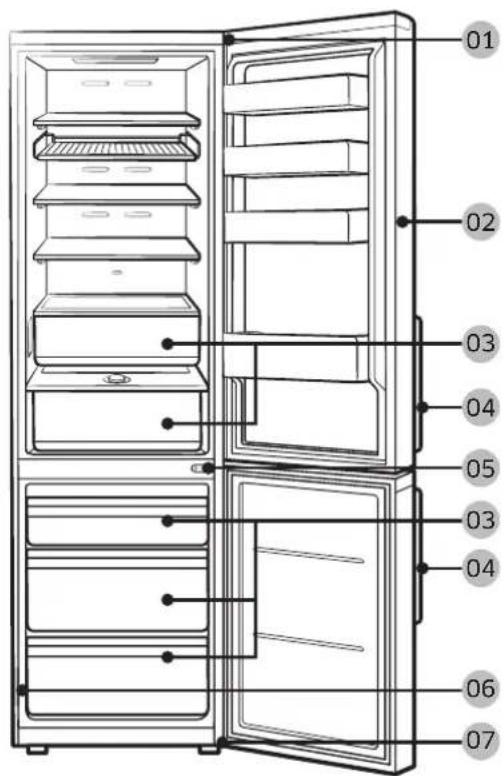

01 Top hinge 02 Gasket
03 Drawer 04 Handles (Applicable models only)
05 Middle hinge 06 Barcode label
07 Bottom hinge

English

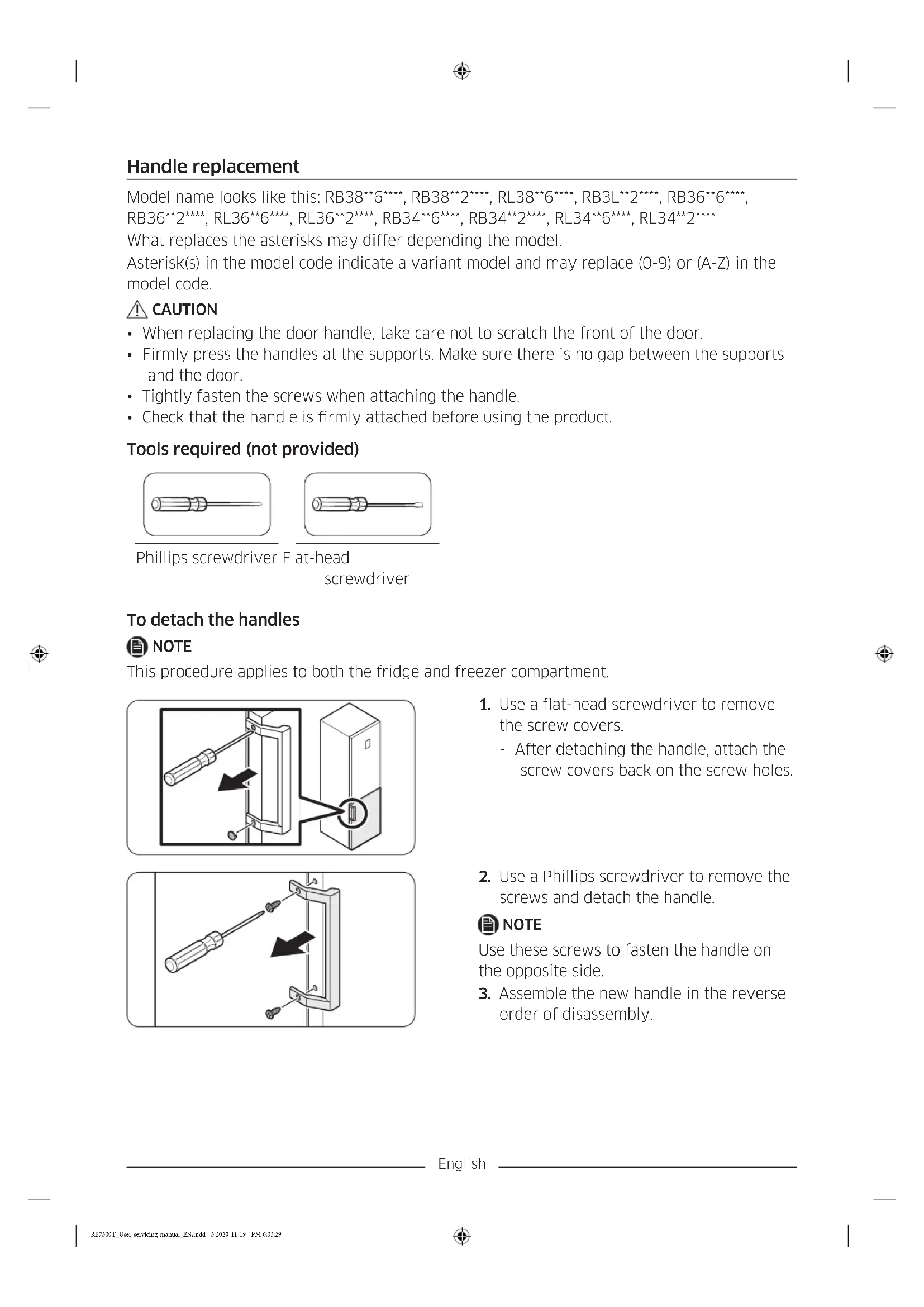

Handle replacement

Model name looks like this: RB38**6****, RB38**2****, RL38**6****, RB3L**2****, RB36**6****, RB36**2****, RL36**6****, RL36**2****, RB34**6****, RB34**2****, RL34**6****, RL34**2****

What replaces the asterisks may differ depending the model.

Asterisk(s) in the model code indicate a variant model and may replace (0-9) or (A-Z) in the model code.

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.
• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.
• Tightly fasten the screws when attaching the handle.
• Check that the handle is firmly attached before using the product.

Tools required (not provided)

Two identical illustrations of a screwdriver with a flat blade, shown in two different angles (no text or symbols)

Phillips screwdriver Flat-head
screwdriver

To detach the handles

NOTE

This procedure applies to both the fridge and freezer compartment.

Diagram showing a screwdriver inserted into a door panel, with an arrow indicating the direction of movement.

Diagram of a screwdriver inserted into a mechanical clamp or bracket, with a black arrow indicating direction (no text or symbols present)

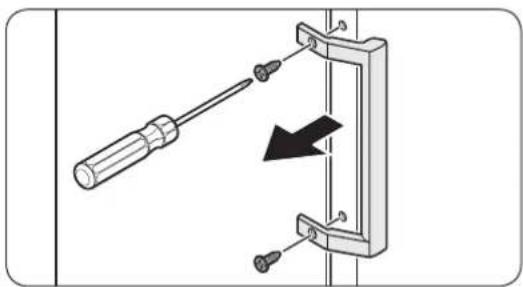

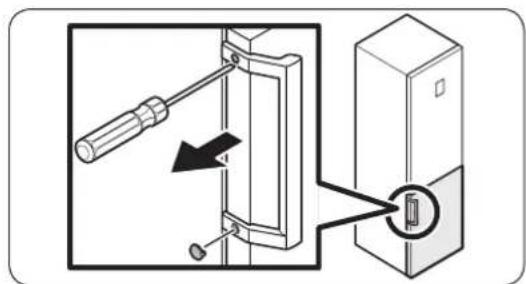

1. Use a flat-head screwdriver to remove the screw covers.
2. After detaching the handle, attach the screw covers back on the screw holes.

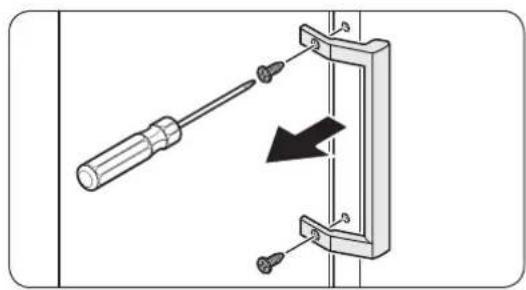

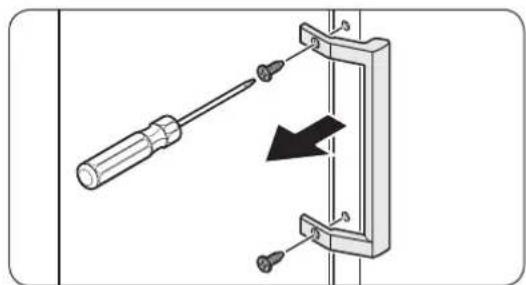

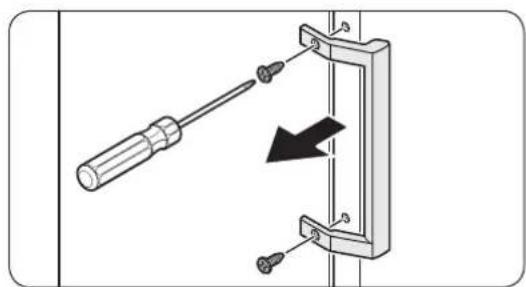

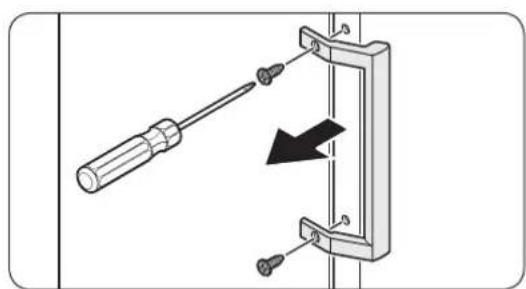

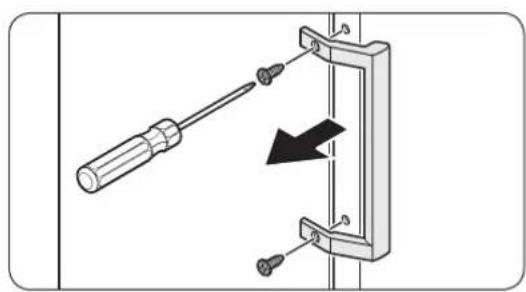

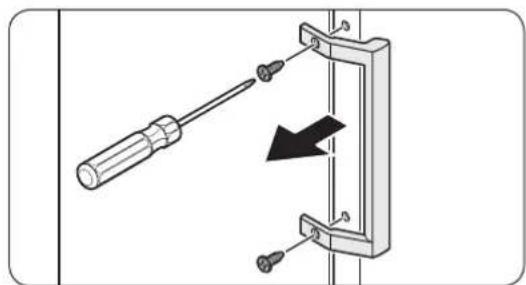

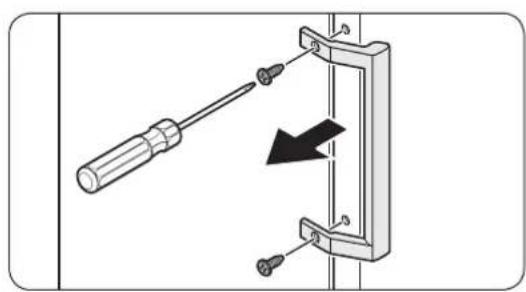

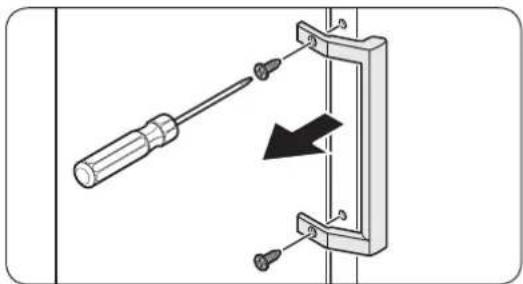

3. Use a Phillips screwdriver to remove the screws and detach the handle.

NOTE

Use these screws to fasten the handle on the opposite side.

1. Assemble the new handle in the reverse order of disassembly.

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

Diagram of a door frame with an arrow indicating direction (no text or symbols)

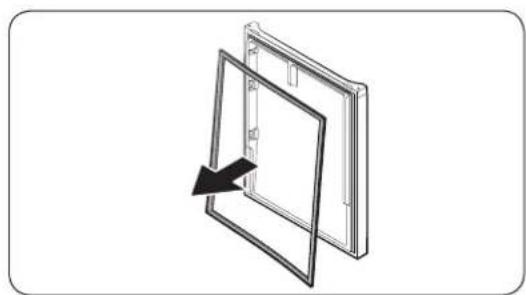

Open the door and remove the gasket from the door.

To replace the gasket

Diagram of a door frame with an arrow pointing to the front panel (no text or symbols)

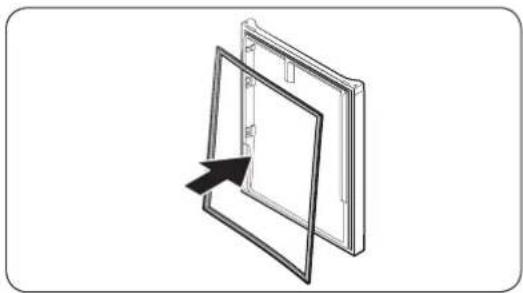

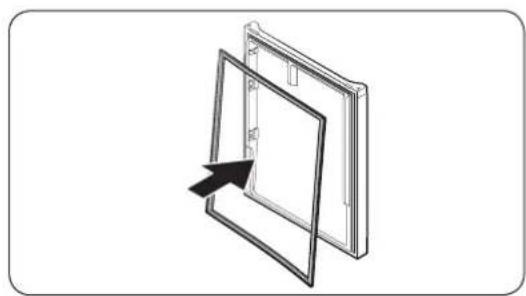

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door.

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawer

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

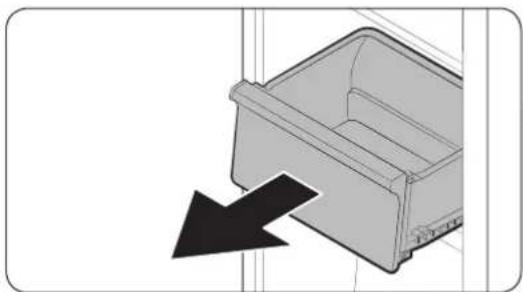

Gently lift up the front of the drawer and slide it out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

English

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

- When removing the doors, take extreme caution because the doors are heavy. - Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down. - As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

- If you remove the hinge without holding the door, the door may fall and cause injury. - Ensure that the shaft is firmly tightened on the hinge. - Check that the hinge is firmly attached to the cabinet. - Make sure the wire connectors are connected properly. - Be careful not to damage the wires when fastening the top cover.

WARNING

- Tilting/laying the refrigerator requires a minimum of 2 people. - Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench 8 mm socket wrench 10 mm spanner

English

Reversing the door

NOTE

For the models with handles, reverse the handles first. (For detailed information, see the "Handle replacement (For models with bar handles)" section.)

Diagram of a battery or switch assembly with screw holes and a labeled component (no text or symbols present)

Diagram showing a device with labeled component A and an upward arrow indicating motion or direction

Technical diagram of an electronic device showing internal components and wiring (no text or labels)

Technical diagram showing mechanical assembly with arrows indicating direction (no text or symbols)

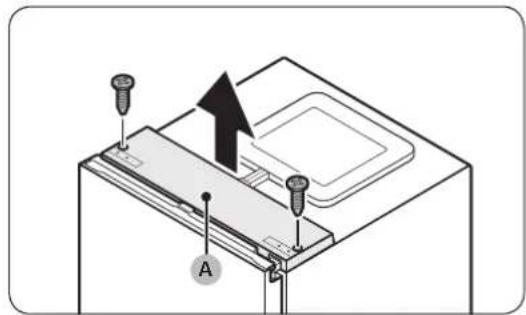

1. With the fridge door closed, use a Phillips screwdriver to remove the screws fastening the top cover (A).

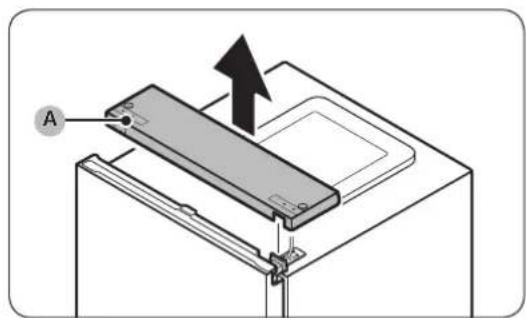

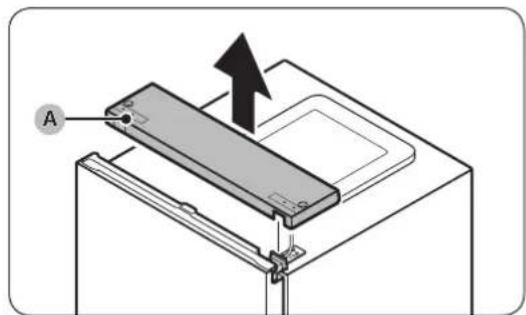

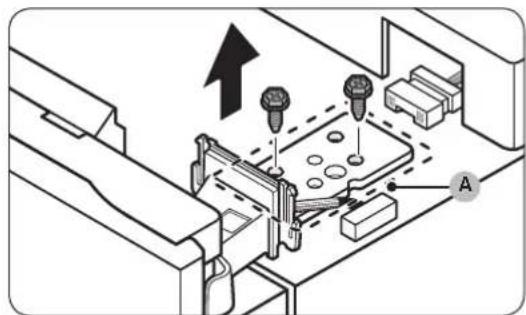

2. Gently lift the top cover (A) and place it on top of the refrigerator.

- Be careful when you lift the top cover (A). There is a wire connected underneath it.

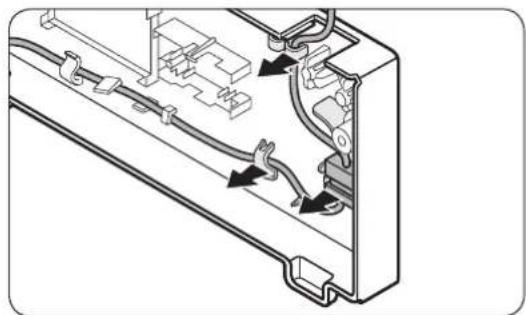

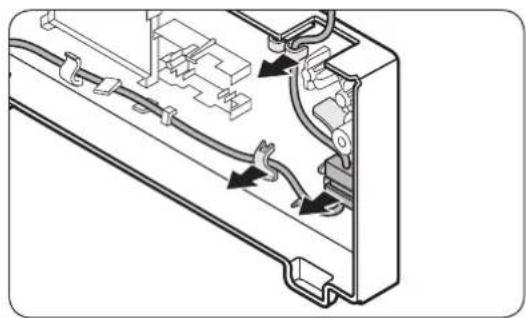

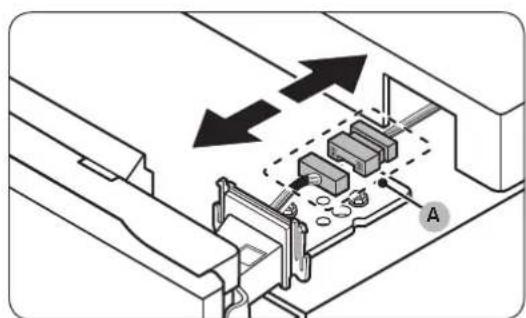

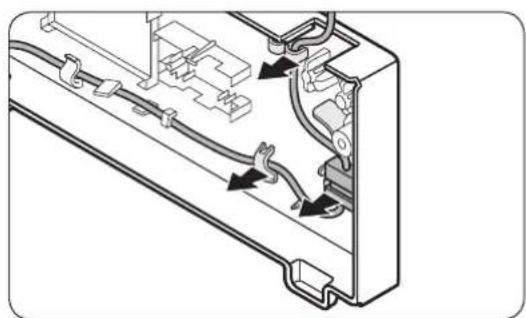

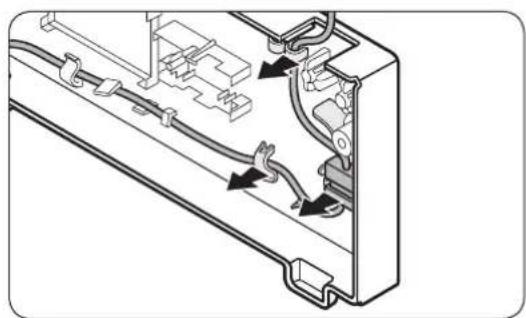

1. Remove the wire and the wire connector placed on the holder underneath the top cover.

- This step may not apply to some models.

CAUTION

Do not pull the connectors too hard.

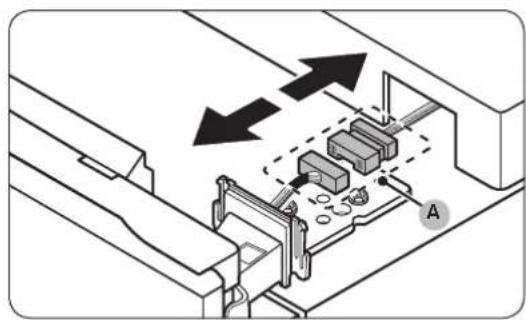

1. Disconnect the wire connector (A).
2. This step may not apply to some models.

English

Technical diagram showing mechanical assembly with labeled components and directional arrow

Diagram of a refrigerator interior showing the door and shelf arrangement (no text or symbols)

A

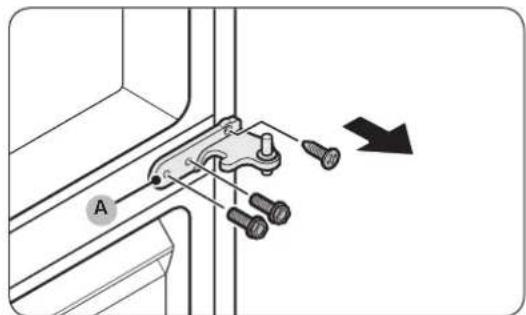

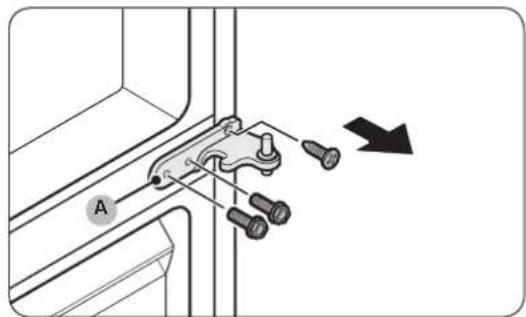

1. Use a socket wrench (8 mm) to remove the screws fastening the top hinge (A).

CAUTION

To prevent the fridge door from falling, make sure to hold it tight while removing the screws.

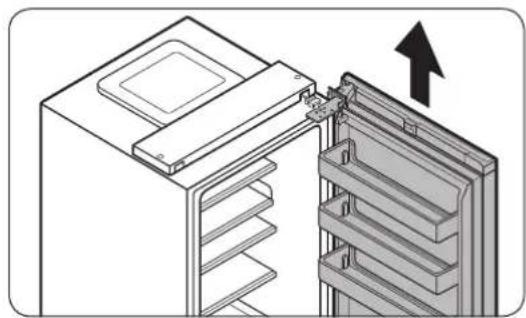

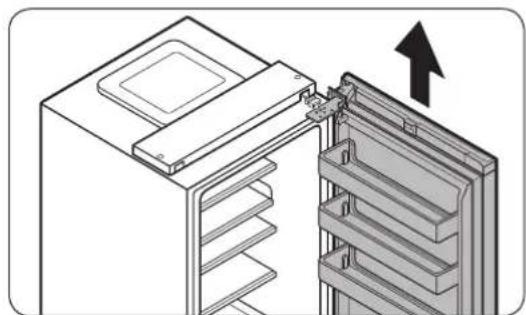

1. Open the fridge door, and then lift the door to remove it from the middle hinge. Keep the door in a safe place.

CAUTION

The door is heavy. To prevent damage or injury, use caution while removing the door.

1. Open the freezer door, and then use a socket wrench (8 mm) to remove the screws fastening the bottom hinge (A).

English

Diagram showing a door opening with labeled components A and B, including an inset view of a clip mechanism.

A

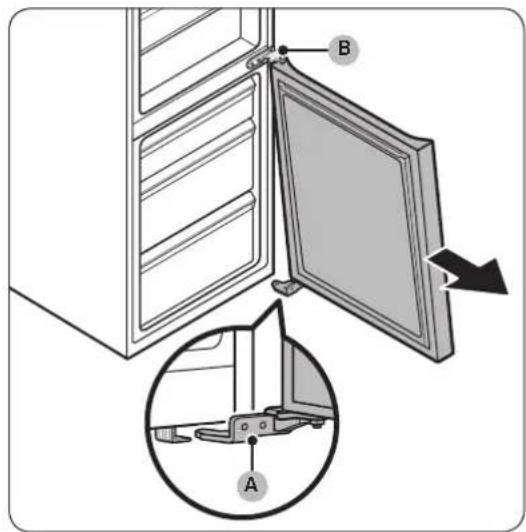

1. With the freezer door sitting on the bottom hinge (A), slowly pull the bottom hinge (A) to remove it from the holder on the bottom of the refrigerator. Once the bottom hinge (A) is removed from the holder, remove it from the freezer door, and then pull the freezer door down to remove it from the middle hinge (B).

CAUTION

To prevent the freezer door from falling, make sure to hold the freezer door tight until it is safely removed from the middle hinge (B).

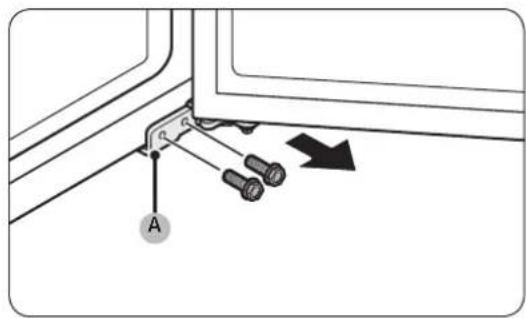

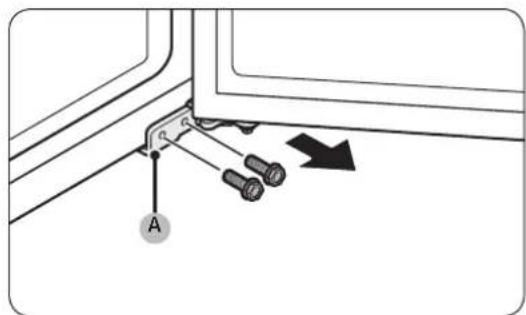

1. Use a Phillips screwdriver and socket wrench (10 mm) to remove the screws fastening the middle hinge (A).

2. Reassemble in the opposite order of disassembly after replacing the top, middle, and/or bottom hinge.

CAUTION

• Make sure the wire connectors are connected properly.

- Be careful not to damage the wires when fastening the top cover
