Solamagic SMZ11400T - Heating Etherma - Free user manual and instructions

Brand	Etherma
Model	Solamagic SMZ11400T
Product type	Halogen infrared floor heater
Power	1400 W
Protection rating	IP24
Power supply	230 V ~ 50 Hz
Programmable timer	30, 60, 90 minutes or continuous
Short mode	5 minutes (double-click)
Minimum safety distance	70 cm from heated surface
Lamp type	Halogen infrared lamp
Average lamp lifespan	5000 hours
Safety	Electronic safety cut-off, tilt protection
Usage	Outdoor (terrace, balcony) or indoor with precautions
Cleaning	Soft damp cloth, without detergent
Warranty	2 years (heating tube: 12 months / 5000 h)
Country of manufacture	Germany (Made in Germany)

Frequently Asked Questions - Solamagic SMZ11400T Etherma

How to program the appliance timer?

After plugging in the appliance, you have 180 seconds to enter programming mode. Press the button for 5 seconds until you hear a long beep (2 s). Then perform double-clicks to set the cut-off: 1 double-click = 30 min, 2 = 60 min, 3 = 90 min, 4 = no cut-off. To confirm, press again for 5 seconds.

Can I use this heater indoors?

The appliance is designed for outdoor use, but can be used indoors in large spaces such as a workshop or garage. Observe safety distances and do not use it in closed rooms where the temperature needs to be comfortable.

What safety distance should I observe?

Maintain a minimum distance of 70 cm between the heated surface and any object or person. Also keep the appliance away from flammable materials such as curtains.

How to clean the heater?

Unplug the appliance and let it cool completely. Wipe the housing with a soft damp cloth. Do not use detergent and never immerse the appliance in water.

What to do if the appliance emits three short beeps during programming?

This means the appliance is not in the defined zero position (upright). Place it upright on a flat surface and try again.

How long is the warranty for the heating tubes?

The warranty for the heating tubes is 12 months or 5000 hours of operation, whichever comes first.

Can I replace a defective halogen lamp myself?

No, repairs must be carried out by the manufacturer or an authorized after-sales service. Do not attempt to replace the lamp yourself.

How does the 5-minute short mode work?

Double-click the button on the appliance (you will hear a tone). The heater turns on for 5 minutes then turns off automatically. Ideal for quick heating.

Does the appliance have overheat protection?

Yes, the appliance is equipped with an electronic safety cut-off that turns it off in case of abnormal operation (e.g., tipping over).

Can I cover the heater with cloth?

No, never cover the appliance when it is on or hot. This presents a fire risk.

USER MANUAL Solamagic SMZ11400T Etherma

Dit product is ,Made in Germany".

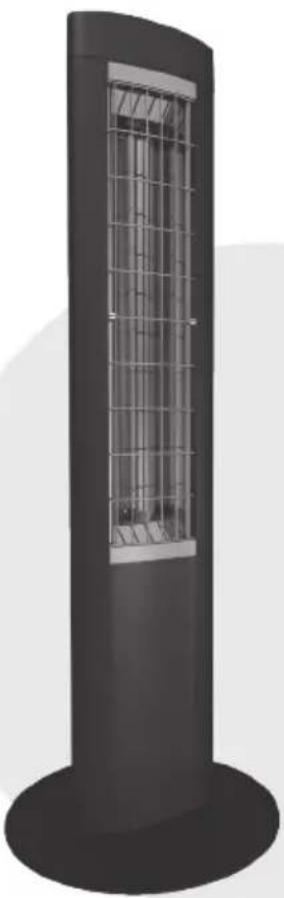

Infrared Radiator Z1 floor appliance 1400W, IP 24

(IR 54001)

Contents

Safety and operating instructions 73

Scope of supply. 74

Initial operation 75

Operation. 76

Programming 77

Cleaning instructions 78

Guarantee conditions 79

Additional instructions. 80

Appendices

Appendix 1:

Technicaldata

AX

Safety and operating instructions

Please observe the following instructions:

Carefully read through the instruction manual prior to installation and store the manual safely.

This heater is intended for outside use by adults. It is not meant to be used for indoor heating to create a pleasant temperature level.

Children must not play with the heater. Children younger than three years old must be kept away from the heater unless they are continuously monitored. Children younger than eight years old must not switch the heater on and off, insert the plug in the socket, clean the heater nor perform any maintenance work.

Caution - Some parts of this product can become very hot and cause burns. Special care is required when children and vulnerable persons are present.

• When carrying out any work, always switch the system to a zero-volt state (disconnect mains plug; circuit-breaker off). Switch on the heater only after all the cables have been completely connected.
• The heater must be protected with at least a 16A (slow) fuse.
• Do not mount the radiant heater close to curtains or combustible materials in accordance with VDE 0100, Part 559.
• Do not install directly under sockets, junction boxes, switches or electrical cabling.
• The heater is compliant to an IP 24 degree of protection, provided all connectors (heater plug, plugs for expansion components) are plugged in, and is approved for outdoor use.
• Never leave the heater unattended.
• Do not cover the heater when it is switched on or still hot; there is a risk of fire.
• To adjust the radiation direction, switch the heater off and allow to cool.
• Do not look directly at an operating IR halogen lamp for a long period and from a short distance.
• IR halogen lamps are sensitive to direct skin contact (do not touch with bare fingers). Grease or other contamination can be removed with an alcohol-soaked cloth.
• To maintain the service life of the IR halogen lamp, it must be protected against vibrations, impacts and contaminants such as acids, ammonia, cement dust, etc.
• The IR halogen lamp must be protected against mechanical loading. It must be replaced, if changes (dark spots, deformation) become apparent or the rated

lifetime is reached.

• Damaged heater parts such as the power cable, rocker button or heating tubes must be replaced immediately. The unit must be immediately dismantled and stored dry.
• Repair work (replacement of a defective power lead, a defective heating tube or similar) must only be carried out by the customer service of the manufacturer or an authorised dealer.
• Cleaning and maintenance work must only be carried out by adults with sufficient expertise.

Scope of supply

• Floor-standing IR heater
• Stand
• Accessories bag for stand assembly
• Manual

Initial operation

Stand assembly

• Take the infrared heater and the pedestal base out of the package.
• Remove both foam collars from the infrared heater and place one foam collar back into the packaging as shown.
• Place the infrared heater back into the carton box.

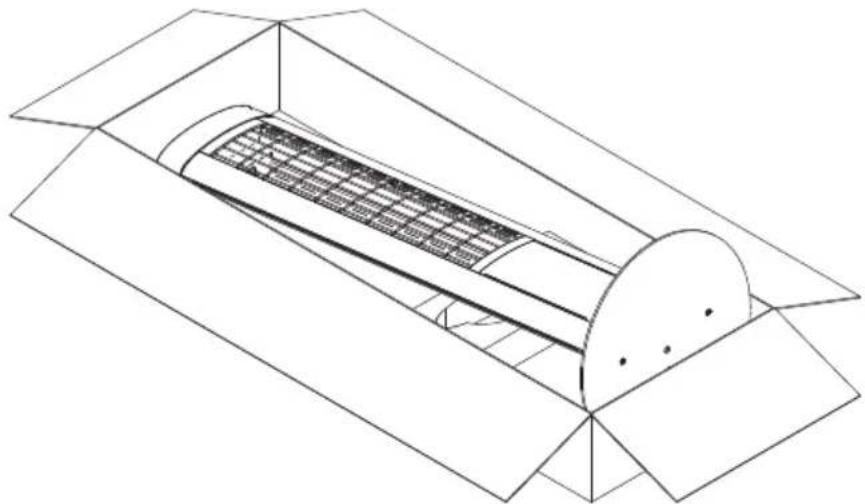

• Place the pedestal base at the bottom end of the infrared heater in the carton and align the fixture bores to the threads in the infrared heater.
  Fix the pedestal plate with the three supplied screws and tighten with the Allen key. To tighten the third screw turn the infrared heater around in the carton box.

Positioning instructions

Attention: Remove the transport lock in the reflector completely.

• It must be ensured that the heating radiation field of the floor-standing IR heater is not directed towards the power outlet. If this is not possible, it must be ensured that the power outlet will not heat up to more than 70^ during heater operation.
• Position the heater on a level, smooth substrate.
• A safety distance of at least 70~cm to the heated surface must be maintained
• The floor-standing IR heater must only be operated in an upright position.

Operation

NOTE: The transport lock in the reflector must be completely removed.
NOTE: The device is equipped with an electronic safety off switch in the event of an abnormal operating position.

• As supplied, the device is already programmed for the operating position (standing upright) and programmed with no timed switch-off.
• Acoustic signals confirm that the heater is operating. The heat output can only be identified after a delay.
• Insert the device plug into the socket of the house installation and switch on the house installation switch.

Switching

on/off: The heater can be switched on or off by briefly pressing on the heater button. Dependent on the programming of the switch-off time:

• Single signal tone Heating without timed switch-off
• 2 × signal tone - 30 minutes operation
• 3 × signal tone - 60 minutes operation
• 4 × signal tone - 90 minutes operation

Short-term heating:

Double-clicking the heater button (signal tone) switches the heater on for 5 minutes and then automatically switches it off again.

Programming

Stand the heater vertically on a level substrate and connect to the mains.

Important: Programming is only possible 180 seconds after connecting to the power!

Activating programming:

Press on the heater button for 5 seconds until a long signal tone is output (2 s).

If three short sequential signal tones are output, the heater is outside the defined zero position.

Programming the zero position:

Press the heater button again for 2 seconds and then release it. A long signal tone is output (2s).

Programming a timed switch-off:

It is possible to program a timed switch-off after 30, 60 or 90 minutes.

First double click

30 minutes

2 Signal tones

Second double click -

60 minutes

3 Signal tones

Third double click

90 minutes

→4 Signal tones

Fourth double click

No timed switch-off

→ One signal tone

Endingly press the heater button for 5 seconds. A long signal programming: tone is output (2 s).

Cleaning instructions

• Disconnect the device from the mains.
• Allow the casing to cool.
• Wipe the casing clean with a moist, soft cloth. Do not use any detergent.

Never immerse the device in liquids nor spray-wash it.

Possible discolouration of the protective grille due to heat effects results from normal physical processes and is not a defect.

Guarantee conditions for Z1 floor appliance

We guarantee this heater in accordance with the following conditions:

1. We will repair, free of charge, in accordance with the following provisions, damage or defects to the heater, which can be proven to be due to a factory defect, if they are reported to us immediately upon discovery on the heater and within 2 years of delivery to the end user. The duration of the guarantee for the heating tube is 12 months up to a maximum 5000 operating hours within this period. The guarantee does not cover minor deviations from the design properties that are irrelevant for the value and usability of the heater or damage caused by abnormal environmental conditions or unsuitable operating conditions. No guarantee can be given if the damage or defects on the heater arise from faulty installation or failure to observe the operating instructions.
2. The guarantee is fulfilled in that defective heaters will be repaired, or replaced by flawless heaters, at our discretion, and free of charge. Heaters, for which a performance of guarantee is claimed with reference to this guarantee, must be handed over or sent to the manufacturer or an authorised service centre. The sender is liable for the transport risk associated with the sending. The shipping, transport, travel and labour costs of the end user are not refunded. Proof of purchase with the date of purchase and/or delivery date plus a detailed description of the fault must always be presented. Replaced heaters become our property.
3. Any guarantee claim becomes void if repairs or adjustments are made by persons who are not authorised by us or if our heaters are provided with spare parts, supplementary parts or accessories that are not original parts, and have caused a defect. The same applies if the name plate or the device number has been removed or rendered illegible.
4. Excluded from this guarantee are damages or defects from incorrect connection, improper handling, mechanical damage, particularly to the heating tube, and failure to observe the installation and operating instructions. We accept no liability for consequential damage.
5. Guarantee performances do not extend the guarantee period nor do they initiate a new guarantee period. The guarantee period for any fitted spare parts ends with the guarantee period for the device as a whole. If a defect or deficiency cannot be eliminated or the rectification of defects is declined by us or unreasonably delayed, an equivalent replacement will be delivered, free of charge, upon request of the customer. In case of replacement, we reserve the right to enforce a reasonable usage charge for time of use up until the time of replacement.

These guarantee conditions apply from 01/01/2019 for heaters purchased in a country of the European Union, even if you use it in a foreign country. The guarantee conditions have no effects on the statutory guarantee claim.

Additional instructions

Subject to technical changes.

This product is "Made in Germany".

For more products and accessories from SOLAMAGIC, see:

www.SOLAMAGIC.com

Please note the following terminology in the appendix

Appendix 1: Technical data

①	Heater type	⑥	Dimensions length x width x height (mm)
①	Heater power (W)	⑦	Weight (kg)
②	Power connection	⑧	Service life (t)
③	Protection type	⑨	Minimum distance to a heated surface (mm)
④	Degree of protection	⑩	Minimum distance to the wall (mm)
⑤	Marking
