USER MANUAL LAVA BATH 2.0 Etherma

Exterior view of a modern office building (no signage)

LAVA ^® BATH 2.0

Infrarotheizung / Infrared heating

Installation and usage instructions

Two white metal structural plates with perforated cutouts, no text or symbols visible

Two metallic rectangular metal plates arranged vertically (no text or symbols visible)

ABSTANDSMASSE

Diagram showing a mechanical component with dimension annotation θx and a separate oval object, possibly indicating a section or section view.

3

Illustration of a person using a pulley system to measure a weight, with an inset showing the same lever mechanism (no text or symbols present)

4

Diagram showing two people installing or adjusting a door with wrench and power plug icons, illustrating electrical circuitry.

ETHERMA LAVA® BATH 2.0 design infrared heaters are versatile direct heating devices. They are characterised, in particular, by their elegant design, ease of installation and operation, high reliability and maximum radiation power with minimal convection.

These instructions provide important information on safety, installation, use and maintenance of the device. Please read the information provided in these instructions carefully and keep for reference in case you will have questions at a later occasion.

The manufacturer shall not be held liable if these instructions are not complied with. Devices may not be used improperly, i.e. for purposes other than the intended use.

The packaging of your high-quality LAVA® BATH design infrared heater is made from recyclable materials.

THESE INSTRUCTIONS MUST

be given to the operator following installation. The operator must also be instructed in the infrared heater's functionality.
be kept safe and transferred to the new owner in case of a change in ownership.

WARNING: Covering the surface creates a danger of overheating. Overheating may occur and the heating element may be damaged by covering the front of the device, e.g. with a hand towel.

WARNING: The infrared heating may not be used if the front of the device is damaged.

OVERHEATING AND OVERLOAD PROTECTION

All heaters have overheating protection which is activated in the event of overheating. The device only resumes operation automatically again after having cooled down to below 45^ C.

This heating device is not intended for the use by persons (including children) with a limited physical, sensory or mental capacity or with a lack of experience and knowledge. Such individuals must be supervised by a person responsible for their safety or instructed on use of the device. Children should be supervised in order to ensure that they do not play with the device.

This device can be used by children of 8 years and older and by persons with reduced physical, sensory or mental abilities and with a lack of experience or knowledge if they are supervised or have been instructed on safe use of the device and understand the resulting risks. Children may not play with the device. Children may not clean the device or perform maintenance on it without supervision.

Children under the age of 3 should be kept away unless under constant supervision. Children between the ages of 3 and 8 may only switch the device on and off if they are supervised or have been instructed regarding safe use of the device and understand the resulting risks, as long as the device is placed or installed at its intended place of use. Children between the ages of 3 and 8 must not plug in the device, control the device, clean it and/or carry out maintenance.

The device may only be operated once installed. This heater may not be used in the immediate vicinity of a bath, shower or swimming pool. When installing the device in a bathroom, the device must be mounted so that switches or other regulators cannot be touched by persons in a bathtub or shower. The heater may not be used in small rooms occupied by persons who cannot leave the room independently, except where constant supervision is guaranteed.

Some product parts can become very hot and cause burns. Particular caution is required when children or vulnerable persons are present.

ATTENTION: Hot surface of the device may cause burn injuries. Switch off the device and let it cool down before carrying out maintenance and service works.

ATTENTION: Strain of any kind on the surface, whether from persons or objects leaning against it or from other forces, must be avoided!

ATTENTION: On the surface of the LAVA® BATH STEEL 2.0 infrared heating environmental influences such as direct sunlight, heavy smoke, open fireplaces, etc. may cause discoloration of the hue.

NOTES

IMPORTANT NOTES:

LAVA® BATH infrared heating devices comply with the relevant safety requirements.
Installation and initial start-up, as well as repairs and servicing, may be carried out by a licensed specialist or qualified individual only. All safety regulations must be observed. This person must verify first whether the electrical in-house system complies with the relevant standards. The responsibility of the manufacturer is limited to supply of the device.
Comply with country-specific safety regulations.
Comply with local safety precautions.
The devices are only suitable for vertical installation on walls.

Protective areas must be observed in accordance with DIN VDE 0100, part 701, when installing the device in bathrooms.
Minimum distances must be adhered to.
In bathrooms, the device must be mounted so that switches or other regulators cannot be touched by persons in a bathtub or shower.
Due to the low surface temperature at the rear side (up to 40 °C) the infrared heating may also be mounted on wooden panelling.
The device is not intended for the use in wardrobes and beneath church benches.

SCOPE OF DELIVERY | PACKAGING

The LAVA ^® BATH infrared heating must be mounted exclusively using the fixing components included in the scope of delivery.

STANDARD SCOPE OF DELIVERY FOR WALL MOUNTING:

LAVA® BATH 2.0 INFRARED HEATING

• 2 x mounting brackets
• 4 x hexagon bolts M8 x 16
• 1 x LAVA® HALTI towel holder

Two white metal structural plates with perforated cutouts, no text or symbols visible

Screws and dowels (not included in the scope of delivery) must correspond to the construction material of the wall (masonry, concrete, plasterboard, etc.). The surface of the wall must be even.

ATTENTION: The wall must be even. Otherwise damages on the surface of the LAVA® BATH infrared heating device may occur.

Two metallic rectangular metal plates with rounded edges, no text or symbols visible

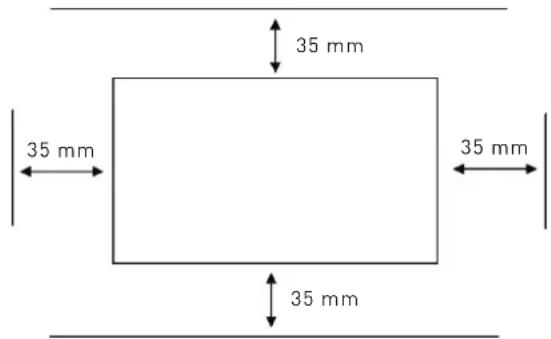

CLEARANCES

INSTALLATION AND MINIMUM DISTANCES:

LAVA® BATH infrared heating devices have to be mounted so that flammable objects cannot catch fire. Be absolutely sure to comply with minimum clearances, in particular to highly combustible objects such as curtains, upholstered furniture, etc. Please also make sure that the infrared heater can radiate freely into the room.

ATTENTION: Strain of any kind on the surface, whether from persons or objects leaning against it or from other forces, must be avoided!

35 mm 35 mm 35 mm 35 mm

Dimensional drawing: minimum mounting clearances

WALL MOUNTING

INSTALLING THE DESIGN INFRARED HEATING:

Please inspect the power supply cord to the heater and the surface before installation. These must not show any signs of damage.

Fasten hexagon bolts loosely on the rear side of the device.

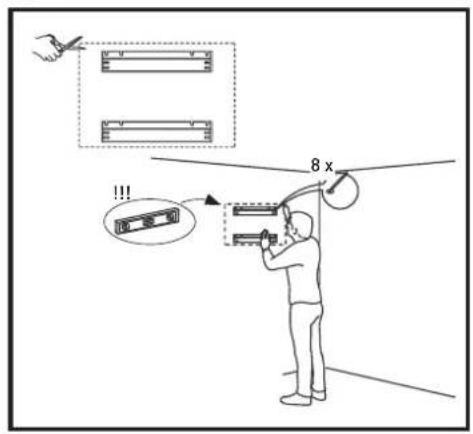

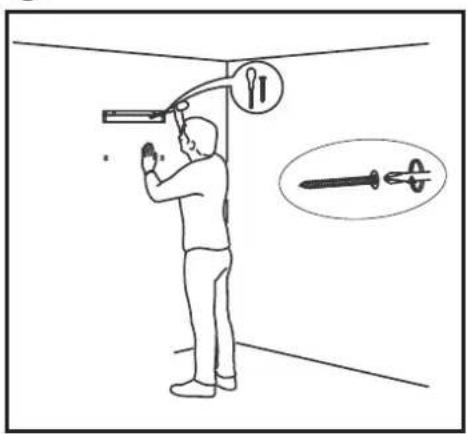

1. Select a position for the mounting brackets according to the illustrations on page 11, depending on the product type.

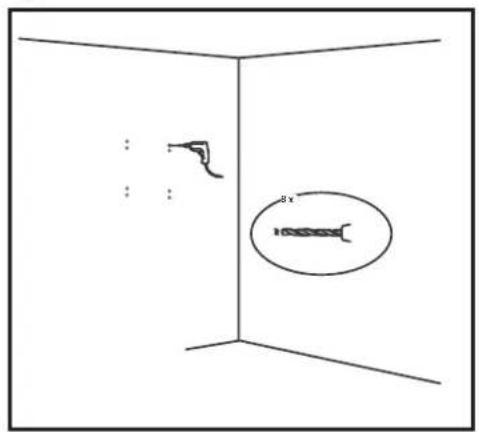

2. Drill the holes according to the hole clearances specified on page 11 or the drill template supplied.

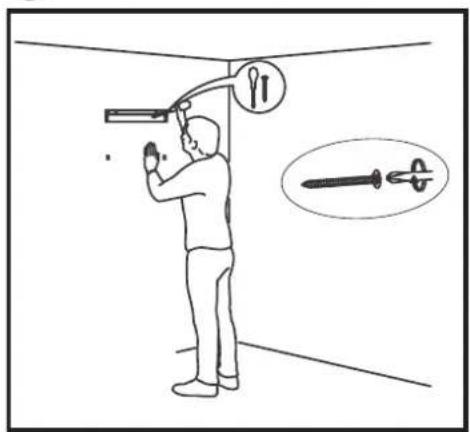

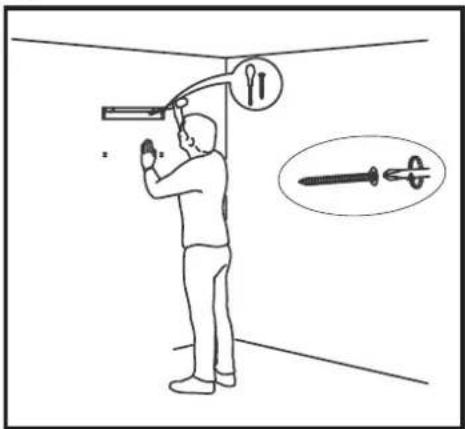

3. Screw on the mounting brackets using suitable dowels and screws.

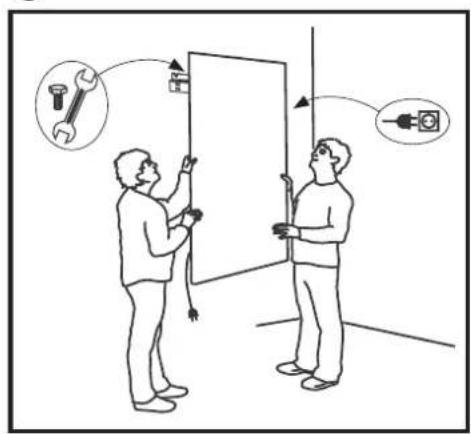

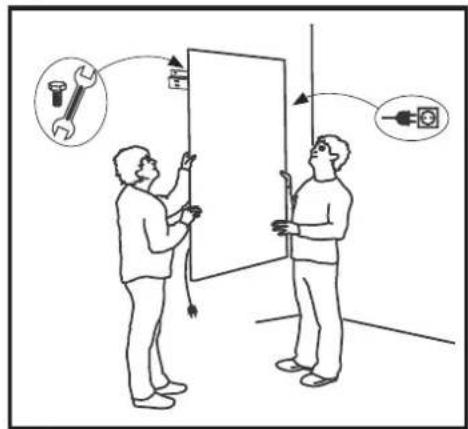

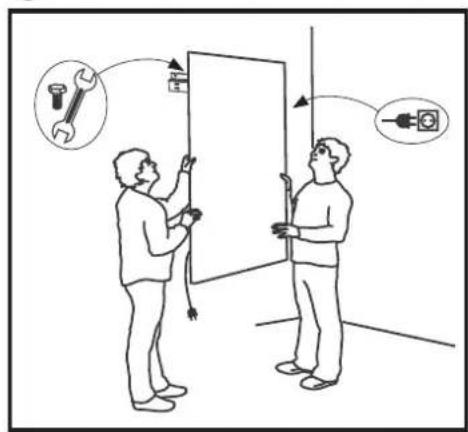

4. Insert the LAVA ^ BATH infrared heating on the mounting brackets and tighten the screws.

ATTENTION: Screws and dowels are not included in the scope of delivery and must correspond to the construction material of the wall.

ATTENTION: Observe the minimum clearances and use the prescribed mounting holes.

NOTE

Follow the installation instructions for the towel holder for the correct mounting on the device.

1

8 x !!!

2

Diagram showing a vertical panel with a small object and an oval containing a labeled diagram, possibly illustrating a physics or engineering concept.

3

Illustration of a person using a tool to clean or inspect a wall-mounted device, with an inset showing the same tool (no text or symbols present)

4

Diagram showing two people installing or adjusting a door panel with wrench and power plug icons, illustrating electrical circuitry.

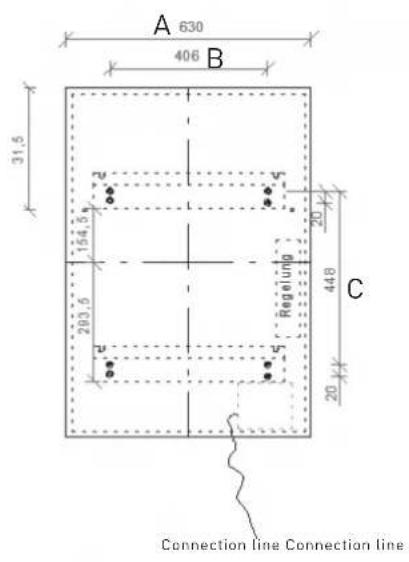

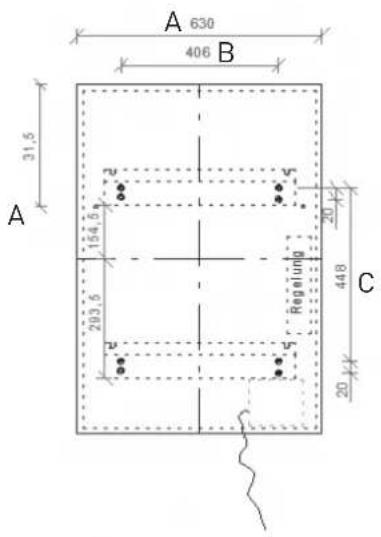

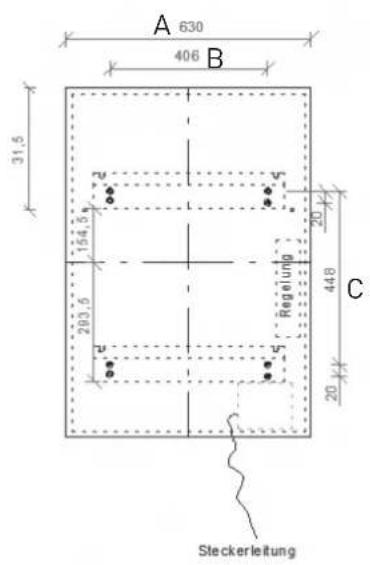

A 630 406 B 31,5 154,5 293,5 Regelung C 448 20 20 Connection line Connection line

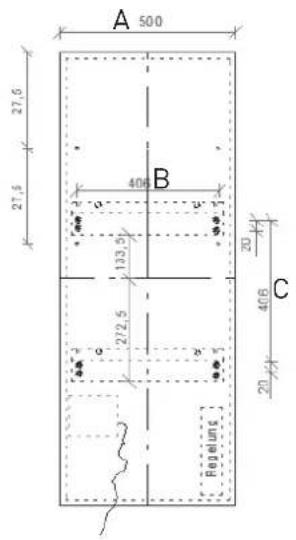

A 500 27,5 27,5 406 B 133,5 272,5 C 406 20 Regelung

Type Installation Width A mm Distance B mm Distance C mm Mounting brackets

LAVA® BATH 2.0 350 W vertical 630 406 448 2

LAVA® BATH 2.0 400 W vertical 500 406 406 2

LAVA® BATH 2.0 500 W vertical 630 406 448 2

LAVA® BATH 2.0 600 W vertical 500 406 406 2

LAVA® BATH 2.0 700 W vertical 630 406 448 2

ELECTRICAL CONNECTION

The heater is designed for permanent connection to a wall jack or socket.

The device is connected to the AC mains system by putting the power cord into a connection socket.

NOTE

The connecting cable can be extended using a cable of the H05VV-F3G1,50 type. A direct connection to a permanently laid cable may only be implemented up to a diameter of 1.5 mm^2 (e.g. NYM-J3G1,5 mm²). The length of the connecting cable must be between 1.0 and 1.9 m.

An all-pole disconnecting device with a minimum contact opening width of 3 mm has to be mounted into the fixed electrical installation in compliance with the installation regulations.

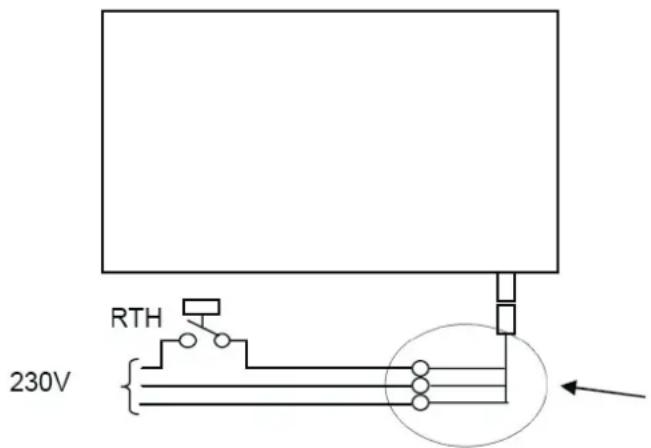

HEATING MODE

The heater is operated by means of direct connection via switch, via an external room thermostat, via timer or controller directly on the device or via a radio receiver in connection with a radio-controlled room thermostat. These items can be ordered as accessories. Please observe the operating instructions of the respective product.

RTH 230V

Dimensional drawing: Connection circuit diagram

ATTENTION: If the main cable to the device is damaged, it must be replaced immediately by a specialist.

USER MANUAL

HEATING MODE

The LAVA ^® BATH infrared heating has a very large radiation component and a very small convective component of the heating power. For reasons of safety, the surface temperature is max. 70 °C, therefore LAVA ^® BATH suits ideally as zone heating and thanks to the included towel holder as towel heater as well.

The LAVA ^® BATH infrared heating by ETHERMA mainly heats solid objects and, only to a lesser extent, directly heats the room air. Therefore, these devices are ideal for additional temperature control.

Depending on the size of the device, the LAVA® BATH infrared heating requires a certain time until the operating temperature is reached. Only then the radiation can take its full effect.

The glass panel produced for the product consists of 6 mm single-pane safety glass (ESG). This is much more resistant

in contrast to conventional glasses and is designed for significantly higher impact forces. Nevertheless, you should avoid excessive stress. In case of damage, ESG shatters into many small parts with blunt edges, so that the risk of injury is minimized. When choosing the place of installation, please note that a negligible amount of tempered glass still causes a so-called "spontaneous breakage", which means that the glass shatters even without external influence. Therefore, choose the installation location of the device in such a way that even in these cases no danger to persons or objects is to be expected.

MAINTENANCE AND CARE

The LAVA® BATH infrared heating is designed so that it gives off its heat via the surface in the form of radiation. The device does not contain any parts requiring special maintenance. In order to service your infrared heater, we recommend using a damp cloth. Please do not use any scouring agents, since they may leave scratch marks on the surface.

ATTENTION: When you want to clean the LAVA® BATH infrared heating, the heating device must be cold!

Voltage: 230 V
Output: 350 - 700 W
Surface temperature: max. 70 °C
Surface: Steel sheet or ESG safety

glass 6 mm

Device/Installation depth: Steel sheet 26/57 mm or glass 30/61 mm
IP Rating: IP X4
Connection cable: 1 m, with plug
Warranty: 5 years

LAVA® BATH 2.0 infrared heating, steel, white (W)

Type Art.No. Output (W) Length (mm)		Hight (mm)	Weight (kg)			Halti
LAVABATH2-ST-350-W	40560	350	900	630	10	max. 1
LAVABATH2-ST-500-W	40562	500	1300	630	14,5	max. 2
LAVABATH2-ST-700-W	40564	700	1600	630	18	max. 2

LAVA® BATH 2.0 infrared heating, glass, purewhite (PW)

Type Art.No. Output (W) Length (mm)		Hight (mm)	Weight (kg)			Halti
LAVABATH2-GL-350-PW	38126	350	900	630	14	max. 1
LAVABATH2-GL-400-PW	38082	400	1300	500	16	max. 2
LAVABATH2-GL-500-PW	35909	500	1300	630	20	max. 2
LAVABATH2-GL-600-PW	38087	600	1600	500	20	max. 2
LAVABATH2-GL-700-PW	35914	700	1600	630	25	max. 2

LAVA® BATH 2.0 infrared heating, glass, white-green (WG)

Type Art.No. Output (W) Length (mm)		Hight (mm)	Weight (kg)			Halti
LAVABATH2-GL-350-WG	35905	350	900	630	14	max. 1
LAVABATH2-GL-400-WG	38083	400	1300	500	16	max. 2
LAVABATH2-GL-500-WG	35910	500	1300	630	20	max. 2
LAVABATH2-GL-600-WG	38088	600	1600	500	20	max. 2
LAVABATH2-GL-700-WG	35915	700	1600	630	25	max. 2

LAVA® BATH 2.0 infrared heating, glass, mirror (MR)

Type Art.No. Output (W) Length (mm)		Hight (mm)	Weight (kg)			Halti
LAVABATH2-GL-350-MR	35908	350	900	630	14	max. 1
LAVABATH2-GL-400-MR	38086	400	1300	500	16	max. 2
LAVABATH2-GL-500-MR	35913	500	1300	630	20	max. 2
LAVABATH2-GL-600-MR	38091	600	1600	500	20	max. 2
LAVABATH2-GL-700-MR	35918	700	1600	630	25	max. 2

Accessories for all LAVA® BATH 2.0

Type Art.No. Description
LAVA-R 39713 Thermostat with plug, for all LAVA	^® 2.0, 0 - 35 °C, 16 A, gradual switch 60/95 °C, eNEXHO ready
LAVA-T 40012 Timer with a plug for all LAVA	^® 2.0, 16 A, 2 h heating time, ON/OFF function
LAVA-F 39714 Radio receiver with plug, 16 A, for mounting on the rear panel of the LAVA	^® 2.0, in conjunction with ET-14A [accessory]
ET-14A	40595	Radio-controlled room thermostat, LCD display with clock and week programme, in conjunction with LAVA ^® -F
eTWIST	40517	Switch mounted thermostat with control dial and app function via Bluetooth 4.2, 16 A, 5-35 °C, white
eTOUCH-eco 40511 Switch mounting thermostat with touch pad, 16 A, 5-35 °C, white
LAVA-Halti-50-E0	40034	Polished stainless steel towel holder for LAVABATH2-400 | 600, Width: 50 cm
LAVA-Halti-63-E0	40035	Polished stainless steel towel holder for LAVABATH2-350 | 500 | 700, Width: 63 cm

INFORMATION ON ENERGY CONSUMPTION

In combination with an Ecodesign-compliant thermostat, the product data complies with the EU regulations on the Ecodesign Directive (2009/125/EC) for energy-related products (ErP).

Faults

Device does not heat:

Has the fuse been triggered or is it defective?
Is the external switch in the supply line switched off?
Is the setpoint temperature of the room temperature controller set lower than the actual temperature of the room?

Radiation heat too low:

Is the distance between the radiation heater and the person too long?
Has the device size been selected too small?
Are there objects placed between the radiation heater and the person?

Device rating plates: The rating plate contains the type-specific technical data. Depending on the arrangement, the rating plate of the device is placed vertically or horizontally, at the top or on the left on the device.

ETHERMA°

Landesstraße 16

A-5302 Henndorf

Made in Austria

LAVABATH2-ST-350-W

350 W | IP X4

230 V | 50 Hz

10 kg

CE ≡

Do not cover!

Nicht abdecken!

Exemple nameplate: LAVA® BATH STEEL 2.0

ETHERMA°

Landesstraße 16

A-5302 Henndori

Made in Austria

LAVABATH2-GL-350

350 W | IP X4

230 V | 50 Hz

14 kg

CE

Do not cover!

Nicht abdecken!

Exemple nameplate: LAVA® BATH GLAS 2.0

LAVABATH2-GL-500-WG

ETH-Nr:

35910

500 W

Serial-N

230,00 V

Etherma E

GENERAL WARRANTY CONDITIONS

Dear customer,

please observe our general terms and conditions. Country-specific legal entitlements apply to warranty claims; please assert such rights directly through your distributor.

ATTENTION: Many old electrical and electronic devices contain valuable materials. However, they can also contain harmful substances which were required for their operation and safety. Such substances may damage the environment if disposed of in residual waste or handled incorrectly. Please help us to protect the environment. Do not place your old devices in the residual refuse. Dispose of your old device in accordance with applicable local regulations. Properly dispose of packaging material, future replaced parts and/or components.

RESERVATION: We reserve the right to make technical changes. Modifications, errors and misprints shall not constitute grounds for damages.

ALGEMEEN

Two white metal structural plates with perforated cutouts, no text or symbols visible

Two metallic rectangular metal plates with rounded edges, no text or symbols visible

AFSTANDSMATEN

MONTAGE EN MINIMALE AFSTANDEN:

Illustration of a person using a tool to clean or inspect a wall-mounted device, with an inset showing the same tool (no text or symbols present)

4

Diagram showing two people installing or adjusting a door with wrench and power plug icons, illustrating electrical safety instructions.

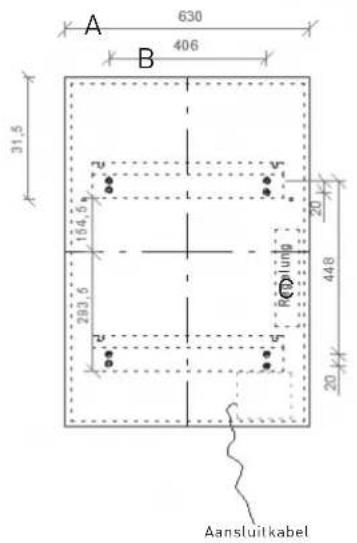

A 630 B 406 31,5 164,5 293,5 Rødlung 448 20 20 Aansluitkabel

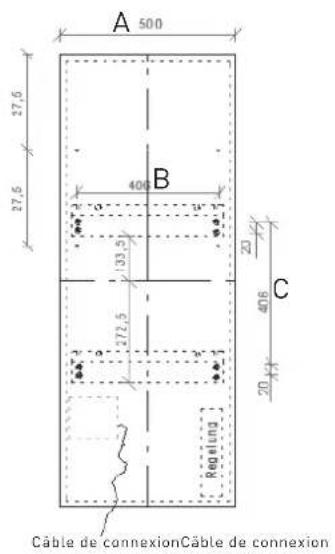

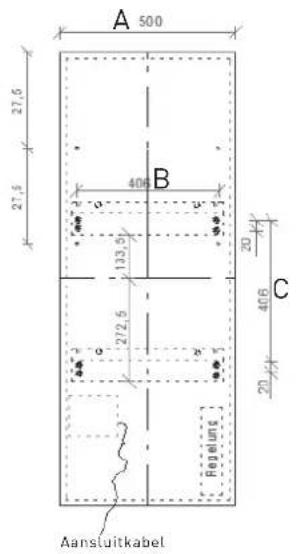

A 500 27,6 27,6 406 B 133,5 20 C 272,5 20 406 Penelung Aansluitkabel

Type Montage Breedte (A) mm Afstand B mm Afstand C mm Bevestigingssteun

LAVA® BATH 2.0 350 W verticaal 630 406 448 2

LAVA® BATH 2.0 400 W verticaal 500 406 406 2

LAVA® BATH 2.0 500 W verticaal 630 406 448 2

LAVA® BATH 2.0 600 W verticaal 500 406 406 2

LAVA® BATH 2.0 700 W verticaal 630 406 448 2

Stralingswarmte is te gering:

Two white metal structural plates with perforated cutouts, no text or symbols visible

Two metallic rectangular metal sheets with rounded edges, no text or symbols visible

MONTAGE MURAL

INSTALLATION DU CHAUFFAGE INFRAROUGE DESIGN:

Diagram showing a mechanical component with dimension annotation 'Bx' and dotted reference lines, likely illustrating a physics or engineering concept.

3

Illustration of a person using a pulley system to lift a wall-mounted device, with an inset showing the same device (no text or symbols present)

4

Diagram showing two people installing or adjusting a door with wrench and power plug icons, illustrating electrical circuitry.

A 630 406 B 31.5 A 154.5 293.5 Regelung C 20 448 20
