USER MANUAL Rebl basq Nuna

IMPORTANT! KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE: READ CAREFULLY1

Product Information Model Number:_______________________________________________________________________________________________________________ Manufactured Date: __________________________________________________________________________________________________ Product Registration Please fill in the above information. The model number and the manufactured in date are located on the bottom of the REBL basq. To register your product please visit: www.nunababy.com Click the “Register Gear” link on the homepage Warranty We have purposely designed our high-quality products so that they can grow with both your child and your family. Because we stand by our product, our gear is covered by a custom warranty per product, starting from the day it was purchased. Please have the proof of purchase, model number and manufactured in date available when you contact us. For warranty information please visit: www.nunababy.com Click the “Warranty” link on the homepage. Contact For replacement parts, service, or additional warranty questions, please contact our customer service department. [e-mail] www.nunababy.com In the United Kingdom: [e-mail] www.nunababy.com NUNA International B.V. Van der Valk Boumanweg 178 C 2352JD Leiderdorp The Netherlands65 REBL basq InstructionsREBL basq Instructions

For use with base 1 According to the UN Regulation No. 129, the Enhanced Child Restraint with base is a Universal ISOFIX Class ISO/F2X, ISO/R2 Enhanced Child Restraint and should be fitted using the ISOFIX connections. 2 This is an "i-Size" Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, "i-Size compatible" vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual. 3 If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer. UN Regulation No.129/03 i-Size UNIVERSAL ISOFIX Rearward facing 61cm-105cm/ ≤18.5kg Forward facing 76cm-105cm/ ≤18.5kg030532 Child Usage Requirements This product is suitable for use with children who meet the following requirements: Rearward Facing: Child height 61cm-105cm / Child weight 18.5kg Forward Facing: Child height 76cm-105cm / Child weight≤18.5kg NOT allowed to use forward facing before the age of 15 month. Installation Mode Installation Recline Position 1-7 1-7 Baby mode Toddler mode Child height 61cm–105cm/ Child weight≤18.5kg Child height 76cm–105cm/ Child weight≤18.5kg Age ≥ 15 months87 REBL basq InstructionsREBL basq Instructions

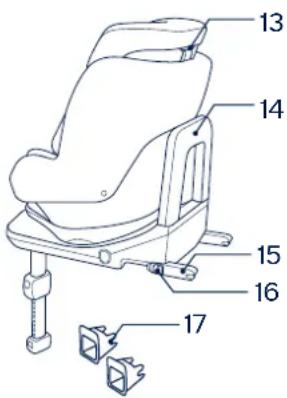

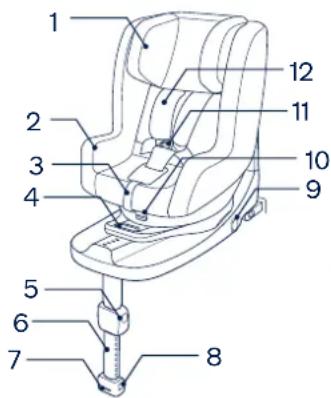

WARNING Any support-leg should be in contact with the vehicle floor and any straps restraining the child should be adjusted to the child’s body. The straps should not be twisted. After your child is placed in this Enhanced Child Restraint, the child harness must be used correctly, and ensure that any lap strap is worn low down, so that the pelvis is firmly engaged,so that the pelvis is firmly engaged, shall be stressed. Always secure child in Enhanced Child Restraint, even on short trips, as this is when most accidents occur. Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured. Before carrying the Enhanced Child Restraint by hand, ensure that the child is fastened with the safety harness. Consult the distributor for issues concerning maintenance, repair and part replacement. Correct Installation is only permitted by use of the ISOFIX connectors. 1 Head Support 2 Seat Pad 3 Adjustment Webbing 4 Recline Adjustment Button 5 Load Leg Adjustment Button 6 Load Leg 7 Load Leg Indicator 8 Load Leg Adjustment Button 9 ISOFIX Adjustment Button 10 Rotating Button 11 Buckle 12 Shoulder Harness Covers 13 Head Support Adjustment Lever 14 Rebound Bar 15 ISOFIX Connector 16 ISOFIX Release Button 17 ISOFIX Guides Parts List

Remove this Enhanced Child Restraint from the vehicle seat when it is not in regular use. To use this Enhanced Child Restraint with the ISOFIX connections according to the UN Regulation No.129, your child must meet the following requirements. The soft goods should not be replaced with any besides the ones recommended by the manufacturer. The soft goods constitute an integral part of the Enhanced Child Restraint performance. The Enhanced Child Restraint may not fit in all approved vehicles when used in one of these positions. To avoid the risk of falling out, always secure the child using the safety harness when the child is placed in Enhanced Child Restraint, even when the Enhanced Child Restraint is not in the vehicle. To avoid serious injury or death, NEVER place Enhanced Child Restraint on elevated surface seat with child in it. The parts of this Enhanced Child Restraint should not be lubricated in any way. This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. Concern the danger of making any alterations or additions to the device without the approval of the competent authority, and a danger of not following closely the installation instructions provided by the enhanced child restraint manufacturer. Children are not left in their enhanced child restraint system unattended. Do take care so that the rigid items and plastic parts of a enhanced child restraint shall be so located and installed that they are not liable to become trapped by a moveable seat or in a door of the vehicle. Frequently check the ISOFIX guides for dirt and clean them if necessary. Reliability can be effected by ingress of dirt, dust, food particles etc. Must use the rebound bar. Rearward Facing: Child height 61cm–105cm/ Child weight≤18.5kg Forward Facing: Child height 76cm–105cm/ Child weight≤18.5kg Please keep this Enhanced Child Restraint away from sunlight, otherwise it may be too hot for child’s skin. Always touch the Enhanced Child Restraint before placing child in it.1211 REBL basq Instructions REBL basq Instructions

DO NOT put anything other than the recommended inner cushions in this Enhanced Child Restraint. DO NOT continue to use this Enhanced Child Restraint after it has suffered any type of crash, even a minor one. Replace immediately as there may be invisible, structural damage from the crash. DO NOT place any objects in the load leg area in front of your Enhanced Child Restraint. DO NOT use any load bearing contact points other than those described in the instructions and marked on the Enhanced Child Restraint. NEVER use a second-hand Enhanced Child Restraint or an Enhanced Child Restraint whose history you do not know because they may have structural damage that endangers your child’s safety. NEVER use ropes or any other substitutes to secure Enhanced Child Restraint in vehicle or to secure child into Enhanced Child Restraint. NO Enhanced Child Restraint can guarantee full protection from injury in an accident. However, proper use of this Enhanced Child Restraint will reduce the risk of serious injury or death to your child.

EXCEEDS 15 months (Refer to instructions). DO NOT install this Enhanced Child Restraint without following the instructions in this manual or you may put your child at serious risk of injury or death. DO NOT use this Enhanced Child Restraint if it has damaged or missing parts. DO NOT have your child in large/oversized clothes because this may prevent your child from being properly and securely fastened by the shoulder harness straps and the crotch strap between the legs. DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed. Death or serious injury may occur. Please reference vehicle owner’s manual for more information. DO NOT use this Enhanced Child Restraint without the soft goods.1413 REBL basq Instructions REBL basq Instructions

Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on the both ISOFIX connectors should be completely green. (6)-1 Check to make sure the Enhanced Child Restraint is securely installed by pulling on the both ISOFIX connectors.

5 - There are 9 adjustable positions for ISOFIX. Press

the ISOFIX adjustment button and push the base back against the vehicle seat until tight.

6 - After placing the Enhanced Child Restraint on the

vehicle seat, extend the load leg to floor. (7), The load leg indicator will show green when installed correctly, red means it is installed incorrectly. (7) The load leg has 24 positions. When the load leg indicator shows red this means the load leg is in the wrong position. Make sure the load leg is secure by pressing down on the front of the Enhanced Child Restraint. To shorten the load leg, squeeze the load leg release button and pull the load leg upwards.

7 - To remove the Enhanced Child Restraint, press

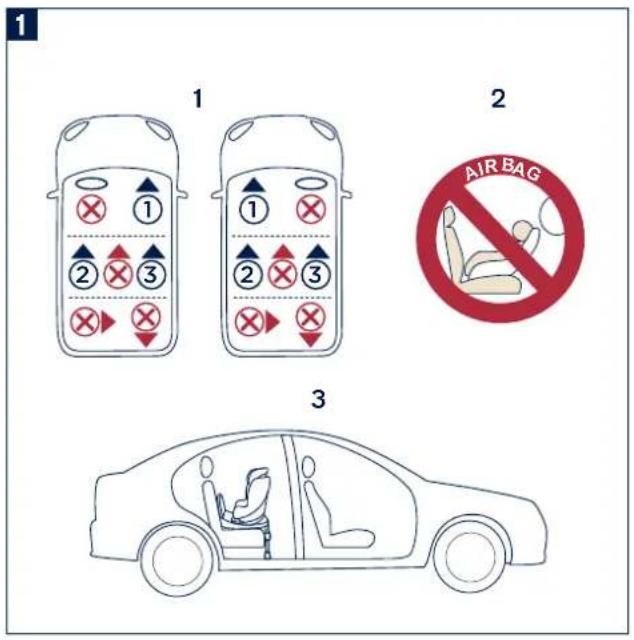

the ISOFIX adjustment button (5)-1 and pull the base away from the seat, then while squeezing the button and secondary lock on the ISOFIX connectors remove from the vehicle. (8) Product Use DO NOT install this Enhanced Child Restraint on vehicle seats that face sideways (1) or rearward (1) with respect to the moving direction of the vehicle. DO NOT place rear-facing Enhanced Child Restraint on front seat with air bag. Death or serious injury may occur. (1) Please reference vehicle owner’s manual for more information. It is recommended to install this Enhanced Child Restraint on the rear vehicle seat. (1) This Enhanced Child Restraint is suitable for vehicle seats with i-Size ISOFIX anchor points. (2) DO NOT install this Enhanced Child Restraint on vehicle seats unstable during installation. Installation

- Unfold the load leg from the storage compartment. (3)

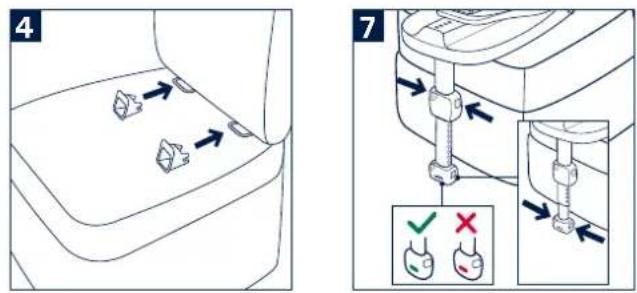

2 - Fit the ISOFIX guides into the ISOFIX anchor

points. (4) The ISOFIX guides can protect the surface of the vehicle seat from being torn. They will also guide the ISOFIX connectors.

3 - Press the ISOFIX adjustment button on either side

of the base, then pull out the ISOFIX connectors. (5)

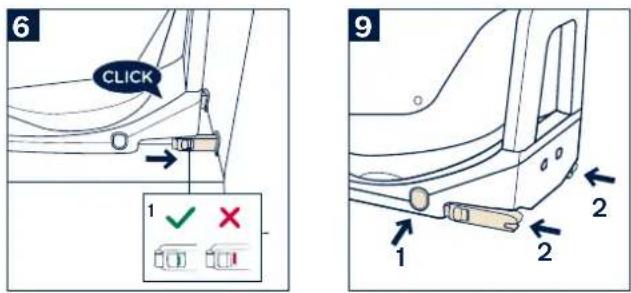

4 - Line up the ISOFIX connectors with the ISOFIX

guides, and then click both ISOFIX connectors into the ISOFIX anchor points. (6)1615 REBL basq Instructions REBL basq Instructions

The load leg must be installed correctly with green indicator. (13)-2 Height Adjustment for Head Support and Shoulder Harnesses Check that Shoulder Harness Straps are set at the proper height. Shoulder Harness Straps must be at a height nearest to your childs shoulders (14), but not above the shoulder line. (15) If the Shoulder Harness Straps are not at the proper height, the child might be ejected the Enhanced Child Restraint if there is a crash. Squeeze the head support adjustment lever (16), while pulling up or down on the head support until it snaps into one of the 8 positions. The head support positions are shown as (17). Securing Child After the child is placed into the seat, check whether the Shoulder Harness Straps are at proper height.

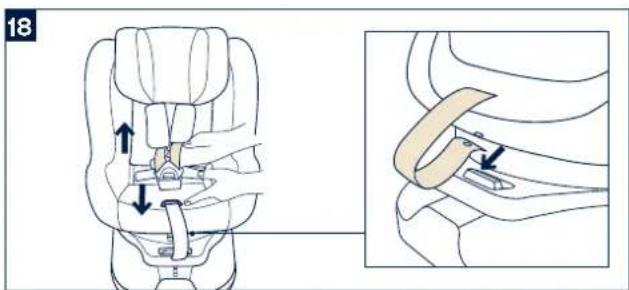

1 - While pressing the adjustment button located at

the front of the Enhanced Child Restraint, pull the two Shoulder Harness Straps of the Enhanced Child Restraint. (18)

2 - Unlock the buckle of the harnesses by pressing

the red button. (19)

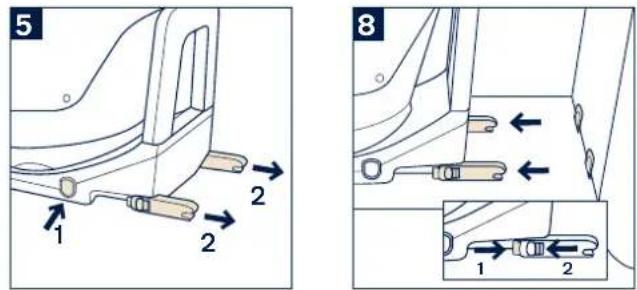

8 - Press the ISOFIX adjustment button to store the

ISOFIX. (9) The completely assembled Enhanced Child Restraint is shown as (10). Recline Adjustment Squeeze the recline adjustment button (11)-1, to adjust the Enhanced Child Restraint to the proper position. The recline angles are shown as (11). Please recheck the load leg position after reclining. There are 7 recline angles for baby mode and 7 positions for toddler mode. Baby Mode (Rearward Facing Mode) Rearward Facing Child height 61cm-105cm/Child weight≤18.5kg Recline position Position 1-7

1 - Press the rotating button to rotate the seat facing

the rear of the vehicle. (12)(13) Please recline the seat to be in positions 3 through 7 for ease of rotation.

2 - Rearward facing mode assembled as (13).

The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. (13)-11817 REBL basq Instructions REBL basq Instructions

Securing Child After the child is placed into the seat, check whether the Shoulder Harness Straps are at the proper height. (25)

1 - While pressing the adjustment button located at

the front of the Enhanced Child Restraint, pull the two Shoulder Harness Straps of the Enhanced Child Restraint. (18)

2 - Unlock the buckle of the harnesses by pressing

the red button. (19)

3 - Fix the buckles on the both sides of seat to make

placing the baby more convenient. (20)

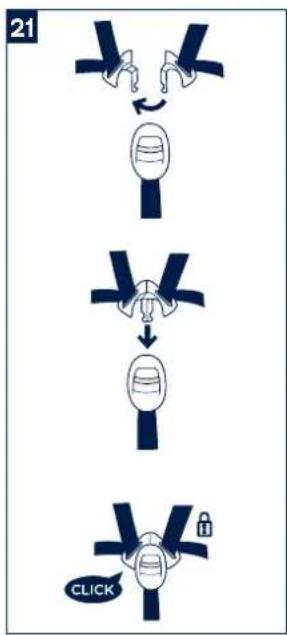

4 - Place the child into the Enhanced Child Restraint

and lock the buckle. Please refer to. (21)

5 - Tighten the shoulder harness straps by pulling the

adjustment webbing. (26) Make sure the space between the child and the Shoulder Harness Straps is about the thickness of one hand.

3 - Fix the buckles on the both sides of seat to make

placing the baby more convenient. (20)

4 - Place the child into the Enhanced Child Restraint

and lock the buckle. Please refer to (21).

5 - Tighten the shoulder harness straps by pulling the

adjustment webbing. (22) Make sure the space between the child and the Shoulder Harness Straps is about the thickness of one hand. Toddler Mode (Forward Facing Mode) Forward Facing Child height 76cm-105cm/Child weight≤18.5kg Recline position Position 1-7 NOT allowed to use forward facing before the age of 15 month.

1 - Press the rotating button to rotate the seat facing

the vehicle's moving direction. (23)(24) Please recline the seat to be in positions 3 through 7 for ease of rotation.

2 - Forward facing mode assembled as (24)

The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. (24)-1 The load leg must be installed correctly with green indicator. (24)-22019 REBL basq Instructions REBL basq Instructions

Cleaning and Maintenance Please wash the bottom seat pad and the top seat cover with cold water under 30°C. Do not iron the soft goods. Do not bleach or dry clean the soft goods. Do not use undiluted detergents, gasoline or other organic solvents to wash the Enhanced Child Restraint. It may cause damage to the product. Use only mild detergent, water and a soft cloth to clean the Enhanced Child Restraint shell, handle and harness straps. Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles. Please hang dry the soft goods in the shade. Please remove the Enhanced Child Restraint from the vehicle seat if not in use for a long period of time. Put the Enhanced Child Restraint in a cool, dry place and somewhere your child can not access it. NUNA International B.V. Nuna and all associated logos are trademarks. Detach Soft Goods

1 - Open the buckle.

2 - Open the snaps. (27)

3 - Push the crotch strap through the crotch strap

4 - Open the snaps on the main seat pad behind

shoulder harnesses. (29) Move the shoulder harnesses behind the flap below the headrest. (30)

5 - Detach the hook and loop fasteners to remove the

shoulder belt cover. (31)

6 - Unfasten the elastic on the back of headrest to

remove the head support soft goods. (32)

7 - Remove the soft goods. (33)

To assemble winter soft goods according to reversed steps above. Please keep the instruction manual in the storage compartment at the bottom of the Enhanced Child Restraint (34).2221 Instructions REBL basq Instructions REBL basq
