Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product:

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 34

Parts 36

Assembly 37

Adjustments 43

Konsole and Key Functions 44

Programs and Settings 46

iConsole ^+ App 53

Training via KINOMAP App 53

Overview of Cardio Training 54

Warming Up before a Workout 57

Disposal Considerations 60

Declaration of Conformity 60

TECHNICALDATA

Item number	10034019
Power supply	220-240 V ~ 50/60 Hz

WARNING

This stationary training device is not suitable for high accuracy purposes. The heart rate monitoring system may be faulty. Excessive exercise may result in dangerous injury or death. If your performance deteriorates abnormally, stop training immediately.

SAFETY INSTRUCTIONS

Before operating this unit, please read this manual carefully to ensure optimum performance and safety. This is manual should be kept available for future reference. For product improvement, the company reserves the right to change the design and specification at any time without prior notice. Pictures are for reference use only and may differ from the actual product.

• Please keep this manual in a safe place for your reference when necessary.
• Please do not assembly or use this equipment until you read this manual thoroughly & carefully. The safety and efficiency only can be achieved when the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all the users are informed of all the warnings and precautions.
• For totally safe use, a stable, leveled surface is required. Protect your floor with a mat. Do not use the equipment in a damp areas such as swimming pool sauna, etc. For safety space, the equipment must have at least 0.6 meter of free space all around it.
• Before starting any exercise program you must consult your doctor to determine if you have any physical or health conditions that could create a risk to your health and safety, or prevent you from using the equipment properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
• Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experienced any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, feeling light headed, dizzy or nauseous. If you do experience any of these conditions you must consult your doctor before continuing with your exercise program.
• Do not workout immediately after meals.
• Keep children and pets away from the equipment, the equipment must be assembled and used by adults only.
• The equipment is designed for home use only.
• The equipment is not suitable for therapeutic use, may only be used for exercises indicated in the training instructions
• Wearing proper clothing and athletic shoes while using the equipment, Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movements.
• Keep your back straight while exercising.

- Before using the equipment, check the handle bar, seat, and the nuts & bolts are securely tightened.

- For adjustable parts, bear the maximum position in your mind, do not exceed the mark „stop“, otherwise will cause risk.

- Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during use, stop immediately. Do not use the equipment until the problem has been solved.

- Care must be taken when lifting or moving the equipment so as not to injure your back. always use proper lifting techniques and/or seek assistance if necessary.

- All moveable accessories(e.g. pedal, handlebar, saddle...etc.) require weekly maintenance. Check them before use every time. If anything broken or loose, please fix them immediately. You may continue using them only after they return to good conditions.

- Pay attention to the absence of a free wheel system which will cause serious risk.

- Keep power cord away from heat sources.

- Do not insert or drop any object into any opening.

- Unplug exercise bike before moving or cleaning it. To clean, wipe surfaces down with mild detergents and a slightly damp cloth only; never use solvents.

- Do not use the exercise bike in any location that is not temperature controlled, such as, but not limited to, garages, porches, pool rooms, bathrooms, car ports or outdoors.

- Use the bike only as described in this manual.

- Incorrect repair and structural modifications(e.g. removal or replacement of original parts) may endanger the safety of the user.

- The rotating disk flywheel will get hot during the operation.

- Lock the equipment when stop using.

- This product is not designed for use by persons (including children) who have reduced physical, sensory or mental capacities or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Before use, check the voltage on the device badge. Only connect the device to sockets that correspond to the voltage of the device.

Note: Maximum weight of the user is 100 kg.

PARTS

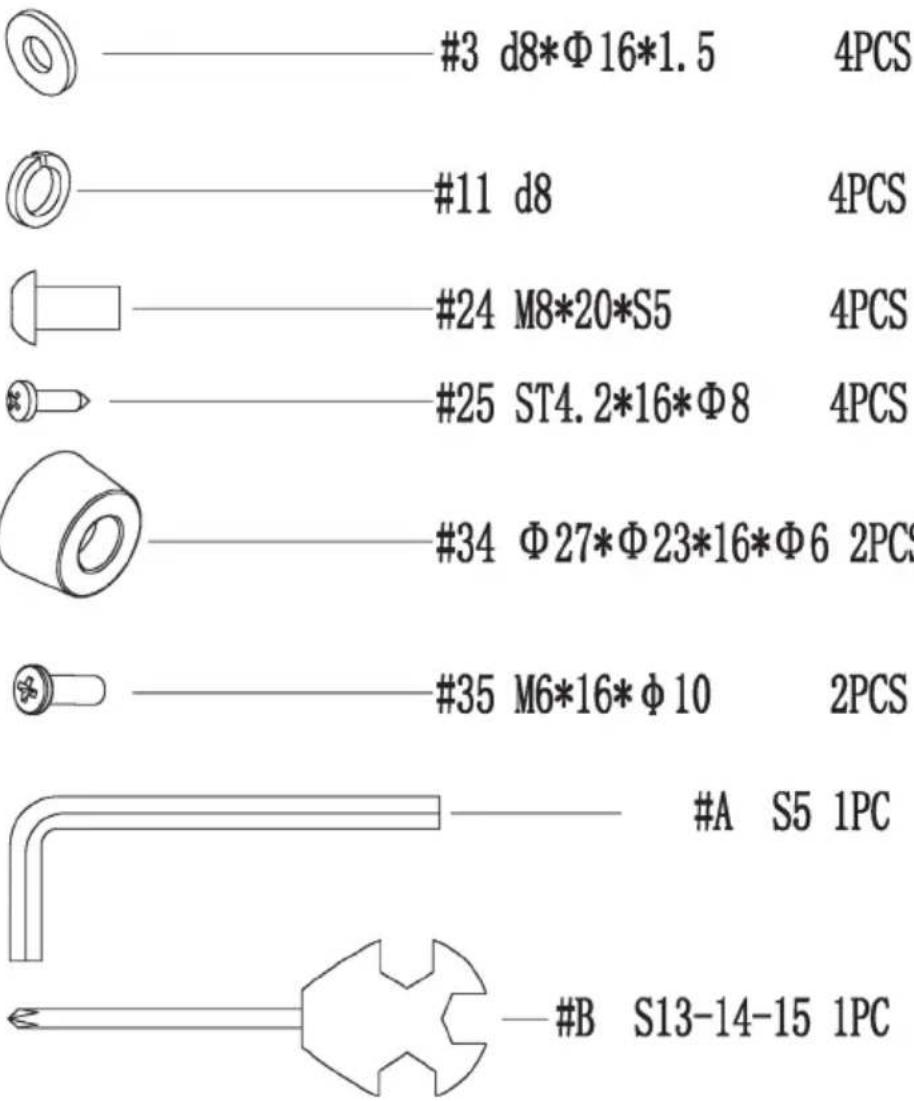

#3 d8*Φ16*1.5 4PCS #11 d8 4PCS #24 M8*20*S5 4PCS #25 ST4.2*16*Φ8 4PCS #34 Φ27*Φ23*16*Φ6 2PCS #35 M6*16*Φ10 2PCS #A S5 1PC #B S13-14-15 1PC

ASSEMBLY

1

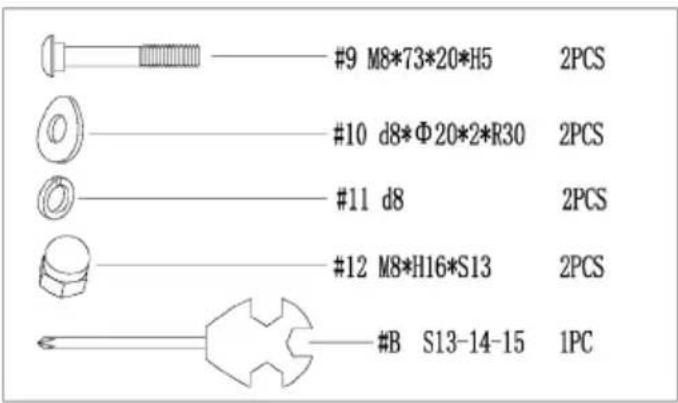

#9 M8*73*20*H5 2PCS #10 d8*Φ20*2*R30 2PCS #11 d8 2PCS #12 M8*H16*S13 2PCS #B S13-14-15 1PC

Technical diagram of a mechanical device with numbered components and labeled parts

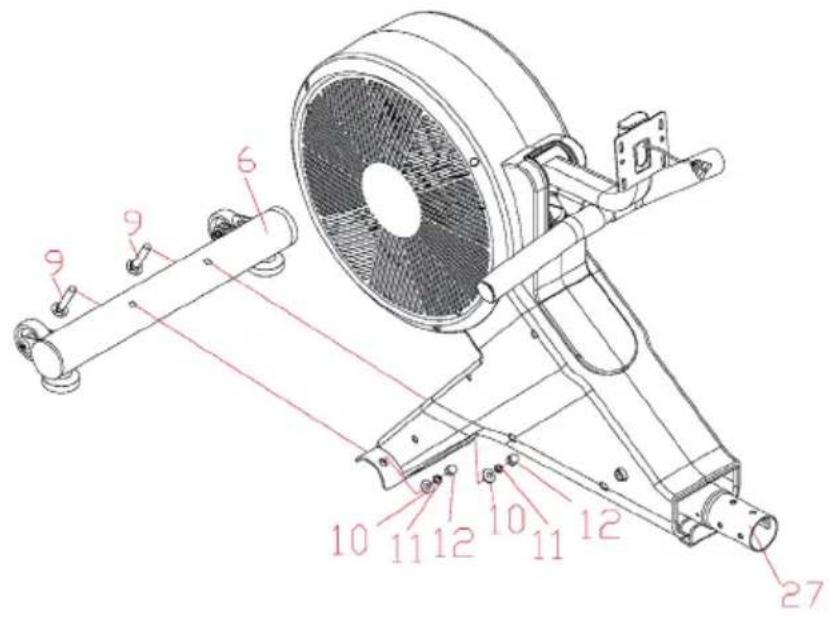

Remove the screws (9), washers (10), spring washers (11) and cap nuts (12) with the wrench (B) from the main frame (27). Then attach the front lower tube (6) to the main frame (27) with the screws (9), washers (10), spring washers (11) and cap nuts (12) just removed using the wrench (B).

2

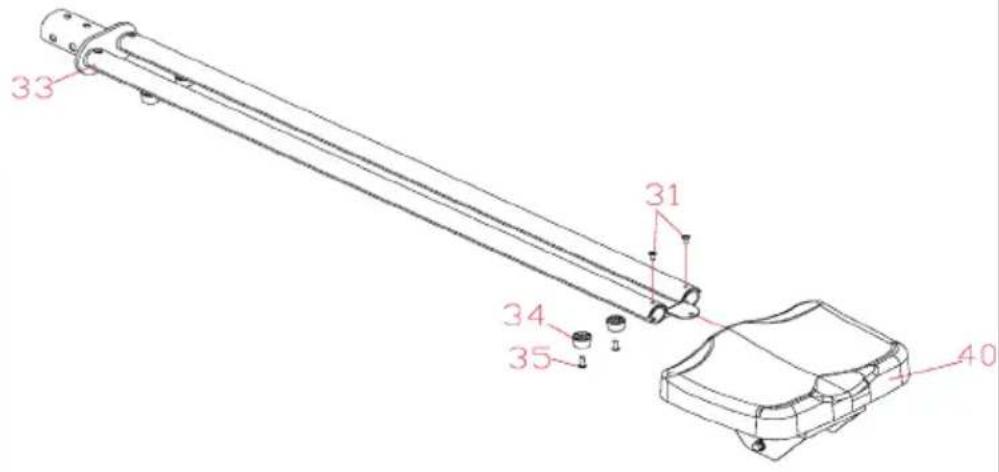

Use the wrench (B) to remove the screws (31) from the rail (33).
Insert the seat (40) into the rail (33).
Use the wrench (B) to reattach the screws (31) to the rail (33).
Fasten the limiters (34) to the rail (33) with screws (35).3
#3 d8*Φ16*1.5 4PCS #11 d8 4PCS #24 M8*20*S5 4PCS #25 ST4.2*16*Φ8 1PCS #A S5 1PC #B S13-14-15 1PC
Attach the top and bottom covers (36 & 37) to the rail (33) with screws (25). Use the wrench (B).
Attach the rear bracket (38) to the bottom of the rail (33) using washers (3), spring washers (11) and screws (24). Use the wrench (A).
4
Use the wrench (A) to remove the curved discs (10), spring washers (11) and screws (24) from the main frame (27).
Hook the rail (33) into the main frame (27) and fix it with curved washers (10), spring washers (11) and screws (24). Use the wrench (A).
Fasten the cover (26L/R) to the main frame (27) with screws (25). Use the key (B).
5
Use the wrench (B) to remove the spring washers (11), screws (22) and washers (23) from the main frame (27).
Fasten the pedal plate (30) to the main frame (27) with spring washers (11), screws (22) and washers (23). Use the wrench (B).
Fix the pedals (29) to the pedal plate (30) with screws (24). Use the key (A).
Note: The pedal strap (28) should be inserted into the long groove at the bottom of the pedal (29).
6
#13 M5*10 4PCS #B S13-14-15 1PC
Pull the main line (16a) out of the computer post (67) and connect it to the computer cables (15a). Then plug the cables back into the computer post (67).
Secure the computer (15) to the computer post (67) with screws (13). Use the wrench (B) to do this.
Insert the adapter cable (92) into the power hole at the front of the main frame and plug it into a power outlet.

ADJUSTMENTS

Moving the unit

Line drawing of a person using a rowing machine with a circular head and lever, no text or symbols present

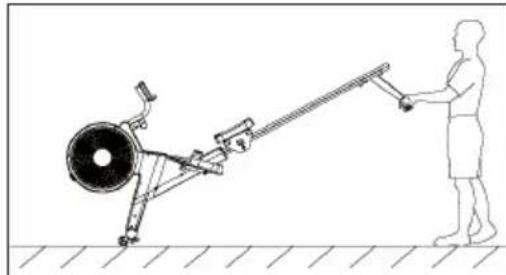

To move the machine, lift the rear carrier (38) until the transport rollers on the front down tube (6) touch the ground. With the wheels on the ground, you can easily transport the bicycle to the desired location.

Adjusting the pedals

Line drawing of a capsule-shaped object with internal striped pattern and two arrows indicating movement (no text or symbols)

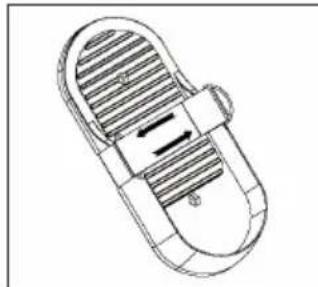

The pedal strap is adjustable and can be adjusted to the user's foot size.

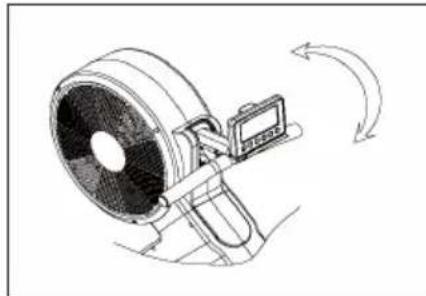

Adjusting the angle of the computer

Technical line drawing of a fan with rotating arm and clamping mechanism (no text or symbols)

The rotation angle of the computer post can be adjusted to get the best view of the computer screen.

Storing the Unit

Line drawing of a stationary exercise machine with a person standing nearby, showing motion arrows indicating movement (no text or symbols)

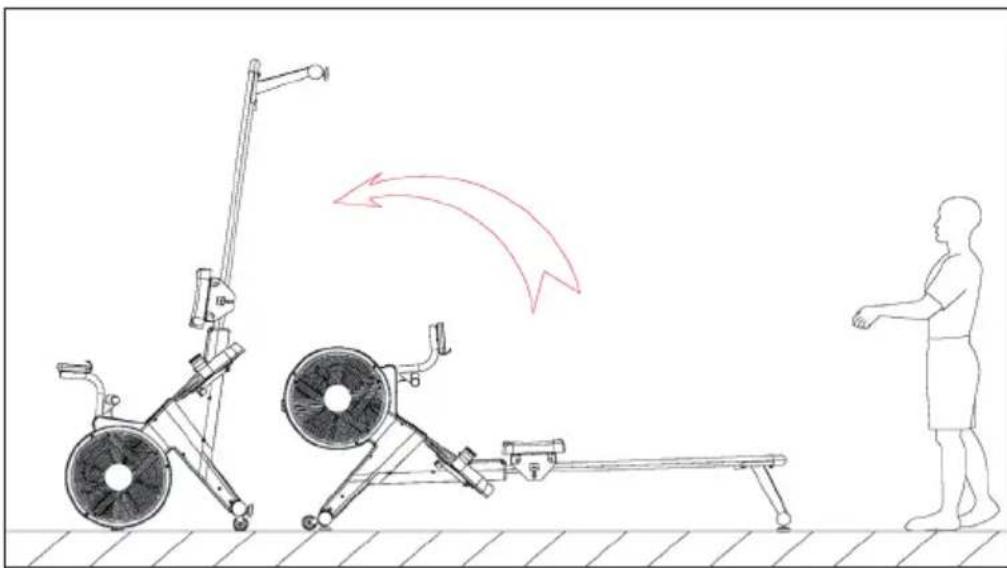

If you are not using the machine, you can set it up to save space.

Caution: When you set up the machine, the seat slides down. Be careful not to bump your head against the folded unit.

KONSOLE AND KEY FUNCTIONS

Note: It is not necessary to select a function, set time, distance or any other value if you want to train without settings.

When the console is plugged in, a beep sounds and all icons are displayed for 2 seconds:

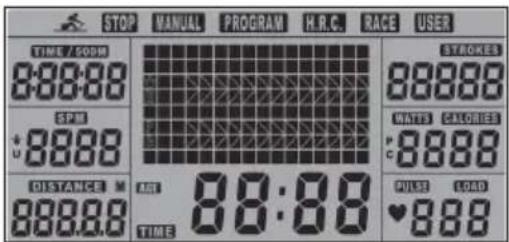

STOP MANUAL PROGRAM H.R.C. RACE USER TIME / SODM 8:00:00 SPM 8:00:00 DISTANCE M 8:00:00 STROKES 8:00:00 WATER CALORIES 8:00:00 PULSE LOAD 8:00:00 TIME

The console switches to power save mode if the user does not press any buttons or no signal is received for more than 4 minutes.

Displays

SPM 0-999	Beats per minute
TIME/500m 0.0	-99:00 Displays the training time. The machine scans the speed every 6 seconds and displays the remaining time needed to cover 500 meters according to the current speed.
METERS 50-1	1000 Adjustable range: 50-1000
CALORIES 0-9	990 Displays the calories burned during training. Adjustable range: 0-9990
STROKES 0-9	999 Shows the strokes required to complete the workout. The machine scans the strokes every 6 seconds and displays the strokes needed to cover the distance according to the current strokes.
PULSE 30-2	40 BPM Displays the heart rate in beats per minute.

Key functions

UP Increase value / function selection.
DOWN Decrease value / Function selection.
MODE Selection and confirmation of the selection
RESET	Press and hold for 2 seconds to restart the console.
	Press to set all values to 0.
	After training, press to return to the home screen.
START/STOP Start/stop workout.
HEART RATE RECOVERY	Tracks and evaluates heart rate during recovery period after workout.

Audio signals

All entries are accompanied by an acoustic signal:

• 1 tone: input is confirmed
• 2 tones: Incorrect input

Note on pulse display

If [P] is displayed in the pulse window instead of a value, the pulse belt is not seated correctly.

PROGRAMS AND SETTINGS

Quick Start (Manual)

After de, switching on, MANUAL > PROGRAM > H.R.C. > RACE >USER starts flashing. Press the UP/DOWN button to select MANUAL and press the MODE button to confirm. Press the RESET button to return to the home screen.

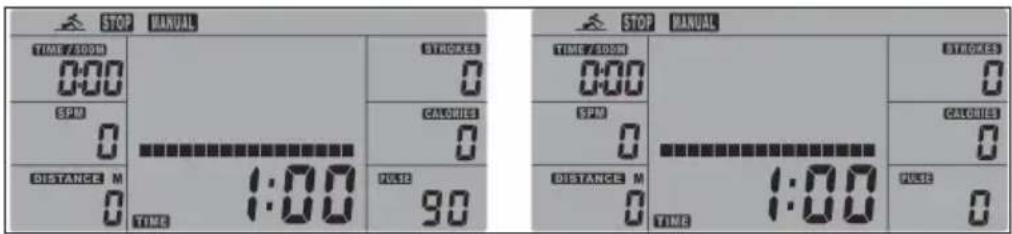

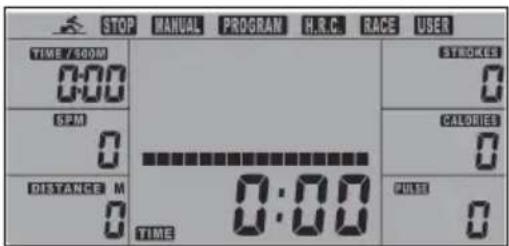

STOP MANUAL PROGRAM H.R.C. RACE USER TIME / 600M 0:00 SPM 0 DISTANCE M 0 TIME STROCKES 0 CALORIES 0 FULL 0

Press the START/STOP button to quickly start the workout without any adjustment. Press the UP/DOWN button, enter the desired value, then press the MODE button to confirm. The following values are displayed one after the other:

• RESISTANCE 1\~16
  • TIME or METER. Note: Time and meters cannot be set at the same time.
• CALORIES
  • PULSE

Press the UP/DOWN button to adjust the value and press the MODE button to confirm. Press the START/STOP button to start the exercise.

STOP MANUAL TIME/DOOM 0:00 SPN 0 DISTANCE M 0 TIME STROCKES 0 CALORIES 0 PULSE 90 TIME/DOOM 0:00 SPN 0 DISTANCE M 0 TIME STROCKES 0 CALORIES 0 PULSE 0

• When the set point is reached, beeps sound and the console stops.
• During exercise, press the UP/DOWN button to adjust the resistance. The new resistance value will be shown on the display. The default setting is 1.
• Press the START/STOP button to complete the exercise. All exercise values are saved.
• Press the RESET button to return to the exercise selection.

Selecting a Program

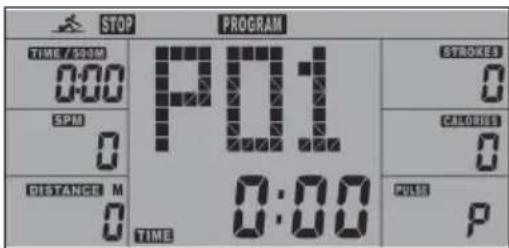

• Press the UP/DOWN button to select one of the following programs: MANUAL > PROGRAM > H.R.C. > RACE > USER.
• Select Program and press the MODE button to confirm.
• There are a total of 12 programs to choose from. Press the UP/DOWN button to select one.
• Set the target exercise value and press the MODE button to set the resistance (1\~16) and time.
• Press the START/STOP button to start the exercise.

STOP PROGRAM TIME / 900N 0:00 P1:1 SPM 0 0 DISTANCE M 0 TIME 0:00 STROKES 0 COLORISS 0 PULS P

Press the UP/DOWN button to adjust the resistance during training. The newly set resistance value is shown in the display. The default setting is 1. The program graphics are as follows:

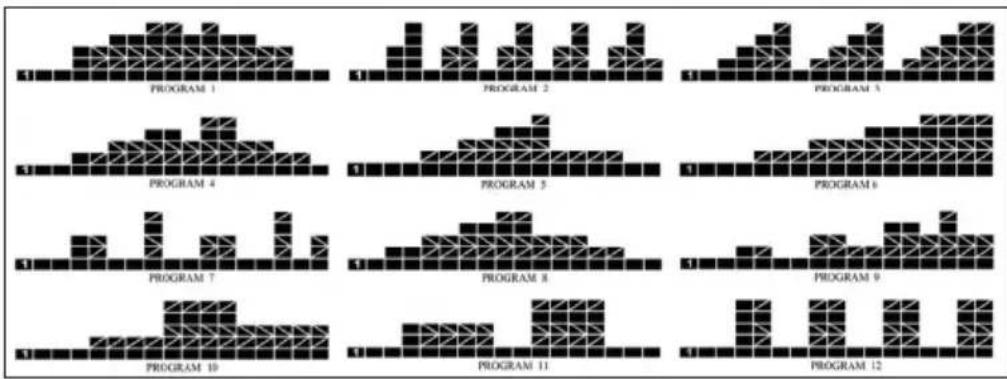

PROGRAM 1 PROGRAM 2 PROGRAM 3 PROGRAM 4 PROGRAM 5 PROGRAM 6 PROGRAM 7 PROGRAM 8 PROGRAM 9 PROGRAM 10 PROGRAM 11 PROGRAM 12

• Time programs: P2 - P3 - P7 - P12
• Resistance programs: P6 - P9 - P11
- Interval programs with alternately increased/reduced resistance:
- P1 - P4 - P5 - P8 - P10

If you are a beginner, first perform the training with the lowest resistance level. After several rowing sessions you can switch to one of the interval programs.

• Press the START/STOP button to complete the exercise. All exercise values are saved.
• Press the RESET button to return to the exercise selection mode.

Target pulse program H.R.C

In this program, the device reacts to the heart rate value measured via the chest strap. The graphical display shows whether the user needs to increase or decrease the resistance value. The following options are available:

• HRC55: With this option the heart rate is in the range of 55% of the maximum heart rate, perfect for beginners and fat burners.
• HRC75: With this option, the heart rate is in the range of 75% of maximum heart rate, perfect for experienced users and athletes.
• HRC90: Anaerobic mode. With this option, the heart rate is in the range of 90% of the maximum heart rate. This mode is only suitable for competitive athletes and short-term training.
• TAG: In TAG mode, the console can calculate a target heart rate based on the user's age or you can set the desired heart rate.

To select an H.R.C. mode:

• Press the UP/DOWN button and select H.R.C.. Then press the MODE button to select HRC55 > HRC75 > HRC90 > TARGET.
• If you select HRC55, HRC75 or HRC90, the console will automatically calculate the target heart rate value.
• When you select the TARGET program, the display shows the preset value [100]. Press the UP/DOWN button to set the desired value in the range of 30-240 beats per minute. Press the MODE button to confirm and the program will be saved.
• Press the UP/DOWN button to set the desired workout time and press the MODE button to confirm.
• Press the START/STOP button to start the workout.

Note: In the H.R.C. program, you must wear a chest strap to allow the console to detect and display your heart rate.

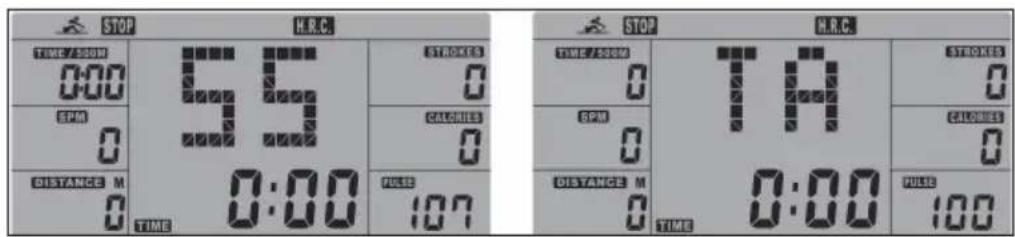

STOP H.R.C. TIME / 500M 0:00 SPM 0 DISTANCE M 0 TIME STROKES 0 CALCHES 0 PULSE 107 STOP H.R.C. TIME / 500M 0 SPM 0 DISTANCE M 0 TIME STROKES 0 CALCHES 0 PULSE 100

In H.R.C mode, the console calculates the perfect resistance value to keep the user within the target heart rate during training.

• If the heart rate is below the target heart rate during training, the resistance automatically increases by 1 level every 30 seconds.
• If the heart rate is above the target heart rate during training, the resistance will automatically decrease by 1 level every 15 seconds. If the lowest level (1) is reached and the user's heart rate is still above the preset target heart rate, an audible alarm sounds after 30 seconds and the console automatically terminates the training program.

Race Mode (RACE)

In this mode, you can use the console to compete.

• Press the UP/DOWN button to select RACE. Press the MODE button to confirm.
• Press the UP/DOWN button to set SPM. Press the MODE button to confirm.
• Press the UP/DOWN button to select DISTANCE. Press the MODE button to confirm.
• Press the UP/DOWN button to adjust the resistance value.

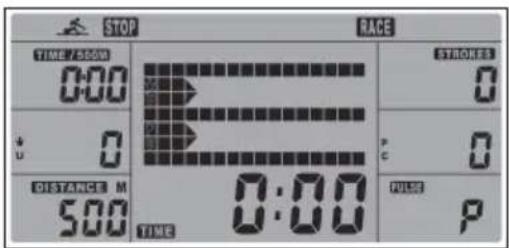

△ STOP		RACE			△ STOP		RACE
SPM 20		P G			SPM 20 DISTANCE M 500

- Press the START/STOP button to start the workout, the console will display the status of the user and PC.

STOP RACE TIME/2000 0:00 STROKES 0 M P C 0 DISTANCE M 5:00 TIME 0:00 RUSSE P

User-defined program (USER)

In this mode, you can adjust the resistance of each training segment as desired.

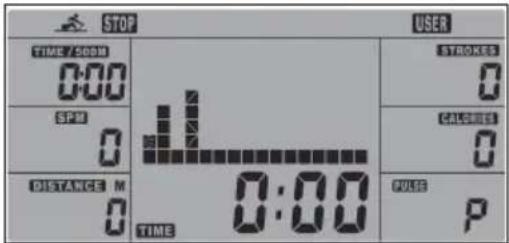

• Press the UP/DOWN button and select USER PROGRAM. Press MODE to enter the value for the first segment.
• Press the UP/DOWN button to adjust the resistance. Press the MODE button to confirm. The next segment will light.

- Continue until all 16 segments are complete. The maximum resistance value is 16. Press and hold the MODE button to complete or exit the setting.

- Press the UP/DOWN button to set the target exercise time and press the MODE button to confirm.

- Press the START/STOP button to start the workout. When the target is reached, you will hear a beep and the console will stop.

- During the workout, press the UP/DOWN button to adjust the resistance. The newly set resistance value is shown in the display. The default setting is 1.

- Press the START/STOP button to finish the exercise, all exercise values will be saved.

- Press the RESET button to return to the exercise selection mode.

STOP USER TIME / 5000 0:00 SPN 0 DISTANCE M 0 TIME STROKES 0 CALCRISER 0 COSER P

Pulse measurement during the recovery phase

After a period of intensive exercise, we recommend that you measure your pulse during the recovery phase.

Set the resistance to the minimum value and continue rowing slowly until the user's heart rate has slowed to a near-normal level.

Press the Heart rate recovery button and fasten the chest strap. At this time only the time (TIME) is displayed 00:60. Other functions are not available. After 60 seconds, the console displays the result of the heart rate measurement:

1.0 Perfect
1.0 < F < 2.0 Very good
2.0 < F < 2.9 good
3.0 < F < 3.9 All right
4.0 < F < 5.9 Below average
6.0 Bad

If your heart rate is still high after 60 seconds (between 4 and 6), continue to row slowly until your pulse returns to normal.

Error messages

E2	The motor drive exceeds the normal range. Disconnect the mains plug and restart the motor.
E7	Check if the cable connections are damaged.

ICONSOLE+APP

Turn on BT on tablet, search for console device and press connect. Turn on iConsole ^+ app on tablet and start workout with tablet.

Note: Once the console is connected to the tablet via BT, it no longer displays any data. Close the app and turn off BT on the tablet. The console will automatically display data again.

TRAINING VIA KINOMAP APP

Kinomap turns your bike trainer, exercise bike, treadmill or rowing machine into a powerful and fun fitness device.

Choose a video and train on the Kinomap app. Watch your icon progress on the map as you follow the video. The app will change incline or resistance on your equipment to follow each video you choose in real time.

Join for FREE and get started now!

Regular cardio training stimulates the cardiovascular (heart and blood vessels) and respiratory system. It improves your general health and helps you to burn fat. It is the recommended workout if you want to lose weight. When exercising, glucose is burned off first, then the fat stored in the body.

Intensive cardio training (e.g. circuit training, training with high resistance and long duration training) requires a greater amount of effort and also trains the muscular system and your endurance. As a rule, the more regular you train, the more effective the training is (even with short training sessions of 20 minutes).

During the Training

The level of resistance used during the workout determines the training intensity and the associated results.

An optimal training session includes (1) a warm-up phase, (2) an intensive cardio training phase and finally (3) a cool down phase. If you want to progress or burn calories, you should go through these 3 phases as well as exercise for at least 20-30 minutes on the ergometer.

1. Warm-up Phase

Always start your training session with a low resistance level. A warm-up phase of 5-10 minutes is important because your muscles need to be warmed up. During the warm-up phase, you should give your circulatory system and muscles time to prepare for the subsequent workout. As a beginner, you can train for the first 3 minutes at the easiest level and then gradually increase the level to where you feel most comfortable.

2. Cardio Training Phase

After about 10 minutes, you can then begin the cardio training phase. When using the interval training program, the computer controls the resistance depending on the type of interval chosen and thus simulates changing intensities.

The cardio training phase is considered aerobic or anaerobic training depending on the energy expenditure. These two types of training are defined as follows:

Aerobic Training Zone

While you are in this zone, you are improving your cardiovascular system and burning fat.

Despite an increased heart rate, deeper breathing and light sweating, the body is not in a very stressed state, breathing is not significantly accelerated—you could still talk to someone without going out of breath—and you feel that you could sustain the physical exertion for a long time. It's similar to when you briskly walk uphill.

The muscles and heart work more intensely than when the body is at rest and can get most of their energy needs met via aerobic energy production, which utilizes oxygen to facilitate energy production. At the same time, the anaerobic production of energy is also active, but only to a small extent. The lactic acid produced in this process can be broken down to produce energy. Most of your training should be aerobic training.

If you continue to increase the intensity, you will eventually come to the threshold where aerobic energy production is no longer able to increase its output. At this point, there is a shift towards anaerobic energy production being used to a greater extent. You are now doing anaerobic training.

Anaerobic Training

When in this zone, you are improving your performance and speed. When you increase the intensity while in this zone, the training becomes much more strenuous because of the rising lactate level in the body; you start sweating more; your breathing gets faster; and after some time depending on your fitness level, your muscles tire and you feel totally exhausted and that you can no longer continue at this level of intensity.

3. Cool-down Phase

At the end of the cardio training phase, you begin the cool-down phase, which should last for at least 5 minutes. Here, you use low levels of resistance.

The recovery or cool-down phase is also helpful with regard to preventing possible muscle soreness. It is also advisable to do active recuperation after an intensive training session, such as a hot bath, a sauna session or a massage.

Training Progress

Each month you can make the training more challenging by extending the duration of the cardio training phase, by using a higher level of resistance within that phase or by doing a more demanding interval training.

Eating and Drinking

• Drink before, during and after training.
• Drink at least 2 sips of water (10 to 20 cl) every 10-15 minutes during a training session.
• If your workout lasts for more than 1 hour, you should drink a sports drink to protect the body from dehydration while training.
• For optimal cardio training, suitable nutrition before and after any physical activity is very important.

Before training, it is best to eat carbohydrates, such as those found in rice and pasta, as they provide the body with an important source of energy.

After training, you need to refuel with proteins, such as those found in eggs, yoghurt and dried fruits. Even if you want to lose weight, it is absolutely necessary to eat after training in order for your body to recuperate.

WARMING UP BEFORE A WORKOUT

Perform the movements before each workout to mobilize your joints and activate your muscles.

Should a movement be uncomfortable or painful, skip this movement and consult your doctor or fitness instructor about suitable warm-up movements.

Each movement should be repeated (right and left) so that you can start the cardio training relaxed.

Take about 5 minutes to do the following CapitalSports training routine:

1
Nod the head slowly, then alternating turn the head to look to the right to left. Then mobilize the shoulders by making a circular motion with them.
2	3
Turn the hips while the arms are stretched. The feet are not firmly fixed to the ground; the ankles follow the body's rotation.	Bend at the hip with one arm stretched upward. Stay in this position for a few seconds on each side.

4
Stand on one leg and hold the instep of the other leg with your hand. While in this position, mobilize your ankle so as to stretch the thigh slightly. If necessary, hold on to something to keep your balance. Then Stand on one leg and draw a circle in both directions (clockwise and counterclockwise) with the ankle.
5	6
When squatting, place your feet about shoulder-width apart and lower your hips while keeping your arms straight. Try to also keep your back straight.	Sit with your legs bent so that the soles of your feet touch. Slightly flap the knees by moving the knees up and down while keeping the feet on the floor. Hold your ankles and keep your back straight.

Person performing a seated forward stretch exercise (no text or symbols visible)

While seated, stretch forward towards your toes. Try to keep the legs and back straight and reach for the tips of your toes.

7

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Stream M2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use. berlin/10034019

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Stream M2 is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10034019

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE DE CONTENIDOS

Technical diagram of a mechanical device with numbered components and labeled parts

Line drawing of a person using a mechanical lever system to lift a wheel (no text or symbols)

Technical line drawing of a pill-shaped mechanical component with internal grooves and a central slot (no text or symbols)

Technical line drawing of a fan with motion arrows indicating rotation (no text or symbols)

Line drawing of a stationary exercise machine with a person standing nearby, showing motion arrows indicating movement (no text or symbols)

STOP MANUAL PROGRAM H.R.C. RACE USER TIME / SODM 8:00:00 SPM 8:00:00 DISTANCE M 8:00:00 STROKES 8:00:00 WATER CALORIES 8:00:00 PULSE LOAD 8:00:00 TIME

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Technical diagram of a mechanical device with numbered components and labeled parts

Line drawing of a person using a mechanical lever system with a circular component and a tool (no text or symbols)

Technical line drawing of a capsule-shaped mechanical component with internal threading and mounting holes (no text or symbols)

Technical line drawing of a fan with motion arrows indicating rotation (no text or symbols)

Line drawing of a stationary exercise machine with motion arrows indicating movement, accompanied by a person standing nearby (no text or symbols)

Person performing a seated forward stretch exercise (no text or symbols visible)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

CE UK CA

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

QR code image containing encoded data, no visible human-readable text

INDICE

Technical diagram of a mechanical device with numbered components and labeled parts

Line drawing of a person using a mechanical lever system with a circular component and a tool (no text or symbols)

Technical line drawing of a capsule-shaped mechanical component with internal hatching and dimension arrows (no text or symbols)

Technical line drawing of a fan with motion arrows indicating rotation (no text or symbols)

Line drawing of a stationary exercise machine with motion arrows indicating movement, accompanied by a person standing nearby (no text or symbols)

STOP MANUAL PROGRAM H.R.C. RACE USER TIME / ROOM 8:00:00 SPM 8:00:00 DISTANCE M 8:00:00 STROKES 8:00:00 WATER CALORIES 8:00:00 PULSE LOAD 8:00:00 TIME 8:00:00 8:00:00

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Abstract geometric pattern with interlocking curved and straight gray shapes (no text or symbols)
