Product type	Clock radio
Brand	Bigben
Model	Epok RR90
Main power supply	Mains 100-240V ~50/60Hz (adapter included)
Backup power supply	2 AAA batteries (not supplied)
Reception band	FM 87.5-108 MHz
Output power	0.5 W
Display	Backlit LED screen (3 brightness levels)
Time format	24 h
Number of preset stations	20
Alarm types	FM radio, vibrating alarm, metal bell alarm
Number of alarms	2 (Alarm 1 and Alarm 2)
Snooze function	Yes (repeat every 9 minutes)
Nap timer	Yes (5 to 120 minutes)
Sleep timer	Yes (5 to 120 minutes)
Maintenance	Clean with a soft damp cloth, unplug before cleaning
Safety	Do not open the casing, avoid exposure to water and heat
Included accessories	Main unit, user manual, mains adapter
Manufacturer	Bigben Interactive FRANCE
Country of manufacture	China

Frequently Asked Questions - Epok RR90 BIGBEN

How to set the time on the Epok RR90?

In standby mode, press and hold the Set clock button (10) for 2 seconds until the display flashes. Use the Hours (11) and Minutes (12) buttons to set the time in 24h format.

How to set the alarm on the clock radio?

In standby mode, press and hold the Alarm 1 (6) or Alarm 2 (7) button for 2 seconds. Set the hours and minutes using buttons (11) and (12). Press the alarm button again to confirm. Then choose the sound: 'b1' for bell, 'b2' for vibratory, or 'FM' for radio.

How to use the snooze function?

When the alarm sounds, press the Snooze button (9). The alarm stops momentarily and sounds again every 9 minutes. To stop it completely, press Alarm 1, Alarm 2, or the power button.

How to adjust the LED screen brightness?

Press the Brightness button (9) to cycle through 3 levels: High (bright), Low (dim), and Off.

How to memorize an FM radio station?

In radio mode, use the Skip -/+ buttons (11,12) to find the desired station. Press Memory (10), the station number flashes. Select a number from P01 to P20 using buttons (11,12), then press Memory to confirm.

How to listen to a preset station?

In radio mode, press the Auto search / Select preset stations button (13) to choose the station number (P01 to P20). The screen displays the frequency for 3 seconds.

How to use the sleep timer?

In radio mode, press the Nap/Sleep mode button (8) to activate the timer. The default delay is 120 minutes. You can choose from 120, 90, 60, 30, 15, 10, 5 minutes or Off (OFF) by pressing (8) again. The radio turns off automatically after the delay.

How to change the backup batteries?

Open the battery compartment cover on the back of the device. Insert 2 AAA batteries respecting the polarity (+ and -) indicated. Close the cover. The batteries preserve the time during a power outage.

What to do if the device does not turn on?

Check that the mains adapter is properly connected to the device and to a functioning power outlet. If using backup batteries, make sure they are installed correctly and not discharged. If the problem persists, contact Bigben Customer Service at 09 69 39 79 59 (non-premium rate call) or by email at [e-mail].

How to clean the clock radio?

Always unplug the device before cleaning. Use a soft damp cloth (no harsh chemicals) to wipe the exterior. Never use abrasive cleaners or solvents.

USER MANUAL Epok RR90 BIGBEN

MODE D'EMPLOI

LISEZ COMPLÈTEMENT CE MANUEL D'UTILISATION AVANT D'UTILISER CET APPAREIL ET CONSERVEZ CE LIVRET POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT.

Table des matières

BELGIQUE/NEDERLAND, [e-mail]

[e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

bigben®

RR90 EPOK

PLL DUAL ALARM CLOCK RADIO

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE

Contents

Setting Started 1

Safety and Notice

Care for your product 2

Care of the environment

What's in the box 3

Power

Battery power

Set-Up

Description of Parts 4

Setting the Clock

Dimmer Control (LED Display)

Setting the Alarm

Using the Snooze Function

NAP Timer

Listen to FM Radio

Volume Control

6

Sleep Mode Timer

Replace Clock Back-Up Batteries

Basic Specifications

5 Remarks: 7

Setting Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safely.

Safety and Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

Safety

Warning

• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.
• Keep this apparatus away from direct sunlight, naked Fames or heat.
• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the Point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
2. Apparatus shall not be exposed to dripping or splashing.
3. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
4. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
5. Make sure there is enough free space around the product for ventilation.
6. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Care for your product

1. Always unplug the appliance when not in use and before cleaning.
2. Do not play music at excessive volume levels as damage to hearing and or the equipment may occur.
3. Do not use this unit in wet or damp conditions.
4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

What's in the box

Check and identify the contents of your package:

• Main unit
• User manual
• AC Adaptor

Power

CAUTION

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.
• Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord.
• Before connecting the AC power cord, ensure you have completed all other connections.

Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable.

Battery power

• Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.
• Use batteries of the same type. Never use different types of batteries together.
• Do not throw the battery into the fire, or exposed to sunshine or the like.
• If the liquid contained in the batteries comes in contact with eyes or skin, wash the area immediately and carefully with clear water and consult a doctor.

Set-Up

Switch on “Radio” mode and the radio will automatically search for radio stations for around three minutes. The screen shows the digits and station numbers.

Once complete, the unit will store its maximum number of 20 pre-set FM radio stations.

General Functions

1. FM radio by Digital Tuning System (DTS)
2. 24-hour clock display
3. Alarm signal may be set to FM radio, buzzer or metal ringing bell.
4. 20 pre-set FM radio stations
5. Automatic/manual search up/down
6. Automatic memory store function when the unit is plugged in

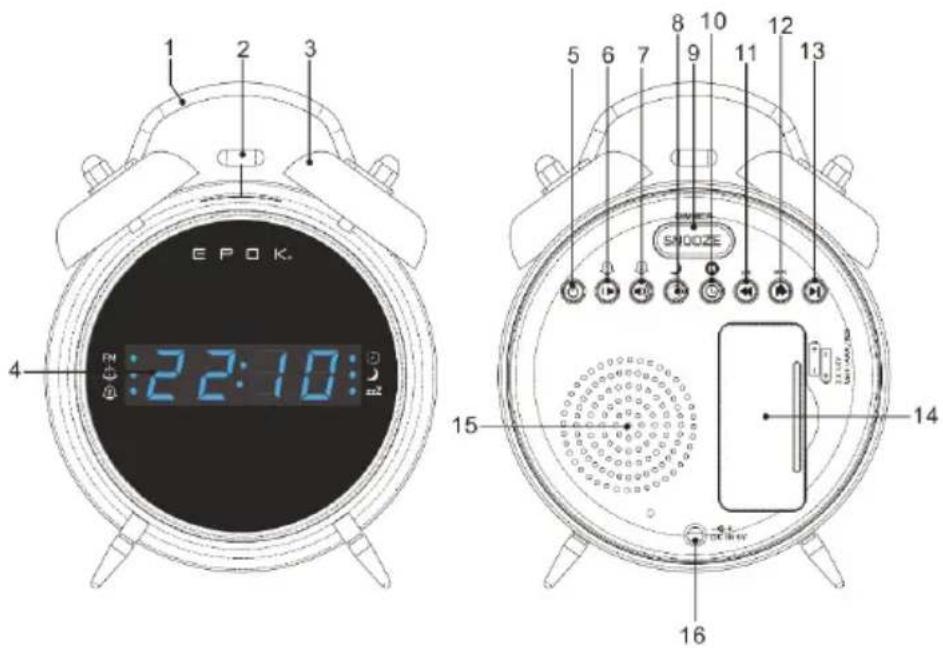

Description of Parts

1. Handle
2. Tap
3. A Set of Ringers
4. LED Display
5. Radio On (FM) ⏻ / Standby
6. Volume - 🎯 / Alarm 1 🔒
7. Volume + Alarm 2
8. NAP Mode / Sleep Mode
9. Dimmer / Snooze
10. Clock Set Ⓛ / Memory Ⓜ
11. Skip - ⬇HR (Hour Set)
12. Skip + ⬆ / Min (Minute Set)
13. Auto Scan ⏻ / Select Pre-Set Station
14. Battery Door
15. Speaker
16. DC Jack

Setting the Clock

• In standby mode, press & hold Clock Set [10] for 2 seconds. The display will flash.
• Press Hour Set / Minute Set (11, 12) to set the hour and minute.
• The clock will display in 24-hour format.

1. Dimmer Control (LED Display)

• Press Dimmer [9] to control the brightness of digits on the display.
• There are 3 levels: High level (brightness) → Low level (Dim light) OFF.

2. Setting the Alarm

• In standby mode, press & hold Alarm 1 [6] for 2 seconds. The main digits will display 0:00.
• Press Hour [11] & Min [12] to set the alarm hour & minute.
• Press Alarm 1 [6] again to confirm alarm 1 setting.
• Press Skip -/+ [11/12] to switch between the alarm output ringer "bb" (beep sound) and radio ("F")
• Press Alarm 1 [6] to confirm the alarm output (3 selections). "b1" metal ringing bell; "b2" Buzzer and "FM" radio "
• The product is equipped with a dual alarm. Repeat the above steps to set Alarm 2 [7] & select the alarm output. Once the alarm is set, the alarm display light will be ON.

Switching Off the Alarm

• To turn off the metal ringing bell, buzzer or FM radio, press any key on rear of alarm (except Snooze).
• The Alarm clock will resume the function at the same time the next day.

Cancelling/Disabling Alarm Function

• In standby mode, Press Alarm [6] or [7] twice. Doing so cancels the alarm function. The alarm display light will be OFF.
• If no key is pressed for 10 seconds, the system will return to normal mode.

3. Using the Snooze Function

When the alarm is sounding or radio output is on, you may press [9] "SNOOZE". The Snooze display light will flash. Pressing "SNOOZE" stops the alarm or radio, but the alarm or radio will be re-activated every 9 minutes. Press Alarm 1 [6] or Alarm 2 [7] or (1)(5) to switch off the alarm. Doing so also switches off the Snooze indicator light.

4. NAP Timer

• In standby mode, press [8] to activate the NAP timer. The ringer will sound once the selected time has elapsed.
• The alarm will start to count down from the default setting of 120 minutes. The user may select other timer options: 120, 90, 60, 30, 15, 10, 05 & OFF.
• When the ringer sounds, press [8] or ⏻ (5) again to switch off the ringing. To cancel the NAP timer function, press [8] to select OFF.

5. Listen to FM Radio

• Press ⏻ [5] to switch on the radio mode. The FM indicator light is on & the display shows the current frequency (e.g. FM92.6 MHz).
• In radio mode, press ← Skip -/+ [11, 12] to adjust the tuning and hold for 2 seconds to search for the next station.

5.1 Storing a Station to Memory: Pre-Set Stations

• In radio mode, press & hold skip -/ + [11, 12] to search for the desired station.
• Press M Memory [10] to activate the memory function. The display will flash the station number (i.e. P01 to P20).
• Press skip -/+ [11, 12] to select the desired station number (i.e. P01 to P20).
• Finally, press Ⓜ Memory [10] to confirm and save the station number.

5.2 Returning to a Pre-Set Station

- In radio mode, press ⏻ [13] to select the desired pre-set station number (ranging from P01 to P20. The display will then show the station number (i.e. P01 to P20) and the FM frequency 3 seconds after the station is selected.

5.3 Scanning

• In radio mode, press ⏻ Scan [13] for 2 seconds to activate SCAN mode.
• The radio will automatically scan for frequencies and save the pre-set station to memory, with a total of up to 20 different radio stations. This process may take 2-3 minutes to complete. Once SCAN is done scanning and stops automatically, it will return to pre-set station no. P01. The display will show the current time and FM frequency.
• When the SCAN function is activated, the newly identified stations will replace the pre-set stations that were previously stored in the memory.
• When the power supply is reconnected and the unit does not contain backup batteries, the unit will automatically scan for FM radio stations.

6. Volume Control

• When the radio is on, press Volume -/+ [6, 7] to decrease or increase the sound volume level.
• The display will show the volume level, 00 \~ 15, from minimum to maximum sound level.

7. Sleep Mode Timer

• The radio will switch off after the selected time has elapsed. In Radio mode, press [8] to activate sleep mode.
• The sleep mode timer will start to count down from the default 120 minutes. The user may select other timer options: 120, 90, 60, 30, 15, 10, 05 & OFF. To cancel the sleep mode timer function, press [8] & select OFF.

8. Replace Clock Back-Up Batteries

- Insert 2 AAA batteries. Check the polarity (+ and – at the ends of the battery) and follow the instructions on the diagram near the battery compartment. Close the compartment door.

NOTE: Please be sure to properly dispose of batteries (see your local regulations).

9. Basic Specifications

Output: 0.5 W
FM range: 87.5 ~ 108 MHz
AC 100 - 240V ~ 50 / 60 Hz; AC adaptor provided
Battery: 2 X AAA UM4 (R6)

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

• Take them to a collection point.
- Some components in these appliances may be hazardous to health and the environment.

In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.

• Minimum distances around the apparatus for sufficient ventilation at less 1cm.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc.;
• No naked flame sources, such as lighted candles, should be placed on this apparatus;
• Attention should be drawn to the environmental aspects of battery disposal;
• The use of apparatus in tropical and / or moderate climates.

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Made in China

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2 Fretin, CS 90414 - 59814 LESQUIN Cedex, France

BELGIQUE/NEDERLAND, [e-mail]

[e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

bigben®

RR90 EPOK

RADIO RELOJ PLL CON DOS ALARMAS

BELGIQUE/NEDERLAND, [e-mail]

[e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

bigben®

IT

RR90 EPOK

RADIOSVEGLIA PLL

ISTRUZIONI D'USO

PRIMA DI UTILIZZARE L'APPARECCHIO, LEGGERE PER INTERO IL PRESENTE MANUALE E CONSERVARLO PER CONSULTAZIONI FUTURE.

Indice

Per iniziare 1

BELGIQUE/NEDERLAND, [e-mail]

[e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

bigben®

RR90 EPOK

BELGIQUE/NEDERLAND, [e-mail]

[e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

bigben®

RR90 EPOK

PLL RADIOWECKER MIT ZWEI WECKALARMEN

BEDIENUNGSANLEITUNG

BELGIQUE/NEDERLAND, [e-mail]

[e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

bigben®

RR90 EPOK

PLL-WEKKERRADIO MET DUBBEL ALARM

VEILIGHEIDSINSTRUCTIES

LEES DEZE GEBRUIKSAANWIJZING VOLLEDIG DOOR ALVORENS DEZE EENHEID TE BEDIENEN, EN BEWAAR DIT BOEKJE VOOR UW ADMINISTRATIE.

Inhoud

Aan de slag 1

BELGIQUE/NEDERLAND, [e-mail]

[e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu
