RR80 - Alarm Clock BIGBEN - Free user manual and instructions

Product type	Clock radio
Brand	Bigben
Model	RR80
Power supply	Mains 230 V~, 50 Hz; backup batteries 2 x AAA (not included)
Output power	0.5 W
FM band	87.5 - 108 MHz
Number of presets	20
Display	LCD screen with blue backlight
Brightness adjustment	3 levels (bright, soft, dark)
Time format	12h / 24h
Alarms	2 independent alarms (radio or buzzer)
Snooze function	Snooze every 9 minutes
Sleep timer	From 90 min to 5 min in steps
Auto scan	Yes, stores up to 20 stations
Dimensions (approx.)	Not specified in the manual
Weight (approx.)	Not specified in the manual
Material	Plastic
Included accessories	User manual, power cord
Maintenance	Clean with a soft dry cloth; do not use solvents
Safety	Do not expose to moisture; unplug before cleaning; replace used batteries
Repairability	Have any repairs done by qualified personnel; no user-serviceable parts
Warranty	See manufacturer's terms

Frequently Asked Questions - RR80 BIGBEN

How to set the clock on the Bigben RR80?

In standby mode, press and hold the Clock Set button (4) until the display blinks. Use the Hour (10) and Min (11) buttons to set the time, then press Clock Set again to confirm.

How to set the first alarm?

Press Alarm Set (5) for 3 seconds. Select Alarm 1 with the Hour button (10). Set the hours with (10) and minutes with (11). Confirm with Alarm Set. Then choose the sound (radio or buzzer) with (10/11) and confirm again.

How to turn off the alarm when it rings?

Press the Alarm off button (2) to stop it; it will ring again the next day. To disable it permanently, proceed as for setting and remove the buzzer or radio icon by pressing (10/11) several times.

How to use the Snooze function?

When the alarm sounds, press the SNOOZE button (7). The alarm stops and rings again every 9 minutes. To turn it off completely, press Alarm off (2).

How to adjust the display brightness?

Press the DIM button (8) to cycle through the 3 levels: bright, soft, and dark.

How to listen to FM radio?

Press the Radio On/Off button (2) to turn on the radio. Use Tuning + (4) and Tuning - (5) to manually search for stations, or press SCAN (9) for automatic scanning.

How to store a station as a preset?

Set the desired frequency, then press and hold the MEM button (9) for 3 seconds. Choose a preset number (P01 to P20) with Preset + (10) or Preset - (11), then press MEM again to confirm.

How to set the sleep timer?

Press the Sleep button (12) to activate the mode. The initial duration is 90 minutes. Each subsequent press reduces the time by 5 minutes until OFF is displayed to deactivate.

How to change the backup batteries?

Open the battery compartment on the back of the unit. Insert 2 AAA batteries respecting the indicated polarity (+/-). Close the cover. Backup batteries preserve the clock during a power outage.

What to do if the radio does not pick up stations?

Extend the wire antenna or move the unit away from interference sources. Use the SCAN function (9) to start an automatic search. Also ensure you are in an FM coverage area.

USER MANUAL RR80 BIGBEN

MODE D'EMPLOI

LISEZ COMPLÈTEMENT CE MANUEL D'UTILISATION AVANT D'UTILISER CET APPAREIL ET CONSERVEZ CE LIVRET POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT.

[e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

Rubiks®

EN

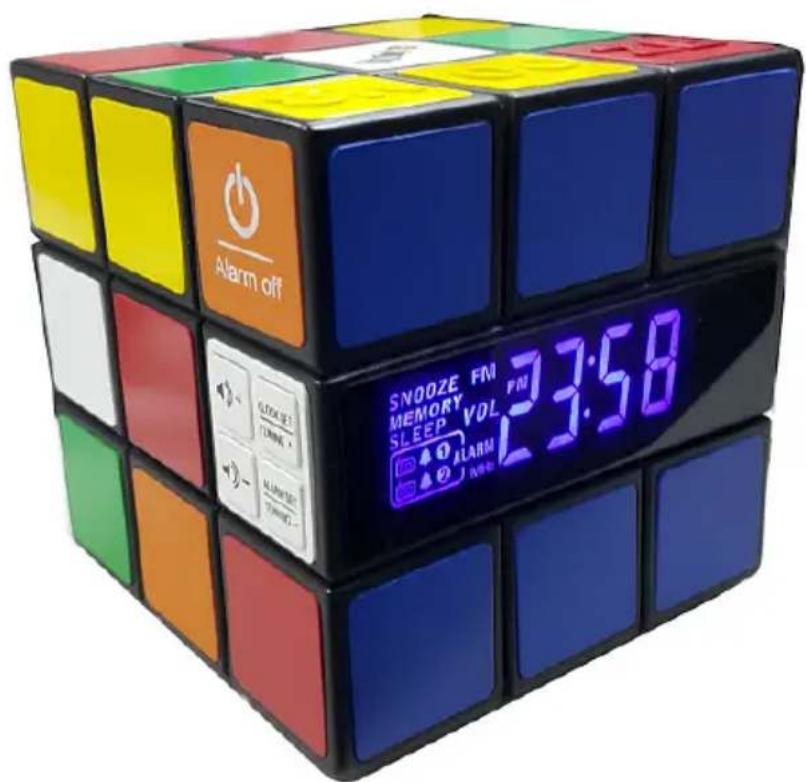

RR80 RUBIKS

PLL dual alarm clock radio

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

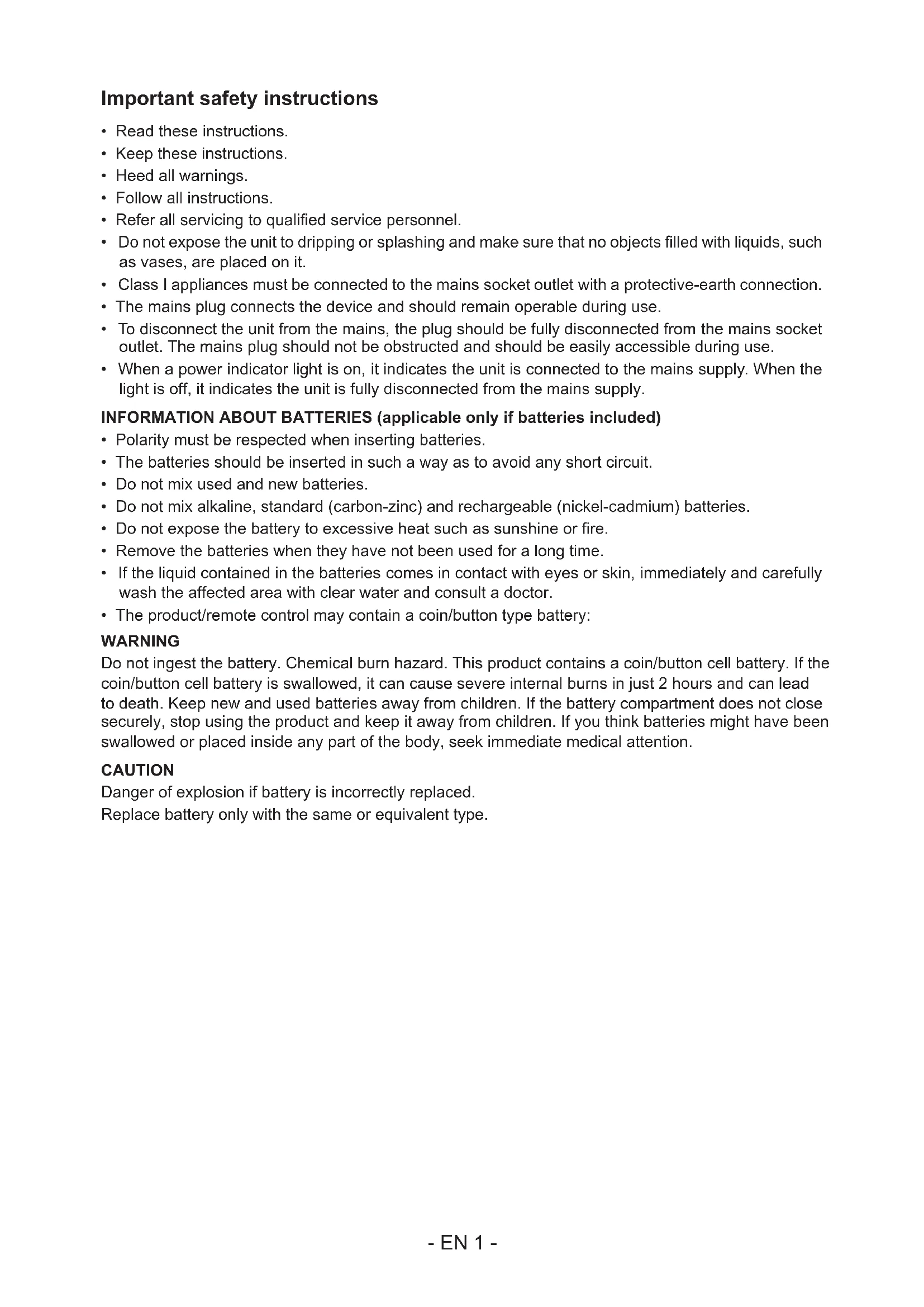

Important safety instructions

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
  • Refer all servicing to qualified service personnel.
• Do not expose the unit to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on it.
  • Class I appliances must be connected to the mains socket outlet with a protective-earth connection.
• The mains plug connects the device and should remain operable during use.
• To disconnect the unit from the mains, the plug should be fully disconnected from the mains socket outlet. The mains plug should not be obstructed and should be easily accessible during use.
• When a power indicator light is on, it indicates the unit is connected to the mains supply. When the light is off, it indicates the unit is fully disconnected from the mains supply.

INFORMATION ABOUT BATTERIES (applicable only if batteries included)

• Polarity must be respected when inserting batteries.
• The batteries should be inserted in such a way as to avoid any short circuit.
• Do not mix used and new batteries.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries.
• Do not expose the battery to excessive heat such as sunshine or fire.
• Remove the batteries when they have not been used for a long time.
• If the liquid contained in the batteries comes in contact with eyes or skin, immediately and carefully wash the affected area with clear water and consult a doctor.
• The product/remote control may contain a coin/button type battery:

WARNING

Do not ingest the battery. Chemical burn hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace battery only with the same or equivalent type.

Setup

When switching on the unit, the automatic update function means the radio will automatically search for radio stations within three minutes. The screen shows the digits and station numbers.

Once complete, the unit will store its maximum of 20 radio stations as preset stations.

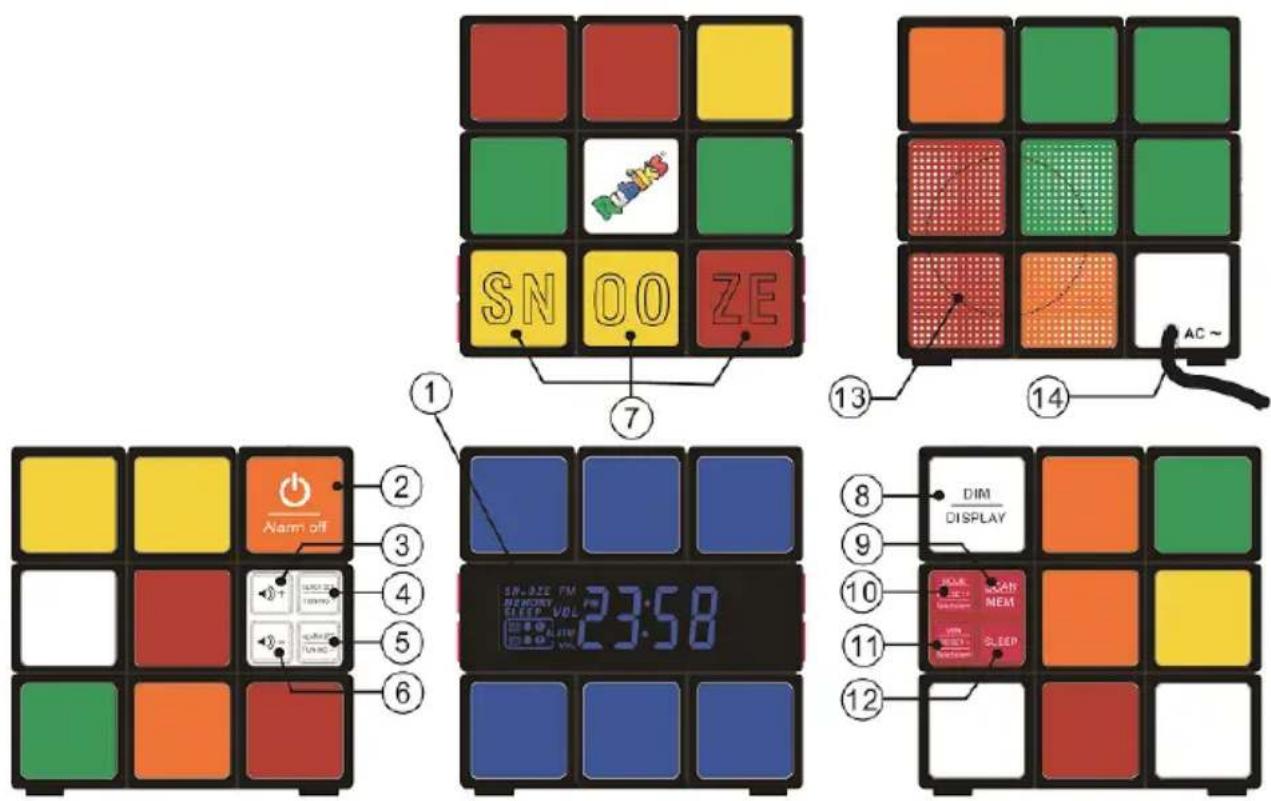

Key functions:

1. LCD Display
2. Radio On / Standby / alarm off
3. Volume +
4. Clock Set / Tuning +
5. Alarm Set / Tuning –
6. Volume –
7. SNOOZE
8. DIM (Dimmer) / DISPLAY
9. SCAN / MEM (Memory)
10. HOUR/ Preset + / Select Alarm
11. MIN (Minutes) / Preset - / Select Alarm
12. Sleep
13. Speaker
14. AC Cord

General Functions

1. FM radio using the Digital Tuning System (DTS)
2. LCD display with blue backlight and dimmer control
3. 12/24-hour clock display
4. Alarm can be set to radio or beeping sound
5. Beeping sounds can be set to ascend (increase in volume from quiet to loud)
6. 20 preset radio stations
7. Automatic/manual search up/down
8. SCAN (automatic memory store) function

1. Setting the clock

• In standby mode, press hold Clock Set [4]. The display will flash and show 0:00.
• Set the time by pressing [10] to set the hour and [11] to set the minute.
• Press Clock Set [4] again to confirm the time.

Setting the clock format

• After the time setting is confirmed, it will switch to clock format.
- Press [10/11] for 12H (12-hour format) or 24H (24-hour format).
• 12/24H will flash. Now you can adjust the time format:
- The clock format will be set and be automatically confirmed if the user does not press any buttons for 5 seconds.

2. Dimmer control (display digit light)

• Press DIM [8] to control the brightness of digits on the display.
  • There are 3 levels: Bright, dim light and dark.

3. Setting the alarm

• In standby mode, press Alarm set [5] for 3 seconds, then press [10] to select "Alarm 1". The icon will flash and the main digit will show 0:00.
• Press [10] again to set the alarm hour.
• Press [11] to set the alarm minute.
• Press Alarm set [5] again to confirm the alarm time. "Alarm 1" keeps flashing.
• Press [10/11] to switch between the radio and bell (beeping sound) alarm output.
• Press Alarm set [5] to confirm the alarm output of Alarm 1.
• There is dual alarm. The icon will automatically switch to Alarm 2.
• Repeat all the steps above and select the same alarm output as Alarm 1.
• Press [5] again to confirm the settings for Alarm 2.

Turning off the alarm

Press [2] Alarm off. The Alarm will resume the function at the same time the next day.

Cancelling / Disabling the alarm function:

• In standby mode, press Alarm set [5] for 3 seconds unit Alarm 1 flashes. Press [5] to confirm Alarm 1 is selected.
• Press [10/11] once more until the radio or bell icons disappear.
• Press [5] to confirm and cancel alarm set 1. The “Alarm 1” icon will not flash and the function has been cancelled.
• To cancel "Alarm 2", repeat the steps above.
• If no key is pressed for 20 seconds, the system will go back to normal mode.
  • Output format as below:

Output LCD display
Beeping sound Display shows bell symbol
Radio Display shows radio symbol
Cancel / Disabled	The bell ,radio and alarm symbols are gone

4. Using the snooze function

When the alarm is ringing, press [7] “SNOOZE”. The display will flash “SNOOZE”. The alarm will stop, but ring again every 9 minutes. Press [2] to completely turn off the alarm.

5. Listening to FM radio

• For radio mode, press [2]. The display will show FM and the current frequency in digits, e.g. FM92.6 MHz.
• When the radio is on, you press can adjust the signal by pressing [4/5] to search for the next station.

5.1 Storing a station to memory – as a preset station

- While already in radio mode, press [4/5] Tuning +/- to select the channel. Press SCAN/ MEM [9] for 3 seconds to start the memory. The display will show MEMORY and flash the station number (e.g. P01 up to P20). Press Preset +/- [10/11] to select the desired program station number, e.g. P01, P02 Up to P20. Finally, press MEM [9] for 3 seconds to confirm and save this station to the preset stations.

5.2 Returning to a preset station

• When radio mode is on, press Preset +/- [10/11] to select the desired preset station number, P01, P02, up to P20. The display will then show MEMORY, the preset station number (P01 or whichever preset station number is chosen) and the FM frequency.
• Once the preset station has been selected and confirmed or you have waited for 3 seconds, the display will show the current time and FM frequency.

5.3 SCANNING

• With radio mode on, press [9] to activate SCAN mode.
• The radio will automatically scan the frequency and save the preset station to memory, with a total of up to 20 different radio stations. Once SCAN finishes scanning and stops automatically, it will return to preset station no. P01. The display will show the current time and FM frequency.

When the SCAN function is activated, the newly found stations will replace the preset stations that have been previously stored in the memory.

6. Volume control

When the radio is on,

• Press [3] to increase the sound volume level.
• Press [6] to decrease the sound volume level.

The display will show the volume level, 00 \~ 16, from minimum to maximum sound level.

7. Sleep mode timer

• Press [12] to activate sleep mode.
• It will start to count down from the default 90 minutes. The radio will turn off after 90 minutes (or set time). Press [12] again to set the timer for when the radio will turn itself off (note: every press reduces the sleep timer by 5 minutes, and if reduced to zero, OFF will be displayed).

8. Replacing the clock backup batteries

- Insert 2 AAA batteries. Check the polarity (+ and – at ends of the battery) and follow the instructions on the diagram near the battery compartment. Close the compartment door.

NOTE: Please make sure you properly dispose of batteries (see your local regulations).

9. Specifications:

Output: 0.5 W

FM range: 87.5 \~ 108 MHz

AC\~ 230V, 50Hz

Station preset: 20

Important safety instructions, please read carefully

This unit has been designed and manufactured in such a way as to ensure personal safety, provided it is used as directed. However, improper use can result in potential electrical shock or fire hazards.

Please read all safety and operating instructions carefully before installation and use. Keep these instructions handy for future reference. Take special note of all the warnings contained in these instructions and on the unit.

Note: In order to save energy when there is no sound output for a while, the unit will switch to stand-by automatically. It can be switched ON again by pressing the function selector.

Don't discard the electrical and electronic appliances in the regular waste disposal.

• Take them to a collection point.
- Some components in these appliances may be hazardous to health and the environment.

©1974 Rubik's® Used under licence Rubiks Brand Ltd. All rights reserved. www.rubiks.com

Imported by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Made in China
