BN0821 - Lighting BRENNENSTUHL - Free user manual and instructions

Brand	Brennenstuhl
Model	BN0821 (SOL 04 PLUS)
Product type	LED solar wall light with motion detector
Dimensions (approx.)	20 x 15 x 10 cm
Weight (approx.)	500 g
Power supply	Solar panel + 3 rechargeable AA Ni-MH 1.2 V / 600 mAh batteries
Number of LEDs	2 x 0.5 W
Lighting duration	60 ± 2 seconds after last movement
Detection angle	100°
Detector range	Max. 7 meters (varies with height and temperature)
Twilight sensitivity	Adjustable (day/night)
Protection rating	IP44 (protected against water splashes)
Recommended mounting height	1.8 to 2.5 meters
Operating modes	AUTO (with detector), ON (continuous light), OFF (off/charge)
Main functions	Infrared motion detection, dusk switch, timer
Maintenance	Clean the solar panel regularly; replace used batteries
Safety	Avoid heat sources, reflective surfaces, and electromagnetic interference
Spare parts / Repairability	Replaceable rechargeable batteries (3x AA Ni-MH)
General information	Manual available in multiple languages; follow recycling instructions

Frequently Asked Questions - BN0821 BRENNENSTUHL

How to install the Brennenstuhl BN0821 solar light?

Fix the mounting plate to the wall using the provided screws, at a height of 1.8 to 2.5 m. Orient the solar panel south for maximum sunlight. Mount the light on the plate and lock it with the key. Important: let the batteries charge for 3 to 4 days before first use (switch on OFF).

What are the available operating modes?

The sliding switch has three positions: AUTO (automatic activation by motion detector at night), ON (continuous light, useful as emergency lighting), and OFF (off for storage or battery charging).

Why doesn't my light turn on at night despite movement?

First check that the batteries are charged (leave the lamp in sunlight for several days). Make sure the switch is on AUTO. If the area is too lit (by another source), the dusk sensor may block activation. Orient the lamp away from any stray light.

How to replace the batteries in the lamp?

Set the switch to OFF. Remove the screws of the battery cover on the back of the lamp. Replace the three batteries with new AA Ni-MH 1.2 V models, respecting polarity (+/-). Close and let charge in the sun for 3-4 days before reusing.

What is the detection range and angle?

The detector has an angle of 100° and a maximum range of 7 meters. The actual range may vary depending on mounting height, ambient temperature, and direction of movement. The sensor is more sensitive to transversal movements than frontal movements.

The lamp turns on for no apparent reason, what to do?

Heat sources (air conditioning, ventilation ducts, hot cars) or animals can trigger the detector. Reorient the lamp or move it away from these sources. Also avoid reflective surfaces (pool, white wall) that can cause false detections.

What is the lighting duration after detection?

The light stays on for about 60 seconds after the last detected movement. If new movement is detected during this time, the timer restarts. In ON mode, the light stays on continuously.

Can I use the lamp in rainy weather?

Yes, the lamp has an IP44 protection rating, which protects against water splashes. It is therefore suitable for outdoor use, but avoid immersing it.

How to clean the solar panel?

Clean the solar panel regularly with a soft, non-abrasive, slightly damp cloth to remove dust and dirt that would reduce charging efficiency. Do not use harsh chemicals.

What to do if the lamp does not turn on at all?

Check the switch (must be on AUTO or ON). If the batteries are new, ensure they are inserted correctly and charged. If the problem persists, test with charged batteries from an external charger. Contact Brennenstuhl support if necessary.

USER MANUAL BN0821 BRENNENSTUHL

Installations- and Operating Instructions Solar LED wall lamp SOL 04 PLUS

Introduction

The lamp works with a built-in motion detector that constant scans for heat sources moving in its monitoring area. As soon as a heat source (such as a person or a car) is detected in this area, the light comes on and remains on as long as the heat source moves in the monitored area.

INSTALLATION TIPS

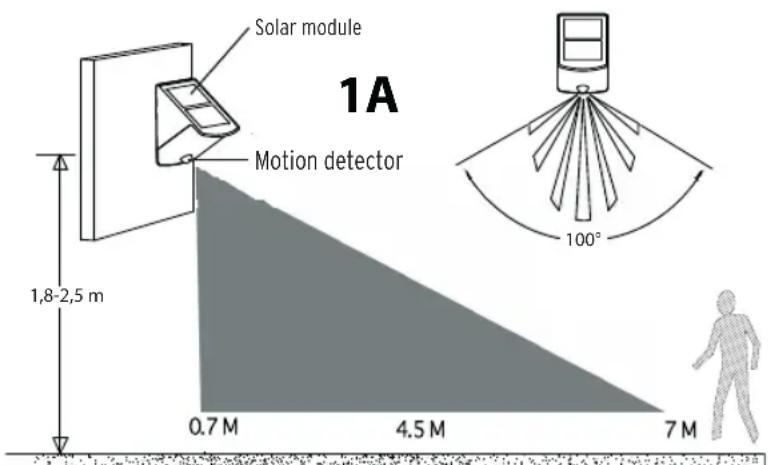

• The lamp should ideally be installed at a height of 1.8 to 2.5 metres to cover the maximum monitored area (see Fig. 1A).

• To avoid false alarms, the light should be installed away from heat sources such as air conditioners, other outside lights, running cars, exhaust vents, and strong sources of electromagnetic disturbance.
• Do not aim the sensor at reflective surfaces such as smooth, white walls, swimming pools, etc.
• The motion detector's monitored area (about 7 metres at 100^ monitoring field) can change somewhat depending on the height at which it is installed and the installation site. The monitored area can also change due to ambient temperature.
• Before you choose an installation site, please note that the motion detector reacts with greater sensitivity to movement across the monitored area than movements directly to ward or away from the sensor (see Fig. 1B).

good detection poor detection

1B

• Mount the lamp such that the solar module receives the maximum possible DIRECT SUNLIGHT during the day.

INSTALLATION STEPS

1. Remove the light's mounting plate by opening the locking mechanism using the enclosed key and turning it toward "OPEN".

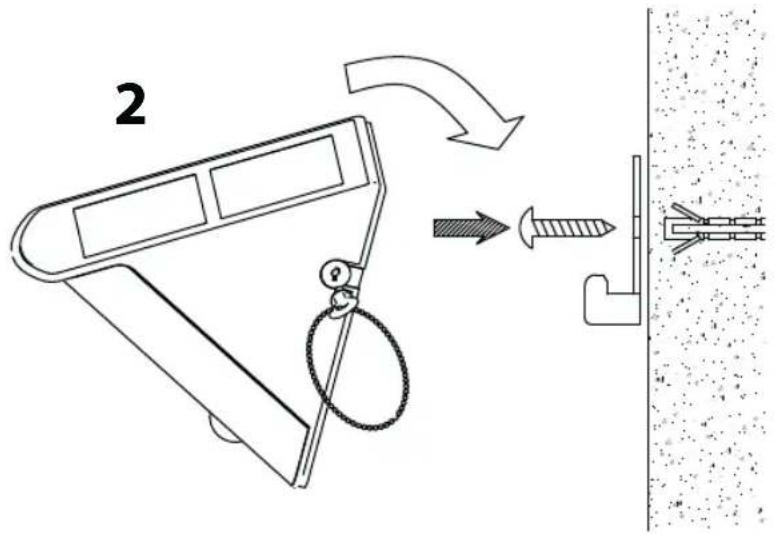

   2.Drill two holes in the wall on which you wish to install the lamp and mount the mounting plate with the screws (see Fig. 2).

1. Mount the lamp on the mounting plate and secure it by turning the key to „LOCK". Remove the key and keep it for future use.

OPERATION

1. The rechargeable batteries inside are charged by the solar module. The longer the solar module is exposed to direct sunlight during the day, the longer the light can remain on. Before starting to use the light, the batteries should be charged in sunlight for at least 3 to 4 days (slider switch set to OFF). Alternately, the batteries can be charged with a standard battery charger.

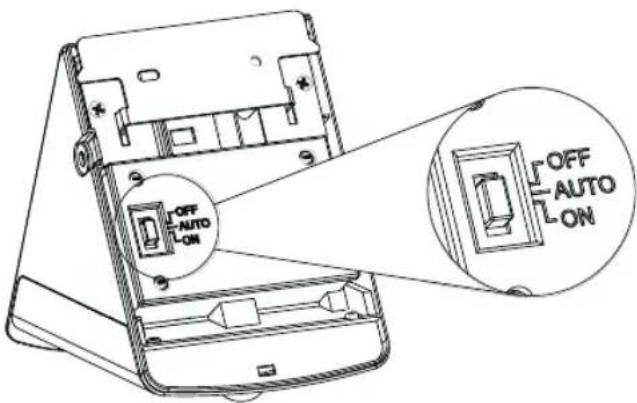

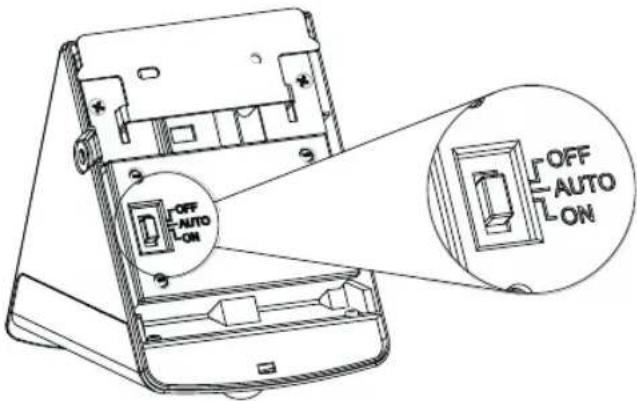

2. After the batteries are charged, the lamp can be used. The following operational modes can be set on the slider switch on the back of the housing.

AUTO: Normal operation through the integrated motion detector

ON: Constant light(e.g. as emergency light)

OFF: Deactivation for storage and for charging

FUNCTION

1. When the light is turned on for the first time, the LEDs light up and the motion detector begins to warm up. The LEDs will stay on for around 40 seconds and then blink 3 times and switch into operational mode.
2. The light is equipped with a dimmer switch, i.e. the light switches into "AUTO" mode when it gets dark. The LEDs activate when movement is detected in the monitored area and stay on around 60 seconds after the last movement. If motion is detected when the light is already on, the lighting period begins again and the LEDs stay on for another 60 seconds.
3. In daylight or in bright surroundings, the light is not activated by motion.

REPLACING THE RECHARGEABLE BATTERIES

1. Set the switch to the OFF-position.
2. Remove the screws from the battery cover on the back of the light.
3. Remove the old batteries and replace them with new rechargeable AA Ni-MH 1.2 V batteries. Make sure the + / - poles are correctly connected.
4. The batteries should be charged in direct sunlight for at least 3 to 4 days prior the first use of the light (slider switch in OFF-position).

TROUBLESHOOTING

Problem Light does not activate when there is movement in the monitored area.

Possible Cause Suggested Solution

1. Batteries are dead Recharge batteries
   2.Nearby lights too bright. Aim the unit away from the light source

Problem Light activates for no apparent reason (false alarm).

Possible Cause Suggested Solution

1. Heat sources such as air Place the light beyond these sources conditioners, exhaust vents, ventilation openings, other outdoor lights, running cars, activate the sensor.
2. Animals, e.g. martens or house pets. Re-aiming the light can help.
3. Reflections from pool or Re-aim light from reflecting surfaces.

NOTE: Motion detectors are more sensitive in dry and cold surroundings than in moist and hot surroundings.

TECHNICAL DATA

Battery: 3 x AA 1,2 V / 600 mAh

Number of LEDs: 2 × 0.5 W

Light duration: 60 ± 2 Sec.

Monitored angle: 100^

Range: max. 7 metres

Response sensitivity: adjustable from daylight to night

Protection Class: IP44

DISPOSAL

Dispose of electronic devices in an eco-friendly fashion! Electronic devices do not belong in your household waste. Compliant with European Guideline 2002/96/EG for electric and electronic devices, used electronic devices must be collected

separately and taken in for environmentally sound re-cycling. Options for disposing of used devices may be obtained from your township, city or municipal government

Incorrect disposal of batteries rechargeable batteries can harm the environment!

wastes. Take your used batteries to a municipal collection site.

INSTALLATIONSFÖRSLAG

Twvia npapakolouonan: 1oo

BbIKI:OTKnIOueHnE nIy XpaHnN IJIIN3apAdkn

ФУHKLЛЯ

1. Ecnn lamna BknoaetcBnepBbie, CBeToNOob3aropaoTc, n daTnK DnHexeHna HauHaet nporpeBaTcBc. CBeToNOobIOCTaIOCTc BkNooyehbIMn pImepHO Ha 40 cekyHd, 3aTeM OHmraIOT 3 pa3a n MeHIOCTCB peXMM pa6Otbl.
2. lamna OchauheHa CTyneHuaTbIM BbIKIOUaTeIeM IJI CHNKeHnO CBeueEHHOCHTN, T.e. lamna BkIOuayetcB PexKHe ME KcNpyataun,ABTO" ToIbKO KOrda cTaHOBUNCTeMHO.CBeToNDoBb BkIOUaOTcPn DVBXeHn B O6NaCTn H6NIoDEHn N OCTaOTc BKIOUeHHbIMN pImepHo eue Ha 60 cekHynd nocle nocJeHero DvIXeHn.Ecnn BO Bpem CBeueHn paCNo3HaETcD BVXeHne, dINTeNbHOCTb CBeueHn HaUnHaETc ChauJana, IN CBeToNDoBbl OCTaOTc BKIOUeHHbIMN cIedyUOuine 60 cekHyd.
3. npn DHeBHom CBeTe nn CBetnom OkpyKeHnn Iamna He aKTHBnpyeTc npn BO3HNKHOBEHn nBuXKeHn.

3AMEHA IPEPE3APRAXAEMOTO AKKUMYJITOPA

1.BctabbTe BblKIOuatoB bnoJoxHe BblKI.
2.3aTeM OTOeHNHTe 6oNTbHa KOpNcE C 3aHHe cTOpOhbl NaMnbl.
3. BbTaunTe aKKymyIaTOp n3 Kopnyca n 3aMeHnTe Ha Tprn HObIx nepezapJxaeMbIX aKKymyIaTopa AA Ni-MH 1,2 B. Ppi noKJIoueHnn aKKymyIaTopa co6IouaTe npabNbHOCTb NOJaPHOCTn.
4. OctabTe BbIKJIOaTeIb B TeueHne MNHMym 3-4 coNHeuHbIX DHeB N03nUN «BbIKJI», YTO6bl obecneuTb, yTo aKKyMylrTop 6bl INoJIHOCTbIO 3apXeH nepeD OKOHaTeIbHOH NaCTPOIkoN I daJIbHeIM HopMaJIbHbIM peKIMOM pa6Obl.

YCTPAHNEHNE HENOLADOK

PpO6nema:JaMaHa He BkIIOUaTeTc Pn IIOBLeHmN DmXKeHn B O6NaCTn Ha6JIIODeHn.

Bo3MOxHa npuHa

PpeJIOXeHHoe yCTpaHeHHe HcnpaBHOCTn

1.6aTapeu nucTbIe 3apdntb 6aTapeu
2. pacnoJoxeHHoe 6n3n OTdAnntb yCTpoNCTBO OT daHHbIX NCTOCHNKOB OCBeueHHe CnIshKOM npKoe. n3nyehnCBeTa

Ipo6nema Iamna 3aropaeTcno HenoHrTHo npuHne (noxHa TpeBora).

Bo3MOxHn npuHa

PpeJIOXeHHoe yCTpaHHe HEmCnPaBHOCTN

1. INCTOUYHKI TeIIa, KaK KOHNiCNoHepbI, DaHHbIX NCTOUYKOB. paCNOLOXKeYCTPOINCTBO BdaIIN OT BEHTNIAUHOHbIe OTBepCTnI, DbIMOXoDbI, dpyrIe np6Opbl yInuHoro ocBeueHn I BnJxUHeCMAuHbI aKTINBnpyOT daTtIK.
2. 3Bepn, Hapnpimep KyHnua nn MoKet NOMOyb HOBaHaCTPOIka IaMnbl. DOMaWHHe JINBOTHbI.
3. OTPaKeHnO T6accEHa NIN BbIPOBHrTb 3aHOBO DaTHNK OTPaKaIOxN NOBepXHocTei.

BhImaHne: B cyxO n npoxlaHoi OKpykaIoSe cpe, DaTunK pearnpyET 6oJee yBCTBnTeNbHO, Yem BO BnaXHoi N JapKOk OkpykaIoSe cpe.

TEXHNUECKNE DAHHbIE

akymyIaTOp:3xAA1,2V/600mAh

KoJ-Bo CnI: 2× 0,5W

ДИЛТЕЛБНOCТСBEЧЕНИА:60±2ceK.

yrolnHa6JIOpEnHn:100°

paDnyc DeiCTBnA: MaKc. 7 MeTpOB

CytBCTBNTeJIbHOCTc Cpa6aTbIBaHn: HAcTpaINBaETc O T DHeBHO CBeTa K HOHOMy KIacc 3aunTbI: IP44

C

YTNIN3AUIN

3JNeKtponp6OpbI Bb6paCbBAIOB T COOTBeTCTBN C yCIOBnMn OKpykaIouei Cpebl! 3JNeKtponp6OpbI He OTHocrTa K DomaunHemy Mycopy. CornacHO EbponeNcKo DnpeKtNBe 2002 / 96 / EC o ctabbx 3JKeTpncEcknx np6opax, n3pacXoObaHHbte 3JKeTpponp6OpbI

dONKbI CO6npaTbc OTeNbHO N 6bITb NOBepHyTb IOBTOPOHMY NCNOJb3OBAHIO B COOTBETCTBn C OKpykaUoSei Cpeo. Bby y3Haete BO3MOXHOCTN O6 yTuIN3aUN OTXODOB OTCnyKIB- Wero yctpoiCTBa B Baem KOMMyHaJIbHOM ynpabJeHHN IIN MyHNzIIaNTe.

3arpa3HeHne OkpykaIOSeI cpebl BCNECTBHe HnPaBnIbHOy TnIN3aun 6aTapeu n aKKymyIaTOpOB!

BaTapeu n aKKymyIaTOPbI He OTHoCraTc K eKeJHeBHomMy DomaHemMy Mycopy. OHn MOryt copeKatab JIOBtble TAgKeIbIe MetaIIbI n IODNeXaT o6pa6OTke CneOToXoIDob. IOnrTomy otDaIte n3pacxOIOBaAHHbIe aKKymyIaTOPbIe BaTapeu Ha 06ueCTBeHHbI pyHKT c6opa Mycopa.
