Brand	Holzmann
Model	BS 125M
Product type	Metal band saw
Motor power (S1 100%)	0.4 kW
Voltage / Frequency	230 V / 50 Hz
Motor speed (variable)	2000 - 4000 rpm
Feed speed (variable)	35 - 80 m/min
Blade length	1435 mm
Arm tilt	0 - 60°
Net weight	22 kg
Gross weight	24 kg
Sound pressure level LpA	77 dB(A)
Sound power level LWA	90 dB(A)
Cuttable materials	Steel, stainless steel, bronze, iron, aluminum, copper
Manufacturer warranty	1 year
Wear parts	Blades, belts (excluded from warranty)
Cleaning frequency	After each use
Lubrication of moving parts	After 10 hours then every 3 months
Adjustment of guide rollers	Every month
Mandatory grounding	Yes

Frequently Asked Questions - BS 125M Holzmann

How to change the saw blade?

Wear gloves. Turn the saw arm to the high position, remove the 6 cover screws, loosen the tension with button (9), remove the old blade. Install the new blade in the correct direction of the teeth, rotate the wheel to align it, then tighten the tension. Reassemble the cover.

How to adjust the cutting angle?

Loosen the clamping lever (4), turn the saw arm to the desired angle (0-60°), then retighten the lever.

What regular maintenance is necessary?

Clean the machine after each use. Lubricate the moving parts after 10 hours of use, then every 3 months. Adjust the guide rollers every month. Check the screws and blade condition before each operation.

What are the important safety precautions?

Always unplug the machine before any adjustment or maintenance. Wear gloves to handle the blade. Wait for the blade to completely stop before removing the workpiece. Do not use to cut materials other than those specified (metals).

Why does my machine not start?

Check the electrical connection, fuse, and power cord. If the cord is damaged, replace it. Make sure the machine is properly plugged in and the socket is powered.

How to adjust the blade tension?

Use the tension adjustment button (9) to tighten or loosen the blade. Correct tension is essential for a clean cut and to avoid blade breakage.

What materials can I cut with the BS 125M?

This device is designed to cut steel, stainless steel, bronze, iron, aluminum, and copper. Do not use to cut wood, plastic, or other non-metallic materials.

How to obtain spare parts?

Use only original Holzmann parts. To order, specify the serial number (on the plate) and the part number. Contact your Holzmann dealer.

What to do in case of poor cutting quality?

Check the feed speed (slow down), the blade tension (tighten if necessary), the blade condition (replace if worn), the blade type (suitable for the material), and the adjustment of the guide rollers.

How to clean the machine?

After each use, clean metal chips and dust with a damp cloth. Apply a thin layer of anti-corrosion protection on unpainted surfaces. Do not use aggressive solvents or abrasives.

USER MANUAL BS 125M Holzmann

Red industrial cutting machine with black handle and gray base, no visible text or symbols

BS 125M

CE

EN Read the operation manual carefully before first use.

Labeled diagram of a red cutting machine with numbered parts and safety warnings

This manual contains Information and important instructions for the installation and correct use of the mobile metal band saw BS 125M

This manual is part of the machine and may not be stored separately from the machine. Save it for later reference and if you let other persons use the machine, add this instruction to the machine.

Please read and obey the security instructions!

Before first use read this manual carefully. It eases the correct use of the machine and prevents misunderstanding and damages of machine and the user's health.

Due to constant advancements in product design and construction pictures and content may diverse slightly. However, if you discover any errors, inform us please with the product feedback form.

Technical specifications are subject to changes!

Copyright

© 2010

This document is protected by international copyright law. Any unauthorized duplication, translation or use of pictures, illustrations or text of this manual will be pursued by law – court of jurisdiction is A-4020 Linz, Austria

Customer Service Contacts

Fields of application

The machine shall be used only in good technical condition. Defects have to be resolved immediately. It is forbidden to change any parameters on the machine without prior written permission by us.

The BS 125M mobile metal band saw is designed for cutting

Tool-steel

Steel

Stainless steel

Bronze

Iron

Aluminium, copper

within the dimensional borders stated in this manual and within the performance frame of this machine.

Misuse

• DO NOT USE THE METAL BAND SAW TO CUT ANY OTHER MATERIAL.
- Do not operate the machine outside the stated technical restrictions laid down in this manual.
- Do not overload/overstress the machine.
- Do not dismount the saw blade cover.
- Do not manipulate the machine.

HOLZMANN MASCHINEN CAN NOT BE HELD LIABLE FOR ANY DAMAGES TO MACHINE AND HEALTH RESULTING FROM MISUSE AN/OR NOT FOLLOWING THE SECURITY, OPERATION AND MAINTENANCE INSTRUCTIONS IN THIS MANUAL.

2 TECHNICAL DATA

Motor output performance S1 (100%)	kW 0.4
Voltage/ ~	V/Hz	230/50
Engine speed	U/min	2000-4000 continuous
Band saw blade feed rate	m/min	35-80 continuous
Blade length mm 1435
tilt	°	0-60
Net/gross weight	kg 22/24
Sound pressure level L_PFA	dB	77
Sound level L_WA	dB 90

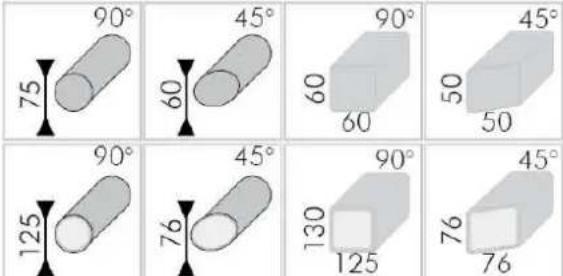

Cutting capacities:

3 MACHINE DESCRIPTION

1	Feeding handle with starter button
2	On/OFF button
3	Speed governor knob
4	Clamping lever
5	Workpiece stop
6	vice
7	Saw blade guide
8	Vice Clamping lever
9	Blade tension knob

4 ELECTRIC CONNECTION

The machine may be connected solely to a circuit with short circuit protection.

The power socket must match with the power plug off he machine. If it does not, let the power plug be adapted by a qualified electrician.

The power plug must be grounded/earthed.

If you are not sure, that all these prerequisites are fulfilled, let the power circuit, -plug and -socket be checked by a qualified electrician.

WARNING

Operating a non-grounded/earthed machine inhibits the risk of ELECTROCUTION!

-which may lead to severe injuries and even death!

5 OPERATION

ATTENTION

Prior to any checks or adjustments disconnect the machine from the power supply!

This prevents the risk of accidental start-up.

Before first use:

Remove the thin corrosion-prevention layer from the not-painted machine parts.

Do not use Nitrite-Solvents or other aggressive solvents. Do not use water.

The use of thinners, gasoline aggressive Chemicals or abrasives destroys the surface and leads to fastened corrosion later on.

Prior to every usage:

Check the machine for loose or missing screws, for damaged parts, check the condition of the saw blade

Assure yourself, that all tools etc.. apart from the workpiece itself are removed from the machine!

Perform a cut

Loosen the clamping lever(4) and swing the saw arm to the desired angle. Tighten the clamping lever again to fasten the saw arm in the chosen position.

Swing the saw arm into the upmost position.

Place the workpiece according to the desired cutting line and fix it with the vice

Loosen the saw blade guide (7) and move it approx. 2cm near the workpiece.

Für cutting workpieces of same length, adjust the workpiece stop (5) accordingly.

Now adjust the speed governor (3) to the desired feed rate.

Press the green button (2).

Take the feeding handle (1) and press the start button on it. Wait until the blade reaches its full speed.

Perform the cut. You should adjust the feed dependent from the material.

Stainless steel, bronze: very slow feed

Steel, brass: slow feed

Aluminium: moderate feed

WARNING

Wait until band stop and saw arm in upper position before removing the cut workpiece and/or placing a new workpiece into the vice.

INFORMATION

If you do not use anymore the band saw the same day, loosen the saw blade with the knob(9) a bit.

MAINTENANCE

ATTENTION

Don't clean or do maintenance on the machine while connected to the power supply:

Damages to machine and injuries might occur due to unintended switching on of the machine!

The machine requires barely no maintenance.

However, if malfunctions and defects occur, let them be serviced by trained persons only.

Clean your machine regularly after every usage—it prolongs the machines lifespan and is a prerequisite for a safe working environment.

Before first operation as well as later on every 100 operation hours you should lubricate al connecting part (if required, remove beforehand with a brush all swarfs and dust).

Check regularly the condition of the security stickers. Replace them if required..

Check regularly the condition of the guiding rollers of the saw blade. The good condition and perfect adjusting of the guiding rollers is essential for a smooth band saw transport and a clean cut.

Store the machine in a closed, dry location. Do not expose it to high levels of humidity.

Maintenance and servicing plan

Check for loose or lost screws	Prior to operation
Check for damages of any machine part	Prior to operation
Clean machine After operation
Lubricate all moving parts (esp. Gear box)	After first 10 operating hours, later every 3 months
Adjust guiding rollers Every month

Cleaning

Clean the machine from dust and metal swarfs with a wet cloth.

Apply a thin layer of corrosion protection onto the non-painted surfaces.

ADVICE

The usage of solvents, aggressive chemicals or abrasives damages the surface!

Saw blade change

ALWAYS WEAR SECURITY GLOVES WHEN TOUCHING THE SAW BLADE

Swing the saw arm entirely up.

Remove the 6 screws oft he saw arm cover and remove the cover.

Loosen with the belt tension knob (9) the band saw blade.

Now you can easily remove the saw blade.

Install the new saw blade. Place attention to install it into the right direction (teeth!)

Spin the blade wheel slowly until it runs smoothly on the blade wheels.

Now tighten the blade with the blade tension Knob (9).

Spin the blade wheel again and check, if the blade is running straight.

Mount the saw arm cover back.

Adjust guiding rollers

The band saw blade is guided by rollers (7)

The bearings of the rollers are factory-set.

If you notice bad cutting results due to instable band run, the rollers might be responsible for hat.

You can adjust the band run by loosening the tightening screws of the rollers and adjust the rollers.

Replace the bearings of the saw blade guide rollers at least once a year.

TROUBLESHOOTING

Disconnect the machine from the power source before you start to perform any checks or repairs.

Error Possible cause resolution
Machine does not start	Machine is not connected to power sourceFuse defect, safety fuse deactivatedCable defect	Check the power sourceChange fuse, activate fuseExchange cable
Saw Blade does not reach full speed	Motor has not full power	Check if extension cord too long –replace.Let by electrician check if motor receives power through all 3 PH, if power supply suitable for machine.
Machine vibrates strongly	Uneven undergroundMotor mounting is loose.Saw blade tension spring is worn or defect.	adjustTightenreplace
Bad cutting results	To fast feeding rateSaw blade is running to looseSaw blade is wornFalse saw blade for materialGuiding rollers	Lower the saw arm slowerTighten it a bit more with (9)ReplaceUse correct saw blade (material, number of teeth)readjust

DISPOSAL

Do not dispose your BS 125M with domestic waste. Inform yourself at your local authorities about the available possibilities of proper disposal of machinery.

In many countries your reseller is obliged to take back your old machine for disposal if you buy a new machine with similar function at his shop.

al ble of

SPARE PARTS

With original spare parts of HOLZMANN-Maschinen you have spare parts at hand that fit together and prolong the machines lifespan.

IMPORTANT

The use of non-original spare parts renders subsequent guarantee claims null and void!

Use only original spare parts.

You find the spare part list at the end of this documentation.

When ordering spare parts indicate:

Serial number (see typeplate) Part. No°

Please send us a copy of the spare part drawing with the required spare parts being marked.

You find the order address at the beginning of this documentation.

WARRANTY

We grant you 1 year manufacturer warranty.

For guarantee claims please contact your HOLZMANN vendor where you bought the machine with the original / or copy of payment receipt

Your HOLZMANN vendor processes the guarantee for you and assists you in all stages, from problem detection to spare part order and assembly.

Warranty exclusion:

HOLZMANN Maschinen cannot be held responsible for any damages resulting from

inadequate handling,

machine overstressing,

inadequate or insufficient maintenance,

insufficiencies in the power supply,

manipulations of the machine.

Wearing parts (such as belts, blades etc ...) are generally excluded from Warranty.

Holzmann can only accept claims on transport damage if indicated on the freight document.

Missing parts can only be claimed within 1 week after buy.

M Control board anti-interference components handle control switch switch KJ1020-2 light overload protector ~ 230V/50HZ

Exploded view diagram of a mechanical device with numbered parts and Chinese labels

KONFORMI TÄTSERKLÄRUNG / CERTIFICATE OF CONFORMITY

Inverkehrbringer / Distributor

Hereby we declare that the mentioned machine(s) fulfil(s) the above stated EC-Directives. Any manipulation of the machine(s) not authorized by us renders this document invalid.

We observe the quality of our delivered products in the frame of a Quality Management policy.

Your opinion is essential for further product development and product choice. Please let us know about your impressions, suggestions for improvement, experiences that may be useful for other users and for product design and about malfunctions that occur in specific operation modes.

We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post:

Thank you for your cooperation!

Symbol of a trash bin crossed out by two crossed lines (no text or labels)

9 REPUESTOS

r es age on. -

9 COMMANDE DE PIÉCES DÉTACHÉES

M Control board anti-interference components handle control switch switch KJ1020-2 light overload protector ~ 230V/50HZ

11 DESPIECE / VUE ÉCLATÉE

Exploded view diagram of a mechanical device with numbered parts for identification

CERTIFICADO DE CONFORMIDAD / CERTIFICAT DE CONFORMITÉ

CE Distribuidor / DistributeurHOLZMANN MASCHINEN®GmbHA-4170 Haslach, Marktplatz 4Tel.: [phone]; Fax.: [phone]www.holzmann-maschinen.at [e-mail]

Nombre/ Nom

Sierra de cinta para metal portátil / Scie à ruban portable

Modelo / Modèle

BS 125M

Directivas CE/ Directives CE

2006/42/EG2006/95/EG2004/108/EG

Normas aplicadas / Normes appliquées

EN 61029-1:2009, EN ISO 12100-2/A1:2009EN 55014-1:2006, EN 55014-2/A1:2001, EN 61000-3-2:2006,EN 61000-3-3/A2:2005EN 61029-1:2009, EN ISO 12100-2/A1:2009

* (Mobil)telefon / (mobile) phone International numbers with country code

* E-Mail

Fax

2. Geräteinformationen / tool information

Seriennummer/serial number: ____ *Maschinentype/machine type: ____

Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?

3. Bitte beachten

/ Additional information

INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL- ERATES THE HANDLING OF YOUR INQUIRY.
