Brand	Vonroc
Model	PH511AC
Product type	Infrared patio heater
Usage	Outdoor (garden, patio)
Power	2200 W (adjustable: 730 W / 1460 W / 2200 W)
Supply voltage	220-240 V ~ 50-60 Hz
Heating element type	Quartz
Radiation efficiency	60%
Heating area	15 m²
Heating distance	3 to 4 m
Weight	1.50 kg
Protection rating	IP34
Protection class	Class I (grounded)
Housing material	Aluminum
Number of power levels	3 (plus off)
Soft start	Yes
Anti-tilt function	Yes (automatic shut-off)
Switch	Pull cord
Safety distance (objects)	≥ 1 m in front and on sides
Minimum distance to ground	1.80 m
Minimum distance to ceiling	30 cm (50 cm if under a roof)
Maintenance	Clean exterior with soft cloth and mild soap
Warranty	According to current legislation (defects of parts and labor)
Recycling	Do not dispose of with household waste - Deposit at WEEE collection point

Frequently Asked Questions - PH511AC Vonroc

How to assemble the Vonroc PH511AC patio heater?

Follow the steps illustrated in the manual: attach the lower tube to the base plate, add the cover, then assemble the center and upper tubes with the provided bolts. Finally, attach the heating element to the extension tube and adjust the desired tilt.

How to turn on and adjust the heater power?

Use the pull cord (switch). Pull to cycle through the levels: 0 (off), 1 (730 W), 2 (1460 W), 3 (2200 W). The power level indicator shows the current setting.

What safety distances must be observed?

The front and sides must be more than 1 m from any object or wall. The bottom of the device must be at least 1.80 m from the ground. If under a roof, provide 30 cm between the top and the ceiling (50 cm if the roof is flammable).

Can I use this heater indoors?

No, this model is designed only for outdoor use or in a spacious, well-ventilated area. Do not use it in a bedroom, bathroom, or any other enclosed space.

What to do if the device does not turn on?

Check that the plug is properly connected to a functional power outlet. Ensure the switch is not in position 0. If the problem persists, check the main fuse of your installation. Contact a professional if necessary.

How to clean the heater?

Unplug and let the device cool down. Clean the housing with a soft cloth slightly dampened with soapy water. Do not use solvents, alcohol, or abrasive products. Never immerse the device in water.

What is the anti-tilt function and how does it work?

If the device tips over, a sensor turns it off immediately. After lifting it back up, you must set it to position 0 with the switch, unplug it, check for damage, then turn it on normally.

Is the device waterproof?

It has an IP34 protection rating, which protects against water splashes from all directions. It can be used in light rain, but avoid exposure to strong water jets or immersion.

How to store the heater in winter?

Store it in a cool, dry place, preferably in its original packaging, to avoid dust and moisture accumulation. Make sure it is clean and completely dry before storing.

What to do if the power cord is damaged?

The damaged cable must be replaced exclusively by the manufacturer, an authorized service, or a qualified person (same cross-section as the original). Do not use the device with a damaged cable.

USER MANUAL PH511AC Vonroc

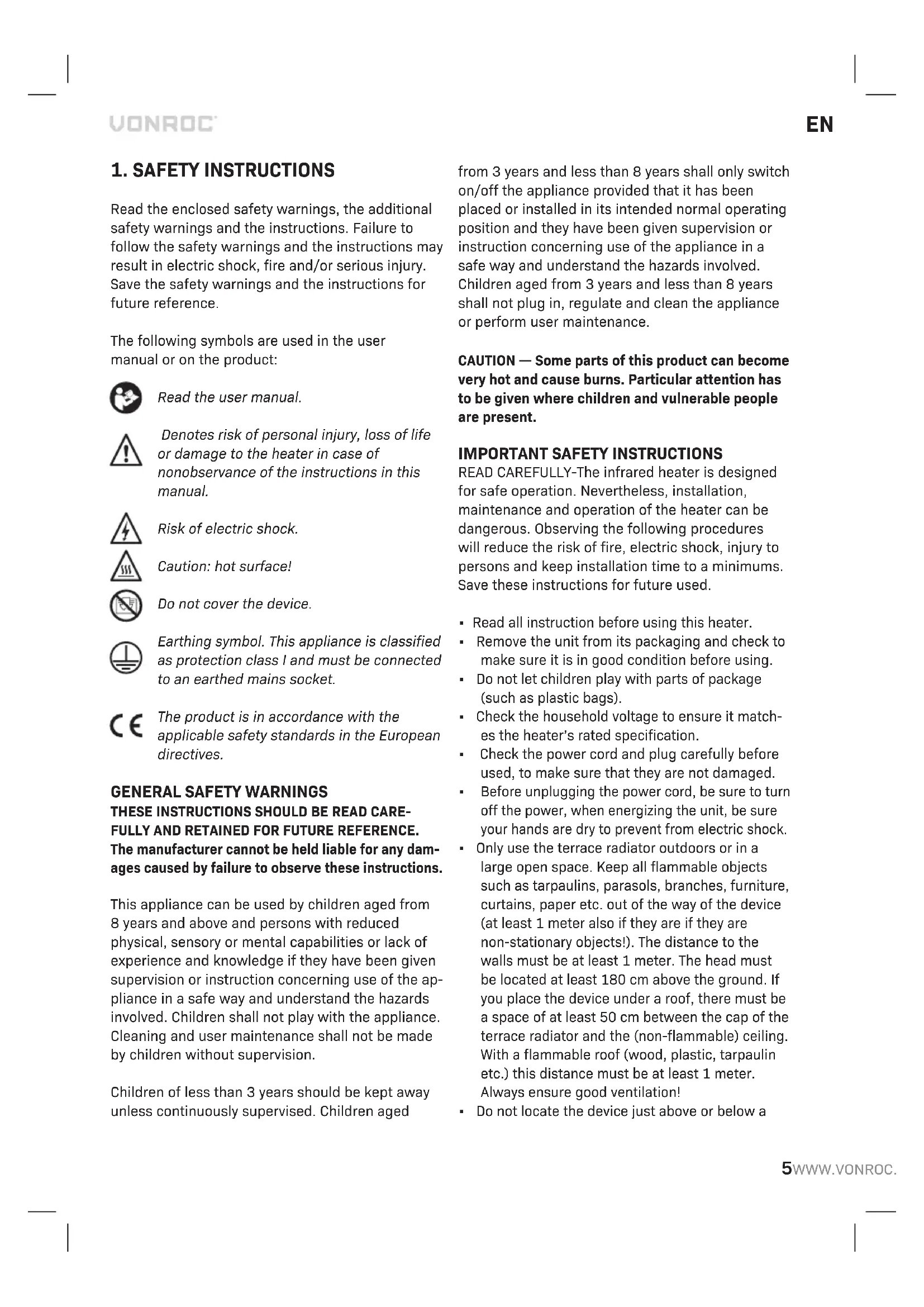

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the heater in case of nonobservance of the instructions in this manual.

Risk of electric shock.

Caution: hot surface!

Do not cover the device.

Earthing symbol. This appliance is classified as protection class I and must be connected to an earthed mains socket.

The product is in accordance with the applicable safety standards in the European directives.

GENERAL SAFETY WARNINGS THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. The manufacturer cannot be held liable for any damages caused by failure to observe these instructions.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised. Children aged

from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY-The infrared heater is designed for safe operation. Nevertheless, installation, maintenance and operation of the heater can be dangerous. Observing the following procedures will reduce the risk of fire, electric shock, injury to persons and keep installation time to a minimums. Save these instructions for future used.

• Read all instruction before using this heater.
• Remove the unit from its packaging and check to make sure it is in good condition before using.
• Do not let children play with parts of package (such as plastic bags).
• Check the household voltage to ensure it matches the heater's rated specification.
• Check the power cord and plug carefully before used, to make sure that they are not damaged.
• Before unplugging the power cord, be sure to turn off the power, when energizing the unit, be sure your hands are dry to prevent from electric shock.
• Only use the terrace radiator outdoors or in a large open space. Keep all flammable objects such as tarpaulins, parasols, branches, furniture, curtains, paper etc. out of the way of the device (at least 1 meter also if they are if they are non-stationary objects!). The distance to the walls must be at least 1 meter. The head must be located at least 180~cm above the ground. If you place the device under a roof, there must be a space of at least 50~cm between the cap of the terrace radiator and the (non-flammable) ceiling. With a flammable roof (wood, plastic, tarpaulin etc.) this distance must be at least 1 meter. Always ensure good ventilation!
• Do not locate the device just above or below a

wall socket (not in the immediate vicinity).

• The terrace heater is only intended for household use. You should not therefore use it on construction sites, in glasshouses, barns or stalls etc., even if they are largely open. There is usually too much flammable material there.
• Do not use this terrace heater as sauna heating or as a permanent space or room heater.
• Do not use this terrace heater in a kennel or any other location where animals are present.
• Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid. Despite the fact that the device is splash proof, you need to be careful with water. Ensure that it cannot fall into the water and do not expose it to powerful jets of water. Do not touch it with wet hands and do not place the device in the area immediately around a bath, washroom, swimming pool or other water supply, as this is dangerous.
• To protect against electric shock, do not immerse cord or plug in water or any other liquid.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the heater.
• Ensure there is sufficient light. The switches on the device must be properly visible from a distance of 1 meter.
  Always unplug the heater when not in use. Never leave the device unsupervised when in use, but switch it off and unplug. Do not use the device with a programmer, timer or any other device that switches the device on automatically.
• Do not use the heater with an external voltage regulator such as dimmer, speed controller etc. This produces an electrical hazard.
• Make sure that the cord does not hang over (sharp) edges, does not make strong curves, does not touch hot surfaces. Do not wrap the cord around the device.
• Do not allow cord to overhang the counter top where it can be easily pulled by children.
• Do not put fingers or foreign objects into the grill while in operation.
• Do not leave the appliance unattended when in use.
• This heater is not intended for use in bathrooms, laundry and similar indoor locations, never locate the heater where it may fall into a bathtub or other water container.
• No liability can be accepted for any damage caused by non-compliance with these instruc

tions or any other improper use or mishandling.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the device for any reason produces cracks or breaks, or if you establish any imperfection or interruption to the aluminium casing or any other part, immediately stop the operation of the device and take the plug from the socket.
• If the power cord is damaged in any way, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• To prevent overheating of this appliance, keep the air inlets and outlets clean and free of anything that may cause blockage. Check all inlets and outlets from time to time to ensure it is clear of any dirt or dust accumulation. DO NOT COVER. The warning label not to cover the device must also be placed in a clearly visible location after installation: it should not therefore be on the back.
• Parts of the heater may exceed 200^ , contact with the heating tube, reflector, or metal parts near the heating tube, may cause severe BURNS. To avoid burns, do not let bare skin touch the hot surface.
• NEVER place hands under the heating elements. ALWAYS allow heating element to cool at least 10 minutes before touching the heating tube or adjacent parts.
• Do not store any burnable liquids or materials like paint, petrol, gas tanks etc. in the immediate surroundings of the device. Don't use the device in flammable ambience, such as nearby combustible gas tanks, gas tubes or spray cans. Danger of explosion and fire!
• This product contains recyclable materials. Do not dispose this product as unsorted community waste. Please contact your local authorities for the nearest collection point.

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• If the supply cord of this power tool is damaged, it must be replaced by a specially prepared supply cord available through the service organization.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5mm^2 . If you use an extension cable reel, always fully unroll the cable.

2. MACHINE INFORMATION

Intended use

This product is designed as a patio heater for domestic environments. The heater is intended for private gardens or other outdoor areas at home. The heater may not be used to heat an indoor space, usage as a non-household outdoor space heater or for the drying of textiles or other materials. This heater is not equipped with a device to control the room temperature so do not use this heater in spaces when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. The device is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.

TECHNICAL SPECIFICATIONS

Model No. PH511AC
Voltage 220-240 V ~
Frequency 50-60 Hz
Power 2200W
Power settings	1: 730W 2: 1460W 3: 2200W
Heating element type Quartz
Heating time 20 seconds
Wave length 1.4-3.0
Radiant efficiency 60%
Heating distance 3-4m
Heating area 15m²
Electronic soft start Yes
Ingress protection class	IP34
Protection class	Class I
Weight	1.50 kg

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-4.

1. Heater
2. Protective grill
3. Power level indicator
4. Power cable
5. Pull cord (on/off switch)
6. Upper tube
7. Small cable holder
   8.Middle tube
8. Large cable holder
9. Lower tube
   11.Cover
10. Baseplate
11. Long bolt
12. Short bolt
13. Clamping ring
14. Extendable tube
    17.Screws

3. ASSEMBLY

This heater should be installed by a competent person, i.e. a qualified electrician.

Always disconnected the heater from the electrical supply and allow it to cool before installation.

Assembling the heater (Fig. B-F)

Always mount the device with the supplied accessories.

Before starting to assemble the device, take the following into consideration:

• Place the device on a firm, level surface. The device may never be placed at an angle!
• The device must be placed so that there is 100 cm of free space between the heater and object or wall, measured from the front or side. There must be at least 1.80m between the ground and the underside of the device. There must be at least 30cm clearance between the device and the ceiling.
• Do not install the heater on or near an inflammable surface.
  If the heater is to be used outside, a weatherproof outlet is highly recommended.
• Before drilling ensure that there are no wires or

water pipes in the area where the heater is to be installed.

1. Start by mounting the lower tube (10) onto the baseplate (12). Tighten the long bolts (13) as shown on figure B.
2. Slide the cover (11) onto the lower tube (10) as shown on figure B. This will hide the bolts (13) from plain sight.
3. Take a large cable holder (9) and put it on the middle tube (8) as shown in figure C.
4. Now put the middle tube (8) onto the lower tube (10). Ensure the holes in both tubes align. Now tighten with the short bolts (14) as shown in figure C.
5. Take a large cable holder (9) and put it on the upper tube (6) as shown in figure D.
6. Now put the upper tube (6) onto the middle tube (18). Ensure the holes in both tubes align. Now tighten with the short bolts (14) as shown in figure D.
7. Untighten the clamping ring (15) on the upper tube (6) by turning it anti-clockwise. Now, the extendable tube (16) can be extended upwards by pulling it.
8. When the desired height is reached, righten the clamping ring (15) on the upper tube (6) by turning it clockwise.
9. Take the small cable holder (7) and put it on the extendable tube (16) as shown in figure D.
10. Slide the hole on the underside of the heater (1) onto the extendable tube (16) as shown on figure E.
11. Ensure the two holes in the the heater (1) align with the holes in the extendable tube (16).

4. OPERATION

Switching on/off (Fig. A)

The heater can be turned on and off using the pull cord. Pull the cord of the pull switch (5) until the desired heating level appears on the heating level indicator (3):

• Level 0 = switched off
• Level 1 = 730W
• Level 2 = 1460W
• Level 3 = 2200W

To turn the heater off, pull the cord of the pull switch (5) to the 0 level position.

Tip over safety switch (Fig. A)

This heater is fitted with a tip-over safety switch. In the event that the heater falls over, the heater automatically shuts off. Please note that when the heater is returned to its upright position, it does not resume its operating immediately. First switch it off (read 'switching on/off'), remove the plug from the socket and check the heater for damage. In case of damage or malfunctioning do not use but offer for checking / repair. If there is no damage, you can simply switch the heater on again (read 'switching on/off').

5. MAINTENANCE

Always make sure that the machine is not connected to the mains electricity when you carry out any maintenance of the mechanism.

CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

DO NOT use alcohol, gasoline, abrasive powders, furniture polish or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
- DO NOT immerse the heater in water.
- Wait until the heater is completely dry before use.

ATTENTION:

1. Always disconnect the heater from the electricity supply and allow it to cool before attempting to clean it.
2. If the heater has collected dust or dirt inside the unit or around the heating element, have to unit cleaned by a qualified service agent. Do not operate the heater in this condition.
3. The only maintenance required is cleaning of the external surfaces of the heater.
4. Do not touch the heating element with bare fingers, as residue from your hand could affect the life of the lamp. If it is accidentally touched, remove the finger marks with a soft cloth mois

tened with mentholated spirit or alcohol.

1. Do not attempt to repair or adjust any electrical or mechanical functions on this heater.
2. The heater contains no user serviceable parts. Should the product suffer damage or breakdown, it must be returned to the manufacturer or its service agent.
3. Damaged supply cords to be replaced by the manufacturer, service agent or similarly qualified person in order to avoid hazard.

Storage

Store the heater in a cool, dry location when not in use to prevent dust and dirt build up. Use packaging carton to store.

Trouble Shooting

If the heater will not operate, please check the following before seeking repair or service:

• Check if the power cord is plugged into an electrical outlet, if not plug in.
• Check if electricity to the main fuse is working.
• Make certain the power switches are turned on. If not, choose a setting.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact your VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
  Normal wear and tear;
• The tool has been abused, misused or im-properly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face thereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
