Product type	Lavalier microphone
Brand	Samson
Model	LM7x
Microphone element	Electret condenser
Capsule dimension	6.59 mm
Polar pattern	Unidirectional
Frequency response	50 Hz - 16 kHz
Sensitivity	-37 dB 1V/Pa ±3 dB at 1 kHz
Output impedance	2.2 kΩ ± 30%
Maximum sound pressure level	130 dB
Operating voltage	1.5 to 12 V DC
Cable length	4 × 1.2 m
Included adapters	3.5 mm (1/8 in), Hirose 4-pin, Switchcraft TA3F, Switchcraft TA4F
Accessories included	1 fuzzy windscreen, 4 standard windscreens, clip, carrying pouch
Weight	2 g
Housing material	Marine-grade stainless steel
Recommended positioning	20-25 cm from the chin, aimed toward the mouth
Maintenance and cleaning	Clean with a dry, lint-free cloth. Avoid moisture and chemicals.
Safety	Do not expose to extreme temperatures, rain, or excessive moisture. Disconnect before any maintenance.
Repairability	Spare parts not available. Contact Samson support for any repairs.

Frequently Asked Questions - LM7x SAMSON

How to attach the LM7x microphone?

Attach the microphone to the shirt or jacket using the provided clip, about 20 to 25 cm from the chin, with the capsule aimed toward the mouth. Make a small loop with the cable to reduce cable noise.

What adapters are included with the LM7x?

The LM7x comes with four cables and adapters: a 3.5 mm connector (for Sennheiser), a Hirose 4-pin connector (for Audio-Technica), a Switchcraft TA3F connector (for AirLine and AKG), and a Switchcraft TA4F connector (for Shure).

What is the polar pattern of the LM7x?

The LM7x has a unidirectional (cardioid) polar pattern. It primarily picks up sound from the front, improving separation and reducing ambient noise.

How to reduce wind or breath noise?

Use one of the included windscreens: a fuzzy windscreen for maximum reduction, or the standard windscreens. Place it over the microphone capsule.

Can the LM7x be used with other wireless systems?

Yes, thanks to the four included adapters, it is compatible with most portable wireless transmitters from Sennheiser, Audio-Technica, AKG, and Shure.

How to choose the right adapter for my system?

Refer to the table in the manual: the 3.5 mm connector fits Sennheiser systems, the Hirose 4-pin fits Audio-Technica, the TA3F fits AirLine/AKG, and the TA4F fits Shure. Align the cable with the threaded terminal and screw gently without forcing.

What is the sensitivity of the LM7x?

The sensitivity is -37 dB 1V/Pa ±3 dB at 1 kHz, which is a standard value for lavalier microphones.

How to clean the LM7x microphone?

Clean the microphone with a soft, dry cloth. Avoid water, solvents, and abrasive cleaners. Protect it from excessive moisture.

What is the operating voltage of the LM7x?

The LM7x operates with a voltage of 1.5 to 12 V DC, making it compatible with most wireless transmitters.

Where can I find the full manual for the LM7x?

You can download the PDF manual for free at notice-facile.com. It contains all technical details, diagrams, and instructions.

USER MANUAL LM7x SAMSON

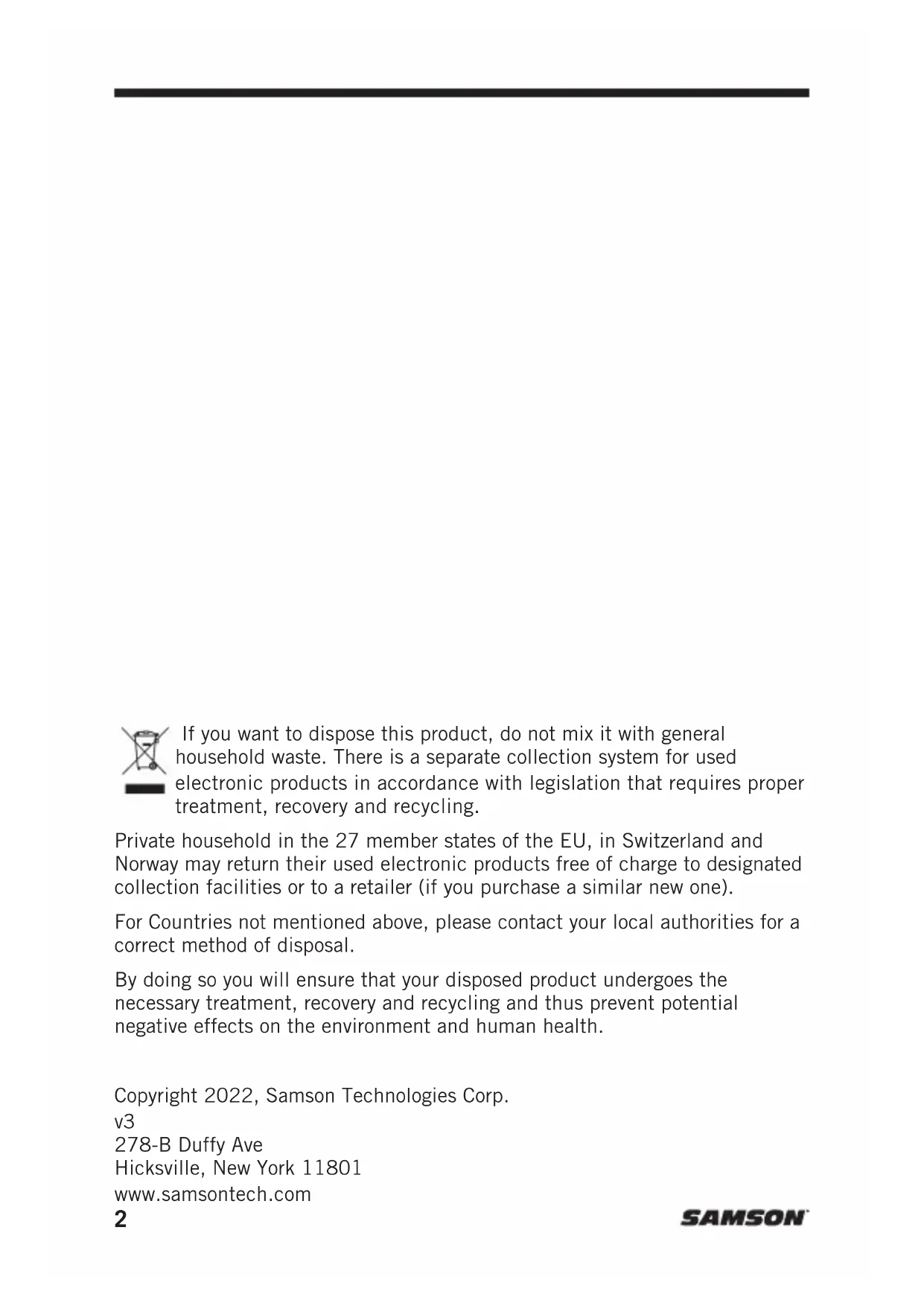

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private household in the 27 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Copyright 2022, Samson Technologies Corp.

v3

278-B DuffyAve

Hicksville, New York 11801

www.samsontech.com

Introduction

Thank you for purchasing the Samson LMx lavalier microphone! Delivering outstanding audio quality, the LMx lavalier microphones are perfect for presentations, broadcast, theater and worship application.

The LM7x is a features a 6.84mm capsule in a marine-grade stainless steel housing. It has a unidirectional pick up pattern, which captures more sound in front of the microphone, creating better separation and isolation which translates to more gain before feedback and less pickup of ambient room sounds.

The LM10x is a low profile microphone with a 3mm capsule with omnidirectional pick up pattern. The microphone's off axis frequency response is linear, resulting in a clear and articulate reproduction regardless of the position of the capsule relative to the sound source.

The LMx lavalier microphones are particularly well-suited for use with Samson wireless systems and with four included adapters, the microphones can be used with most any other manufacturer's wireless body pack systems. The kit also includes four windscreens and carry case.

Manufactured with extreme care and the highest quality components, LMx lavalier microphones deliver exceptionally clear, articulate sound with reliable performance. If you have any questions or comments regarding the LMx Lavalier Microphone or any other products from Samson, do no hesitate to contact us at [e-mail].

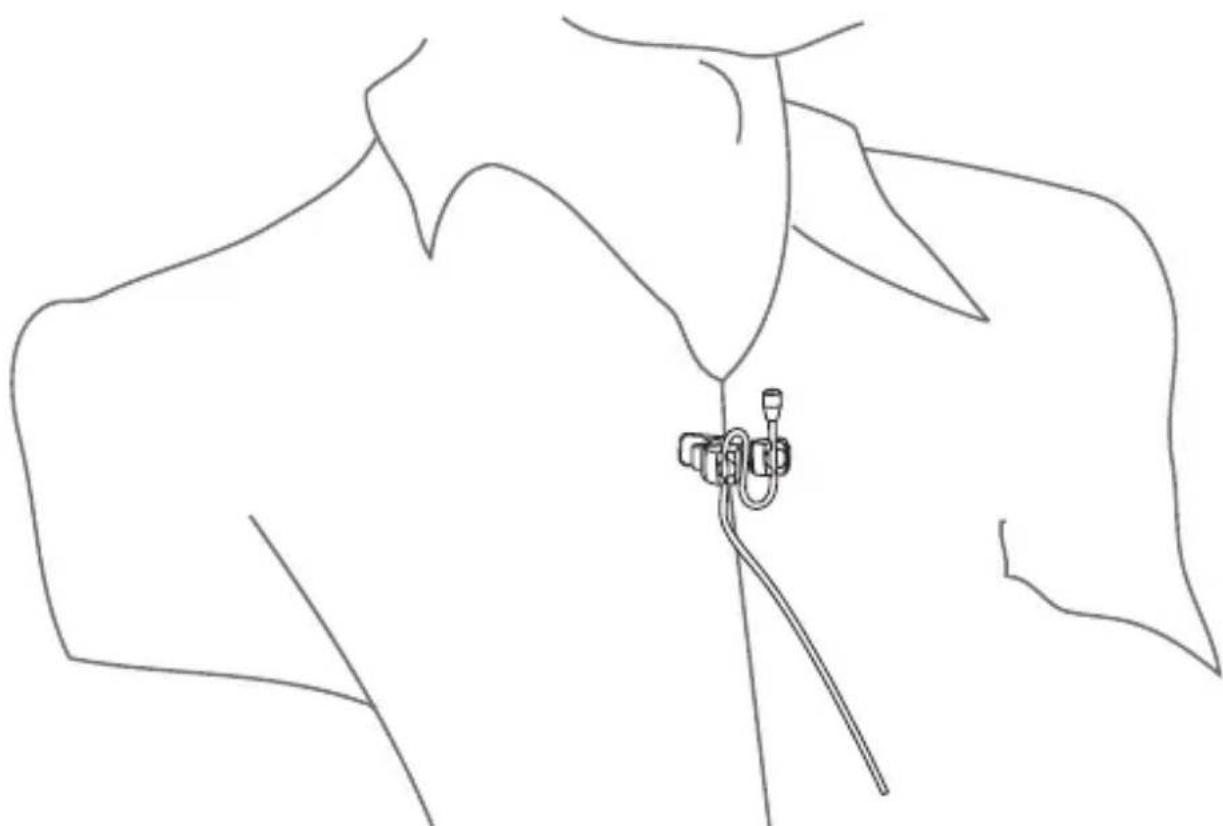

Positioning the LM10x

• Attach the microphone to the performer's shirt or jacket, using the included microphone clip, approximately 8"–10" below their chin with the microphone facing towards their mouth.
• Using a small loop in the microphone cable will help reduce cable noise when the performer moves.
• Use one of the included windscreens to reduce breath or wind noise, when using outdoors.
• To further conceal the microphone, it can be placed behind clothing, but this will affect the high frequency performance of the microphone, behind a button, in the performers hairline or even taped to a pair of glasses.
• With the performer talking into the microphone, listen to the quality of the audio, and adjust the positioning of the microphone until a balanced sound is reached.

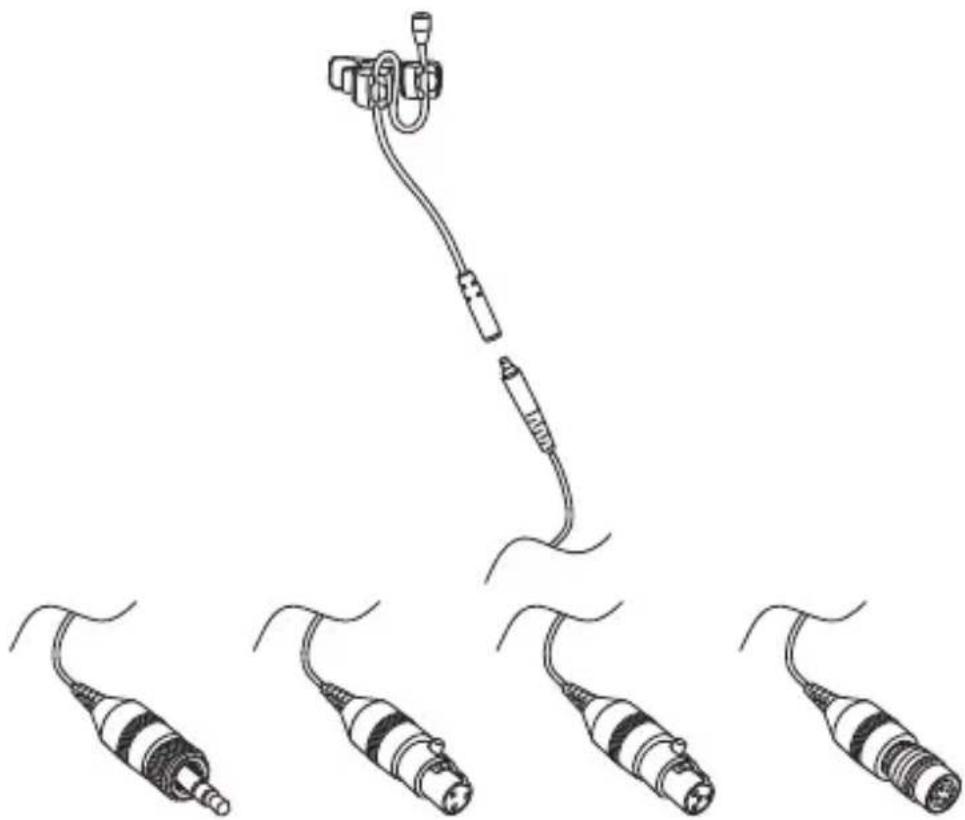

Using the detachable connectors

LM7x and LM10x lavalier microphones include four cables with adapters for some of the most popular wireless microphone body pack transmitters.

3.5mm Connector

Works with Sennheiser wireless systems

Hirose® 4-Pin Connector

Works with Audio-Technica® wireless systems

Switchcraft® TA3F Connector

Works with Samson AirLine ATX Series, Concert Series and most AKG® wireless systems

Switchcraft® TA4F Connector

Works with most Shure® wireless systems

Choose the right cable and connector that works with your wireless system.

Line the cable up to the threaded terminal on the LM10x microphone cable and screw the cable into the headset. Do not over tighten the cable.

Specifications

LM7x

Microphone Element Back electret condenser

Capsule Dimension 6.59mm

Polar Pattern Unidirectional

Frequency Response 50Hz-16kHz

Sensitivity -37dB 1 V/Pa ±3dB at 1kHz

Output Impedance 2.2k ± 30%

Max.SPL 130dB

Operating Voltage 1.5-12V DC

Cables 4x 1.4mm^*1.2m

Adapters 1/8" (3.5mm), Hirose 4-Pin, Switchcraft TA3F, Switchcraft TA4F

Accessories 1x "cat fur" windscreen, 4x standard

windscreens, mic clip, carry case

Product Weight 0.07oz / 2g

LM10x

Element Back electret condenser

Polar pattern Omnidirectional

Frequency Response 20Hz-20KHz

Sensitivity -45dBV/Pa @1kHz ±3dB

Output impedance 2k ± 30%

Maximum SPL 130dB

Self-Noise 30dB(A)

Dynamic Range 100dB

Operating voltage 1.5-12V DC

Cables 4x 01.4mm x 1.2m

Adapters 1/8" (3.5mm), Hirose 4-Pin, Switchcraft TA3F, Switchcraft TA4F

Accessories 4x standard windscreens, mic clip, carry case

Product Weight 0.15oz / 4.2g

At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice.

Specifications

LM7x

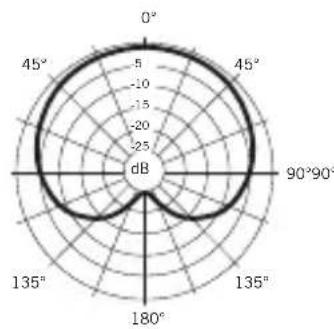

Polar Pattern

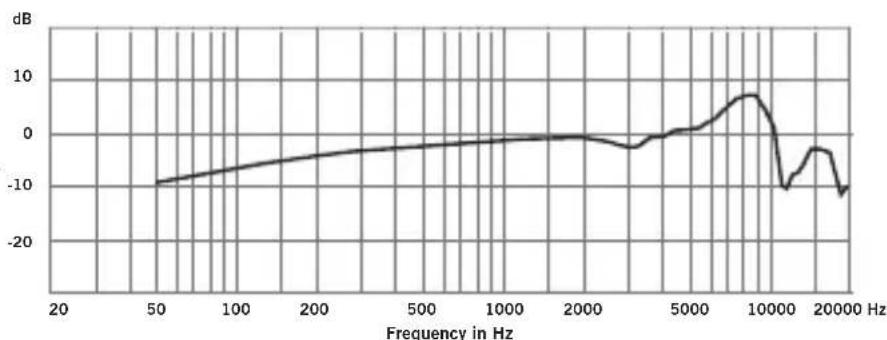

Frequency Response

LM10x

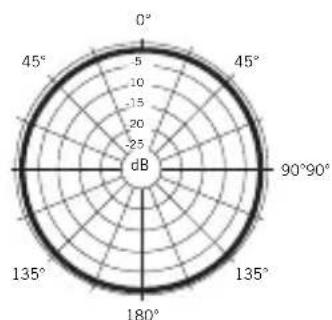

Polar Pattern

Frequency in Hz

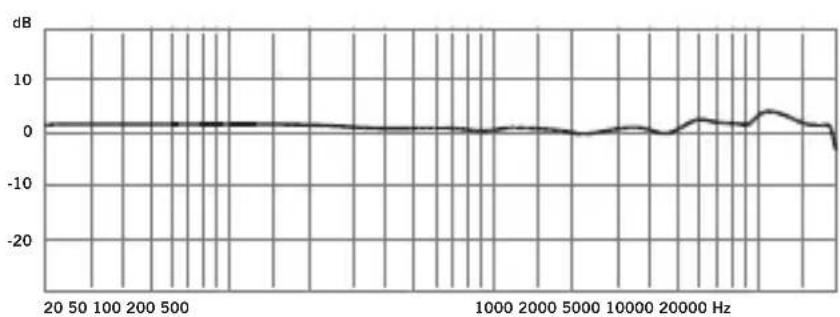

Frequency Response

TA3F Switchcraft®, TA4F Switchcraft®

TA3F Switchcraft®, TA4F Switchcraft®
