5DB96453 - Basket BLAUPUNKT - Free user manual and instructions

Brand	Blaupunkt
Model	5DB96453
Product type	Extractor hood (evacuation or recirculation version)
Installation type	Island or wall-mounted
Power supply	220-240 V, 50 Hz
Cable length	1250 mm
Required electrical protection	30 mA residual current device
Maximum air flow	>650 m³/h
Number of speeds	4 + auto mode
Lighting	LED, 4000 K (standard), dimmable and color temperature adjustable with optional remote control
Grease filter	Metallic, dishwasher-safe (short cycle, low temperature)
Charcoal filter	Active, replace every 6 months (non-washable)
Minimum safety distance	65 cm (for electric, mixed, or gas hobs)
Special functions	Auto mode with coupled induction hob, multi-control, automatic shutdown after 4 hours of inactivity, 7-minute delay on last speed (flow >650 m³/h)
Automatic shutdown	Yes (4 hours after last button press)
Delay	7 minutes on last speed (flow >650 m³/h)
Auto mode	Activated from a coupled induction hob
Multi-control	Coupling/decoupling with cooking hob
Optional remote control	For lighting control (color temperature and brightness) - references BLZ 501 (receiver) and BLZ 502 (remote control)
Maintenance	External cleaning with a cloth and mild detergent; avoid abrasive products
Spare parts available	Grease filter, charcoal filter, BLZ 501 receiver, BLZ 502 remote control
Technical service	Contact Blaupunkt after-sales service
Compliance	WEEE Directive, CE
User manual	88 pages, available in several languages

Frequently Asked Questions - 5DB96453 BLAUPUNKT

How to install the hood?

Wear work gloves. Respect the minimum distance of 65 cm between the hood and the hob. Make sure the wall can support the weight. The hood can be installed in external evacuation version or in recirculation version with charcoal filter. Follow the diagrams in the manual.

What is the minimum distance between the hood and the hob?

The minimum distance is 65 cm for electric, mixed, or gas hobs. If the hob instructions specify a greater distance, that takes precedence.

How to clean the grease filters?

The metallic grease filters should be cleaned once a month in the dishwasher (short cycle, low temperature) or by hand with a non-aggressive detergent. The dishwasher may discolor the filter without affecting its performance.

When to replace the charcoal filter?

The active charcoal filter should be replaced every 6 months under normal use. It is not washable or recyclable.

What to do if the hood does not turn on?

Check that the hood is plugged in and that the 30 mA residual current device is activated. Ensure that the voltage matches that indicated on the label. If the problem persists, contact technical support.

How to couple the hood with an induction hob?

Start the coupling procedure from the hob (see hob manual). On the hood, press buttons B and D simultaneously (buttons A and F flash). Press A to save. Confirmation by flashing of the lights.

How to use the remote control for lighting?

Install the receiver (BLZ 501) by removing the stick from the hood. Pair the remote control (BLZ 502) by pressing the Learning button on the receiver for 10 seconds, then briefly on the desired zone on the remote control. The remote controls color temperature and brightness.

Why is the F symbol flashing?

The F symbol flashes after 40 hours of operation to indicate that the grease filter needs cleaning. If it remains steadily lit after 120 hours, the charcoal filter must be replaced.

How to reset the filter alert?

Press the F button (filter reset) to clear the grease filter saturation alert (flashing) or the charcoal filter replacement alert (steady).

What to do in case of LED lighting malfunction?

The LED lamps cannot be changed individually. Contact technical support to replace the entire lighting unit.

USER MANUAL 5DB96453 BLAUPUNKT

Illustration of two gloves with textured soles (no text or symbols)

EN Always wear work gloves for all installation and maintenance operations

L mm X mm L mm X4 =650 H =650

L= X-H-265

Technical diagram of a mechanical device with numbered components and safety warning indicators

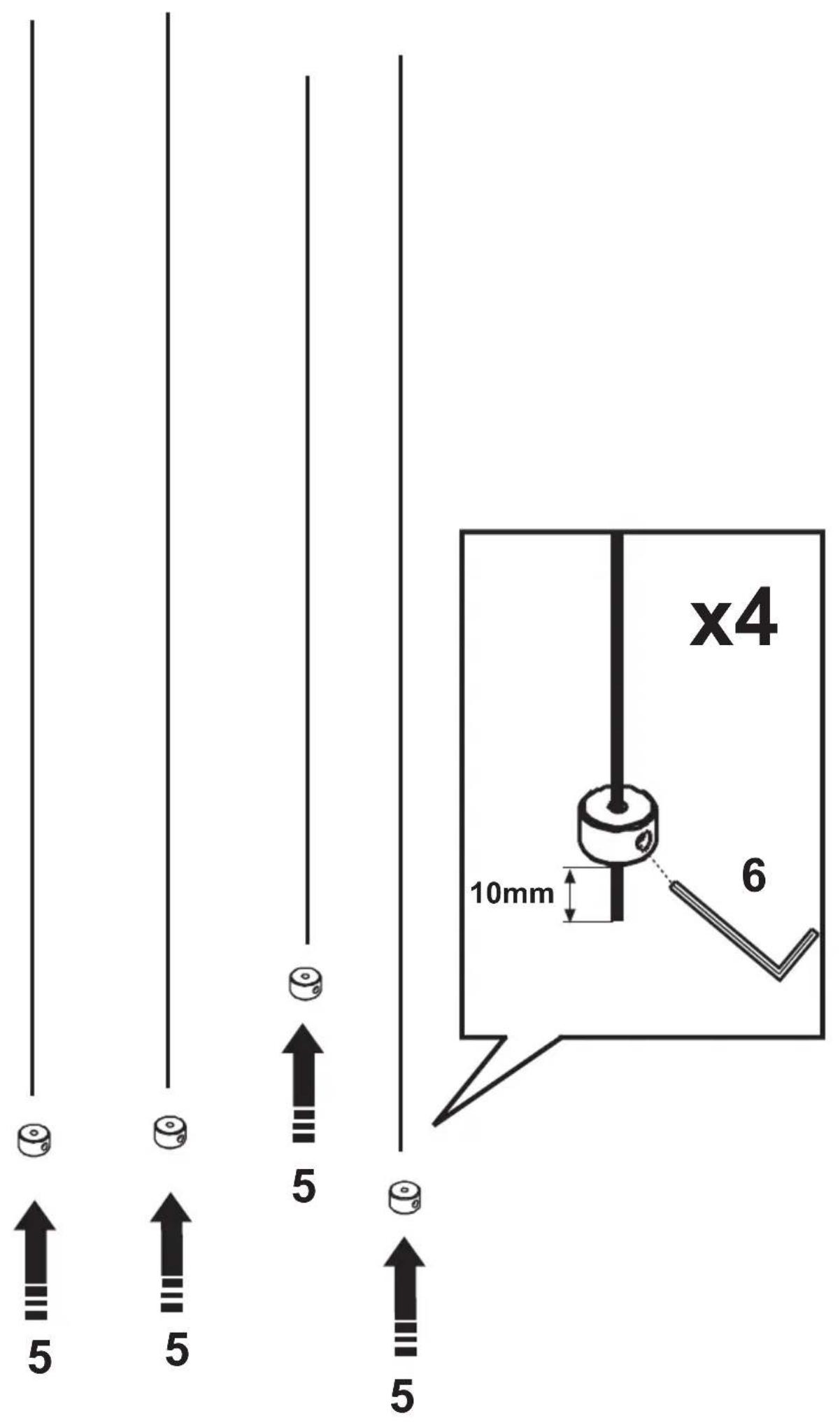

12 12 12 12 11 11 10mm 13 x4

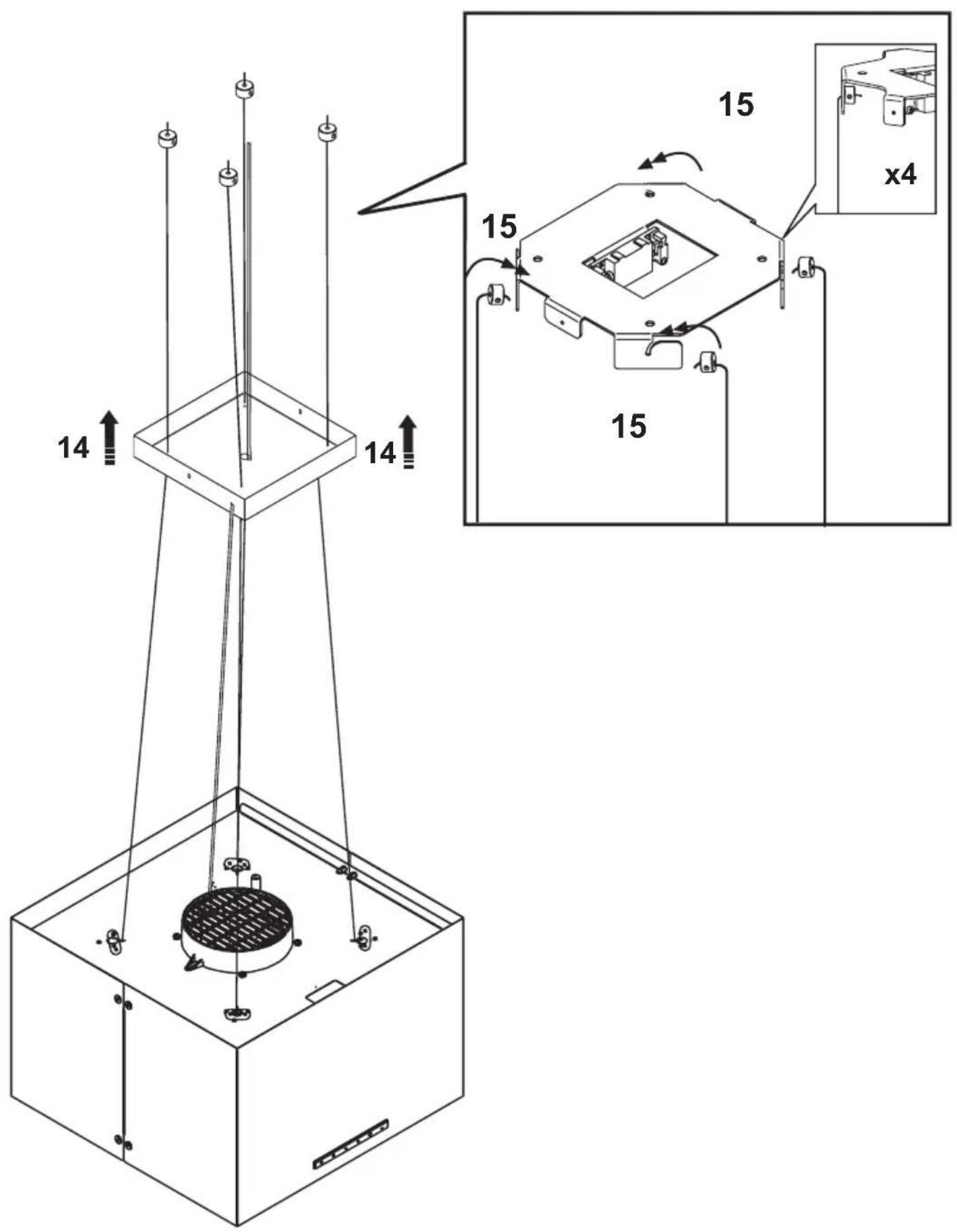

14 14 15 x4 15 15

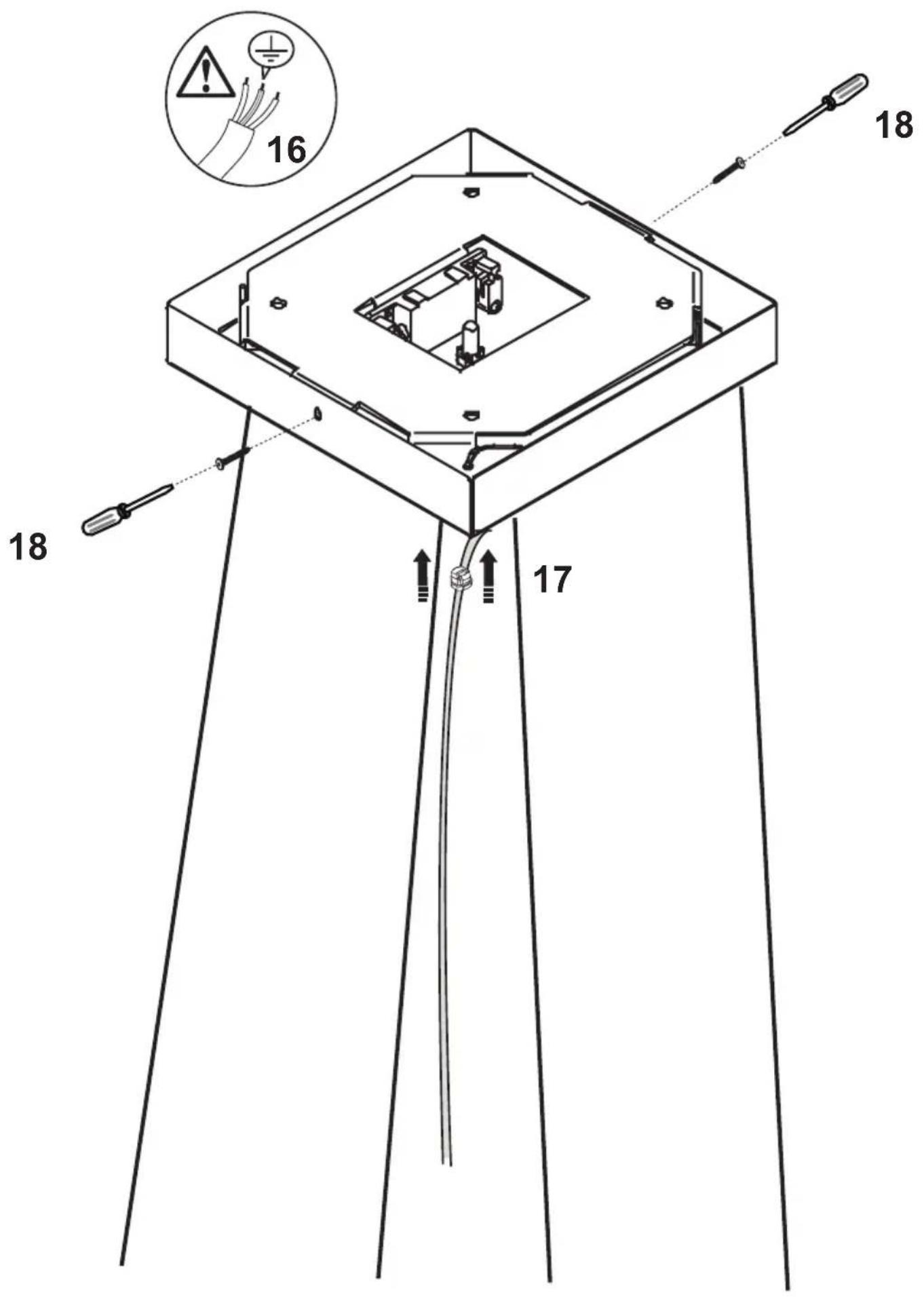

16 18 17

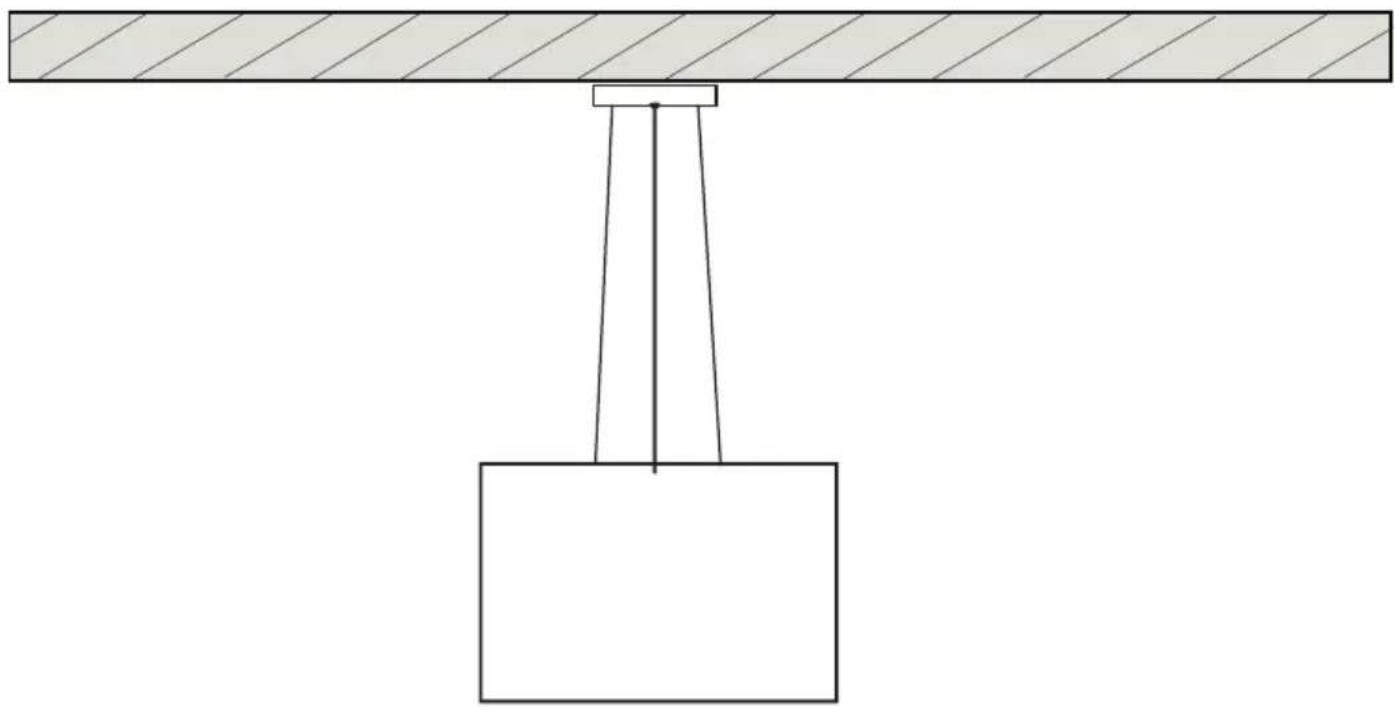

Simple line drawing of a suspended object with a horizontal bar and vertical support (no text or symbols)

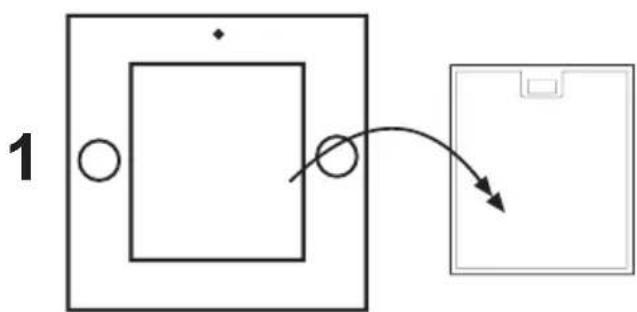

2 - Turn on the motor at the higher speed

3 F

4

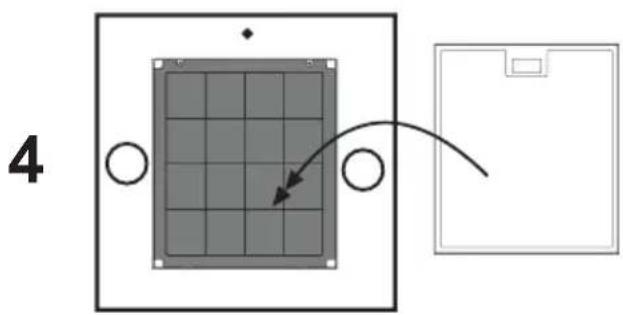

Technical line drawing of a mechanical device with a central mesh chamber and support components (no text or symbols)

Warnung

Diagram of a device emitting blue light beams, with a light bulb and vertical line indicating a component (no text or symbols)

Isometric line drawing of a kitchen counter with blue airflow indicators (no text or symbols)

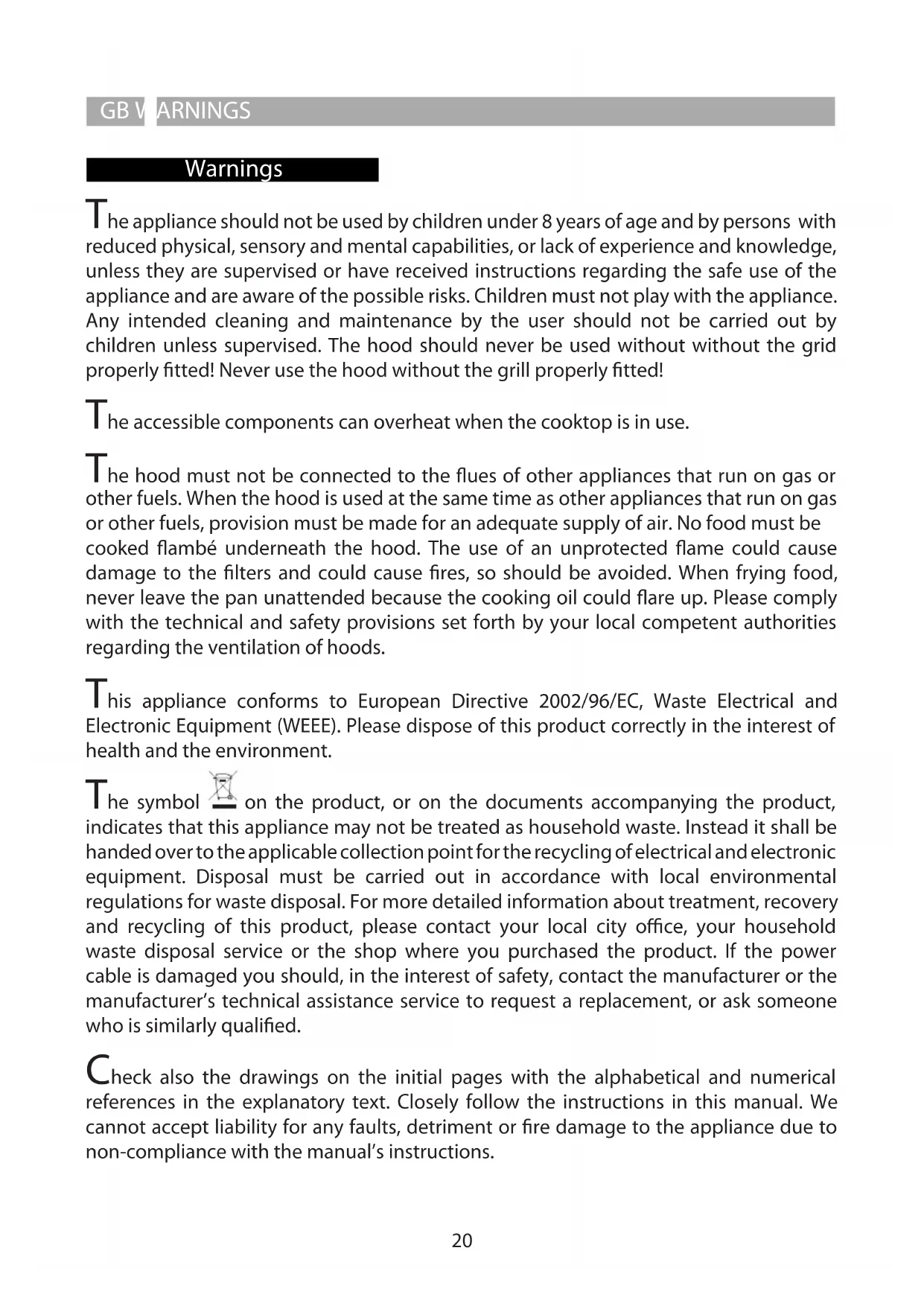

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📄 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

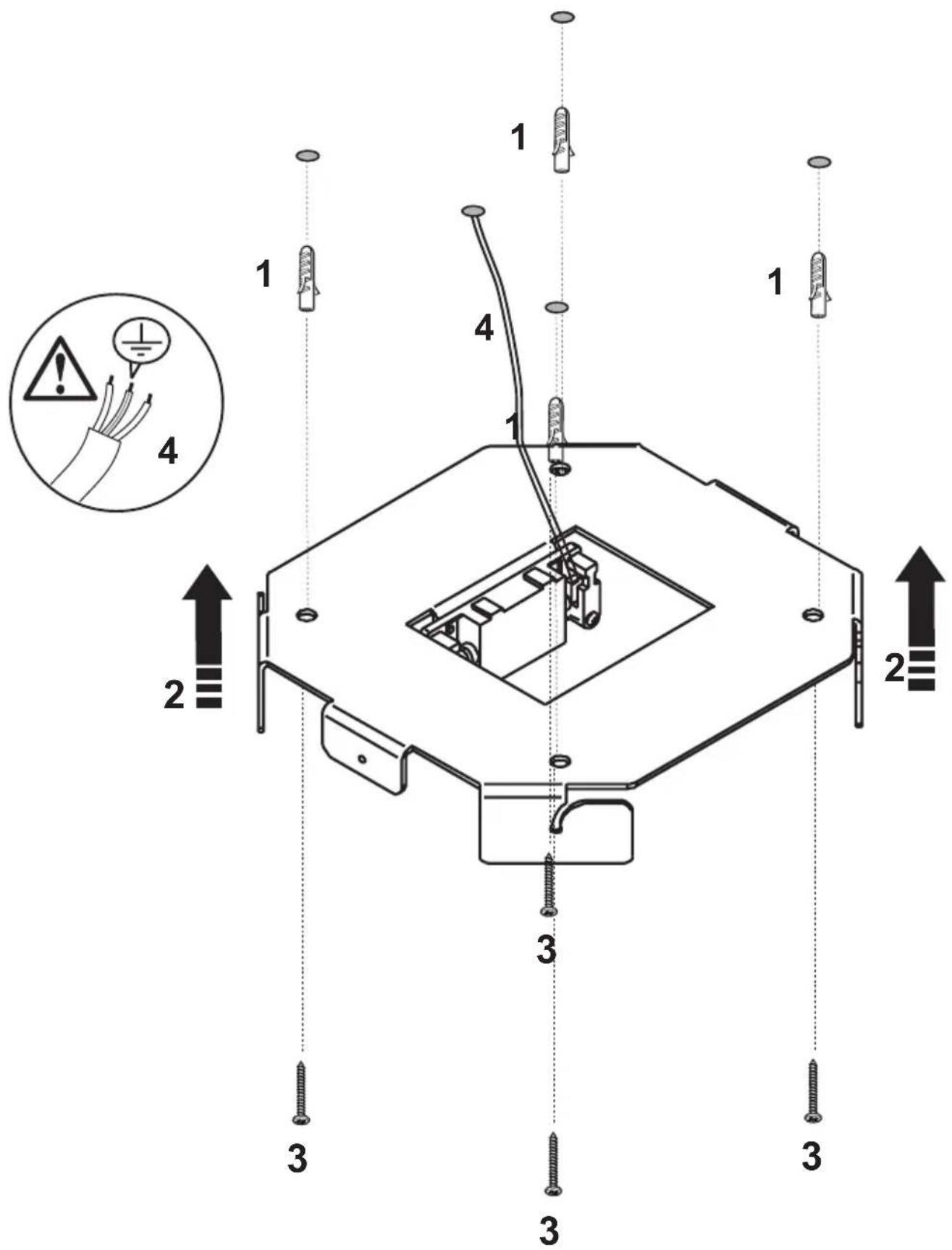

You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane for electric cookers and 65cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

If the cooking top is in use, the cooker hood must always operate.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

TSL

A C B D E F

With the hood switched off, pressing any key will activate the control panel in stand-by mode. The symbols are backlit by a white light, allowing you view and select the desired function.

Pressing one of the keys again will start the corresponding function, and its symbol will light up. After all functions have been switched off, the control panel will remain in stand-by mode for around 30 seconds and then switch off automatically.

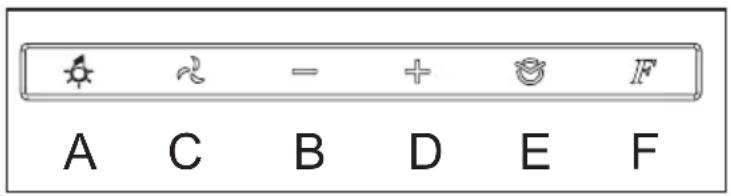

A: Light ON/OFF key: press this touch sensor to switch on or off the lights of the hood.

C: Motor ON/OFF key (4 speed): press this touch sensor to switch on the hood extractor fan at the same speed as it was when last switched off. Use the „D“ and „B“ keys to vary the speed (power) of extraction.

B: Decrease extraction speed (power) key: press this touch sensor to reduce the extraction speed of the hood.

D: Increase extraction speed (power) key: press this touch sensor to increase the extraction speed of the hood.

E: Timer key: when this touch sensor is pressed, independently of the extraction speed selected, the timer function will be activated. Press once to set the timer for 5 minutes, press a second time for 10 minutes and a third time for 20 minutes. During this phase, the „E“ symbol will flash.

To reset the timer, press the motor key, "C"

F: Reset filters key: press this touch sensor to reset the signal that warns that the metal grease filter (1) is saturated and the charcoal filter (2) should be replaced. (1) After 40 hours of using the hood, the „F“ symbol will flash to indicate the necessity of cleaning the metal grease filters.

(2) After 120 hours of using the hood, the „F“ symbol will light up to indicate the necessity of replacing the activated charcoal filters.

Note: 4 hours after the last key touch, the fan will automatically turn off.

All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.

Auto Mode

The AUTO mode is activated exclusively from the Paired Induction Hob.

The paired induction hob can control the suction power of the hood. The way in which this power is controlled depends on the way in which the user sets the hob (refer to the hob manual).

When the induction hob is switched on, the hood lights are switched on at maximum intensity. When the induction hob is switched off, the status of the lights is not changed.

Multicontrol pairing

Start the pairing procedure on the hob (refer to the hob manual).

Press keys B+D simultaneously (keys A and F will flash alternately).

Press key A to memorise the hob (the hood spotlights will flash three times in confirmation).

Close the pairing procedure on the hob (refer to the hob manual).

Multicontrol disconnection

The procedure is used to delete the previous hob from the hood memory.

Press keys B+D simultaneously (keys A and F will flash alternately).

Press key F to delete the memorised hob (the hood spotlights will flash three times in confirmation).

Connection of the receiver and programming of remote control for optional expanded Multi Control Function (Control of light color and dimming)

c (1) (2) (a) θ (c) θ (3)

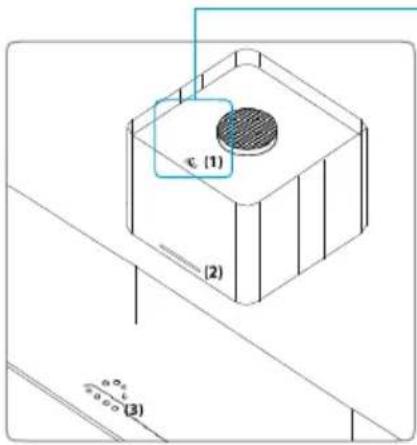

Fig. 1 Extractor in standard design with Stick (1) and control panel (2) The hood is controlled via the master switch on the cooking plate (3) or the control panel of the hood. The color temperature is 4.000 K.

Diagram of a device emitting blue light beams, with a light bulb and fan nearby (no text or symbols)

Fig. 2 The optional control for additional light features is installed easily The mounting of a receiver (order number BLZ 501) and the coupling with the remote control (order number BLZ 502) allow the control of the color temperature and the brightness of the hood.

(1) (4)

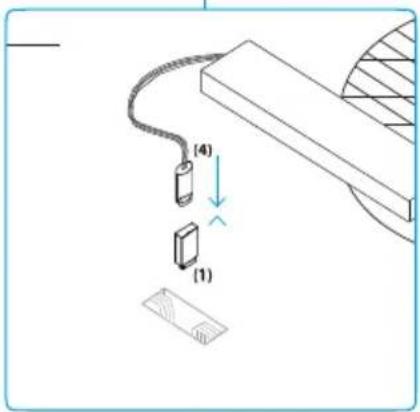

Fig. 3 Simple mounting of the Receiver The receiver is installed easily without extra tools. Remove the Stick (1) at the top side of the hood and insert the Receiver (4)

(5) (4)

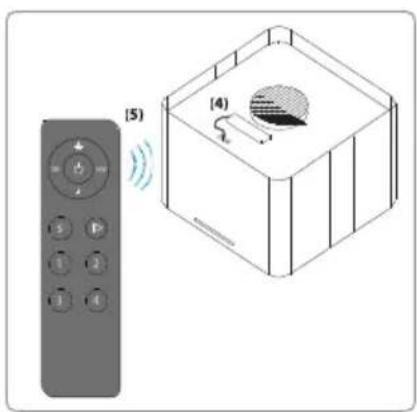

Fig. Coupling the Receiver (4) and optional Remote Control (5)

1. Remove the protective film from the battery
2. For the teaching of the remote control, press and hold the Learning Key on the Receiver (4) for 10 seconds.
3. Quick-press the Learning Key on the Receiver (4) and press directly the desired Zone (1 2 3 4) on the Remote Control
4. LED lights will flash once – receiver is logged in
5. For clearing the Learning Key, press for 10 sec. on the Receiver (4)

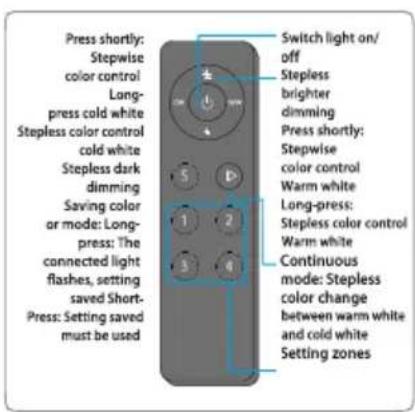

Press shortly: Stepwise color control Long- press cold white Stepless color control cold white Stepless dark dimming Saving color or mode: Long- press: The connected light flashes, setting saved Short- Press: Setting saved must be used Switch light on/ off Stepless brighter dimming Press shortly: Stepwise color control Warm white Long-press: Stepless color control Warm white Continuous mode: Stepless color change between warm white and cold white Setting zones

Fig. 5 Remote Control Functions

INSTRUCTIONS

The remote control operates the light features, but not the operation of the extractor hood. If the light has been switched off via the remote control, switching on again is only allowed via the remote control.

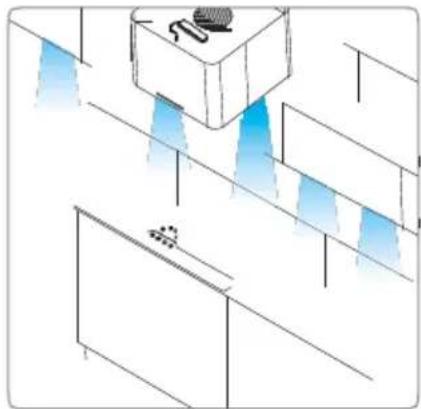

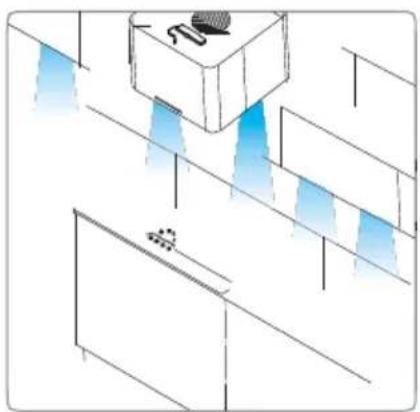

Isometric view of a room with blue lighting and a ceiling-mounted device (no text or symbols visible)

Fig. 6 Coupling with the light system of the kitchen If this technology is available in your kitchen, the coupling between the hood and the light system is allowed and will provide a perfectly harmonious look combined with uniform light color

Meinfoatwww.baupurkeirbaugastecon/defnollicord.html

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

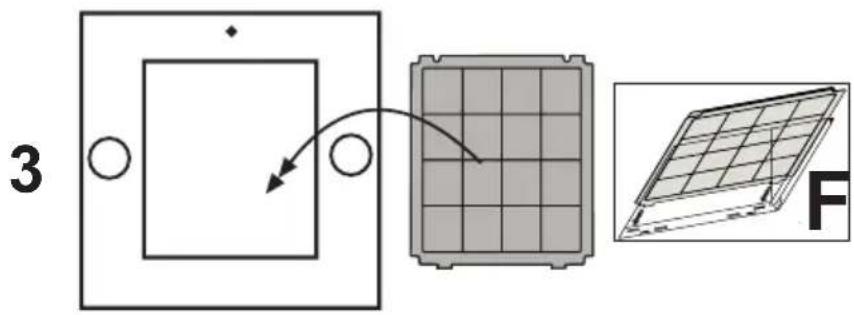

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.

Replacing lightbulbs

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Attention

a [1] (2) (3)

Diagram of a device emitting blue light beams, with a light bulb and dashed line indicating a component (no text or symbols)

Illustration of a remote control with a 3D box containing a circular vent and labeled parts (4), no text or symbols present.

Isometric view of a storage room with blue gradient shading and a numbered block (no text or symbols)

Diagram of a device emitting blue light beams, with a light bulb and dashed line indicating a dimension (no text or symbols)

Isometric view of a room with blue gradient walls and a white container (no text or symbols)

Diagram of a device emitting blue light beams, with a light bulb and a lid nearby (no text or symbols)

Isometric view of a mechanical assembly with blue gradient surfaces and a labeled component (no text or symbols)

Diagram of a device emitting blue light beams, with a light bulb and dashed line indicating a tip (no text or symbols)

Illustration of a remote control with a circular vent and labeled parts (4) and (5), alongside a 3D box diagram showing airflow or movement (no text or symbols on the device itself)

Isometric view of a kitchen counter with blue gradient lighting and a hanging container (no text or symbols)

Bortkoppling multicontroll

Diagram of a device emitting blue light beams, with a light bulb and dashed line indicating a dimension (no text or symbols)

Isometric view of a room with blue lighting and a white cabinet, no visible text or symbols

Diagram of a device emitting blue light beams, with a light bulb and a vertical scale bar (no text or symbols)

Illustration of a remote control with a circular vent and a 3D box, no text or symbols present

Isometric view of a mechanical assembly with blue gradient surfaces and a labeled component (no text or symbols)

Diagram of a device emitting blue light beams, with a light bulb and a fan-like object above (no text or symbols)

Isometric view of a room with blue lighting and a white box labeled '20' (no text or symbols on the main scene)

Diagram of a showerhead emitting blue light beams, with a light bulb and dashed line indicating a height or level (no text or symbols)

Sl. 2 Opciona kontrola za dodatne funkcije svetla se jednostavno instalira Montaža prijemnika (broj za porudžbinu BLZ 501) i spajanje sa daljinskim upravljačem (broj za porudžbinu BLZ 502) omogućavaju kontrolu temperature boje i osvetljenosti aspiratora.

(1) (4)

Sl. 3 Jednostavna montaža prijemnikaPrijemnik se lako instalira bez dodatnih alata. Uklonite štapić (1) na gornjoj strani aspiratora i postavite prijemnik (4)

(5) (4)

Sl. Spajanje prijemnika (4) i opcionalnog daljinskog upravljača (5)

1. Skinite zaštitni film sa baterije
2. Za programiranje daljinskog upravljača, pritisnite i držite pritisnutim dugme za programiranje (4) na prijemniku u trajanuod 10 sekundi.
3. pritisnutim dugme za programiranje (4) na prijemniku i odmah pritisnite željenu zonu (1 2 3 4) na daljinskom upravljaču
4. LED svetla će jednom bljesnuti - prijemnik je prijavljen
5. Za resetovanje dugmeta za programiranje (4) na prijemniku, pritisnite ga u trajanju od 10 sekundi

Ketopiterite Ratapi kortedakje Dgopiterite/Hach blab/tesprelertek bjs Hachok Bastprotenir zatemjerje Mneisarobjelil närmeda Dgipitisk Fusrosvalodljek polsaserje jennaisiero Kati pitzek/Medeslosti nanisropetiservje Ukljuverjesela ulj/ iHj Basteprosvitje zatemjerje Ketopiterite Ratoperaktida bjeTqdebla dgpitisrite Ratoperaktida bjeTqdebla Kotirularinärn radaRatepra ponerabge lanaduqdehlei Hachekle Ralsaurjesora

Sl. 5 Funkcije daljinskog upravljača

UPUTSTVA

Daljinski upravljač upravlja funkcijama svetla, ali ne i radom aspiratora. Ako je svetlo isključeno preko daljinskog upravljača, ponovo uključivanje je moguće samo preko daljinskog upravljača.

Isometric view of a room with blue lighting and a white cabinet, no visible text or symbols

Multicontrol disconnection

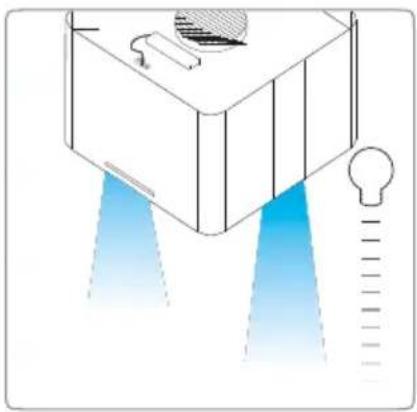

Illustration of a device emitting blue light rays, with a light bulb and vertical line indicating a measurement or alignment (no text or symbols present)

Illustration of a remote control with a radio and a 3D box device (no text or symbols)

Isometric line drawing of a kitchen appliance with blue airflow indicators (no text or symbols)

Multicontrol disconnection
