N3L4H V2.0 - VCR Tenda - Free user manual and instructions

Product Type	Network Video Recorder (NVR)
Brand	Tenda
Model	N3L4H V2.0
Power Supply	Included power adapter (AC input)
Ports	1 LAN port 10/100 Mbps, 1 HDMI port, 1 VGA port, 2 USB 2.0 ports, PoE ports (depending on model)
Main Functions	Video recording, real-time viewing, playback, management via TDSEE app, automatic LAN camera discovery, ONVIF support
Storage	SATA hard drive (not included, dedicated surveillance hard drive recommended)
Connectivity	Ethernet 10/100 Mbps, cloud service
Maximum Resolution	Up to 8MP (depending on cameras)
Video Compression	H.265+/H.265/H.264 (estimated)
Number of Channels	Varies by model (e.g., 8 channels for N3L-8H)
PoE	Yes for PoE models (e.g., N3104-4P) - 4 PoE ports IEEE 802.3af/at
Audio	Audio input and output (depending on model)
Grounding	Ground terminal
Wall Mounting	Possible (screws not included)
Maintenance	Do not cut power directly to prevent damage
Security	Password, unlock pattern, email for reset
Included Accessories	Power adapter, mouse, installation kit, quick installation guide
Approximate Dimensions	260 x 220 x 40 mm (plastic casing)
Approximate Weight	Approximately 1 kg
Interface Languages	Multi-language (French, English, etc.)
Technical Support	[e-mail]

Frequently Asked Questions - N3L4H V2.0 Tenda

What to do if there are no playback videos on the NVR?

First check that the hard drive is working properly in Configuration > Storage > HDD. If abnormal, reinstall or format the hard drive. Also ensure the recording schedule is enabled in Configuration > Storage > Schedule.

What to do if the TDSEE app fails to add the NVR?

Check that the cloud service is enabled in Configuration > Network > Cloud service. Ensure the cloud status is 'Online'. If offline, check the NVR's LAN connection and that the router has internet access.

What to do if there is no image display on an NVR channel?

In Configuration > Channel > Camera, check the camera status. If 'Error', hover over the icon for the cause. Solutions include: check the password, network connection, or delete/reset the camera.

What to do if the NVR cannot find the camera?

If the camera is connected to a PoE port, enable DHCP via a management tool. If connected to LAN, ensure the IP address is in the same segment. For third-party cameras, enable ONVIF and add an admin user.

How to install a hard drive in the NVR?

Turn off the NVR power. Remove the cover by unscrewing the screws on the bottom. Screw two screws into the holes closest to the SATA connector, leaving 2 mm of play. Align the hard drive SATA connector with the motherboard SATA connector, insert and secure with the remaining screws. Close the cover.

How to perform the initial setup of the NVR?

Connect the mouse and monitor. On the Web interface, set a password and an email address, then click 'Activate'. You can then configure an unlock pattern, add cameras, and enable the cloud service.

How to reset the NVR password?

Use the email address you provided during activation. On the login interface, click 'Forgot password' and follow the instructions. You can also use the TDSEE app by registering with the same email address.

How to access the NVR remotely via a browser?

Ensure the NVR is connected to the router and the cloud service is online. From a computer, enter the NVR's IP address (default 192.168.1.254) in a browser. Use the username admin and the password you set.

Does the NVR support ONVIF cameras?

Yes, the NVR supports the ONVIF protocol. To add a third-party camera, ensure ONVIF is enabled on the camera and an admin user (username admin) is added to the ONVIF user list.

How to update the NVR firmware?

Download the latest firmware from the Tenda website (www.tendacn.com). Log in to the Web interface, go to Configuration > Maintenance > Update, select the downloaded file and click 'Update'. Do not cut off power during the update.

USER MANUAL N3L4H V2.0 Tenda

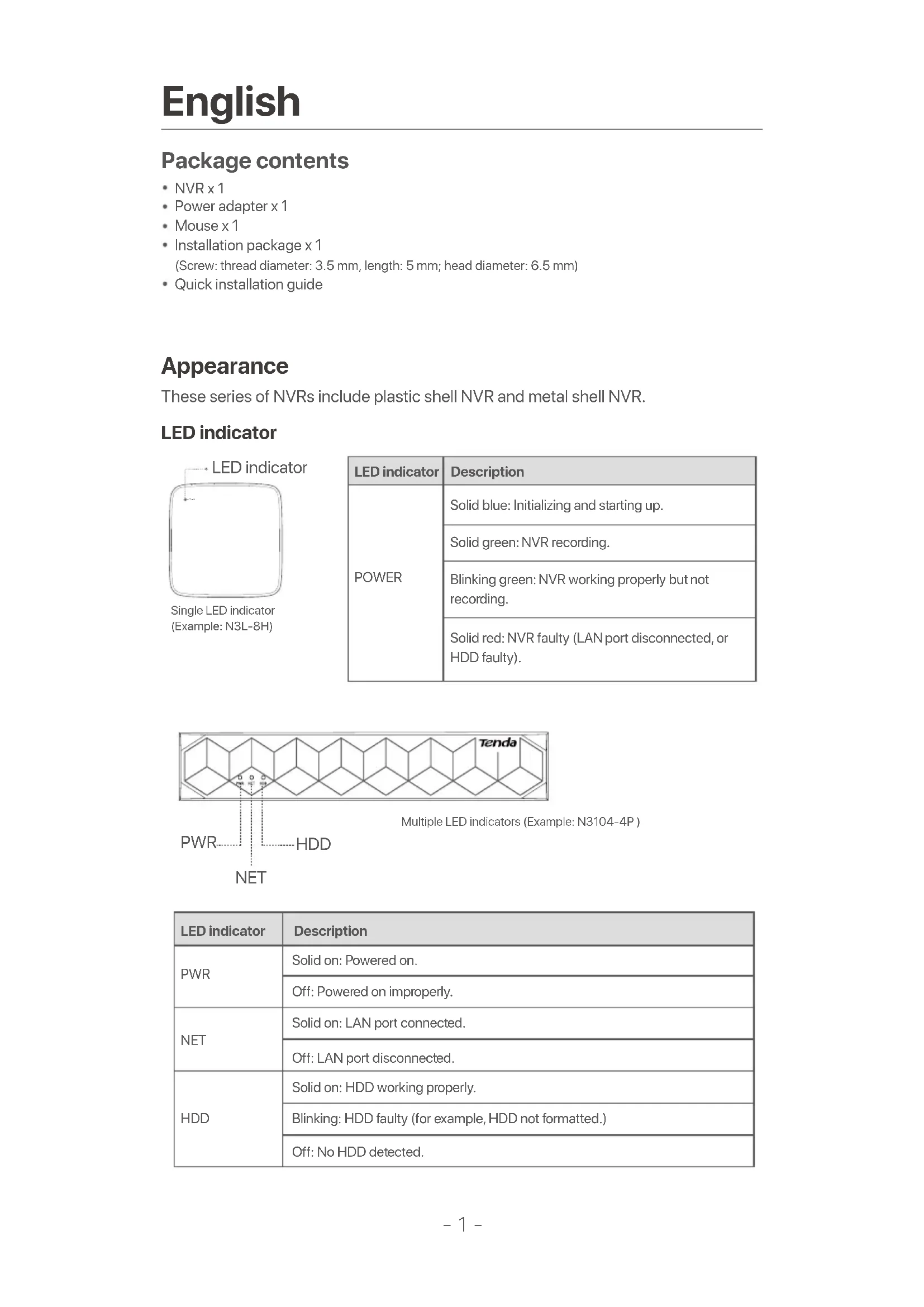

• NVR x 1
  • Power adapter x 1
• Mouse x 1
  • Installation package x 1
  (Screw: thread diameter: 3.5 mm, length: 5 mm; head diameter: 6.5 mm)
• Quick installation guide

Appearance

These series of NVRs include plastic shell NVR and metal shell NVR.

LED indicator

LED indicator

Single LED indicator (Example: N3L-8H)

LED indicator	Description
POWER	Solid blue: Initializing and starting up.
	Solid green: NVR recording.
	Blinking green: NVR working properly but not recording.
	Solid red: NVR faulty (LAN port disconnected, or HDD faulty).

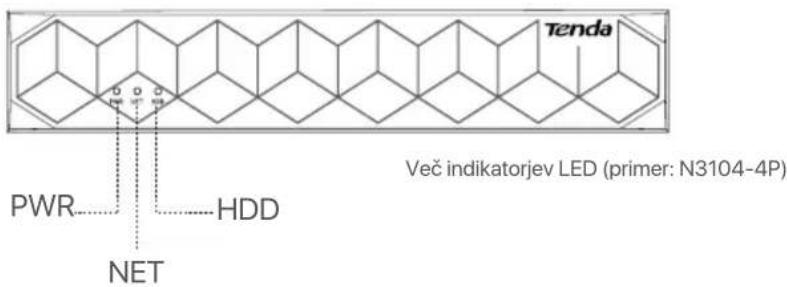

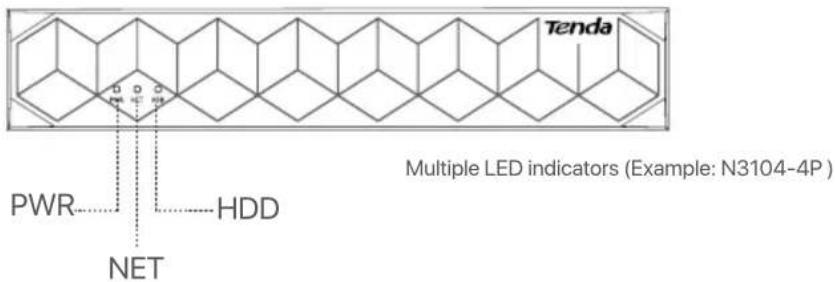

Tenda PWR HDD NET Multiple LED indicators (Example: N3104-4P)

LED indicator	Description
PWR	Solid on: Powered on.
	Off: Powered on improperly.
NET	Solid on: LAN port connected.
	Off: LAN port disconnected.
HDD	Solid on: HDD working properly.
	Blinking: HDD faulty (for example, HDD not formatted.)
	Off: No HDD detected.

Bottom panel

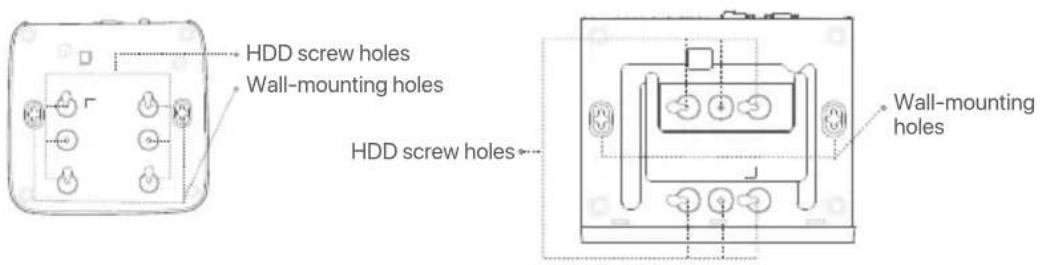

Wall-mounting holes: Used to fix the device to the wall. Wall-mounting materials are self-prepared. Recommended specifications of the plastic screws and anchors: Screws: thread diameter: 3 mm, length: 14 mm; head diameter: 5.2 mm. Plastic anchor: inner diameter: 6.0 mm; length: 26.4 mm

HDD screw holes Wall-mounting holes HDD screw holes Wall-mounting holes

Plastic shell NVR (Example: N3L-8H) Metal shell NVR (Example: N3104-4P)

Rear panel

Ordinary NVR (Example: N3L-8H)

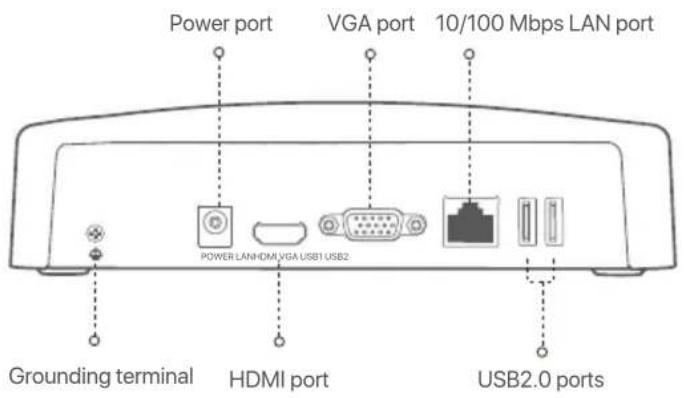

Power port VGA port 10/100 Mbps LAN port POWER LANHDMI VGA USB1 USB2 Grounding terminal HDMI port USB2.0 ports

PoE NVR (Example: N3104-4P)

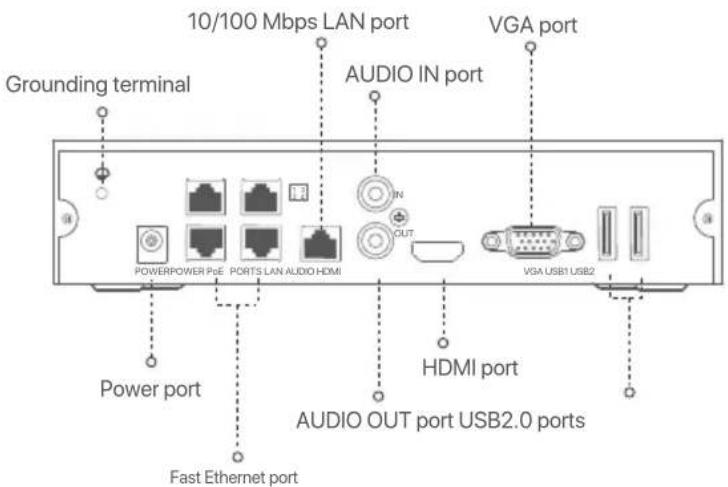

Grounding terminal 10/100 Mbps LAN port AUDIO IN port VGA port POWERPOWER PoE PORTS LAN AUDIO HDMI IN OUT VGA USB1 USB2 Power port HDMI port AUDIO OUT port USB2.0 ports Fast Ethernet port

	DescriptionPort
	Grounding terminal.Connect the grounding terminal of the NVR to the earth or the ground terminal of the building with a grounding cable to prevent static electricity or lightning from damaging the NVR.
POWER	Power port.Use the included power adapter to power on the NVR.
PoE PORTS	Fast Ethernet port, which supports IEEE 802.3af/at PoE power supply. Used to connect to cameras.- Recommended Ethernet cable: CAT 5 or better.- Power supply distance:Normal Mode (default): Up to 100mLong-range Mode: Up to 250m
LAN	Fast Ethernet LAN port.Used to connect to such devices as the router and switch.
AUDIO IN	Audio input port.Used to connect to the audio input devices, such as pickups.
AUDIO OUT	Audio output port.Used to connect to audio output devices, such as active speakers.
HDMI	HDMI port.Connect your monitor or TV to this port using an HDMI cable for audio and video output.
VGA	VGA port.Connect your monitor to this port using a VGA cable for video output.
USB	USB 2.0 port.Used to connect to such devices as a mouse and a USB storage device.

I Install the HDD

The appearance NVRs may vary with models. The following information is only for reference. Please install the HDD matching the model you actually purchased.

This product does not include any HDD, and the HDD dedicated for surveillance is recommended. You may need a screwdriver during installation. Please prepare it by yourself.

Tips

When installing or replacing the HDD, please cut off the power supply of the NVR, otherwise the HDD may not be detected or even be damaged.

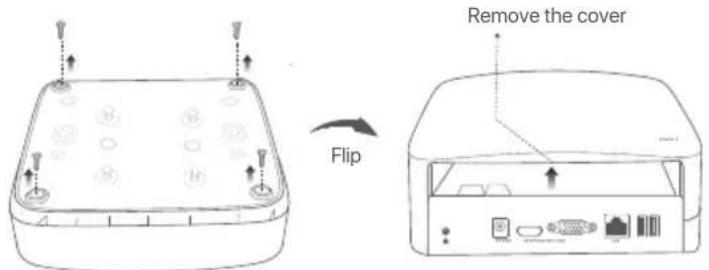

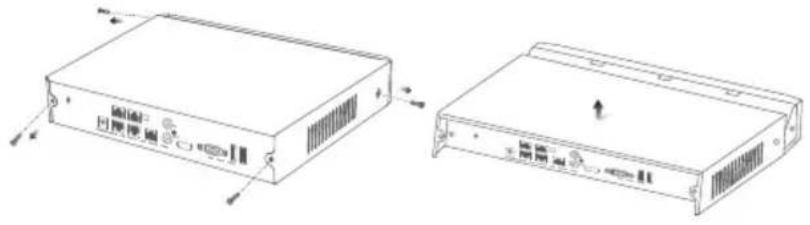

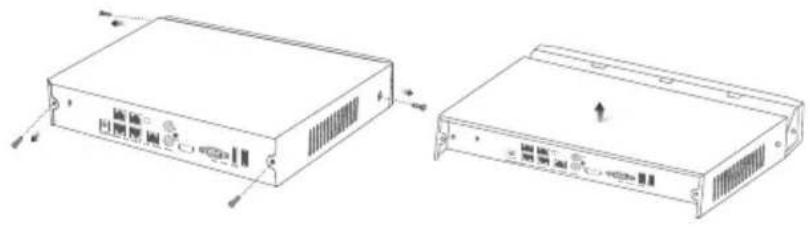

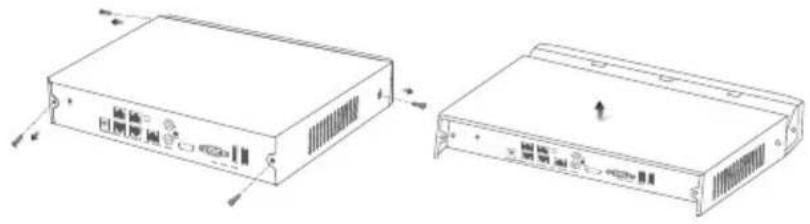

① Use a screwdriver to unfasten the screws, then remove the cover of the NVR. Reserve the screws for later use.

Flip Remove the cover

Plastic shell NVR (Example: N3L-8H)

Technical line drawing of two electronic device modules with ventilation slots and mounting brackets (no text or symbols)

Metal shell NVR (Example: N3104-4P)

② Take out 2 screws from the NVR installation package, and screw them into the two screw holes closest to the SATA connector. Reserve about 2 mm between the screws head and the HDD for subsequent installation.

SATA connector HDD

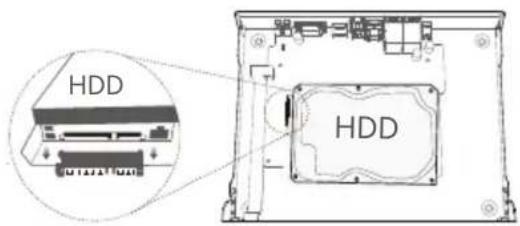

③ Align the SATA connector of the HDD with the SATA slot on the motherboard of the NVR, and then insert the HDD into the slot until it is tightly fixed.

HDD HDD

Plastic shell NVR (Example: N3L-8H)

HDD HDD

Metal shell NVR (Example: N3104-4P)

4 Take out the remaining screws from the NVR installation package, and screw them into the HDD screw holes to fix the HDD.

Plastic shell NVR (Example: N3L-8H)

Diagram of a device rear panel with labeled ports and indicator lights

Metal shell NVR (Example: N3104-4P)

⑤ Mount the cover with the previously removed screws.

Technical line drawing of a device rear panel with ports and buttons, showing front and side views (no text or symbols)

Plastic shell NVR (Example: N3L-8H)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Metal shell NVR (Example: N3104-4P)

II Connect the device

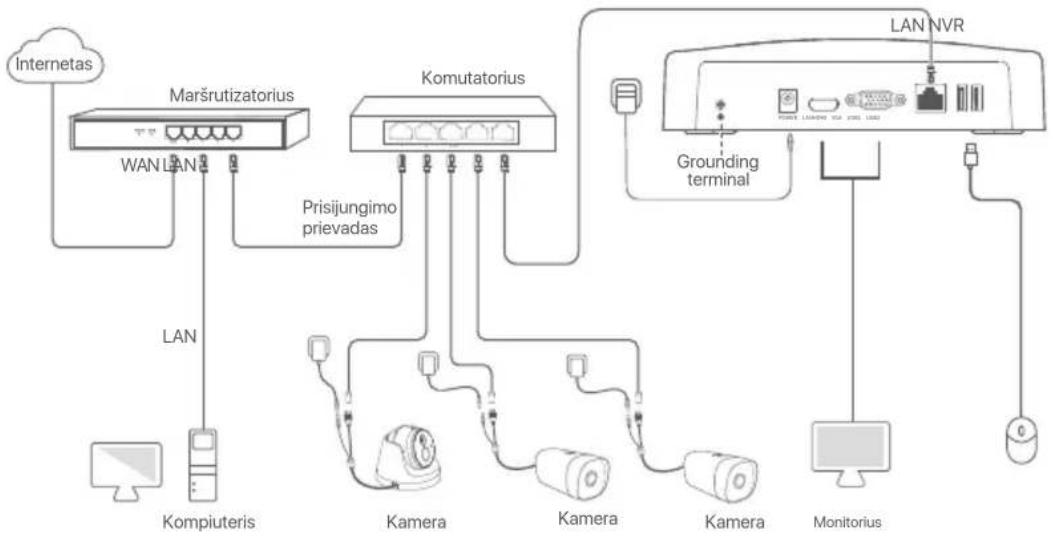

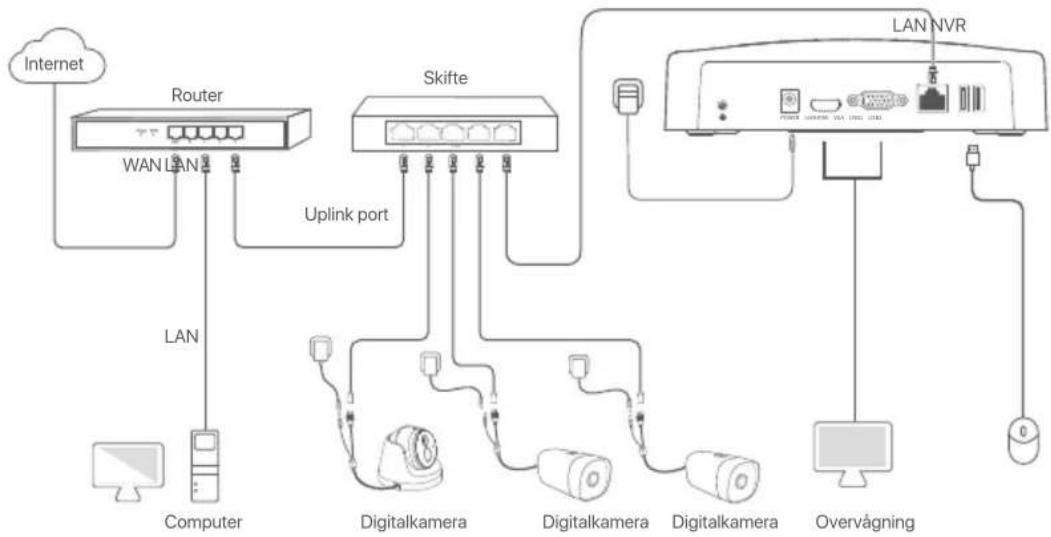

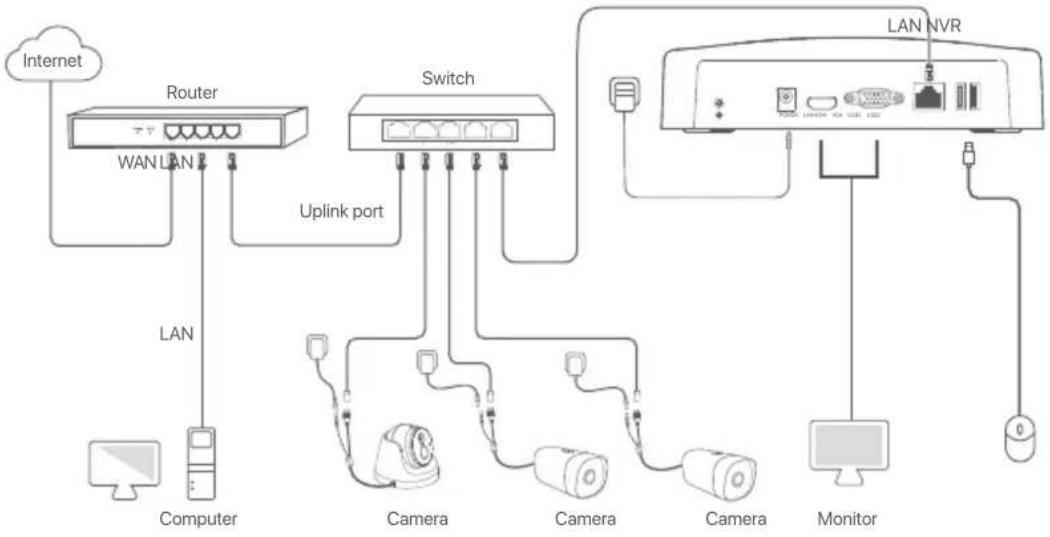

Ordinary NVR topology (Example: N3L-8H)


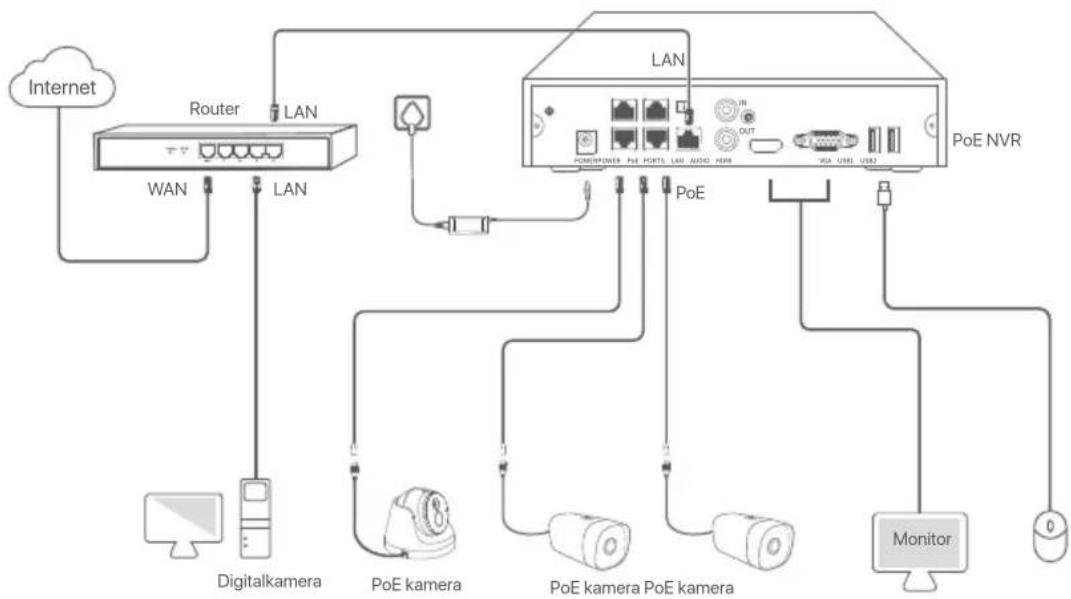

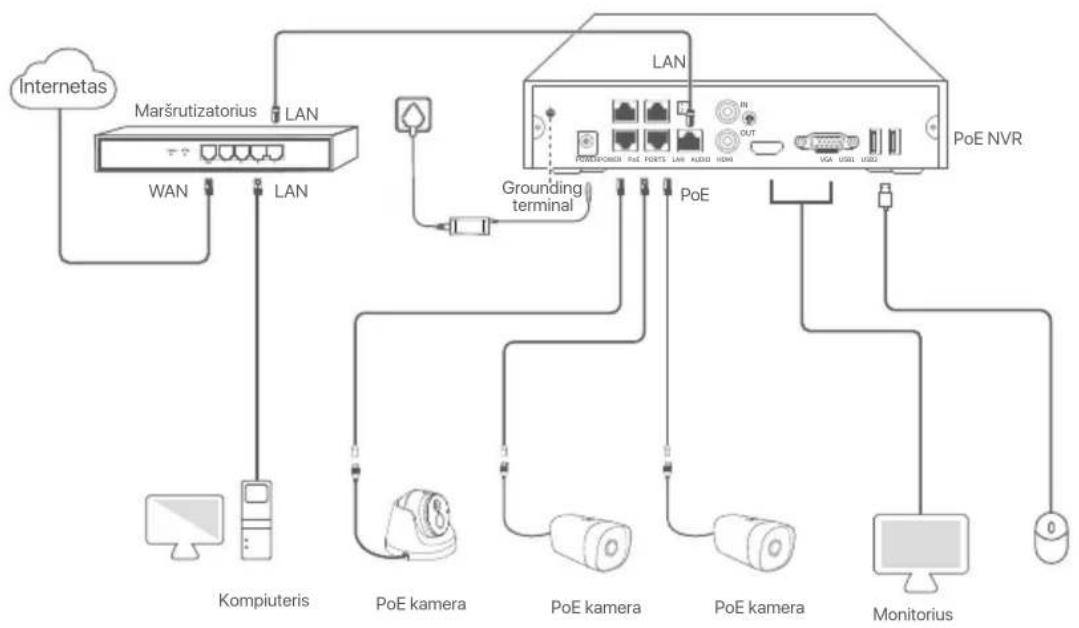

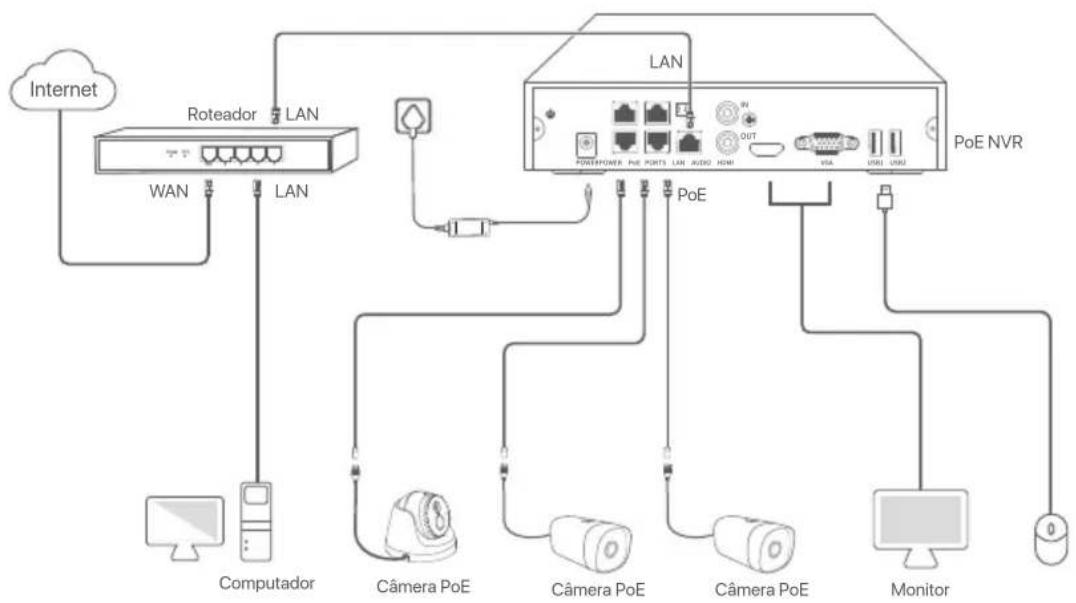

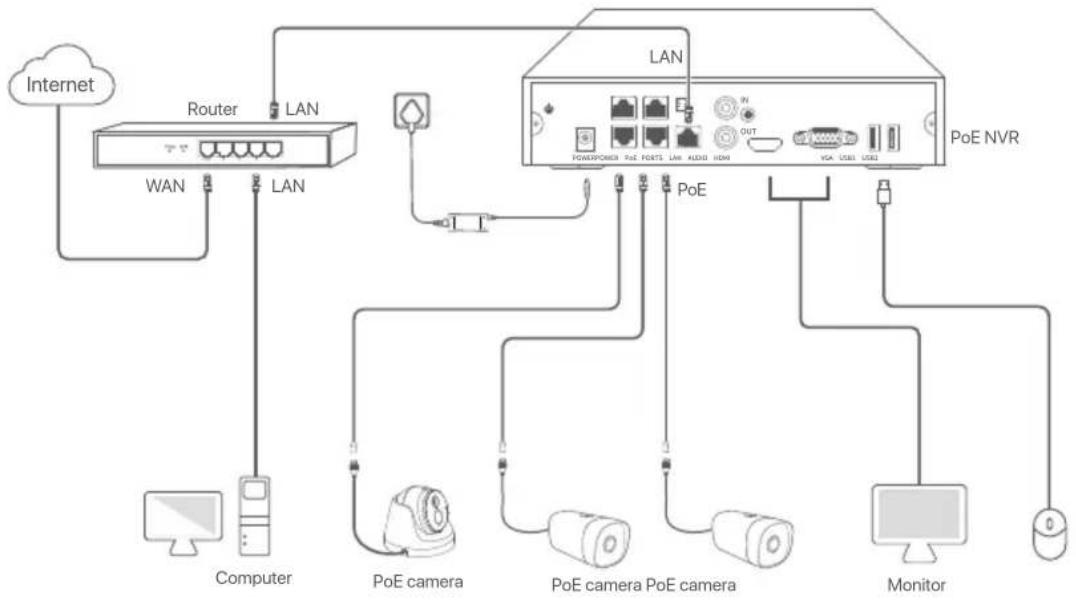

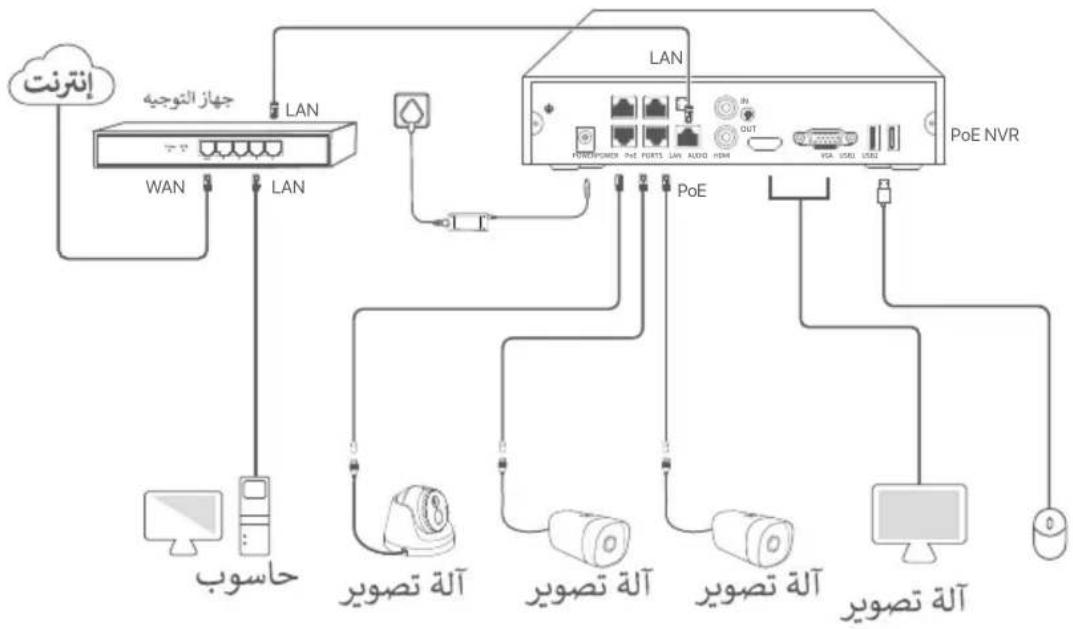

PoE NVR topology (Example: N3104-4P)

III Basic configuration

■ Local management

Startup

Tips

Use the included power adapter to power on the NVR. The NVR may fail to work normally or even be damaged due to abnormal power supply.

Connect the included power adapter to the power port of the NVR, and plug the power adapter into the power socket to start up the NVR.

Shutdown

Note

Do not directly cut off the power supply of the NVR to force a shutdown; otherwise, the HDD may be damaged, videos may be lost, or even the NVR may be damaged.

After connecting the mouse and monitor to the NVR, perform the following settings on the NVR's web UI (exit the Full Screen interface): Click ⏻ in the upper right corner, click Shutdown ⏻, and then click OK.

When The Device is Shut Down. Please Cut Off the Power appears on the screen, unplug the power adapter of the NVR.

Quick setup

After connecting the mouse and monitor to the NVR, you can perform quick setup.

The GUI of the NVR may vary with models. The actual GUI prevails. The N3L-8H is taken as an example here.

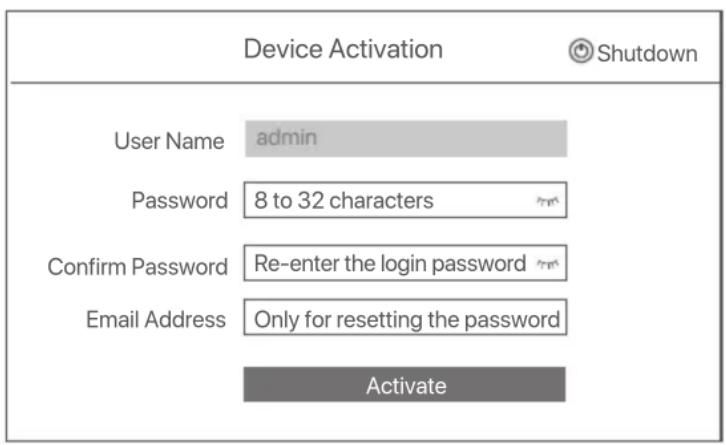

① Set Login Password, enter your Email Address, then click Activate.

Device Activation Shutdown User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate

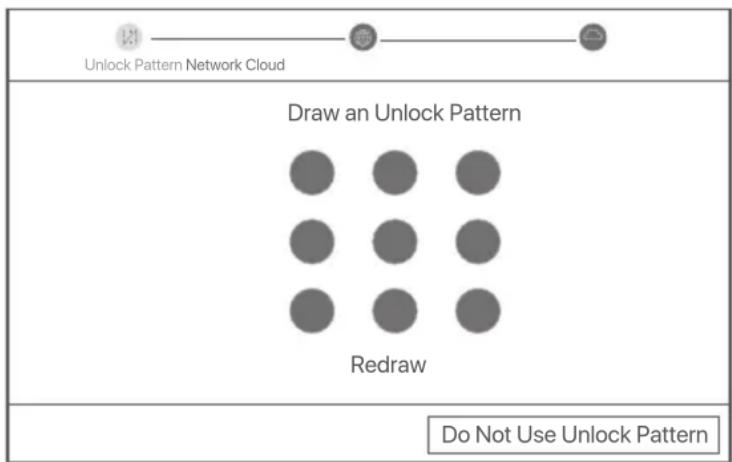

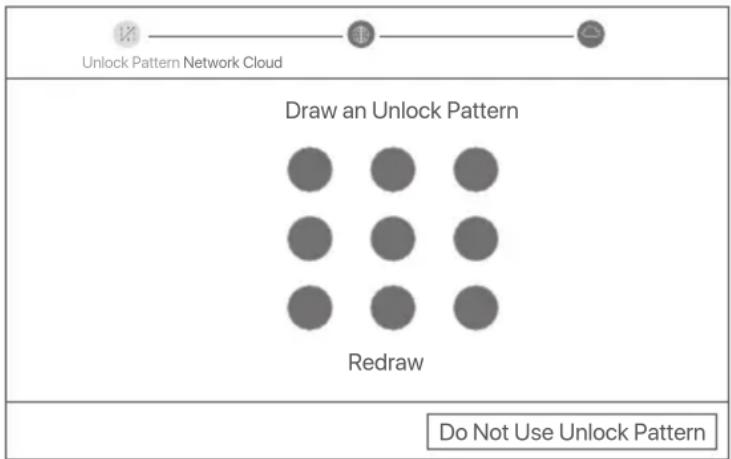

② If you want to use a pattern to unlock the web UI, draw an unlock pattern. Otherwise, click Do Not Use Unlock Pattern and skip to step ③.

Unlock Pattern Network Cloud Draw an Unlock Pattern Redraw Do Not Use Unlock Pattern

③ Ensure that the connection status is Connected, and enable or disable the Auto add LAN cameras function as required.

• If you want to automatically add cameras on the LAN side of the NVR, click Next. Skip to step ⑤.
• If you want to manually add cameras on the LAN side of the NVR, you can disable the Auto add LAN cameras function, and click Next.

Tips

If the connection status is Disconnected, try the following solutions:

– Ensure that the LAN port connection of the NVR is normal.
- Ensure that the DHCP server function of the router to which the NVR is connected is enabled.

Unlock Pattern Network Cloud ConnectedConnection Status Auto add LAN cameras DHCP IP Address Subnet Mask Default Gateway Previous Next

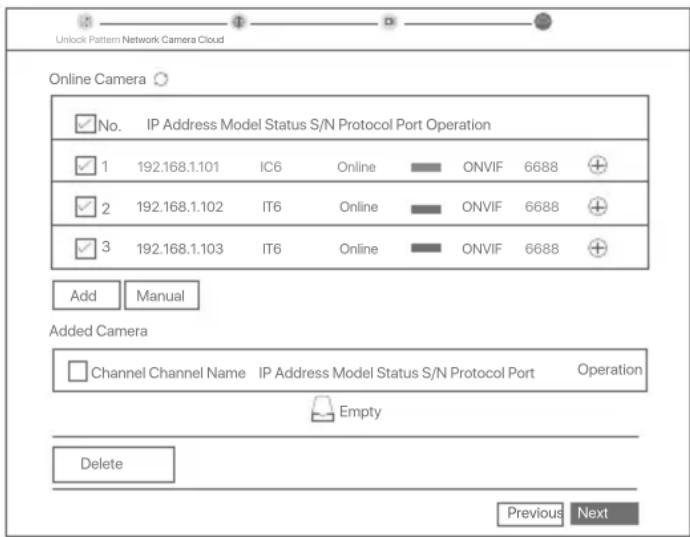

4 Add the camera.

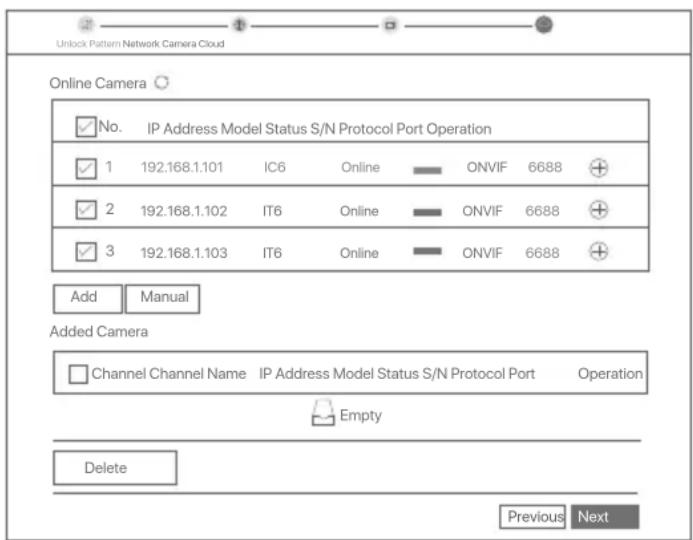

Select the camera that you want to add to the Online Camera list, and click Add. When the cameras appear in the Added Camera list and the status is Online, click Next.

Tips

• If the camera you want to add has been connected to the switch or router that is connected to the LAN port of the NVR, please ensure that the IP address of the camera and the NVR are in the same network segment.
• If the NVR supports PoE ports, and the camera you want to add has been connected to the PoE port of the NVR, please ensure that the DHCP function of the camera is enabled.
• If the camera that you want to add is activated and the user name and password are different from those of the NVR, click , to enter the relevant information, and click Add.

Unlock Pattern Network Camera Cloud Online Camera ✓ No. IP Address Model Status S/N Protocol Port Operation ✓ 1 192.168.1.101 IC6 Online ONVIF 6688 + ✓ 2 192.168.1.102 IT6 Online ONVIF 6688 + ✓ 3 192.168.1.103 IT6 Online ONVIF 6688 + Add Manual Added Camera Channel Channel Name IP Address Model Status S/N Protocol Port Operation Empty Delete Previous Next

⑤ Ensure that the cloud status is Online and click OK.

Tips

• If the cloud status is Offline, please ensure that the router to which the NVR is connected can access the internet and the filter function is disabled.
• You can also manage the NVR through the TDSEE App. Please refer to App management in this guide for details.

Completed.

You can preview real-time videos, play back the recordings and manage monitoring devices.

■ App management

After the cloud service of the NVR is enabled and the cloud status is online, you can add and manage the NVR through the TDSEE App.

① Download the TDSEE App.

After the smartphone is connected to the internet successfully, download and install the TDSEE App onto your mobile phone by scanning the QR code or by searching for TDSEE in Google Play or App Store.

QR code image containing encoded data, no visible human-readable text

Or

GET IT ON Google Play Download on the App Store

QR Code

② Ensure that the NVR is powered on and working properly.
③ Run the TDSEE App and follow the instructions to complete user registration. Enter the Home page, then tap Add a device or in ⊕ the upper right corner of the home page.

Tips

To ensure that the login password of the NVR can be reset through the TDSEE App, please register using the email address you used to activate the NVR.

4 Scan the QR code on the label at the bottom of the NVR or scan the QR code on the Cloud Service page, then follow the instructions in the App.

After adding the NVR, you can remotely preview real-time video, play back the recordings and check alarm messages through the TDSEE App.

■ Web management

These series of NVRs can be managed on the web UI.

Activate

If the NVR is not activated, you can activate it through the web UI. When the activation is completed, you need to log in again.

1 Connect the computer to the switch or router that is connected to the NVR.
② Set the IP address of the computer to an unused one belonging to the same network segment as the IP address of the NVR but different from the IP address of the NVR.
The default login IP address of the NVR is 192.168.1.254, please set the IP address of the computer to 192.168.1.X (X indicates 2 to 253, and is unused by other devices).

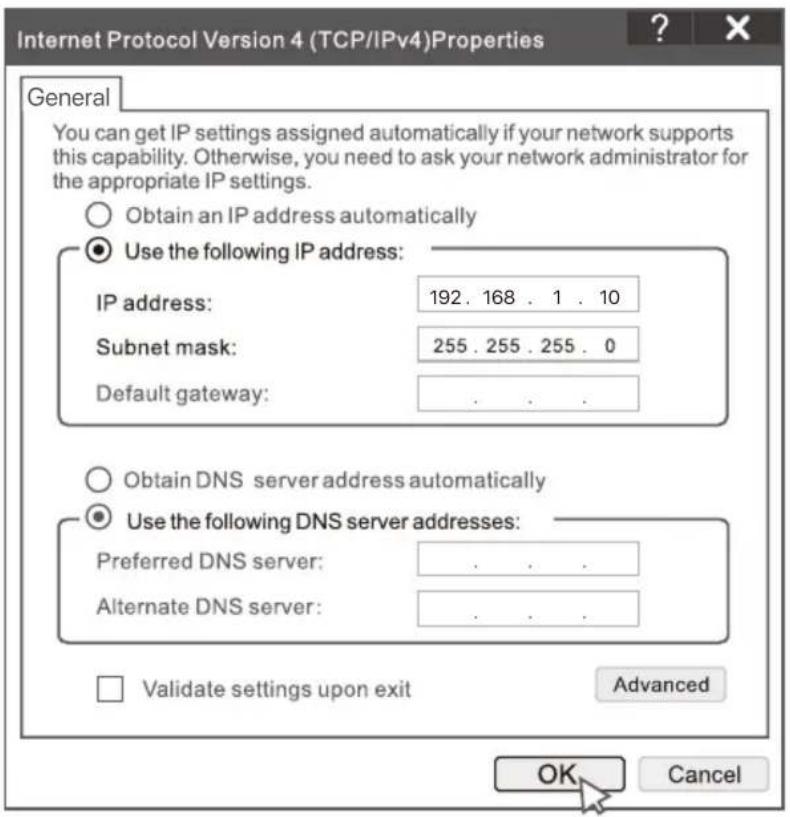

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

③ Launch a browser and enter the default IP address 192.168.1.254 of the NVR in the address bar. Set Password, enter your Email Address, and click Activate.

The NVR supports HTTPS login. When you access its management page, the browser may prompt that the web address is not secure, just ignore it and continue.

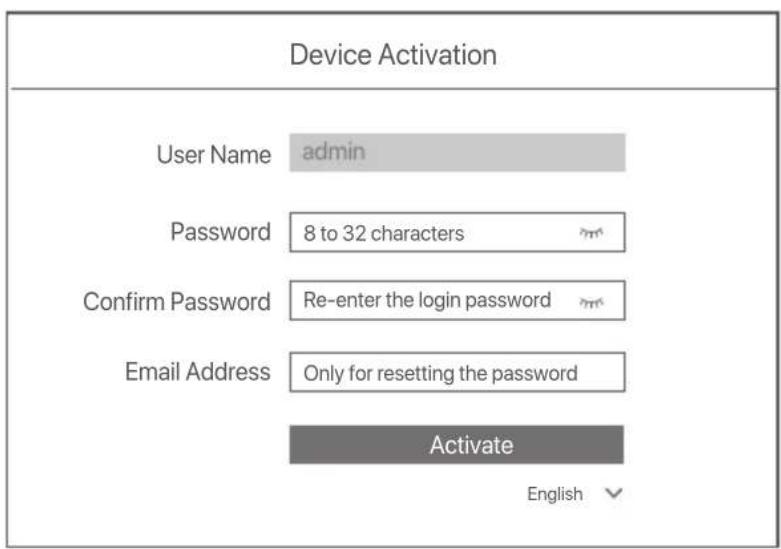

Device Activation User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate English

Done. You can re-enter the web UI of the NVR to preview real-time videos or configure the NVR as required.

The DHCP function of the NVR is enabled. If there is a DHCP server in the network, the IP address of the NVR may be changed. Please refer to the actual IP address assigned to the NVR by the DHCP server.

Log in to web UI

Refer to step ① to ③ in Activate to operate.

FAQ

Q1. What should I do if there are no playback videos on the NVR?

A1.

- Ensure that the HDD is working properly.

Navigate to Configuration > Storage > HDD:

• If the HDD is not detected, shut down the NVR first, reinstall the HDD and start up the NVR.
• If the HDD is abnormal, shut down the NVR first, reinstall the HDD and start up the NVR. If the problem persists, format the HDD.
• If the formatting fails, shut down the NVR first, replace the HDD and start up the NVR.

- Ensure that the recording plan is proper.

Navigate to Configuration > Storage > Schedule, and ensure that:

• The channel recording schedule is enabled.
• The recording time and recording type have been set properly. If not, set and save them as required.

Q2. What should I do if the TDSEE App fails to add the NVR?

A2. Navigate to Configuration > Network > Cloud Service of the NVR to ensure that the cloud service function is enabled.

– If Cloud Status is Online, ensure that the mobile phone (with the App installed) is connected to the internet.
– If Cloud Status is Offline, try the following solutions:

• Navigate to Configuration > Network > Internet to ensure that the internet parameters configuration is correct.
• Ensure that the LAN port of the NVR is correctly connected to the peer side (switch or router).
• Ensure that the router is connected to the internet and the filter function is disabled (such as MAC filter and blacklist).
• Ensure that the DHCP server function of the router is enabled.

Q3. What should I do if there is no image display on the NVR channel?

A3. Navigate to Configuration > Channel> Camera of the GUI of the NVR, find Added Camera, and check the camera status of the channel.

• If the camera status of the channel is Online, navigate to Configuration > Channel > Image, and ensure that the Brightness and Contrast under the Image Parameters are not both 0.

• If the camera status of the channel is Error, hover the mouse over ⚠️ to check the exception reason, and try the following solutions:

• If the exception reason is Incorrect user name or password, click 📋 and re-enter the login user name and password.

• If the exception reason is Disconnected, ensure that the connection between the NVR and the camera is normal, and the Ethernet cable is not loose.
• Delete or reset the camera and add it again.
  • Power off the camera and restart it.

Q4. What should I do if the NVR cannot find the camera?

A4: If the NVR supports PoE port, and the camera has been connected to the PoE port of the NVR, try the following solutions:

• Connect the computer and the camera to the same network, and enable DHCP function of the camera (through client management tool, such as ONVIF Device Manager or Web UI of the camera for configuration).
• If the camera is a third-party camera, ensure that the camera supports ONVIF, and ONVIF is enabled, and an administrator with the username admin has been added to the user list.

If the camera has been connected to the LAN side of the NVR, try the following solutions:

• Ensure that the camera is working properly, and the camera is connected properly to the switch or router that is connected to the NVR, and the Ethernet cable is tight.
• Ensure that the IP address of the camera is in the same network segment as the LAN IP address of the NVR (through client management tool, such as ONVIF Device Manager or Web UI of the camera for configuration).
• If the camera is a third-party camera, ensure that the camera supports ONVIF, and ONVIF is enabled, and an administrator with the username admin has been added to the user list.

If the problem persists, please contact Tenda technical support.

Pakkens indhold

LED indicator

Enkelt LED-indikator (eksempel: N3L-8H)

Technical line drawing of two electronic device modules with ventilation slots and mounting features (no text or symbols)

Metalskal NVR (eksempel: N3104-4P)

Diagram of a device rear panel with labeled ports and connections, including icons for ports A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z.

Metalskal NVR (eksempel: N3104-4P)

Technical line drawing of a device rear panel with ports and buttons, shown from front and side views (no text or symbols)

Plastskal NVR (eksempel: N3L-8H)

Technical diagram of an electronic device with labeled ports and directional arrows indicating orientation or flow.

Metalskal NVR (eksempel: N3104-4P)

II Tilslut enheden

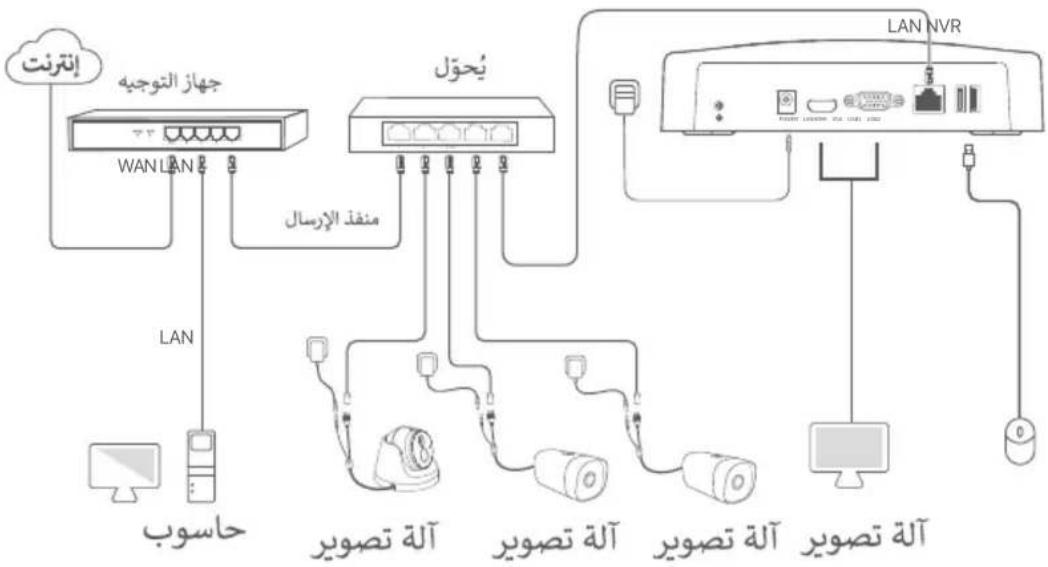

Almindelig NVR-topologi (Eksempel: N3L-8H)

PoE NVR-topologi (Eksempel: N3104-4P)

Device Activation Ⓧ Shutdown User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate

Unlock Pattern Network Cloud ConnectedConnection Status Auto add LAN cameras DHCP IP Address Subnet Mask Default Gateway Previous Next

④ Tilføj kameraet.

QR code image containing encoded data, no visible human-readable text

QR-kode

eller

GET IT ON Google Play Download on the App Store

■ Web management (Internet management)

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255. 255. 255. 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Device Activation User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate English

Gjort. Du kan genindtaste NVR 'ens INTERNETGRÅENSEFLADE for at få vist videoer i realtid eller konfigurere NVR efter behov.

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

Metallist kestaga NVR (näide: N3104-4P)

Diagram of a device rear panel with labeled ports and connections, including USB, USB, and USB icons.

Metallist kestaga NVR (näide: N3104-4P)

Technical line drawing of a device rear panel with ports and connectors, shown from front and side views (no text or symbols)

Line drawing of a rectangular electronic device with ventilation slots and control buttons (no text or symbols)

Metallist kestaga NVR (näide: N3104-4P)

II Ühendage seade

Device Activation Shutdown User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate

Unlock Pattern Network Cloud ConnectedConnection Status Auto add LAN cameras DHCP IP Address Subnet Mask Default Gateway Previous Next

④ Lisage kaamera.

QR code image containing encoded data, no visible human-readable text

Või

QR kood

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255. 255. 255. 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

3 Käivitage brauser ja sisestage aadressiribale NVR-i vaike-IP-aadress 192.168.1.254. Määrake Password (Parool), sisestage oma Email Address (e-posti aadress) ja klöpsake nuppu Activate (Aktiveeri).

Tips

Device Activation User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate English √

Technical line drawing of two electronic device modules with ports and connectors (no text or symbols)

Metalinio apvalkalo NVR (pavyzdys: N3104-4P)

Diagram of a device rear panel with ports and connectors (no text or labels)

Metalinio apvalkalo NVR (pavyzdys: N3104-4P)

Diagram of a device rear panel showing internal components and mounting holes (no text or labels)

Plastikinio korpuso NVR (pavyzdys: N3L-8H)

Isometric line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Metalinio apvalkalo NVR (pavyzdys: N3104-4P)

Il Irenginio prijungimas

Jprasta NVR topologija (pavyzdys: N3L-8H)

PoE NVR topologija (pavyzdys: N3104-4P)

Device Activation Shutdown User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate

Unlock Pattern Network Cloud ConnectedConnection Status Auto add LAN cameras DHCP IP Address Subnet Mask Default Gateway Previous Next

4 Pridėkite kamera.

QR code image containing encoded data, no visible human-readable text

Arba

QR kodas

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Device Activation User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate English √

LED indicator

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

SATA connector HDD

Diagram of a device rear panel with ports and connectors (no text or labels)

Technical line drawing of a device rear panel and front panel with ports and connectors (no text or symbols)

Device Activation Shutdown User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate

Unlock Pattern Network Cloud Draw an Unlock Pattern Redraw Do Not Use Unlock Pattern

Unlock Pattern Network Cloud ConnectedConnection Status Auto add LAN cameras DHCP IP Address Subnet Mask Default Gateway Previous Next

4 Lisää kamera.

QR code image containing encoded data, no visible human-readable text

QR koodi

Tai

GET IT ON Google Play Download on the App Store

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255.255.255.0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Device Activation User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate English √

LED indicator

Viens LED indikators (piemērs: N3L-8H)

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

Diagram of a device rear panel with labeled ports and indicator lights

Technical line drawing of a device rear panel with ports and buttons, showing front and side views (no text or symbols)

Plastmasas apvalka NVR (piemërs: N3L-8H)

圖層 日期要圖

Device Activation Shutdown User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate

Unlock Pattern Network Cloud ConnectedConnection Status Auto add LAN cameras DHCP IP Address Subnet Mask Default Gateway Previous Next

4 Pievienojiet kameru.

QR code image containing encoded data, no visible human-readable text

Vai

GET IT ON Google Play Download on the App Store

QR kods

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255.255.255.0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

3 Palaidiet pārlūkprogrammu un ievadiet noklusējuma IP adresi 192.168.1.254 NVR adreses joslā. lestatiet Password (Parole), ievadiet savu Email Address (e-pasta adresi), un noklikškiniet Activate (Aktivizēt).

Tips

NVR atbalsta HTTPS pieteikšanos. Kad pieklüstat timekja lietotäja saskarnei, pärlükprogramma var pazinot, ka timekja adrese nav droša, vienkärši ignorëjiet to un turpiniet.

Device Activation User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate English √

LED indicator

Enkel LED-indikator (exempel: N3L-8H)

Ta bort locket Flip

Plastskal NVR (Exempel: N3L-8H)

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

Metallskal NVR (Exempel: N3104-4P)

Diagram of a device rear panel with ports and indicator lights (no text or labels)

Metallskal NVR (Exempel: N3104-4P)

Technical line drawing of a device rear panel with ports and buttons, showing front and side views (no text or symbols)

Plastskal NVR (Exempel: N3L-8H)

固磁 凹陷复固

Metallskal NVR (Exempel: N3104-4P)

II Anslut enheten

Device Activation Shutdown User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate

Unlock Pattern Network Cloud Draw an Unlock Pattern Redraw Do Not Use Unlock Pattern

Unlock Pattern Network Cloud ConnectedConnection Status Auto add LAN cameras DHCP IP Address Subnet Mask Default Gateway Previous Next

4 Addera kamera.

QR code image containing encoded data, no visible human-readable text

Eller

GET IT ON Google Play Download on the App Store

QR-kod

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255.255.255.0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Device Activation User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate English

Technical line drawing of two electronic device modules with ventilation grilles and ports (no text or symbols)

Metal shell NVR (Example: N3104-4P)

Diagram of a device rear panel with labeled ports and connections, including icons for ports, switches, and indicators.

Technical line drawing of a device rear panel with ports and buttons, shown from front and side views (no text or symbols)

Line drawing of a rectangular electronic device with ports and control buttons (no text or symbols)

Device Activation Shutdown User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate

Unlock Pattern Network Cloud ConnectedConnection Status Auto add LAN cameras DHCP IP Address Subnet Mask Default Gateway Previous Next

4 Pridat' kameru.

Vyberte kameru, ktorú chcete pridat' do zoznamu Online Camera (Kamera online), a kliknite na Add (Pridat'). Ked' sa kamery zobrazia v zozname Added Camera (Pridaná kamera) a stav je Online, kliknite na Next (Čalej).

QR code image containing encoded data, no visible human-readable text

Alebo

QR kód

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255. 255. 255. 0 Default gateway: . . . . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . . . . Alternate DNS server: . . . . Validate settings upon exit Advanced OK Cancel

③ Spustite prehliadač a do panela s adresou zadajte IP adresu zariadenia NVR 192.168.1.254. Nastavte Password (heslo), zadajte svoju Email Address (E-mailovú adresu) a kliknite na Activate (Aktivovat').

Device Activation User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate English

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

Diagram of a device rear panel with labeled ports and buttons, showing internal layout and connections.

Technical line drawing of a device rear panel with ports and buttons, showing front and side views (no text or symbols)

Isometric line drawing of a rectangular electronic device with ventilation slots and ports (no text or symbols)

Device Activation Shutdown User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate

Unlock Pattern Network Cloud Draw an Unlock Pattern Redraw Do Not Use Unlock Pattern

Unlock Pattern Network Cloud ConnectedConnection Status Auto add LAN cameras DHCP IP Address Subnet Mask Default Gateway Previous Next

QR code image containing encoded data, no visible human-readable text

Of

GET IT ON Google Play Download on the App Store

QR code

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255. 255. 255. 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Device Activation User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate English

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

NVR s metalnim kućištem (primjer: N3104-4P)

2 Izvadite 2 vijka iz instalacijskog paketa NVR-a (mrežnog snimača za video nadzor) i zavijte ih u dva otvora za vijke najbliža SATA konektoru. Ostavite oko 2 mm između glave vijka i HDD-a (tvrdog diska) za naknadnu instalaciju.

SATA konektor HDD

3 Poravnajte SATA konektor HDD-a (tvrdog diska) s SATA utorom na matičnoj ploči NVR-a (mrežnog snimača za video nadzor), a zatim umetnite HDD (tvrdi disk) u utor dok se čvrsto ne fiksira.

HDD HDD

Diagram of a device rear panel with labeled ports and control buttons, showing connections and status indicators.

NVR s metalnim kućištem (primjer: N3104-4P)

Technical line drawing of a device rear panel with ports and connectors, shown from front and side views (no text or symbols)

Device Activation Shutdown User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate

② Ako želite koristiti uzorak za otključavanje internetskog korisničkog sučelja, nacrtajte uzorak za otključavanje. U suprotnom, kliknite na Do Not Use Unlock Pattern (Nemoj koristiti uzorak za otključavanje) i preskočite ovaj korak ③.

③ Provjerite je li status veze Connected (Povezano) i omogućite ili onemogućite značajku Auto add LAN cameras (Automatski dodaj LAN kamere) po potrebi.

• Ako želite automatski dodati kamere na LAN strani NVR-a (mrežnog snimača za video nadzor), kliknite na Next (Dalje). Preskočite na korak ⑤.
• Ako želite ručno dodati kamere na LAN strani NVR-a (mrežnog snimača za video nadzor), možete onemogućiti značajku Auto add LAN cameras (Automatski dodaj LAN kamere) i kliknite na Next (Dalje).

Savjeti

Unlock Pattern Network Cloud ConnectedConnection Status Auto add LAN cameras DHCP IP Address Subnet Mask Default Gateway Previous Next

④ Dodajte kameru.

Odaberite kameru koju želite dodati na popis Online Camera (mrežnih kamera) i kliknite na Add (Dodaj). Kada se kamera pojavi na popisu Added Camera (Dodana kamera) i kada je status Online (Na mreži), kliknite na Next (Dalje).

Savjeti

• Ako je kamera koju želite dodati spojena na preklopnik ili usmjerivač koji je spojen na LAN priključak NVR-a, provjerite jesu li IP adresa kamere i NVR-a u istom segmentu mreže.
• Ako NVR podržava PoE priključke, a kamera koju želite dodati je spojena na PoE priključak NVR-a, provjerite je li DHCP funkcija kamere omogućena.
• Ako je kamera koju želite dodati aktivirana, a korisničko ime i lozinka se razlikuju od onih za NVR (mrežni snimači za video nadzor), kliknite na , unesite relevantne informacije i kliknite na Add (Dodaj).

Unlock Pattern Network Camera Cloud Online Camera ✓ No. IP Address Model Status S/N Protocol Port Operation ✓ 1 192.168.1.101 IC6 Online ONVIF 6688 + ✓ 2 192.168.1.102 IT6 Online ONVIF 6688 + ✓ 3 192.168.1.103 IT6 Online ONVIF 6688 + Add Manual Added Camera Channel Channel Name IP Address Model Status S/N Protocol Port Operation Empty Delete Previous Next

⑤ Provjerite je li status oblaka Online (Na mreži) i kliknite na OK (U redu).

Savjeti

QR code image containing encoded data, no visible human-readable text

QR kod

Ili

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255. 255. 255. 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

③ Pokrenite preglednik i u adresnu traku unesite IP adresu 192.168.1.254 NVR-a (mrežnog snimača za video nadzor). Postavite Password (Lozinku), unesite svoju Email Address (e-adresu) i kliknite na Activate (Aktiviraj).

Savjeti

NVR podržava HTTPS prijavu. Kada pristupite njegovoj stranici za upravljanje, preglednik može obavijestiti da web adresa nije sigurna, samo je zanemarite i nastavite.

Device Activation User Name admin Password 8 to 32 characters Confirm Password Re-enter the login password Email Address Only for resetting the password Activate English √

Postavljanje je završeno. Možete ući na internetsko korisničko sučelje NVR-a (mrežnog snimača za video nadzor) za pregled videozapisa u stvarnom vremenu ili po potrebi konfigurirati NVR (mrežni snimač za video nadzor).

DHCP funkcija NVR-a je omogućena. Ako u mreži postoji DHCP poslužitelj, IP adresa NVR-a može se promijeniti. Pogledajte stvarnu IP adresu koju je NVR-u dodijelio DHCP poslužitelj.

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

NVR с метална обвивка (Пример: N3104-4P)

SATA connector HDD

Technical line drawing of a device rear panel with ports and buttons, showing front and side views (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Или

QR код

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255. 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Technical line drawing of two electronic devices with ventilation slots and ports, shown from front and side views (no text or symbols)

Diagram of a device rear panel with labeled ports and internal components, showing connections and indicators.

Technical line drawing of a device rear panel with ports and connectors, shown from front and side views (no text or symbols)

Line drawing of a rectangular electronic device with ventilation slots and ports (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR kód

Nebo

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Technical line drawing of two electronic device modules with ventilation slots and ports (no text or symbols)

Diagram showing magnetic field lines and circular elements in a rectangular container with labeled points A and B.

Diagram of a device rear panel with labeled ports and internal components, showing connections and arrows indicating flow or movement.

Technical line drawing of a device rear panel with ports and buttons, shown from front and side views (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR-Code

Oder

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255. 255. 255. 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

- Ensure that the DHCP server function of the router is enabled.

LED indicator

Remove the cover Flip

Technical line drawing of two electronic device modules with ventilation slots and ports (no text or symbols)

SATA connector HDD

Diagram of a device rear panel with ports and connectors (no text or labels)

Technical line drawing of a device rear panel with ports and buttons, showing front and side views (no text or symbols)

Isometric line drawing of a rectangular electronic device with ports and ventilation slots (no text or symbols)

QR code image containing encoded data, no visible human-readable text

O

GET IT ON Google Play Download on the App Store

Código QR

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192, 168, 1, 10 Subnet mask: 255, 255, 255, 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . . . . Alternate DNS server: . . . . Validate settings upon exit Advanced OK Cancel

Technical line drawing of two electronic device modules with ventilation grilles and ports (no text or symbols)

Diagram of a device rear panel with ports and connectors (no text or labels)

Technical line drawing of a device rear panel with ports and connectors, shown from front and side views (no text or symbols)

Line drawing of a rectangular electronic device with ports and ventilation slots (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Ou

QR Code

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192, 168, 1, 10 Subnet mask: 255, 255, 255, 0 Default gateway: . . . . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . . . . Alternate DNS server: . . . . Validate settings upon exit Advanced OK Cancel

Technical line drawing of two electronic device modules with ventilation grilles and ports (no text or symbols)

SATA connector HDD

Diagram of a device rear panel with labeled ports and connectors, showing internal layout and connections.

Diagram showing front and side views of a device with ports and connectors (no text or symbols)

Műanyag héjú NVR (Példa: N3L-8H)

Technical line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Vagy

QR-kód

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

- Ensure that the DHCP server function of the router is enabled.

Simple line drawing of a rectangular container with circular indentations and two vertical posts (no text or symbols)

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

NVR cangkang logam (Contoh: N3104-4P)

Diagram of a device rear panel with labeled ports and internal components, showing connections and icons.

NVR cangkang logam (Contoh: N3104-4P)

Technical line drawing of a device rear panel with ports and connectors, showing front and side views (no text or symbols)

NVR cangkang plastik (Contoh: N3L-8H)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

NVR cangkang logam (Contoh: N3104-4P)

QR code image containing encoded data, no visible human-readable text

Atau

Kode QR

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

③ Mulai browser dan masukkan alamat IP 192.168.1.254 NVR di address bar. Atur Kata Sandi, masukkan Email Anda, dan klik Aktifkan.

Technical line drawing of two electronic device modules with ventilation slots and ports (no text or symbols)

Diagram of a device rear panel with labeled ports and internal components, showing connections and status indicators.

Technical line drawing of a device rear panel with ports and connectors, showing front and side views (no text or symbols)

QR code image containing encoded data, no visible human-readable text

0

GET IT ON Google Play Download on the App Store

QR Code

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from different angles (no text or symbols)

Diagram of a device rear panel with labeled ports and connectors, showing internal layout and connections.

Metal shell NVR (Example: N3104-4P)

Technical line drawing of a device rear panel and front panel with ports and connectors (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Lub

Kod QR

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255. 255. 255. 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Indicator LED

Indicador LED único (Exemplo: N3L-8H)

Virar Remova a capa

Invólucro de plástico NVR (Exemplo: N3L-8H)

Technical line drawing of two electronic device modules with ventilation slots and mounting brackets (no text or symbols)

Revestimento de metal NVR (Exemplo: N3104-4P)

conector SATA HDD

Pure diagram of a tray with circular elements and arrows indicating direction (no text or symbols)

Invólucro de plástico NVR (Exemplo: N3L-8H)

Diagram of a device rear panel with ports and connectors (no text or labels)

Revestimento de metal NVR (Exemplo: N3104-4P)

Technical line drawing of a device rear panel and front panel with ports and connectors (no text or symbols)

Invólucro de plástico NVR (Exemplo: N3L-8H)

Line drawing of a rectangular electronic device with ports and control buttons (no text or symbols)

Revestimento de metal NVR (Exemplo: N3104-4P)

Il Conectar o dispositivo

Topologia NVR comum (Exemplo: N3L-8H)

Topologia PoE NVR (Exemplo: N3104-4P)

QR code image containing encoded data, no visible human-readable text

Ou

Código QR

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Technical line drawing of two electronic device modules with ventilation slots and ports (no text or symbols)

conector SATA HDD

Diagram of a device rear panel with labeled ports and indicator lights

Technical line drawing of a device rear panel with ports and buttons, shown from front and side views (no text or symbols)

Technical line drawing of a rectangular electronic device with ports and control buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Sau

Cod QR

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255.255.255.0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

SATA connector HDD

Diagram of a device rear panel with labeled ports and internal components, including icons for ports, cables, and switches.

Technical line drawing of a device rear panel with ports and buttons, shown from front and side views (no text or symbols)

Isometric line drawing of a rectangular electronic device with ventilation slots and ports (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Или

QR код

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

LED indicator

En indikator LED (primer: N3L-8H)

LED indikator	Opis
POWER	Sveti modro: Inicializacija.
	Sveti zeleno: snemanje NVR.
	Utripa zeleno: NVR deluje pravilno, vendar ne snema.
	Sveti rdeče: NVR je v okvari (vrata LAN so prekinjena, ali okvara trdega diska).

Tenda PWR HDD NET Več indikatorjev LED (primer: N3104-4P)

LED indikator	Opis
PWR	Sveti: vklopljen.
	Ne sveti: Nepravilno vklopljen.
NET	Sveti: vrata LAN so povezana.
	Ne sveti: vrata LAN so prekinjena.
HDD	Sveti: HDD deluje pravilno.
	Utripa: trdi disk je v okvari (na primer, trdi disk ni formatiran.)
	Ne sveti: trdi disk ni zaznan.

Spodnja plošča

Nasveti

Odstranite pokrov Flip

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

Diagram of a device rear panel with labeled ports and indicator lights

Technical line drawing of a device rear panel with ports and connectors, showing front and side views (no text or symbols)

Line drawing of a rectangular electronic device with ports and ventilation slots (no text or symbols)

You can preview real-time videos, play back the recordings and manage monitoring devices.

■ Upravljanje aplikacije

QR code image containing encoded data, no visible human-readable text

OZ

koda QR

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192, 168, 1, 10 Subnet mask: 255, 255, 255, 0 Default gateway: . . . . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . . . . Alternate DNS server: . . . . Validate settings upon exit Advanced OK Cancel

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

SATA connector HDD

Technical line drawings of a device chassis showing front, top, and side views with ports and connectors (no text or symbols)

QR code image containing encoded data, no visible human-readable text

'H

Κωδικός QR

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255.255.255.0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Technical line drawing of two electronic device modules with ventilation grilles and ports, shown from front and side views (no text or symbols)

Metal kabuk NVR (Örnek: N3104-4P)

HDD LTC1010001 HDD

Metal kabuk NVR (Örnek: N3104-4P)

Diagram of a device rear panel with labeled ports and connections, including icons for ports, switches, and indicators.

Metal kabuk NVR (Örnek: N3104-4P)

Technical line drawing of a device rear panel with ports and connectors, shown from front and side views (no text or symbols)

Plastik kabuk NVR (Örnek: N3L-8H)

Line drawing of a rectangular electronic device with ventilation slots and ports (no text or symbols)

Metal kabuk NVR (Örnek: N3104-4P)

II Cihazı bağlama

QR code image containing encoded data, no visible human-readable text

Veya

QR kod

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192. 168 . 1 . 10 Subnet mask: 255. 255. 255. 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Technical line drawing of two electronic devices with ventilation grilles and ports, shown from front and side views (no text or symbols)

Diagram of an electronic device rear panel with labeled ports and indicator lights

Technical line drawings of a device showing front, top, and side views with ports and connectors (no text or symbols)

QR code image containing encoded data, no visible human-readable text

A60

QR-код

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Simple line drawing of a rectangular container with four circular indentations and three protruding pins (no text or symbols)

Technical line drawing of two electronic device boxes with ventilation grilles and ports, shown from front and side views (no text or symbols)

NVR (mean: N3104-4P)

Pure diagram of a tray with four circular buttons and downward arrows, no text or symbols present

Diagram of a device rear panel with labeled ports and internal components, showing connections and status indicators.

Technical line drawing of a device rear panel with ports and connectors, shown from front and side views (no text or symbols)

NVR (mean: N3L-8H)

Isometric line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

NVR (mean: N3104-4P)

II قم بتوصيل الجهاز

(N3L-8H : مثال NCAA NVR طوبولوجيا

(N3104-4P : مثال) PoE NVR طوبولوجيا

QR code image containing encoded data, no visible human-readable text

أو

GET IT ON Google Play Download on the App Store

Internet Protocol Version 4 (TCP/IPv4)Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 10 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced OK Cancel

Get support and services

QR code image containing encoded data, no visible human-readable text

https://www.tendacn.com/service/default.html

English

Get support and services

For technical specifications, user guides and more information, please visit the product page or service page on www.tendacn.com. Multiple languages are available. You can see the product model on the product.

Polski

Floor 6-8, Tower E3, No.1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China.

518052

Website: www.tendacn.com

E-mail: [e-mail]

[e-mail] (North America)

[e-mail] (United Kingdom)

© 2023 Shenzhen Tenda Technology Co., Ltd. All rights reserved.

V1.1 Keep for future reference.
