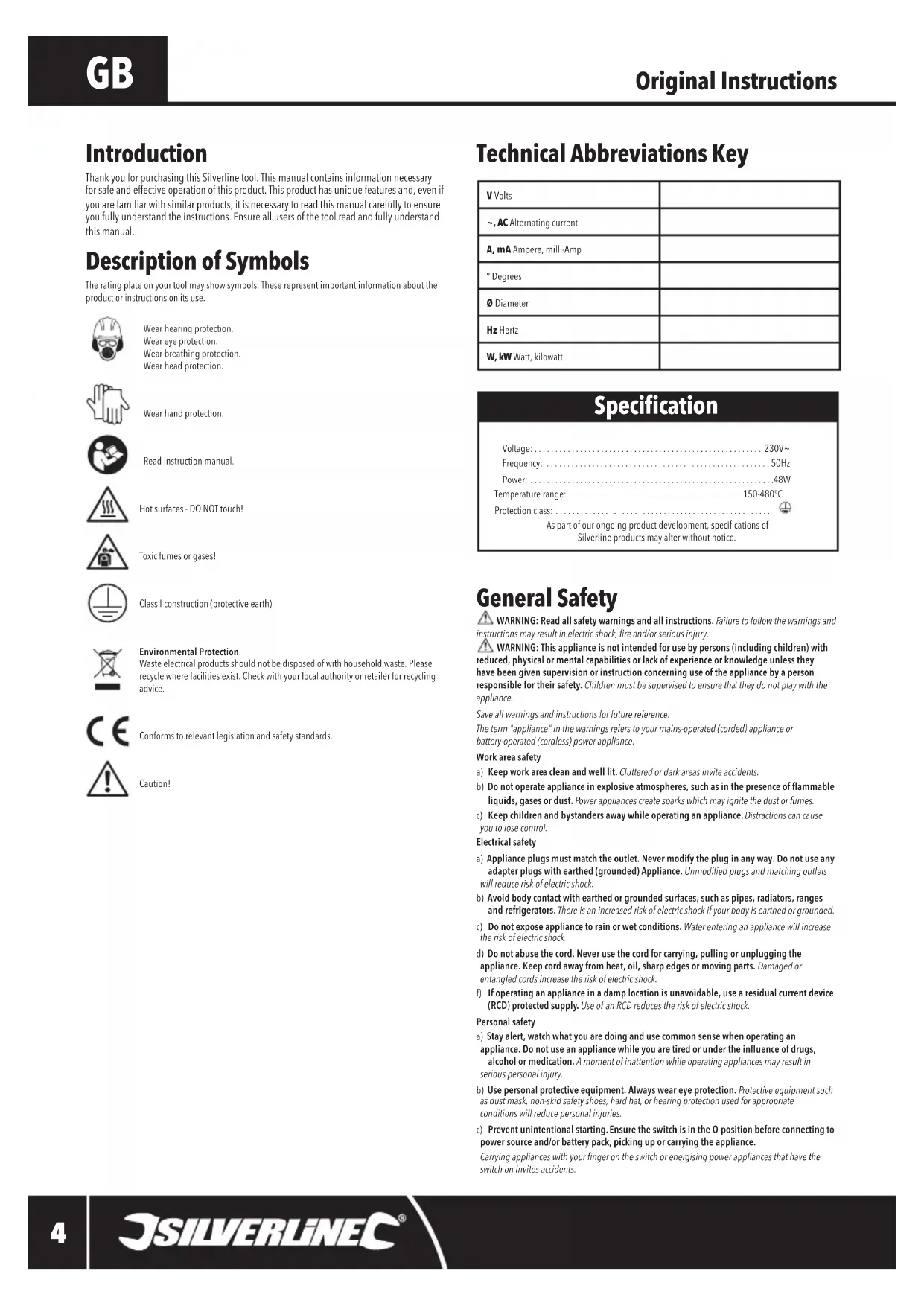

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and

instructions may result in electric shock, re and/or serious injury. WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.Save all warnings and instructions for future reference. The term "appliance" in the warnings refers to your mains-operated (corded) appliance or battery-operated (cordless) power appliance.Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate appliance in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Power appliances create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating an appliance. Distractions can cause you to lose control.Electrical safetya) Appliance plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) Appliance. Unmodied plugs and matching outlets will reduce risk of electric shock.b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose appliance to rain or wet conditions. Water entering an appliance will increase the risk of electric shock.d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the appliance. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. f) If operating an appliance in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safetya) Stay alert, watch what you are doing and use common sense when operating an appliance. Do not use an appliance while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating appliances may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the O-position before connecting to power source and/or battery pack, picking up or carrying the appliance. Carrying appliances with your nger on the switch or energising power appliances that have the switch on invites accidents. Description of Symbols The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.Wear hearing protection. Wear eye protection. Wear breathing protection.Wear head protection.Wear hand protection.Read instruction manual.Hot surfaces - DO NOT touch!Toxic fumes or gases!Class I construction (protective earth)Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.Conforms to relevant legislation and safety standards.Caution! Introduction Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual. Original Instructions V Volts~, AC Alternating currentA, mA Ampere, milli-Amp° DegreesØ DiameterHz HertzW, kW Watt, kilowatt 265829 Manual.indd 4 16/11/2017 09:59Soldering Station 48W265829

silverlinetools.com d) Remove any adjusting key or wrench before turning the power appliance on. A wrench or a key left attached to a rotating part of the appliance may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the appliance in unexpected situations.f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.Appliance use and care a) Do not force the appliance. Use the correct appliance for your application. The correct appliance will do the job better and safer at the rate for which it was designed. b) Do not use the appliance if the switch does not turn it ‘ON’ and ‘OFF’. Any appliance that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the appliance before making any adjustments, changing accessories, or storing appliances. Such preventive safety measures reduce the risk of starting the appliance accidentally.d) Store idle appliances out of the reach of children and do not allow persons unfamiliar with the appliance or these instructions to operate the appliance Appliances are dangerous in the hands of untrained users.e) Maintain appliances. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the appliances’ operation. If damaged, have the appliance repaired before use. Many accidents are caused by poorly maintained appliancesf) Use the appliance, accessories and appliance bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the appliance for operations different from those intended could result in a hazardous situation. WARNING: When used in Australia or New Zealand, it is recommended that this appliance is ALWAYS supplied via Residual Current Device (RCD) with a rated residual current of 30mA or less.Servicea) Have your appliance serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the appliance is maintained. Specic Safety Electric Soldering Safety

WARNING: This appliance must be placed on a suitable stand when not in use

WARNING: Do not hang the soldering iron vertically during use. This will cause heat to rise, which could make the handle too hot to touch and in extreme circumstances soften or melt the handle. Allowing the iron to hang down will also place additional strain on the power cable mounting.

WARNING: Only use soldering iron stands suitable for the wattage of your soldering iron. Do

not use high wattage irons with light small soldering iron stands. IMPORTANT: Use soldering irons safely. Use promptly when the soldering iron has reached the required temperature and switch off immediately after use.• Soldering appliances become extremely hot during use. Do not touch any part of the appliance other than the handle

• Switch ‘OFF’ and allow the appliance to cool completely before attempting to change any ttings
• Do not leave this appliance unattended whilst hot• Heat may be conducted to hidden areas or materials near to the work area. Ensure that there are no ammable materials in the vicinity of the work area• Residual heat may cause waste material to ignite, even after the appliance has been disconnected from the power supply• Never use these appliances near any kind of fuel tank or gas cylinder• Soldering with certain materials may result in toxic fumes. Always allow adequate ventilation. Do not use in conned spaces• Some types of solder may contain high proportions of lead. Molten lead emits toxic fumes, always wear good quality appropriate breathing protection• Lead fumes are especially toxic to children, pregnant women and people with high blood pressure. People at high risk should not be allowed near to the work area• Always dispose of waste material responsibly

1. Unit Selection Button

6. Tip Cleaning Sponge

13. Temperature Reading/Setting Switch

14. Fixing Bracket Slot

Product Familiarisation Intended Use Electrical soldering iron, featuring a variable power output. Suitable for precision use, and more general electrical soldering. Unpacking Your Appliance

• Carefully unpack and inspect your new soldering iron station. Familiarise yourself with all its features and functions.• Ensure that all parts of the appliance are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this appliance. Before Use WARNING: Ensure the appliance is disconnected from the power supply before attaching or changing any accessories, or making any adjustments. Assembly

Attaching the Soldering Iron

1. Attach the soldering iron to the left side of the soldering station via the Soldering Iron

Connector (4)2. Remove the protective plastic from the Tip (11)3. Sit the soldering iron in the Stand with the Tip pointing downward Preparing the Sponge Cleaning Pad

1. Place the Sponge Cleaning Pad in the station tray2. Add a small amount of water to the Sponge to make the Sponge damp

WARNING: ALWAYS wear eye protection, adequate respiratory and hearing protection, as well

as suitable gloves, when working with this appliance. Switching ON & OFF IMPORTANT: Check that the Soldering Iron Tip (11) is securely tted before switching ‘ON’. The Soldering Iron Tip should be pushed into the Heating Element (9) and secured by tightening the Tip Cover Screw (10)

1. The ON/OFF Switch (3) is located at the front of the station, to turn the soldering station ‘ON’, set

the ON/OFF Switch into the ‘I’ position2. To turn the soldering station ‘OFF’, set the ON/OFF Switch into the ‘0’ position265829 Manual.indd 5 16/11/2017 09:59GB

Note: The Soldering Iron Tip may emit smoke for a short while on rst use. This is normal and is the protective coating burning off the element. It is advisable to do this in a well-ventilated area before regular use. Using the soldering iron

1. Clean the Tip (11) and the workpiece before soldering (see ‘Cleaning’ section)

2. Place the soldering iron into the Soldering Iron Stand (5). DO NOT allow the heating element or

soldering tip to rest on any surface that may be damaged by heat3. Plug the solder station into the mains power supply

4. Switch the solder station ‘ON’, as instructed in the ‘Switching ON and OFF’ section. The display

on the station will illuminate when switched ‘ON’

5. Select the required temperature unit (Centigrade or Fahrenheit) by pressing the Unit Selection

6. Set the required Tip temperature by switching the Temperature Reading/Setting Switch (13) to

the ‘Set’ position and adjusting using the Temperature Control Dial (2). I. Clockwise = increase temperature II. Anticlockwise = decrease temperature The set temperature will be indicated on the digital display

7. To view the current Tip temperature on the digital display, set the Temperature Reading/Setting

Switch (13) to the ‘Read’ position Note: The temperature displayed will uctuate slightly once the iron has heated, due to heat loss and reheating while using Note: When soldering electronic components, refer to the component manufacturer’s instructions with regards to max soldering temperature.

8. Hold the Soldering Iron Tip against the wire or component to be soldered. Once hot, add solder

to the joint, then remove soldering iron

9. Switch the solder station ‘OFF’ when not in use, refer to ‘Switching ON and OFF’ section.

10. Store the soldering iron in the Soldering Iron Stand when not in use

• A range of accessories and consumables, including soldering iron tips is available from your Silverline stockist• Spare parts can be obtained from toolsparesonline.com Maintenance

WARNING: ALWAYS disconnect the tool from the power supply, before cleaning or carrying

out maintenance. General inspection

• Regularly check that all the xing screws are tight• Inspect the supply cord of the appliance, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this appliance Cleaning
• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the device’s service life. Clean the body of your machine with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes (where applicable)• Clean the tip before and after use with a suitable ux and using the Tip Cleaning Sponge (6) Replacing the tip

WARNING: ALWAYS disconnect from the power supply, and allow to fully cool, before

attempting to adjust or replace any part.• Loosen the Tip Cover Screw (10) and remove the cover (Fig. III)• Remove the old Tip (11) from the iron• Reassemble the iron with a new tip (Fig. IV) Contact For technical or repair service advice, please contact the helpline on ([phone]Web: silverlinetools.com/en-GB/SupportAddress: Powerbox Boundary Way Lufton Trading Estate Yeovil, SomersetBA22 8HZ, United Kingdom Storage

• Store this appliance carefully in a secure, dry place out of the reach of children Disposal Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste• Contact your local waste disposal authority for information on the correct way to dispose of power tools 265829 Manual.indd 6 16/11/2017 09:59Soldering Station 48W265829
