USER MANUAL 783124 SILVERLINE

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use

Wear hearing protection

Wear eye protection

Wear breathing protection

Wear head protection

Wear hand protection

Read instruction manual

Caution!

Toxic fumes or gases!

Risk of fire!

Risk of explosion!

NO open flames!

DO NOT use with compressed gas cylinders!

Conforms to relevant legislation and safety standards

Environmental Protection

Air tools should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Specification

Maximum operating pressure: 4bar (58psi)

Working pressure: 3.5bar (50psi)

Air Inlet: 1/4" BSP, supplied

with two male airline quick connectors

(EN-6 'UK' and EQ-4 'European' types)

Spray gun body material: .Powder-coated die cast aluminium

Paint container material: .Polypropylene (PP)

Paint container volume: .500cm3

Type of feed: Gravity

Nozzle diameter: 1.5mm

Fluid output: 160-240ml/min

Min. hose diameters: 8mm (19") for supply hose length up to 15m

9.5mm (%) for longer supply hoses

Air consumption: .85-227L/min

(3-8cfm)

Weight: 0.38kg

Noise and vibration information:

Level of sound pressure according to Machinery directive 2006/42/EC:

Sound pressure: LPA = 77dB(A)

Sound power: L_WA = 88dB(A)

Uncertainty: K = 3dB

The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.

Vibration total values (triax vector sum) according to Machinery directive 2006/42/EC:

Vibration emission value: a_h = 1.85m / s^2

Uncertainty: K = 1.5m / s^2

As part of our ongoing product development, specifications of Silverline products may alter without notice.

Noise and Vibration

Sound and vibration levels in the specification are determined according to ISO 28927-3. The figures given can be used to compare similar tools tested to this standard. These figures may be used to assess exposure to noise and vibration levels.

The figures represent normal use for the tool in normal working condition. A poorly maintained, incorrectly assembled or misused tool may produce increased levels of noise and vibration. The total working period that you can operate this tool must factor in periods where the tool is idle or switched off. Allow frequent rest breaks when operating this tool.

It is in the interest of users to maximise their safety using the correct safety equipment, like ear defenders that protect against loud or repetitive noise, and anti-vibration gloves that minimise vibration. Do not operate the tool with your hands below a normal comfortable temperature, as vibration will have a greater effect.

Sound

The noise directive was introduced to protect against the risk to health and safety arising or likely to arise from exposure to noise and risk of hearing. The Directive can be used to define noise exposure and the physical parameters, such as peak sound pressure and daily and weekly exposure level. Particular attention should be taken to exposure level and duration. For more information on the Noise Directives 2003/10/EC and 2000/14/EC, please visit The European Agency for Safety and Health at work - www.osha.europa.eu.

Vibration

The European Physical Agents (Vibration) Directive 2002/44/EC was introduced to control the exposure of vibration at work. The Directive enables users of tools to make informed decisions on the amount of time spent working. Those who regularly operate high vibration equipment over a sustained period of time are at a higher risk of health problems. ISO 28927-3 measures vibration in three directions which is known as tri-axial or vector sum measurement. When operating high vibration equipment, ensure not to exceed exposure levels. For more details on The Vibration Directive 2002/44/EC please visit The European Agency for Safety and Health at work -www.osha.europa.eu

General SafetyWarnings

• For multiple hazards, read and understand the safety instructions before installing, operating, repairing, maintaining, changing accessories on, or working near this tool. Failure to do so can result in serious bodily injury
• Only qualified and trained operators should install, adjust, or use this tool
• Do not modify this tool. Modifications can reduce the effectiveness of safety measures and increase the risks to the operator
• Do not discard the safety instructions; give them to the operator
• Do not use this tool if it has been damaged
• Tools shall be inspected periodically to verify that the ratings and markings required by this part of ISO 11148 are legibly marked on the tool. The employer/user should contact the manufacturer to obtain replacement marking labels when necessary

WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

Projectile Hazards

• Be aware that failure of the workpiece or accessories, or even of the tool itself, can generate high-velocity projectiles
  Always wear impact-resistant eye protection during operation of this tool. The grade of protection required should be assessed for each use
  For overhead work, wear a safety helmet
  The risks to others should also be assessed at this time
• Ensure that the workpiece is securely fixed

Entanglement Hazards

• Choking, scalping and/or lacerations can occur if loose clothing, personal jewellery, neck wear, hair or gloves are not kept away from the tool and its accessories

Operating Hazards

• Use of the tool can expose the operator's hands to hazards, including cuts, abrasions and heat
• Wear suitable gloves to protect hands
• Operators and maintenance personnel should be physically able to handle the bulk, weight and power of the tool
• Hold the tool correctly; be ready to counteract normal or sudden movements and have both hands available
• Maintain a balanced body position and secure footing
• Release the start-and-stop device in the case of an interruption of the energy supply
  Use only lubricants recommended by the manufacturer
• Personal protective safety glasses should be used; suitable gloves and protective clothing are recommended
• Avoid direct contact with moving parts in order to prevent pinching or cutting of hands or other body parts. Wear suitable gloves to protect hands
• Never run the tool unless it is directed towards the workpiece

• There is a risk of electrostatic discharge if used on plastic and other non-conductive materials

• Potentially explosive atmospheres can be caused by aerosols and fumes resulting from spraying
  Always use dust extraction or suppression systems which are suitable for the material being processed

Repetitive Motions Hazards

• When using this tool to perform work-related activities, the operator can experience discomfort in the hands, arms, shoulders, neck or other parts of the body
  While using this tool, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balance postures. The operator should change posture during extended tasks; this can help avoid discomfort and fatigue
• If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should inform the employer and consult a qualified health professional

Accessory Hazards

• Disconnect the tool from the energy supply before filling or changing accessories
• Use only sizes and types of accessories and consumables that are recommended by the manufacturer of this tool; do not use other types or sizes of accessories or consumables

Workplace Hazards

• Slips, trips and falls are major causes of workplace injury. Be aware of slippery surfaces caused by use of the tool and also of trip hazards caused by the air line or hydraulic hose
• This tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electric power

Dust and Fume Hazards

• Dust and fumes generated when using this tool can cause ill health (for example cancer, birth defects, asthma and/or dermatitis); risk assessment and implementation of appropriate controls for these hazards are essential
• Risk assessment should include dust created by the use of the tool and the potential for disturbing existing dust
• Operate and maintain this tool as recommended in these instructions, to minimise dust or fume emissions
• Direct the exhaust so as to minimise disturbance of dust in a dust-filled environment
• Where dust or fumes are created, the priority should be to control them at the point of emission
• All integral features or accessories for the collection, extraction or suppression of airborne dust or fumes should be correctly used and maintained in accordance with the manufacturer's instructions
• Select, maintain and replace the consumable/inserted tool as recommended in the instruction handbook, to prevent an unnecessary increase in dust or fumes
• Use respiratory protection in accordance with employer's instructions and as required by occupational health and safety regulations

Noise Hazards

• Exposure to high noise levels can cause permanent, disabling hearing loss and other problems, such as tinnitus (ringing, buzzing, whistling or humming in the ears). Therefore, risk assessment and implementation of appropriate controls for these hazards are essential
• Appropriate controls to reduce the risk can include actions such as damping materials to prevent workpieces from 'ringing'
• Use hearing protection in accordance with employer's instructions and as required by occupational health and safety regulations
• Operate and maintain this tool as recommended in the instruction handbook, to prevent an unnecessary increase in the noise level
• Select, maintain and replace the consumable/inserted tool as recommended in the instruction handbook, to prevent an unnecessary increase in noise
• If the tool has a silencer, always ensure it is in place and in good working order when the tool is being operated

Vibration Hazards

This information shall draw attention to vibration hazards that have not been eliminated by design and construction and remain as residual vibration risks. It shall enable employers to identify the circumstances in which the operator is likely to be at risk from vibration exposure If the vibration-emission value obtained using ISO 28927-3 does not adequately represent the vibration emission in the intended uses (and foreseeable misuses) of the machine, additional information and/or warnings shall be supplied to enable the risks arising from vibration to be assessed and managed.

• Exposure to vibration can cause disabling damage to the nerves and blood supply of the hands and arms
• Wear warm clothing when working in cold conditions and keep your hands warm and dry
• If you experience numbness, tingling, pain or whitening of the skin in your fingers or hands, stop using the tool, inform your employer and consult a physician
• Operate and maintain the tool as recommended in the instruction handbook, to prevent an unnecessary increase in vibration levels
• Hold the tool with a light but safe grip, taking account of the required hand reaction forces, because the risk from vibration is generally greater when the grip force is higher

Safety Instructions for Pneumatic Tools

Air under pressure can cause severe injury:

• Always shut off air supply, drain hose of air pressure and disconnect tool from air supply when not in use, before changing accessories or when making repairs
• Never direct air at yourself or anyone else
• Whipping hoses can cause severe injury. Always check for damaged or loose hoses and fittings
• Whenever universal twist couplings (claw couplings) are used, lock pins should be installed and whipcheck safety cables should be used to safeguard against possible hose-to-tool or hose-to-hose connection failure
• Do not exceed the maximum air pressure stated on the tool
• Never carry an air tool by the hose

Spray Gun Safety

Dangerous environment

• Ensure there is adequate clear space around the work area. Only use spraying tools in a well-ventilated area or a specialist spray booth. Be aware that air hoses can present a trip hazard; always lay hoses in a way that minimises hazards.

Protect your eyes

Always wear safety goggles or safety glasses.

Protect your hearing

Always wear ear protection.

Protection from vibration

• Hand-held air tools may produce vibration and should not be used for long periods without a break. Vibration can cause disease. Gloves may help to maintain good blood circulation in the fingers.

Protective equipment

• Always wear appropriate protective equipment including but not limited to overalls, gloves, facemask etc.
• It is the user's responsibility to ensure that other persons in the vicinity of the work area are also equipped with the appropriate protective equipment.

Use the correct air hose

• Use lightweight hose to connect the tool to the air compressor.
  Air should be supplied by a suitable length of 8mm / (e) diameter air hose fitted with a female 14 NPS connection at gun end. For hose lengths over 15m(50^) use 9.5mm(%) diameter hose.
• When spraying, ensure that the gun is connected to a clean, filtered air supply.

Always disconnect

• Ensure that your air tool has completely stopped functioning before putting it down.
• Disconnect an air tool from the air supply before performing any servicing or refilling
• Ensure the air tool is switched OFF before connecting to air supply. Be aware that air tools may hold residual pressure after use. Always bleed air pressure from the tool after shutting off air supply.

Do not abuse the tool

• Do not increase air pressure above the recommended level; excessive pressure leads to wear of moving parts, possible failure and may cause the tool casing to split.
• Do not attempt to modify air tools. Any attempt to modify this air tool could result in serious injury to you or others, and will invalidate its warranty.

Use of spray guns

• Do not aim a spray gun at people or animals!
• When spraying keep away from heat and naked flames!

WARNING: Solvents and paints are flammable, harmful and can even be toxic. Some solvents and paints are extremely flammable. Handle with care, according to the manufacturer's recommendations. Store solvents and paint in suitable sealed, leak proof containers. Always wear suitable protective equipment and dispose of solvents and paints, as well as contaminated items, as special waste, according to laws and regulations.

WARNING: Solvents that are chemically based on halogenated hydrocarbon, like trichloroethane and methylene chloride 1,1,1, for example, may cause chemical reactions in combination with aluminium and galvanized or hot galvanized components and will therefore represent a potential risk of explosion.

WARNING: When spraying coating materials, dangerous vapours or aerosols, which are detrimental to your health, are produced. Please read all labels and safety instructions carefully, and observe all indicated instructions and recommendations. In case of doubt, please ask the material supplier. Use respiratory protection when spraying. The respiratory equipment used must be suitable for the material in use and adapted to the degree of the vapour concentration. When spraying paint, use respiratory equipment independent of the ambient atmosphere, or equipment with filter combination A1/A2-P2. Ensure a sufficient protection of your skin during all spraying and cleaning procedures. Wear appropriate protective clothes and use suitable protective skin ointments.

Product Familiarisation

1 Paint Container Lid With Covered Equalisation Hole

2 Paint Container

3 Hanging Hole

4 Knurled Needle Adjustment Screw

5 Knurled Pattern Adjustment Screw

6 Air Valve Spring Seat

7 Handle

8 Quick Connector

9 Trigger

10 Material Nozzle

11 Air Nozzle

12 Air Nozzle Locking Ring

Intended Use

• Atomising gravity feed spray gun, powered by filtered compressed air from a compressor, for spraying of medium viscosity paint and coatings

Unpacking Your Tool

• Carefully unpack and inspect your tool. Fully familiarise yourself with all its features and functions
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool

Before Use

Fitting the quick connector

Note: This tool is supplied with two different male airline quick connectors:

EQ-4 - commonly used in Europe

EN-6 - mainly used in the UK

• Please choose the connector that is compatible with the airline system you are using, and install as outlined below:
• Apply PTFE tape (not included) to the screw threads of the Quick Connector (8). This will help to maintain an air tight seal
  Note: Apply PTFE tape tightly and in a clockwise direction, so it does not come off when the thread is screwed into the tool.
• Remove the protective plug from the air inlet
• Using a spanner (not included) screw the quick connector into the air inlet located at the base of the handle
• Connect to airline, pressurise carefully and carry out a leak check (e.g. by spraying small amounts of soapy water on to the outside of the connectors)
  Air lines fitted with matching female quick connectors will now be a push fit to the tool

Fitting the paint container

• Fit the Paint Container (2) by screwing it in to the opening on top of the spray gun. Gently tighten with a suitable spanner (not included)

Note: Always inspect the O-ring on the paint container thread, and ensure it is in good condition. Change if required.

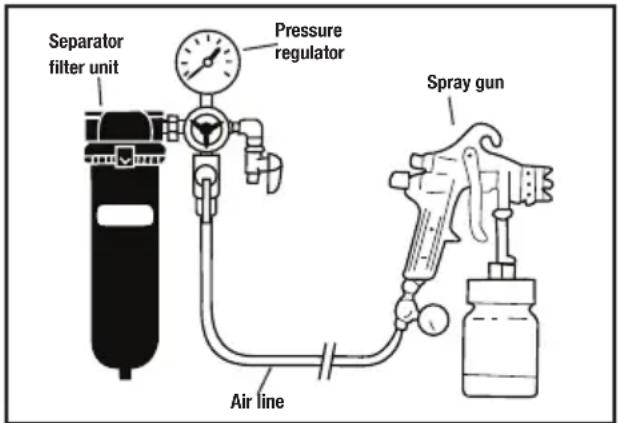

Air supply connection

• This tool should be connected to a clean, dry air supply with water separator and filter

WARNING: Under no circumstances can the spray gun be used in a compressed air system with integrated oiler.

Note: Achieving a fine spray finish without the use of a high quality separator filter is virtually impossible.

• Do not allow supply pressure to exceed the maximum stated (see 'Specifications')
• Ensure that water is drained from air system daily
• Ensure that all parts of the system (hoses, couplers, etc.) are correctly rated for the air pressure to be used
• Do not use non-conductive tubing to help prevent build-up of electrostatic charge

Setting the air pressure

• Atomising pressure must be set properly to allow for the drop in air pressure between the compressor/regulator and the spray gun
• Use recommended hose diameter to minimise pressure drop and adjust supply air pressure according to 'Specifications'

IMPORTANT: To reduce overspray and in order to obtain maximum efficiency, always spray with the lowest possible air pressure.

Paint preparation

WARNING: Ensure the type of paint, solvent used and the viscosity is suitable for the material and type of this spray gun.

• Mix, condition and filter the material to be sprayed according to the manufacturer's recommendations
  Refer to the manufacturer's guidelines for storing and disposal of prepared material

Filling the paint container

1. Ensure the spray gun is disconnected from the air supply
2. Unscrew the Paint Container Lid With Covered Equalisation Hole (1)
3. Fill the paint container to the required level

Note: The outside of the paint container features a scale in ml. Never overfill (see 'Specifications' for max. paint container capacity).
4. Re-fit the lid of the paint container. Close tightly by hand
Note: The lid features a covered equalisation hole for pressure equalisation, and is therefore not completely sealed. Take care not to spill material through this hole. Open the lid before spraying, and close after you finished work or before refilling the paint container. Always ensure the hole remains clean and unblocked.

Adjusting the spray gun

- Bring the spray gun into the default position:

1. Carefully screw the Knurled Needle Adjustment Screw (4) clockwise until it stops

WARNING: The paint needle can easily be damaged. Be careful not to use too much force.

1. Carefully screw the Knurled Pattern Adjustment Screw (5) clockwise until it stops

WARNING: DO NOT use too much force, as this may damage the valve seat.

1. Loosen the Air Nozzle Locking Ring (12) about a quarter turn, to allow the Air Nozzle (11) to be adjusted

- Adjust the material output:

1. Connect the spray gun to the air supply
2. Direct the gun towards a large piece of cardboard or similar material
3. Hold the spray gun steady and depress the Trigger (9)

Note: In default position, there should be no material or air output.

1. Slowly turn the Knurled Needle Adjustment Screw (4) anticlockwise to open the material flow
2. Adjust until the desired material output is reached

FIG.A

- Adjust the spray pattern:

Note: Always readjust the material output when modifying the width or shape of the spray beam.

1. Slowly turn the Knurled Pattern Adjustment Screw (5) anticlockwise to adjust the spray pattern. Turn until the desired spray pattern is reached

Note: Turning the pattern adjustment screw anticlockwise increases the spread, turning it clockwise leads to a narrower, more circular spray pattern.
2. Turn the Air Nozzle (11) to adjust the orientation of the spray pattern (see Fig. A)
3. Once you reached the desired spray pattern, release the Trigger (9) and tighten the Air Nozzle Locking Ring (12) by hand, to lock the air nozzle in place

Note: In most operations the wings on the air nozzle should be horizontal to provide a vertical spray pattern which gives maximum coverage as the gun is moved backwards and forwards parallel to the surface being painted.

Operation

Trigger operation

The trigger has a 2-stage mechanism:
Press to the first stage, the air will flow through the gun
Press further and the paint is released.

Note: Adjusting the Knurled Needle Adjustment Screw (4) will determine how far the trigger can be depressed

Spray technique

To achieve a smooth even coat the material must be prepared and thinned in accordance to the manufacturer's guidelines
- The gun must be clean and correctly loaded, the spray pattern adjusted and the compressor set at the correct pressure
- Always carry out a test spray and follow the procedures described in 'Adjusting the spray gun', to establish the best settings
- Hold the spray gun approximately 200-250mm away from the workpiece
Spray workpiece edges first. Overlap approximately 50% of each applied spray beam
- Spray in continuous, even motion. Keep your hand as steady as possible and move the spray in a straight pass across the workpiece (see Fig. B)

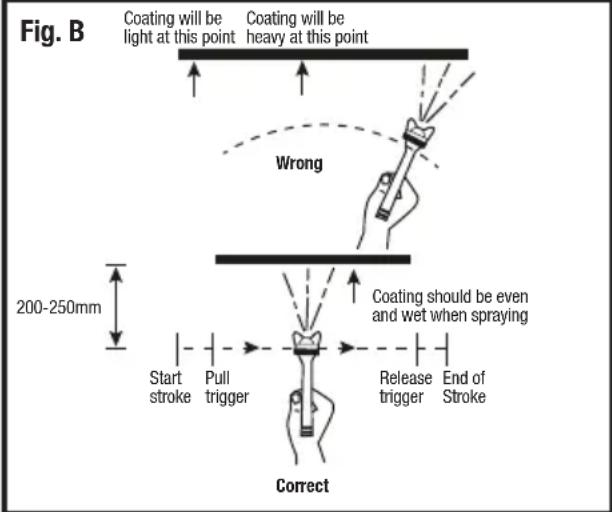

- Do not operate in an arc motion. Arcing will lead to an uneven finish (see Fig. B)
- Avoid intensive waving, as it will cause the air jacket to become unstable, allowing clouds of atomised spray material to escape
- Before spraying it is good practice to visualise the entire spraying process. Start with the least visible areas and work towards the parts that will be seen. This will create an even finish, allow you to identify problematic areas of the workpiece, and let you work around spots that may already have been covered
After use, immediately disconnect the spray gun from the air supply

WARNING: Be aware that air tools may hold residual pressure after use.

Always bleed air pressure from the tool after shutting off air supply.

Maintenance

WARNING: Always disconnect from the air supply and depressurise before disassembling or carrying out any maintenance.

WARNING: Always wear suitable protective equipment including eye and respiratory protection, as well as gloves, when carrying out cleaning or maintenance procedures.

WARNING: The majority of solvents used for painting applications are toxic and highly flammable. Comply with local laws and regulations with regards to handling, storage and disposal of solvents and other harmful and potentially dangerous substances.

Note: Your spray gun is a fine precision instrument and must be treated and maintained accordingly, in order to achieve consistent, professional-looking, uniform results.

• The most common problems with spray guns are caused by paint being allowed to dry inside the tip, nozzle or internal air/fluid passages
• Clean the entire spray gun thoroughly after each project, and when changing the type of material being sprayed
  Always use the same solvent for cleaning that was used to thin the paint

General cleaning after every use

1. Unscrew Paint Container Lid With Covered Equalisation Hole (1), empty remaining material into a suitable sealed container, unscrew the Paint Container (2) from the spray gun and clean thoroughly with the appropriate solvent and clean cloths
2. Clean the nozzle assembly of the gun, lid and gasket of the paint container
3. Refit the paint container, fill with a small amount of solvent, close the lid and open the equalisation hole cover
4. Connect the gun to the air supply
5. Direct the gun towards an empty container and spray the solvent through the gun into the container, until the spray is clear of any paint
6. Turn off the air supply and disconnect the gun
7. Open the paint container, empty remaining solvent into the disposal container, and allow all components to dry thoroughly

WARNING: In order to prevent solvents and other harmful substances from entering the atmosphere, open solvent cleaning is not permitted in some territories, and special cleaning procedures apply (e.g. cleaning inside special closed bags and containers, etc.). Make yourself familiar with local regulations, and apply the recommended procedures.

Special cleaning procedures for air and fluid nozzles and needles

WARNING: All nozzles and needles are precision made. They must be handled with the utmost care. Damage and alterations will cause decreased performance or faulty spray.

WARNING: Needles have sharp points. Handle with care to avoid puncture wounds and other injuries.

1. Referring to the 'Assembly Diagram', carefully disassemble the spray gun, remove the nozzle assembly and fluid needle
2. To clean, soak nozzles and needle in a suitable solvent that dissolves any dried material and clean with a suitable soft brush

Note: Never soak the entire spray gun in solvent, as this will damage the packings and remove lubrication.

1. Carefully blow all components clean with filtered, compressed air

WARNING: Do not probe any of the holes in the nozzles with metal instruments. If mechanical cleaning becomes necessary, use only implements from materials softer than brass, such as specialised nozzle cleaning aids.

Lubrication

• Even though the air and material passages of the spray gun must remain free of oil and other contaminants, some components require frequent lubrication
• Slightly lubricate all packings, bearings and dynamic 0-rings with a specialised spray gun lube, and apply a small amount of petroleum jelly to springs

Storage

• Store this tool carefully in a secure, dry place, out of the reach of children

Disposal

Air tools should not be disposed of with household waste
Spray guns may contain traces of solvents and paint residue, and must be recycled accordingly
- Surplus paints, solvents and cleaning solutions must be disposed of according to the manufacturer's instructions
- Contact your local waste disposal authority for information on the correct way to dispose of air tools

Troubleshooting

Problem Possible Cause Solution
Spray gun will not spray	No air pressure Check air supply
	Material viscosity far too high Regulate material viscosity
	Spray gun wrongly adjusted Follow adjustment procedure to readjust spray gun
Intermittent/sputtering spray	Fluid level too low Refill paint container
	Dry or worn needle packing seat; air seeping into fluid passage	Tighten packing; lubricate
	Leaking paint container connection Check O-ring of paint container connection; tighten paint container
	Obstruction in fluid passage Flush spray gun with solvent to dissolve blockage
	Packing fluid needle too loose causing leaking Tighten or replace packing
Arc-shaped spray pattern	Horn holes clogged	Remove obstructions from horn holes; soak in suitable solvent and wipe clean
	Uneven volume of fluid from horn holes cause fluid deviation
Spray pattern is not evenly spread	Material builds up on the outside of the fluid tip or centre hole or partially clogs the nozzle orifice	Remove obstruction
	Loose fluid nozzle	Tighten fluid nozzle
Centre of spray pattern too narrow	Atomising air pressure too high Reduce air pressure
	Material too thin Regulate material viscosity
Pattern width too small	Atomising air pressure too low Increase air pressure
	Material too thick Regulate material viscosity
No or very little paint output	Fluid passage clogged	Remove obstructions
	Air holes in the nozzle blocked
	Fluid needle stroke too small (Material flow too low)	Increase material flow
Excessive overspray	Atomising air pressure too high Reduce air pressure
	Spray gun too far from work surface Use proper distance to workpiece
	Wrong spray gun movement (arcing, too fast) Move at moderate pace, parallel to the workpiece
Dry spray	Atomising air pressure too high Reduce air pressure
	Material not properly prepared Adjust viscosity and re-filter material
	Spray gun too far from work surface Use proper distance to workpiece
	Spray gun motion too fast	Move at moderate pace
	Spray gun wrongly adjusted Follow adjustment procedure to readjust spray gun
Runs and sags	Material flow too high	Reduce material flow
	Material too thin Regulate material viscosity
	Gun tilted on an angle	Hold gun at right angle to the workpiece; improve spraying technique
If the above troubleshooting solutions fail, contact your dealer or an authorised Silverline service centre.

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

• Your personal details
  Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline Tools

Declaresthat

Identification code: 783124

Description: Gravity Feed Spray Gun

Conforms to the following directives and standards:

Machinery Directive 2006/42/EC

EN1953:1998+A1:2009

The technical documentation is kept by: Silverline Tools

Date: 11/06/13

Signed:

Director

Name and address of the manufacturer:

Powerbox International Ltd., Boundary Way, Lufton Trading Estate, Yeovil,

Somerset, BA22 8HZ United Kingdom

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GroBbritannien

Powerbox International Ltd, Boundary Way, Lufton Trading Estate, Yeovil,

Powerbox International Ltd, Boundary Way, Lufton Trading Estate, Yeovil,

Pressione operative: 3.5 bar (50psi)

Powerbox International Ltd, Boundary Way, Lufton Trading Estate, Yeovil,

Somerset, BA22 8HZ, Regno Unito

IMPORTANT NOTE: THE PARTS DIAGRAMS SUPPLIED IN THIS MANUAL ARE FOR REFERENCE ONLY. THE MANUFACTURER MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND TO THE CUSTOMER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR CARRY OUT OTHER ASSEMBLY/ DISASSEMBLY PROCEDURES. THE MANU-FACTURER EXPRESSLY STATES THAT ALL REPAIRS AND PART REPLACEMENTS MUST BE UNDERTAKEN ONLY BY A CERTIFIED TECHNICIAN AT AN AUTHORISED SILVERLINE SERVICE CENTRE, AND NOT BY THE CUSTOMER. THE CUSTOMER ASSUMES ALL RISK AND LIABILITY ASING THROUGH HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT, REPLACEMENT OF PARTS OR OTHER MODIFICATION OF THE ORIGINAL PRODUCT. DIAGRAMS ARE FOR ILLUSTRATION PURPOSES ONLY. SILVERLINE DOES NOT SUPPLY SPARE PARTS FOR THIS ITEM.

IMPORTANT : LES DIFFÉRÊNTES PIEÇÉS ILLUSTRÉS DANS LE SCHEMA FIGURANT DANS CE MANUEL NE SONT PRSENTÉES QUÀ TITRE DE RÉFERENCE. LE FABRICANT N'OFFRE NI IMPLICATION NI GARANTIE QUE SES CLIENTS PUISSENT ÉTRÉ QUALIFIÉS POUR EFFECTUER DES RÉPARATIONS SUR L'APPAREIL, OU EFFECTUER LES OPÉRATIONS D'ASSEMBLAGE OU DE DÉSASSEMBLAGE. LE FABRICANT STIPULE EXPRESSEMENT QUE TOUTE RÉPARATION ET Tout RÉPRACTION DE PIEÇÉS DOIVENT ÉTRÉ UNIQUÉMENT RÉALISÉS PAR UN TECHNIÇIER QUALIFIÉ DANS UN CENTRE DE RÉPARATION AGREE SILVERLINE, ET NON PAS PAR LE CLIENT. LE CLIENT ASSUME L'INTÉGRAlitÉ DES RISQUES ET DES RESPONSABILITÉS DE SES PROPRES RÉPARATIONS, RÉMPLACEMENTS DE PIEÇÉS ET MODIFICATIONS EFFECTUÉS SUR LE PRODUIT INITIAL. LES SCHEMAS NE SONT PRSENTÉS QUÀ TITRE D'ILLUSTRATION. SILVERLINE NE FOURNIT AUCUNE PIECE DE RECHANGE POUR CE PRODUIT.

*Register online within 30

days. Terms & Conditions apply

Garantie de 3 ans
