USER MANUAL Koralia Nano Ferplast

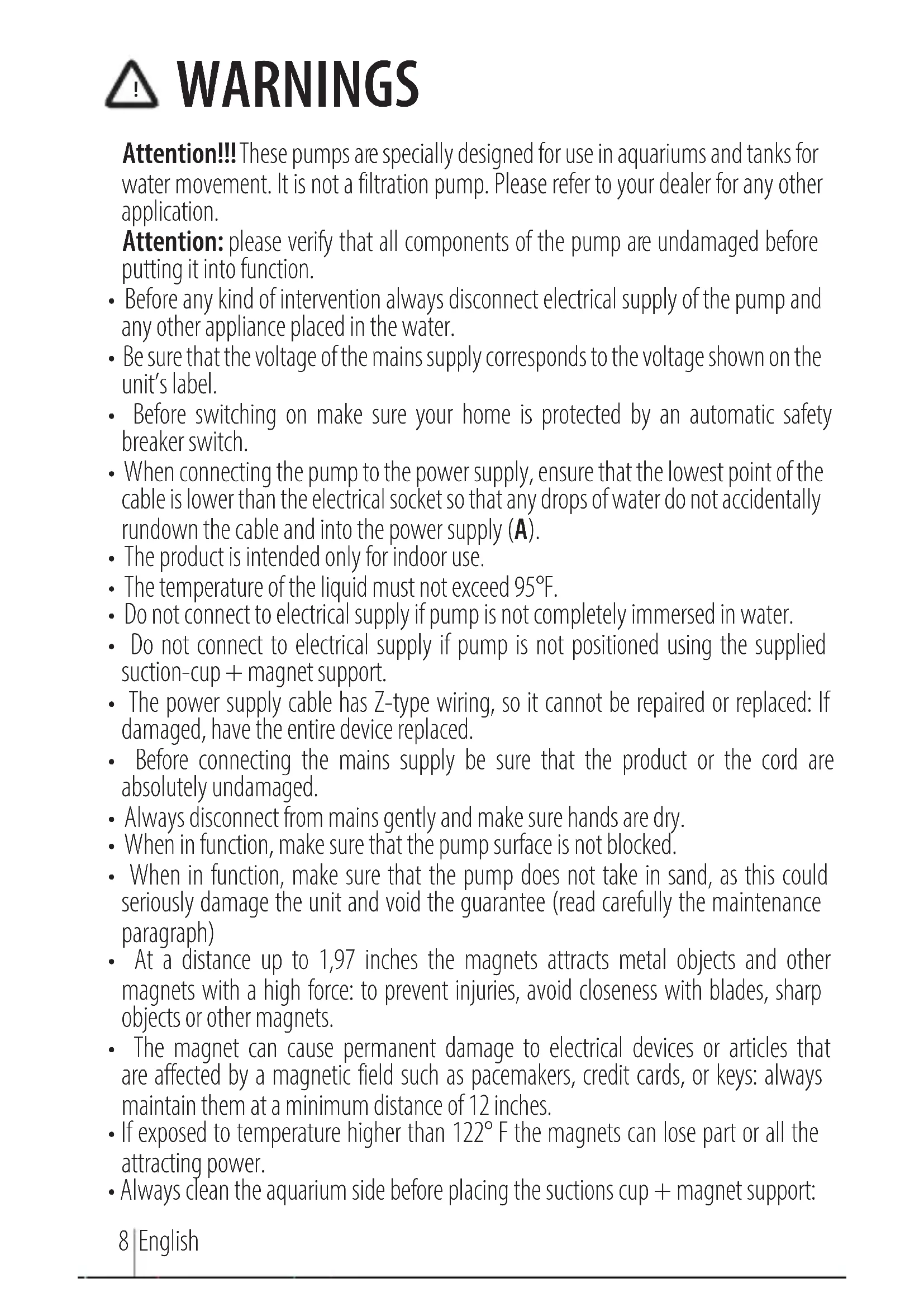

WARNINGS Attention!!! These pumps are specially designed for use in aquariums and tanks for water movement. It is not a filtration pump. Please refer to your dealer for any other application. Attention: please verify that all components of the pump are undamaged before putting it into function.

• Before any kind of intervention always disconnect electrical supply of the pump and any other appliance placed in the water.

• Be sure that the voltage of the mains supply corresponds to the voltage shown on the unit’s label.

• Before switching on make sure your home is protected by an automatic safety breaker switch.

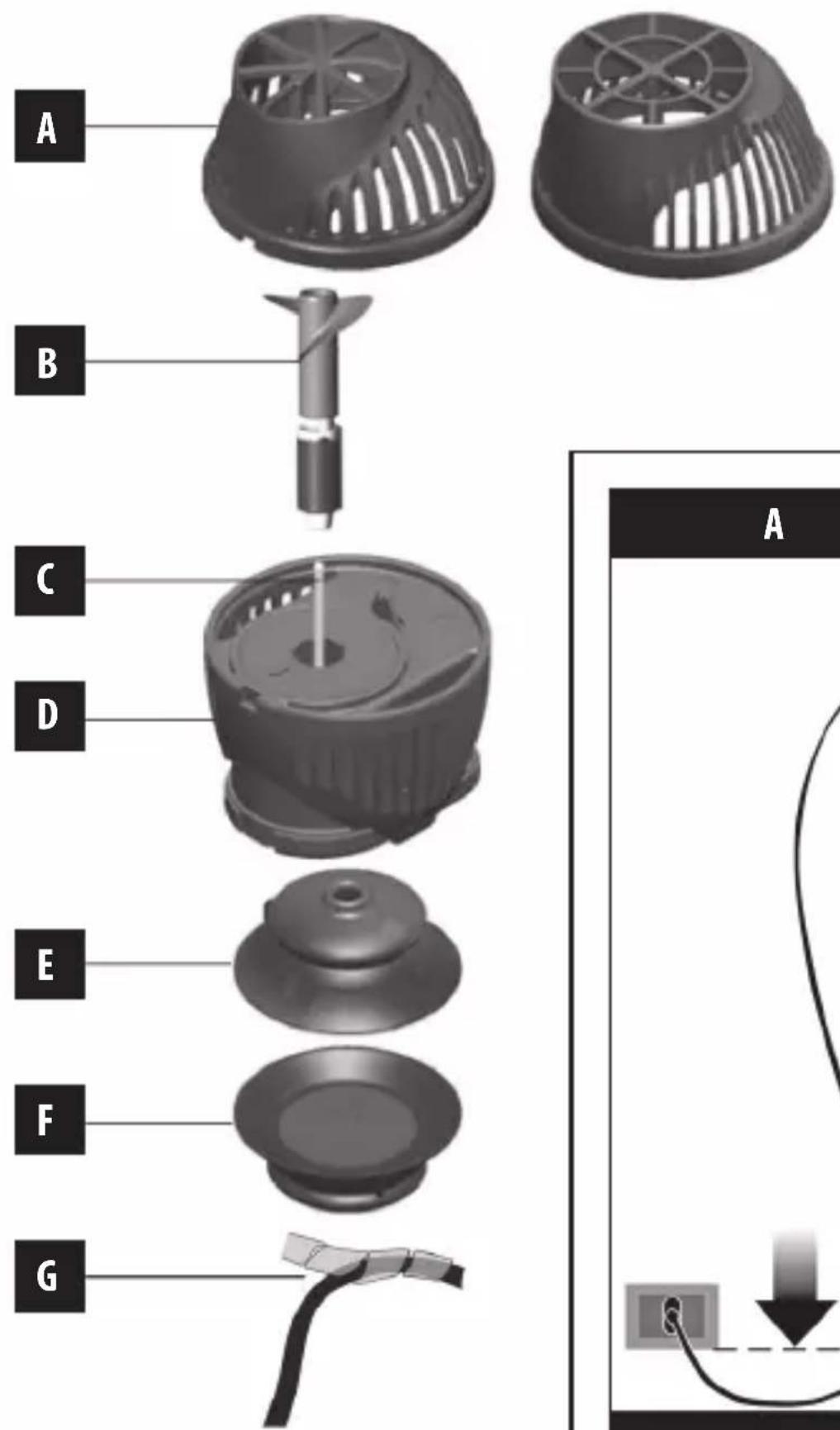

• When connecting the pump to the power supply, ensure that the lowest point of the cable is lower than the electrical socket so that any drops of water do not accidentally rundown the cable and into the power supply (A).

• The product is intended only for indoor use.

• The temperature of the liquid must not exceed 95°F.

• Do not connect to electrical supply if pump is not completely immersed in water.

• Do not connect to electrical supply if pump is not positioned using the supplied suction-cup + magnet support.

• The power supply cable has Z-type wiring, so it cannot be repaired or replaced: If damaged, have the entire device replaced.

• Before connecting the mains supply be sure that the product or the cord are absolutely undamaged.

• Always disconnect from mains gently and make sure hands are dry.

• When in function, make sure that the pump surface is not blocked.

• When in function, make sure that the pump does not take in sand, as this could seriously damage the unit and void the guarantee (read carefully the maintenance paragraph)

• At a distance up to 1,97 inches the magnets attracts metal objects and other magnets with a high force: to prevent injuries, avoid closeness with blades, sharp objects or other magnets.

• The magnet can cause permanent damage to electrical devices or articles that are affected by a magnetic field such as pacemakers, credit cards, or keys: always maintain them at a minimum distance of 12 inches.

• If exposed to temperature higher than 122° F the magnets can lose part or all the attracting power.

• Always clean the aquarium side before placing the suctions cup + magnet support: English9 any dirt on the surface might prevent the suction cup from attaching properly and the pump might slip on the bottom of the aquarium causing damage to things and itself.

• Due to the high attraction level between the magnets in the support, keep out of reach of children.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Keep the appliance and its cord out of reach of children less than 8 years. IMPORTANT - Within the European Union, a crossed-out wheelie bin symbol on the product, documentation or packaging indicates that the product cannot be disposed of in the regular household waste stream, in compliance with EU Directive 2012/19/EC and with current local regulations. The product must be disposed of at recycling centres or authorised waste disposal centres for electrical and electronic equipment, in accordance with current legislation in the country where the product is found. Incorrect disposal of this type of waste can have a negative impact on the environment and human health, caused by the potentially hazardous substances produce by electrical and electronic equipment. Correct disposal of these products will also contribute to the efficient use of natural resources. Further information is available from the product retailer, the competent local authorities and national manufacturer’s organisations. Dear Hobbyist, we thank You for choosing this pump. Please read the following instructions very carefully for best understanding of the characteristics of this unique and innovative product. PRODUCT OVERVIEW Designed especially to work in small reef aquariums, , this pump belongs to a new innovative and unique range of circulation pumps for aquariums. The exclusive design and technology guarantee a continuous and powerful water flow which can be directed freely thanks to the special sphere shaped connection to the exclusive combination suction cup + magnet support. High performance, low energy consumption, quick and easy maintenance. The combination suction cup + magnet can safely hold the pump positioned in tanks with glass (or acrylic) up to 10mm - 3/4 in thick.All the materials that make up this pump respect the environment and the fauna of the aquariums and do not release harmful or harmful substances to the water. English10 English MAINTENANCE Attention: Before any kind of intervention, ALWAYS disconnect electrical supply of the pump and any other appliance placed in the water.

• Regular cleaning and maintenance will guarantee the pump better and longer performance.

• With one hand hold the pump assembly, with other hand remove the external magnet to release (use the appendix on the outside of the suction cup to help you in this operation).

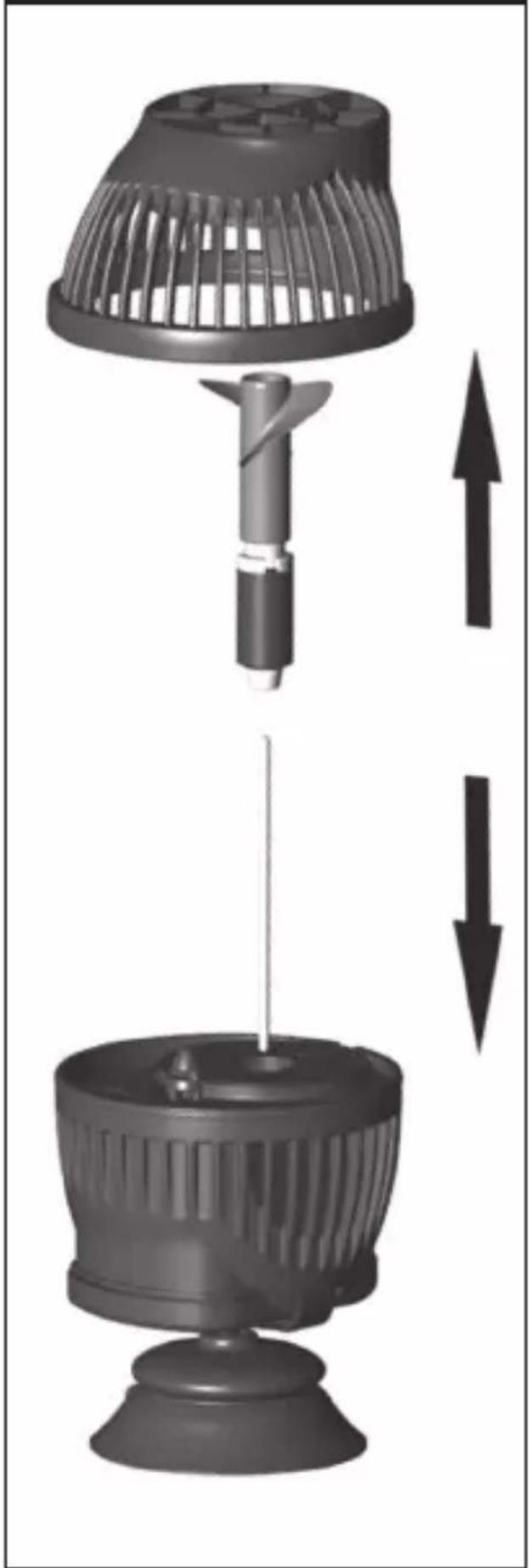

• Disassemble as shown (5).

• Clean the impeller assembly removing deposits with a soft brush. Do not use detergents or solvents.

• Reassemble everything in reverse order, make sure the notches on the pump chambers correspond and that the shaft is placed correctly.

• In case of abnormal noise and /or reduced performance caused by sudden changes in electricity supply, it is sufficient to restart the pump. INSTALLATION In order to prevent noise and disturbance caused by vibration we suggest to position the pump avoiding lateral contact with the aquarium glass or in an upward position on the bottom.

• Unwind the electric cable.

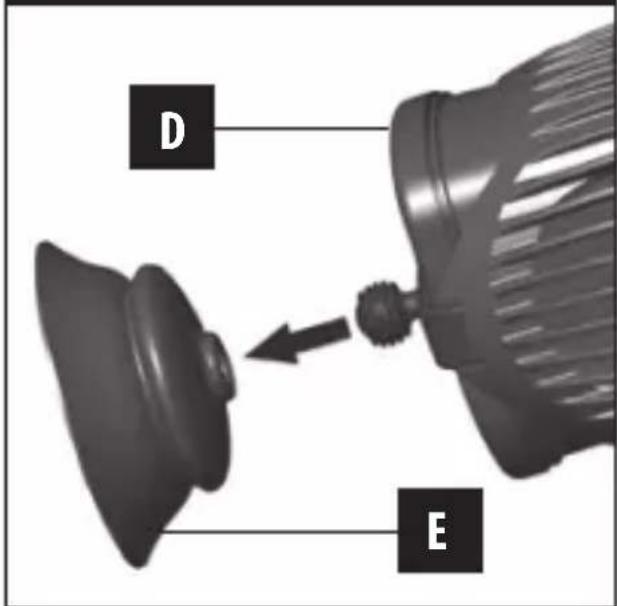

• Insert the cylinder on the sphere attachment to the pump in the proper slot (2).

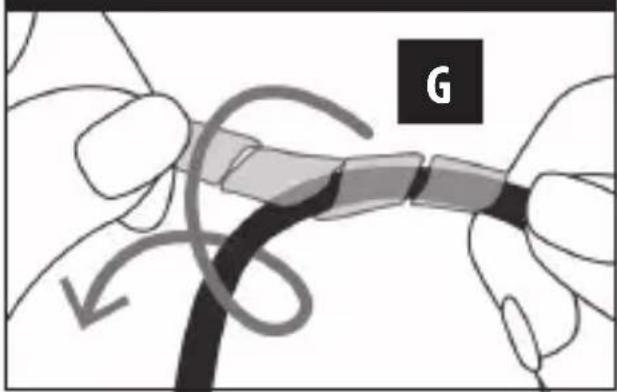

• If necessary apply the cable protector (G) (ideal use is tanks with urchins, triggers, puffers and/or parrot fish) as shown (3), protecting the submerged part of the cable. If the cable protector is too short, you can apply more then 1.

• Immerse the pump completely and turn it in a vertical position in order to allow any air to come out of the impeller chamber.

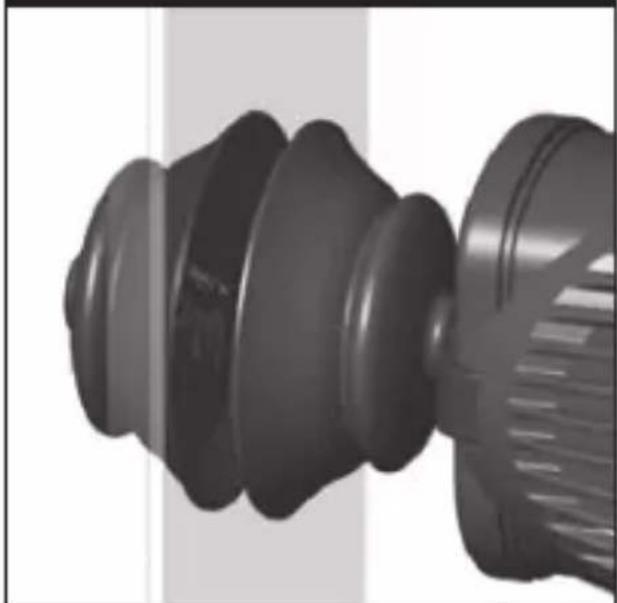

• Attach the pump with the internal part of the suction cup + magnet support to the aquarium side as desired (4) remember to clean the surface before attaching the support).

• Direct the water flow as desired.

• Connect to electrical supply. GUARANTEE This product, all its parts and accessories are covered by warranty within the limits provided for in this paragraph and the legal regulations currently in force. The guarantee only covers manufacturing defects and includes the repair or replacement of the product free of charge. The guarantee does not cover damage and/or defects caused by carelessness, wear, unsuitable usage not complying with the instructions and warnings in this manual, accidents, tampering, incorrect use, bad repair work or purchases not accompanied by a fiscal receipt.11Italiano
